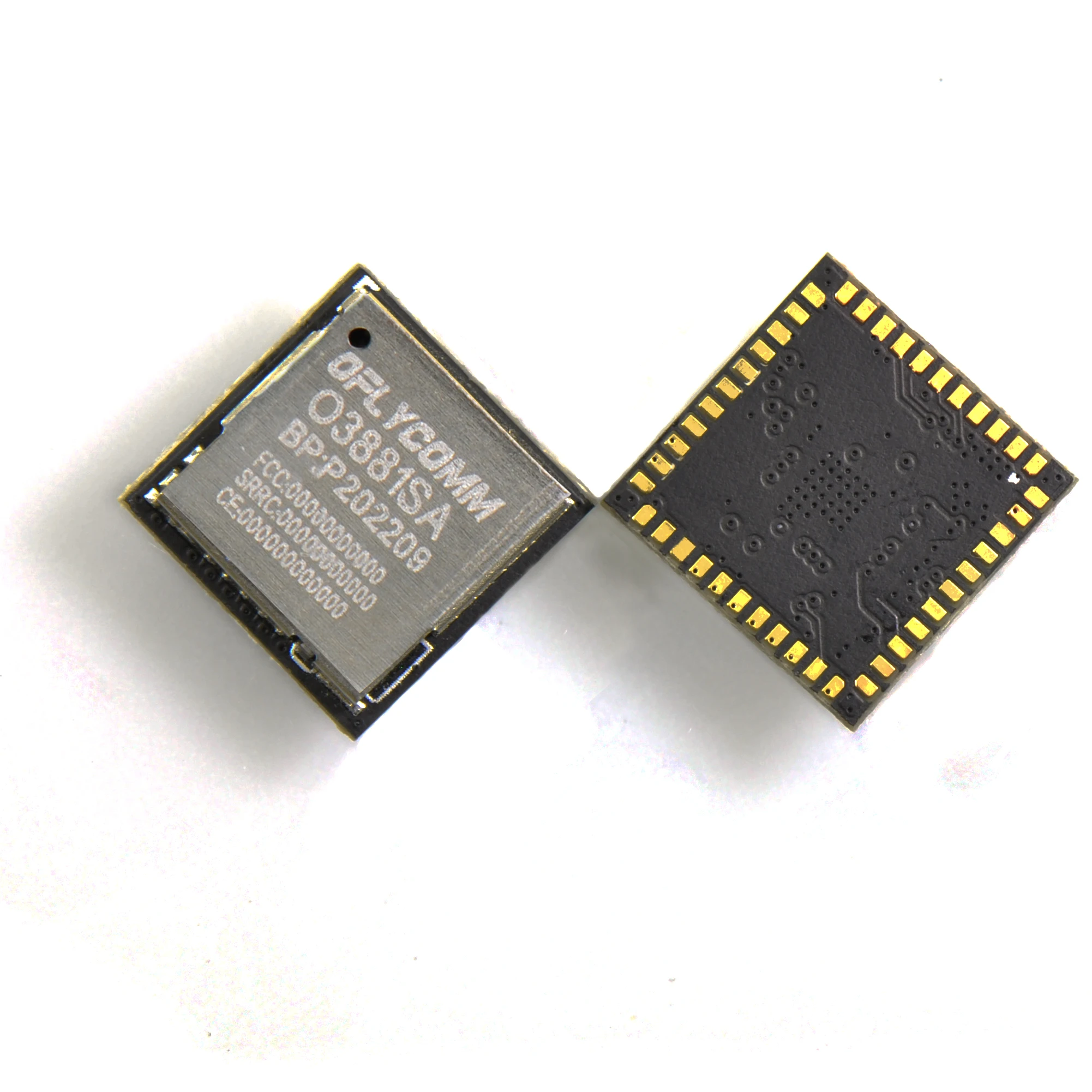

Wholesale OFLYCOMM O3881S 2.4g wireless audio module sdio2.0 HI3881 wireless wifi module
- Category: >>>
- Supplier: Shenzhen Ofeixin Technology Limited
Share on (1600814768342):
Product Overview
Description
Model Number | O3881SA |
Brand Name | OFLYCOMM |
Supplier Type | Factory |
Application | Tablet/IPTV/OTT/NVR/IPC/DVR/Speaker/POS/Projector |
Main Chipse | HI3881 |
Host Interface Type | SDIO2.0 |
Operating Frequency | 2.4GHz |
Security | WEP,TKIP,AES,WPA,WPA2 |
OS Support | Android /Linux/Windows |
Date Rates | 72.2Mbps |
WIFI Standard | IEEE802.11b/g/n |
Dimension | L x W x H: 12 x 12 x 2.3mm |
Power Supply | 3.3V |
Customizable | Accept |
Product Description
【O3881SA is a highly integrated 2.4GHz Wi-Fi module that supports IEEE802.11b/g/n and RF circuits. It supports 20MHz standard bandwidth and 5MHz/10MHz narrow bandwidth, and supports 72.2Mbit/S physical layer rate.
【The Wi-Fi baseband supports Orthogonal Frequency Division Multiplexing (OFDM) technology, and is backward compatible with Direct Sequence Spread Spectrum (DSSS) and Complementary Code Keying (CCK) technologies, and supports various protocols data rate defined in the IEEE 802.11b/g/n protocol.
【The Wi-Fi baseband supports Orthogonal Frequency Division Multiplexing (OFDM) technology, and is backward compatible with Direct Sequence Spread Spectrum (DSSS) and Complementary Code Keying (CCK) technologies, and supports various protocols data rate defined in the IEEE 802.11b/g/n protocol.

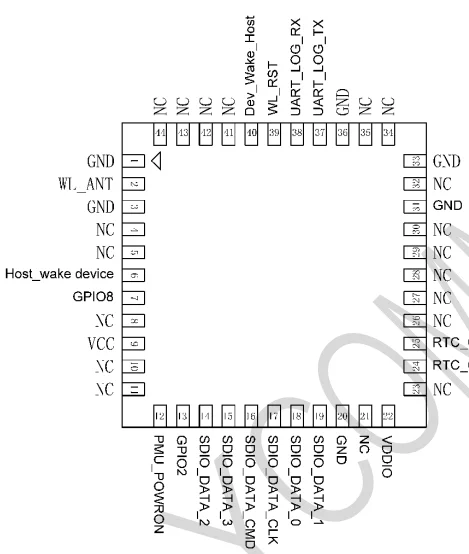

Pin Outline

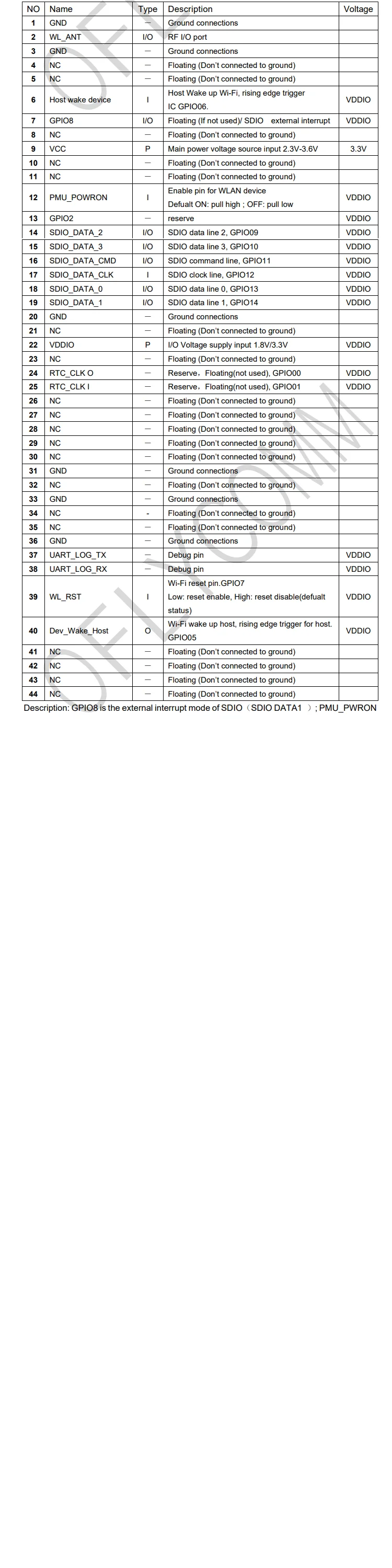

Pin Definition

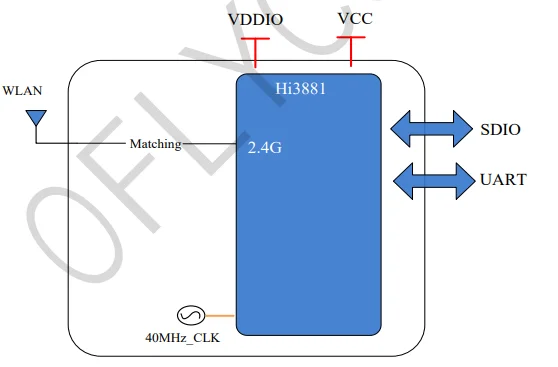

Block Diagram

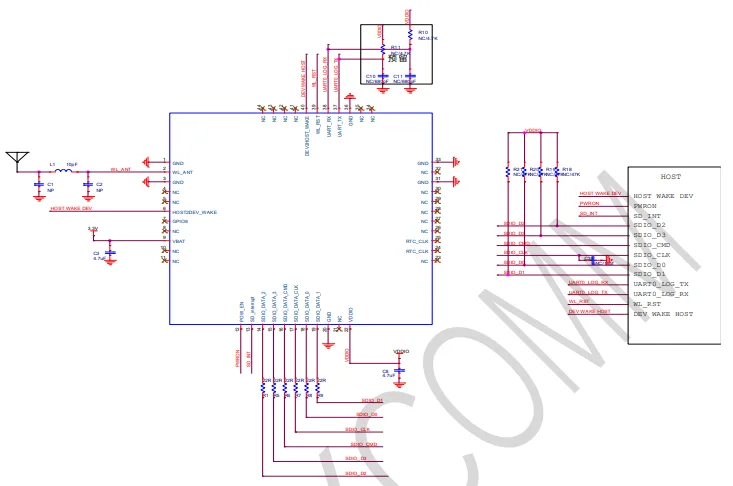

Reference Design
