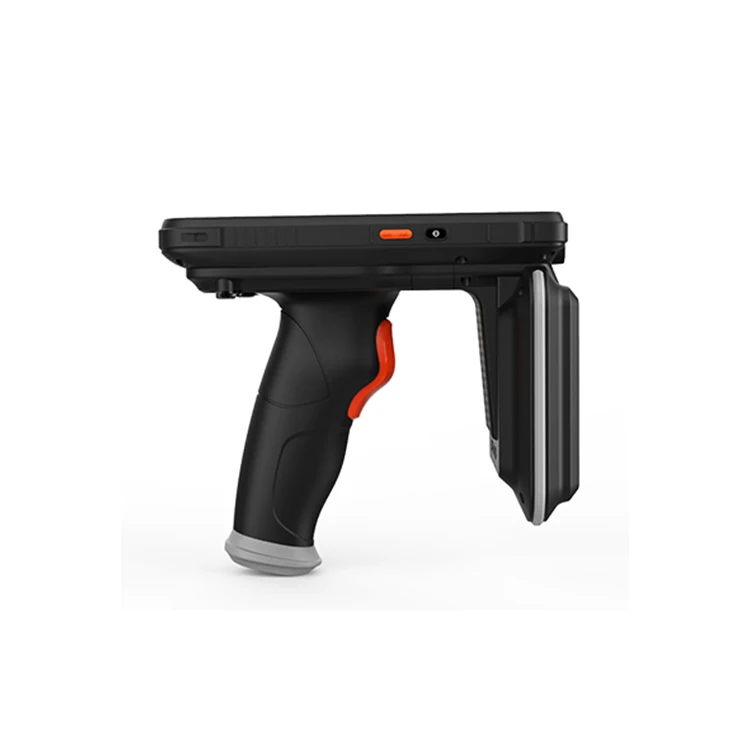

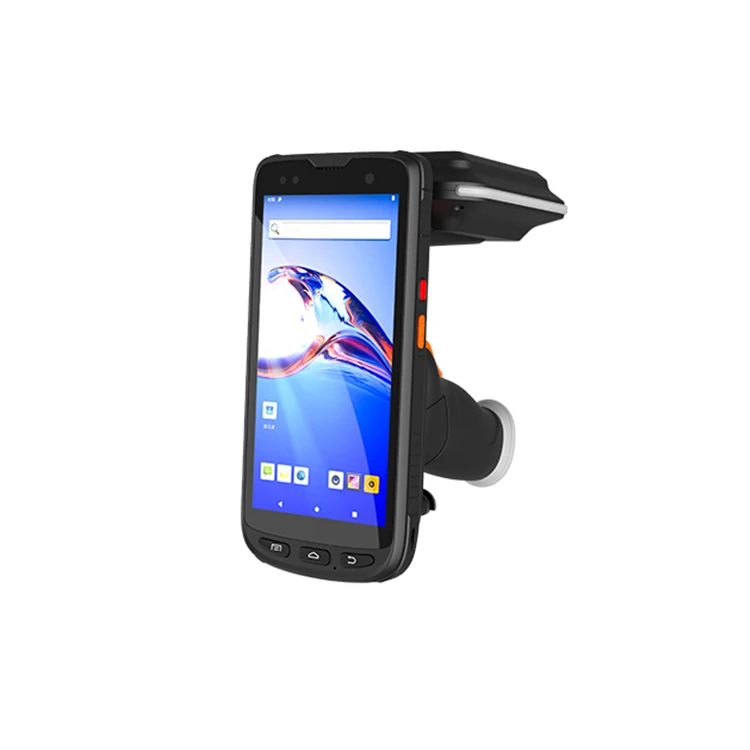

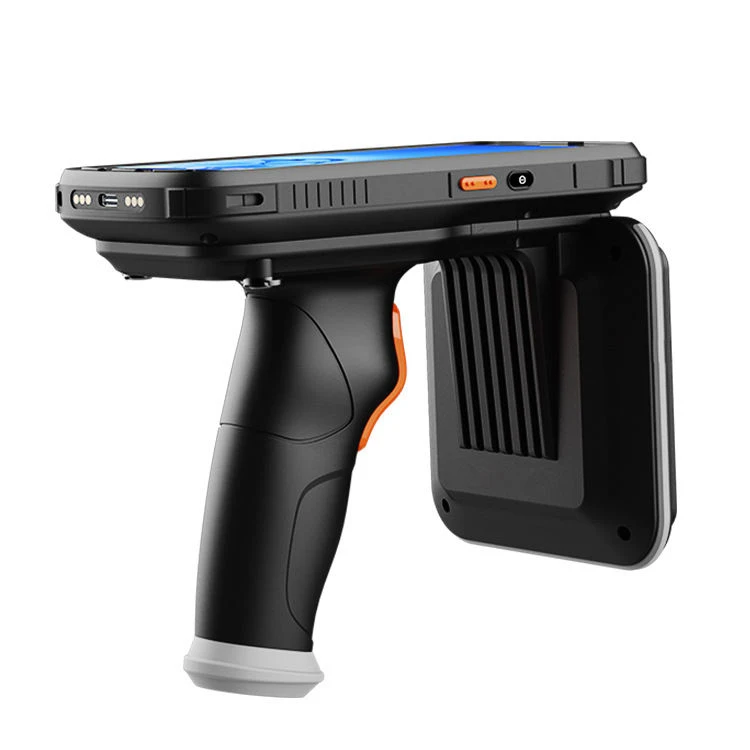

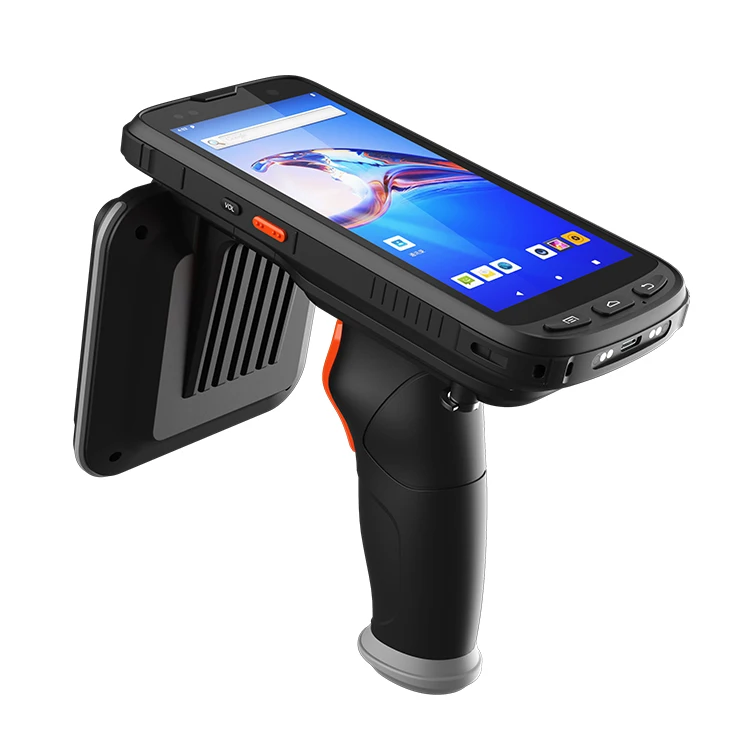

Silion RFID Handheld Mobile PDA Device Long Distance 9000mAh Battery Built In Antenna UHF RFID Handheld Reader
- Category: >>>
- Supplier: Shenzhen Silion Technology Co. Ltd.
Share on (1600814814935):
Product Overview
Description
Product Description
Product Paramenters
Warranty:
1. 13months warranty;2. Free SDK and technical support;
3. Available API document;
4. Warranty Service will be provided if the damage is not caused by man-made.
3. Available API document;
4. Warranty Service will be provided if the damage is not caused by man-made.
Model Name | SL-B608 | |||
CPU | Cortex A73 2.0GHz octa-core | |||
OS | Android 10.0 | |||
RAM | 2GB/4GB | |||
ROM | 16GB/64GB | |||
Camera | Rear 13MP AF, high light LED flash, Front 5MP camera | |||
Screen | Gorilla Glass 3 9H 5.5 in. TFT-LCD (720x1440) touch screen with backlight | |||
Dimension | 166×79×31±2mm（grip length about 110mm） | |||
Weight（with battery） | 650g | |||
Battery capacity | 3.8V 9000mAh Li-ion battery, removeable and rechargeable | |||
Charging | PE fast charge，full charged time<2 hours | |||
Blue tooth | BT4.2 BLE | |||
Wi-Fi | IEEE 802.11 a/b/g/n/ac 2.4G 5G dual frequency | |||
WWLAN | TDD-LTE Band B38, B39, B40, B41 FDD-LTE Band B1, B2, B3, B4, B7, B17, B20 WCDMA (850/1900/2100) GSM/GPRS/Edge (850/900/1800/1900) | |||
GPS | GPS (embedded A-GPS), accuracy of 5 m | |||
Extension | Micro SD (TF) card slot up to 256GB | |||
External interface | USB-Type C, other slots: 1 PSAM, 1 SIM, 1 TF | |||
Keypad | volume button, power button, grip button, function button, home button, return button | |||
Notification | Sound, Vibration, LED prompt | |||
Working temperature | -20℃ ~ +50℃ | |||
Storage temperature | -20℃ ~ +70℃ | |||
Working humidity | 5%RH to 95%RH (non-condensing) | |||
IP class | IP65 | |||
Drop & Tumble | 6 sides multiple drop from the height of 1 meter to the concrete floor | |||
ESD | ±15kV air discharge，±8kV contact discharge | |||
Certificates | CCC、CE, GMS | |||
Accessories | 1x Power Supply; 1x Lithium Polymer Battery；1xType-C cable | |||

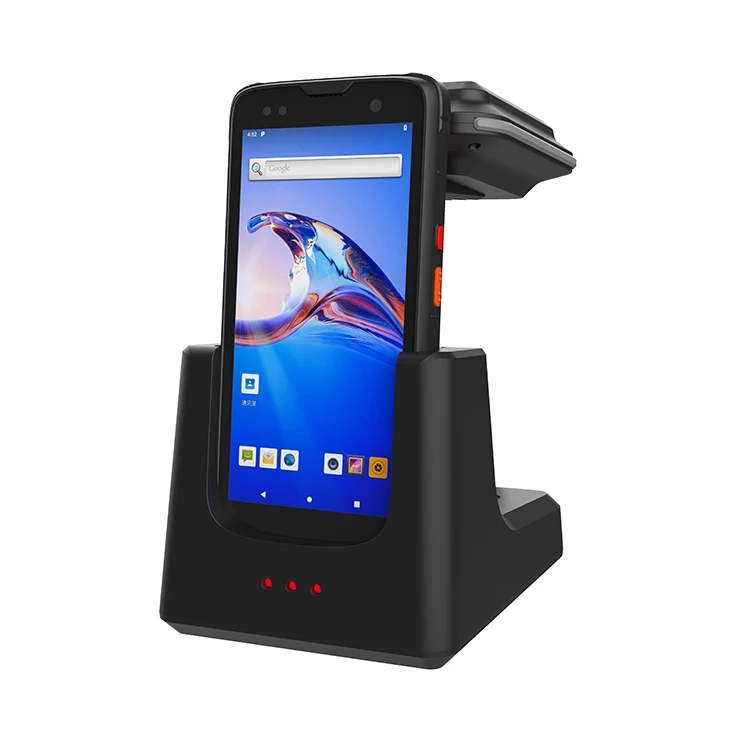

Optional | Cradle/dock station | |||
Function options | ||||
RFID （HF） | 13.56MHz, ISO14443A/B，ISO15693，NFC-IP1, NFC-IP2 NFC Reading distance：0~8cm | |||
RFID （UHF） | Protocol standard: EPC G2/ISO 18000-6C; Working frequency: 915MHz、865MHz （865-868MHz or 902-928MHz） Antenna parameters: Circular antenna(3dBi) Power: working voltage 3.6V-5V, RF output 5dBm to 33dbm Standby power consumption is about 0.25W, maximum 7.5W (typical 7W); Reading distance: 0-20m (depends on environment and tag) Multi-tags read rate > 200 tags per second | |||
Barcode scanning Support code system | Zebra SE4710/ Mindeo ME5600/ Others | |||
PDF417, MicroPDF417, Composite, RSS, TLC-39, D a t a m a t r ix, Q R c o d e, Micro QR code, Aztec, Maxi Code, P o s t a l C o d e s , U S PostNet, US Planet, UK Postal, Australian P o s t a l , J a p a n P o s t a l, Dutch Postal. Etc. | ||||
Recommend Products
Company Introduction
Application Fields
Certifications
FAQ
1. Are you manufacturer?
Yes, Silionis one of the pioneering manufacturer focusing on UHF RFID hardware design and manufacture since from 2005.
2. What are your mainly products?
Our products mainly include UHF RFID reader, UHF RFID tag, UHF RFID module R2000 series, UHF RFID module E710 series and RFID
antennas.
3. What is your advantage?
We have served many customers in many application fields, with a wide and rich experience.
we have strong technical team for technical support.
We often provide customized service for special needs.
We have hundreds of UHF RFID modules, the most complete.
4. How to place order to Silion?
You can place order to us through Alibaba trade assurance order online or you can contact our sales for other ways.
We also can accept payment by TT, West Union, credit card or PayPal and other payment methods.
5. How to be your partner or distributor?
Pls contact our oversea sales team for details: sales@silion.com.cn
6. What is the MOQ?
We don’t have MOQ limit, you can buy one sample for testing.
7. Do you have test evaluation board?
Yes, our test evaluation board, also named as DEVKIT, develop kit, which supports all Silion’s UHF RFID module’s testing.
8. Do you have certifications?
Yes, Silion products have applied FCC, CE, SRRC, RoHS and other related certifications.
9. What’s your lead time?
For small orders, we normally have goods in stock, delivery time is very fast, around 2-3 working days after order confirmed; If need to produce, it depends on quantity, pls feel free to contact us to know more.
10. Are you Impinj Gold Partner?
Yes, as our main products are based on Impinj R2000, new E710, E510 and E310, we are authorized by Impinj as Gold partner long time ago.
11. Do you provide after sale service?
Yes, Silion has a professional technical support team, with rich experience in developing and application, we provide full services as customers need. For detailed technical documents, you can directly download from our website, and if any problems, you can feel free to contact us, we can support you by email, voice talk, or fly to your country to support (to be discussed).
