4.5KW 380V 300hz 18000rpm er32 square air cooled cnc spindle motor 18000 rpm air cooling 4.5 kw spindle motor
- Category: >>>
- Supplier: Changzhou Begist Electric Co. Ltd.
Share on (1600814826751):
Product Overview
Description
Product Description

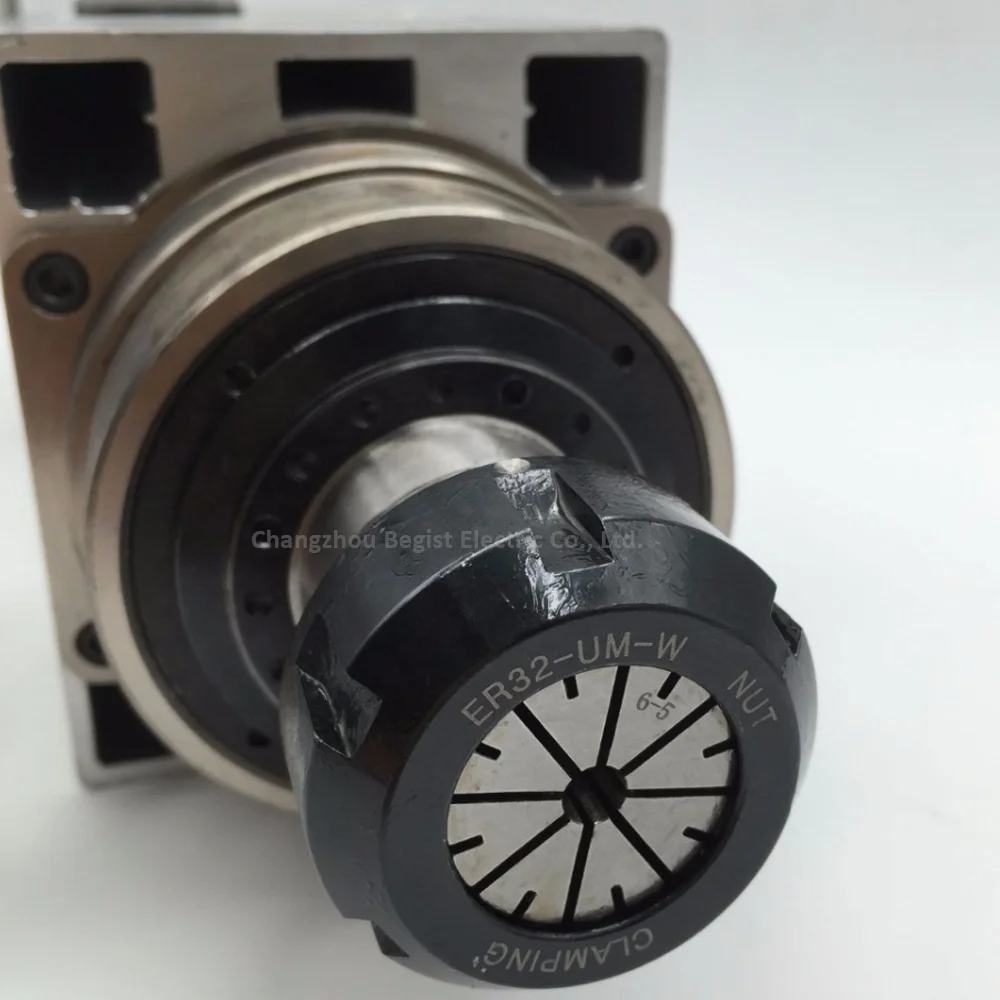

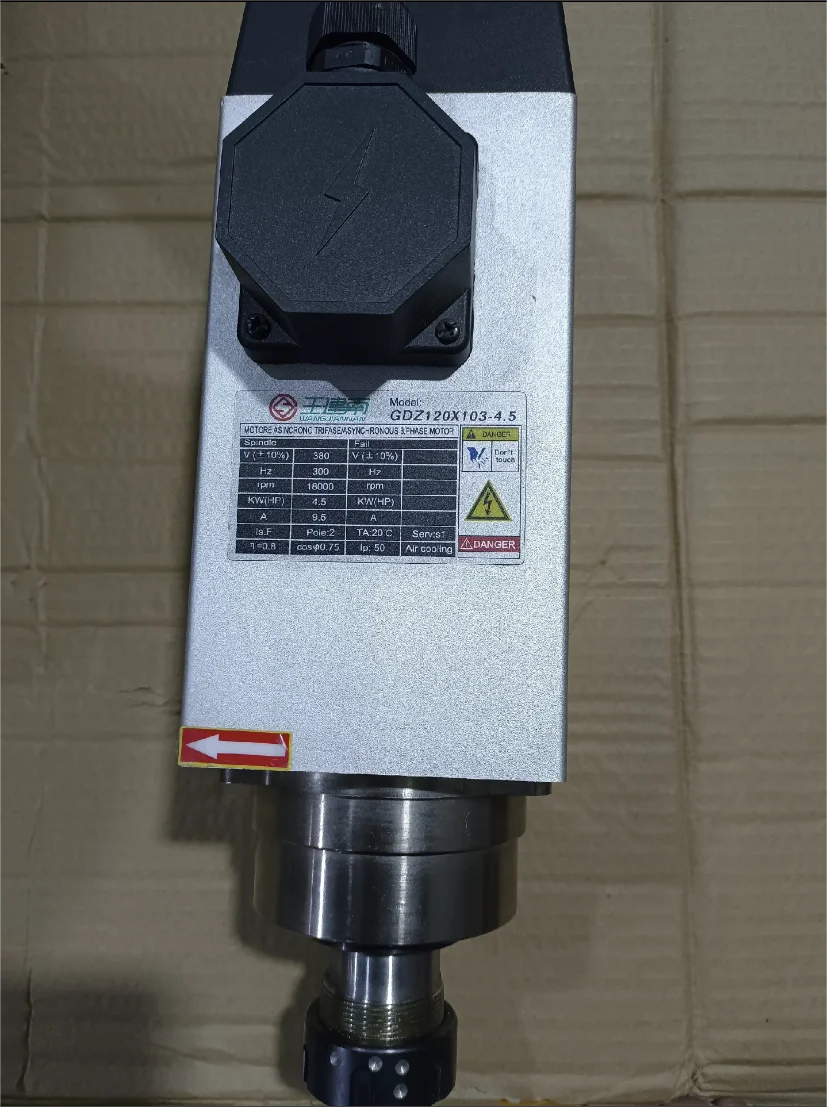

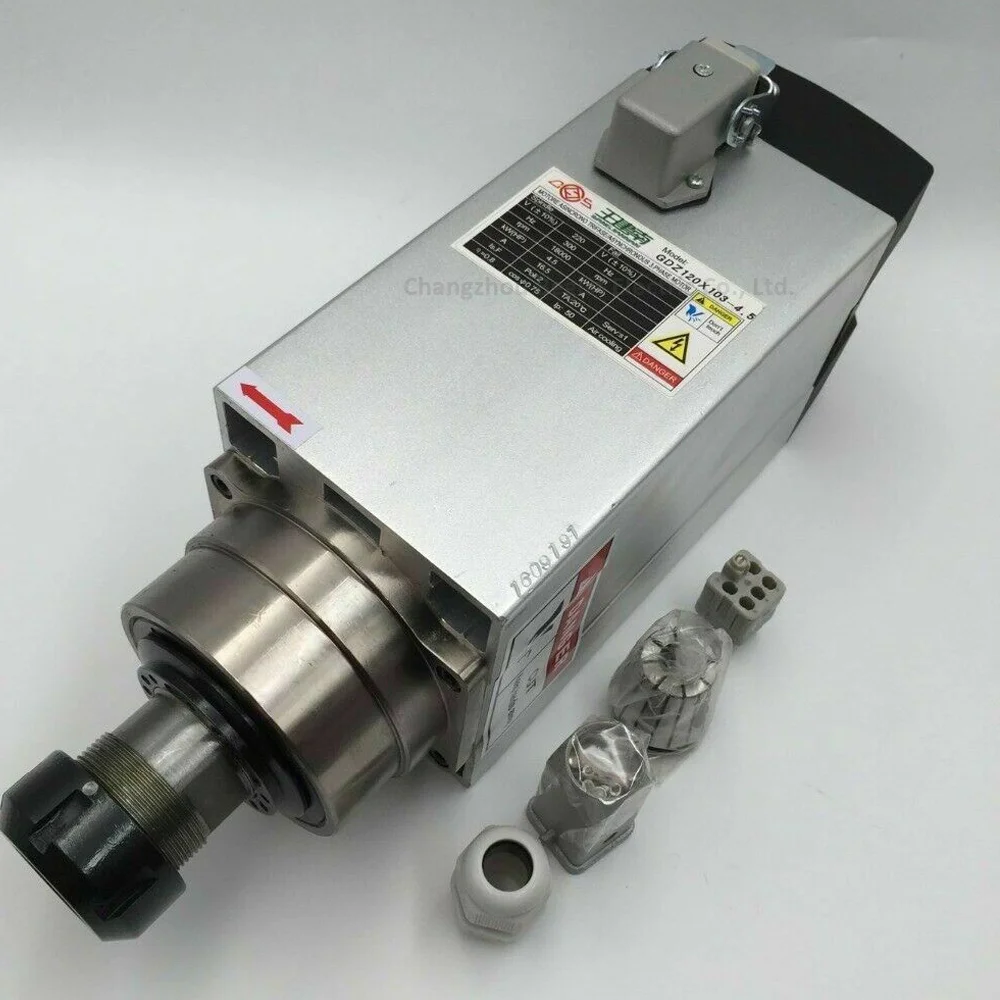

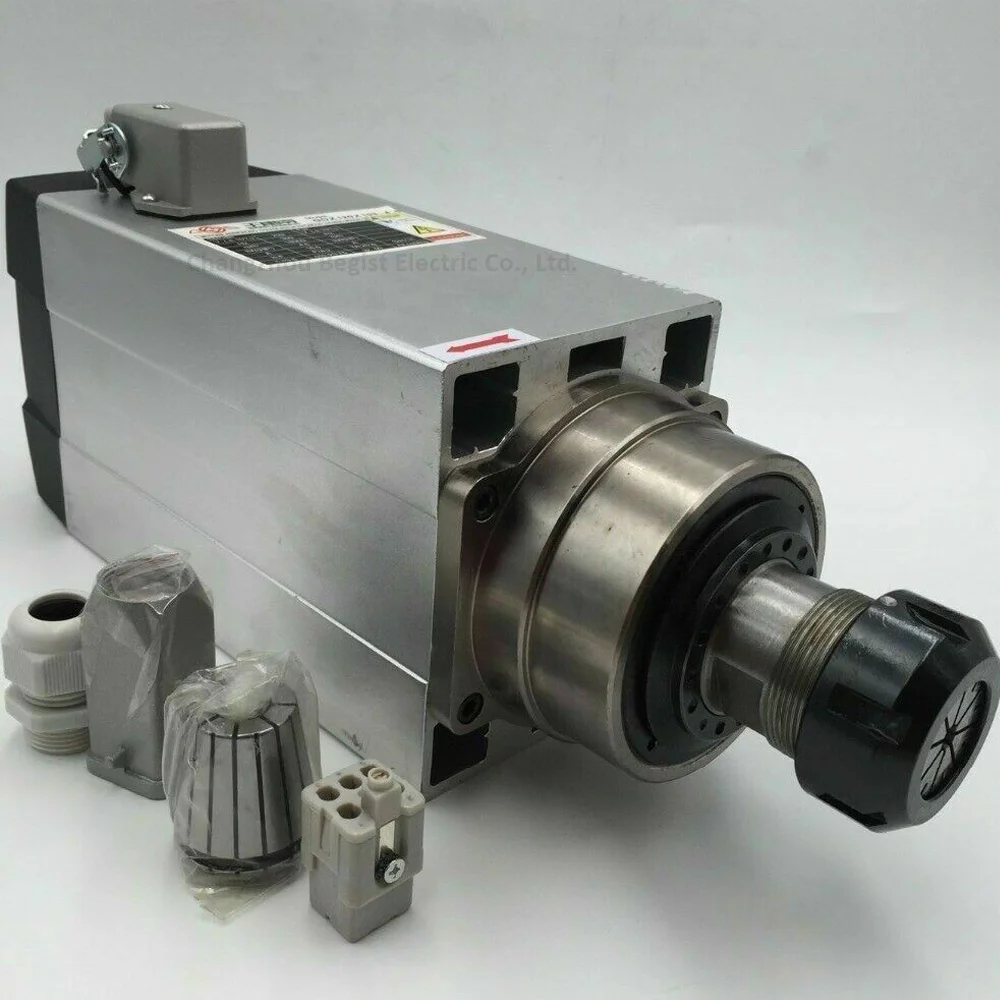

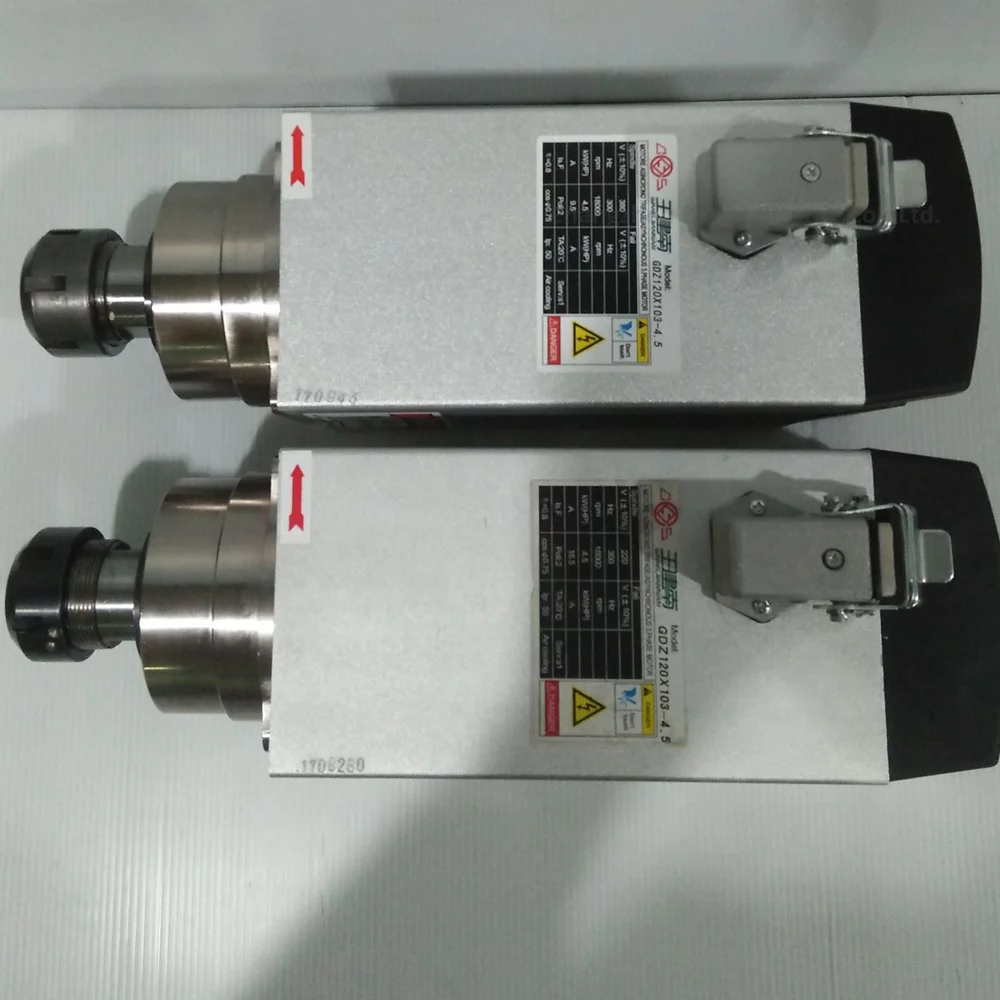

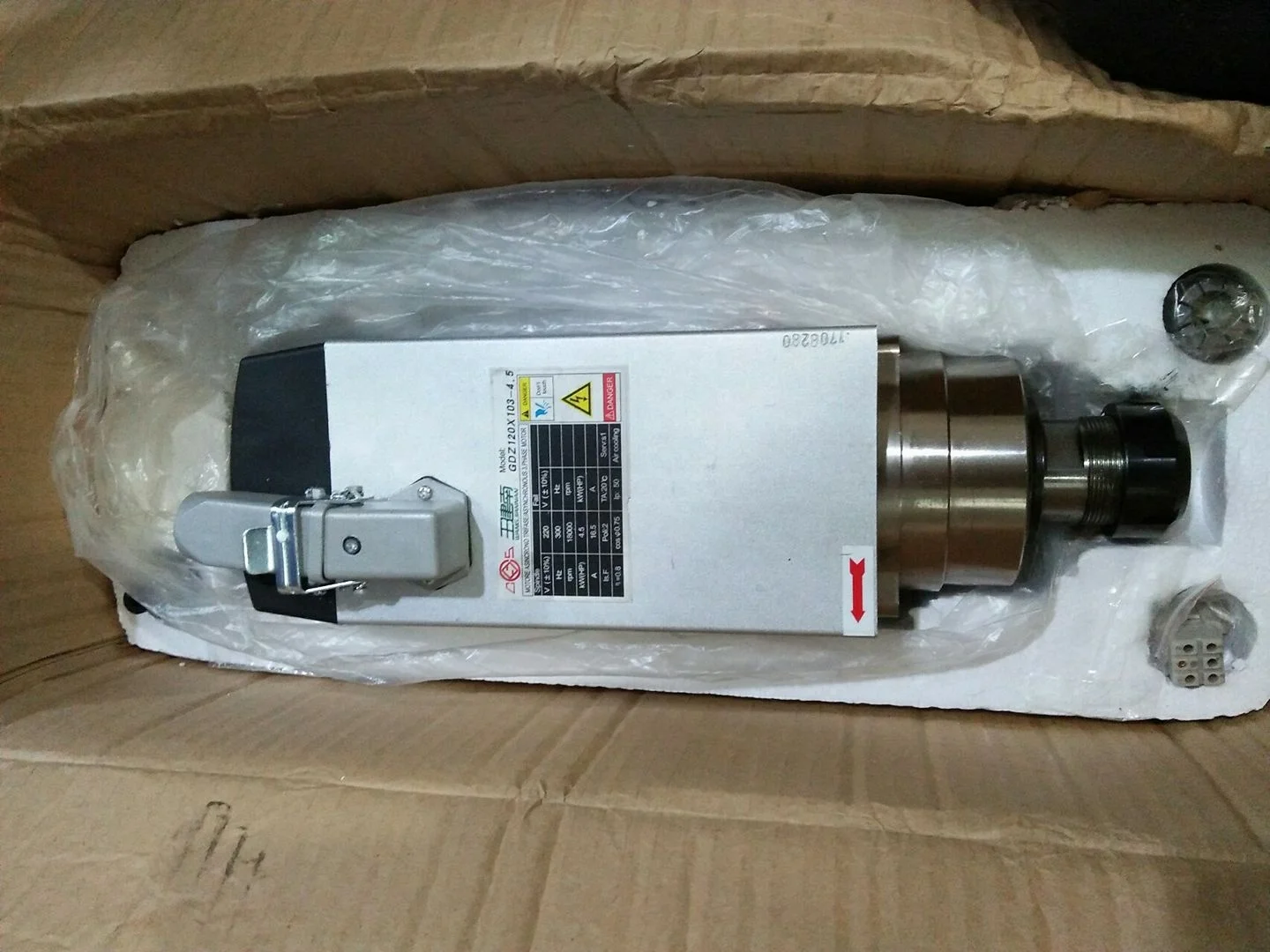

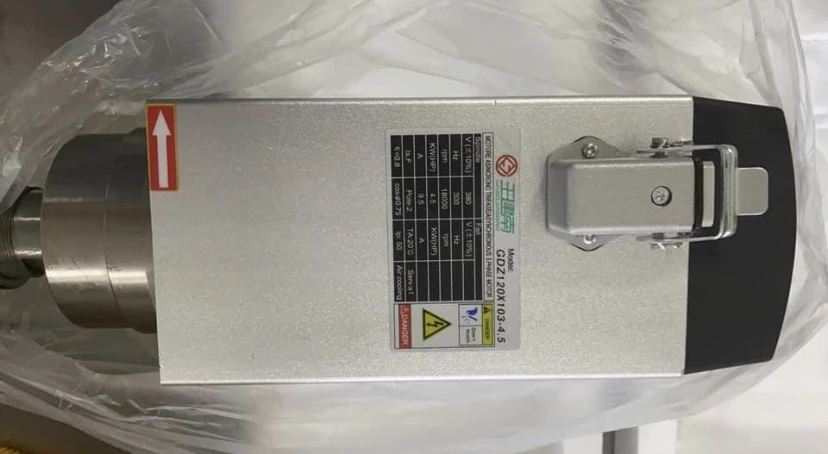

GDZ120*103-4.5 Air Cooling Spindle Motor
Main application: Carving wood, bamboo, ordinary PCB, PVC, PMMA, plastic, two-color board (ABS) and other non-metals, and also can carve soft metal surfaces such as gold, silver, copper, aluminum, and lead. (Please note that this is a woodworking spindle, which can only be used for woodworking and aluminumwork, not for steelwork. If you need steelwork, please contact me metal spindle, thank you!)

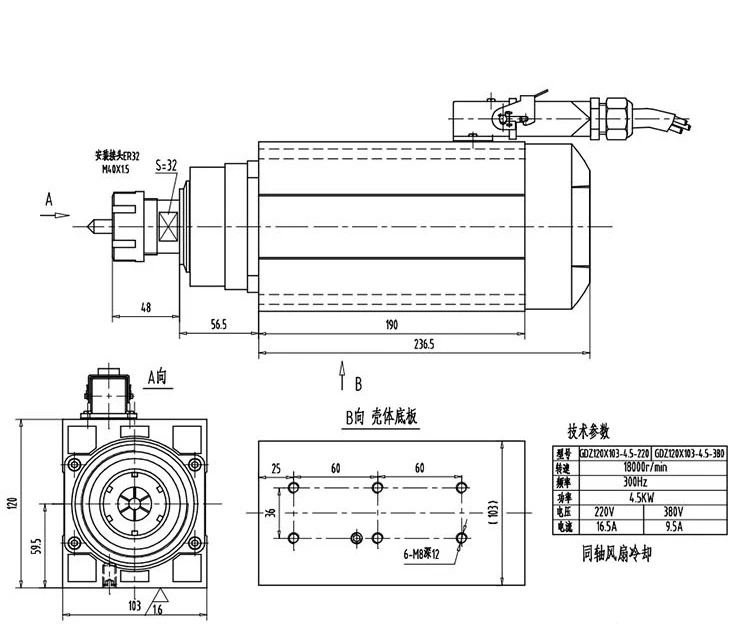

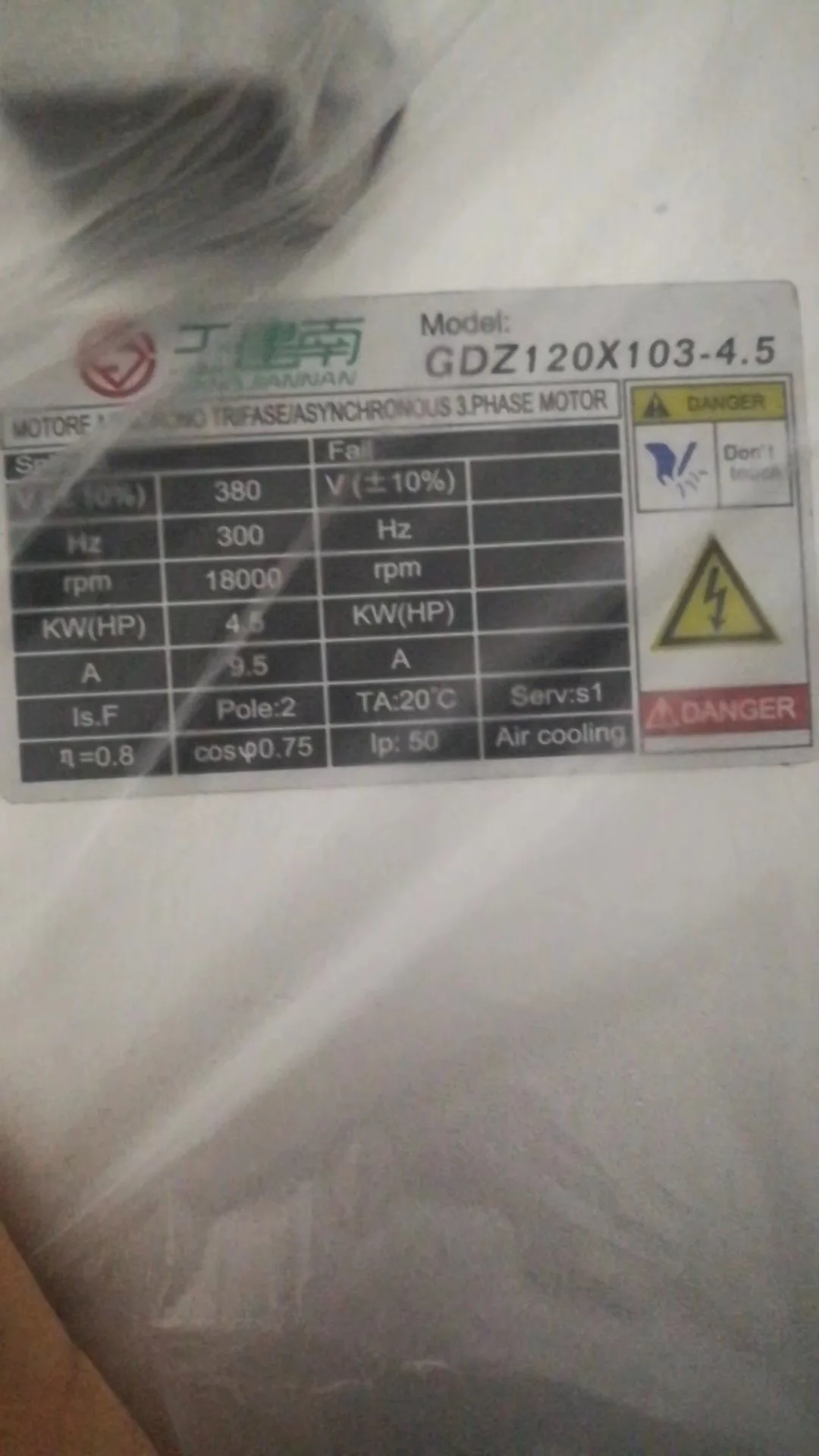

Model | Power | Voltage | Specification | Speed | Frequency | Collect | Bearings type |
GDZ120*103-4.5 | 4.5kw | 220v/380V | 120*103mm | 18000RPM | 300HZ | ER32 | 7008*2+7004*2 |

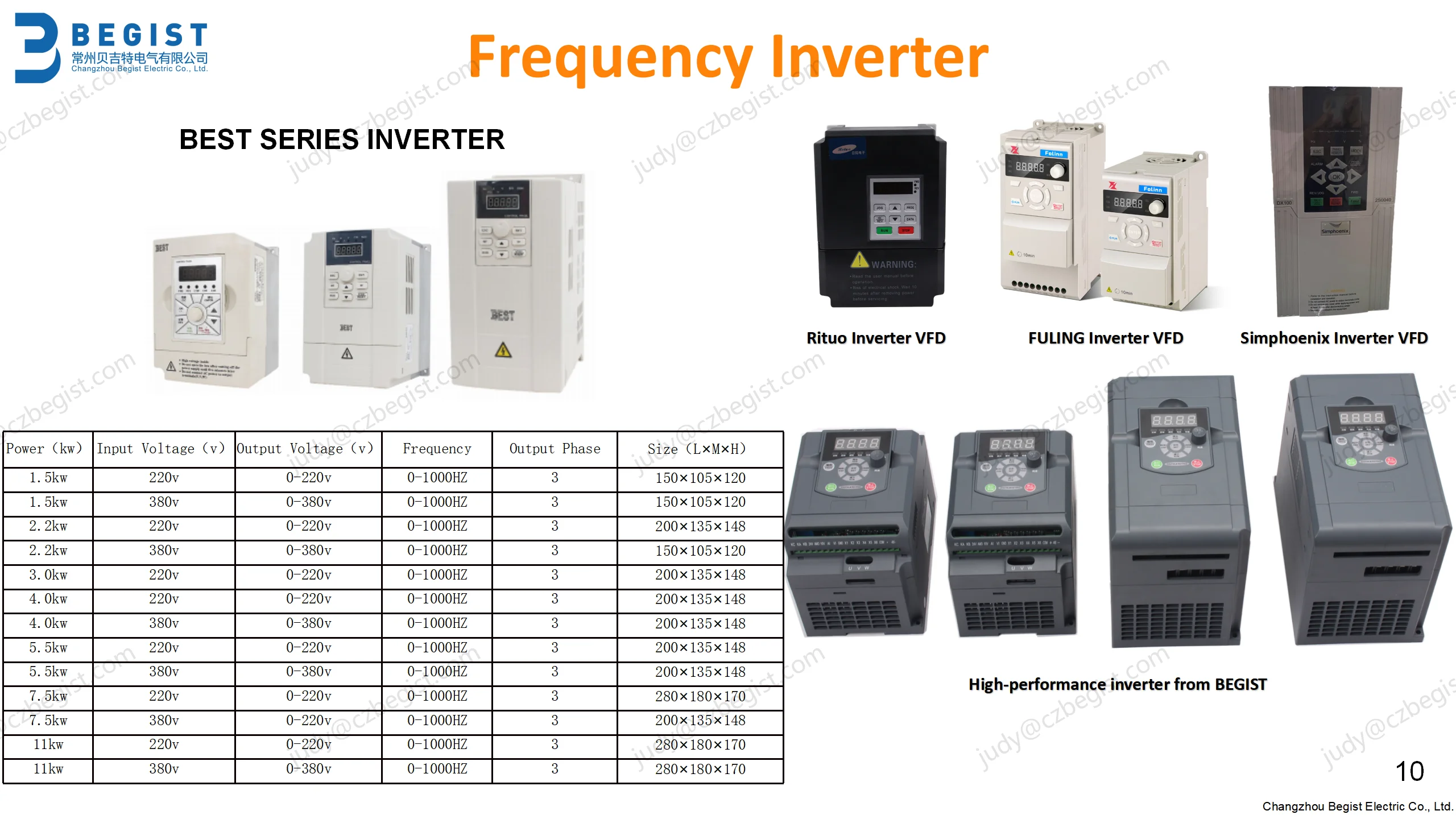

If you also need 5.5kw inverter and ER32 Chuck Collet kits, we also have. Please feel free to contact me.
Related Products

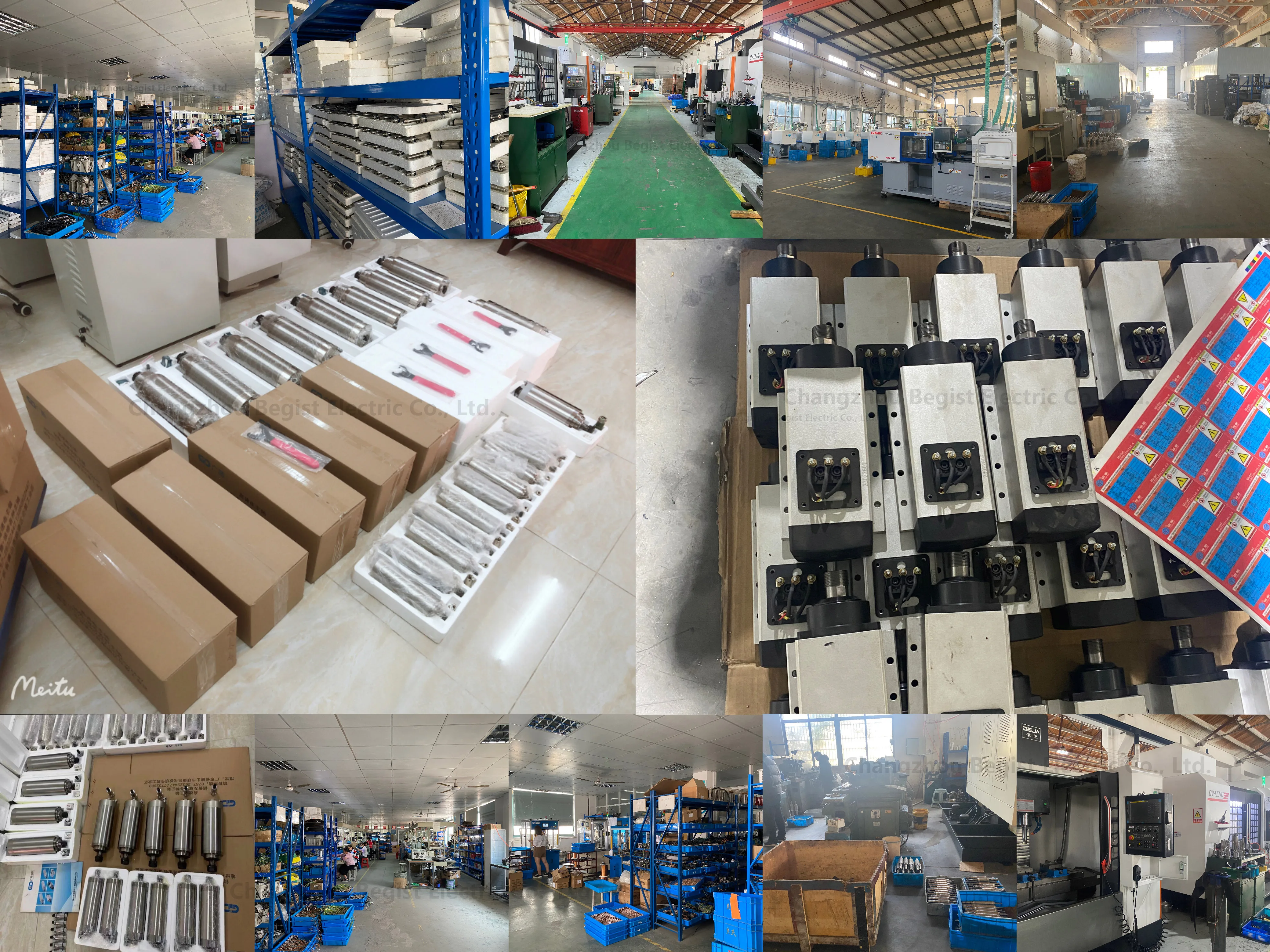

Company Profile

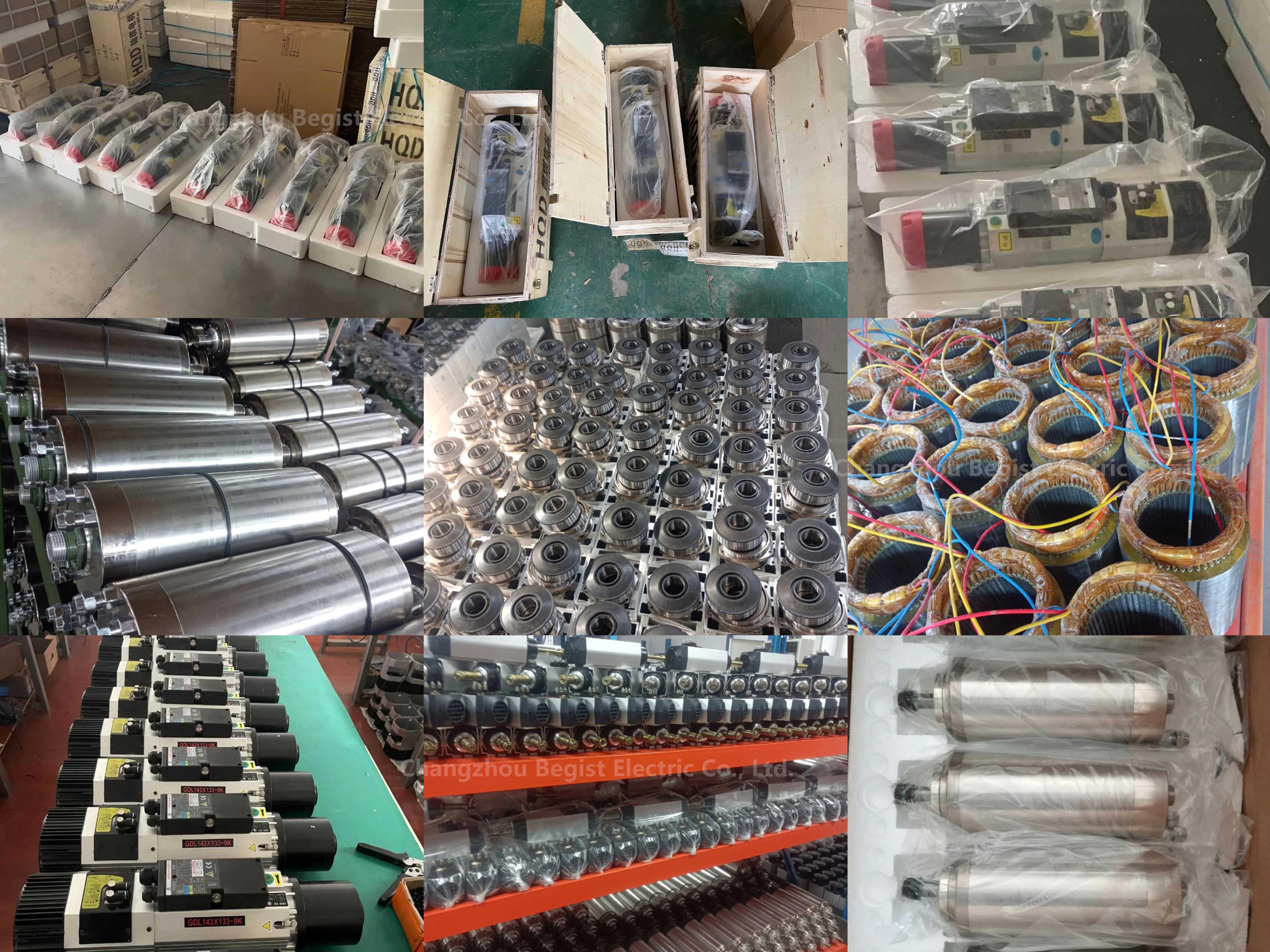

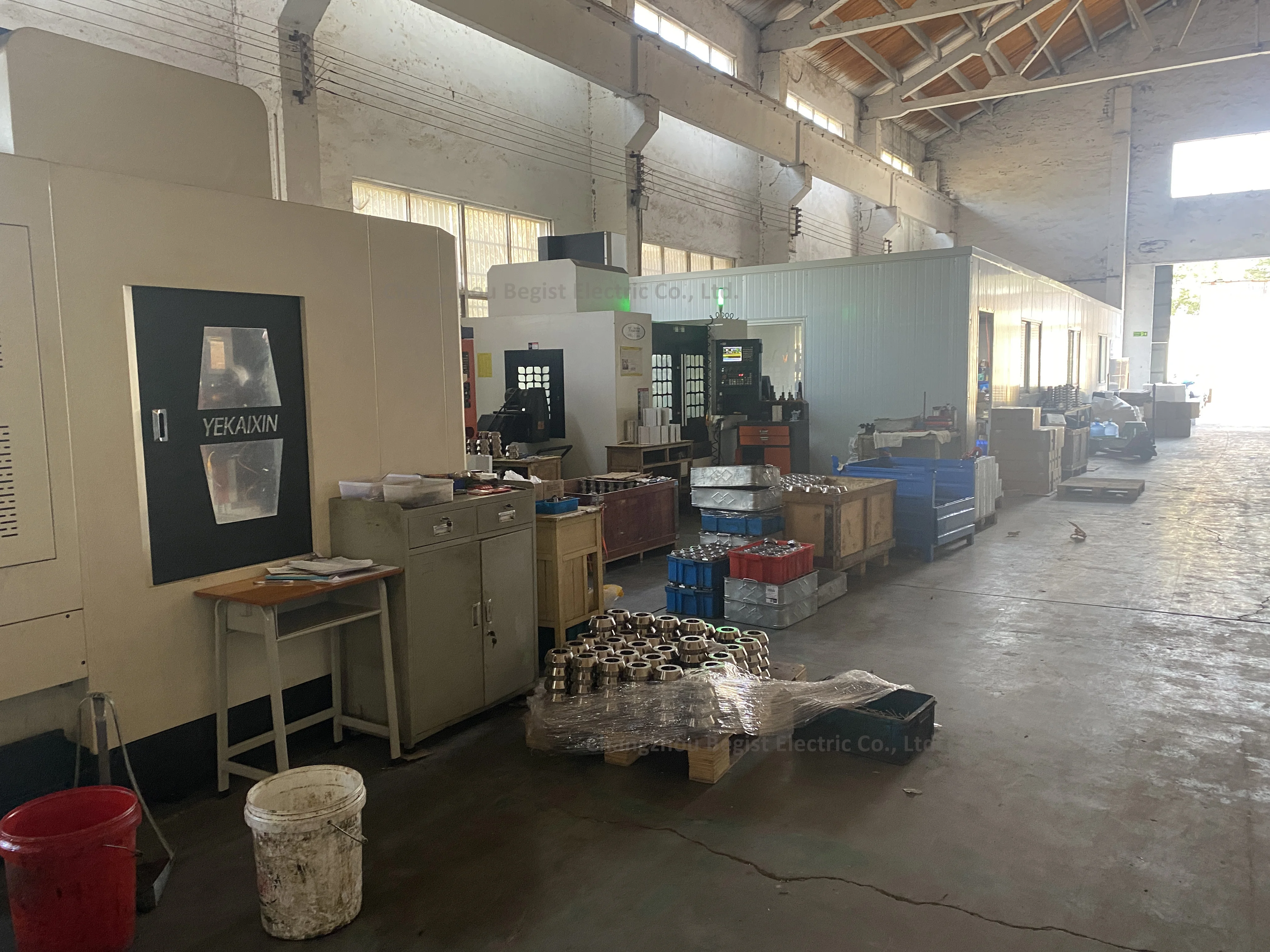

Changzhou Begist Electric Co., Ltd. was established on 2010.We have more than 12 years experience of producing and exporting motors to more than 50 countries.

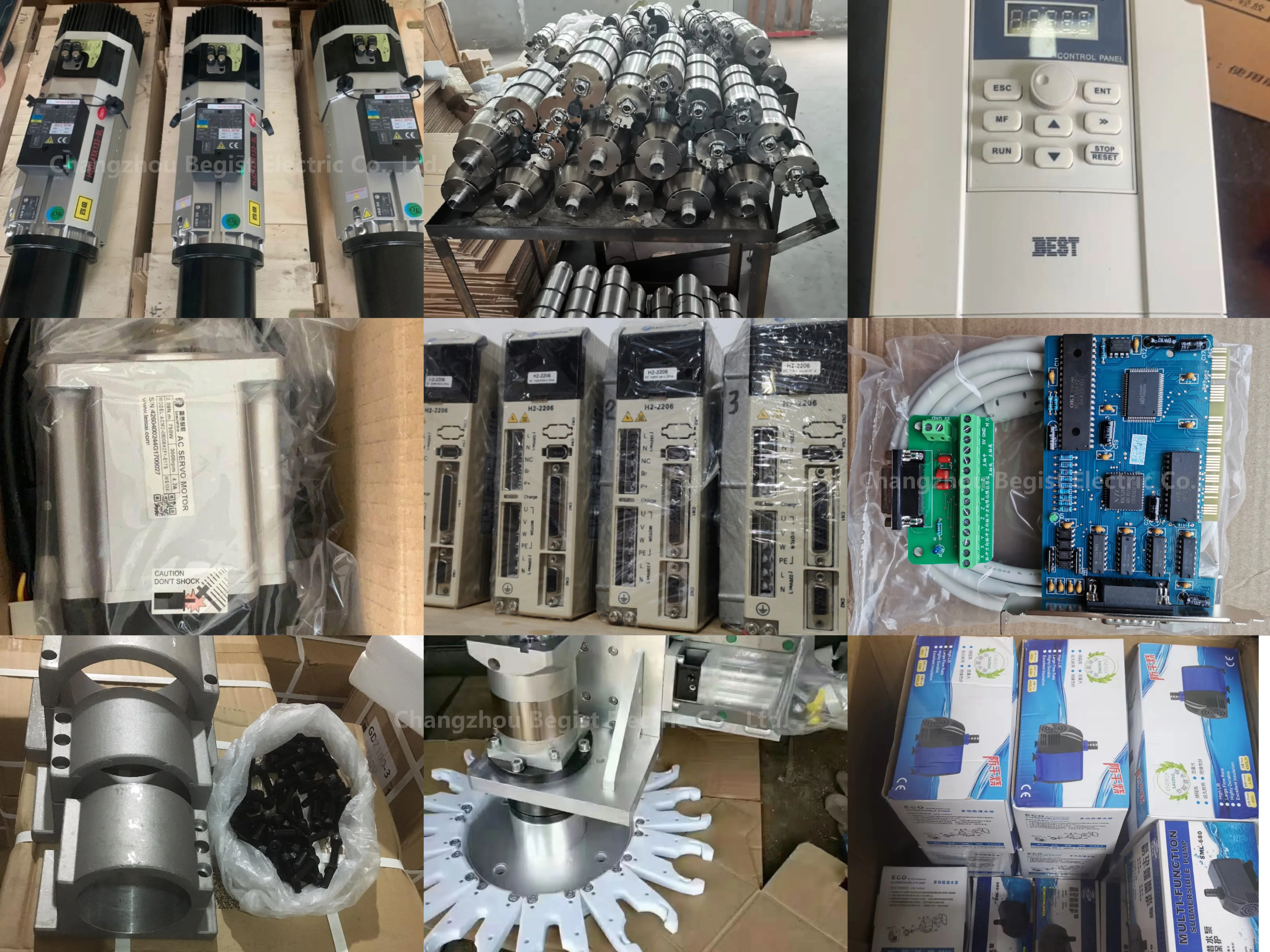

The mainly products we have:

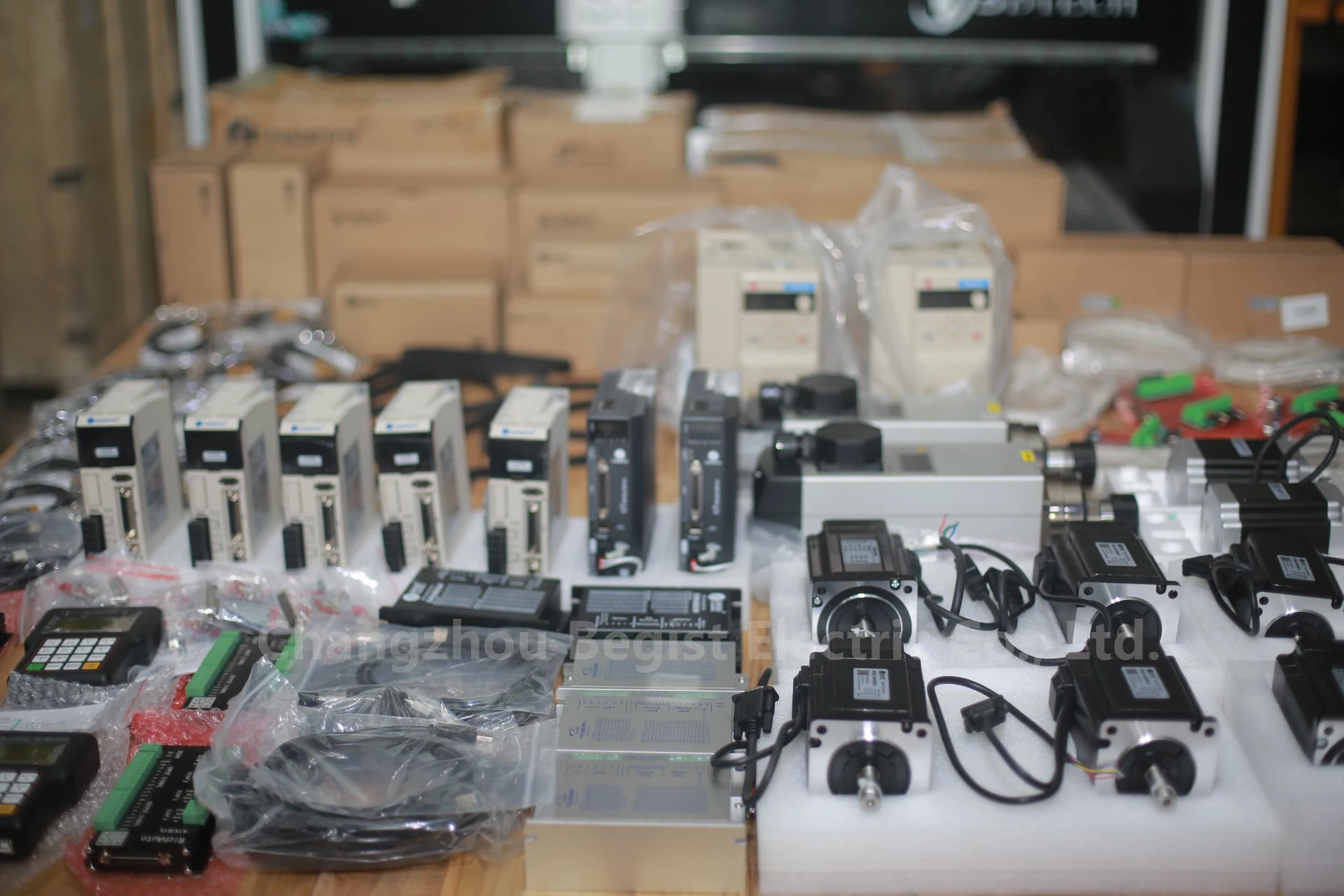

1,Spindle motors(Water cooled / Air cooled / ATC) as well as VFD / Water pump / Holder bracket / Collets.
2,Stepper Motors and Stepper drivers
3,Servo Motors and Servo drivers
4,Other CNC router machines accessories/CNC components
The mainly products we have:
1,Spindle motors(Water cooled / Air cooled / ATC) as well as VFD / Water pump / Holder bracket / Collets.
2,Stepper Motors and Stepper drivers
3,Servo Motors and Servo drivers
4,Other CNC router machines accessories/CNC components
Customer Feedback
Certifications
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 3 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.why should you buy from us not from other suppliers?
A:BEGIST is professional CNC router parts wholesaler , experience more than 13 years We not only produce CNC parts also selling other famous brand CNC parts.
Just tell your needing, we will help you buy with factory price and quality.
6.Q:The spindle has been running for a period of time and the temperature is very high. Is it normal? What is the working environment temperature range?
A:Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c
7.Q:Continuous working time?
A:If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.
8.Q:Abnormal sound?
A:If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.
9.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 3 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.why should you buy from us not from other suppliers?
A:BEGIST is professional CNC router parts wholesaler , experience more than 13 years We not only produce CNC parts also selling other famous brand CNC parts.
Just tell your needing, we will help you buy with factory price and quality.
6.Q:The spindle has been running for a period of time and the temperature is very high. Is it normal? What is the working environment temperature range?
A:Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c
7.Q:Continuous working time?
A:If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.
8.Q:Abnormal sound?
A:If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.
9.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
