3 Phase AC Permanent magnet 12 M/s 20KW Vertical Wind Turbine Factory Price Wind Turbine Generator for Farm CE Wind Power System
- Category: >>>
- Supplier: Shenzhen Zhibinengda Technology Co. Ltd.
Share on (1600814844501):
Product Overview
Description
Details Images
Specification
Rated power | 20KW/ 20000W | Blade material | FRP strengthened |
Wind rotor diameter(m) | 10 m | Woking voltage(v） | 360V-480V |
Blade quantity | 3 | Generator style | PM, three phase, AC |
Start-up wind speed(m/s) | 3 m/s | Speed regulation method | Electromagnetic brake+yawing |
Working wind speed(m/s) | 3.0-20 m/s | Stop method | Electromagnetic brake+manual |
Survived wind speed(m/s) | 35 m/s | Wind turbine main bodyweigt(kg) | 1150KG |
Start torque(n/m) | 13 n/m | Zipper under the weight(kg) | |
Rated wind speed(m/s) | 12 m/s | Independent under the weight(kg) | 3200kg/18m |
Max power(w) | 30KW | Conteoller model | 500V200A |
Rated rotate speed(rpm) | 150 | Battery specifications | 12V200AH*2 |
Products Description

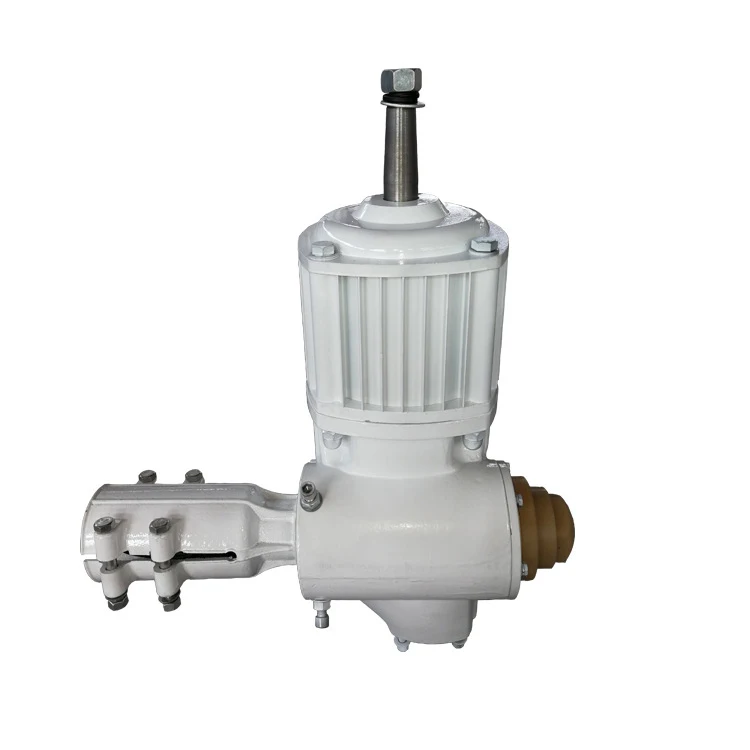

1. Main Body 2. Upper Flange 3. Pole 4. Shaft 5. Hub 6. Blades 7. Shaft Screw 8. Dome 9. Flange Screws 10. Flat Washer 11. Elastic Washer 12. Nut 13. Blades Screws 14. Anti-slack Nut
Installation Instruction
1. The double hole of the wind wheel plate is installed in the double hole groove of the wind wheel hub, the groove on the wind blade is downward, and the stainless steel flange screw is penetrated into the hole from the front.
3. Install the 4 flange bolts with flat washers and insert them into the corresponding holes of the wind turbine flange seat from top to bottom.
3. Install the 4 flange bolts with flat washers and insert them into the corresponding holes of the wind turbine flange seat from top to bottom.
2. * Tighten anti-loosening nuts with wrench (3 pairs, 6 PCS)
4. Connect the 3 leads of the fan to the transmission line respectively, wrap the connection with tape, pass through the steel pipe from the tower flange, and lead out from the other end of the steel pipe.
5. Install the flange seat on the tower, cover the flat washer and elastic washer, and then tighten the nut.
7. The three notches of the diversion hood are positioned on the wind wheel plate and fastened on the wheel hub.
6. Put the nut into the hexagonal hole in the middle of the wind wheel hub and place it together in the threaded shaft of the wind generator. Use the hex wrench to fix the bolt with the left hand, turn the wind wheel clockwise with the right hand, push the nut and lock it.
8. Connect the fan cable to the controller, and connect the battery to the controller first
8. Connect the fan cable to the controller, and connect the battery to the controller first
