Customizable paper processing machinery unwinding diameter 1500mm100 160/min paper slitting machine
- Category: >>>
- Supplier: Ruian Sanlin Machinery Co. Ltd.
Share on (1600814859837):
Product Overview
Description
Product Description

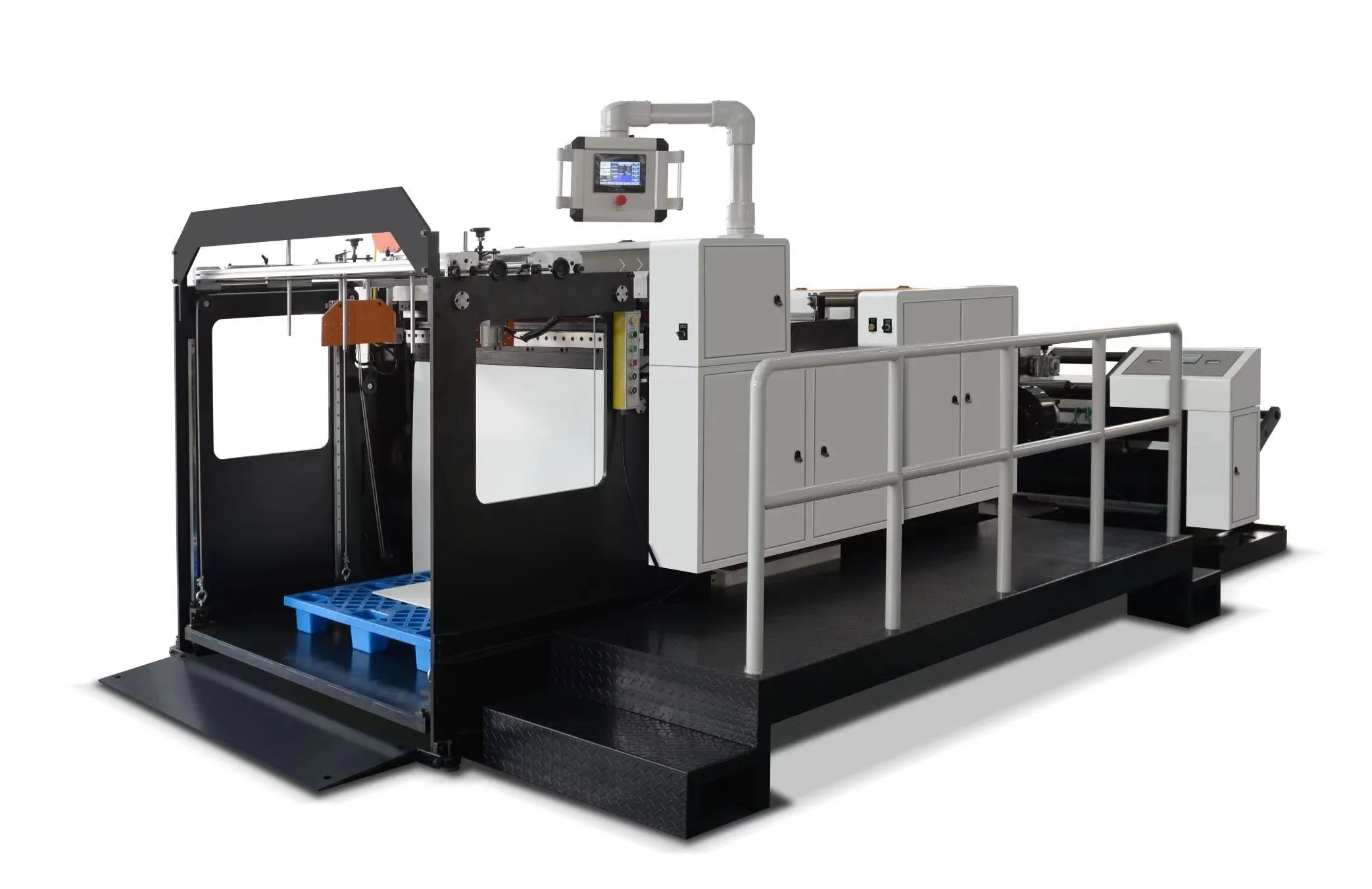

One Roll Full Automatic Paper Sheet Cutting with Stacking and Printing Sensor and Hydraulic Loading
Performance And Characteristics:
We adopt INVT servo motor to control the length of cutting, driving system adopt multi-control like start-over etc. This machine has electric and pneumatic, easy operating, high precision in cutting, working stable, low-noise. Frequency control motor, automatic counting, alarm and automatic-stop, magnetic powder tension control.
Working Process:
Raw material reels through motor control feeding>pass servo motor to fixed cutting length > waste paper edge blower out >pass cutter> stacking > delivery
Working Process:
Raw material reels through motor control feeding>pass servo motor to fixed cutting length > waste paper edge blower out >pass cutter> stacking > delivery
Main Technical Specifications
Model | ZHQ-1400 One Roll |
Max unwinding diameter | Φ1500mm |
thickness of cutting | 70-400gsm |
Max cut width | 1400mm |
Cutting Specification (Cutting Length) | 300-1200mm |
Cutting and packaging speed | 100-160 cut per minutes |
Cutting precision | ±0.2mm |
Voltage: | 380V x 50HZ |
Total power | 9KW |
Machine Weight(approx.) | 4200KG |
Machine Size(L*W*H) | 6000*2100*1900 |
Packaging Way | Wooden Bottom |
Performance and Characteristics
* Adopts Hydraulic materials loading system with much easy operation and convenience
* It adopts servo motor for controlling constant-length cutting
* It adopts Panasonic PLC control, contact Taiwan screen operation
* This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control.
* It adopts servo motor for controlling constant-length cutting
* It adopts Panasonic PLC control, contact Taiwan screen operation
* This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic powder tension control.
Machine introduction
Unwinding Unit: One Roll
Machine use Hydraulic Loading
Ø76mm air shaft,loading 2000KG
Maximum loading Ø1500mm;
Ø76mm air shaft,loading 2000KG
Maximum loading Ø1500mm;
Web Guide System: One Roll 1 Set
Machine adopt Ultrasonic Edge Correct System
Sensor and Control adopt China High Quality Bianfu Brand
Sensor and Control adopt China High Quality Bianfu Brand

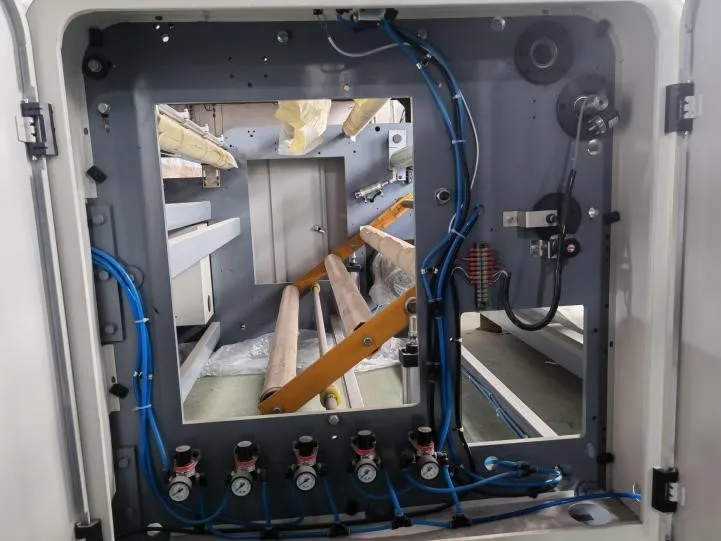

Storing Unit: One Roll One Set
Four Set Storing System
Aluminum guide roll through Cylinder Control
Feeding Speed through computer control number value
Pressure Cylinder through manual control
Aluminum guide roll through Cylinder Control
Feeding Speed through computer control number value
Pressure Cylinder through manual control
Cutting Unit:
Machine Cutting Knives Adopt High Quality Material
It can cut plastic film and paper also
Usual one years take down to grind it.
Extra provide one sets Cutting Knives for Spare Parts
It can cut plastic film and paper also
Usual one years take down to grind it.
Extra provide one sets Cutting Knives for Spare Parts

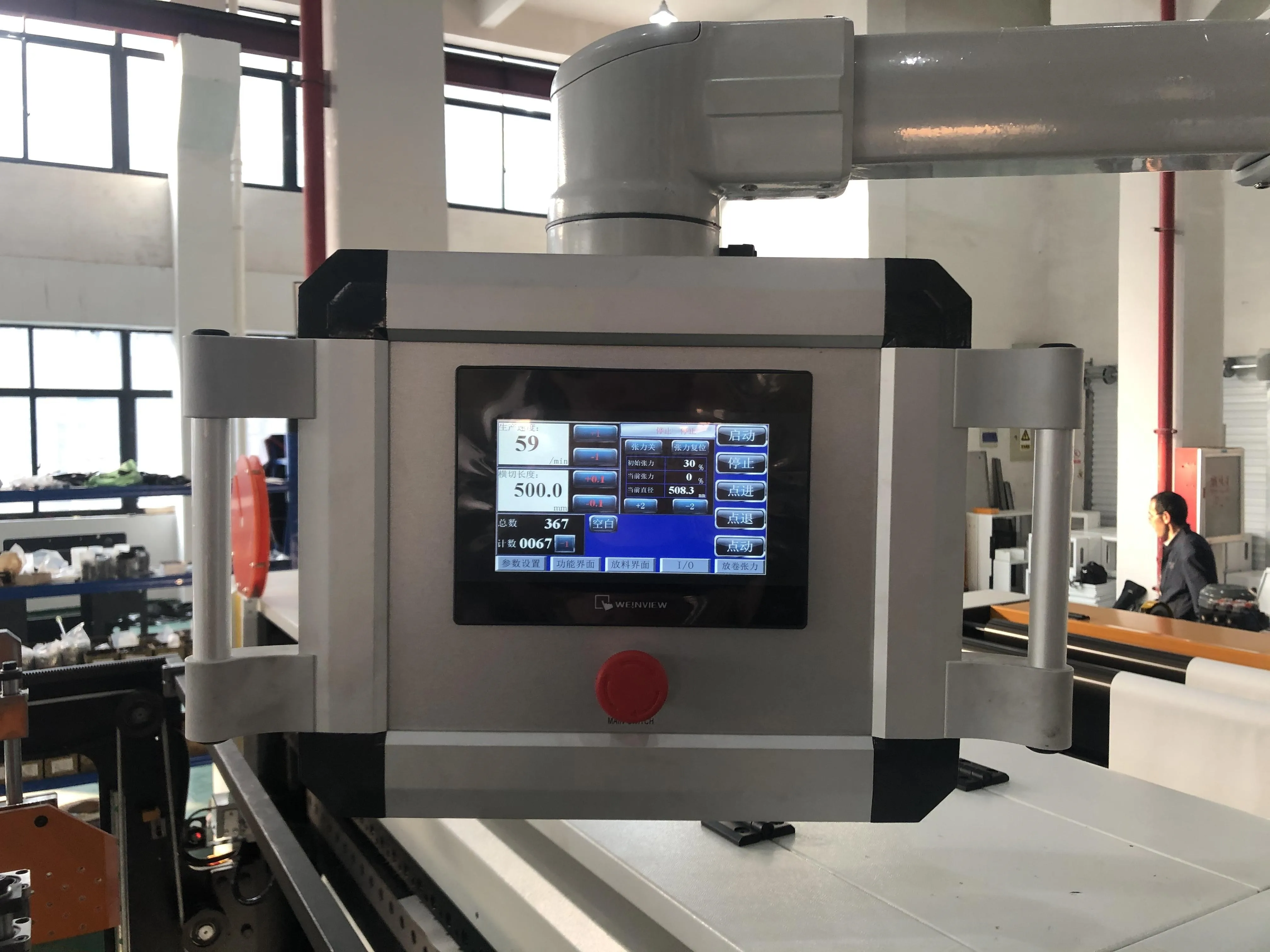

Computer:
Professional can move computer
Touch screen use MCG brand
System use professional sheet cutting program
Touch screen use MCG brand
System use professional sheet cutting program

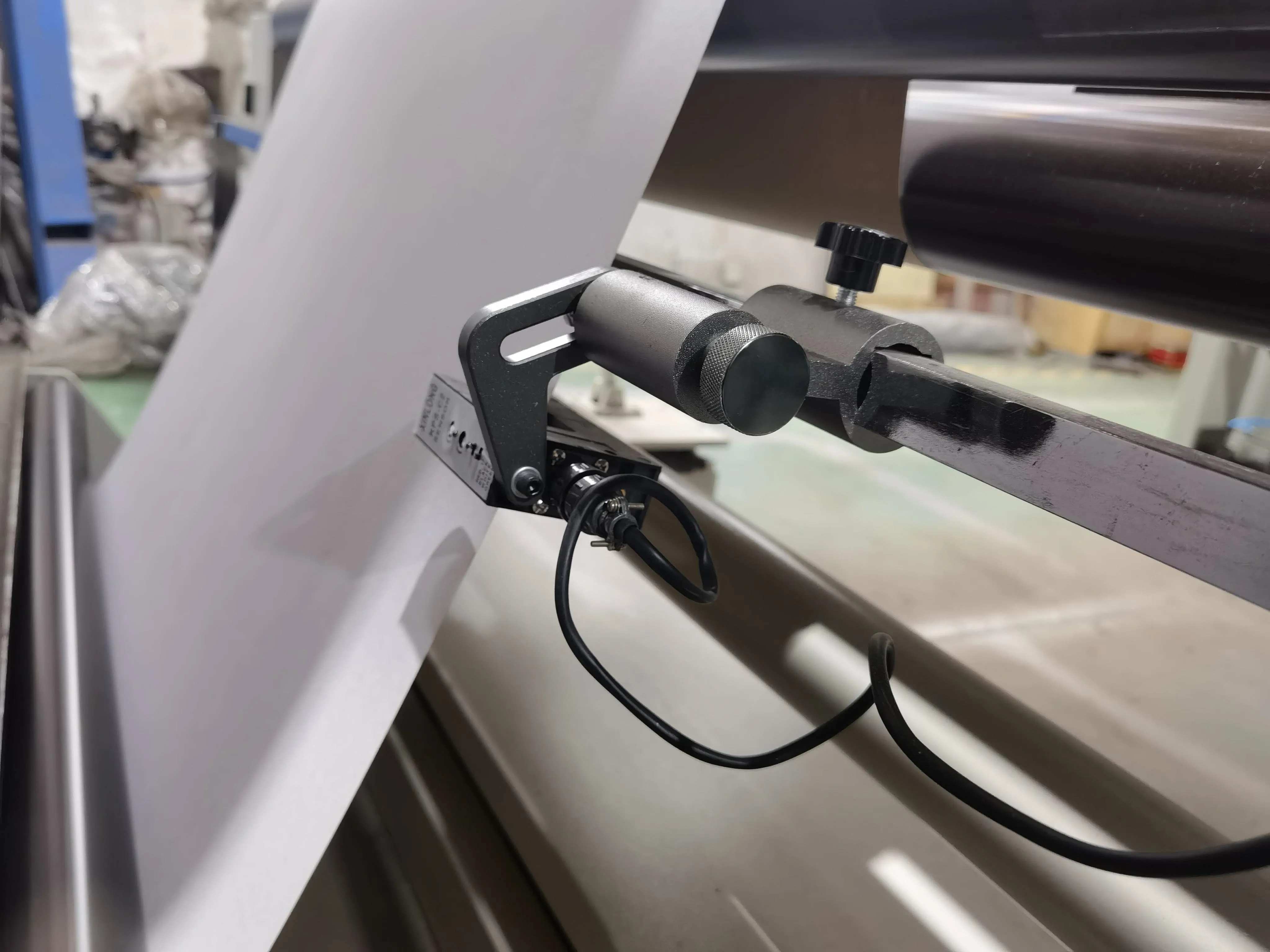

Printing Sensor Unit:
It use Leuze Brand sensor
Suitable for tracking printing material and cutting exact location.
Suitable for tracking printing material and cutting exact location.

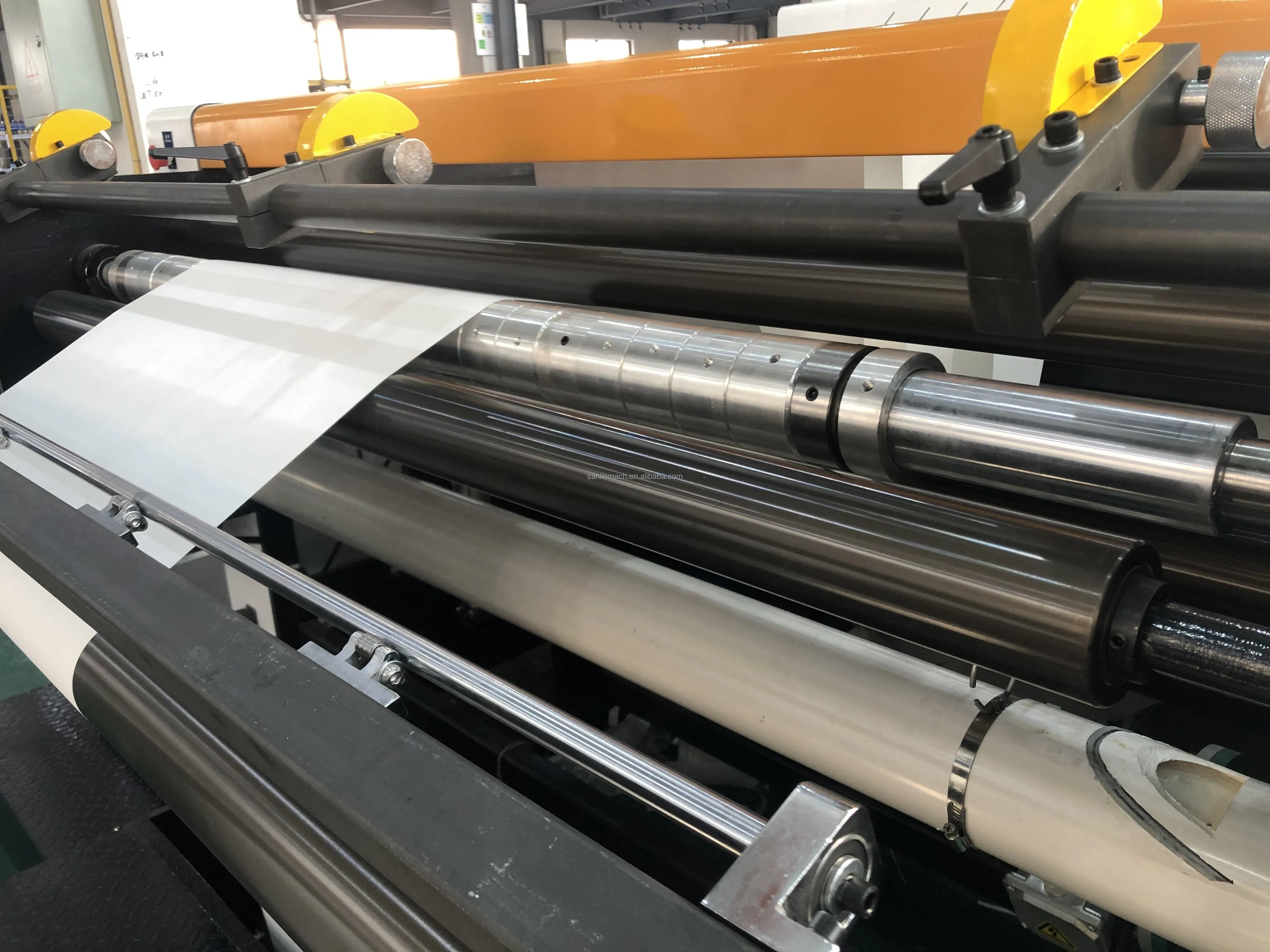

Slitting Unit:
Machine adopt SKD slitting blade
Total 3 sets slitting blade
Two sets for trimming edge , One for slitting middle.
Waste paper automatic discharge by blower.Included alleviate curl device
Total 3 sets slitting blade
Two sets for trimming edge , One for slitting middle.
Waste paper automatic discharge by blower.Included alleviate curl device

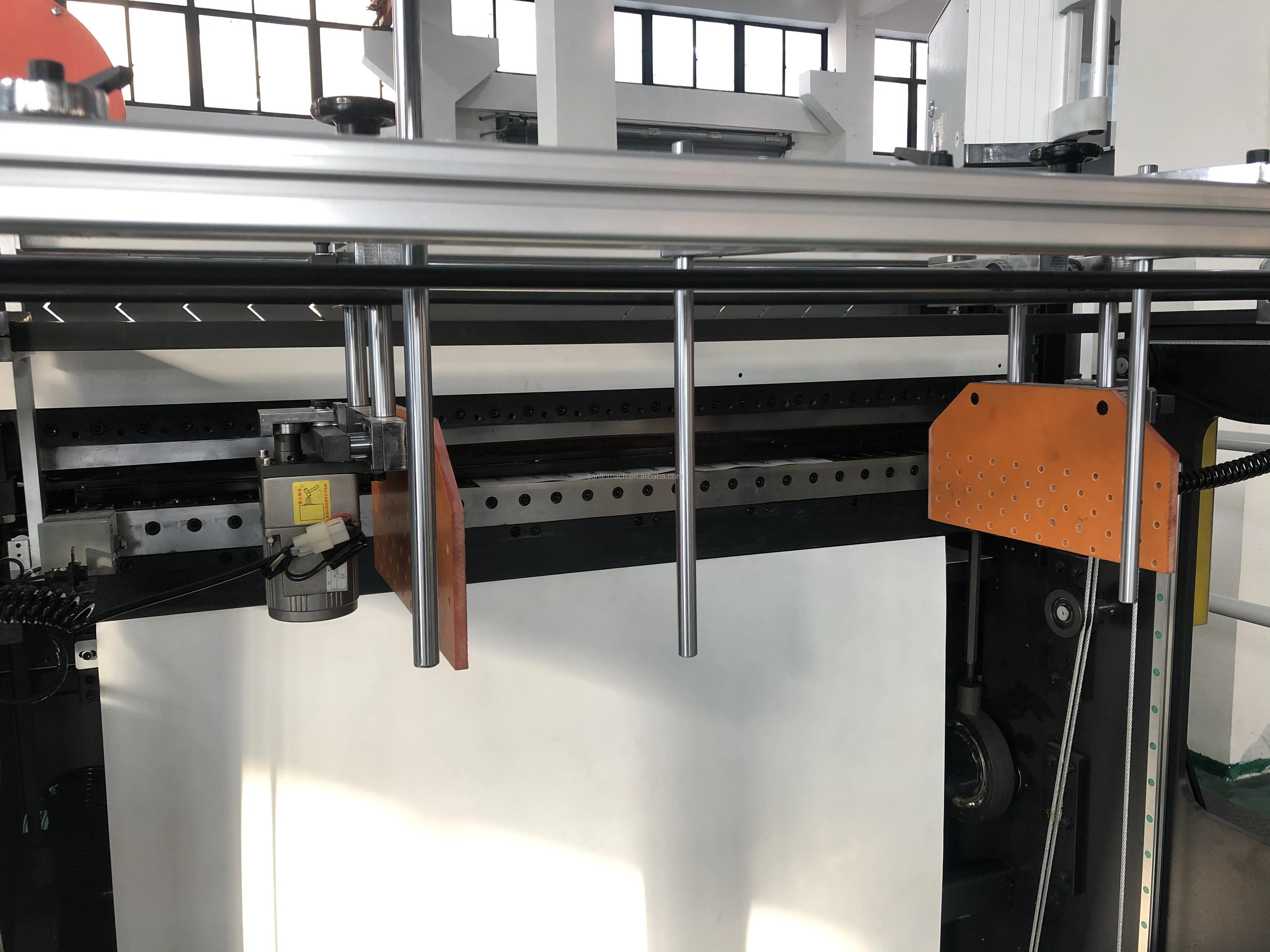

Staking Unit:
Machine through two side small motor to Automatic Stacking Two side edge
Stacking request: > 70gsm paper
Stacking request: > 70gsm paper
MAIN PART COMPONENTS:
Main Board
16mm hot and cold processed standard steel plate
16mm hot and cold processed standard steel plate
Board for Stacking
12mm hot and cold processed standard steel plate
12mm hot and cold processed standard steel plate
Main Motor
SHANGHAI Brand
Made in China
SHANGHAI Brand
Made in China
Feed Servo Motor
INVT Brand
Made in China
Made in China
Cutter Motor
Shanghai Brand
Made in China
Made in China
Inverter
Sinee
Made in China
Made in China
Contactor
Schneider Brand
Germany
Schneider Brand
Germany
Circuit Breaker
DELIXI Brand
Made in China
DELIXI Brand
Made in China
Intermediate Relay
Schneider Brand
Germany
Schneider Brand
Germany
Ultrasonic Sensor of Web Guide
Bianfu Brand
Made in China
Bianfu Brand
Made in China
Button
Schneider Brand
Germany
Schneider Brand
Germany
DC Switch Power Supply
MEAN WELL Brand
Made in China
MEAN WELL Brand
Made in China
Aluminum Guide Roll
Zhejiang Brand
Made in China
Zhejiang Brand
Made in China
Main conveyor belt
Ruian Brand
Made In China
Ruian Brand
Made In China
Bearing
Renben Brand
Made in china
Renben Brand
Made in china
