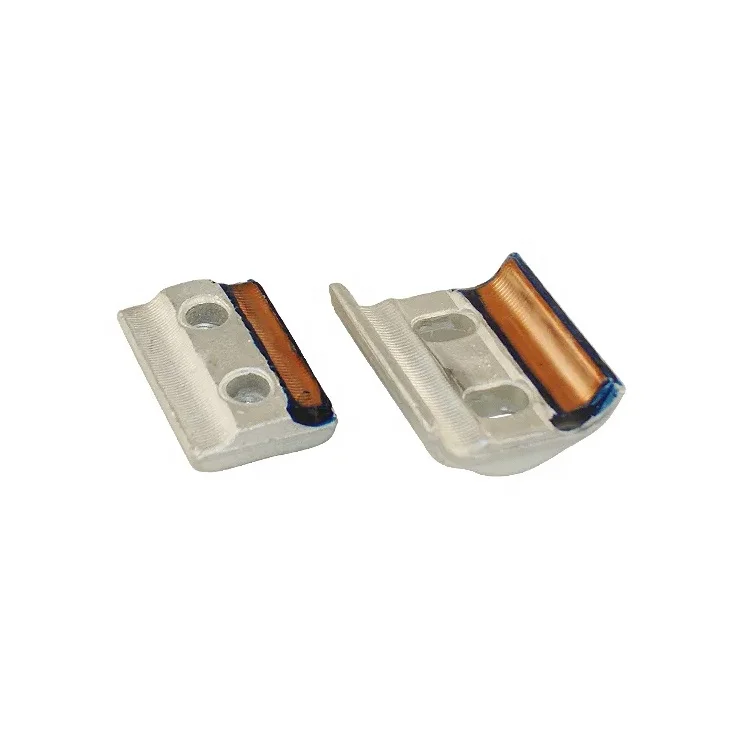

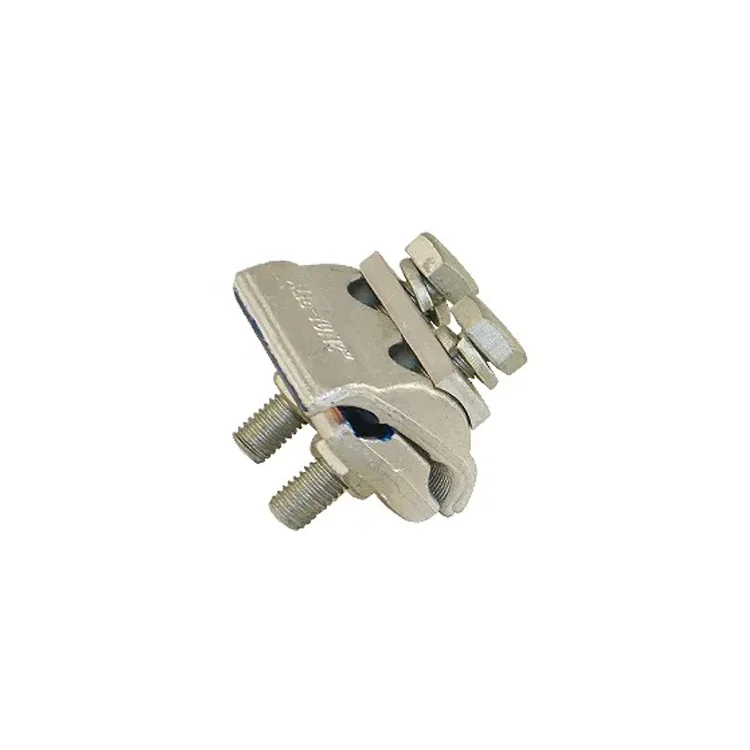

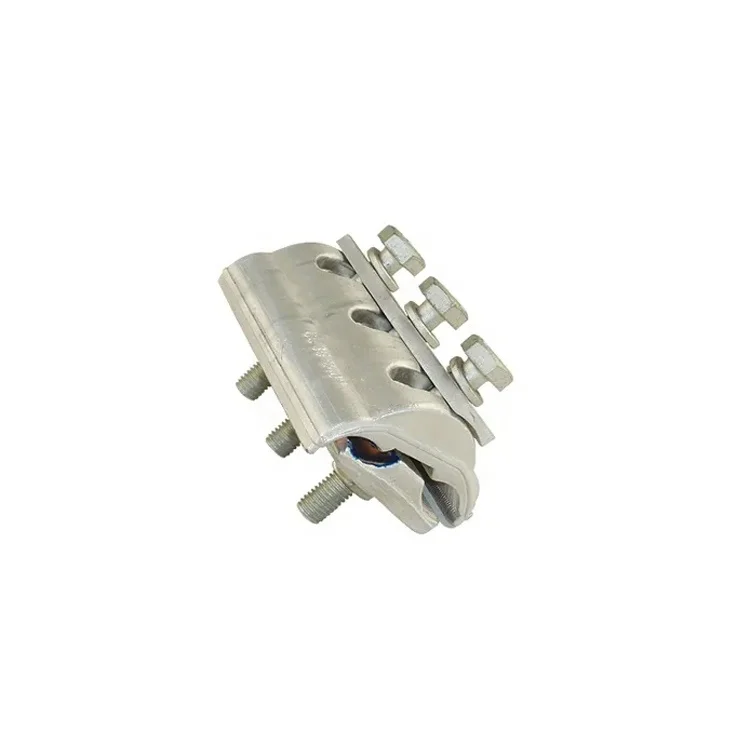

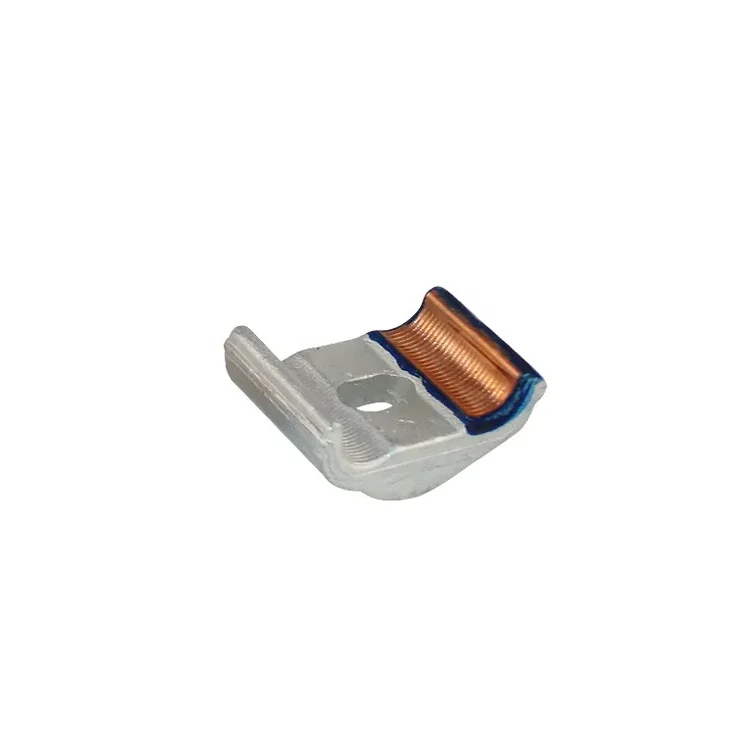

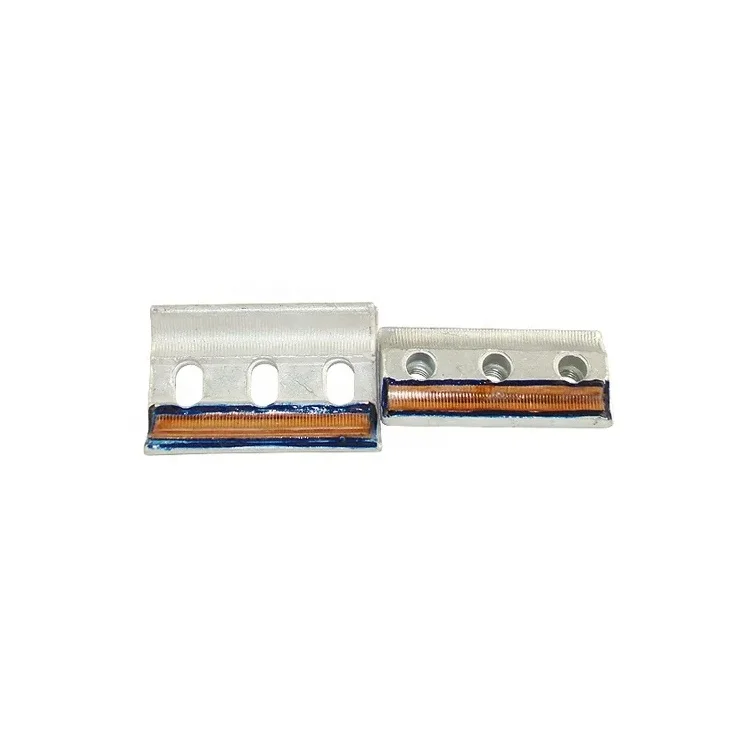

CAPG Series BimAluminium Copper etallic PG Clamp Connector Parallel Groove Clamp
- Category: >>>
- Supplier: Electric Powertek Company Ltd.
Share on (1600814865153):
Product Overview
Description
JBTL Series Cu-Al Specific Parallel Groove Clamp | Applicable conductor section(mm²) | |
Product name | Parallel Groove Clamp | |
Material | Copper and Aluminium | |
Model number | CAPG | |
Scope of application | Non-load-bearing connection and branch of conductors in overhead power lines | |
Main characteristic
Polished smooth burr - free surface plating process
Good power performance, can withstand large current
Use thickened nuts, nuts and double bolts to tighten the multiple anti-movement firmwareGood power performance, can withstand large current
The use of firm applicable to all kinds of power system is not load-bearing connection
Specification
Model number | Applicable conductor section(mm²) | Dimension(mm) | Bolt | ||||||||||||
AL | Cu | L | B | H | R | M | |||||||||
CAPG-A1 | 16-70 | 6-50 | 25 | 42 | 45 | 5.5/4.5 | 8 | 1 | 1*M8*40 | ||||||
CAPG-A2 | 25-150 | 10-95 | 25 | 42 | 45 | 7.5/6 | 8 | 1 | 1*M8*45 | ||||||
CAPG-B1 | 16-70 | 6-50 | 40 | 42 | 45 | 5.5/4.5 | 8 | 2 | 2*M8*45 | ||||||
CAPG-B2 | 25-150 | 10-95 | 50 | 45 | 50 | 7.5/6 | 8 | 2 | 2*M8*50 | ||||||
CAPG-B3 | 35-200 | 25-185 | 64 | 65 | 60 | 9.5/9 | 10 | 2 | 2*M10*60 | ||||||
CAPG-C1 | 16-70 | 6-50 | 60 | 42 | 45 | 5.5/4.5 | 8 | 3 | 3*M8*45 | ||||||
CAPG-C2 | 25-150 | 10-95 | 75 | 45 | 50 | 7.5/6 | 8 | 3 | 3*M8*50 | ||||||
CAPG-C3 | 35-200 | 25-185 | 96 | 65 | 60 | 9.5/9 | 10 | 3 | 3*M10*60 | ||||||
CAPG-C4 | 35-300 | 35-240 | 104 | 65 | 70 | 11.5/10 | 10 | 3 | 3*M10*70 | ||||||
Contact Me
If you are interested in our products, please feel free to contact me！
We are ready to help you develop the market with our high-quality products at any time, and we also hope to become your Chinese supplier to provide the best support and service for your ongoing and future projects.

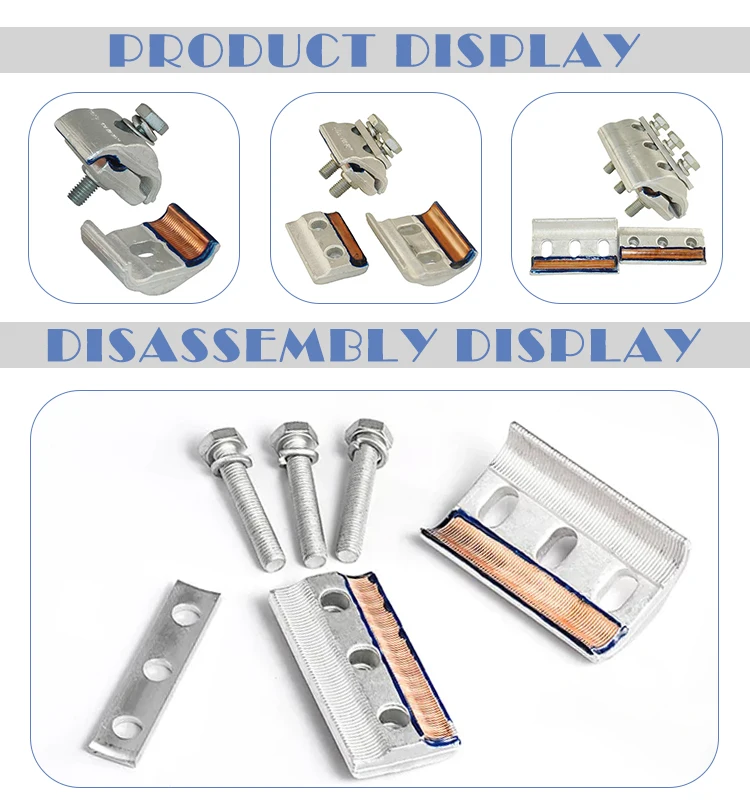

Product Display
Product case
Parallel groove clamp for small and medium section of aluminum stranded wire or steel core aluminum stranded wire and overhead lightning rod steel stranded wire in the position of the connection does not bear tension, but also used for non-linear tower jumper connection, power engineering materials (tools) connecting wire is mainly used for power line engineering.
