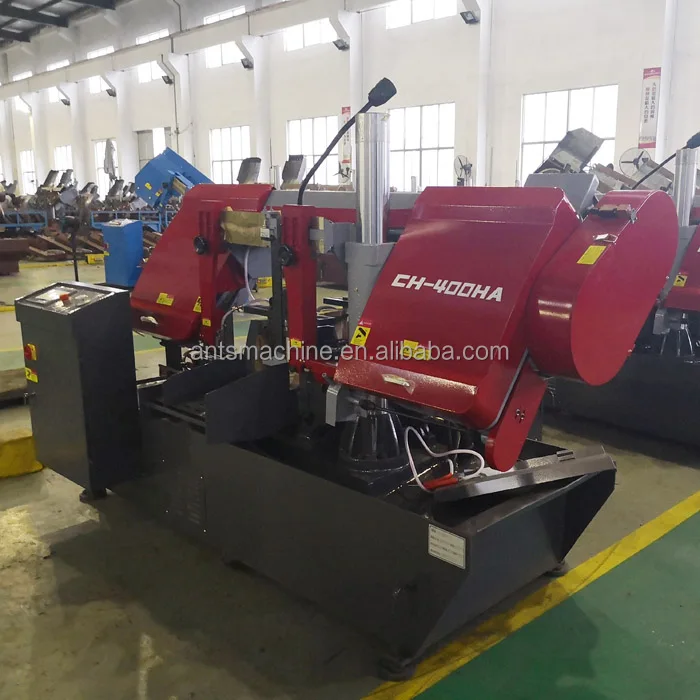

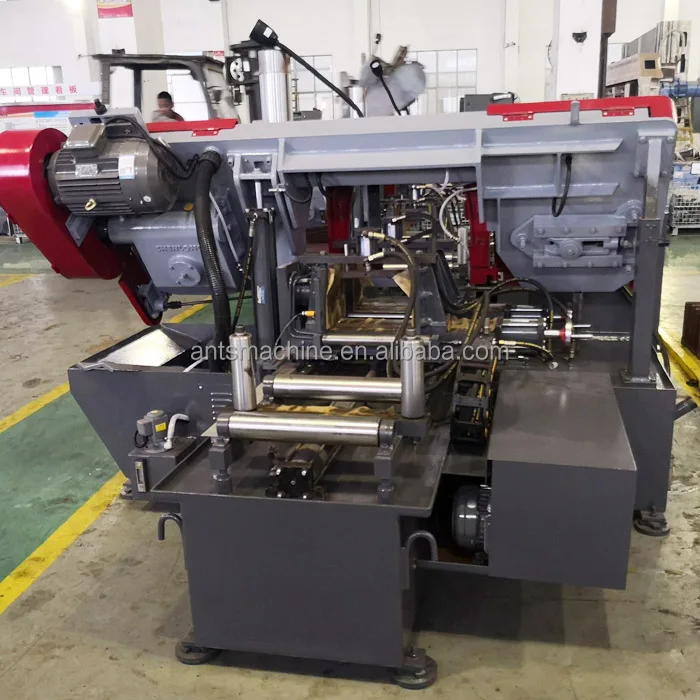

GZ4243 CH 400HA NEW metal cutting PCL Control Horizontal Metal Cutting Bandsaw Machine
- Category: >>>
- Supplier: Shanghai Ants Machine Equipment Co. Ltd.
Share on (1600814877386):
Product Overview
Description
Technical Specifications| Model | GZ4233（CH-300HA） | GZ4243（CH-400HA） | ||||||
Cutting capacity 0° (flat) (length x width) | 330*330mm | 430*430mm | ||||||
Cutting capacity 0° (round) | 330mm | 430mm | ||||||
Cutting capacity 0° (square) | 330*330mm | 430*430mm | ||||||
Cutting speed infinitely variable | 22/35/50/75m/min | 20/32/55/72/90m/min | ||||||
Stop length(single stroke) | 500mm | 500mm | ||||||
Accuracy of the feeding(single feeding) | ±0.2mm | ±0.2mm | ||||||
Saw blade size | 34*1.1*4115mm | 41x1.3x5080mm | ||||||
Saw blade tension type | Manual | Manual | ||||||
Workbench height | 500mm | 630mm | ||||||
Motor rating main drive | 4kw | 5.5kw | ||||||
Motor rating of hydraulic feed | 0.75kw | 0.75kw | ||||||
Overall dimensions (length x width x height) | 2050x2050x1380mm | 2350x2500x1700mm | ||||||
Weight(NET WEIGHT) | 1584kgs | 1652kgs | ||||||
Technical Specifications| Model | GZ4250（CH-500HA） | GZ4265（CH-650Z） | ||||||
Cutting capacity 0° (flat) (length x width) | 500*500mm | 650x650mm | ||||||
Cutting capacity 0° (round) | 500mm | 650mm | ||||||
Cutting capacity 0° (square) | 500*500mm | 650x650mm | ||||||
Cutting speed infinitely variable | 18/30/50/70 m/min | 20~80m/min(inverter) | ||||||
Stop length(single stroke) | 500mm | 500mm | ||||||
Accuracy of the feeding(single feeding) | ±0.2mm | ±0.2mm | ||||||
Saw blade size | 41×1.25×5500mm | 54x1.6x7420 | ||||||
Saw blade tension type | Manual | Hydrualic | ||||||
Workbench height | 630mm | 650mm | ||||||
Motor rating main drive | 5.5kw | 7.5kw | ||||||
Motor rating of hydraulic feed | 0.75kw | 2.2kw | ||||||
Overall dimensions (length x width x height) | 2700x2250x1800mm | 2180x3570x2450mm | ||||||
Weight(NET WEIGHT) | 2500kg | 6000kg | ||||||
Standard Equipment
1. Blade cleaning brush\t\t\t\t
2. Working light\t\t\t\t\t\t\t\t
3. Saw frame height selector gauge\t\t\t\t\t\t\t\t
4. Out feed with auxiliary plate table\t\t\t\t\t\t\t\t
5. One piece of bi-metal saw blade\t\t\t\t\t\t\t
6. One set of tools with tool box\t\t\t\t\t\t\t\t
7. Roller table 1pc\t\t\t\t\t\t\t\t
8. NC control\t\t\t\t\t\t\t\t
9. Bundle cutting device\t
2. Working light\t\t\t\t\t\t\t\t
3. Saw frame height selector gauge\t\t\t\t\t\t\t\t
4. Out feed with auxiliary plate table\t\t\t\t\t\t\t\t
5. One piece of bi-metal saw blade\t\t\t\t\t\t\t
6. One set of tools with tool box\t\t\t\t\t\t\t\t
7. Roller table 1pc\t\t\t\t\t\t\t\t
8. NC control\t\t\t\t\t\t\t\t
9. Bundle cutting device\t
