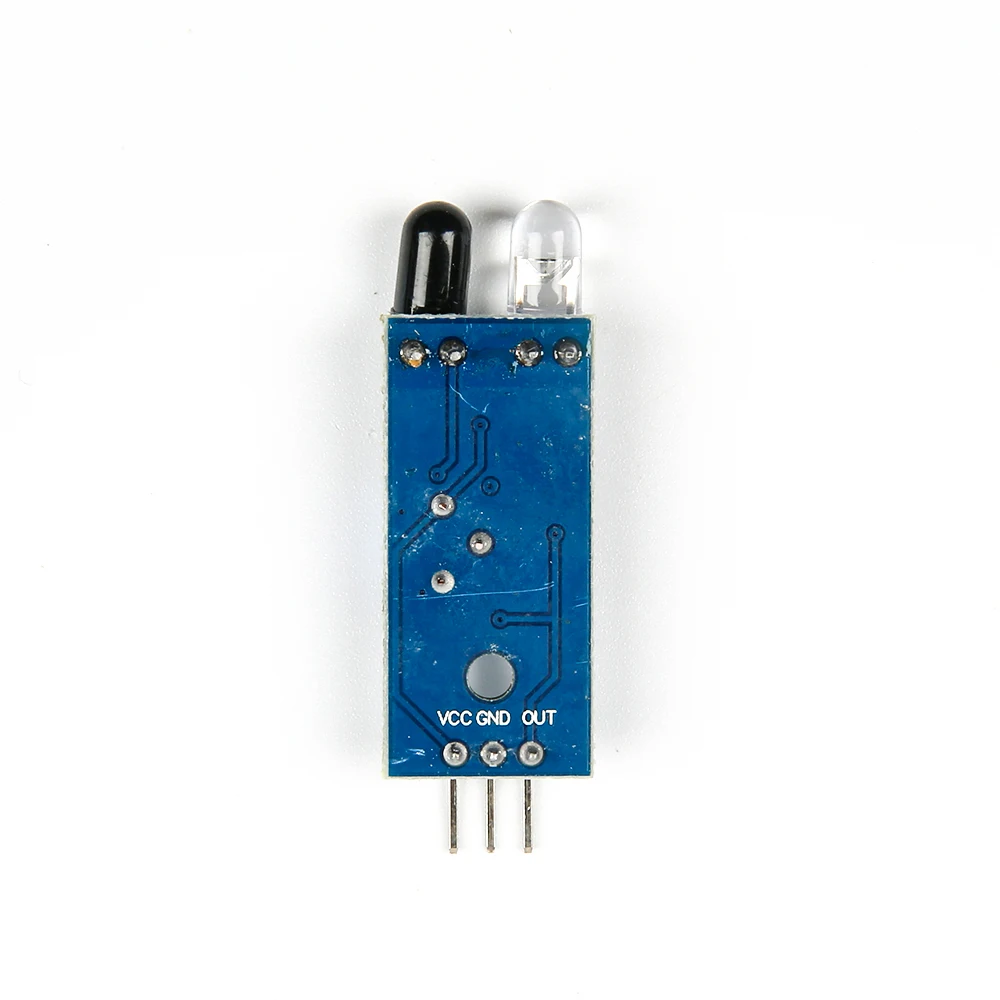

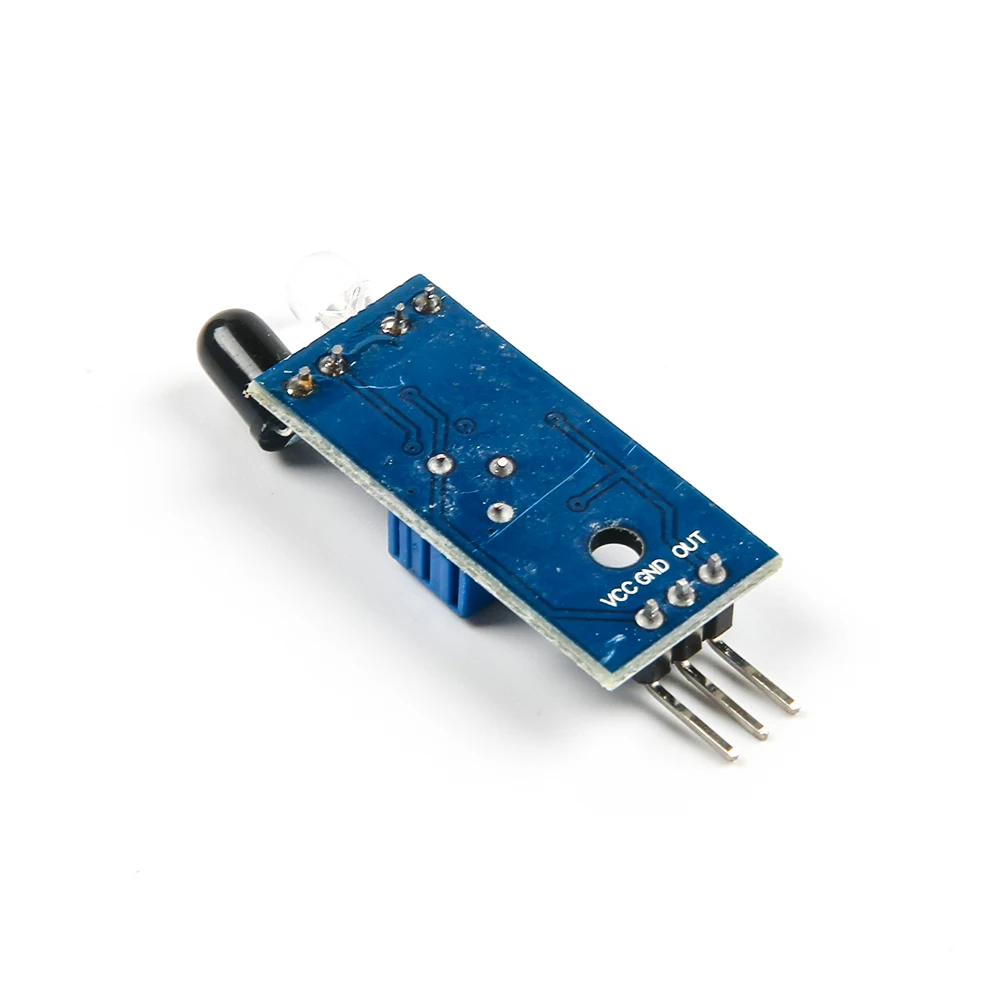

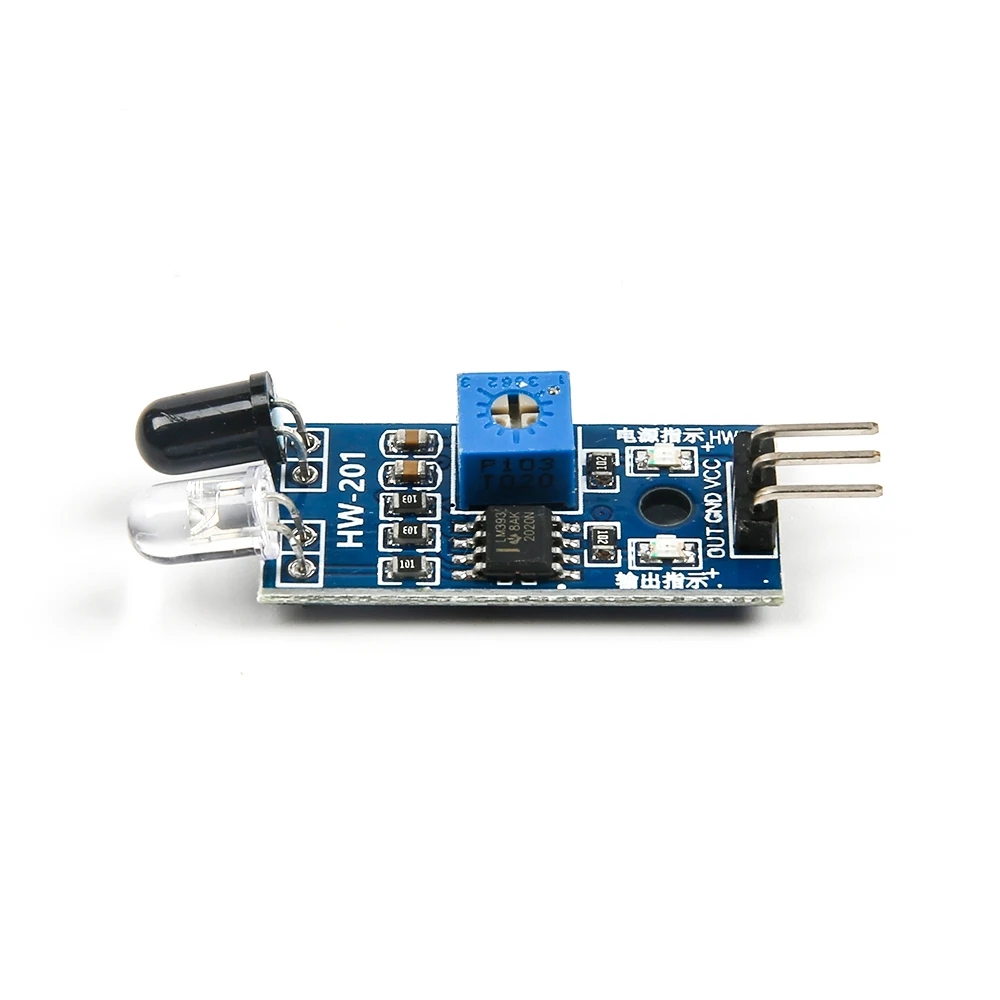

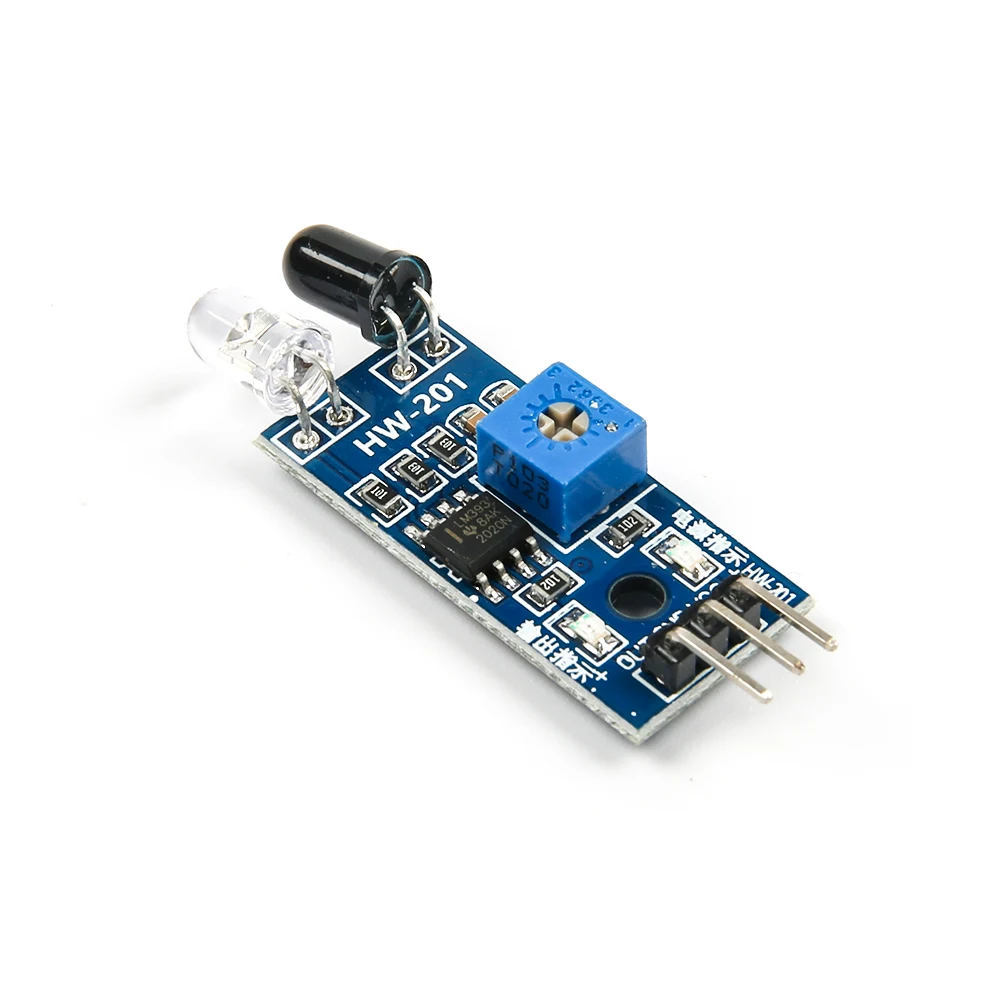

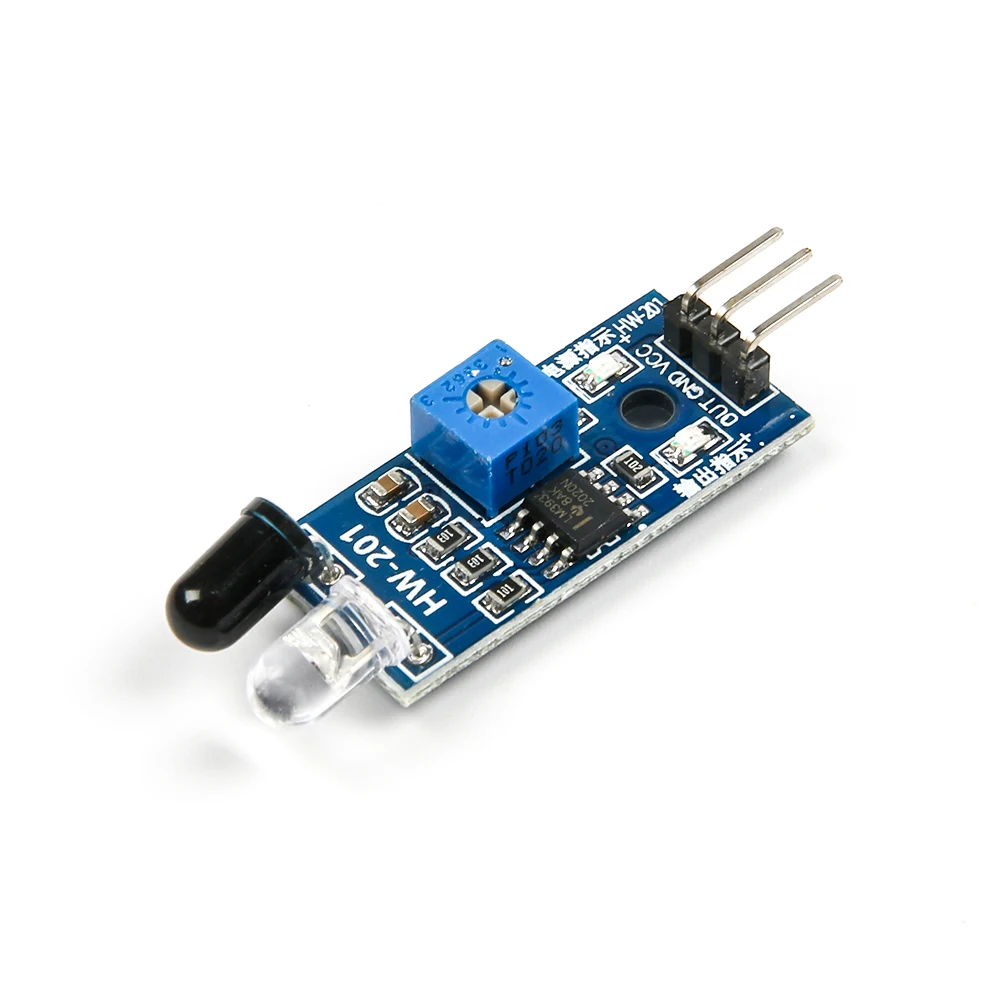

Smart Car Obstacle Avoidance Sensor Module Infrared To Tube Module Photoelectric Reflection Sensor
Infrared Obstacle Avoidance IR Sensor Module has great adaptive capability of the ambient light, having a pair of infrared transmitter and the receiver tube, the infrared emitting tube to emit a certain frequency, encounters an obstacle detection direction (reflecting surface), infrared reflected back to the receiver tube receiving, after a comparator circuit processing, the green LED lights up, while the signal output will output digital signal (a low-level signal), through the potentiometer knob to adjust the detection distance, the effective distance range 2 ~ 10cm working voltage of 3.3V-5V. The detection range of the sensor can be adjusted by the potentiometer, with little interference, easy to assemble, easy to use features, can be widely used robot obstacle avoidance, obstacle avoidance car assembly line count and black-and white line tracking and many other occasions.
NOTE：Please contact us for latest prices
Features :
2. Working current: 20mA
3. Operating Temperature:-100C-+500C
4. Detection distance: 2-40Cm
5. IO interface: 4 wires interface (-/+/S/EN)
6. Output signal: TTL level (low level there is an obstacle, no obstacle high)
7. Adjustment: adjust multi-turn resistance
8. Effective angle:35°
9. Size: 28mm*23mm
10. Weight Size: 13g
Package Includes :
1 × Infrared Obstacle Avoidance Tracking Sensor Module
1 × Infrared Obstacle Avoidance Tracking Sensor Module
