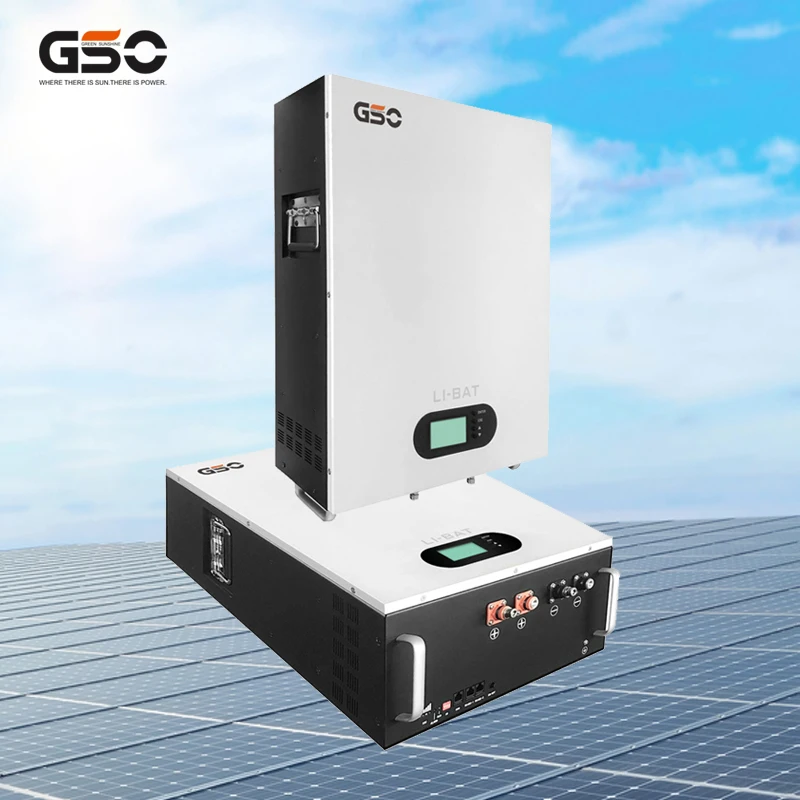

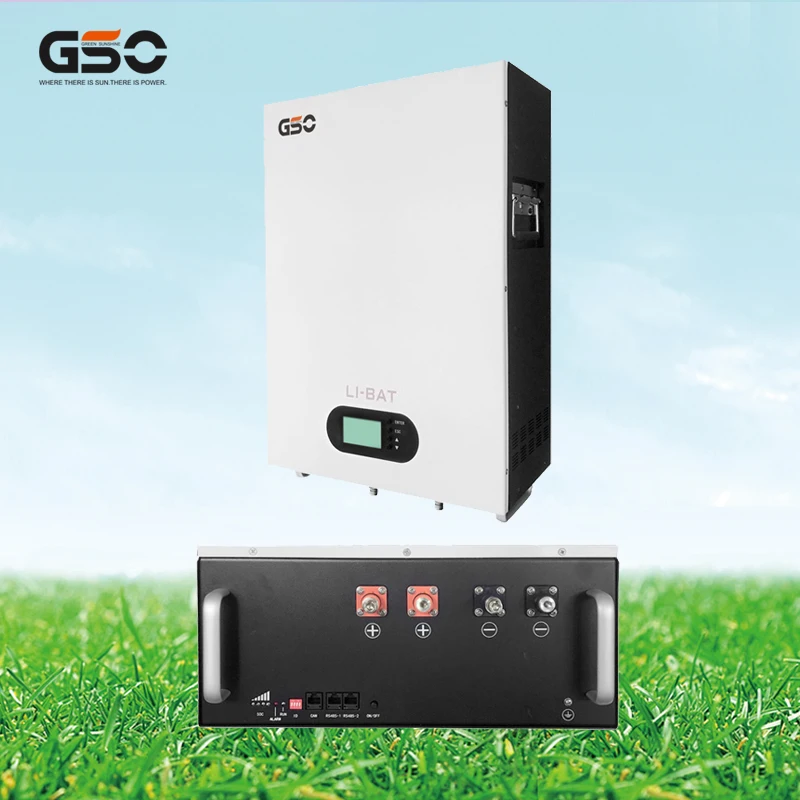

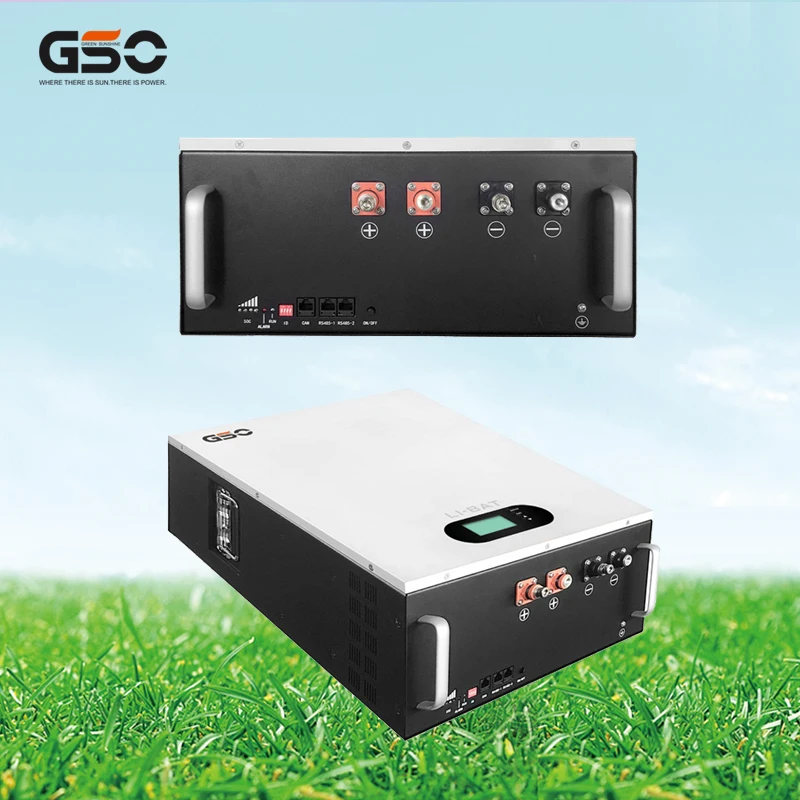

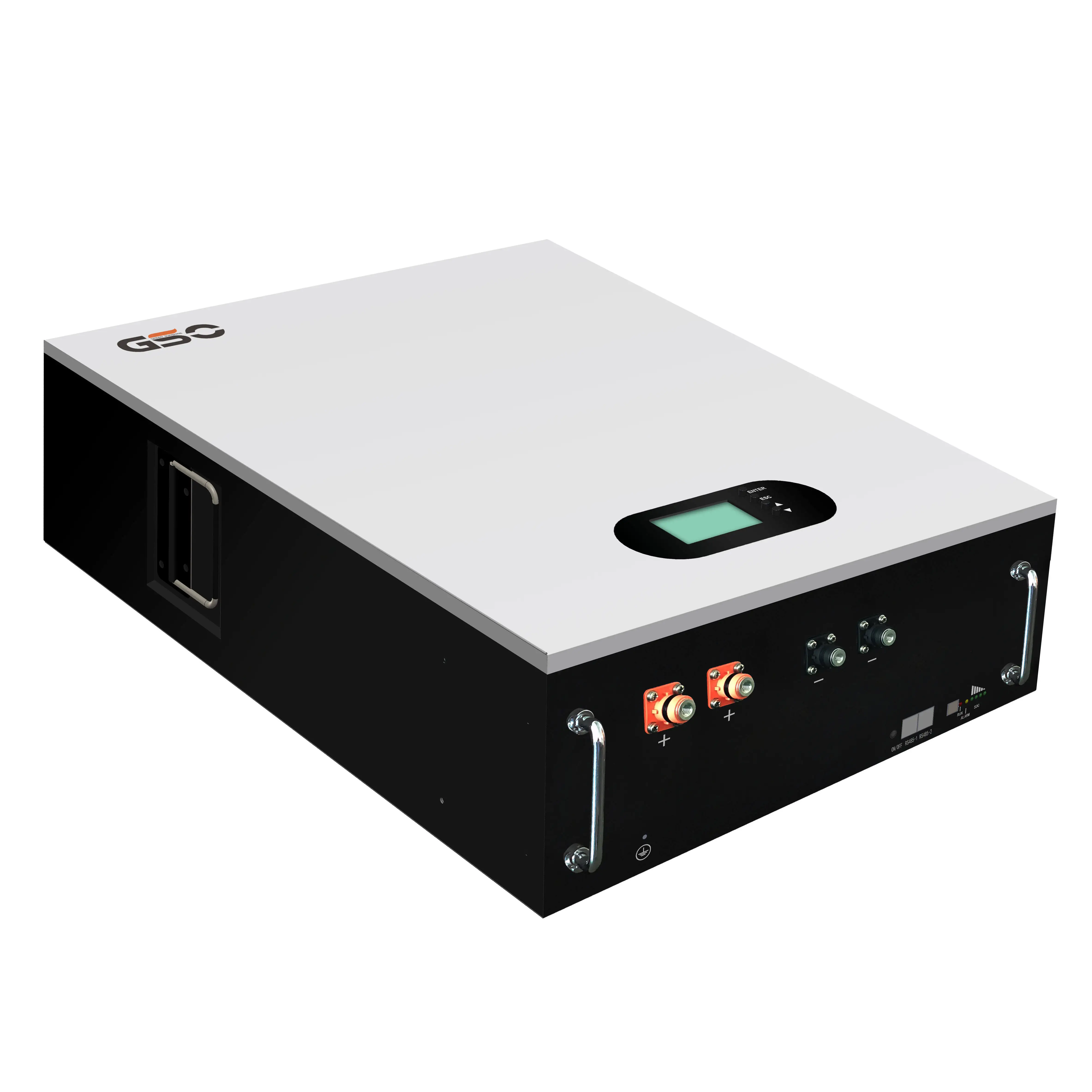

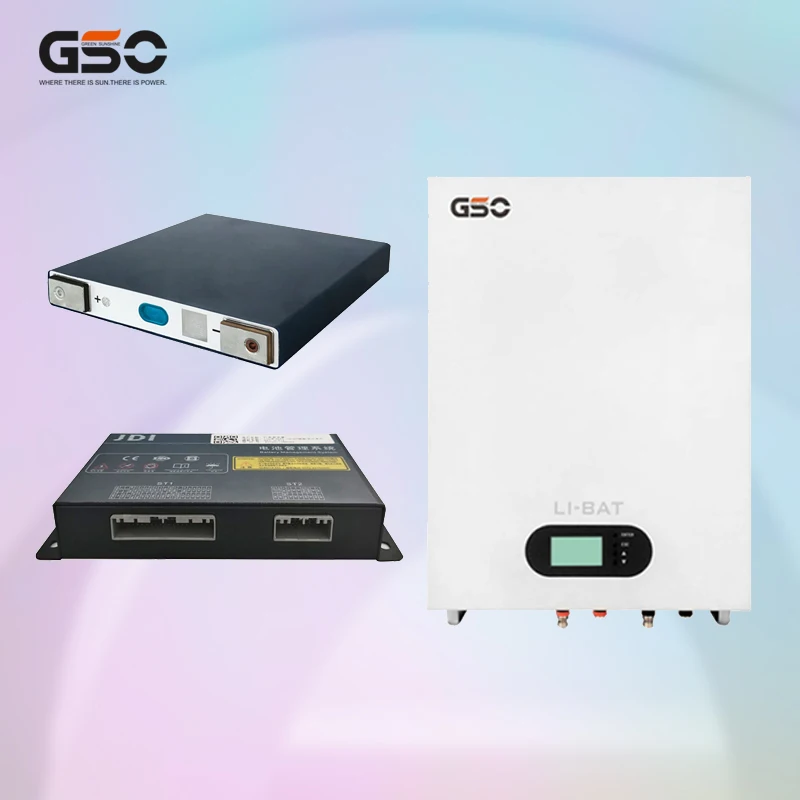

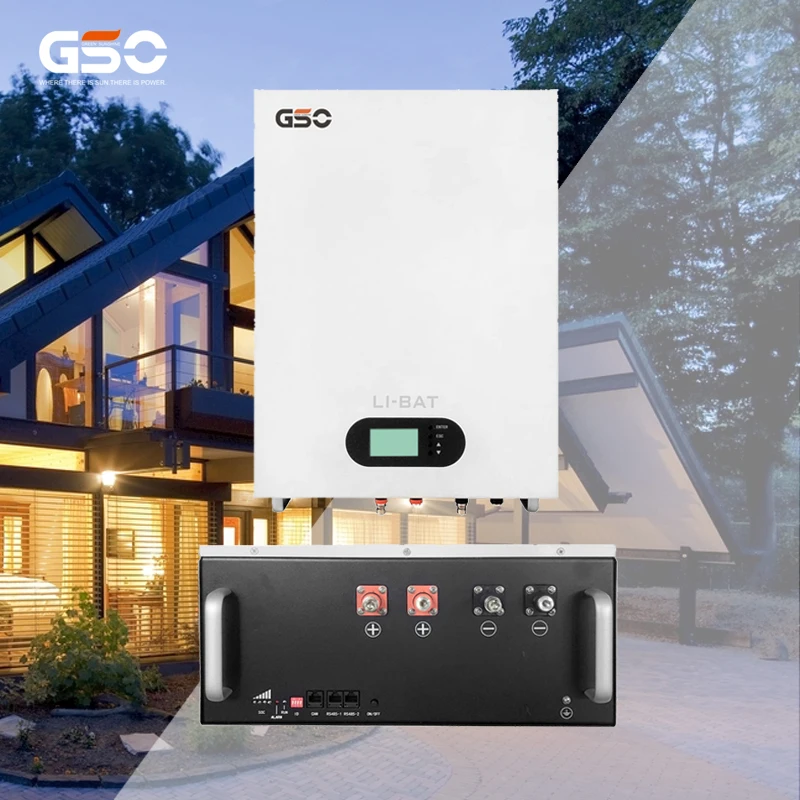

GSO solar battery Lithium Batterydeep cycle life lfp4 Pack 24V 100ah 200Ah Lifepo4 Batteries Power wall 5KW 10KW Battery bank
- Category: >>>
- Supplier: Hebei Depurui Import And Export Co. Ltd.
Share on (1600814924733):
Product Overview
Description
Recommend Products

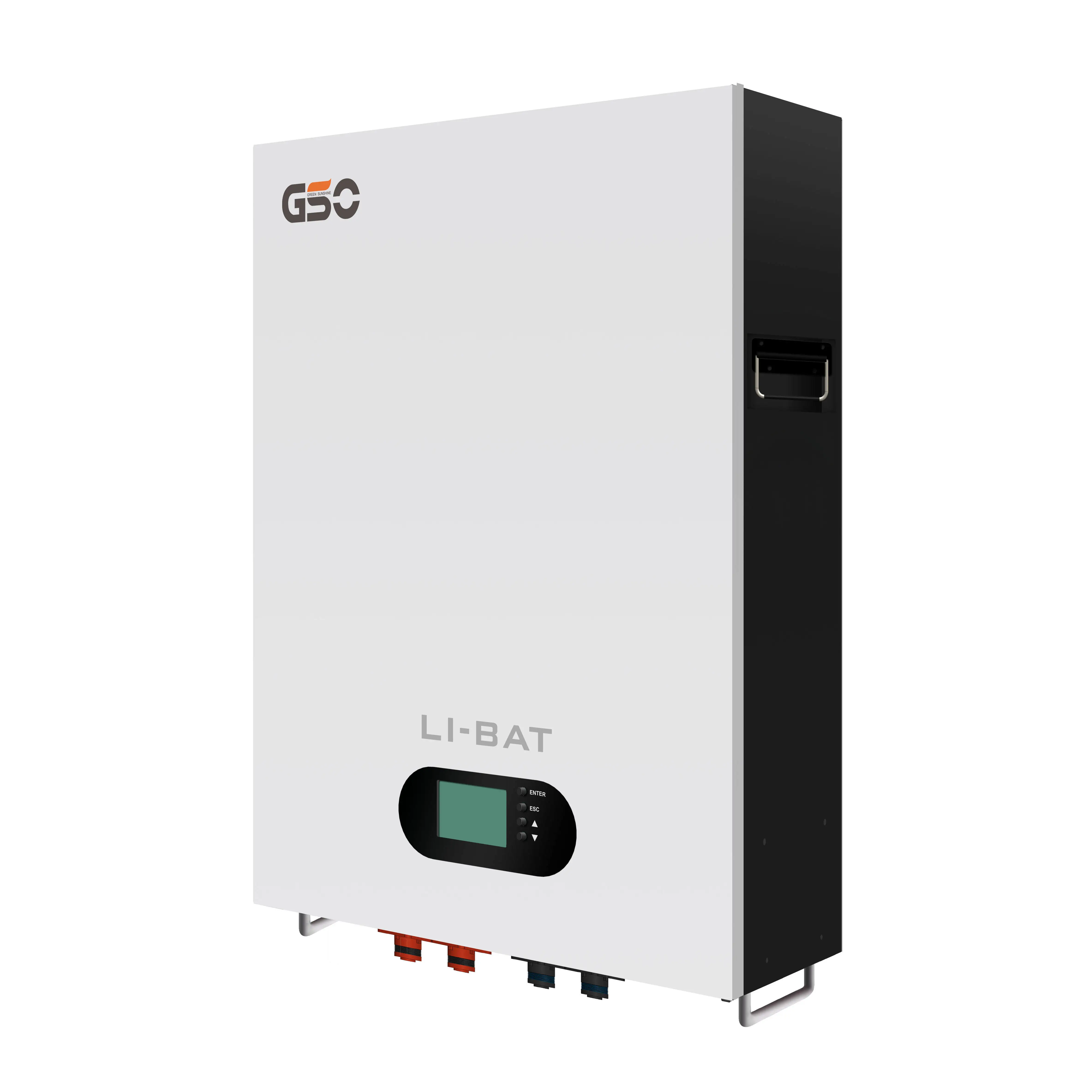

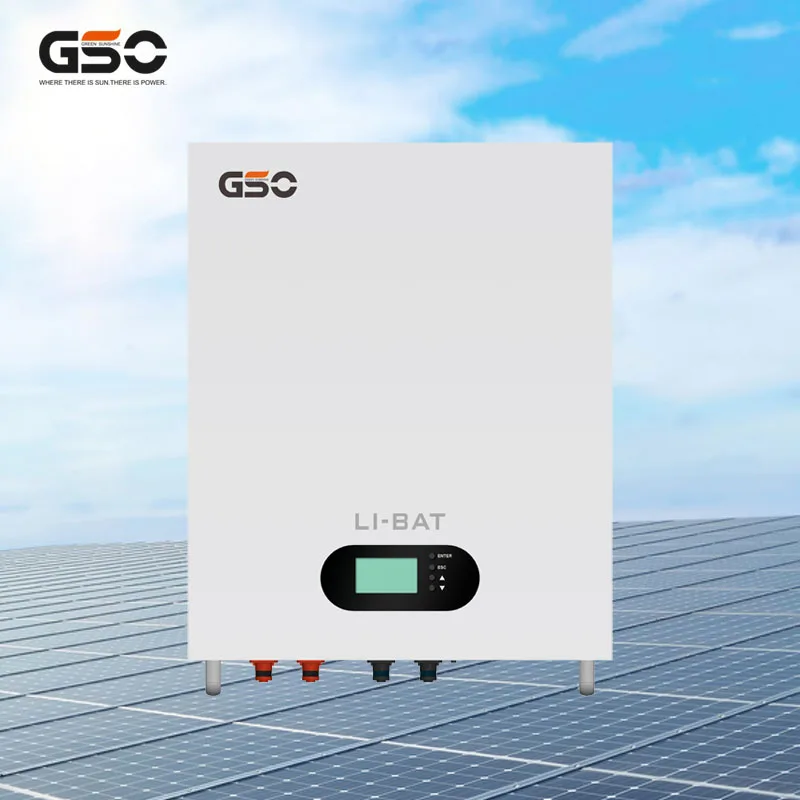

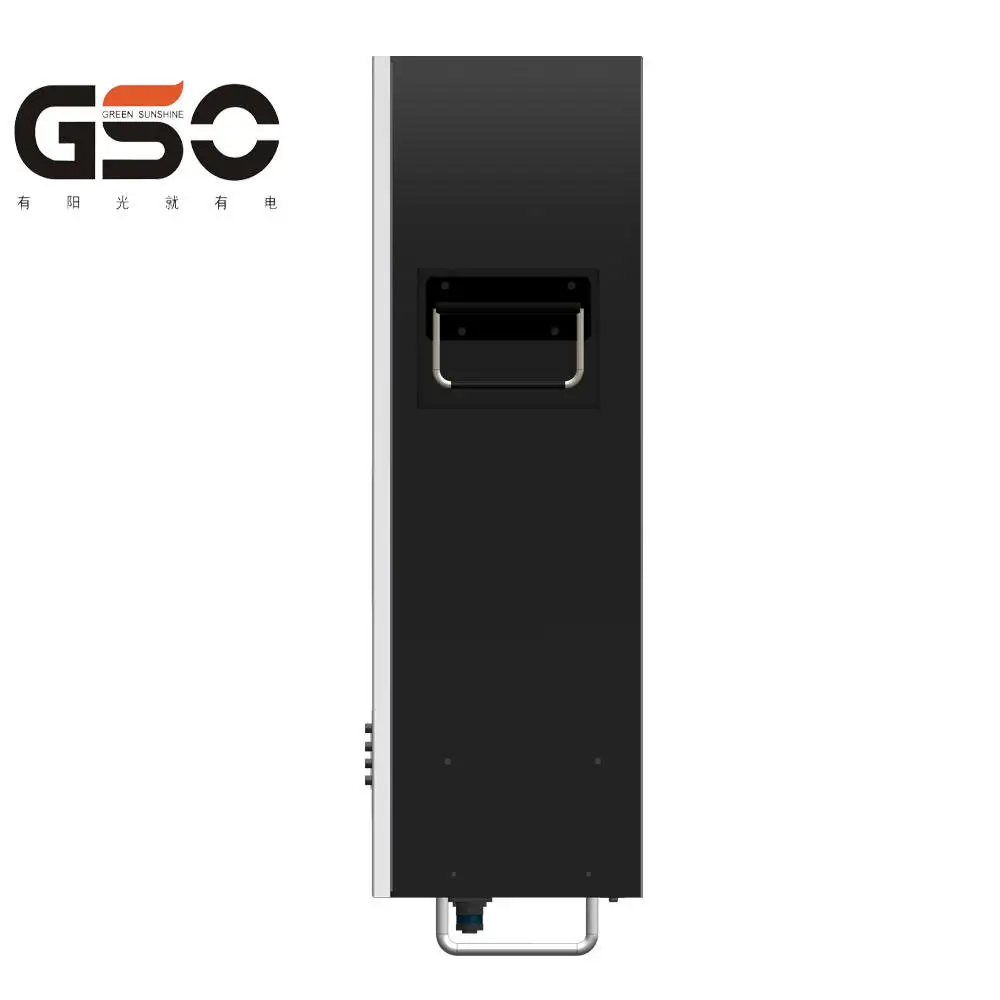

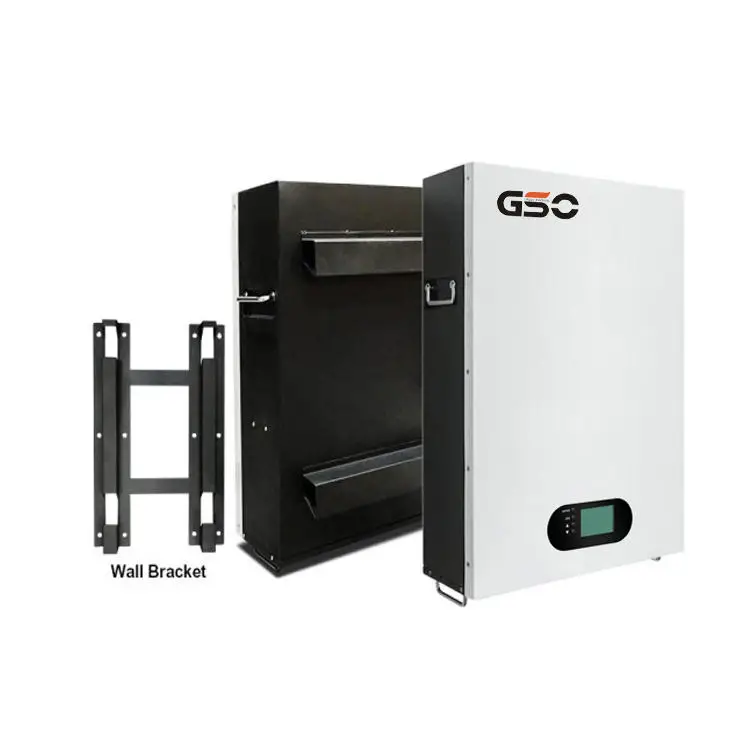

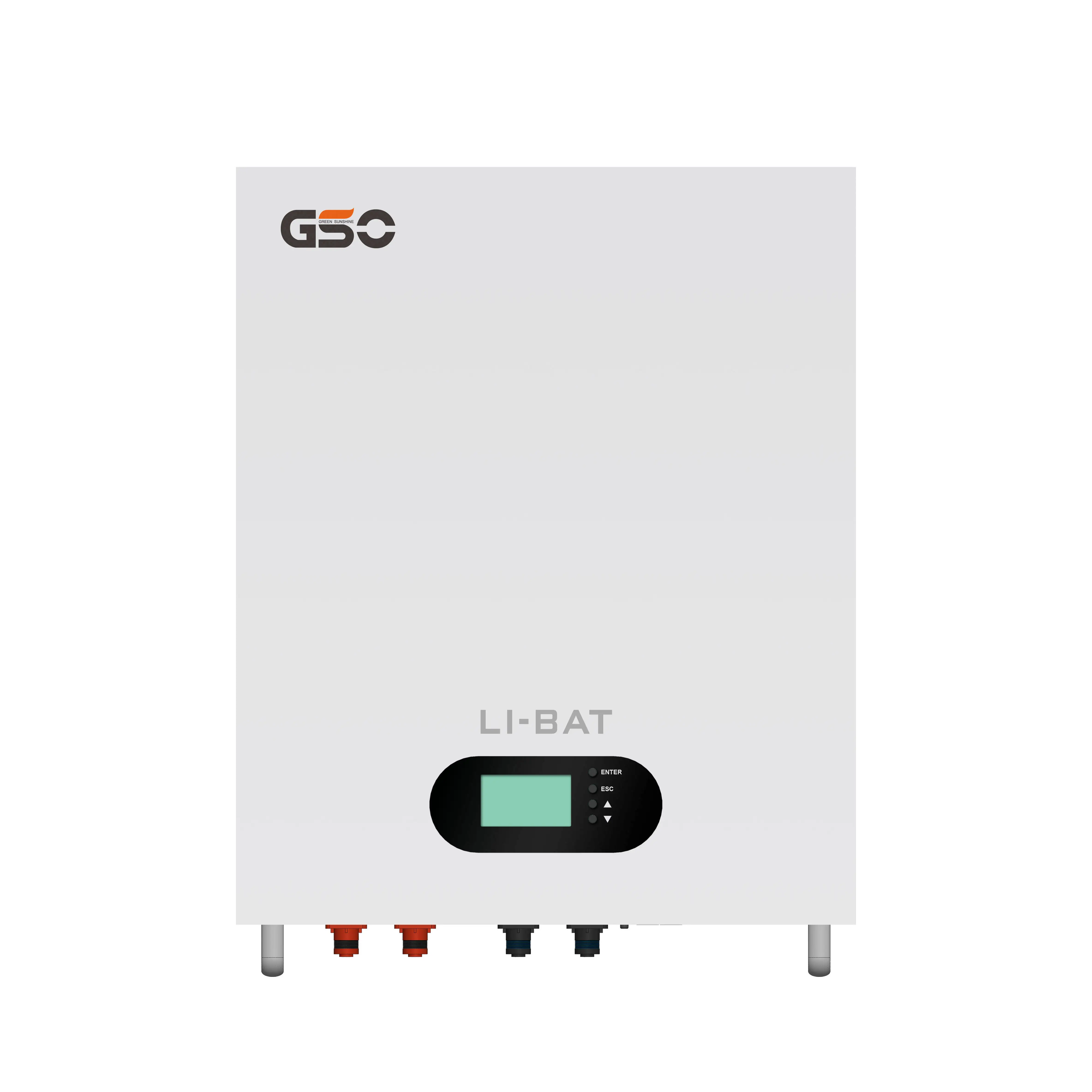

Product Name | 24V 200AH Wall-mounted LiFePO4 Li-ion Lithium Battery |
Item NO. | GBP24-200W |
Nominal Capacity | 200AH/ 5380WH/ 5WH |
Net Weight | 49 kg |

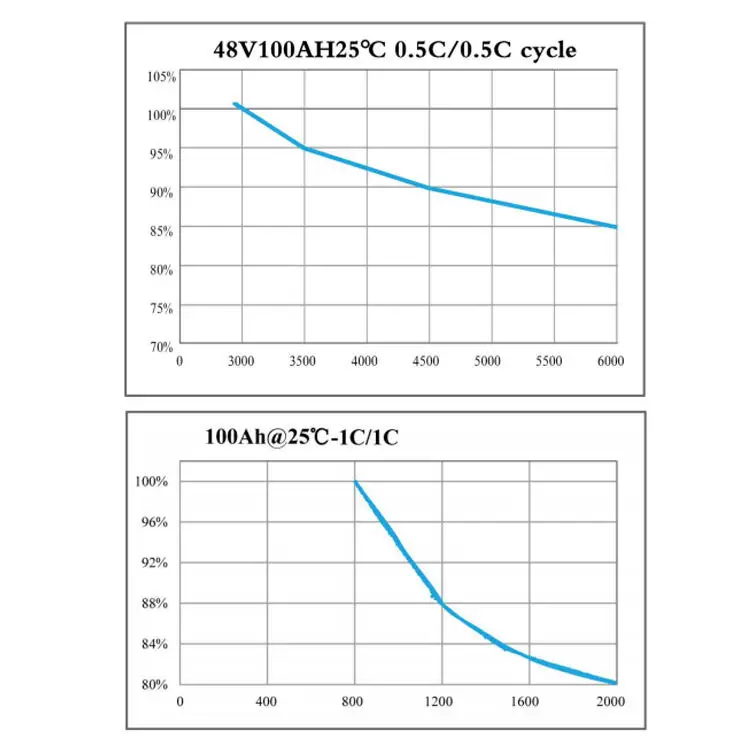

Cycle Life | 5000times |
Nominal Voltage | 24V |
Certificate | IEC,CE,RoHS,ISO |
Size | 410*630*156 mm |
Product Description
Product Paramenters
Model | GBP24V-100AH | GBP24V-200AH | |
Nominal volt（V） | 24 | ||
Nominal capacity（AH） | 100(2.5KWH) | 200(5KWH) | |
Working volt range (V) | 22.8-30 | ||
Recommend charging volt（V） | 28 | ||
Recommend discharging cutoff volt（V） | 23.2 | ||
Standard charging current(A) | 25 | 50 | |
Max. Constant charging current(A) | 50 | 100 | |
Standard discharging current（A） | 25 | 50 | |
Max. Discharging current（A） | 50 | 100 | |
Temperature（℃） | -30℃～60℃(Recommend 10℃～35℃) | ||
Allowable humidity range | 0～85% RH | ||
Storage temperature（℃） | -20℃～65℃(Recommend 10℃～35℃) | ||
Protection | IP20 | ||
Cooling method | Natural air cooling | ||
Maximum Dimension(W*D*H) mm | 410*630*156 | ||
Remark | 0.5C Discharge Max: 1C, 80% DOD | ||

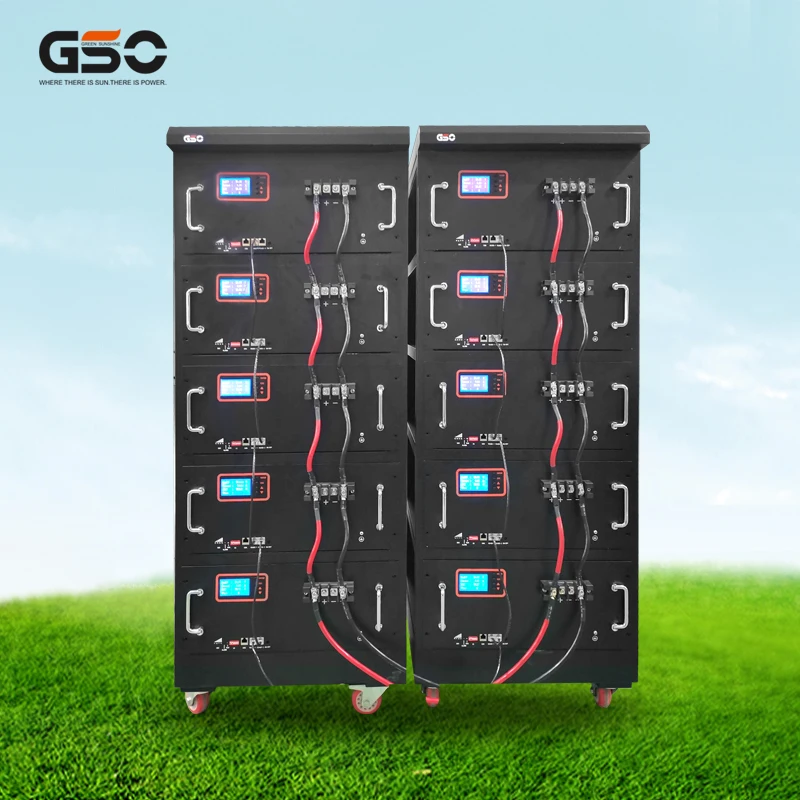

Parallel function | 24v support at most support 20 packs in paralle use(Capacity is 100kwh) | ||
Net Weight | 25KG | 49KG | |
Battery Cell | A Grade Prismatic Cell | ||
Protection | Built-in Smart BMS | ||
Our Advantages
Certifications

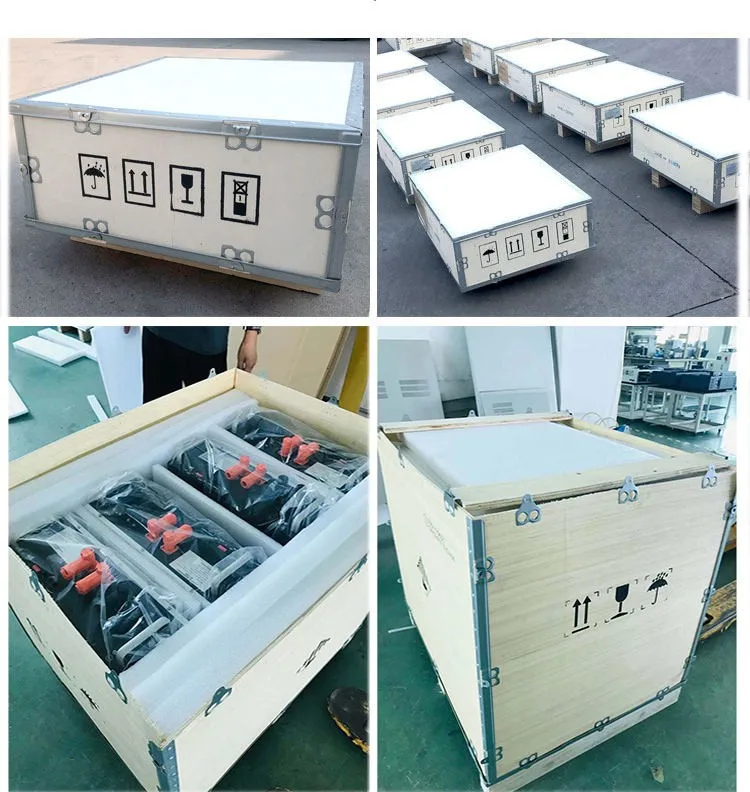

Product packaging

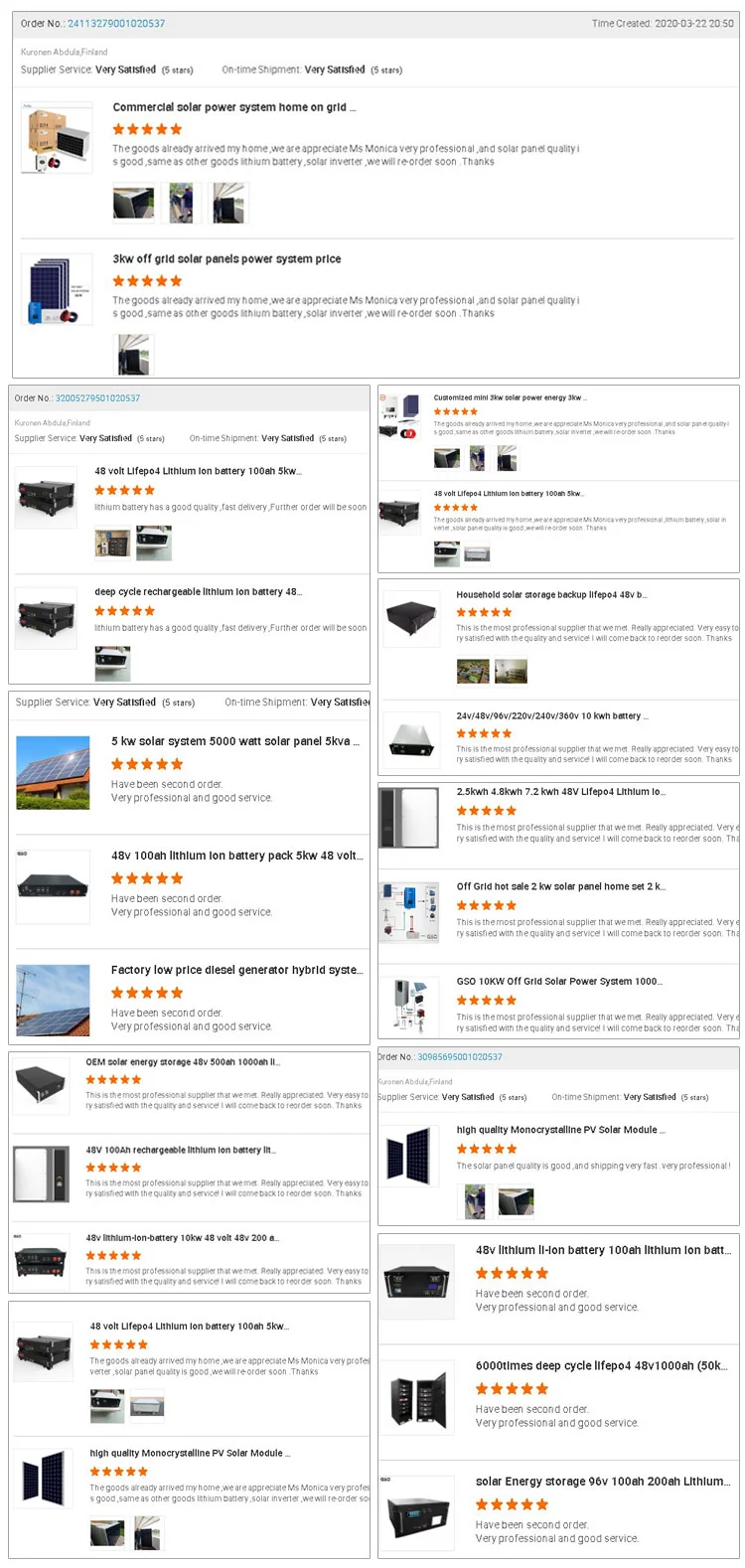

POSTIVE FEEDBACK FROM CLIENTS

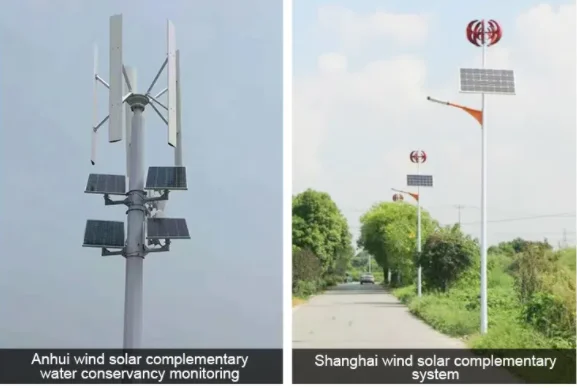

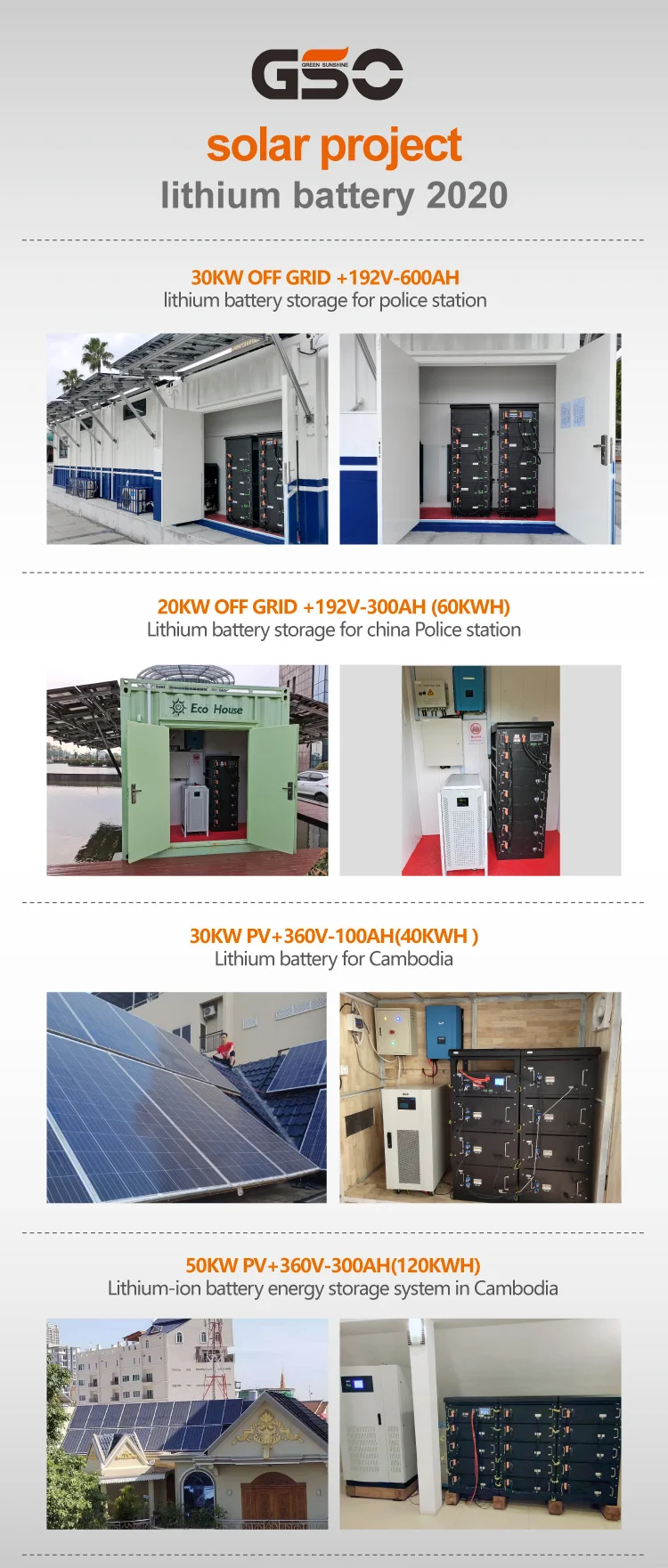

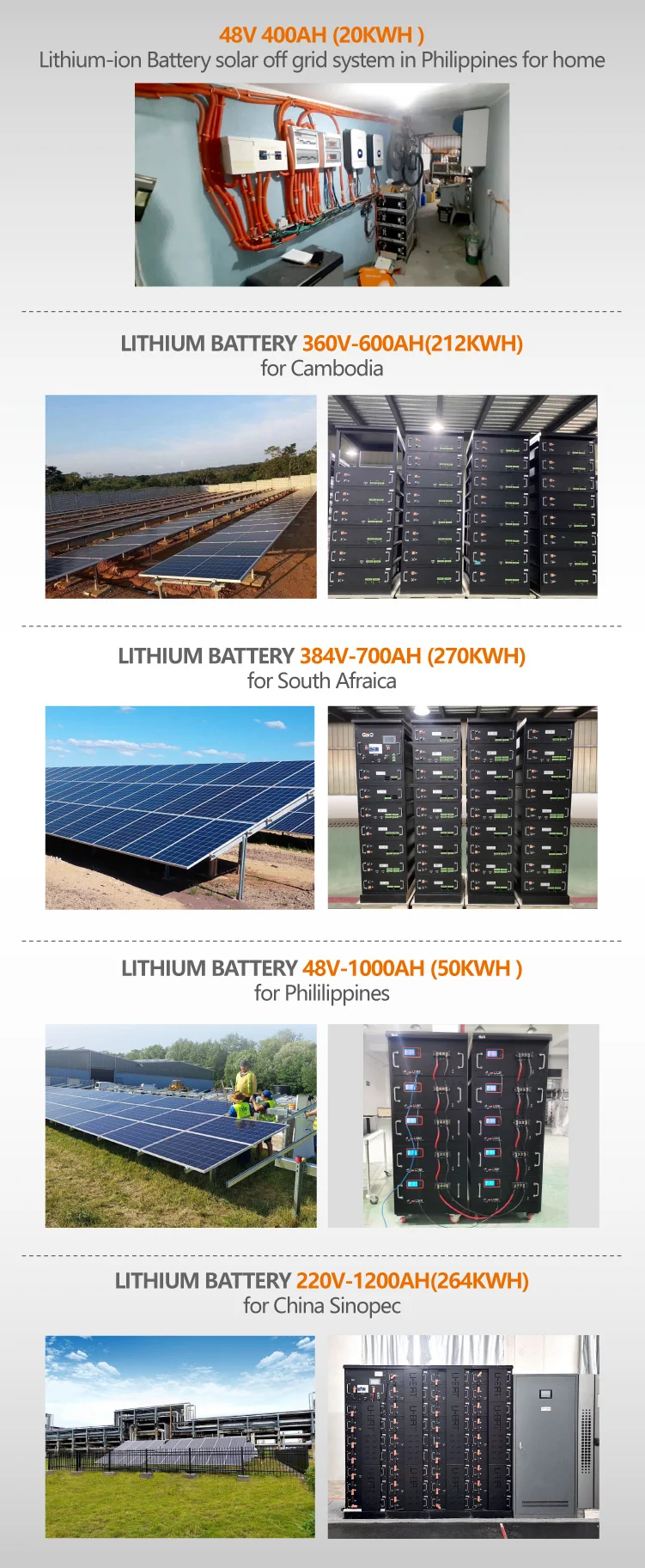

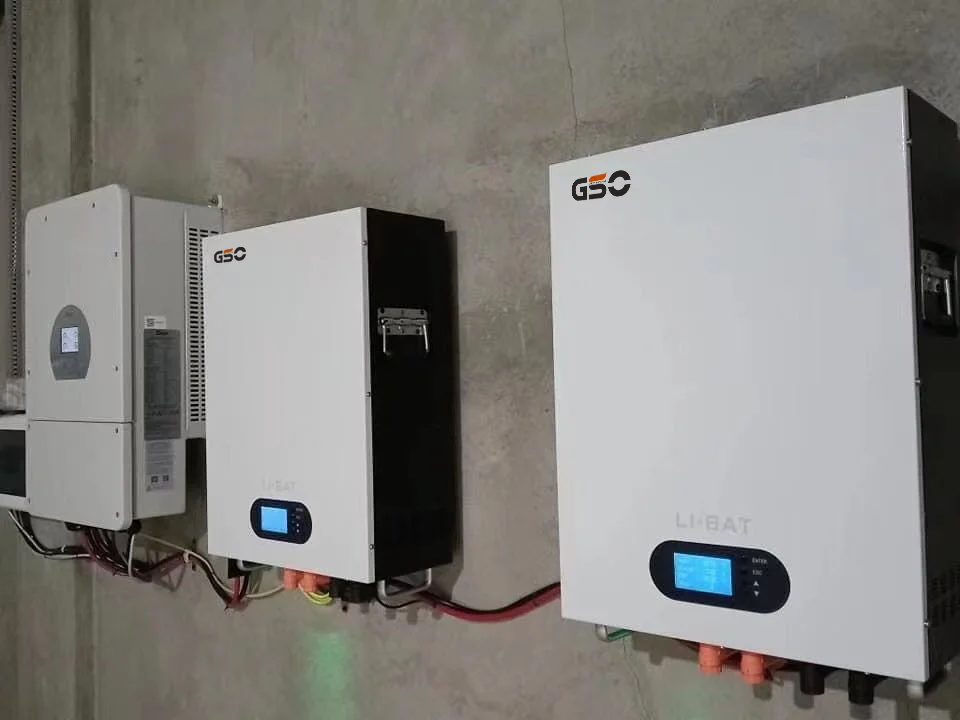

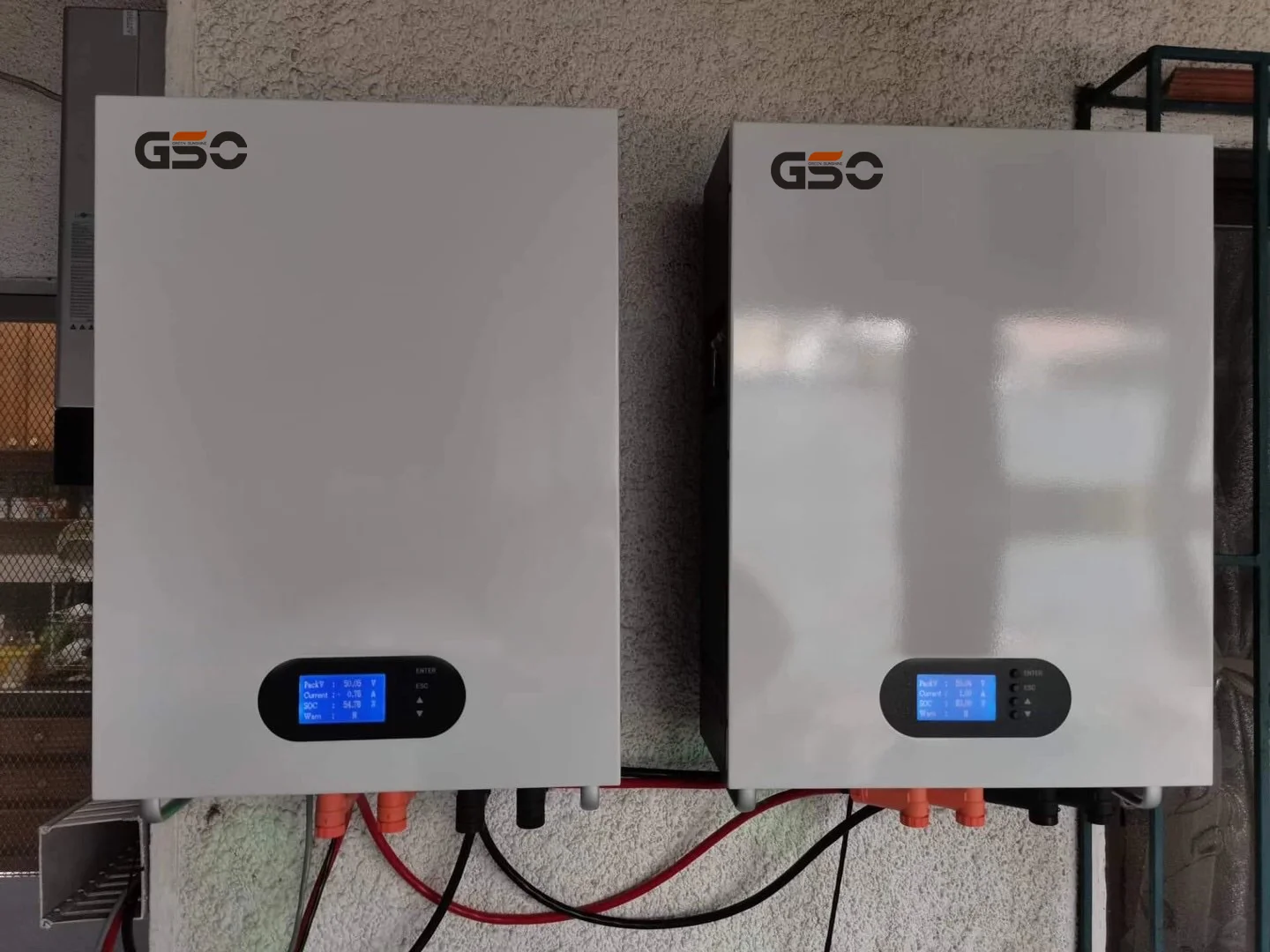

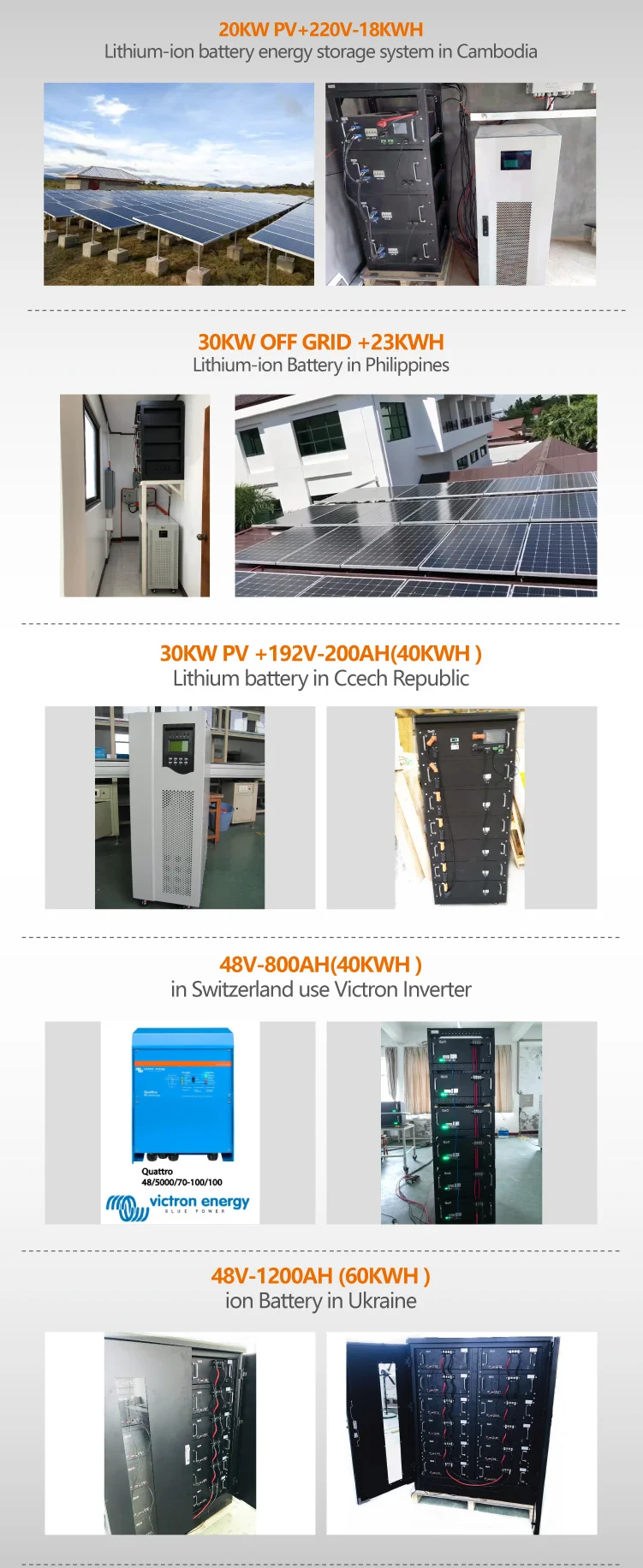

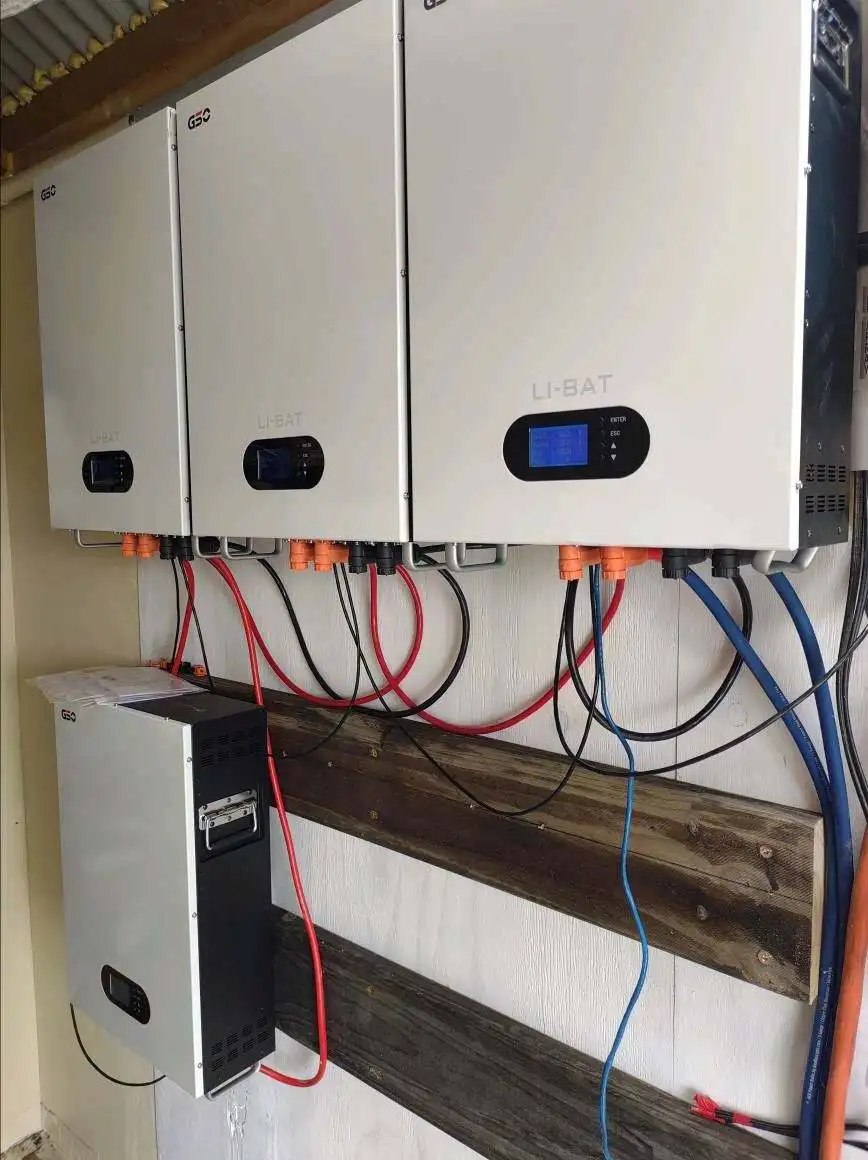

Project Cases

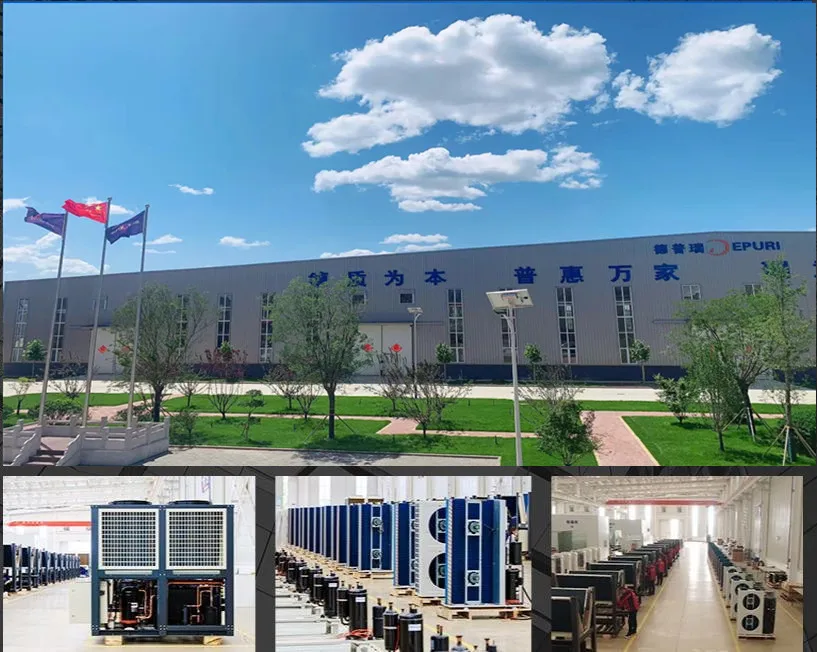

Company Profile
Hebei Depurui Import and Export Co.,Ltd is located in ShiJiazhuang City, Hebei Province, China. We are manufacturer of new energy Products: Air source heating and cooling system, Solar Energy Products ( Solar Panels, Solar Inverter, Solar Controller,etc); Wind Power Products (Wind Turbine, Inverter, Controller, etc.) and Energy Storage System (Portable Power Station,Lithium Battery). New energy has the advantages of cleaning, Environmental friendly, non -pollution, wide distribution, and large reserves. With the continuous progress and development of society, new energy products have been widely recognized by the world. We provide our customers with safe and reliable products, accurate energy-saving system solutions, and make unremitting efforts to improve and protect the human ecological environment.
OUR EXHIBITION
FAQ
Q1: Are you a manufacturer or a trading company?
Q2:How about the delivery time?
A2:Ready sample;7 working days for bulk order after your deposit is confirmed.
Q3:Can you print my logo on the batteries?
A3:Yes, OEM is accepted.
Q4:How many years can be use for battery?
A4:Design life 8-10 years under proper use
Q5:Do you provide after-sales serive?
Q6:How can guarantee quality?
Q8: If battery damage,how will you solve the problem?
A8:If there is problem happened , we will gather all the picture and according to your using condition to find out what cause this problem. If it is producing problem, we will replace you the new one in the next shipment.
Q9:What are the price terms can you offer for us?
A9:We accept EXW,FOB,CIF and so on
A1: We are a factory more than 20years experience to provide good quality with competitive price.
Q2:How about the delivery time?
A2:Ready sample;7 working days for bulk order after your deposit is confirmed.
Q3:Can you print my logo on the batteries?
A3:Yes, OEM is accepted.
Q4:How many years can be use for battery?
A4:Design life 8-10 years under proper use
Q5:Do you provide after-sales serive?
A5.Yes,the warranty is 6 years, if any quality problems on our side in this period, we can send
new one as replacement.
new one as replacement.
Q6:How can guarantee quality?
A6.Always a pre-production sample before mass production; Always final Inspection before shipment.
Q7: Do you have any certifications for your product?
A7: Yes, CE, UL,RoHS,ISO,MSDS, CNS
A7: Yes, CE, UL,RoHS,ISO,MSDS, CNS
Q8: If battery damage,how will you solve the problem?
A8:If there is problem happened , we will gather all the picture and according to your using condition to find out what cause this problem. If it is producing problem, we will replace you the new one in the next shipment.
Q9:What are the price terms can you offer for us?
A9:We accept EXW,FOB,CIF and so on
