Product Overview
Description
Product Description

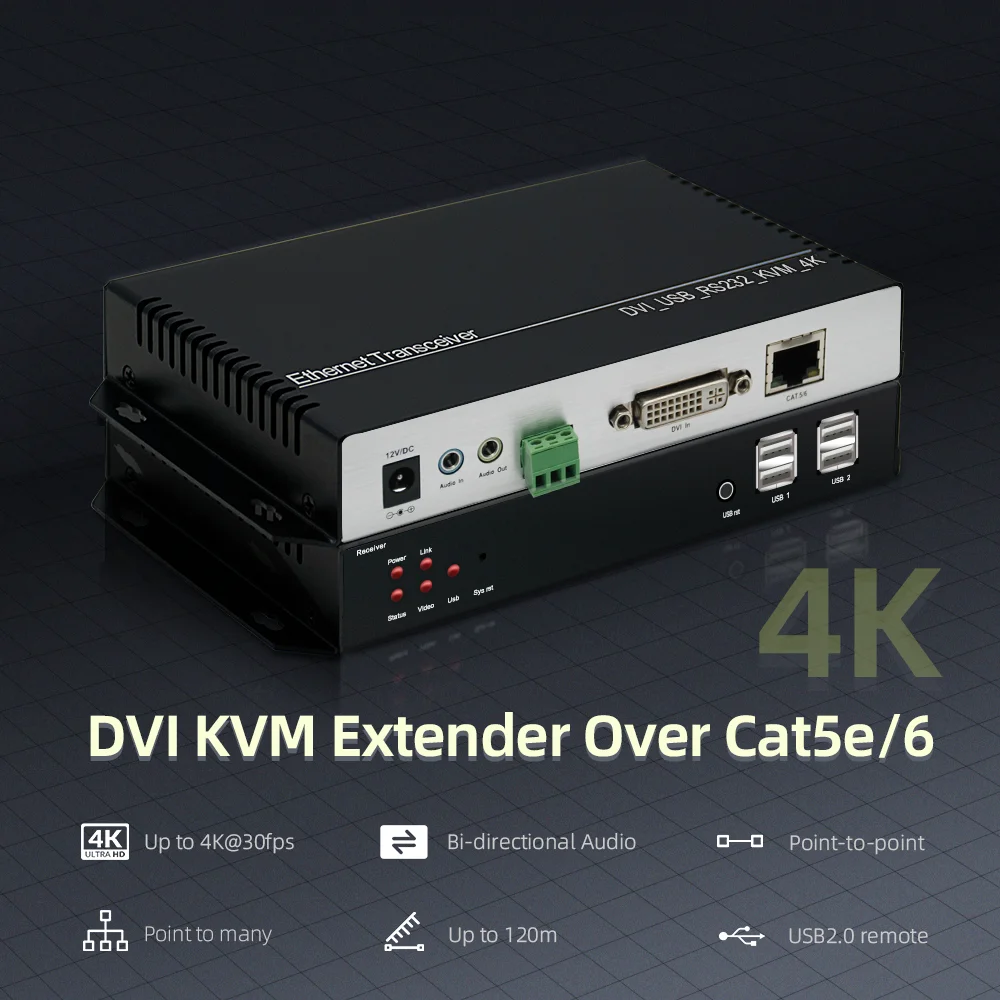

4K@30Hz DVI KVM Extender Over 120m Cat 5e/6
CKD501 is a KVM Extender is a video extender solution, extending DVI video, analog audio, and USB 2.0 devices up to 120 meters (394 feet) over a single Cat 5e/6 cable. With RS-232 control port, and a Gigabit Ethernet port.
For point-to-point transmission and point-to-many transmission with gigabit switches.

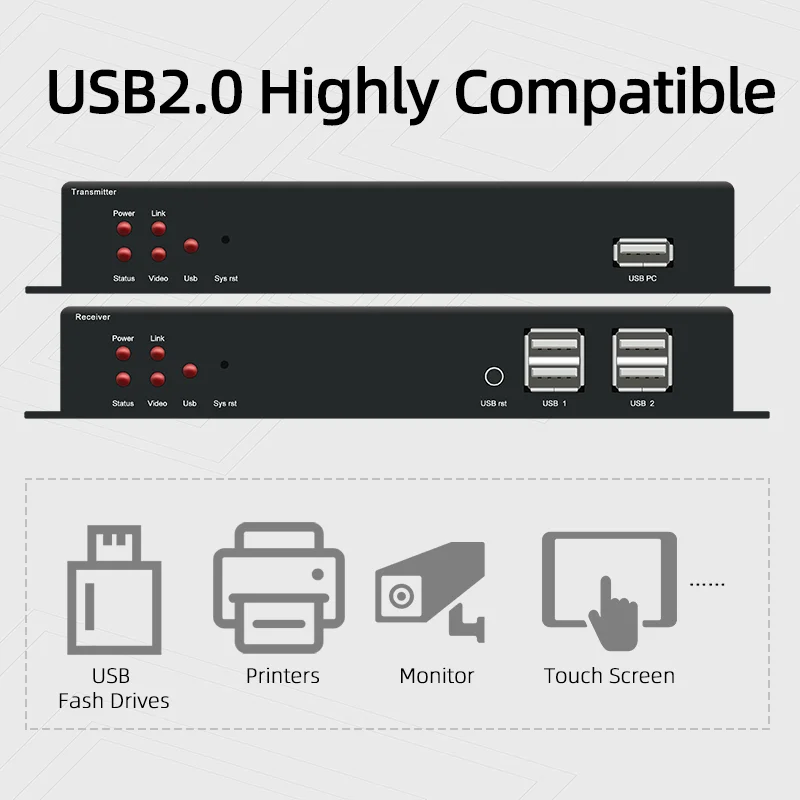

Applications include keyboards, mice, microphones, hard drives, touch screens, scanning guns, and other USB 2.0 devices. Video resolution is 38440*2160@30HZ and does not degrade when extended to the full 120-meter distance.

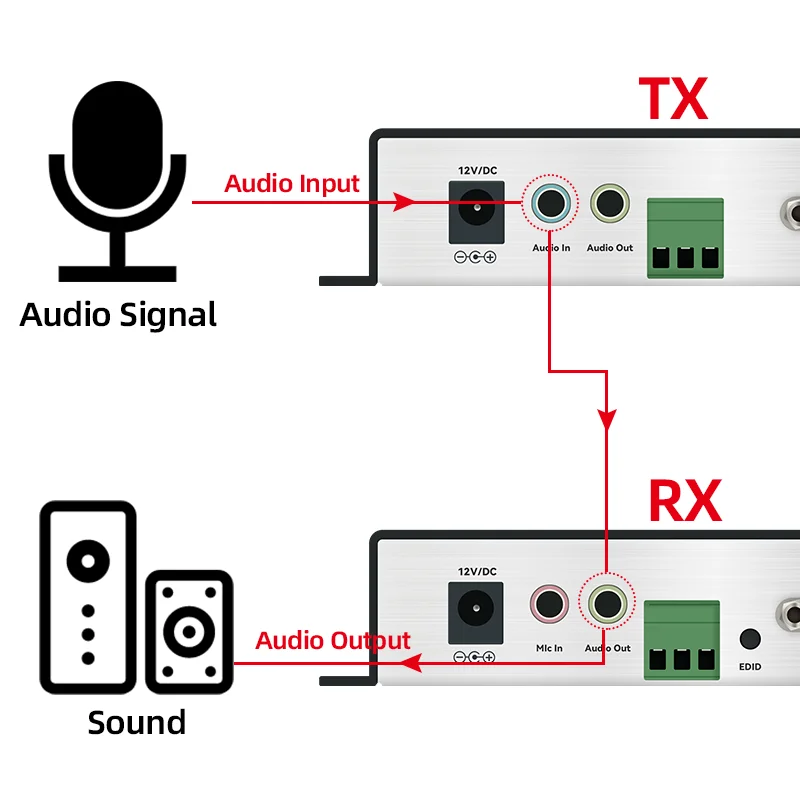

\\uD83D\\uDD3ASupport two-way audio (Microphone) transmission
Audio forward transmission

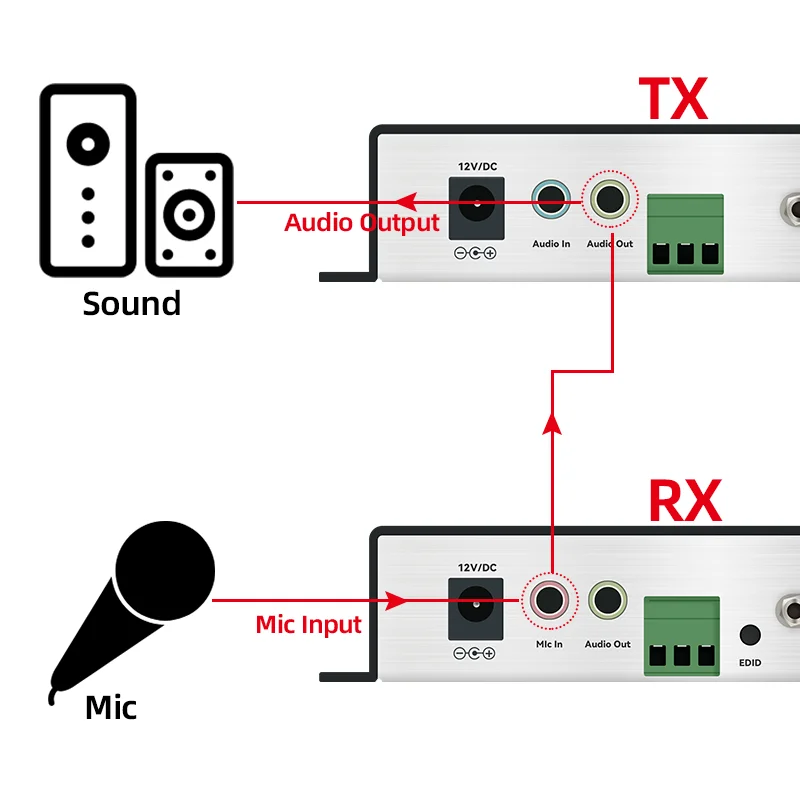

\\uD83D\\uDD3ASupport two-way audio (Microphone) transmission
Microphone reverse transmission

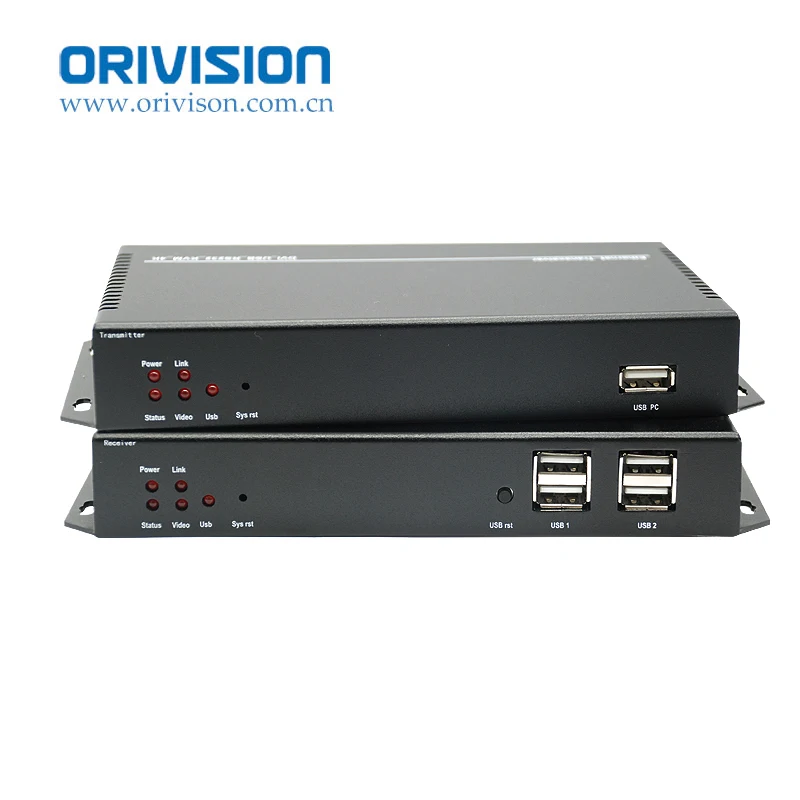

Detailed Images

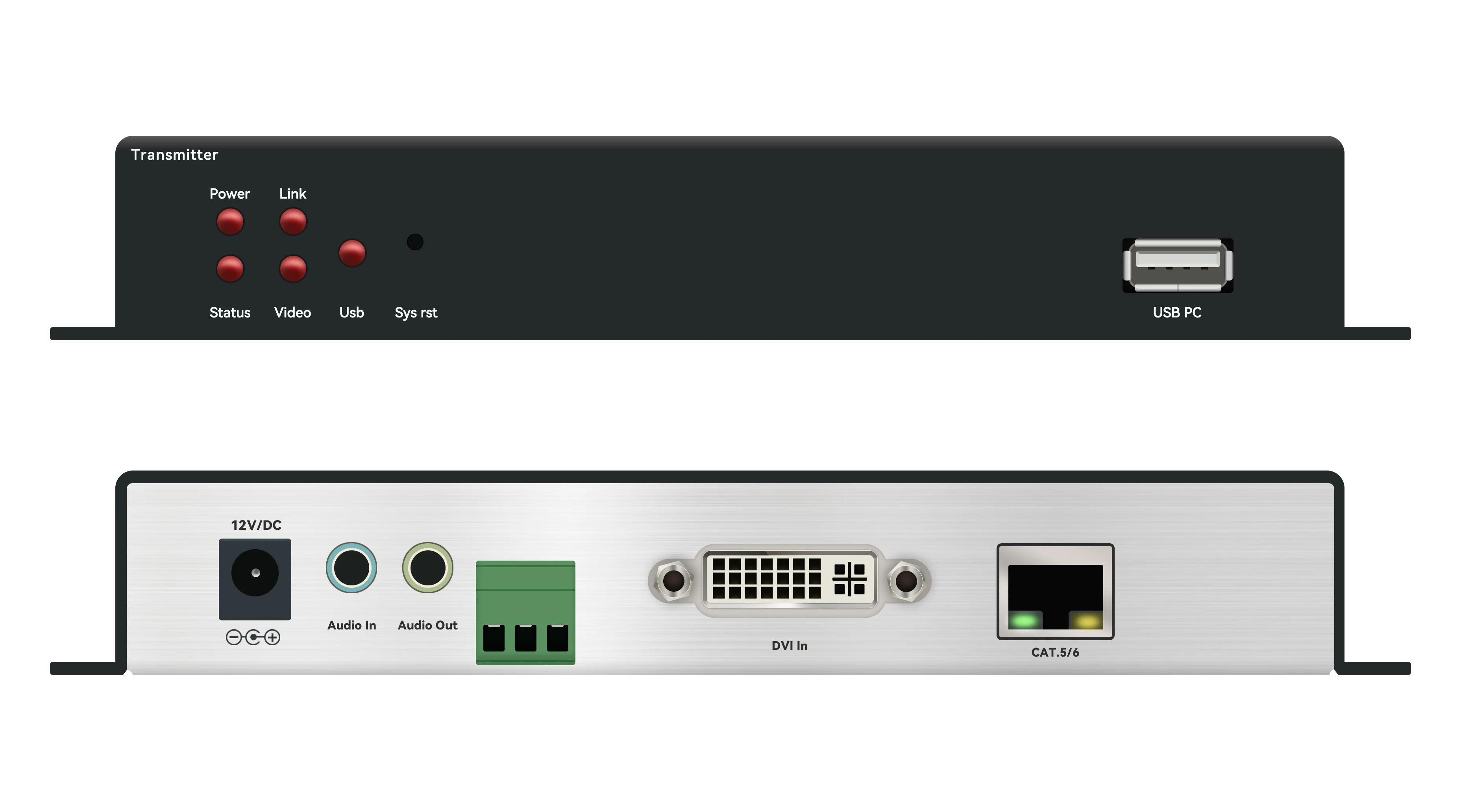

\\uD83D\\uDD3ATransmitter

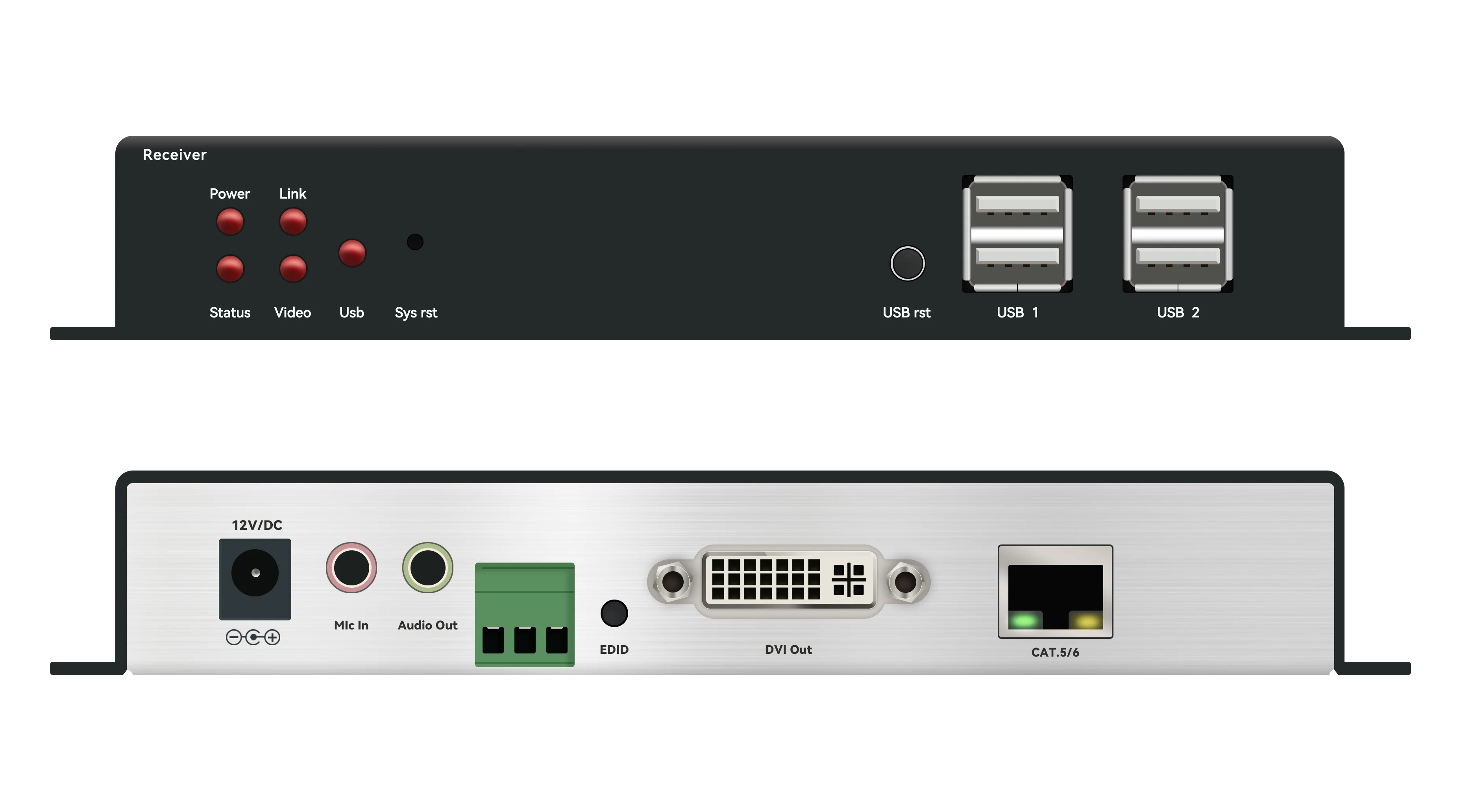

\\uD83D\\uDD3AReceiver
Recommend Products
Application Diagram

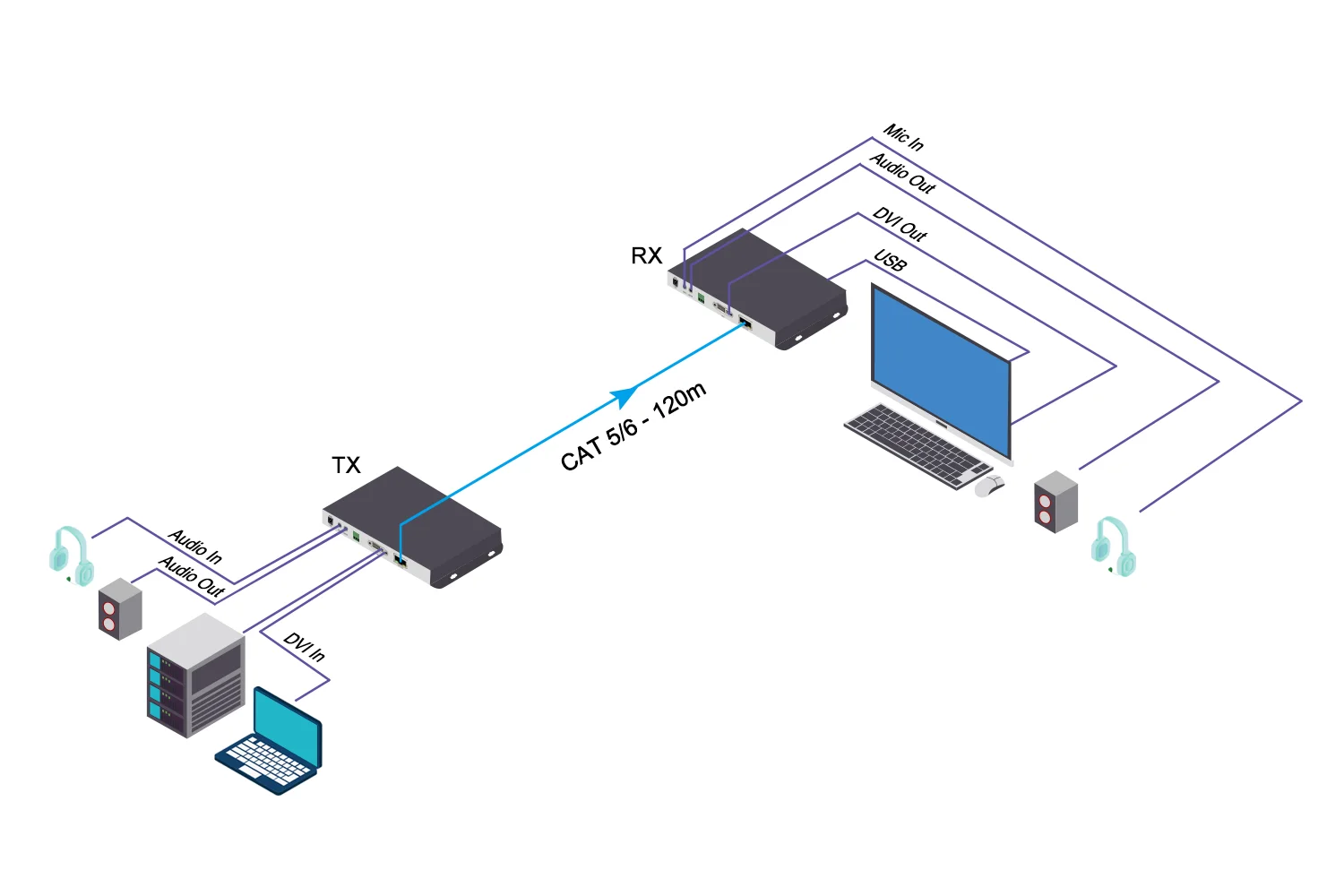

▼Support point to point 120m by Cat 5e/6 cable

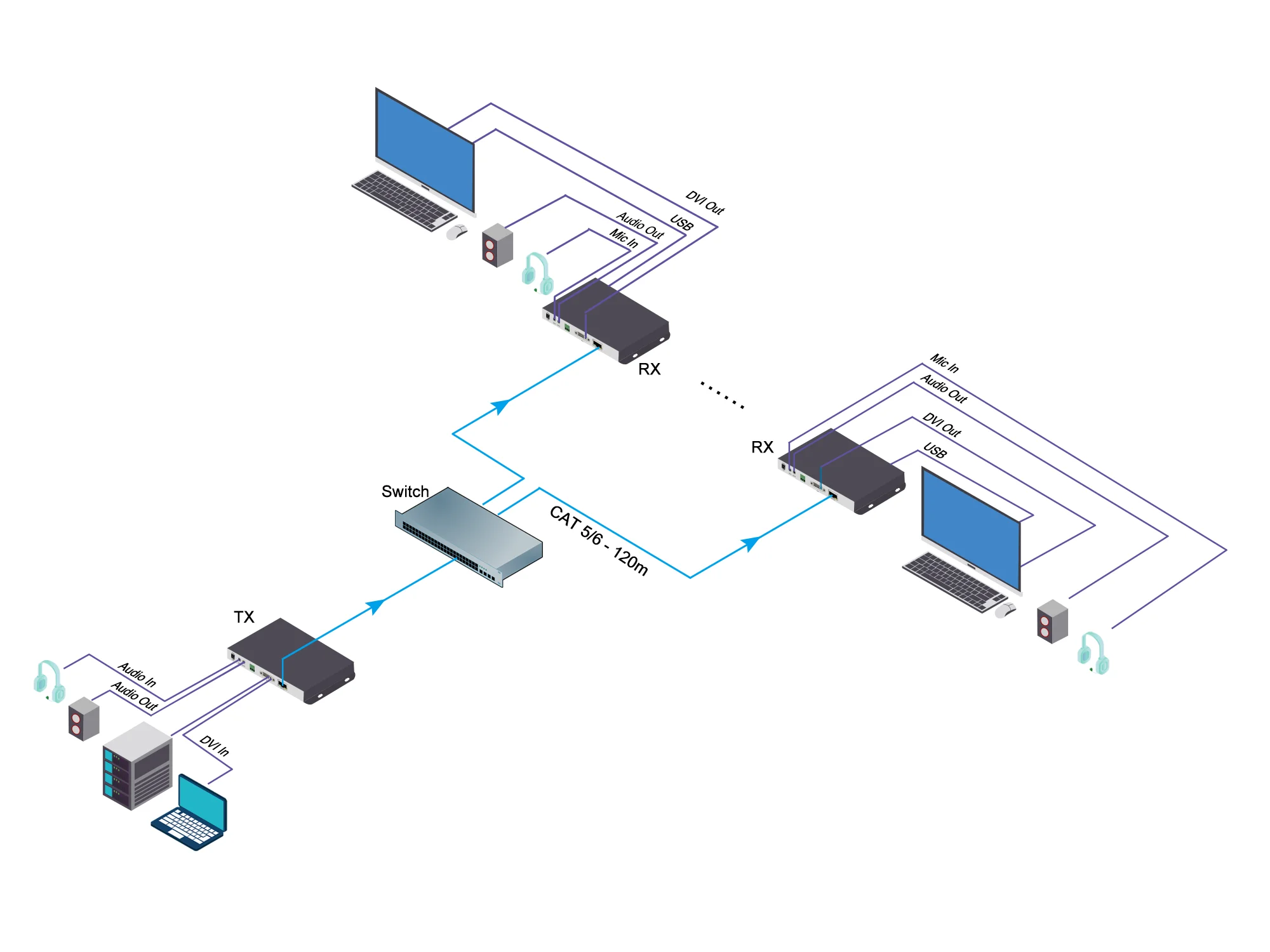

▼ Support point-to many transmission with gigabit switches.
Product Paramenters
Model | Transmitter：ZY-CKD501-B Receiver：ZY-CKD501-J |
Transmitter-Input | DVI*1 USB*1 RS232*1 3.5Audio in*1 3.5Audio out*1 |
Transmitter-Output | RJ45*1 |
Receiver-Input | RJ45*1 |
Receiver-Output | DVI*1 RS232*1 3.5Mic in*1 3.5Audio out*1 USB*4 |
Maximum resolution | 3840*2160@30HZ |
Transmission distance | Point to point:120m or 1000M Network |
Cable | CAT5/6 cable |
Operating temperature | -5℃~＋60℃ |
Environment humidity | <90%, No condensation |
Power | DC 12V/1A |
Size | 187mm×105mm×28mm |
Weight | Transmitter：0.3kg Receiver：0.3kg |
