Roller glass coating machine
US $10000-$13000
Insulating Glass Processing Vertical Glass Washing Machine Manufactures Glass Cleaning Drying Machinery
- Category: >>>
- Supplier: Jinan Wondec Machinery Co. Ltd.
Share on (1600814928359):
Product Overview
Description
Product Description
*This machine is conventional type, the specific price is subject to the actual configuration and negotiation.
FOR ANY SIZE YOU WANT, PLEASE CONTACT US.

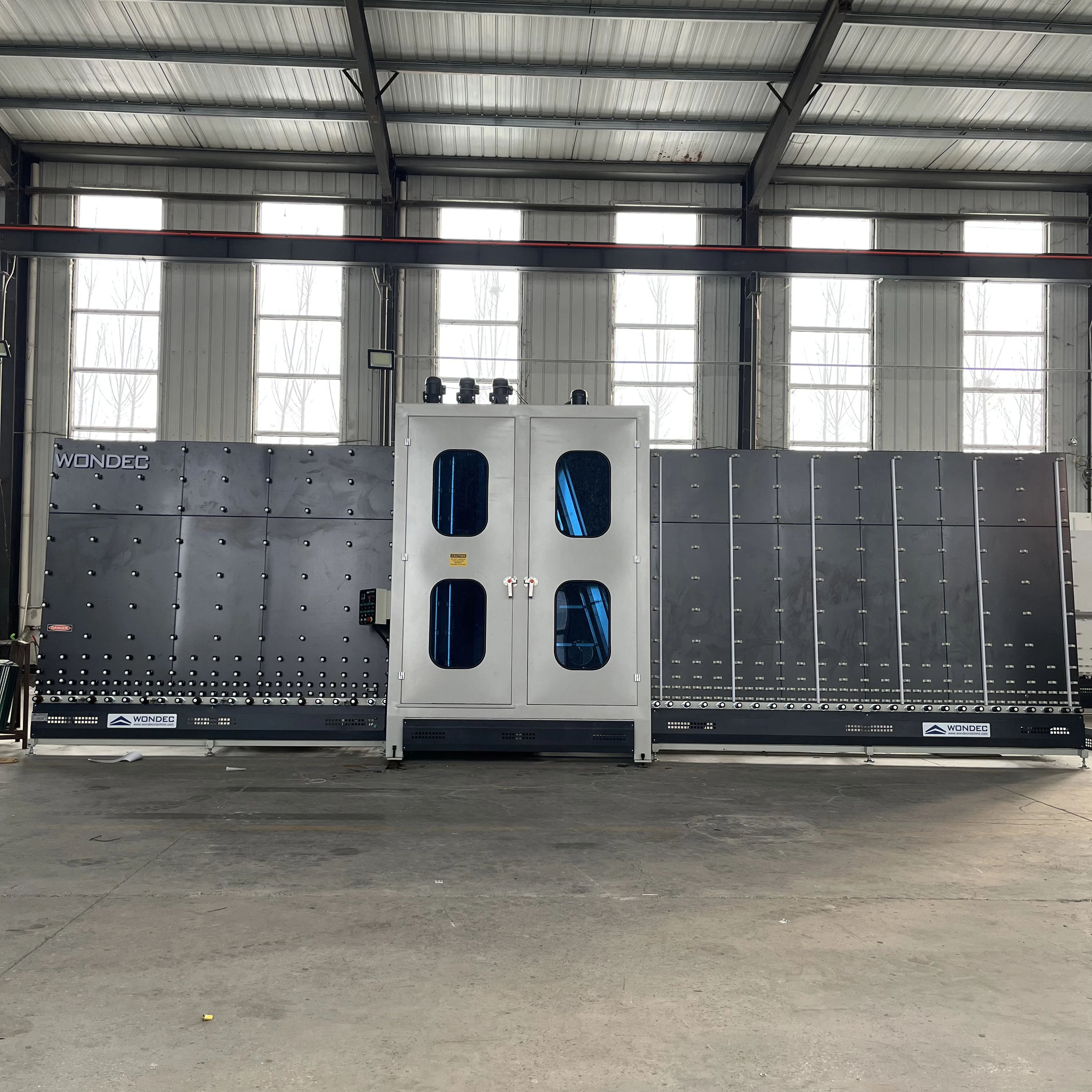

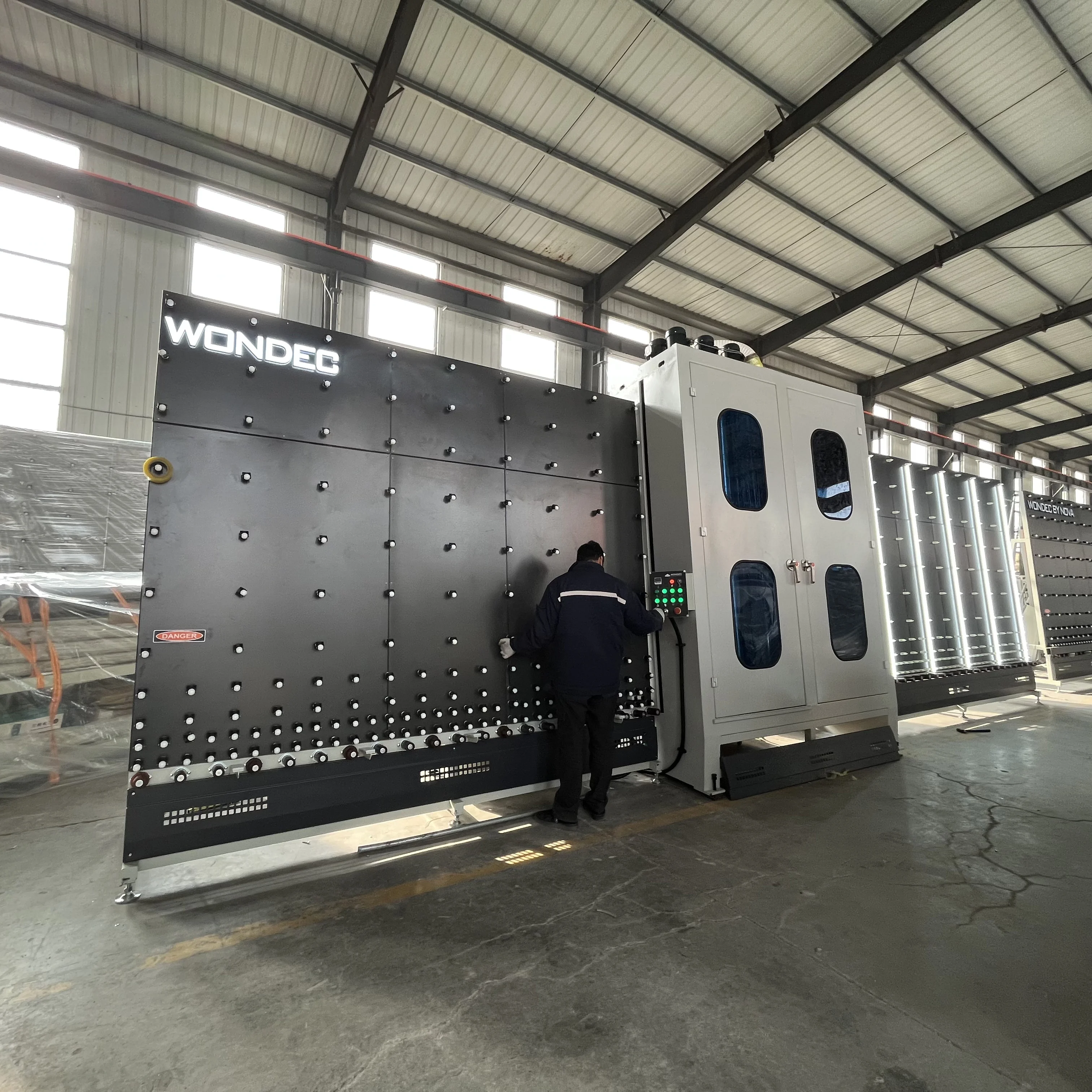

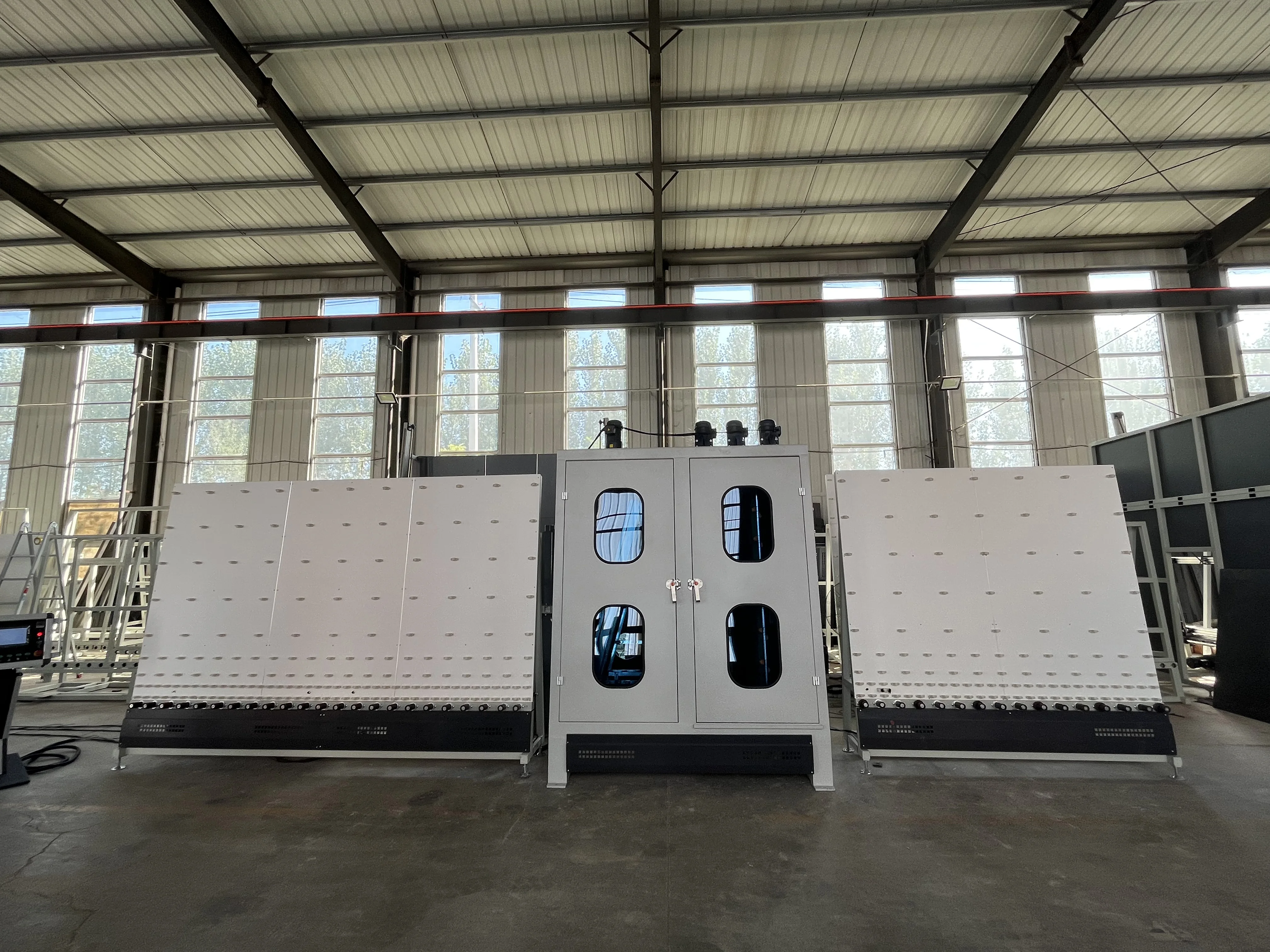

Automatic Vertical Washing and Drying Machine VGM2800
1. Carbon fiber conductive brushes are used for Low-e glass detection.

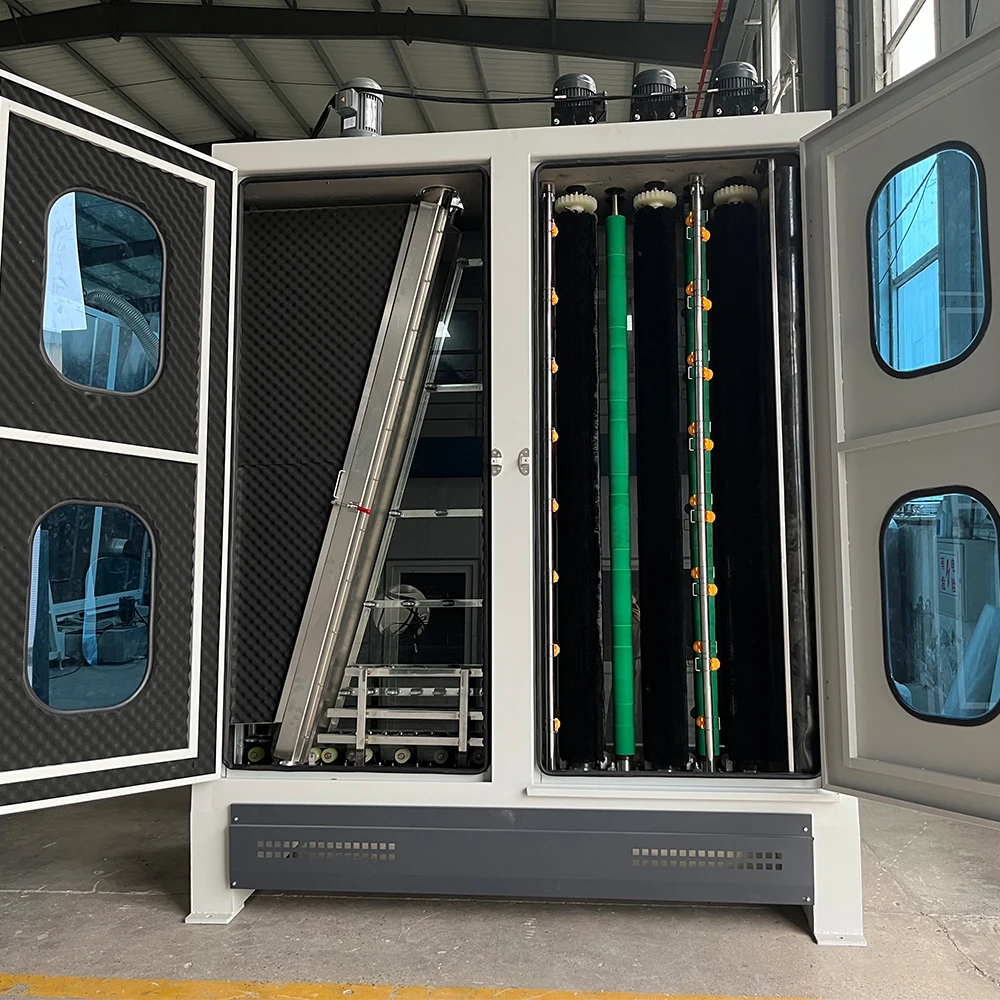

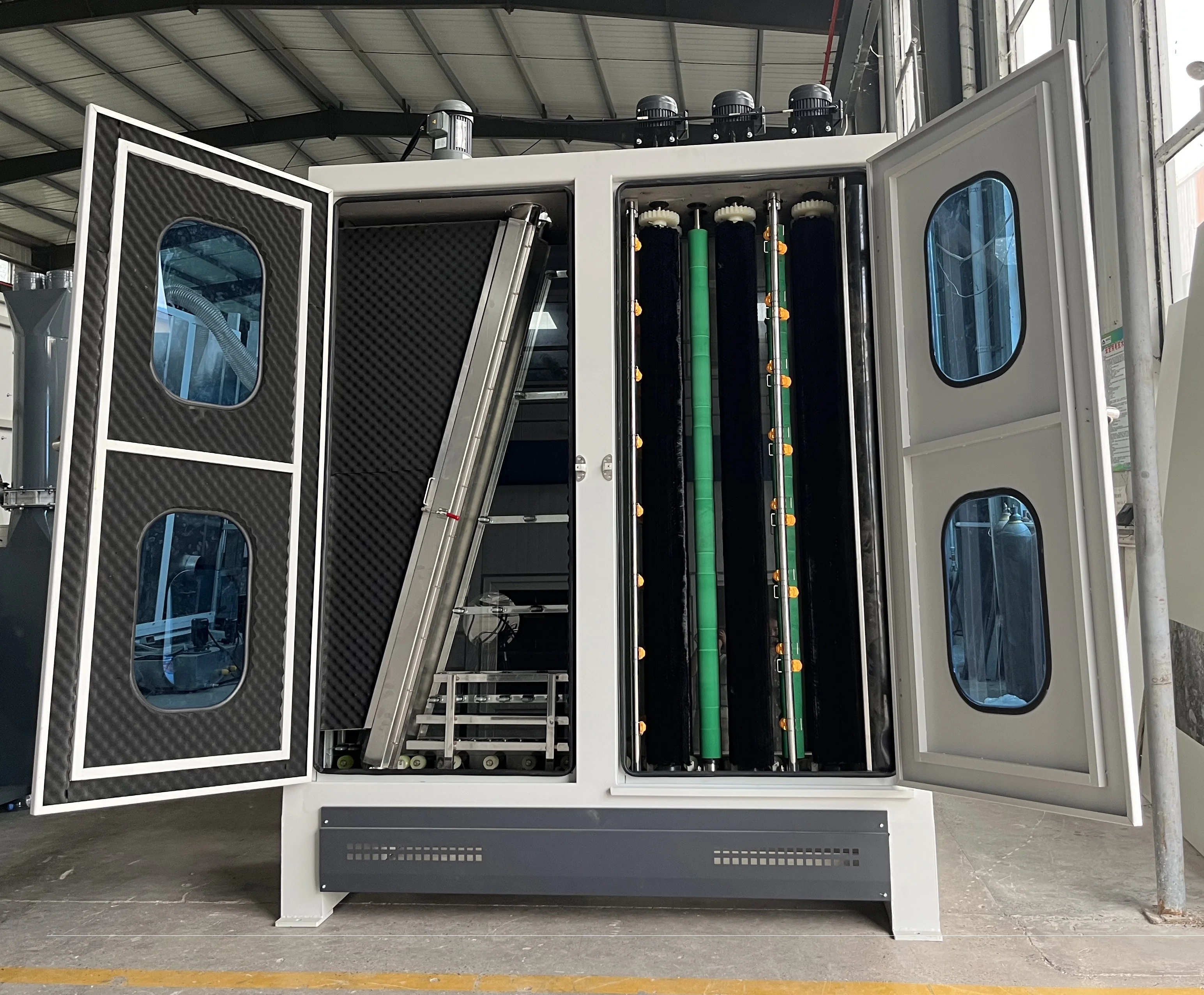

2.The power of three groups of brushes is driven by 6 motors. The connection mode is coupling, the brush motor is directly connected with the brush to avoid idling of the brush.
3.The washing zone are made of stainless steel and corrosion-proof material, water heating function available.
4.The three groups of brushes are controlled by 6 circuits respectively. The problems of one group of brush circuits will not affect the other brush circuits.
5. High-speed air blower equipped with air heating device, can quickly dry the glass.
6.To ensure the washing quality, the water conductivity should not exceed 40µs/cm.
* Section 2 cleaning section is made of stainless steel, and all bearing bases are made of stainless steel.
* 02 end brush bearing is self-aligning bearing with long service lift and high precision.
* The three groups of brushes are controlled by 6 circuits respectively. The problems of one group of brush circuits will not affect the other brush circuits.
*The whole drying cabinet uses a sound insulation cotton with10mm thicknesse, which could reduce noise pollution effectively

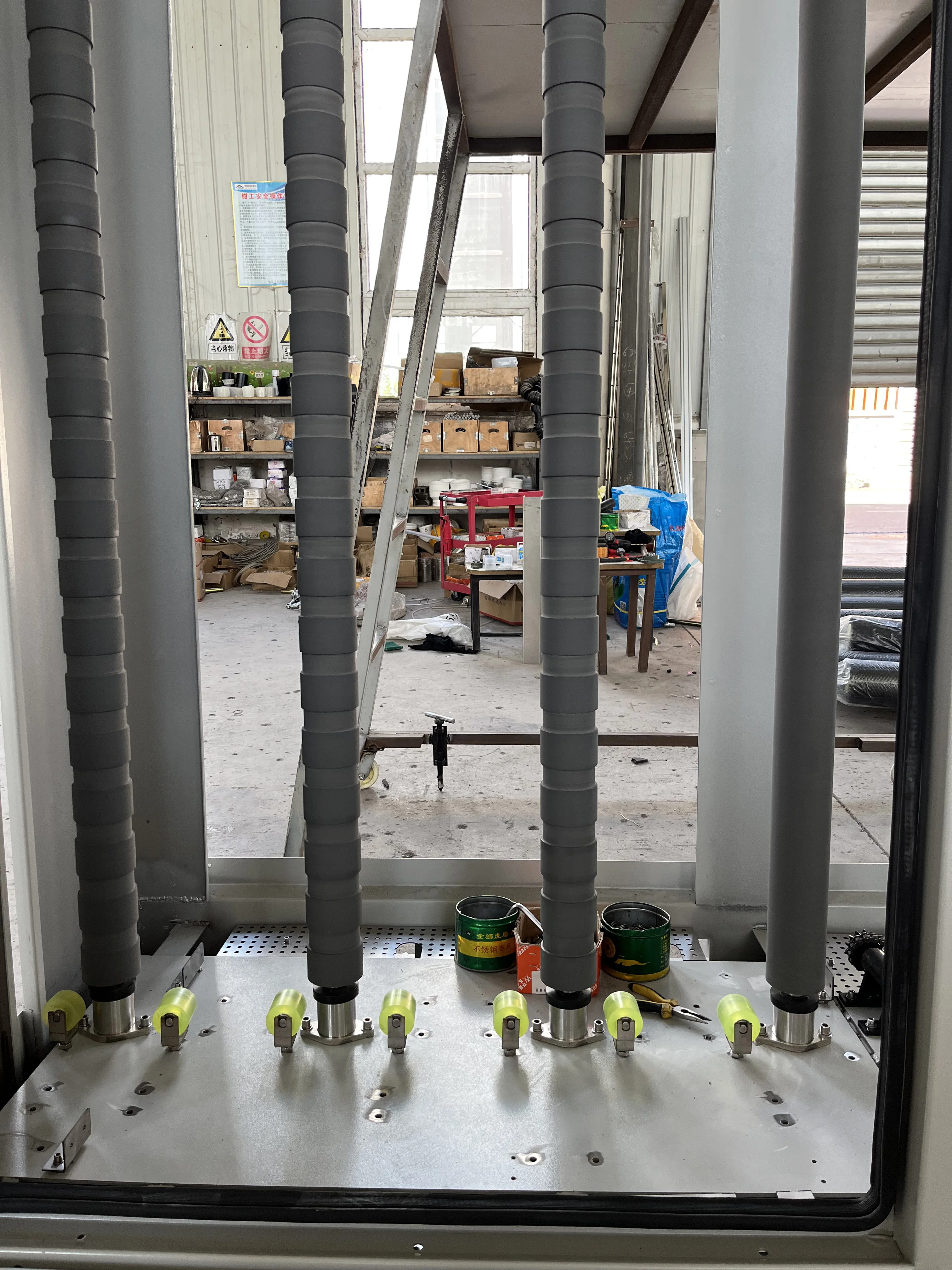

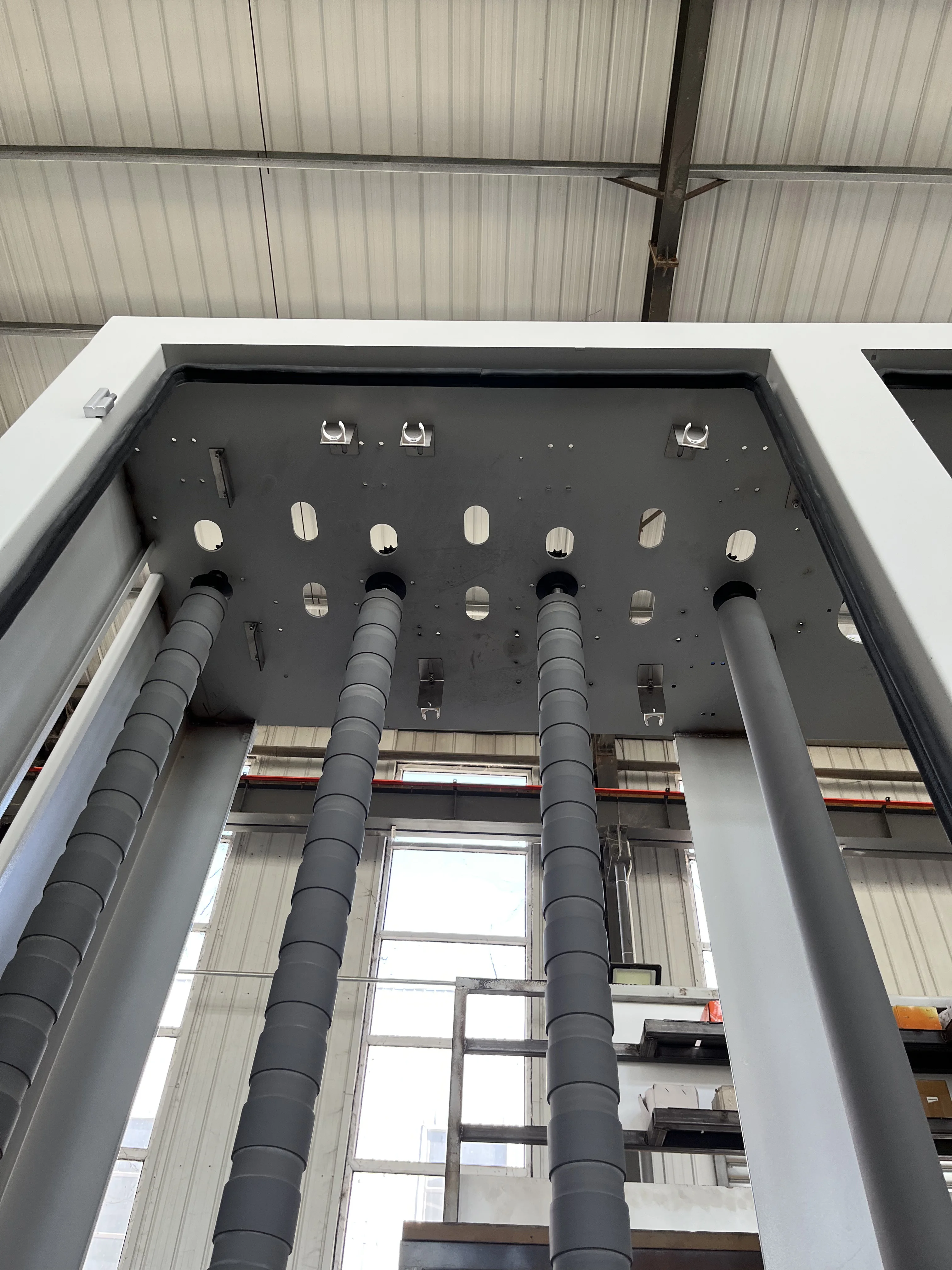

The front 3 brushes are with 0.1mm diameter brush hair, and the back 3brushes are with 0.2mm diameter brush hair, which can easily wash low-e glass.
Air knife with Germany Bystronic technology, the front air knives angle can be adjusted manually. Generally, the angle between
air knife and glass surface is 40°.
air knife and glass surface is 40°.
The feet of the air blower are equipped with rubber feet pads to reduce the vibration when the high power motor running and stabilize the air blower position.
Specification
Technical Parameter | VGM2800 |
Max. glass size | 2800x4000mm |
Min. glass size | 200x400mm |
Glass thickness | 3-16mm |
Transimission speed | 2~50m/min |
Air pressure | 0.6~0.8Mpa |
Total power | 25kw |
Overall dimension | 9300x2300x3400mm |
Packaging & Shipping
Services
Why Choose Us
Exhibition
FAQ
1.What about the delivery terms?
We will arrange the delivery on the terms we both agreed upon after the confirmation by the buyer. For standard machines, it would be 7-10 days. For special ordered machines, it would be 15 to 30 days depending on the factory arrangement.
2. Is it easy to operate for a beginner?
We provide an English manual or live video guide that will show how to set up and use the machine. Whether you are a beginner or an expert, you can quickly learn to operate. If you still have any problems, please contact us directly via calling or mailing.
3. How to choose the right entry-level glass deep-processing machine?
Yes, to give you a suitable entry-level insulating glass producing machine, please tell me the max working area, materials for processing, and the thickness for the materials to be cut. Then an affordable glass deep-processing machine will be recommended to fit your requirements.
4. If the glass deep-processing machine have any problem after I ordered it, what could I do?
Free parts will be sent to you in the warranty period if the machine has any problem.
Free after-sales service life for the machine, please feel free to contact us if you have any problems.
We will offer 7/24 free service and support by phone, WhatsApp, skype, and mail.
5. What about quality control?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure it can work very well before being out of the factory. The testing video and pictures will be available before delivery.
6. What about the MOQ?
Our MOQ is 1 set glass deep-processing machine. We could send the glass deep-processing machine to your country port directly, please tell us your port name. There will be the best shipping freight and machine price for you.
7. What about the payment terms?
30% by T/T in advance, 70% by T/T before shipping.
8. What about the packing?
Waterproof plastic film package with foam protection in each corner. Plywood case package with steel belt. It saves space as much as possible for container loading.
We will arrange the delivery on the terms we both agreed upon after the confirmation by the buyer. For standard machines, it would be 7-10 days. For special ordered machines, it would be 15 to 30 days depending on the factory arrangement.
2. Is it easy to operate for a beginner?
We provide an English manual or live video guide that will show how to set up and use the machine. Whether you are a beginner or an expert, you can quickly learn to operate. If you still have any problems, please contact us directly via calling or mailing.
3. How to choose the right entry-level glass deep-processing machine?
Yes, to give you a suitable entry-level insulating glass producing machine, please tell me the max working area, materials for processing, and the thickness for the materials to be cut. Then an affordable glass deep-processing machine will be recommended to fit your requirements.
4. If the glass deep-processing machine have any problem after I ordered it, what could I do?
Free parts will be sent to you in the warranty period if the machine has any problem.
Free after-sales service life for the machine, please feel free to contact us if you have any problems.
We will offer 7/24 free service and support by phone, WhatsApp, skype, and mail.
5. What about quality control?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure it can work very well before being out of the factory. The testing video and pictures will be available before delivery.
6. What about the MOQ?
Our MOQ is 1 set glass deep-processing machine. We could send the glass deep-processing machine to your country port directly, please tell us your port name. There will be the best shipping freight and machine price for you.
7. What about the payment terms?
30% by T/T in advance, 70% by T/T before shipping.
8. What about the packing?
Waterproof plastic film package with foam protection in each corner. Plywood case package with steel belt. It saves space as much as possible for container loading.
