Product Description
Specifications :
| Code | Measurement | Range | Graduation | Accuracy |
| 8511-0030 | Crown height | 0-25(0-1") | 1(1/16") | ±0.5 |
| fillet weld leg height | 0-25(0-1") | 1(1/16") | ±0.5 | |
| misalignment(high-low) | 0-25(0-1") | 1(1/16") | ±0.5 | |
| undercut depth | 0-2(0-1/8") | 1(1/16") | ±0.5 | |
| fillet weld throat size | 0-20(0-3/4") | 1(1/16") | ±0.5 | |
| angle of preparation | 0-60° | 5° | ±1° | |
| Length | 0-60(0-2") | 1(1/16") | ±0.5 |
Features :

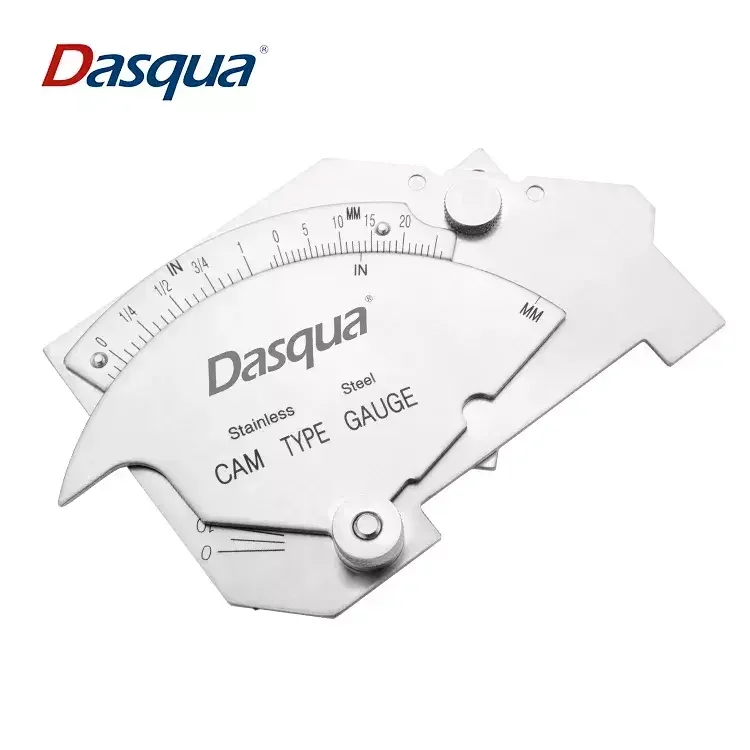

•Bridge cam gauge is a unique, versatile instrument for the inspection of welded surfaces and joints
•Made of high quality stainless steel, this gauge is durable and not easily scratched
•Gauge surface is clearly laser etched which is wear-resisting and ensures a clear reading

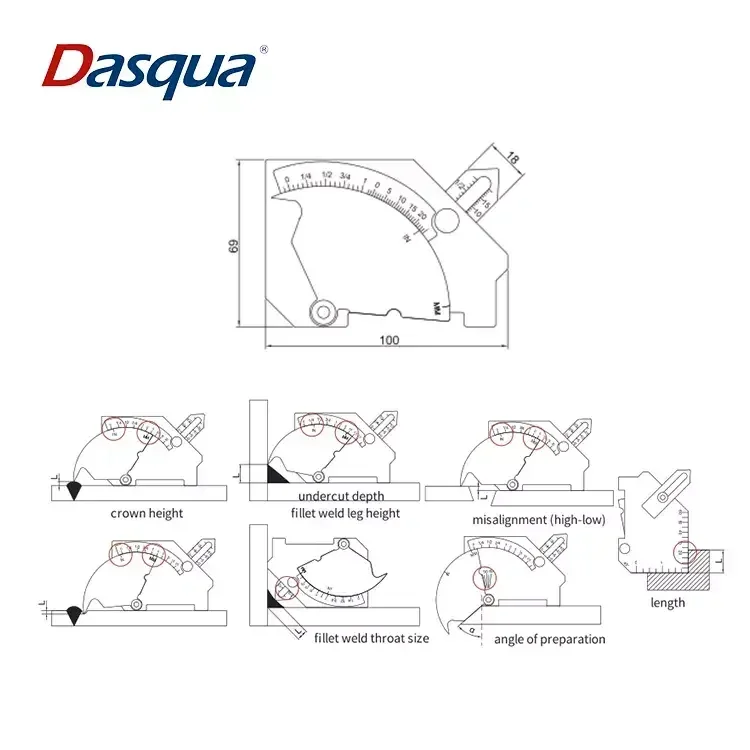

•Used to measure angle of preparation(0 to 60degree), excess weld metal (capping size), depth of undercut, fillet weld throat size, fillet leg length, misalignment (high-low), and linear measurements up to 50mm(2 inches)
•Stain chrome finish surface
