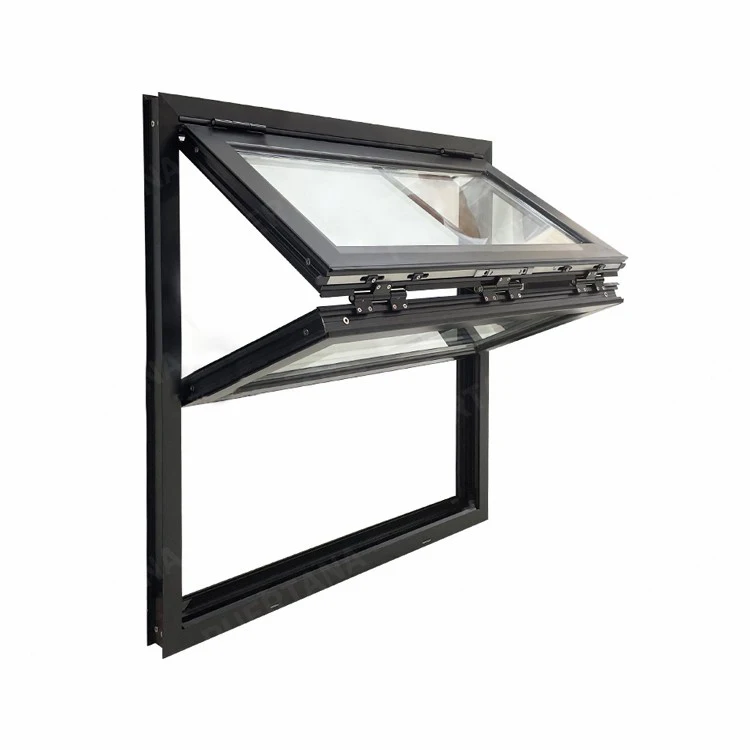

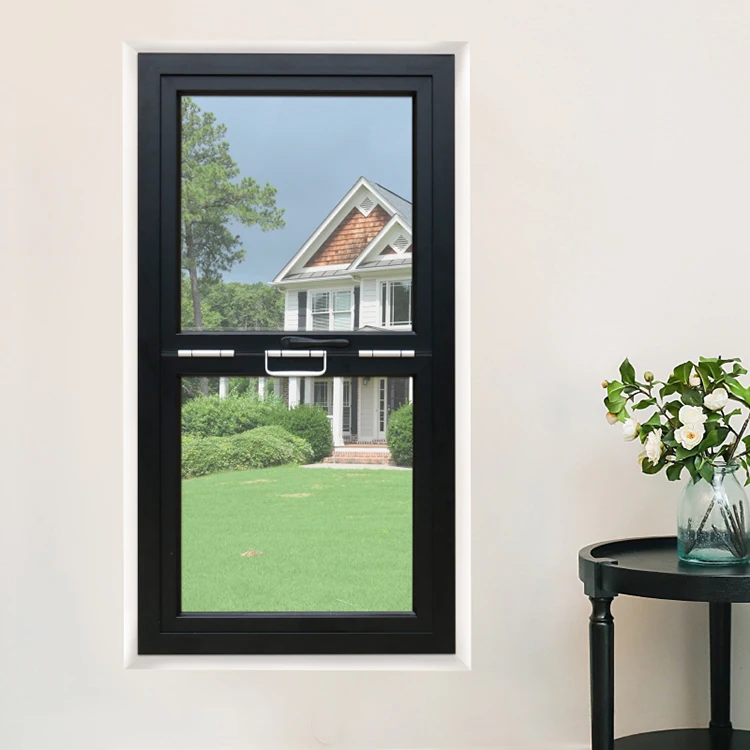

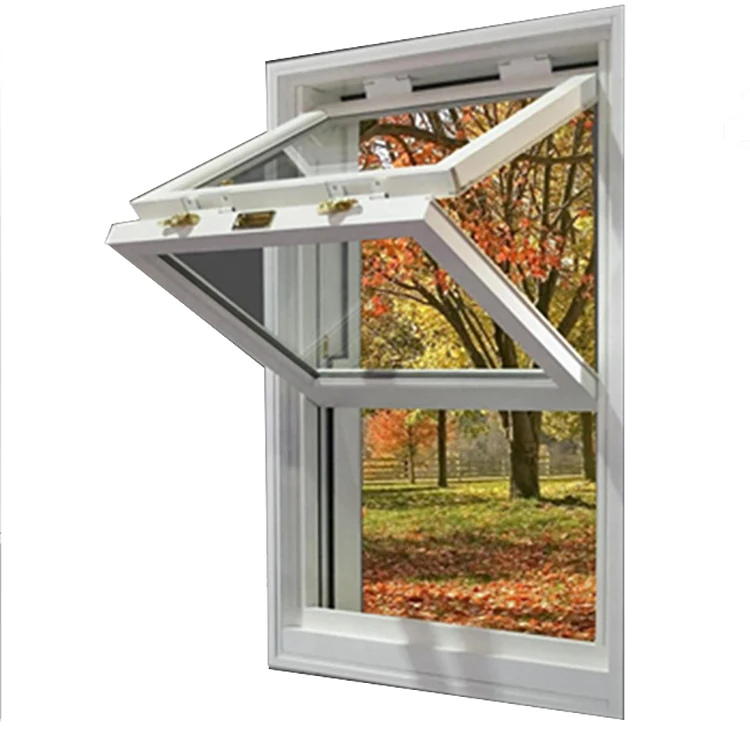

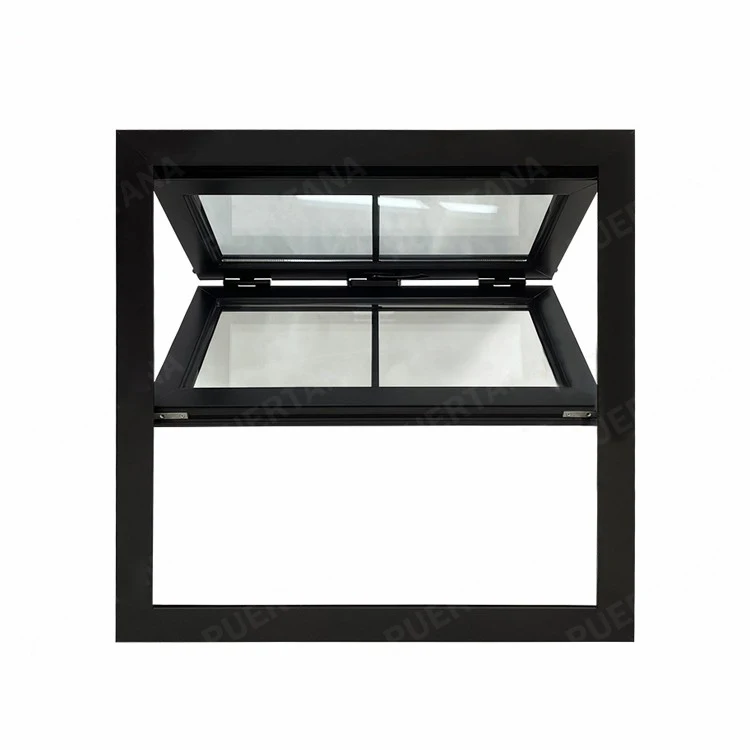

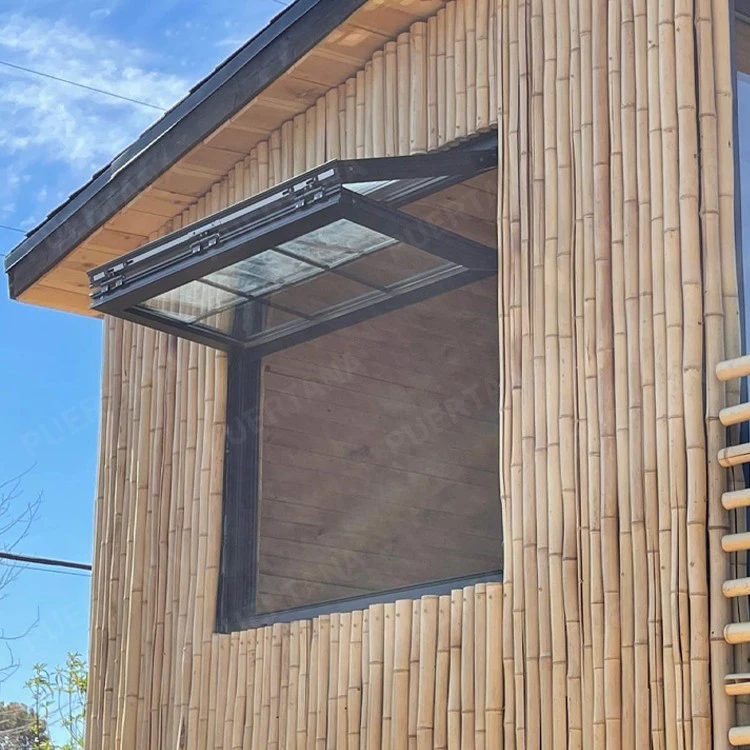

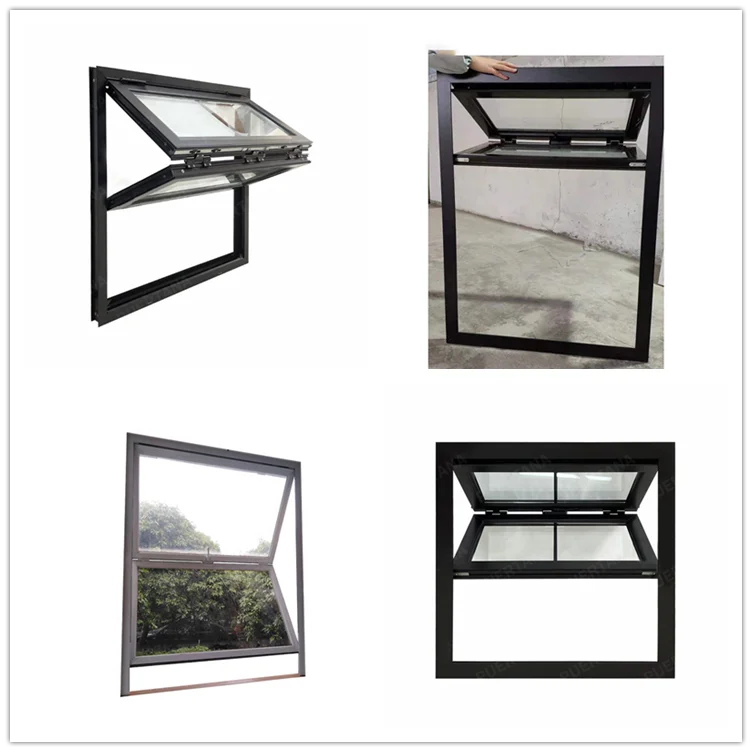

Aluminum Storefront Vertical Sliding Bi Folding Door Push Up Fold Up Window And Door Vertical Fold Up Windows
- Category: >>>
- Supplier: Jinhua Xinhong Import & Export Co. Ltd.
Share on (1600814966902):
Product Overview
Description
Aluminum Storefront Vertical Sliding Bi-Folding Door Push Up Fold Up Window And Door Vertical Fold Up Windows
1.Product Introduction
Aluminum alloy folding windows are artistic, sealed and high-strength. They are widely used in the field of construction, residential, offices, commercial office buildings, commercial centers, high-end residences, hospitals, laboratories, etc.
Style | Aluminum Folding Window |
Profile Brand | Chinese Top Brand |
Profile | 6063-T5/T6 normal aluminum, thermal break aluminum,1.4mm-2mm( depends on customer) |

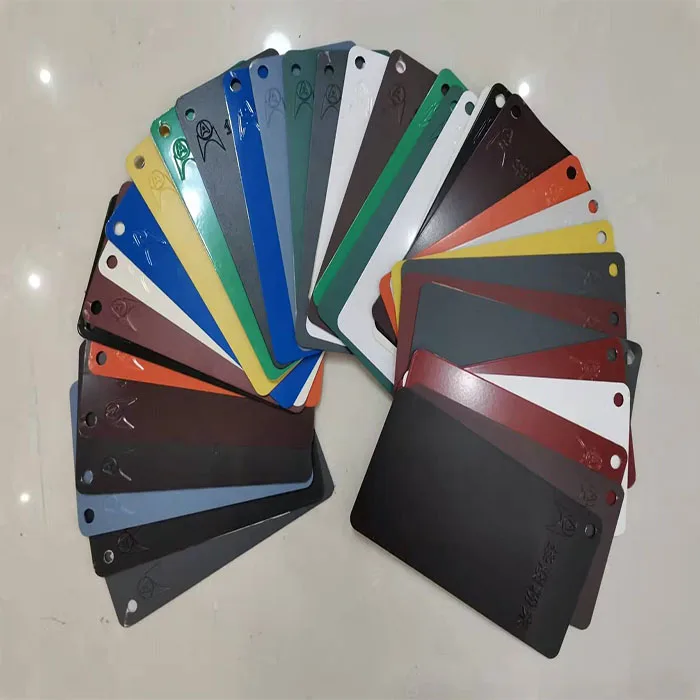

Surface Treatment | Anodized,Surface Electrophoresis,Powder Coating and Wood Grain Transfer |
Glass | Color: Matt black,White,Ultra silver,Clear anodized,Customized design color,etc. Types:Single or Double Tempered Glass,Laminated Glass,Low-E Glass,hollow Glass,etc. |
Hardware | 1.German brand: Roto, Siegenia, Geze 2.Chinese brand: Kinlong, Hopo |
Whole door U value | 1.4W/(m2*k) |
Water Tightness | 600Pa |
Wind Load | 1500-4500Pa |
Screen | Stainless steel security mesh,Aluminum security mesh,Fiberglass flyscreen,Retractable flyscreen,etc. |
Rubber Strip | Australia Standard EPDM |
Quality Control | CE/AS2208/IGCC/AS2047/AAMA/CSA Certification
|
Guarantee period | 10 years warranty, |
Application places | Residential Houses & apartments, schools, hospitals,Commercial Buildings,commercial buildings,etc |
Delivery Time | 35 Days,Delivery by DHL/TNT(Plastic Film, EPE Cloth,Wood Case) |

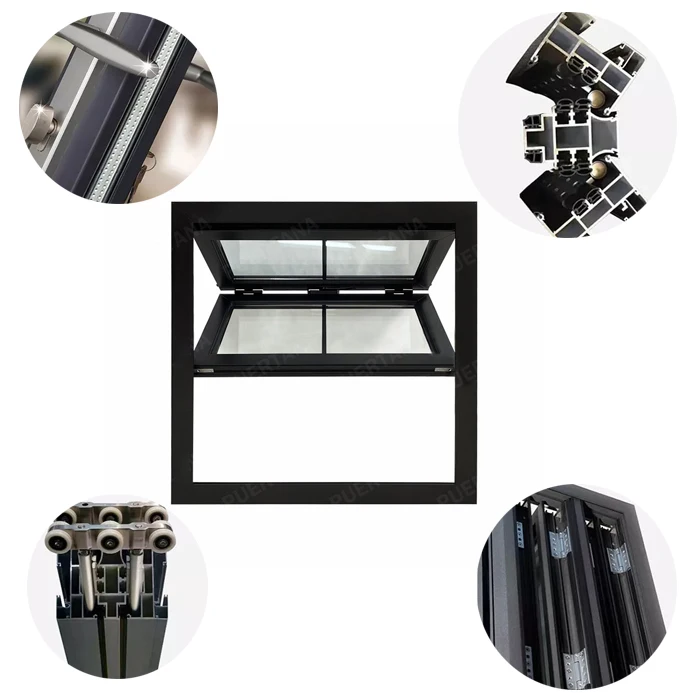

2.Product Details
Material | Aluminum Alloy 6063-T5 |
Open Type | Horizontal Folding |
Profile Thickness | 1.2mm / 1.4mm / 1.6mm / 1.8mm / 2.0mm |
Profile Color | White / Matte Brown / Gray / Bronze / Wood / Custom |
Surface Treatment | Powder Coating / Anodizing / Electrophoresis / Wood Grain / Custom |
Glass Type | Single glass / Double glass / Tempered glass / Low-E glass / Laminated glass / Floated glass |
Glass Color | Clear / Gray / Green / Obscure / Custom |
Glass Thickness | 4MM-12MM / Custom |
Double Glass | 5MM+12A+5MM / 6MM+12A+6MM / Custom |
Hardware | Chinese Top Brand / Germany Brand / Custom |
Packing | Air Bubble bag+Wooden frame or depend on customer requirement |
Application | Residential and commecial projects |

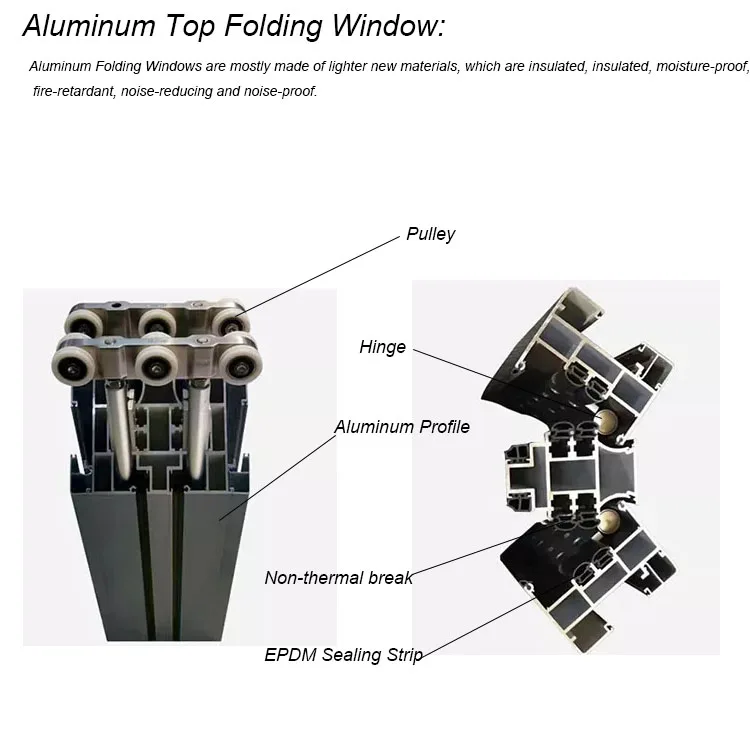

3.Profile Details
Profiles
| Series | 1. 6063-T5 high quality thermal break aluminium profiles 2. 6063-T5 high quality non-thermal break aluminium profiles Commonly used series:50mm: 50series max-glass-thickness:22mm |
Thickness | 1.4/1.6/2.0mm | |
color | Brown dark grey\\light grey\\ black\\star black,etc. |

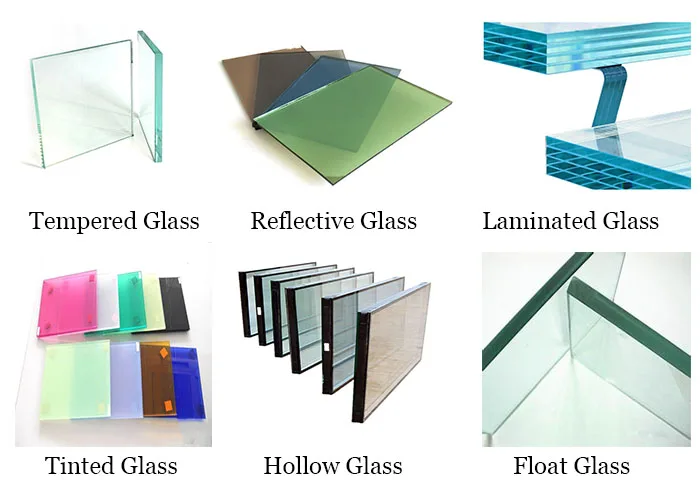

4.Glass Details
Glass | Types | Low-e glass\\frosted glazing\\ grey/blue/green tinted glass,etc. Double tempered glazing:5+12A+5,6+12A+6 Single tempered d glazing:6,8,10,12... Laminated glass:6.38,10.76,10.38... |
Thickness | 3mm/4mm/5mm/6mm/8mm/10mm/12mm/6.38mm/8.38mm /10.38mm/10.76mm/12.76mm/11.14mm/4mm+6air+4mm/5mm+6air+5mm /5mm+9air+5mm/5mm+12air+5mm/6mm+6air+6mm /6mm+9air+6mm/6mm+12air+6mm | |
color | clear/super clear/ tinted blue/green/coffee brown/gray |

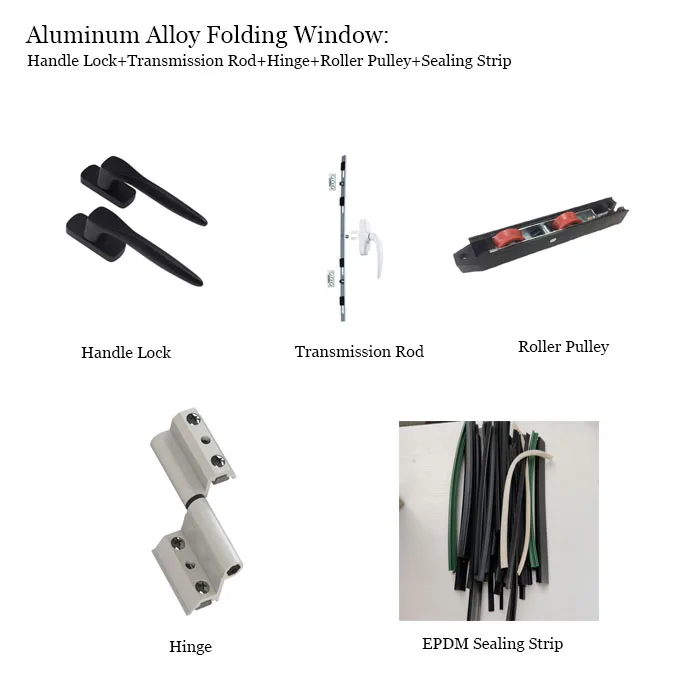

5.Hardware Accessories
Handle lock + transmission rod + hinge +roller pulley + EPDM sealing strip.
6.Product Parameters
Parameter | Item | Parameter | |
K/U (insulation) | <1.1 | Glass thickness/mm | 3-30 |
Airtightness/m3/(m2.h) | ≤0.5 | Profile Width/mm | 50-135 |
wind pressure/KPa | ≥5.0 | Sounds insulation | RW ≥ 120 dB |

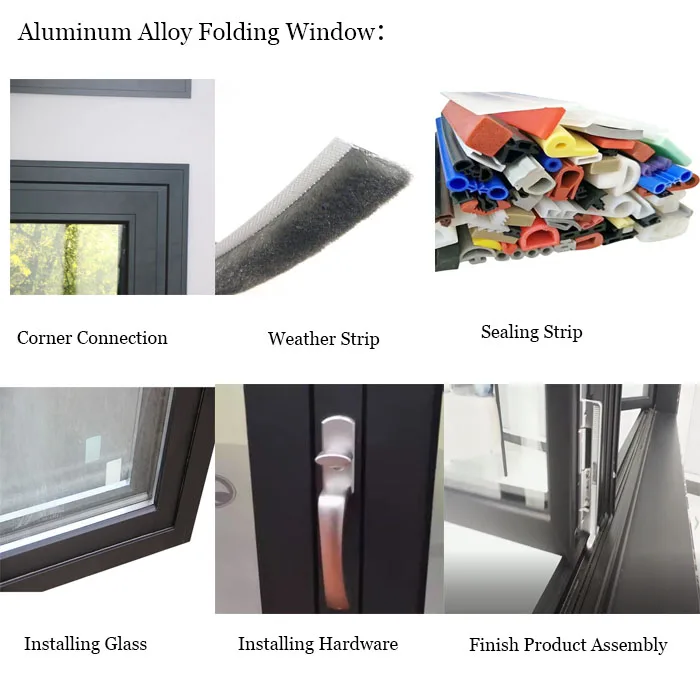

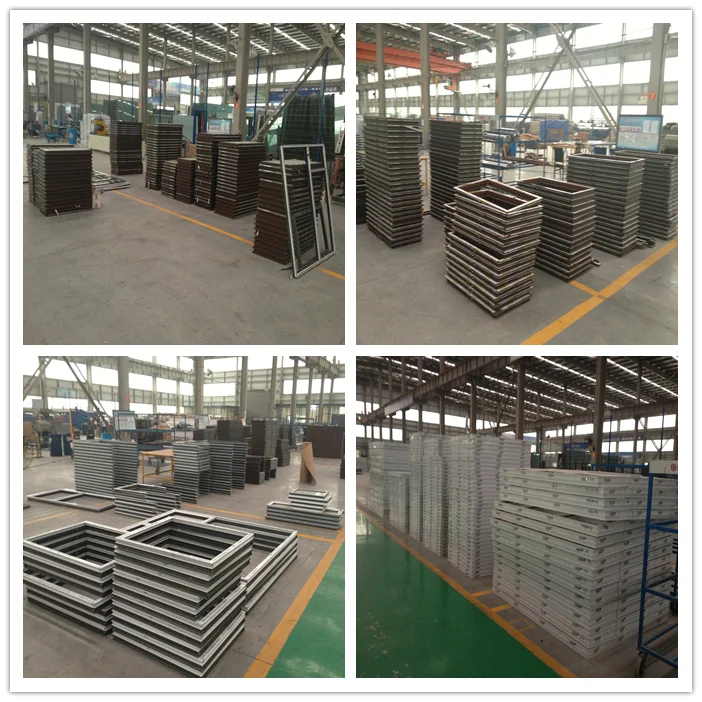

7.Processing Procedure
Cutting profiles-assemb profiles-install hardware-pack glass-EPDM sealing strip-sealant-finish product assembly

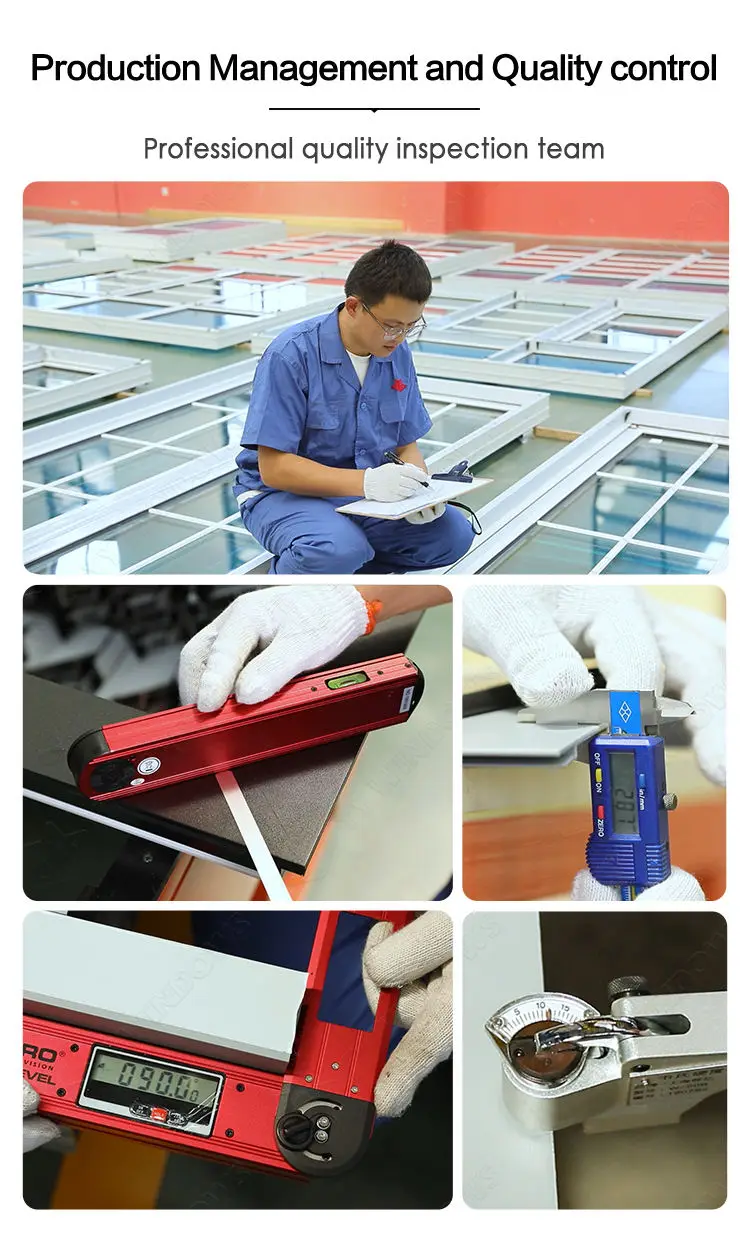

8.Quality Control
Quality Control:
1. Raw material quality testing: the color, thickness and strength of profiles will be checked after the profiles arrive at the factory. After the glass to the factory, the color and thickness of the glass will be checked again, and the sealing performance of hollow glass will be checked. Hardware color will be checked and tests how well the hardware works.
2. In the production process, there will be special quality inspectors to check each process of production.
3. After the product is finished, the group corner, sealing, size, use effect and so on will be tested.

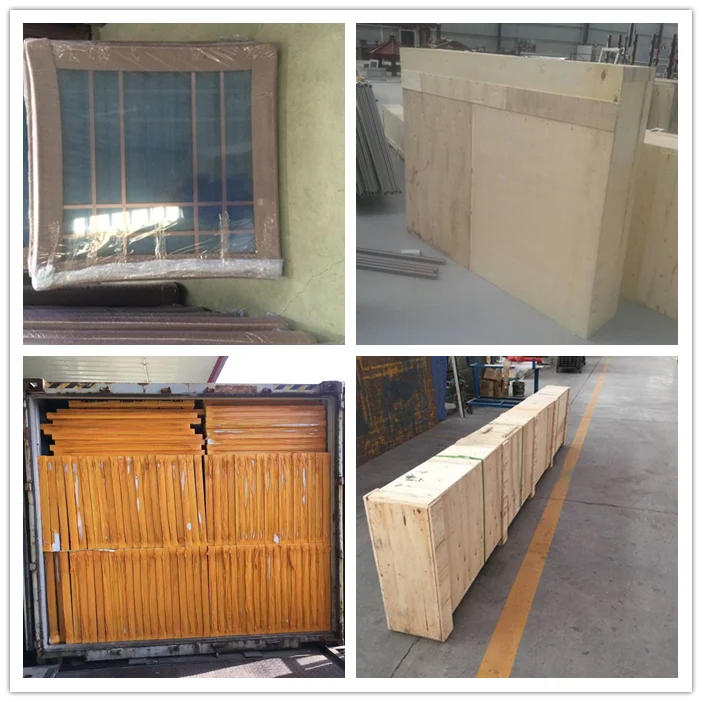

9.Product Package
Product packaging:
1. Stretch film packaging
2. 5 cartons packaging
3. Fumigation-free wooden frame packaging
4. Packed in wooden cases with fully enclosed and fumigation-free plywood.
Different packing methods can be applied to FCL and LCL.

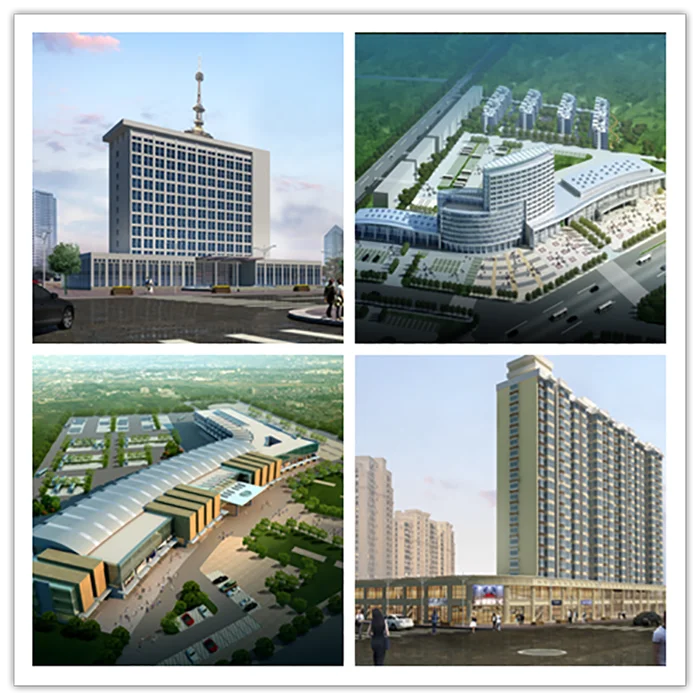

10.Project Case

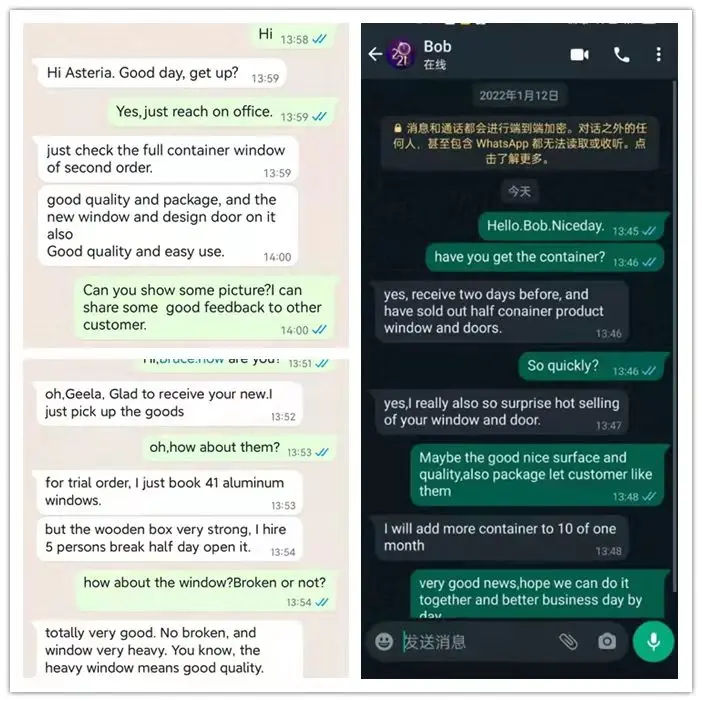

11.Customer Feedback
12.Company Profile
13.FAQ
Q1:How can I get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote."
Q2:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q3:What is your lead time?
A:It depends on the order quantity and the season you place the order. -Usually we can ship within 10-15 days for small quantity, and about 30 days for large quantity."
Q4:What is your payment term?
A:T/T in advance for sample, TT 40% in advance, balance before shipment for bulk order
Q5:What is the shipping method?
A:Support DHL,UPS,TNT,Fedex and other express services.
