Product Overview
Description

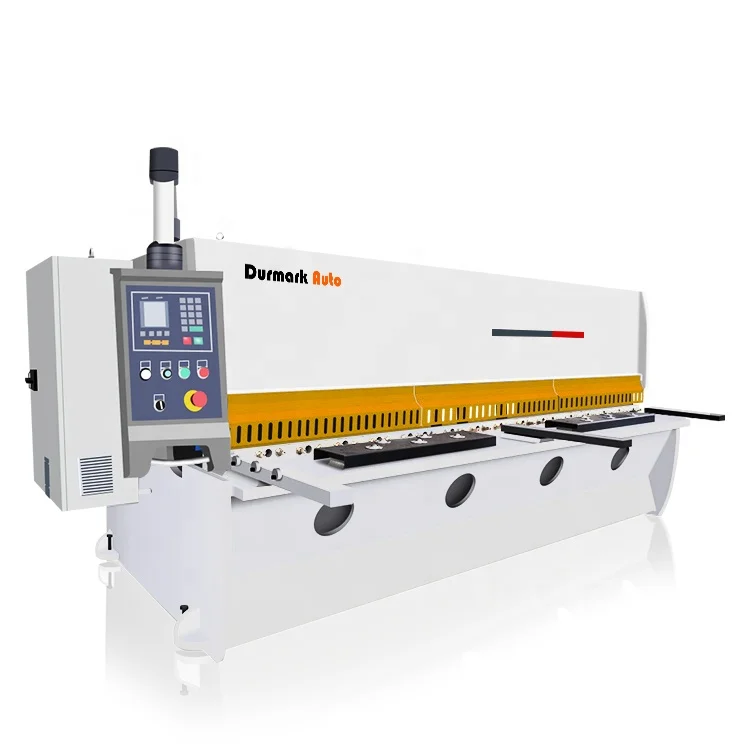

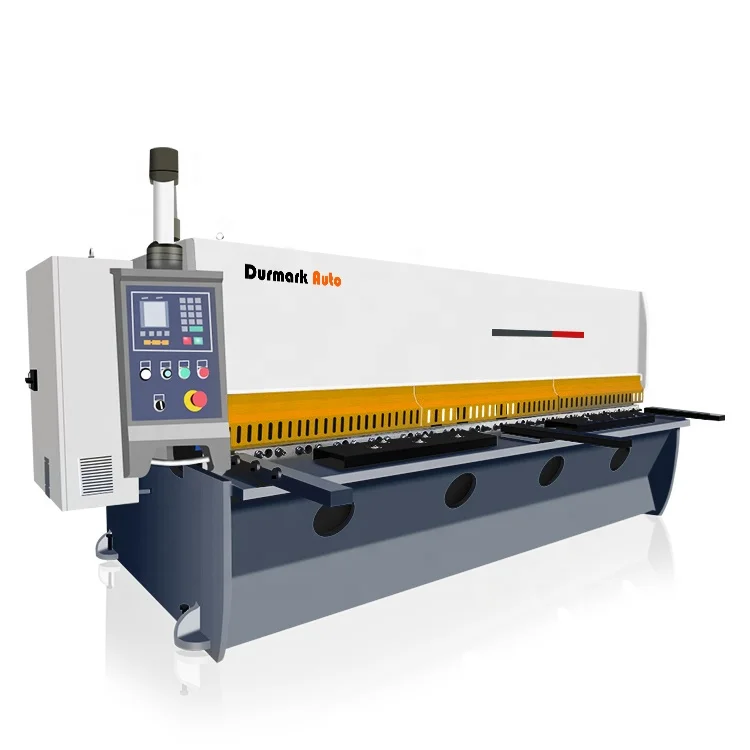

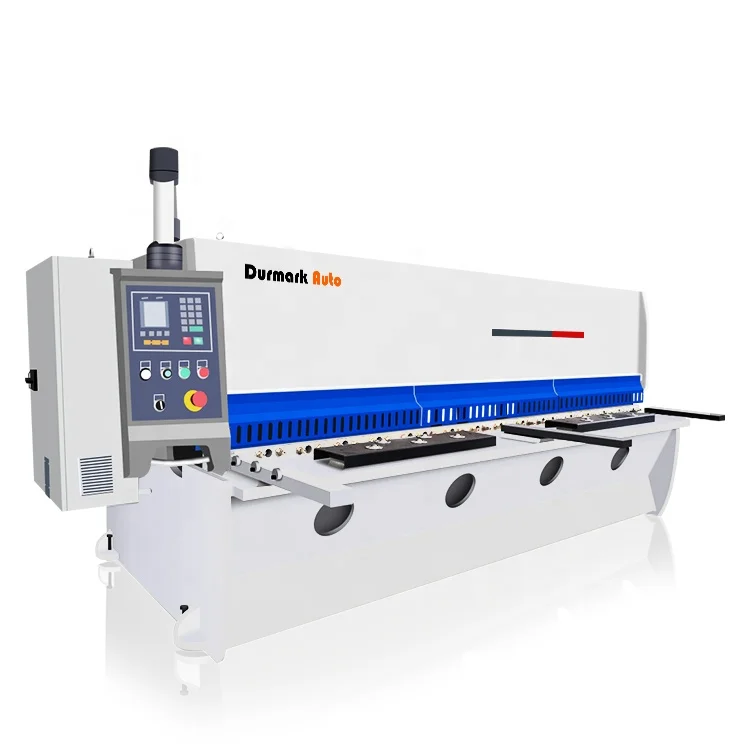

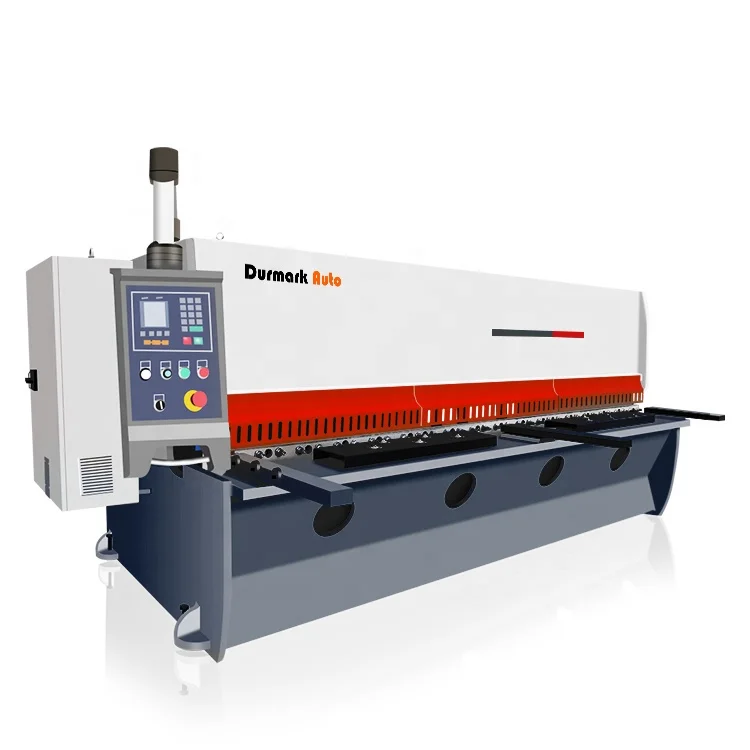

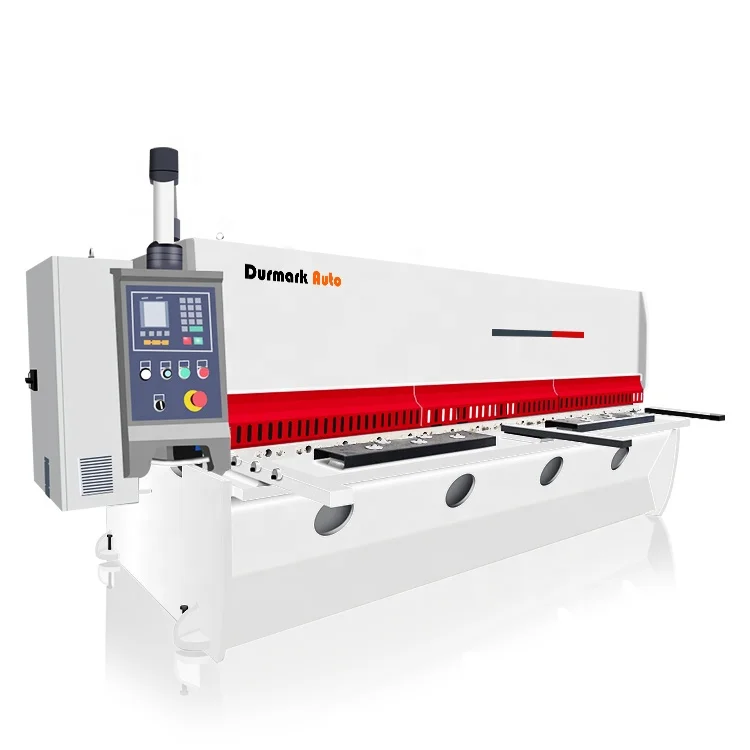

QC12K-6*2500 CNC Hydraulic Swing Beam Shearing Machine Metal Sheet Cutting Machine With E30
This QC12K shearing machine uses the self-developed E30 control system with Angle compensation function
Anhui Lifu Machinery Technology Co.,Ltd.is a leading Chinese sheet metal processing machinery and construction machinery exporter and importer,Located in Bowang, Ma'anshan.
E30 control system
Come from Durmark China
E21S control system
Come from Estun China
Anhui LIFU Machinery Technology Co., Ltd. is a design, development, production and sales of an integrated company. Our main development direction is producing different CNC machineries to realize of mechanical automation. Focus on R&D in technology, and have a complete R & D team, a total of 16 senior engineers for design, drawing, optimization, etc.
In addition, we have long-term close cooperation with domestic well-known Metal forming Machinery Research Institute, cutting off stamping machinery surrounding automation equipment manufacturers, and CNC automation control system manufacturers.
The company occupies an area of about 100,000 square meters, of which about office space 2,000 square meters , a semi-finished workshop about 6,000 square meters, finishing department about 8,000 square meters, welding workshop about 4,000 square meters, Grinding processing workshops about 2,000 square meters, a variety of spare parts warehouse of about 2,000 square meters. With improved processing power, equipped with large CNC pentahedrons processing center, two sets large boring and milling machine, four sets large gantry milling machine, two sets vertical boring machine, one set large horizontal lathe with max 600mm process diameter,
In addition, we have long-term close cooperation with domestic well-known Metal forming Machinery Research Institute, cutting off stamping machinery surrounding automation equipment manufacturers, and CNC automation control system manufacturers.
The company occupies an area of about 100,000 square meters, of which about office space 2,000 square meters , a semi-finished workshop about 6,000 square meters, finishing department about 8,000 square meters, welding workshop about 4,000 square meters, Grinding processing workshops about 2,000 square meters, a variety of spare parts warehouse of about 2,000 square meters. With improved processing power, equipped with large CNC pentahedrons processing center, two sets large boring and milling machine, four sets large gantry milling machine, two sets vertical boring machine, one set large horizontal lathe with max 600mm process diameter,
Web://www.durmark-machinery.com
Product Description
CNC shearing machine
* A device that relies on the rotation of the tool rest to achieve a shearing process
* A device that relies on the rotation of the tool rest to achieve a shearing process
* QC12K swing shearing machine adopts inclined edge shearing, because of the simple structure, low failure rate, high shear efficiency and shear after the plate does not occur arch, warping, distortion and deformation is widely used. In the process of shearing, the Angle and clearance of swing plate shears will change with the tool rest rotating
*1. The frame part adopts the combined welding overall structure, with good rigidity, mainly composed of left and right column (wall panel), front wall panel, workbench, oil tank, etc.
*2. The pressing mechanism is composed of a group of pressing feet mounted on the bottom of the frame beam. After entering the pressure oil, the plunger of the presser foot will press the steel plate down. After shearing, the presser foot will rise and reset depending on the spring force.
*3. The upper and lower edge adjustment is realized by turning the handle to adjust the clearance of the blade, driving the sector gear of the two pinion gears on the shaft, and then driving the eccentric bushing on the supporting shaft to rotate.
*4. The tool rest is a fully sealed welding structure with high torsional resistance and good rigidity. It is connected with the frame through the two ends of the supporting shaft, and is equipped with a shear cylinder and a return cylinder.
*5. Shearing machine operator must be familiar with the main structure, performance and use method of shearing machine.
*6. In use, if the machine is found to run abnormally, it should be immediately cut off the power to stop the inspection.
*7. When adjusting the machine tool, the power must be cut off. When moving the workpiece, attention should be paid to the safety of the hands.
*8. Fashion outlook,delicate,and
*2. The pressing mechanism is composed of a group of pressing feet mounted on the bottom of the frame beam. After entering the pressure oil, the plunger of the presser foot will press the steel plate down. After shearing, the presser foot will rise and reset depending on the spring force.
*3. The upper and lower edge adjustment is realized by turning the handle to adjust the clearance of the blade, driving the sector gear of the two pinion gears on the shaft, and then driving the eccentric bushing on the supporting shaft to rotate.
*4. The tool rest is a fully sealed welding structure with high torsional resistance and good rigidity. It is connected with the frame through the two ends of the supporting shaft, and is equipped with a shear cylinder and a return cylinder.
*5. Shearing machine operator must be familiar with the main structure, performance and use method of shearing machine.
*6. In use, if the machine is found to run abnormally, it should be immediately cut off the power to stop the inspection.
*7. When adjusting the machine tool, the power must be cut off. When moving the workpiece, attention should be paid to the safety of the hands.
*8. Fashion outlook,delicate,and
High quality back gauge:
High precision ball screw and linear guide rail are adopted to ensure the running precision error of the rear stopper: ±0.02mm
Safety device:
The press cylinder is used to compress the sheet material to prevent it from moving during shearing. Guardrails are safety devices to prevent workplace accidents
Type | QC12K-6*2500 |
Cutting thickness（mm） | 6 |
Cutting width（mm) | 2500 |
Throat depth(mm) | 120 |
Times of stroke(T/min) | 18 |
Main motor(kw) | 7.5 |
Weight(kg) | 4000 |
Dimensions L*W*H(mm) | 3040*1610*1620 |
Detailed Images
1.Moter
Use international famous brand motor
Use SUNNY and FIRST oil pump
Well-known hydraulic system, high stability
2. Blade and pressing device
The blade is made of 9Crsi material. Life is long
The press cylinder is used to compress the sheet material to prevent it from moving during shearing. Guardrails are safety devices
to prevent workplace accidents. The return journey generally depends on nitrogen, fast speed, small impact.
to prevent workplace accidents. The return journey generally depends on nitrogen, fast speed, small impact.
3.Back gauge
linear guide rail, high precision, ensure straightness
high precision, up to ±0.02 mm.
high precision, up to ±0.02 mm.
A supporting ball is installed on the workbench so that the sheet material is not scratched when sliding on it. The rear stopper
is used for plate positioning, and the position is adjusted by the motor
is used for plate positioning, and the position is adjusted by the motor
4.Electrical Box
Using Schneider ，ensure the safe and stable operation of machine tools.
Schneider is used to ensure the safe and stable operation of the machine.
Adopt frequency conversion technology
Relay: Schneider
Voltage regulator: Schneider
Air switch: Schneider
Electrical cabinet with open door power off function
Adopt frequency conversion technology
Relay: Schneider
Voltage regulator: Schneider
Air switch: Schneider
Electrical cabinet with open door power off function
5.Foot Switch
Certification: CE
Ambient temperature: -25 degrees +70 degrees
Ambient humidity: 45%-85%RH
Protection level: IP65
Aluminium alloy casting molding
Baked plastic treatment, abrasion and impact resistance
Three sides protection
With emergency stop button
Comes with spring cable lock
Ambient temperature: -25 degrees +70 degrees
Ambient humidity: 45%-85%RH
Protection level: IP65
Aluminium alloy casting molding
Baked plastic treatment, abrasion and impact resistance
Three sides protection
With emergency stop button
Comes with spring cable lock
6.E30 control system
Hd liquid crystal display, English and Chinese language
One page display programming,
Intelligent positioning of X and Y axes
Built-in pressure holding time, unloading delay setting function
Parameter One-click backup and reply function
Multi - step programming, complex workpiece processing completed at one time
Touch screen
One page display programming,
Intelligent positioning of X and Y axes
Built-in pressure holding time, unloading delay setting function
Parameter One-click backup and reply function
Multi - step programming, complex workpiece processing completed at one time
Touch screen
Our service&Workshop
You can contact me at anytime,we will provide you fast and professional service.
Advantage
1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder (Long Contract).
Our Innovation
Quality & Service: At durmark auto, our priority has always been providing our clients with great quality products and superior customerservice.
Quick lead Time: We are dedicated to providing the quickest turn-around times and work very hard to ensure that all of your deadlines are met.
Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the saving over to you!
Brand Awareness: The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into al lof your potential customers.
Special Offers: In order to maintain our competitive edge, we are constantly running special offers on our Best –selling
pressbrake, forging equipment goods and design services. Contact our sales term to see how we can help you save a lot of money.
General Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.
Advantage
1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder (Long Contract).
Our Innovation
Quality & Service: At durmark auto, our priority has always been providing our clients with great quality products and superior customerservice.
Quick lead Time: We are dedicated to providing the quickest turn-around times and work very hard to ensure that all of your deadlines are met.
Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the saving over to you!
Brand Awareness: The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into al lof your potential customers.
Special Offers: In order to maintain our competitive edge, we are constantly running special offers on our Best –selling
pressbrake, forging equipment goods and design services. Contact our sales term to see how we can help you save a lot of money.
General Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.
Customer Photos
Exhibition
Packing and Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Ma’anshan City ,Anhui Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Ma’anshan City ,Anhui Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: 1 set .(Only some low cost machines will be more than 1 set )
