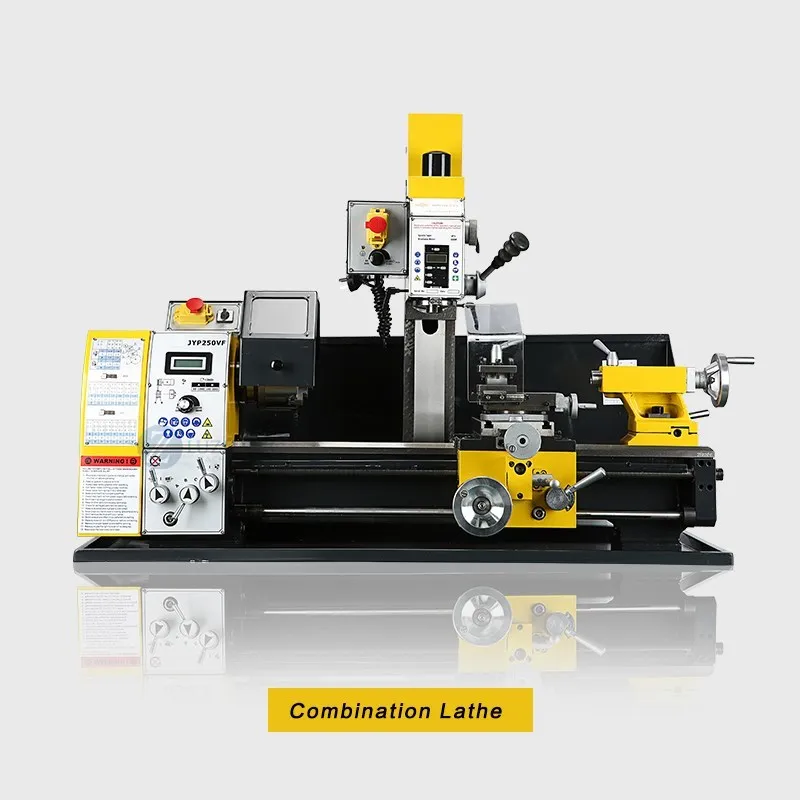

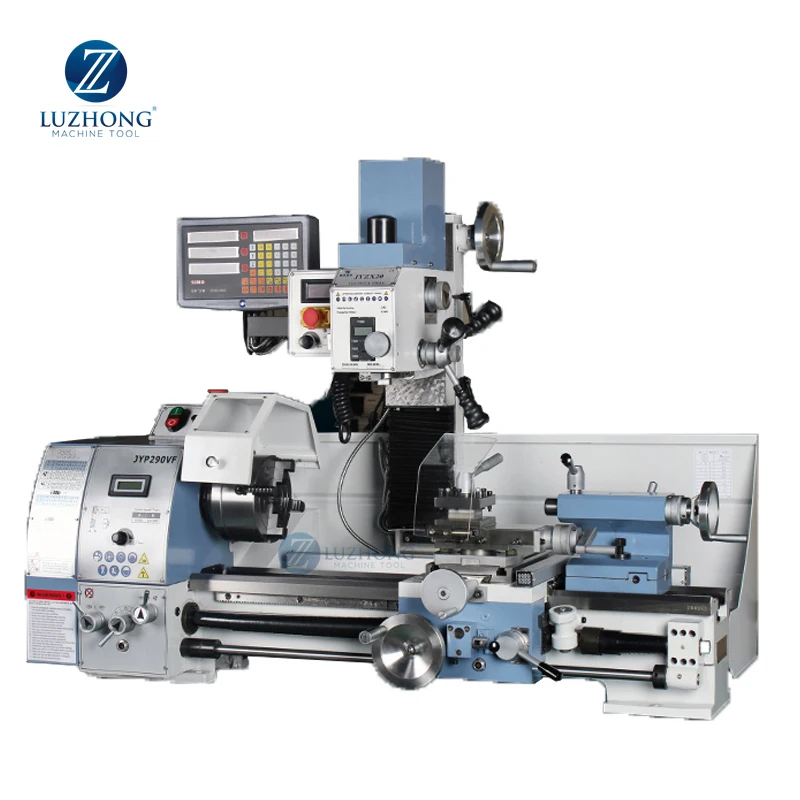

Lathe Mill Combo JYP290VF Multi Function Combination Mini Lathe Milling Drilling Machine
- Category: >>>
- Supplier: Shandong New Way Precision Intelligent Equipment Co. Ltd.
Share on (1600815470977):
Product Overview
Description
Product Description
Product Description
MODEL | JYP290VF | |
Distance between centers | 700 mm | |
Swing over bed | 280 mm | |
Swing over cross slide | 165 mm | |
Width of bed | 180 mm | |
Taper of spindle bore | MT5 | |
Spindle bore | 38 mm | |
Number of spindle speeds | Variable | |
Range of spindle speeds | 50-1800 rpm | |
Range of metric threads | 0.2-3.5 mm,18 kinds | |
Range of inch threads | 8-56 T.P.I,21 kinds | |
Range of longitudinal feed | 0.02-0.28mm/r | |
Range of cross feed | 0.07-040 mm/r | |
Top slide travel | 50 mm | |
Cross slide travel | 140 mm | |
Tailstock quill travel | 94 mm | |
Tailstock quill Taper | MT3 | |
Motor | 1.1 kw | |

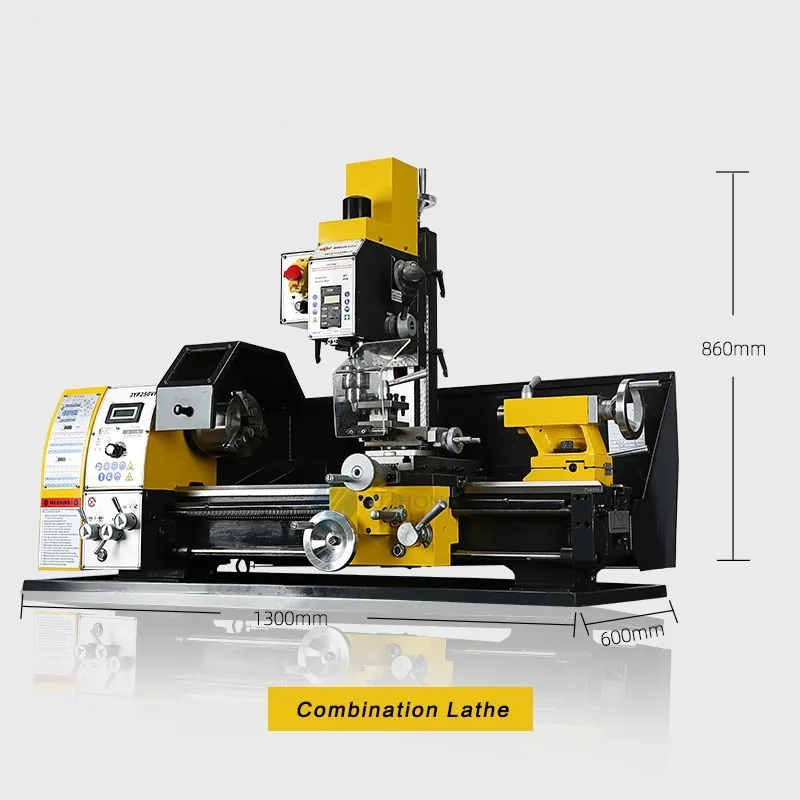

Packing size | 1400x750x1010 mm | |
Net weight | 280/320 kg | |
Mill & drill | ||
Max.drilling dia | 20mm | |
Max.end milling capacity | 16mm | |
Max.face milling capacity | 63mm | |
Vertical travel | 260mm | |
Taper of spindle bore | MT2 | |
Spindle travel | 50mm | |
T slot width | 10mm | |
Spindle speed | 50-2250 rpm | |
Milling head swivel angle | ±90° | |
Motor | 600W | |
Recommend Products
Recommend Products
Company Profile
Company Profile
FAQ
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
