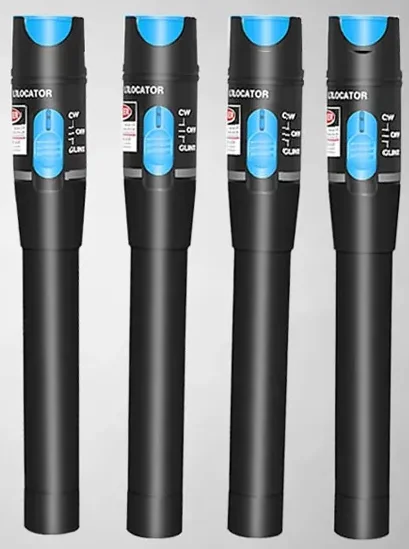

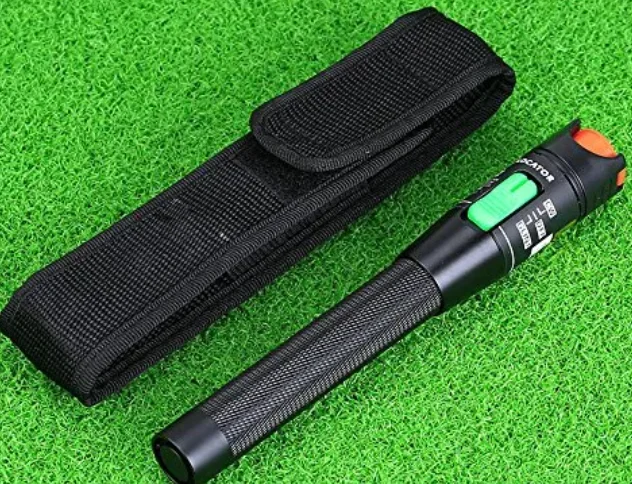

2023 New Alk 502 Meter Pocket meter All in One Optical Power Meter with OPM RJ45 Cable Tester LED Light VFL 2MW 15MW 30 MW

Central Wavelength

650nm±10nm (635nm can be required on request)

Emitter Type

FP-LD

Output Power (mW)

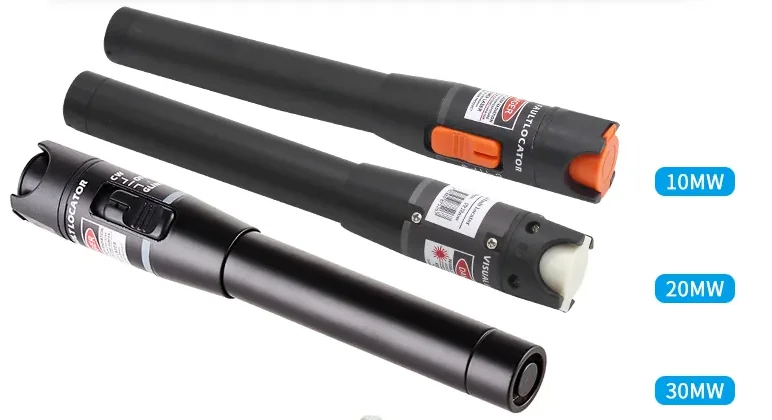

5MW,10MW,15MW,20MW,30MW,40MW,50MW,60MW

Distance of fiber identification

1km ~ 30 km depend on customer requirement

Optical Connector

2.5mm universal connector

For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer’s requests

Operating Model

Both CW and Pulse available

Pulse Frequency

2~3Hz

Power Supply

2 AA alkaline batteries

Battery Operating Time

650nm@1mw ≥65hours 650nm@10mw≥15hours

Test with Panasonic LR6 AA ALKALINE battery

Operating Temperature

-10~+45℃

Storage Temperature

-40~+70℃

Dimension (mm)

190x73x33mm

Weight(g)

150g(Without battery)
