Hot sale automatic 6 12mm wire mesh welding machine
- Category: >>>
- Supplier: Qingdao Dongfeihong Intelligent Technology Co. Ltd.
Share on (1600816420249):
Product Overview
Description
Product Overview

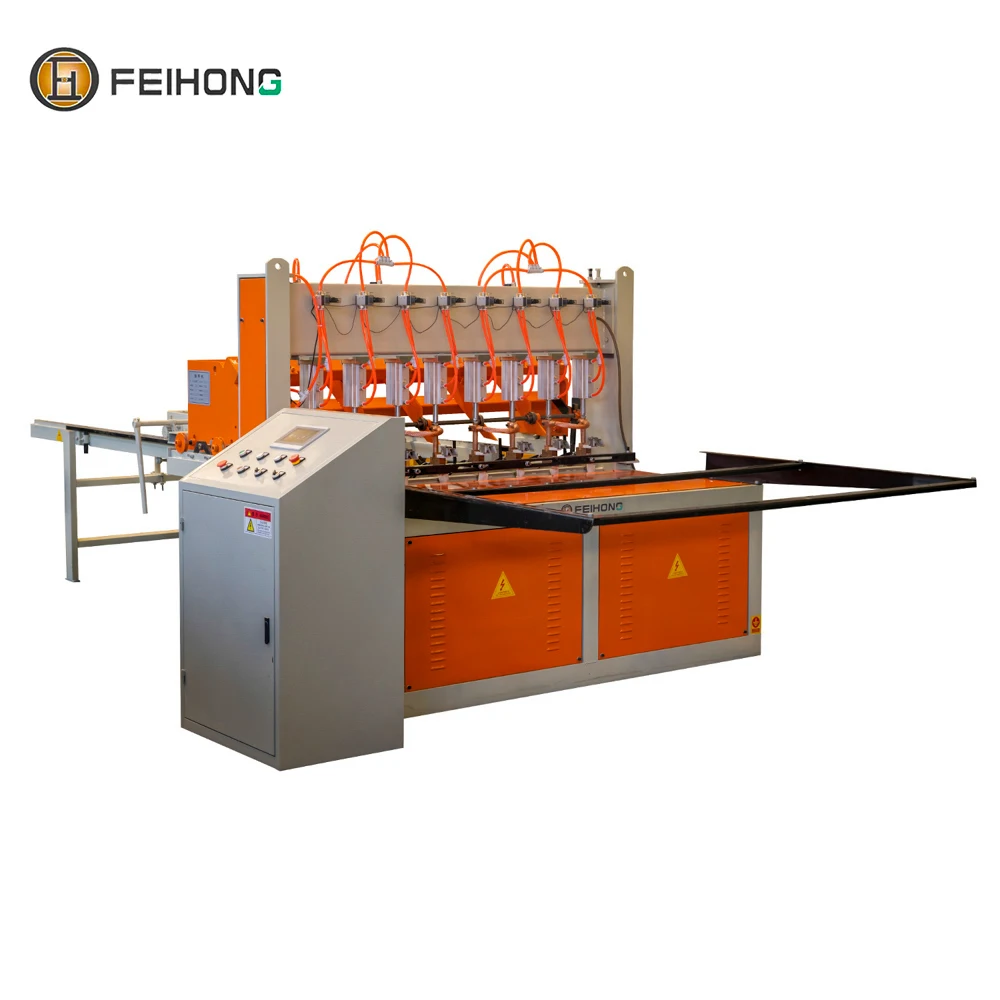

CNC Wire Mesh Welding Machine

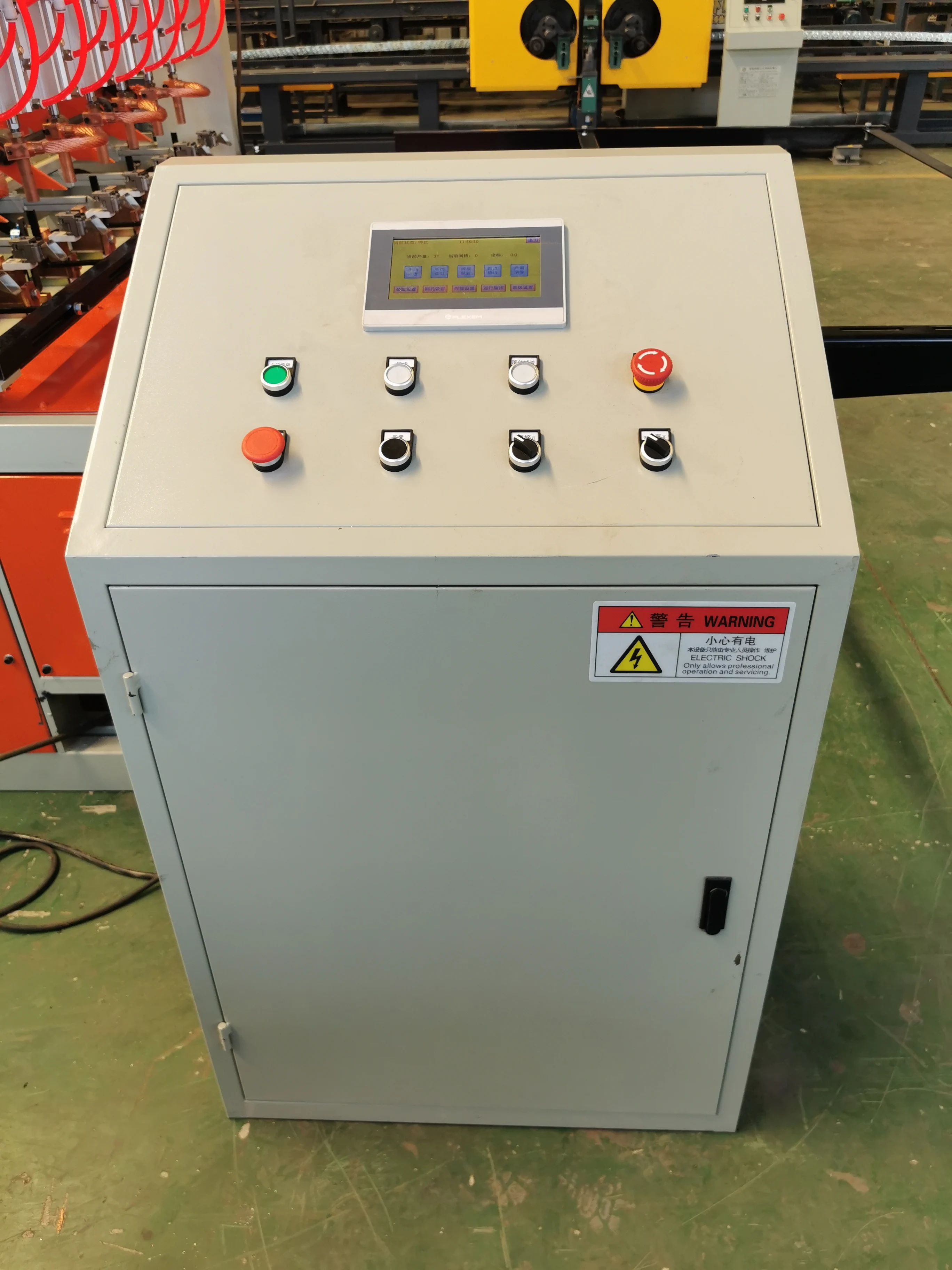

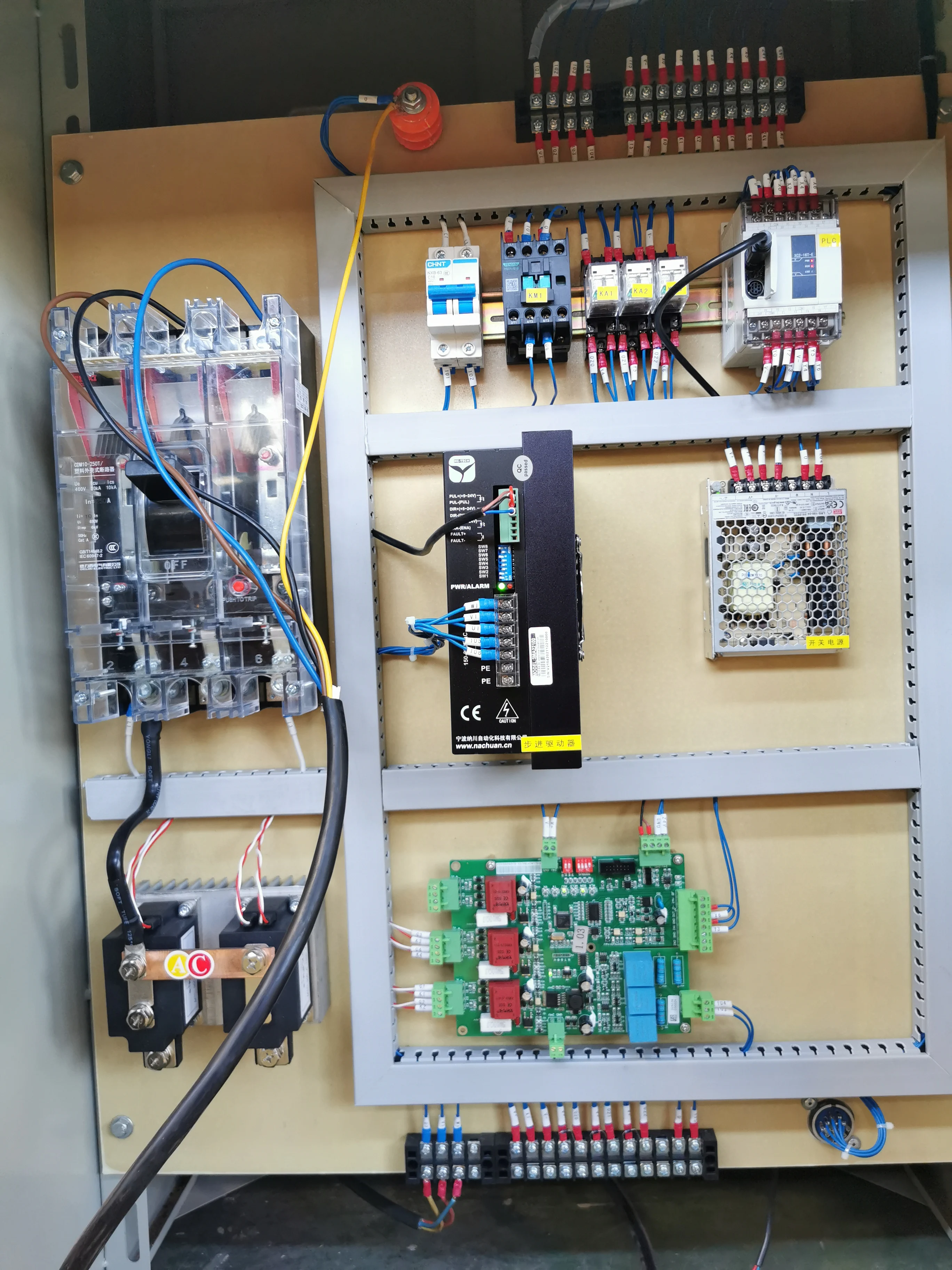

1. Pneumatic mesh welder adopts power electronic synchronous control technology, the control system adopts PLC, the operation interface adopts touch screen and button control, the working mode is simple, the operation is more intelligent and user-friendly.
2. The main machine of automatic CNC mesh welding machine is frame structure, so that the theme structure is more firm, compact, stable performance, continuous adjustable welding pressure, solid welding spot, beautiful.
2. The main machine of automatic CNC mesh welding machine is frame structure, so that the theme structure is more firm, compact, stable performance, continuous adjustable welding pressure, solid welding spot, beautiful.
3. The water-cooled welding transformer of pneumatic mesh welder adopts a new type of welding mesh transformer to expand the range of welding wire diameter; Professionally designed up and down motor block, low wear rate, and can be used in many facets.
4. The welding adopts the method of one-time pressing and controlled feeding points, that is, when welding the same row of weft wire, the welding transformer will work separately to reduce the capacity requirements of the power transformer and reduce the current impact. Steel mesh welding machine steel mesh welding equipment steel mesh touch welding machine automatic CNC
5. Pneumatic mesh welder. Weft wire blanking mechanism with novel structure, automatic blanking using disc device, so that weft wire placement more accurate.

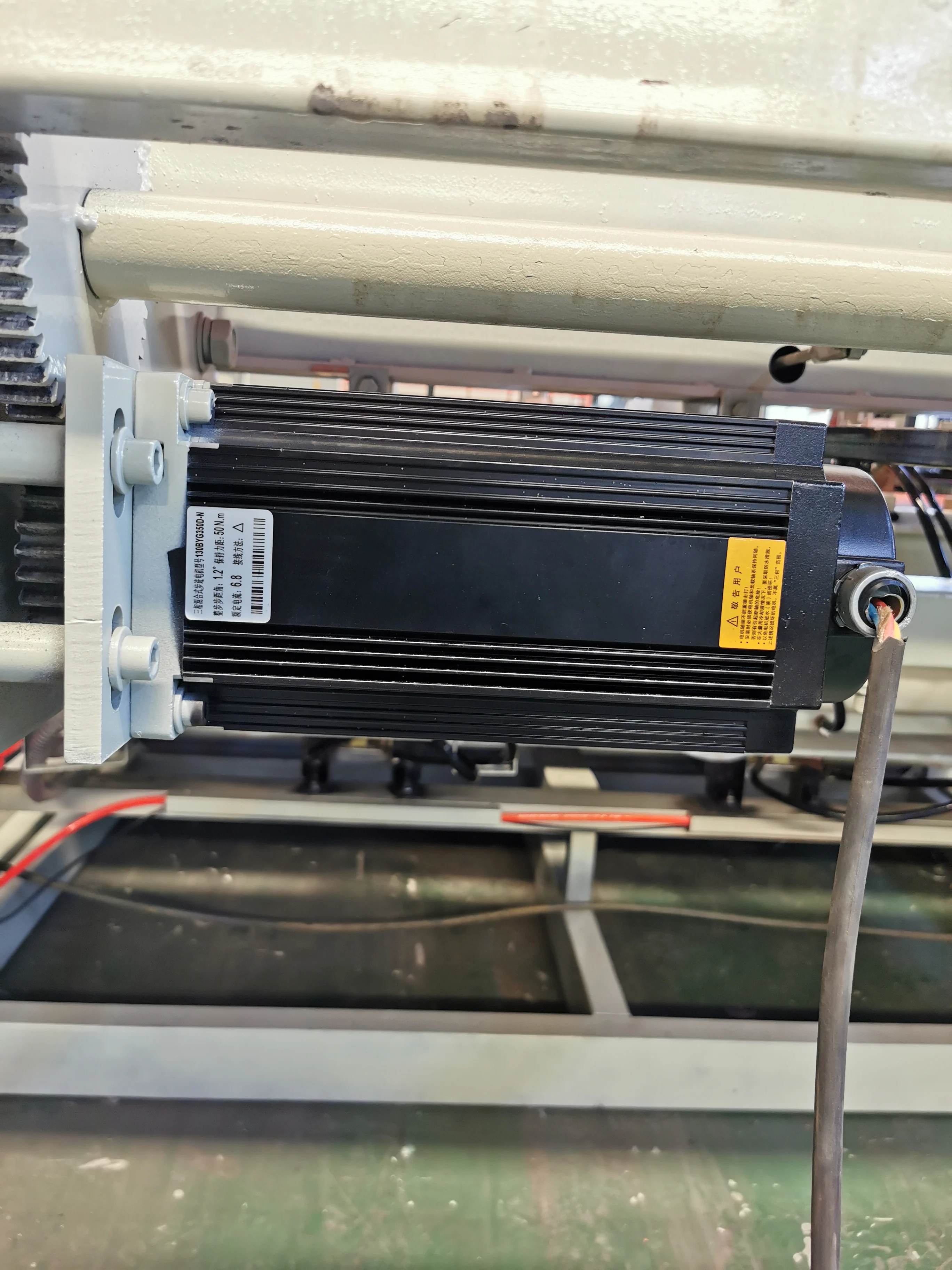

6. Mesh pulling mechanism adopts servo motor driven pneumatic clamping mesh pulling device, so that the mesh size is more precise and standard; Continuous reciprocating mesh drawing can realize lengthening size mesh production.
7. Welding mesh diversification, diameter wire spacing can be adjusted related parts, weft wire spacing PLC control, stepless adjustment, and can be set on the same mesh of a variety of weft wire spacing, to bring flexibility and convenience to customers.
Product Specifications
Model | FHM1500 |
Wire diameter | 4-8mm |
Mesh width | 1500mm |
Mesh length | 2000mm |
Minimum line wire space | 180mm |
Quantity of solder joints | 8pcs |
Cross wire feeding | Pre-straighten and cut wire |
Line wire feeding | Pre-straighten and cut wire |
Control way | PLC |
Welding method | Pneumatic welding |
Welding speed | 25-45 rows/min |
Qty of welding transformer | 2 sets |
Air source pressure | 0.7Mpa |
Air consumption | 2.5m³/min |
Qty of welded cylinder | 8 sets |
Cold water pressure | 0.4m³/min |
Dimension | 7500*3500*1800mm |

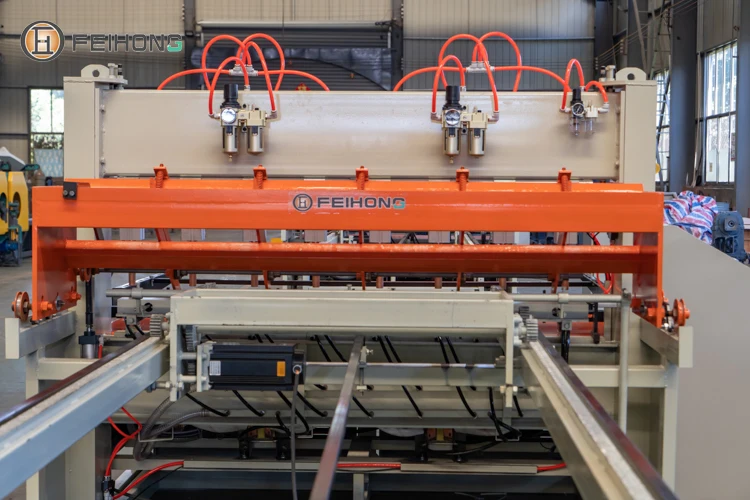

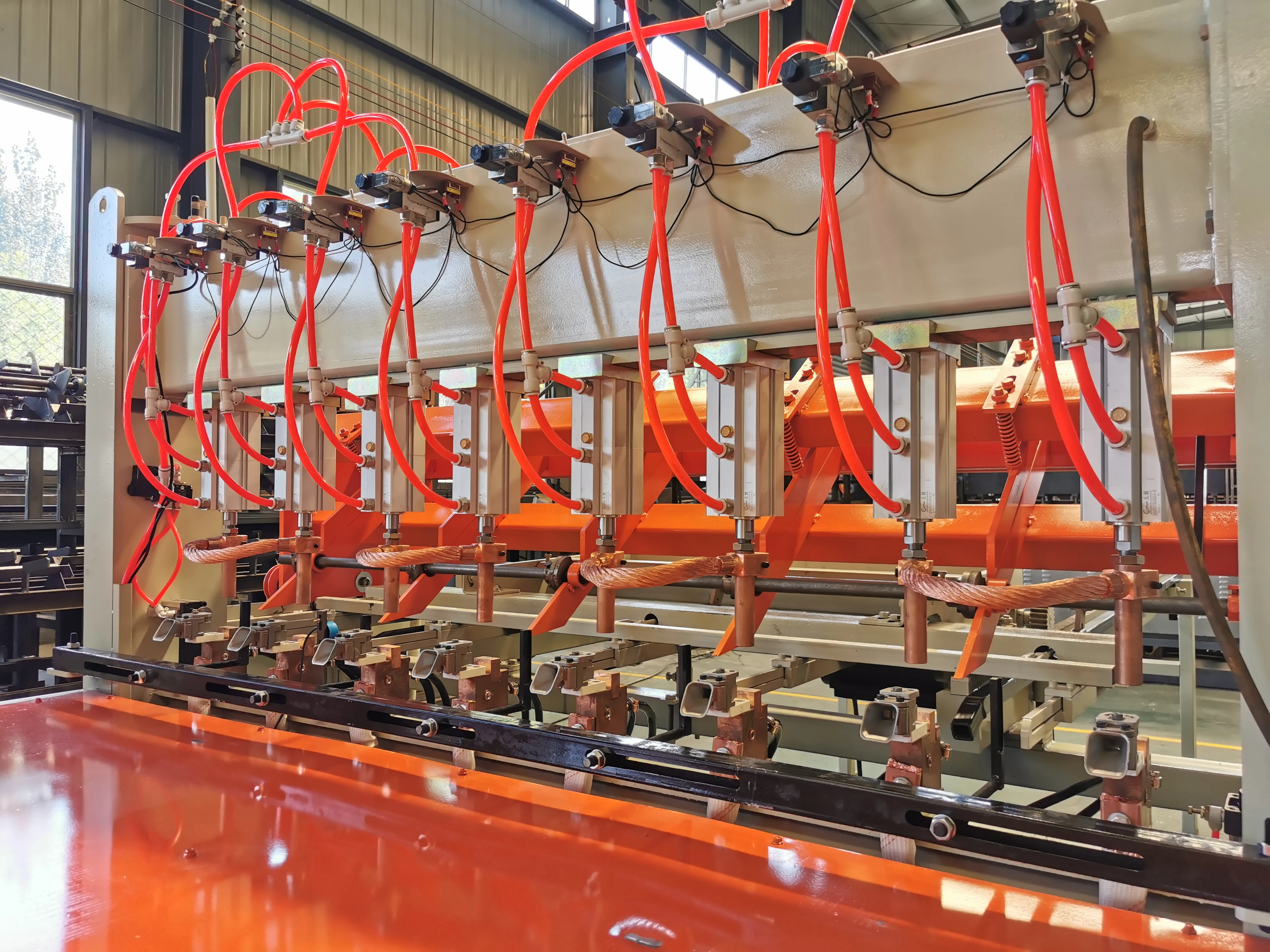

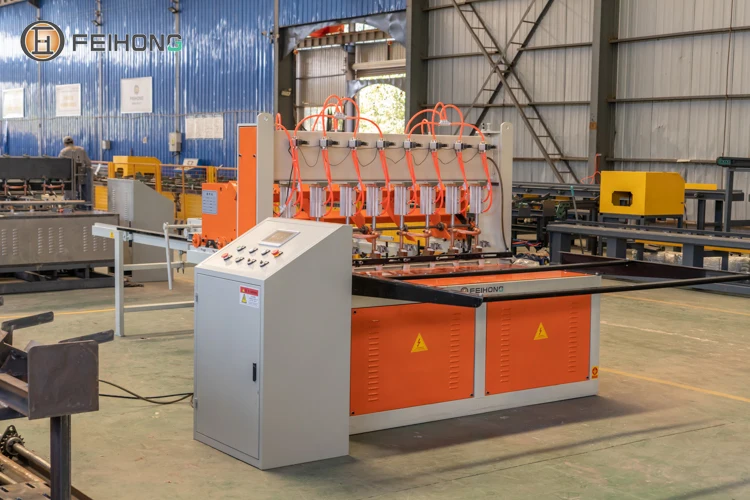

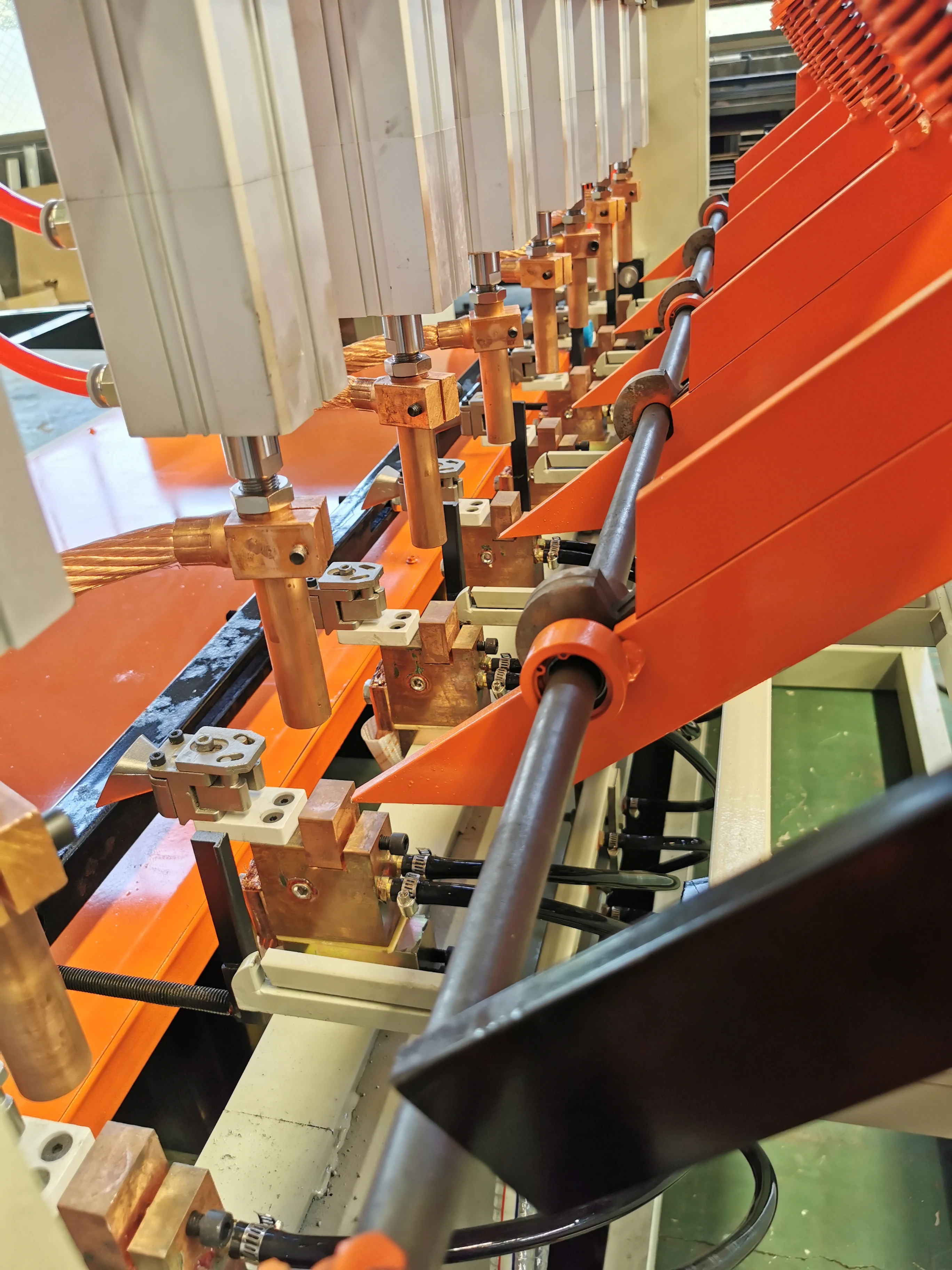

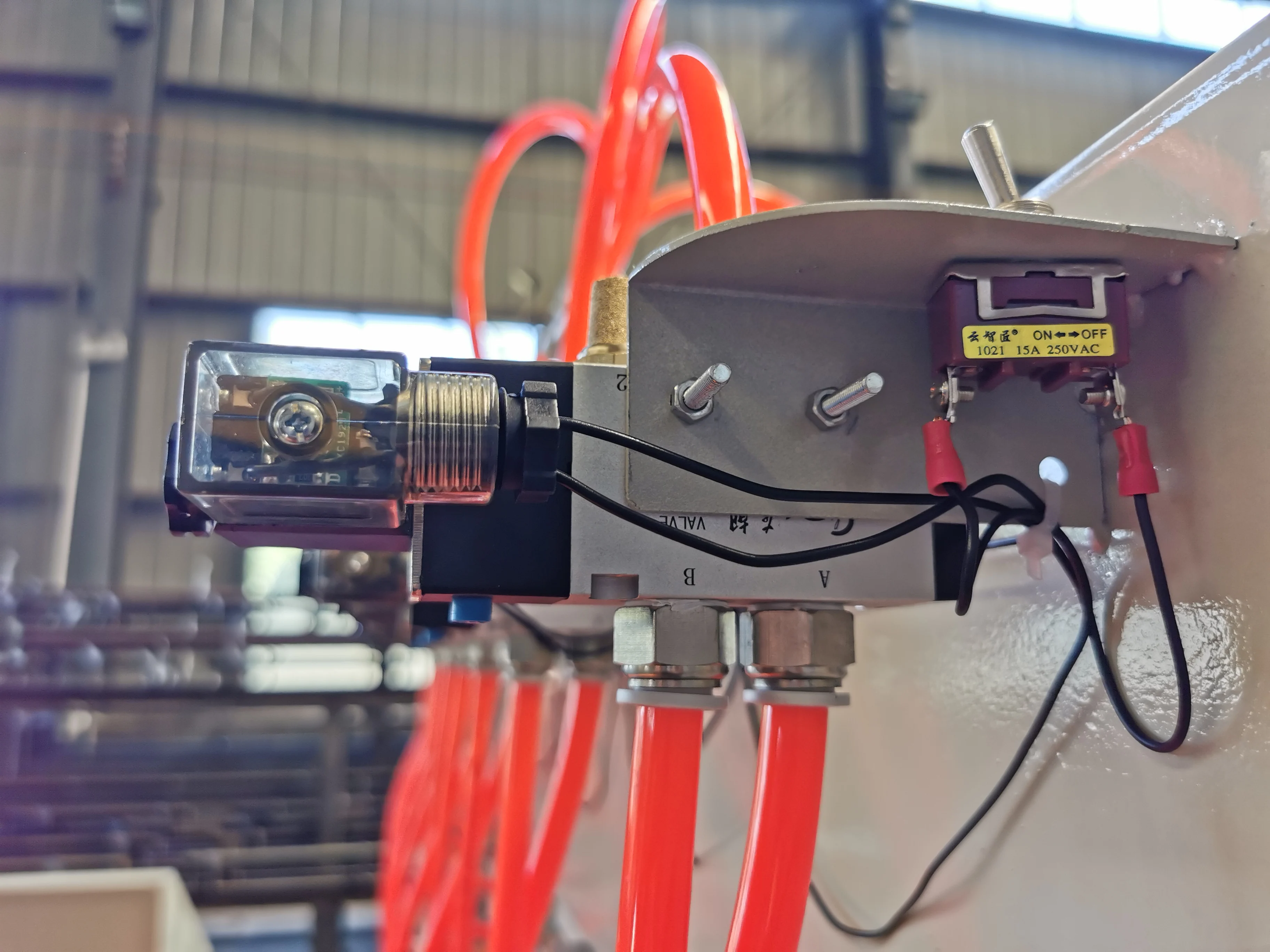

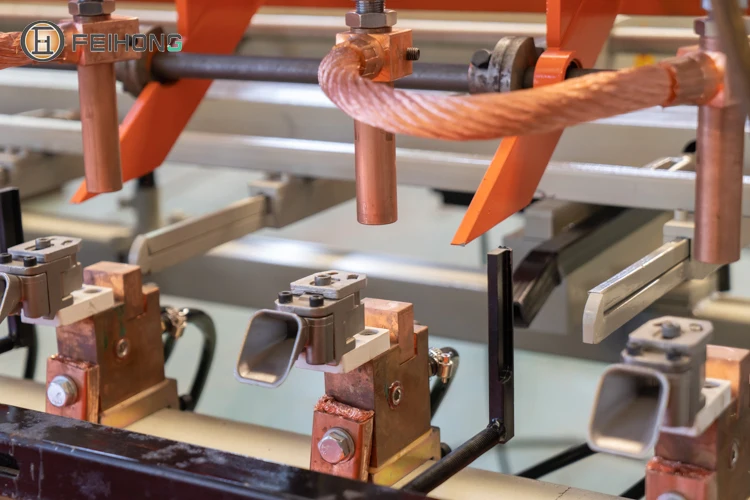

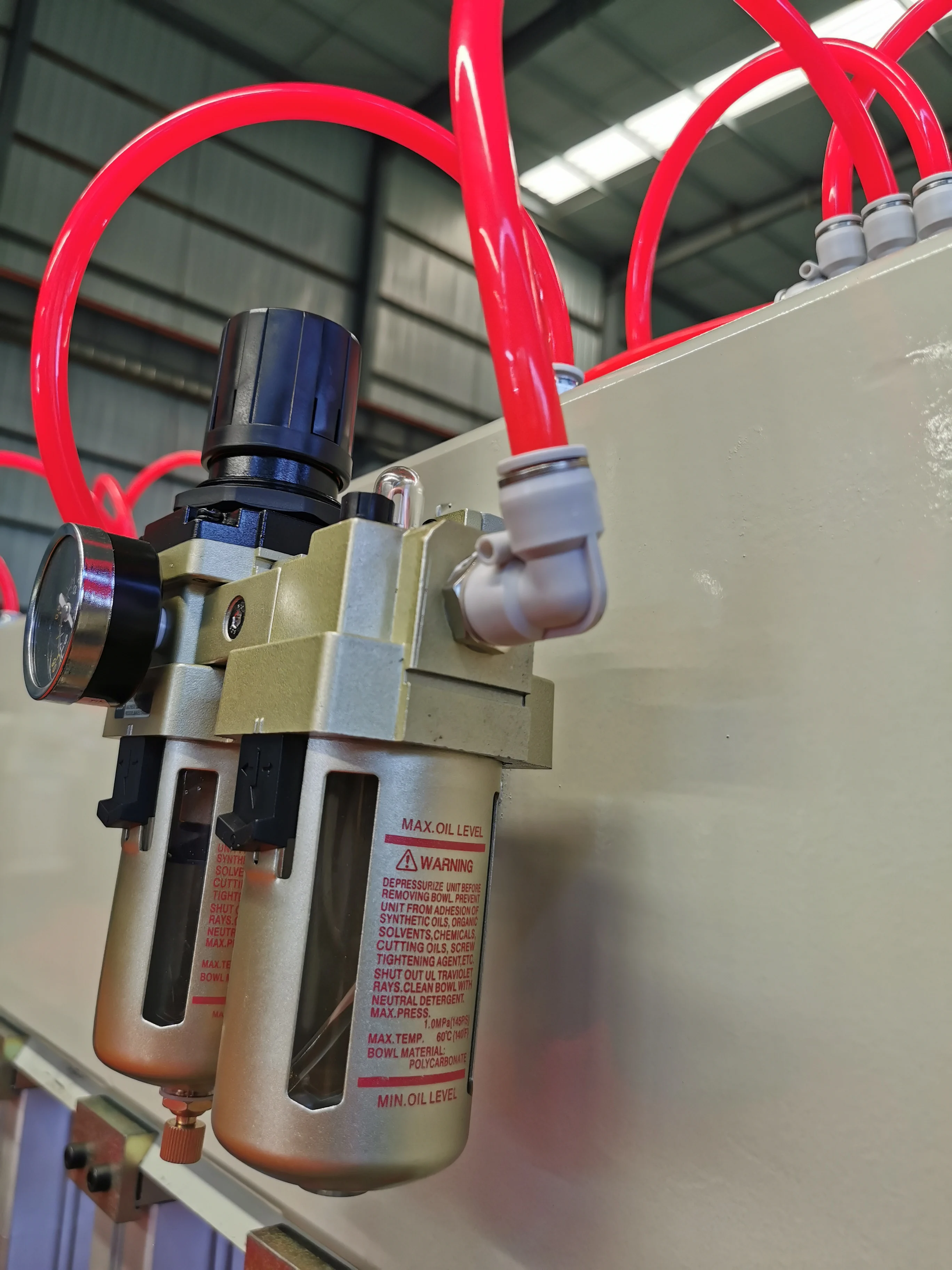

Product display

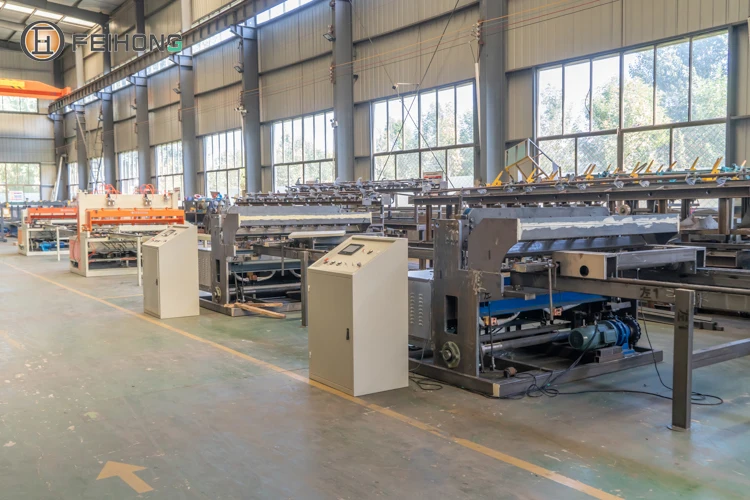

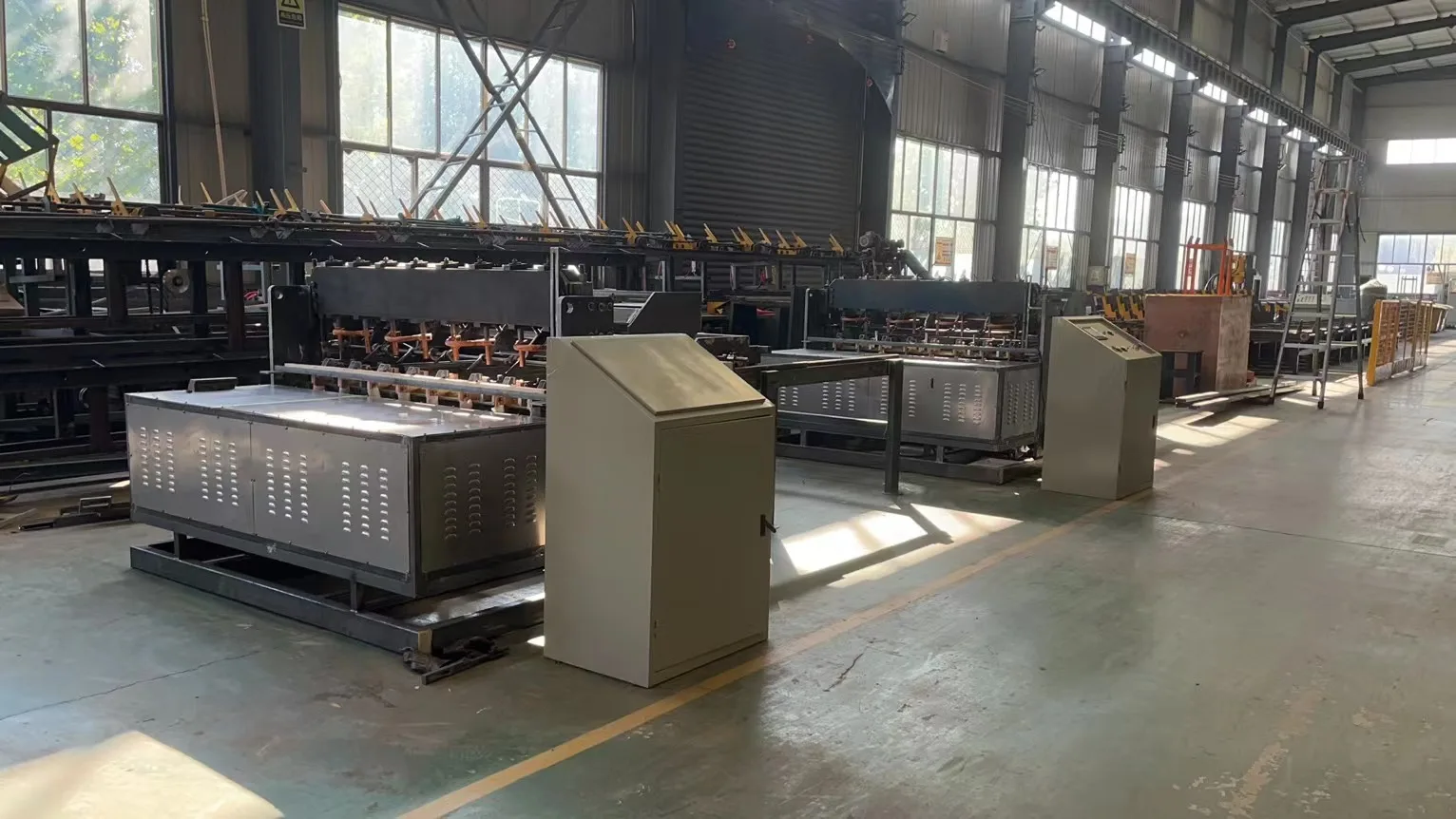

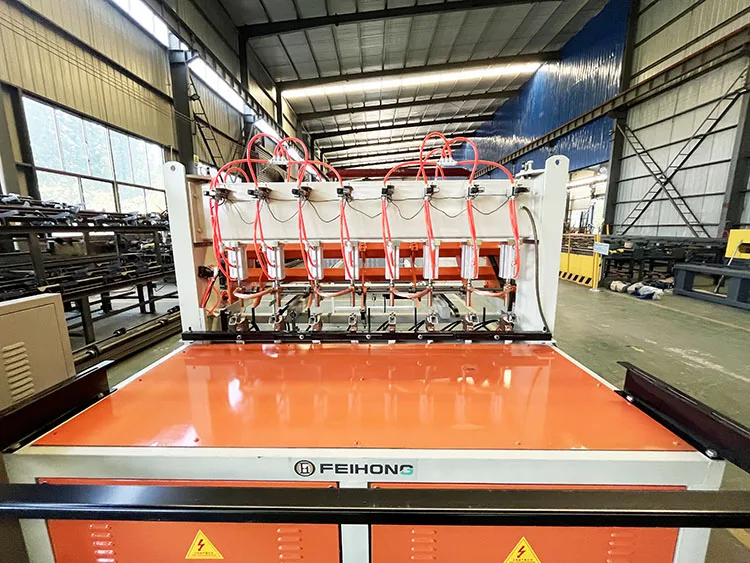

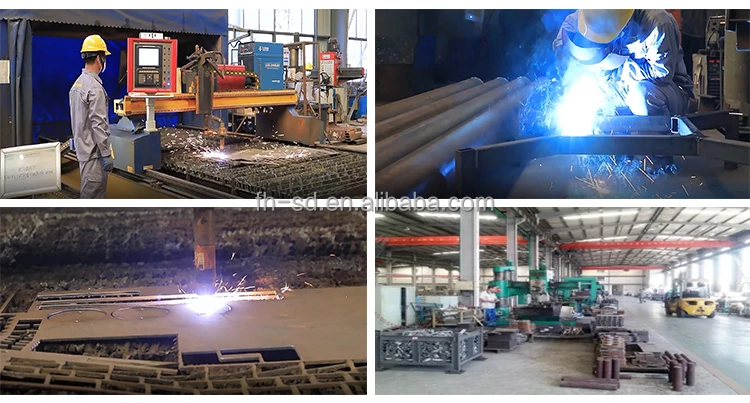

Factory real shoots

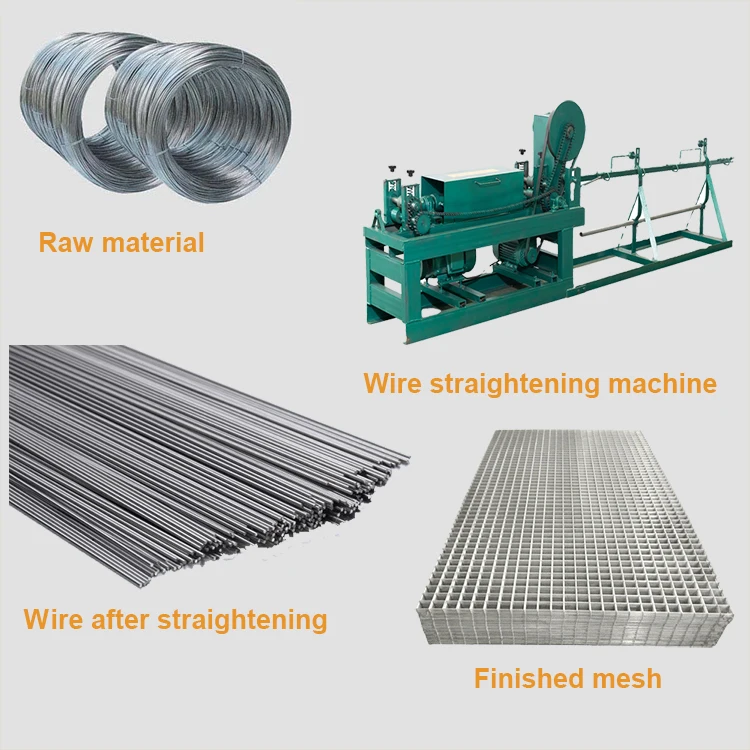

Matched Equipment
Package & Shipment

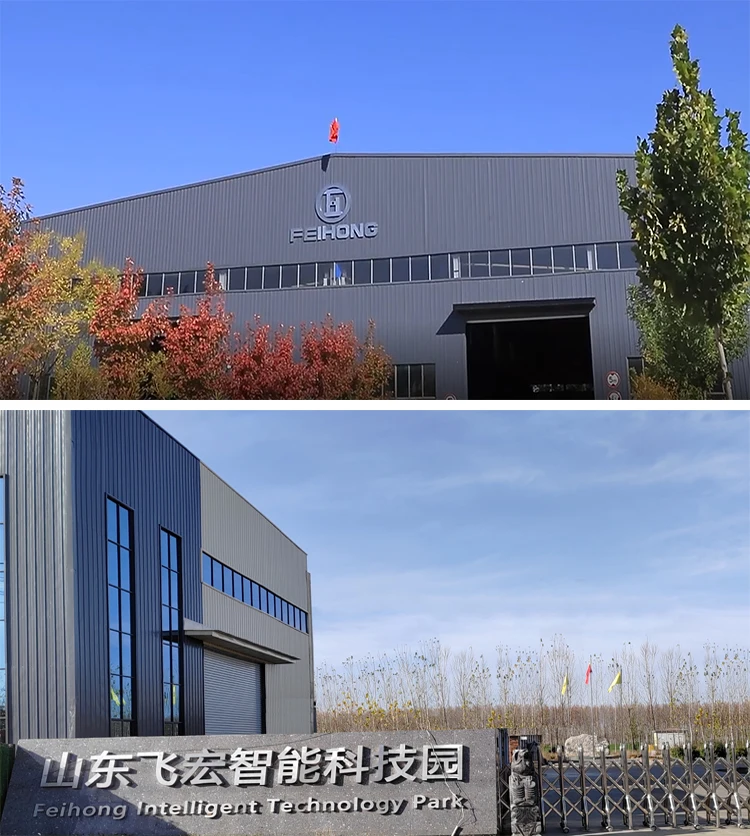

Company Profile
