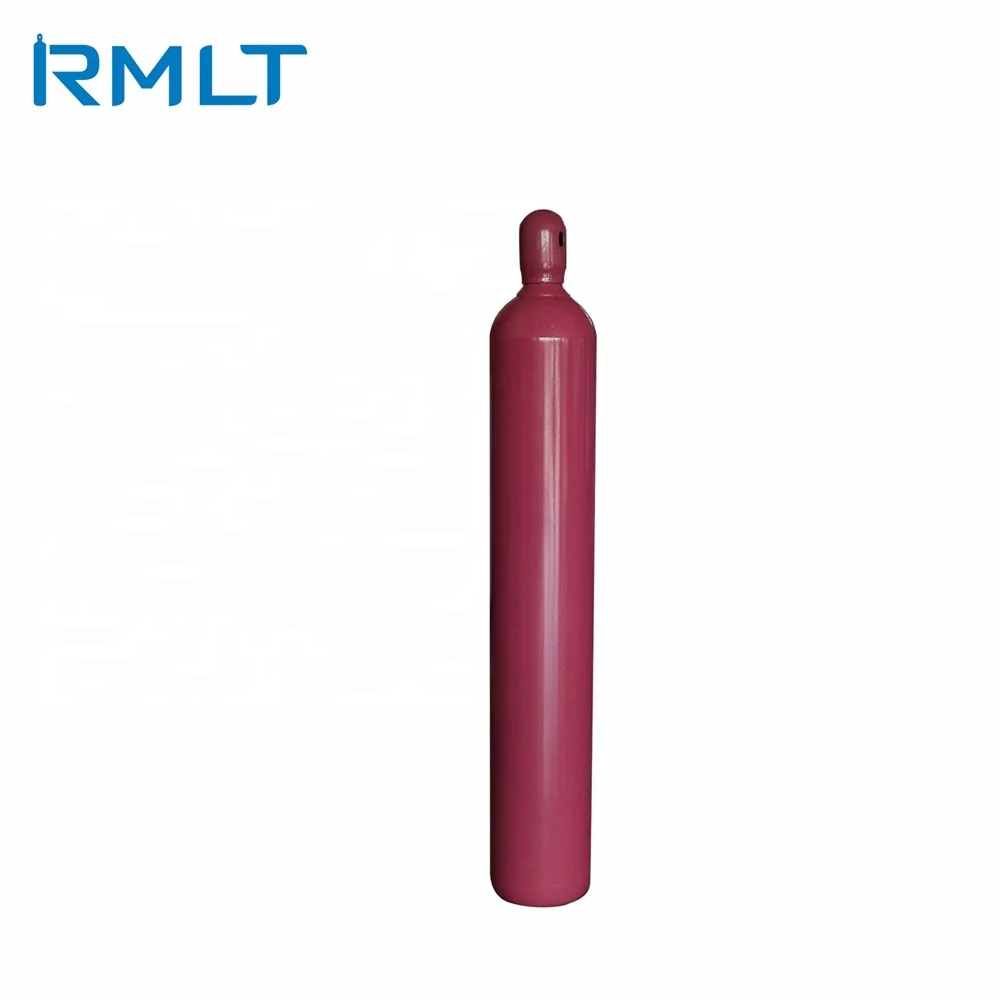

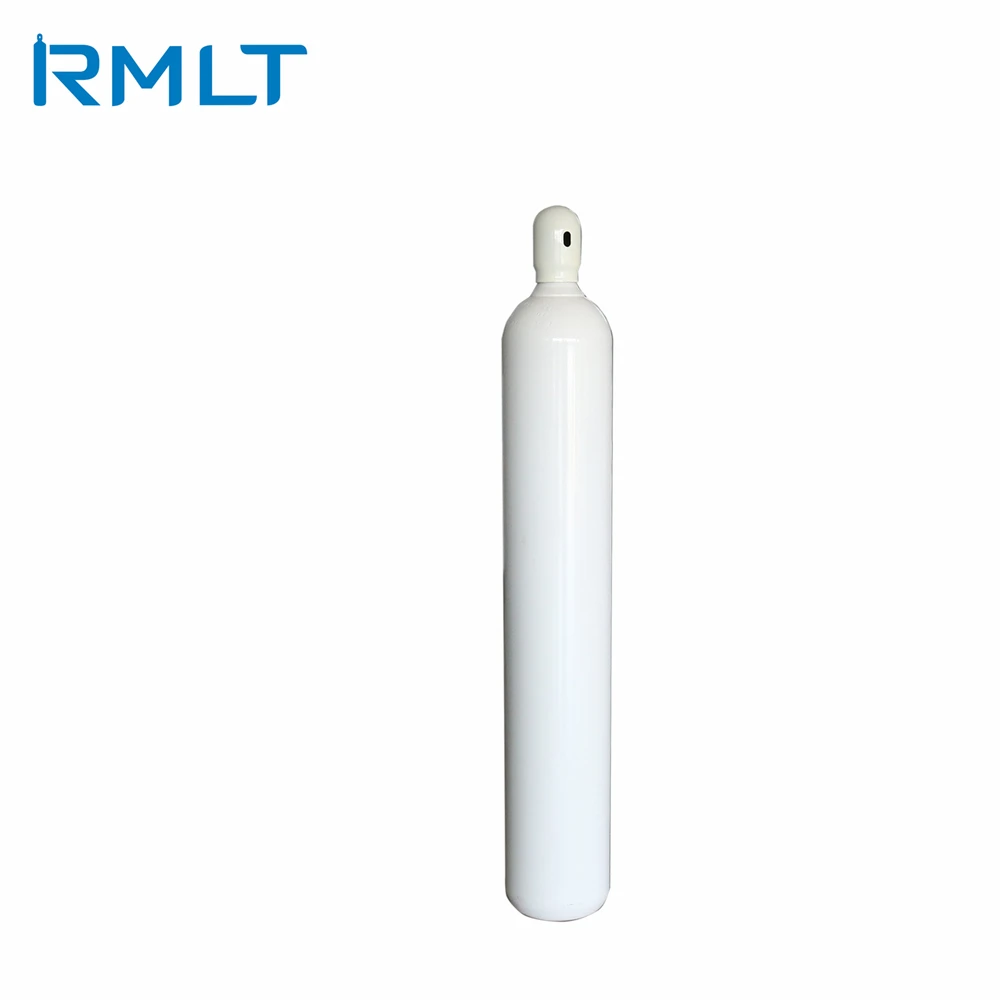

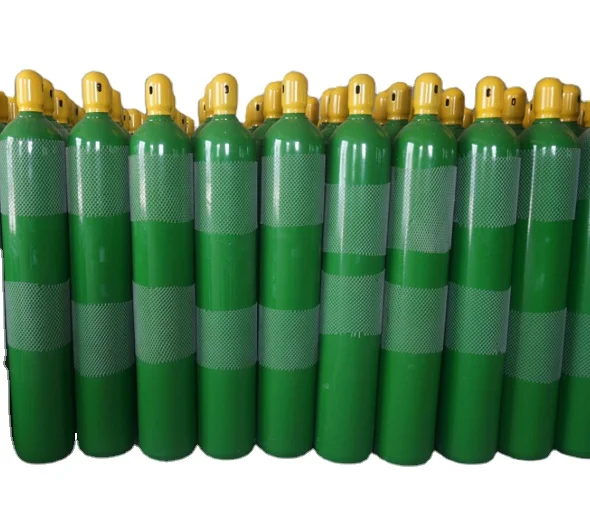

Working pressure 150 bar Oxygen Gas Cylinder Gas cylinder Steel Cylinder
- Category: >>>
- Supplier: Qingdao Ruiming Blue Sky Energy Co. Ltd.
Share on (1600816468720):
Product Overview
Description
Product Overview

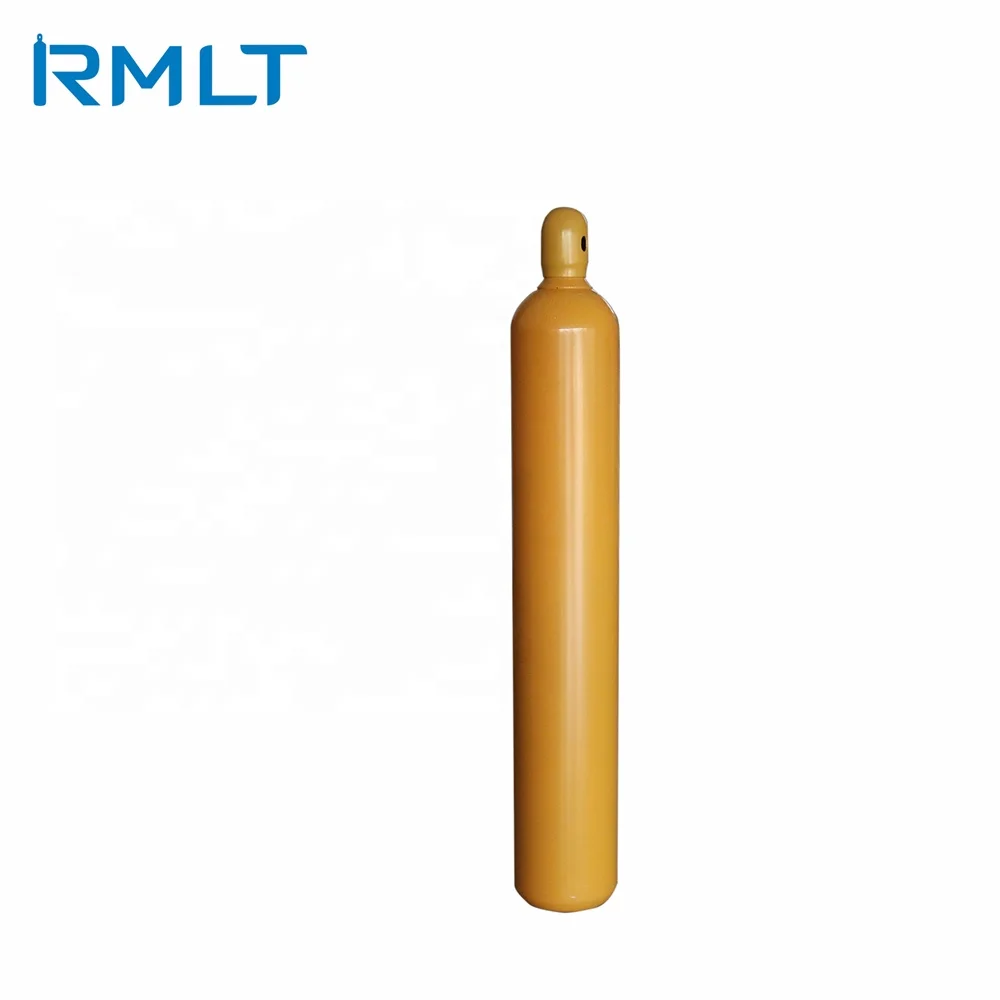

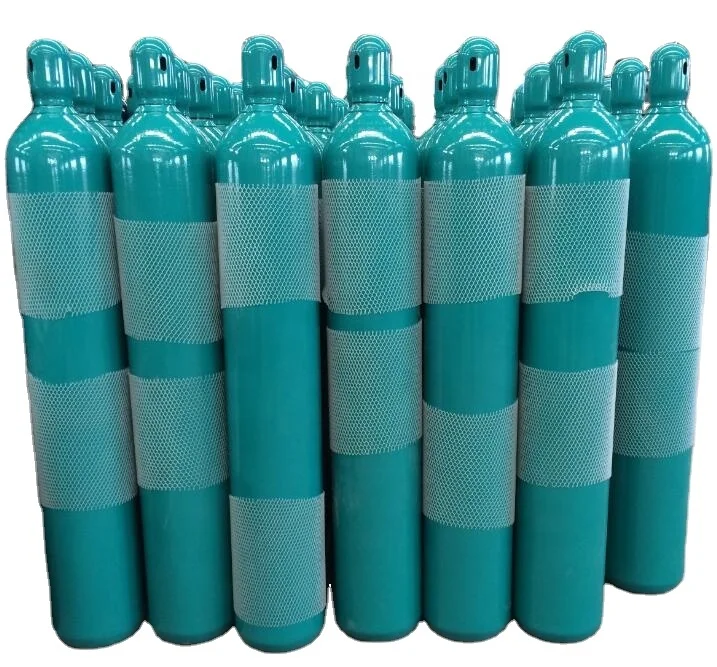

Gas cylinder
Our Seamless Steel Oxygen Cylinders are mainly produced conformity with Standard GB5099-94, ISO9809-1/3 and EN1964. The raw
material is either Seamless Steel Pipe or Steel Billet.
Our Seamless Steel Oxygen Cylinders can be widely used in many fields, such as industry, medical equipment, fire protection and scientific research, for storage and transport of permanent gases and high pressure liquefied gases, such as Oxygen Gas, Carbon Dioxide Gas, Argon Gas, Nitrogen Gas, Helium Gas, Carbon Monoxide Gas, SF6 Gas, Air, etc.
Our Oxygen Cylinder is widely applied in chemical, metallurgical, mechanical, medical, scientific research and building industry.
material is either Seamless Steel Pipe or Steel Billet.
Our Seamless Steel Oxygen Cylinders can be widely used in many fields, such as industry, medical equipment, fire protection and scientific research, for storage and transport of permanent gases and high pressure liquefied gases, such as Oxygen Gas, Carbon Dioxide Gas, Argon Gas, Nitrogen Gas, Helium Gas, Carbon Monoxide Gas, SF6 Gas, Air, etc.
Our Oxygen Cylinder is widely applied in chemical, metallurgical, mechanical, medical, scientific research and building industry.
FEATURES AT A GLANCE
COMPETITIVE PRICE
FAST DELIVERY(3~4 WEEKS)
EASY OPERATATION
SAFE PROTECTION
CUSTOMER CUSTOMIZATION
MEDICAL USE
INDUSTRIAL USE
SPECIALTY&UHP GAS CYLINDERS
GOOD SERVICE
Concave bottom
Safe valve
Different size
PRODUCT SPECIFICATIONS
Type | Diameter (mm) | Capacity (L) | Height (mm) | Weight (kg) | Working pressure(Mpa) | Design wall thickness(mm) | Material |
WMA140-4-15 | 140 | 4 | 372 | 5.77 | 15 | 4.1 | 37Mn |
WMA140-5-15 | 5 | 458 | 7.52 | ||||
WMA140-8-15 | 8 | 671 | 10.72 | ||||
WMA152-7-15 | 152 | 7 | 528 | 9.57 | 15 | 4.4 | 37Mn |
WMA152-8-15 | 8 | 600 | 10.66 | ||||
WMA152-10-15 | 10 | 726 | 12.6 | ||||
WMA152-15-15 | 15 | 1012 | 17.7 | ||||
WMA159-4-15 | 159 | 4 | 320 | 6.8 | 15 | 4.4(GB5099) 4.7(ISO 9809-3) | 37Mn |
WMA159-8-15 | 8 | 554 | 10.8 | ||||
WMA159-10-15 | 10 | 665 | 12.7 | ||||
WMA159-15-15 | 15 | 945 | 17.5 | ||||
WMA219-20-15 | 219 | 20 | 710 | 27.8 | 15 | 5.7(GB5099) 6.1( ISO 9809-3) | 37Mn |
WMA219-40-15 | 40 | 1325 | 48.5 | ||||
WMA219-45-15 | 45 | 1455 | 50.8 | ||||
WMA219-50-15 | 50 | 1605 | 55.6 | ||||
WZA232-40-15 | 232 | 40 | 1160 | 44.2 | 15 | 5.3 | 37Mn |
WZA232-47-15 | 47 | 1350 | 50.3 | ||||
WZA232-50-15 | 50 | 1430 | 53 | ||||
WZA267-40-15 | 267 | 40 | 930 | 45.5 | 15 | 5.8 | 37Mn |
WZA267-50-15 | 50 | 1127 | 53.9 | ||||
WZA267-70-15 | 70 | 1521 | 70.7 | ||||
WGA232-30-20 | 232 | 30 | 916 | 37.4 | 20 | 5.2 | 34CrMo4 |
WGA232-38-20 | 38 | 1127 | 44.8 | ||||
WGA232-40-20 | 40 | 1180 | 46.7 | ||||
WGA232-46.7-20 | 46.7 | 1358 | 52.9 | ||||
WGA232-47-20 | 47 | 1366 | 53.2 | ||||
WGA232-50-20 | 50 | 1445 | 56 | ||||
WGA232-60-20 | 60 | 1710 | 65.2 |
PRODUCT CONFIGURATION
Grinding
Spary
Hydrostatic test
Cylinder guard- valve protection
Pallet packaging for LCL
FCL cylinders
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS

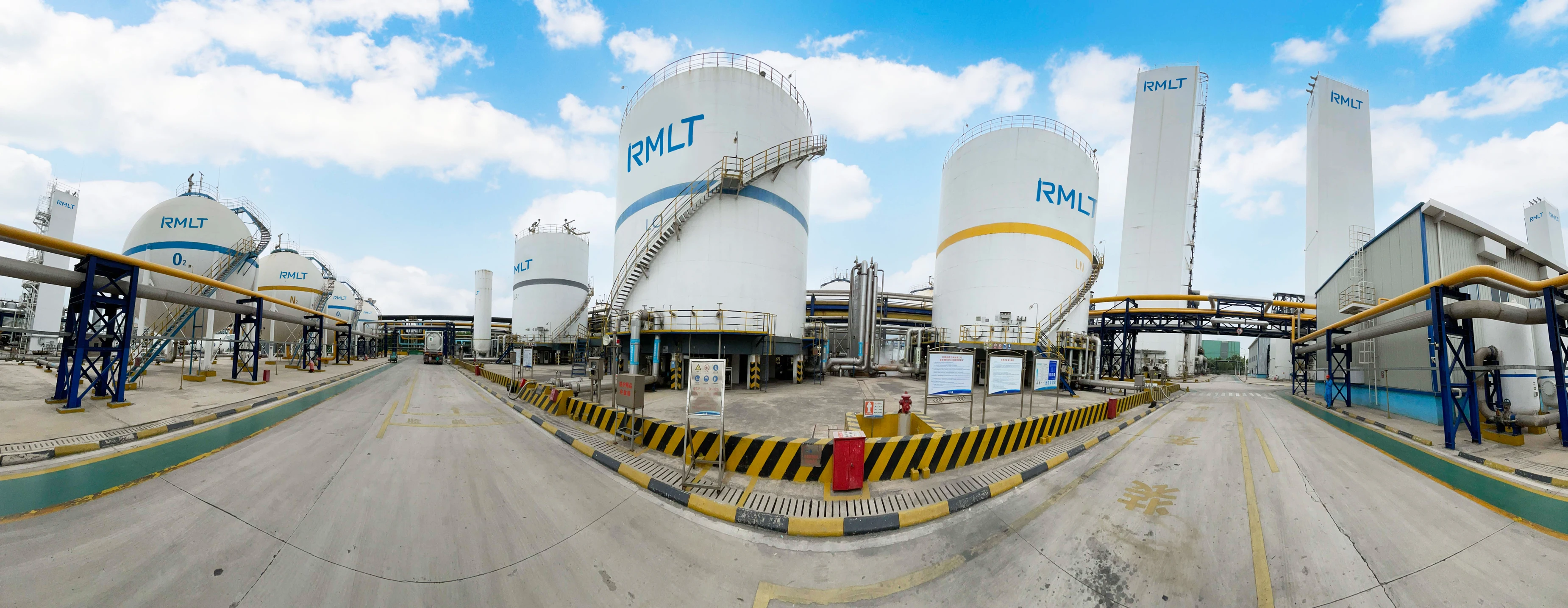

COMPANY PROFILE
FAQ
Q1. What's the MOQ?
A:Different products have different MOQ,Pls feel free to contact with me directly for your requirement.
Q2:What is the delievery time?
A:Normal delivery time for 40L gas cylinder: 15 days
50L 200 BAR gas cylinders: 25-30 days
If you need gas filling , it will take more 10 days.
Q3:What is the package, storage& transportation details?
A:Package:Steamless steel cylinder with different valves,or as to your requirement.
Q4:What is the payment terms?
A:30% T/T in advance, balance against the B/L.
Q5: If the cylinder recycled and can be refilled gas again?
A: Yes, usually the seamless steel cylinder can recycle to use for 20 years, and also can be refill gas again.
But , when you ordered our cylinder, you have to inform us before exporting, we will handle all the import customs clearance formalities. no matter gas cylinders or the gas filling process in fillowing.
A:Different products have different MOQ,Pls feel free to contact with me directly for your requirement.
Q2:What is the delievery time?
A:Normal delivery time for 40L gas cylinder: 15 days
50L 200 BAR gas cylinders: 25-30 days
If you need gas filling , it will take more 10 days.
Q3:What is the package, storage& transportation details?
A:Package:Steamless steel cylinder with different valves,or as to your requirement.
Q4:What is the payment terms?
A:30% T/T in advance, balance against the B/L.
Q5: If the cylinder recycled and can be refilled gas again?
A: Yes, usually the seamless steel cylinder can recycle to use for 20 years, and also can be refill gas again.
But , when you ordered our cylinder, you have to inform us before exporting, we will handle all the import customs clearance formalities. no matter gas cylinders or the gas filling process in fillowing.
