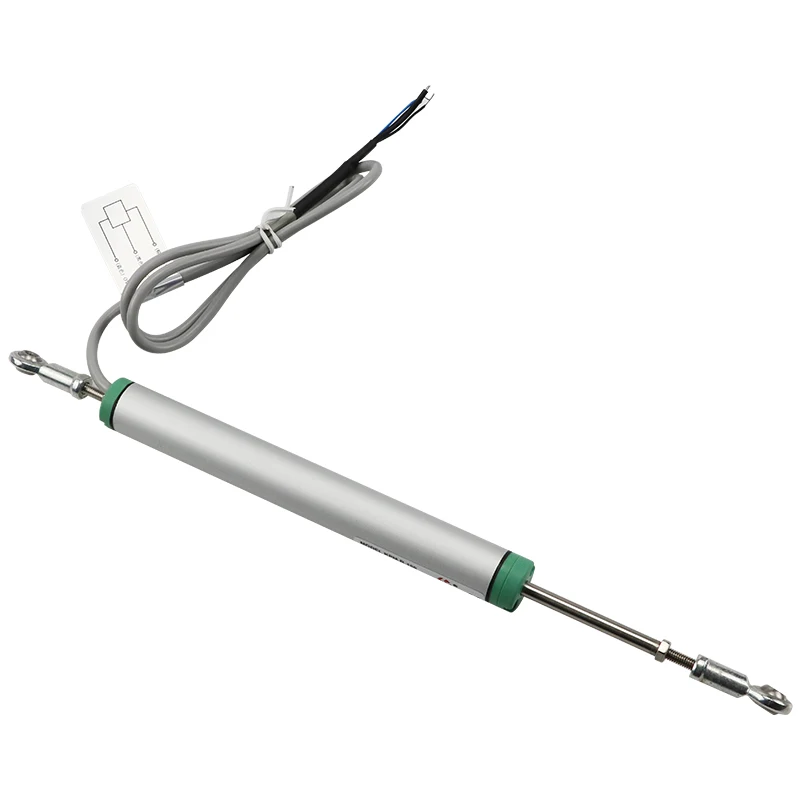

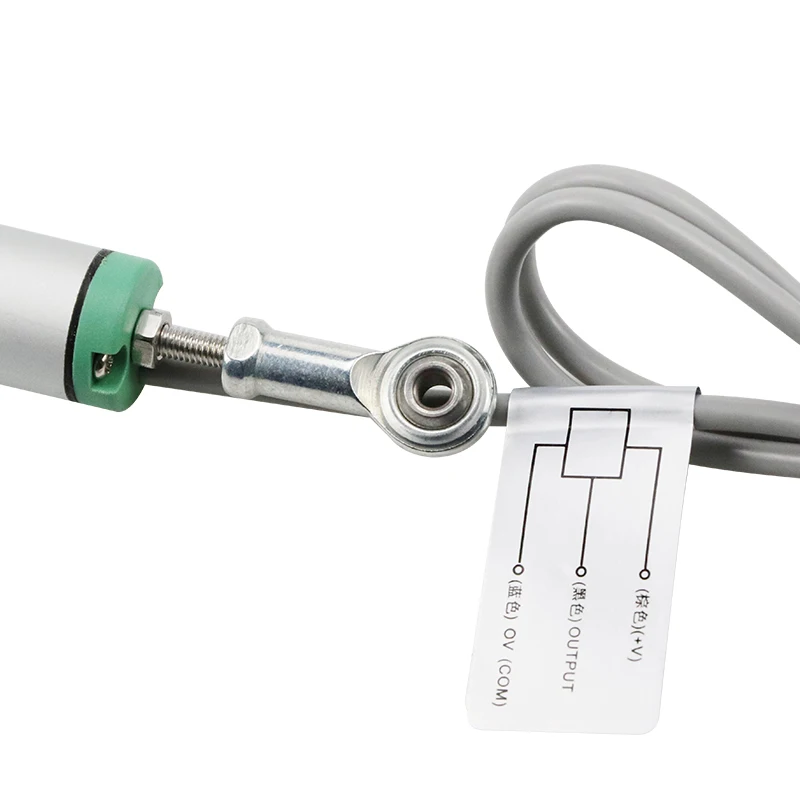

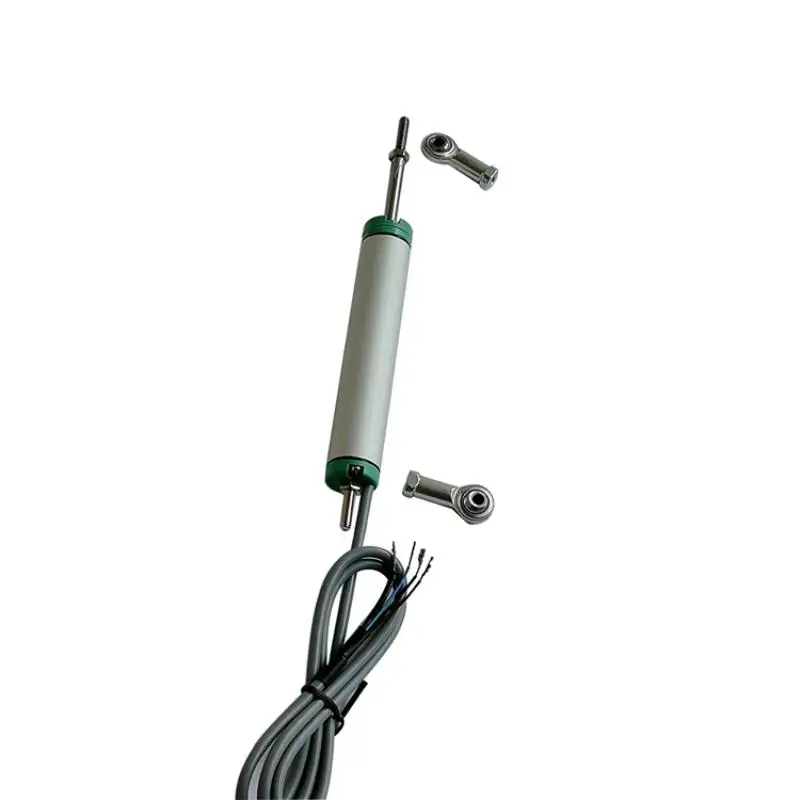

Mini Hinge Joint Conductive Plastic Film Linear Sensor Two Ends Ball Joint Resistance Output for Robotics
- Category: >>>
- Supplier: BGT Technology (Beijing) Co. Ltd.
Share on (1600816624079):
Product Overview
Description
Products Description

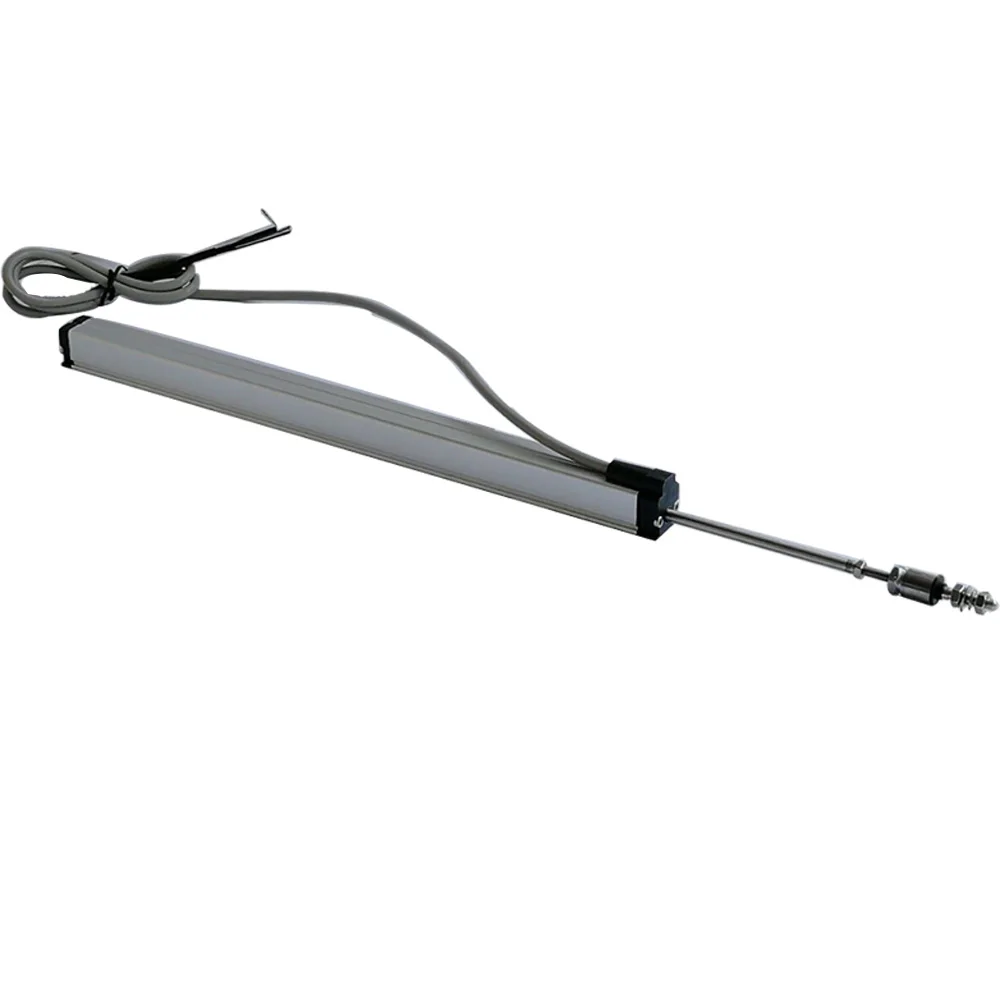

Pulling rod type linear position sensors with conductive plastic element are designed for the displacement or length measurement and are available in different stroke lengths up to 1250mm. The sensors give infinite resolution with repeatability of 0.01mm and outstanding linearity of 0.04% maximum. The KTC series has a solid stainless steel shaft with long bearings in the housing for a robust and smooth operation with long life. An improved technique for making connection to resistance track (Double Trimming Technique) ensures the higher degrees of reliability and linearity, while multi-fingers wipers stabilize output signals, even in the most adverse working conditions.
Feature
* Stroke lengths from 50mm to 1250mm optional
* Beautiful appearance with anodized aluminum case, protection from corrosion
* Brushes for both collector and resistive tracks in noble metal
* Conductive plastic track on polymer base
* The new grooves provide an excellent alternative to the usual system of fastening with brackets
* Stainless steel for pull shaft
* Infinite resolution
* Protection level IP65
* Life time could reach fifty million
* Repeatability within 0.01mm
* Also available with integrated signal converter with 4-20 mA output or 0-5/0-10 VDC outputs.
* Beautiful appearance with anodized aluminum case, protection from corrosion
* Brushes for both collector and resistive tracks in noble metal
* Conductive plastic track on polymer base
* The new grooves provide an excellent alternative to the usual system of fastening with brackets
* Stainless steel for pull shaft
* Infinite resolution
* Protection level IP65
* Life time could reach fifty million
* Repeatability within 0.01mm
* Also available with integrated signal converter with 4-20 mA output or 0-5/0-10 VDC outputs.
Product Parameters
Output | Resistance, 4-20mA, 0-5V. 0-10V |
Allow power supply voltage | 28V |
Measuring stoke | 50mm-1250mm |
Resistance | 5KOhm/10KOhm/20KOhm |
Independent linearity | 0.04％-0.15％ |
Working speed | 10m/s |
Use life | 30*106 |
Resolution | Infinite |
Repeatability | 0.01 |
Protection class | IP65 |
Operating temperature | -40℃/+80℃ |
Rod diameter | 6mm |
Shell material | Aluminum alloy |
Rod material | Stainless Steel |
