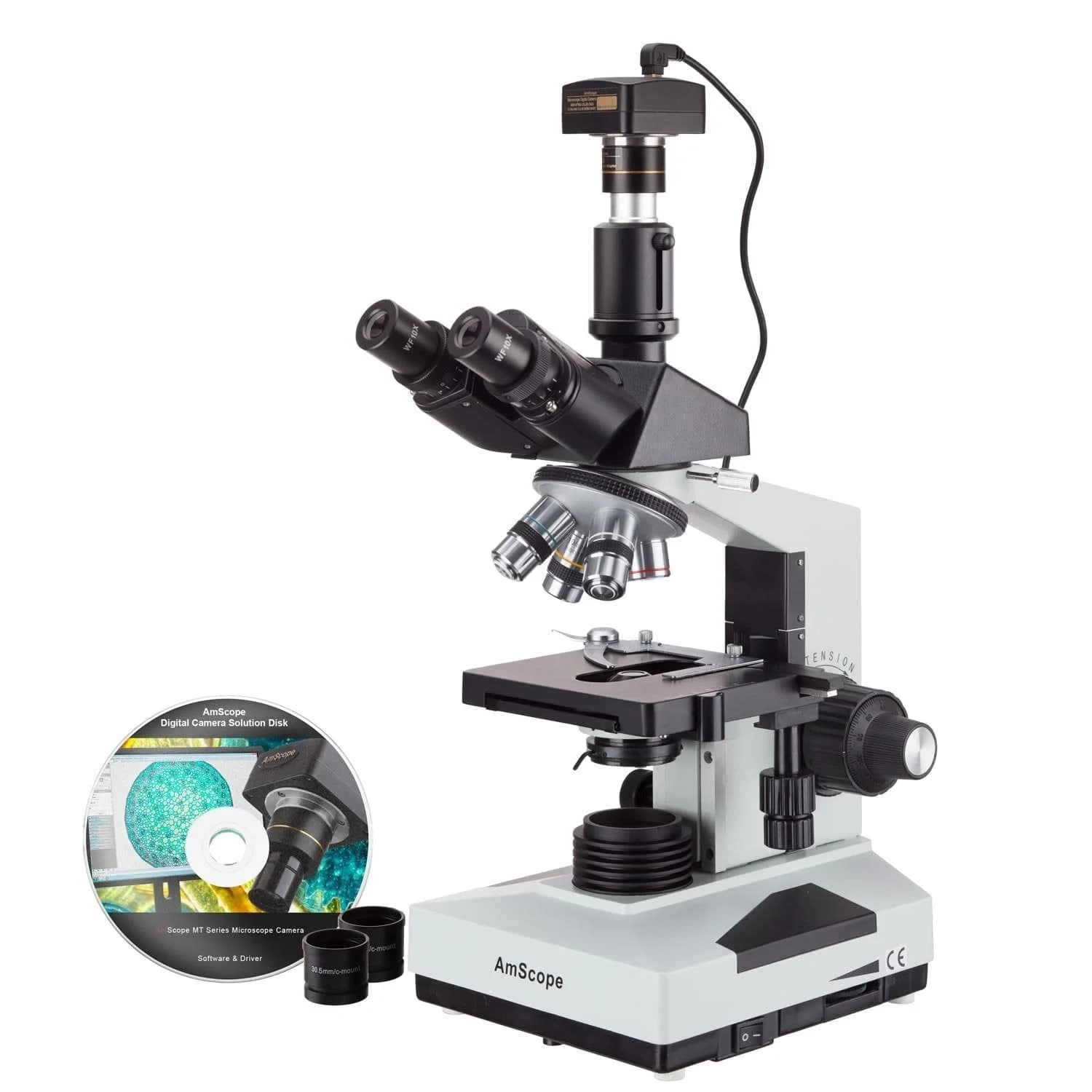

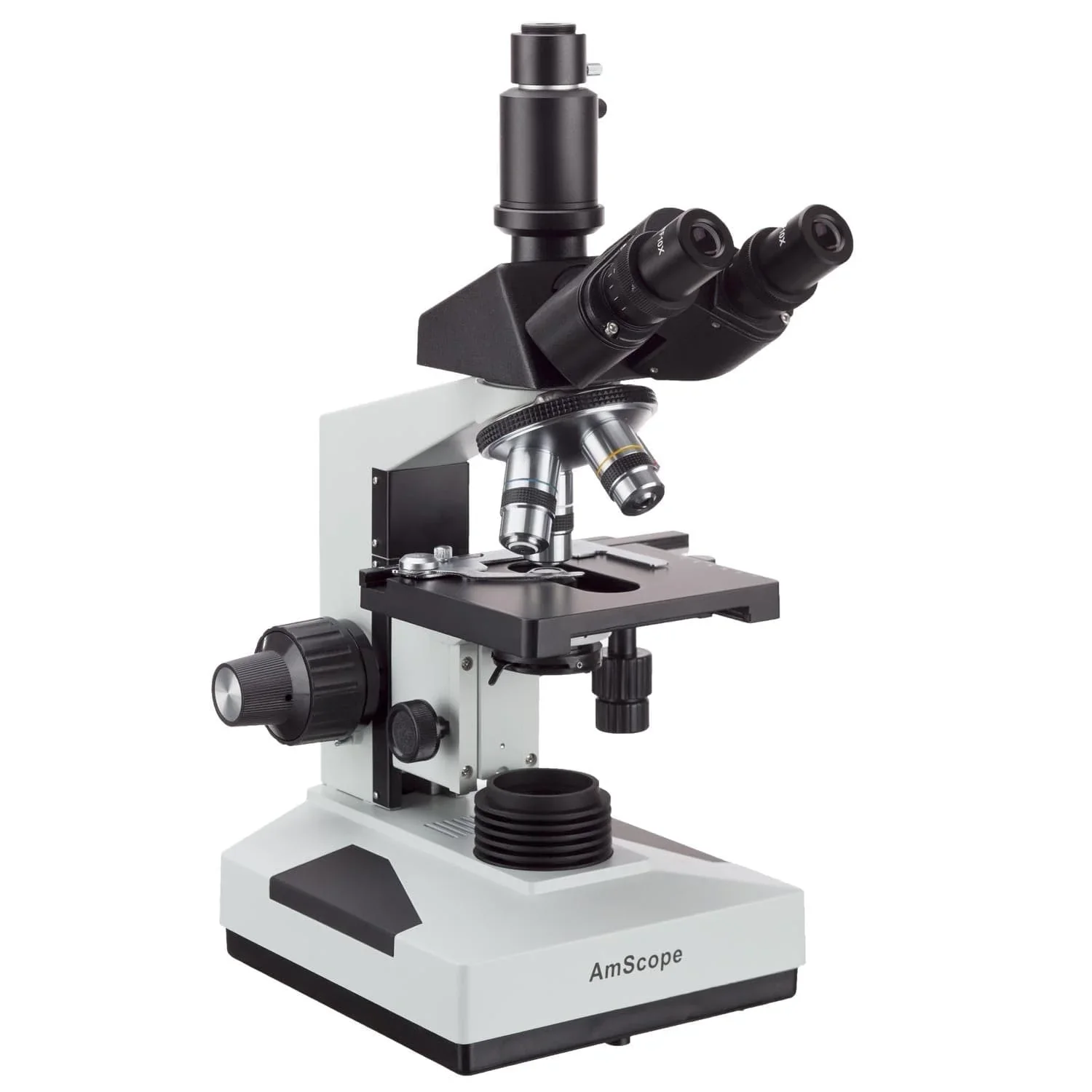

AmScope 40X 1000X Trinocular LED Compound Microscope w/ 1.3MP USB 2.0 C mount Camera
- Category: >>>
- Supplier: United Scope (Ningbo) Co. Ltd.
Share on (1600816640625):
Product Overview
Description
Key Features
* 40X to 1000X magnification range using high-quality achromatic objective lenses.
* A top choice for veterinarians, clinics, and classrooms, this microscope provides high quality optics and precision mechanics.
* Professional features include a Siedentopf trinocular head for precise adjustments, a 2-layer mechanical stage with
low-position controls, and coaxial coarse and fine focus for ergonomics and an efficient workflow.
* Cool, energy-efficient lighting produces natural colors and low heat for viewing live specimens.
* The trinocular photo port allows you to easily mount a camera. The T490 is compatible with our CX series C-mount photo ports
with built-in reduction.
* Monitor and capture photos and videos with the included 1.3MP USB 2.0 camera. Professional microscopy software for Windows,
Mac, and Linux provide tools for image processing, measuring, and more.
* Dual-powered illumination for maximum workspace flexibility. Includes three rechargeable NiMH batteries.
* 40X to 1000X magnification range using high-quality achromatic objective lenses.
* A top choice for veterinarians, clinics, and classrooms, this microscope provides high quality optics and precision mechanics.
* Professional features include a Siedentopf trinocular head for precise adjustments, a 2-layer mechanical stage with
low-position controls, and coaxial coarse and fine focus for ergonomics and an efficient workflow.
* Cool, energy-efficient lighting produces natural colors and low heat for viewing live specimens.
* The trinocular photo port allows you to easily mount a camera. The T490 is compatible with our CX series C-mount photo ports
with built-in reduction.
* Monitor and capture photos and videos with the included 1.3MP USB 2.0 camera. Professional microscopy software for Windows,
Mac, and Linux provide tools for image processing, measuring, and more.
* Dual-powered illumination for maximum workspace flexibility. Includes three rechargeable NiMH batteries.
This is a binocular LED compound microscope designed for clinical examination and teaching demonstration in medical field,
laboratories and colleges. It comes with compensation-free binocular head, mechanical stage and LED illumination system.
To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf
mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to
comfortably accommodate a seated position without neck strain. Various eyepieces can be used to increase the overall optical
magnification.
The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X.
Additional 25X eyepieces expand the maximum magnification to 2500X with 6 unique levels. This covers magnifications needed for
studying hair follicles, cells, and bacteria. The turret's reversed orientation provides more working room above the stage. These
high-quality lenses are achromatically corrected to improve resolution and color accuracy.
The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position
controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive
and precise for users at any skill level.
The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural
colors for imaging. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to
optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion movement for precise height adjustment, and has
two centering screws to properly align the condenser.

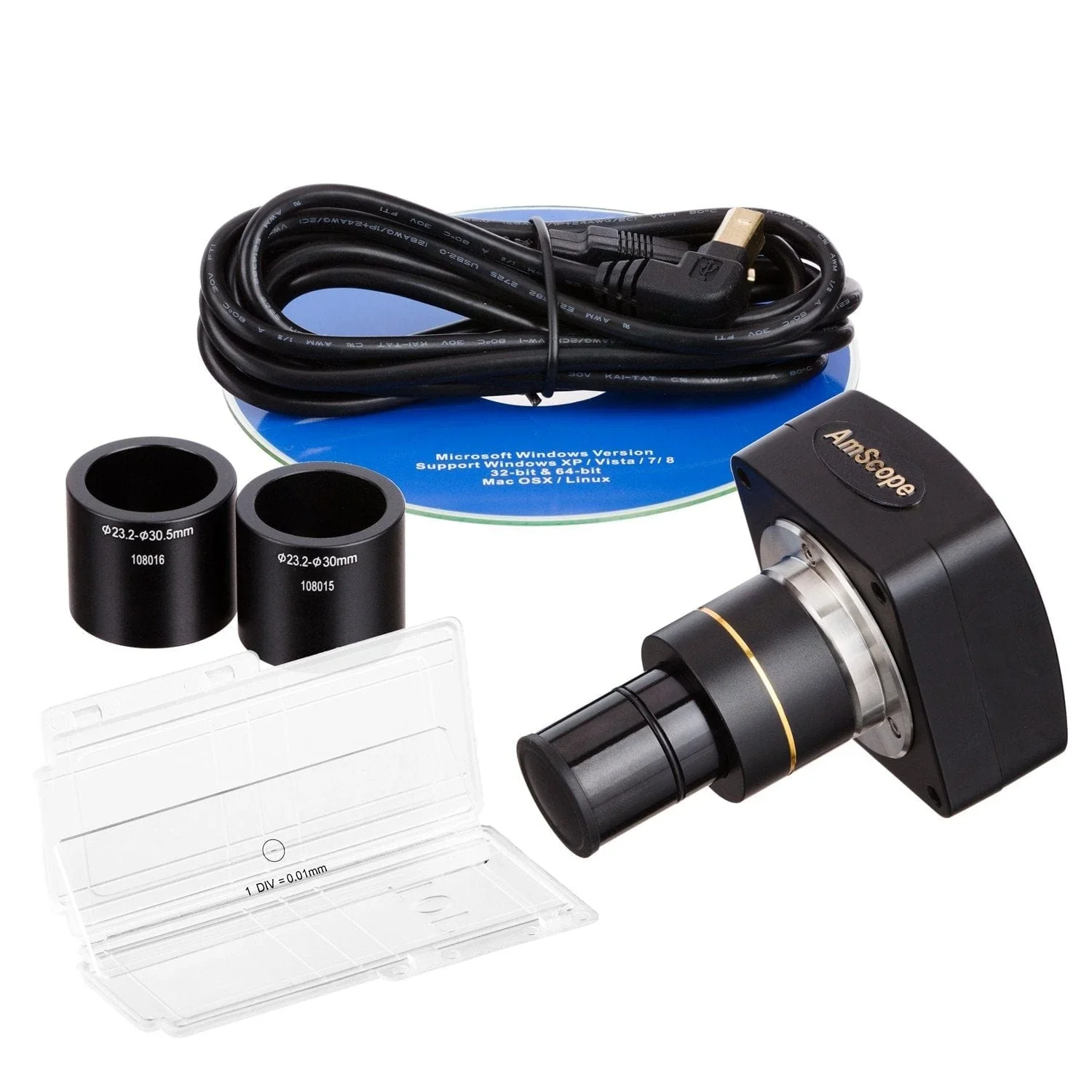

Monitor and capture photos and videos with the included 9MP USB2.0 camera. The C-mount camera is specially designed for use with
microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic
images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.5X reduction lens is
included to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of
capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of
measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos
and videos.
laboratories and colleges. It comes with compensation-free binocular head, mechanical stage and LED illumination system.
To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf
mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to
comfortably accommodate a seated position without neck strain. Various eyepieces can be used to increase the overall optical
magnification.
The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X.
Additional 25X eyepieces expand the maximum magnification to 2500X with 6 unique levels. This covers magnifications needed for
studying hair follicles, cells, and bacteria. The turret's reversed orientation provides more working room above the stage. These
high-quality lenses are achromatically corrected to improve resolution and color accuracy.
The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position
controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive
and precise for users at any skill level.
The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural
colors for imaging. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to
optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion movement for precise height adjustment, and has
two centering screws to properly align the condenser.
Monitor and capture photos and videos with the included 9MP USB2.0 camera. The C-mount camera is specially designed for use with
microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic
images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.5X reduction lens is
included to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of
capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of
measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos
and videos.
Specifications
Optical System | Finite-conjugate |
Tube Length | 160mm |
Head | Binocular, 30° incline, 360° rotatable |
Interpupillary Adjustment | Siedentopf, 55-75mm |
Ocular Diameter | 23mm |
Eyepieces | 10X, 25X |
Objective Lenses | DIN standard |
Objective Parfocal Distance | 45mm |
Objective Mounting Thread | RMS 20.32mm |
Objective Turret | Reversed quadruple |
Focusing System | Coaxial coarse and fine focus, upper limit-stop |
Coarse Focus Range | 22mm |
Fine Focusing Precision | 0.002mm |
Stage Design | Double-layer with caliper |
Stage Dimensions | 120mm x 110mm |
X-Y Translation Range | 70mm x 30mm |
Transmitted Illumination | Variable-intensity 1W LED |
Condenser | NA1.25 Abbe condenser with iris diaphragm |
Sub-stage Condenser-holder | rack and pinion |
Power | 100-240VAC 50/60Hz wide-band |
Objective Lenses
Magnification | Corrections | NA | Immersion Medium | Cover-glass Thickness |
4X | achromatic | 0.10 | - | 0.17mm |
10X | achromatic | 0.25 | - | 0.17mm |
40X | achromatic | 0.65 | - | 0.17mm |
100X | achromatic | 1.25 | Oil | 0.17mm |
Camera Specifications | ||
Sensor Type | CMOS | |
Sensor Optical Format | 1/2.4" | |
Active Pixels | 9M (3488 x 2616) | |
Pixel Size | 1.67µm x 1.67µm | |
Active Sensor Area | 5.82mm x 4.37mm | |
Shutter | electronic rolling shutter | |
Sensitivity | 0.31V/Lux-sec | |
Spectral Response | 380-650nm with IR-cut filter | |
Capture Resolution and Maximum Framerate | 1.9fps @ 3488x2616 8fps @ 1744x1308 27fps @ 872x654 | |
Connectivity | USB 2.0 | |
Lens-mount | C-mount | |
Compensating Lens | 0.5X | |
Power | 5VDC over USB | |
OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ |
Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM |
Features | Windows Version Live video preview Captures still images and video Time-lapse capture Exposure and white-balance controls Dark-field correction Digital binning Image processing Measurement tools, including lines, arcs, polygons Segmentation and counting tools Image-stitching, extended depth-of-field, HDR Fluorescence color-mapping |
Windows Version | Mac/Linux Versions Live video preview Captures still images and video Exposure control Color adjustment Measurement tools, including lines, arcs, polygons |
Packing List:
One binocular microscope headOne microscope bodyFour objective lenses: 4X, 10X, 40X, 100XOne pair 10X eyepiecesOne pair 25X
eyepiecesOne dust coverOne sample immersion oilOne C-mount USB cameraOne 0.5X reduction lensTwo sizing adaptersOne USB Type B to
USB type A cable
One binocular microscope headOne microscope bodyFour objective lenses: 4X, 10X, 40X, 100XOne pair 10X eyepiecesOne pair 25X
eyepiecesOne dust coverOne sample immersion oilOne C-mount USB cameraOne 0.5X reduction lensTwo sizing adaptersOne USB Type B to
USB type A cable
