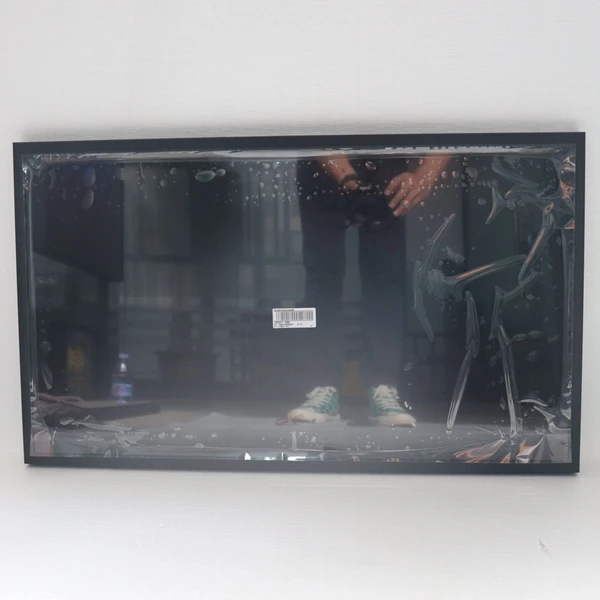

Professional Factory High Brightness Lcd Screen 32 Inch Outdoor Lcd Monitor Industrial Grade Display Panel
- Category: >>>
- Supplier: Shenzhen Fengshi Technology Co. Ltd.
Share on (1600816984151):
Product Overview
Description
Sunlight readable LCD LG panel LD320EUY 32" industrial high brightness lcd display for outdoor application

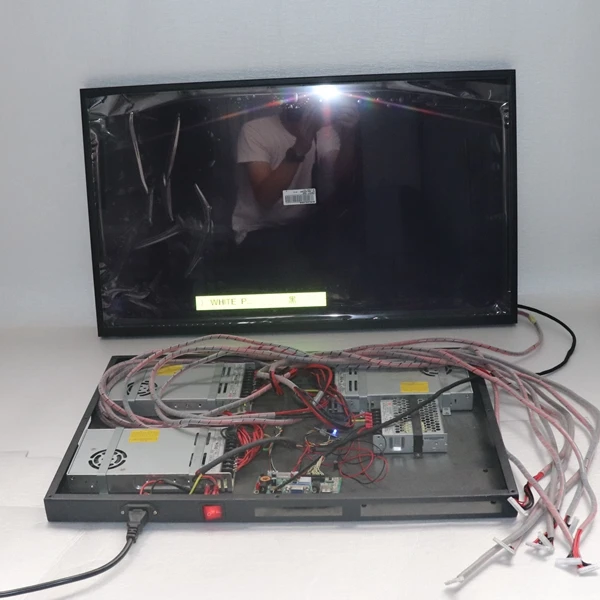

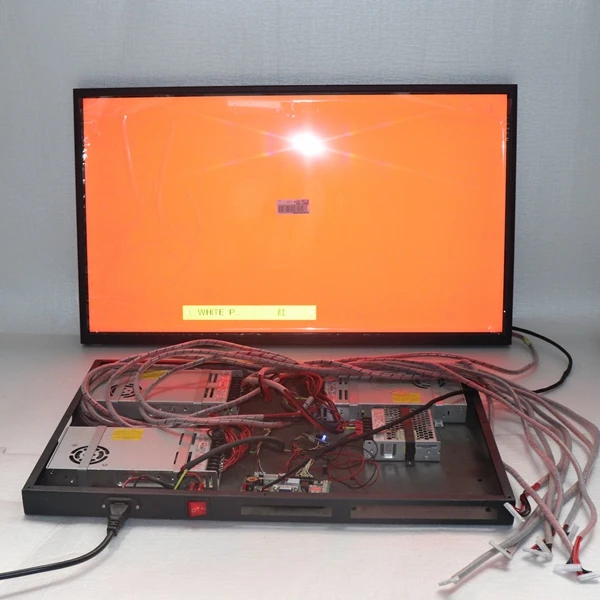

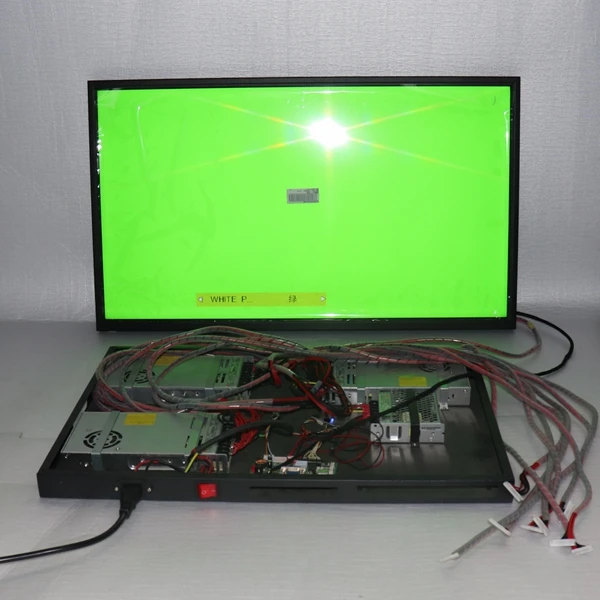

The lighting photo of 32" TFT lcd screens 1920*1080 industrial grade lcd panel with lvds interface as below
Accessories included:
*Auto-brightness sensor
*LED driver board
*T-con board
Features（Products can be customized）:

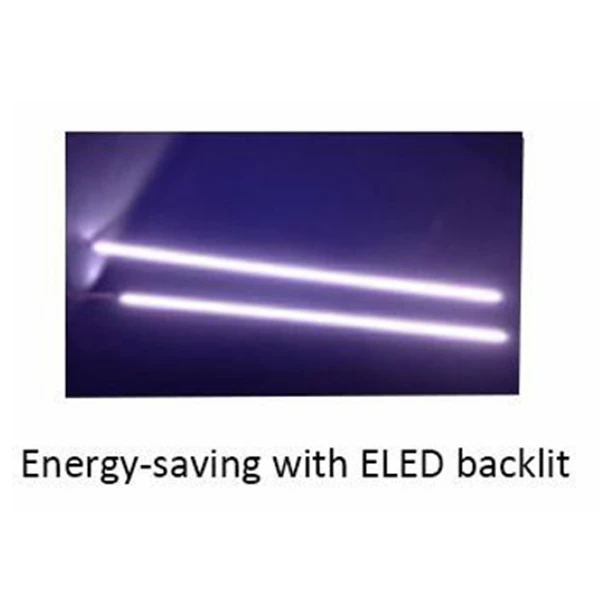

1.ELED slim design
2.Commercial grade high Tni 110℃ OC optional
3.LG/BOE etc. Original Brand OC
4.OEM/ODM are acceptable
5.50K Hours Long lifetime

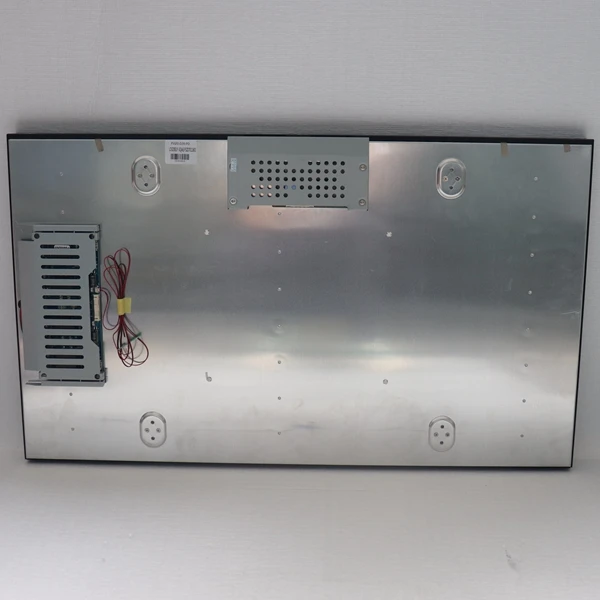

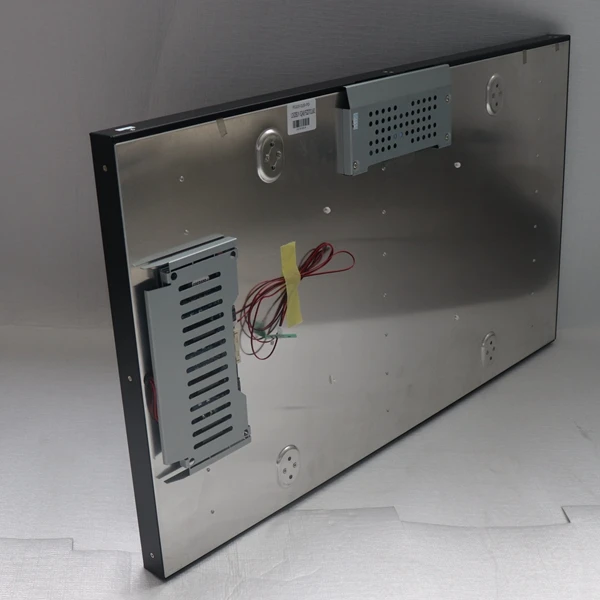

6.VESA mounting holes
7.Aluminum heat sink for ultra high brightness if it is large size
*LED driver board
*T-con board
Features（Products can be customized）:
1.ELED slim design
2.Commercial grade high Tni 110℃ OC optional
3.LG/BOE etc. Original Brand OC
4.OEM/ODM are acceptable
5.50K Hours Long lifetime
6.VESA mounting holes
7.Aluminum heat sink for ultra high brightness if it is large size
Product Advantages
1. small size LCD panel with edge backlight design

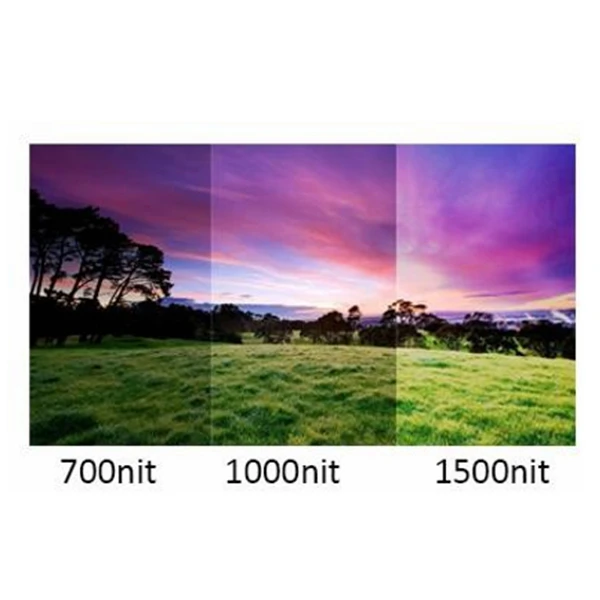

2. high brightness LCD module upto 1500nit

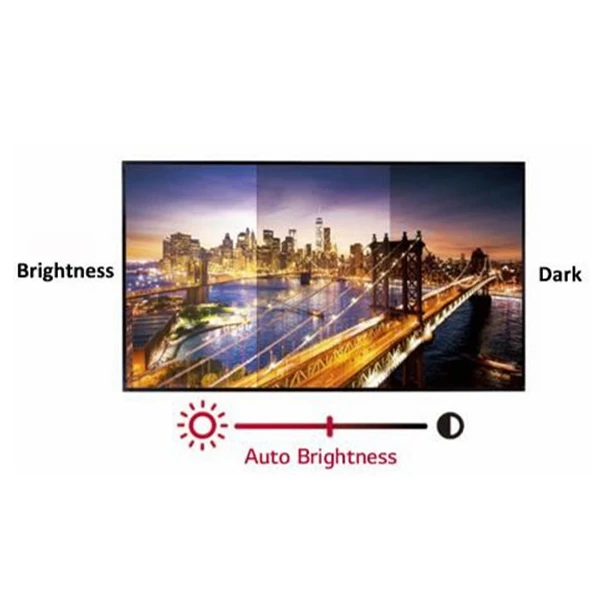

3. high bright LCD module with auto-dimming sensor
4. industrial grade LCD panel, with wide operating temperature
Packaging and shipment
Parameter
Item | 32.0'' high brightness LCD panel |
Model | FS320-D15-Z |
Screen Size | 32 inches |
Display Area | 698.4*392.8mm |
Outline Dimenssion | 725.2*424.4*53.1mm |
Panel Type | High brightness LCD with WLED |
Configuration | RGBW Vertical Stripe |
Resolution | 1920*1080pixel |
Brightness | 1500nits |
Aspect Ratio | 16:9 |
Constrast Ratio | 1400:1 (Typ.) (TM) |
Response Time | 6 (Typ.)(G to G) ms |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Driver Elements | a-Si TFT-LCD |
Surface Treatment | Antiglare (Haze 1%), Hard coating (3H) |
Display Color | 16.7M |
Display Mode | IPS, Normally Black, Transmissive |
Interface Type | LVDS (2 ch, 8-bit) , Connector , 51 pins |
Input Voltage | DC24V |
Power | 50W |
Weight | 4.0kg |
Backlit Lifetime | 50000hrs |
Company Profile
Certifications
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located in Shenzhen.
2.Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of delivery
3.Q: Do you provide ODM/OEM or customized service?
A: We're BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
4. Q: What brand of OC do you use?
A: Original LG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will pass through strict quality inspection.
5.Q:What certifications you have?
A The CE-EMC Certificate of Conformity & the RLSM028BD report, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68°℃, while industrial grade goes black over 105 ℃ or 110℃.
7.What's the MOQ?
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 5-8 days, bulk order shipped within 2 weeks.
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located in Shenzhen.
2.Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of delivery
3.Q: Do you provide ODM/OEM or customized service?
A: We're BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High brightness LCD panel: LCD panel + LED driver board + auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMl, VGA, DVI, USB..)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network Android board optional)+fan system+temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/1P65 etc.
(3) Window Facing Displays: LCD Panel+PSU+AD board (network Android board optional)+fan system+temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/1P65 etc.
4. Q: What brand of OC do you use?
A: Original LG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will pass through strict quality inspection.
5.Q:What certifications you have?
A The CE-EMC Certificate of Conformity & the RLSM028BD report, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68°℃, while industrial grade goes black over 105 ℃ or 110℃.
7.What's the MOQ?
A: The MOQ is 1 pcs. Sample testing is available, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 5-8 days, bulk order shipped within 2 weeks.
