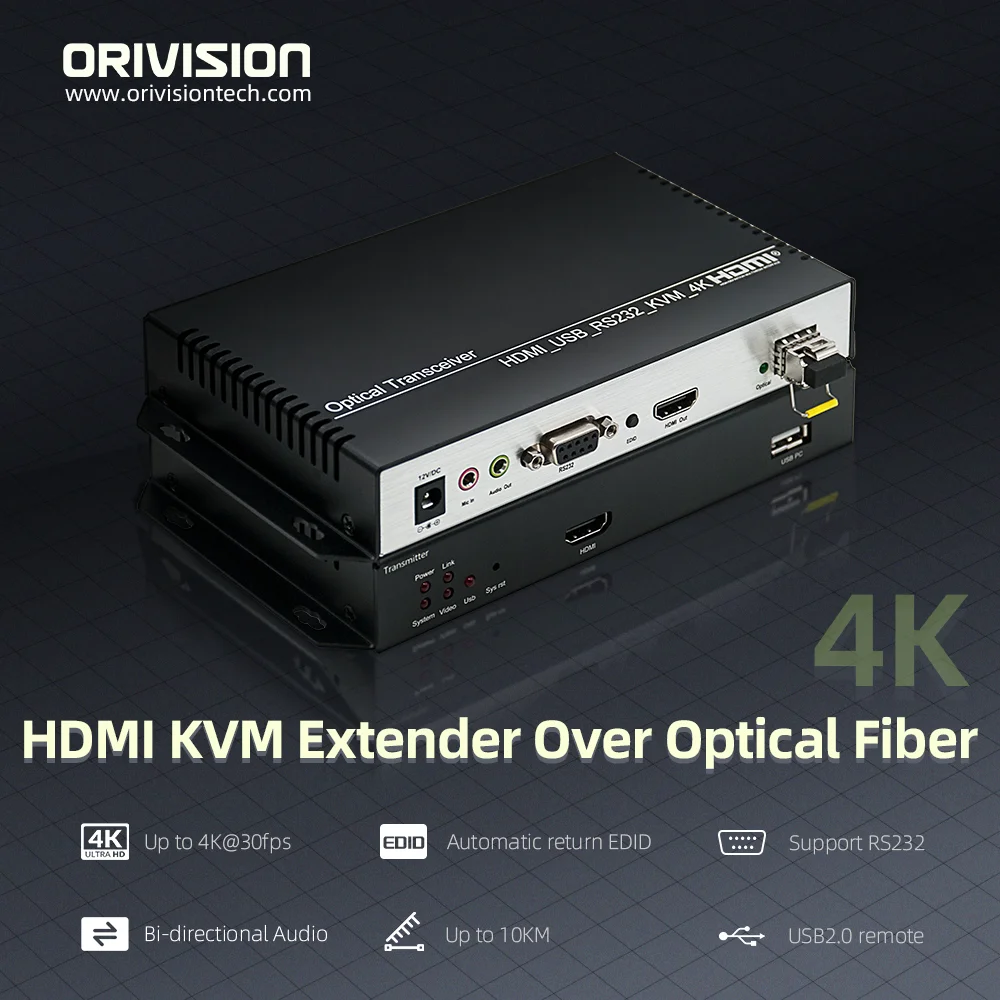

4K@30 HDMI KVM Optical Fiber Extender

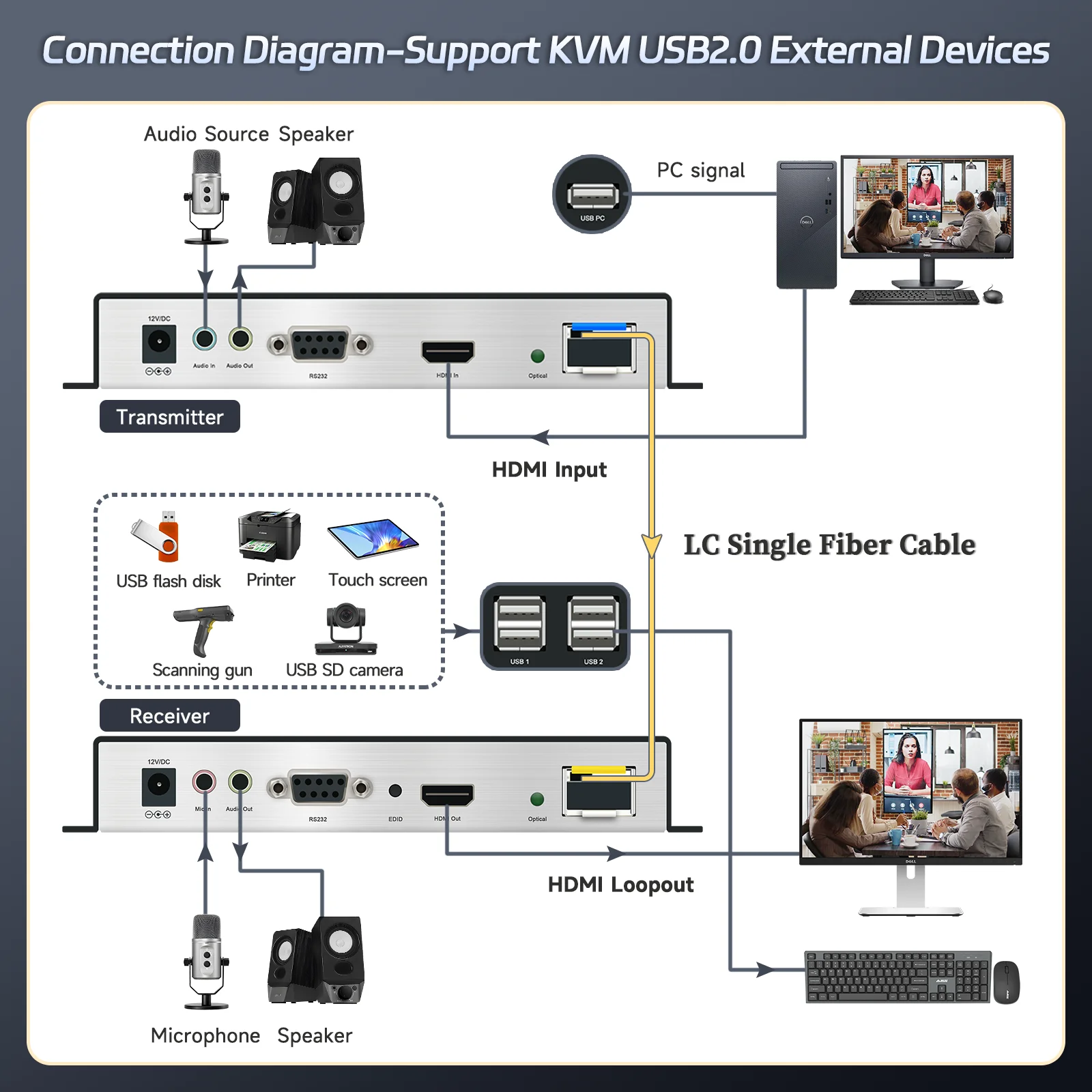

4K-KVM optical terminal supports 4K resolution. It consists of transmitter, receiver and optical fiber. It is actually a single fiber to extend the keyboard, mouse, speaker, microphone, HDMI signal, RS232 and so on. It can use TV to display computer signals.
You can also put the keyboard, mouse and microphone in front of the TV for operation. The decoder has four USB ports, which can be used for data USB disk, touch screen, printer, scanning gun and even USB standard definition camera. All signals will be networked
to control the computer and support HDCP1.4.
You can also put the keyboard, mouse and microphone in front of the TV for operation. The decoder has four USB ports, which can be used for data USB disk, touch screen, printer, scanning gun and even USB standard definition camera. All signals will be networked
to control the computer and support HDCP1.4.
Product Feature
Support resolutions up to 3840*2160@30Hz
Supporting bidirectional Audio（Microphone）
Support copy EDID
Support RS232 transmission (baud rate 115200)
Automatically adjust video compression rate to ensure smooth video stream
High-speed ASIC technology ensures near-zero latency for remote images, keyboards, and mice

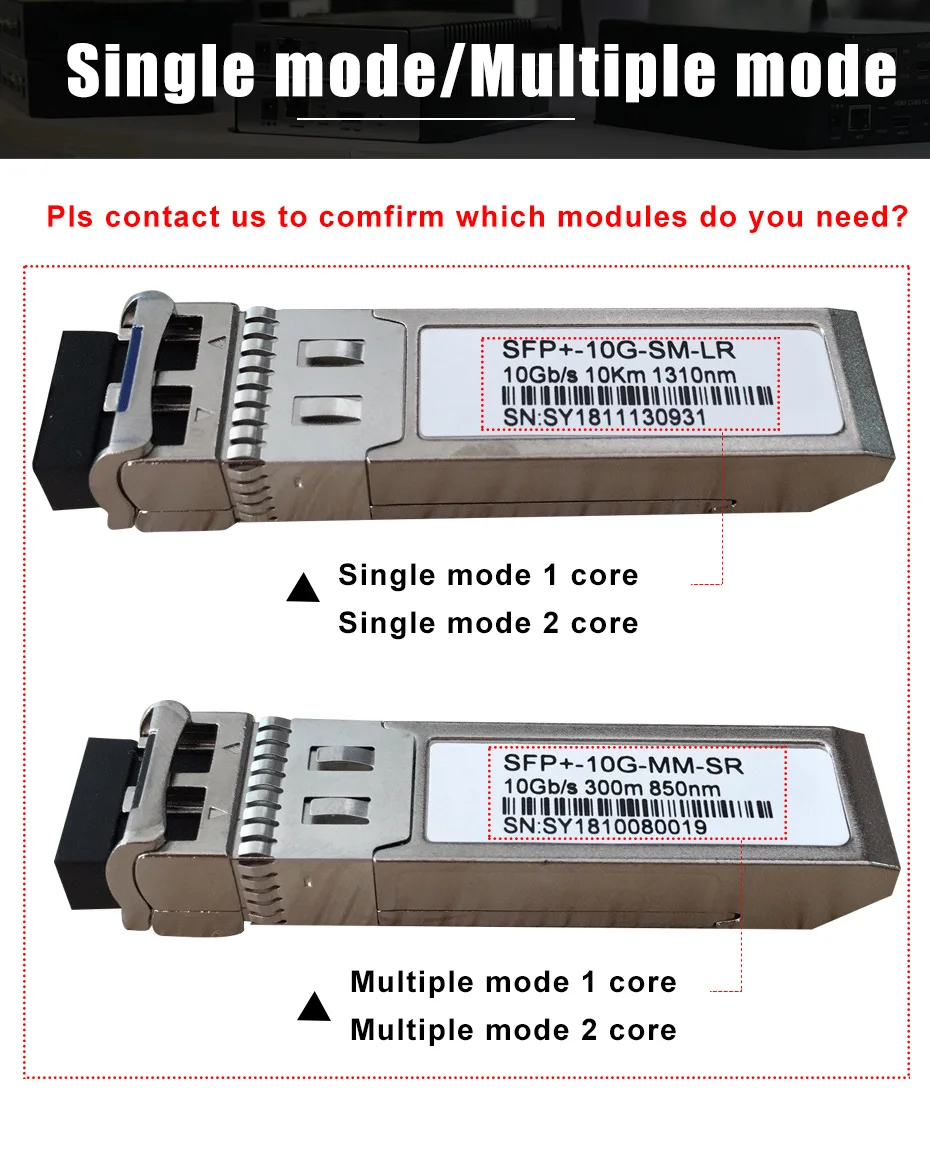

Single-mode one-core LC fiber, standard 10KM
Simple to install, plug and play.
Remote USB supports keyboard, mouse, U disk, printer, scanner and other USB external devices
Supports Customization and OEM.
Support resolutions up to 3840*2160@30Hz
Supporting bidirectional Audio（Microphone）
Support copy EDID
Support RS232 transmission (baud rate 115200)
Automatically adjust video compression rate to ensure smooth video stream
High-speed ASIC technology ensures near-zero latency for remote images, keyboards, and mice
Single-mode one-core LC fiber, standard 10KM
Simple to install, plug and play.
Remote USB supports keyboard, mouse, U disk, printer, scanner and other USB external devices
Supports Customization and OEM.
Overview
Recommend Products
Product Paramenters
Model | ZY-OKH511 |

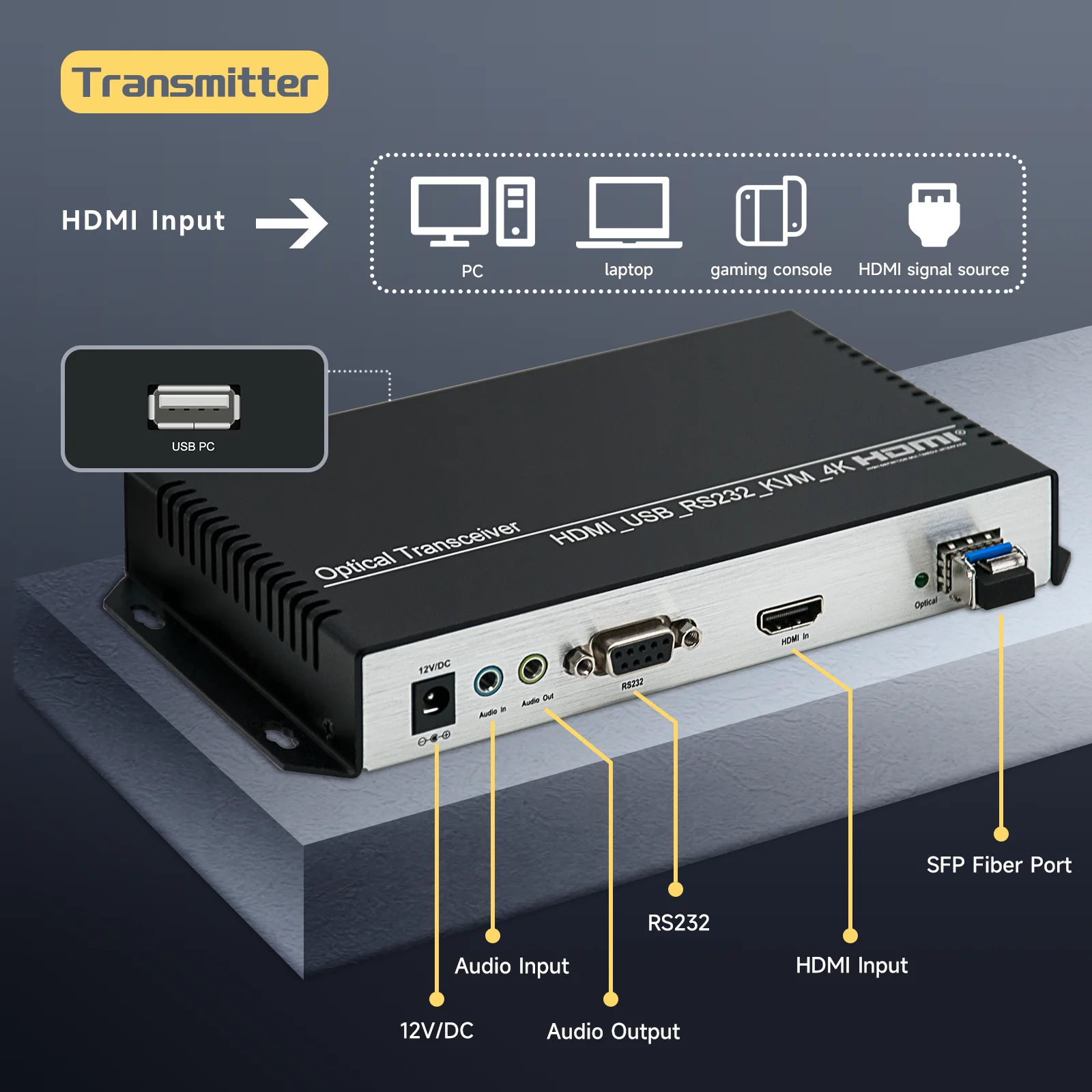

Transmitter-Input | HDMI*1 USB*1 RS232*1 3.5Audio in*1 3.5Audio out*1 |
Transmitter-Output | LC*1 HDMI*1 |

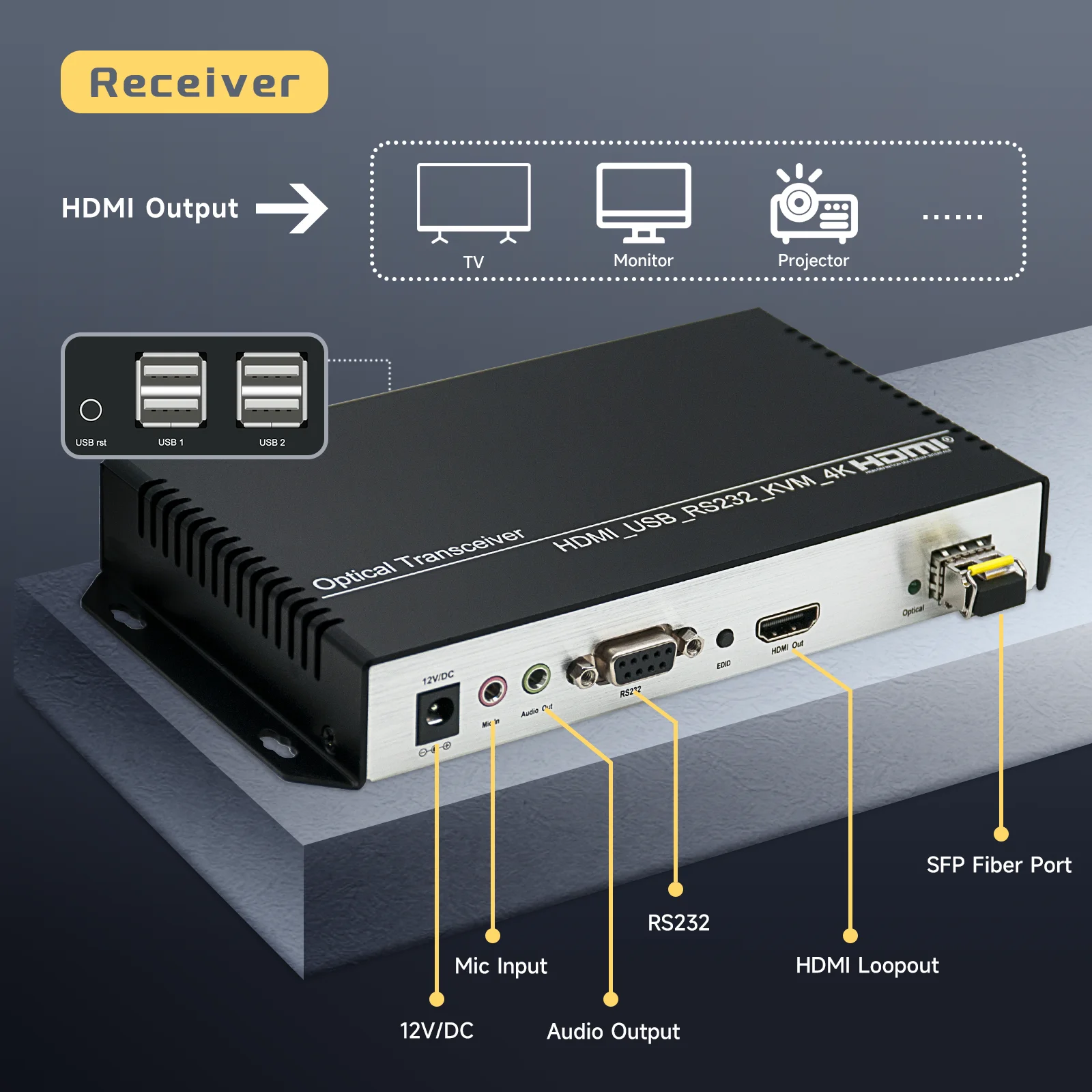

Receiver-Input | LC*1 |
Receiver-Output | HDMI*1 RS232*1 3.5Mic in*1 3.5Audio out*1 USB*4 |
Maximum resolution | 3840*2160@30HZ |
Transmission distance | 10KM(standard) |
Cable | Single-mode 1-core fiber |
Operating temperature | -5℃~＋60℃ |
Environment humidity | <90%, No condensation |
Power | DC 12V/1A |
Size | 187mm×105mm×28mm |
Weight | Transmitter：0.3kg Receiver：0.3kg |
