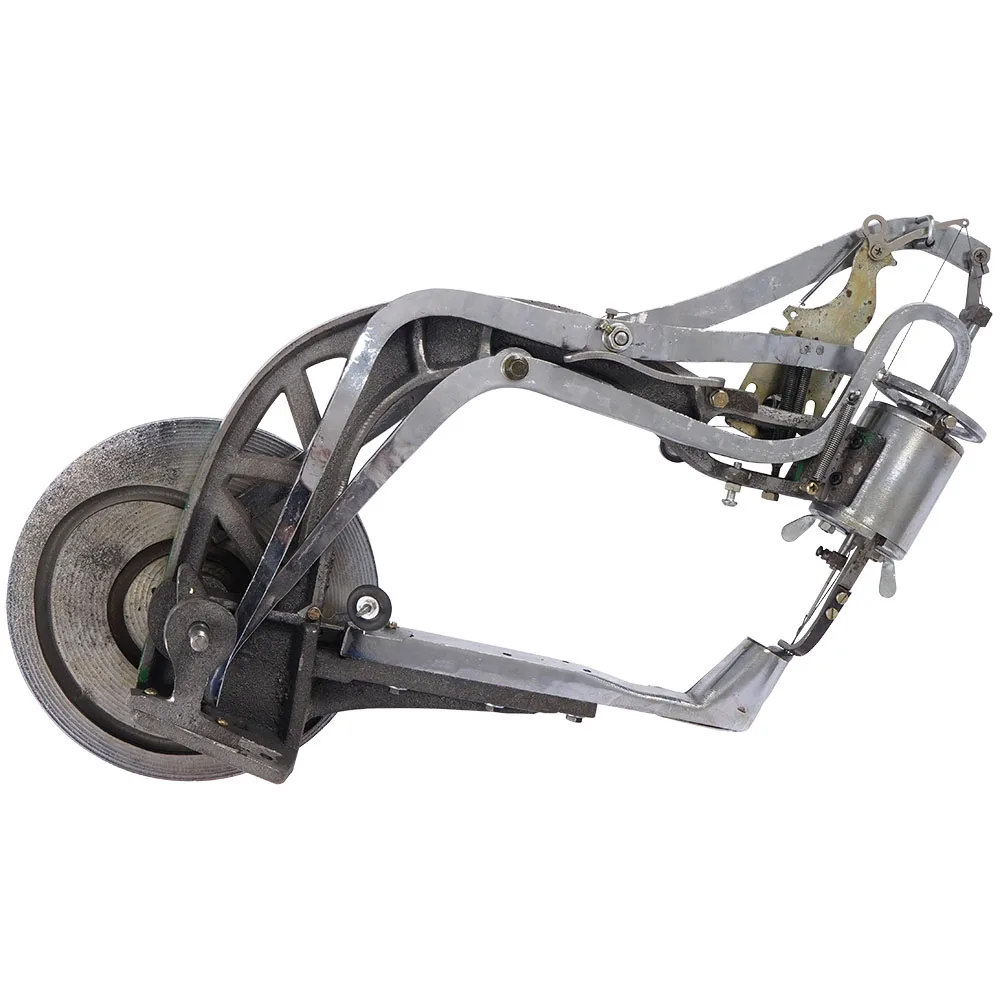

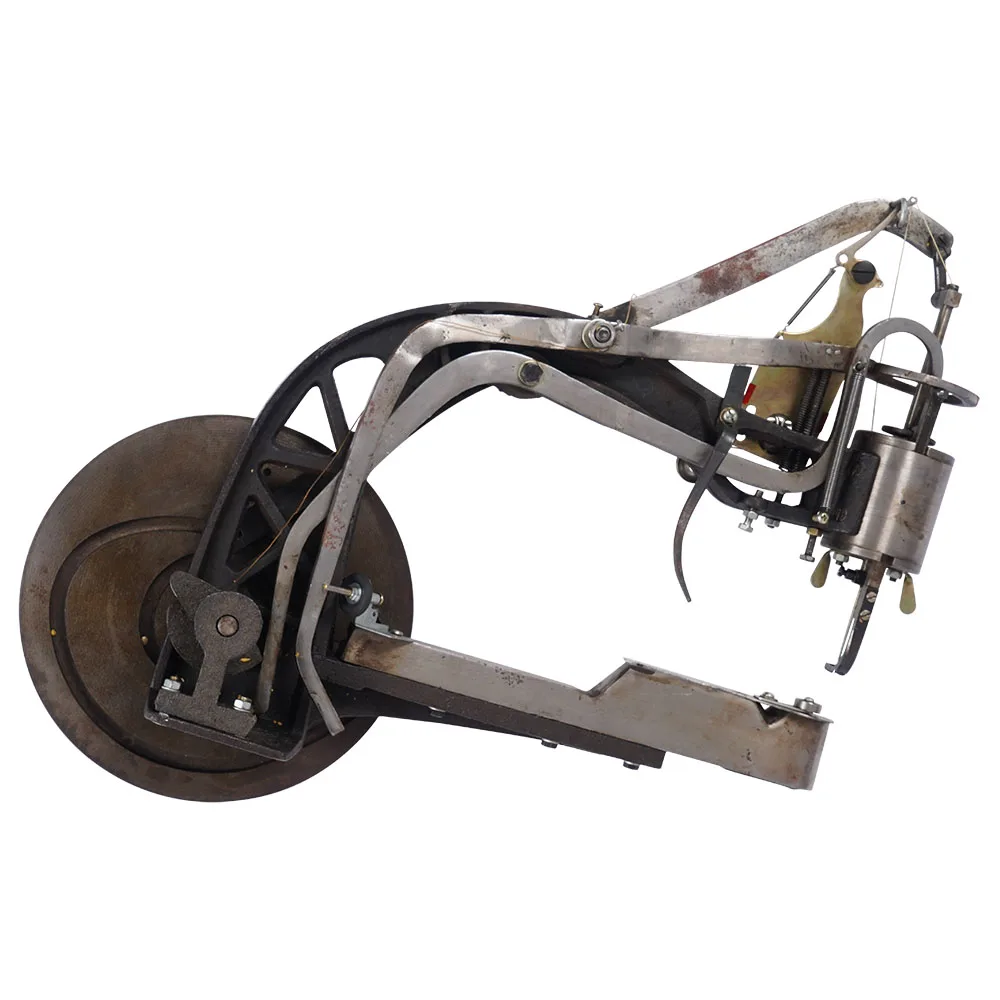

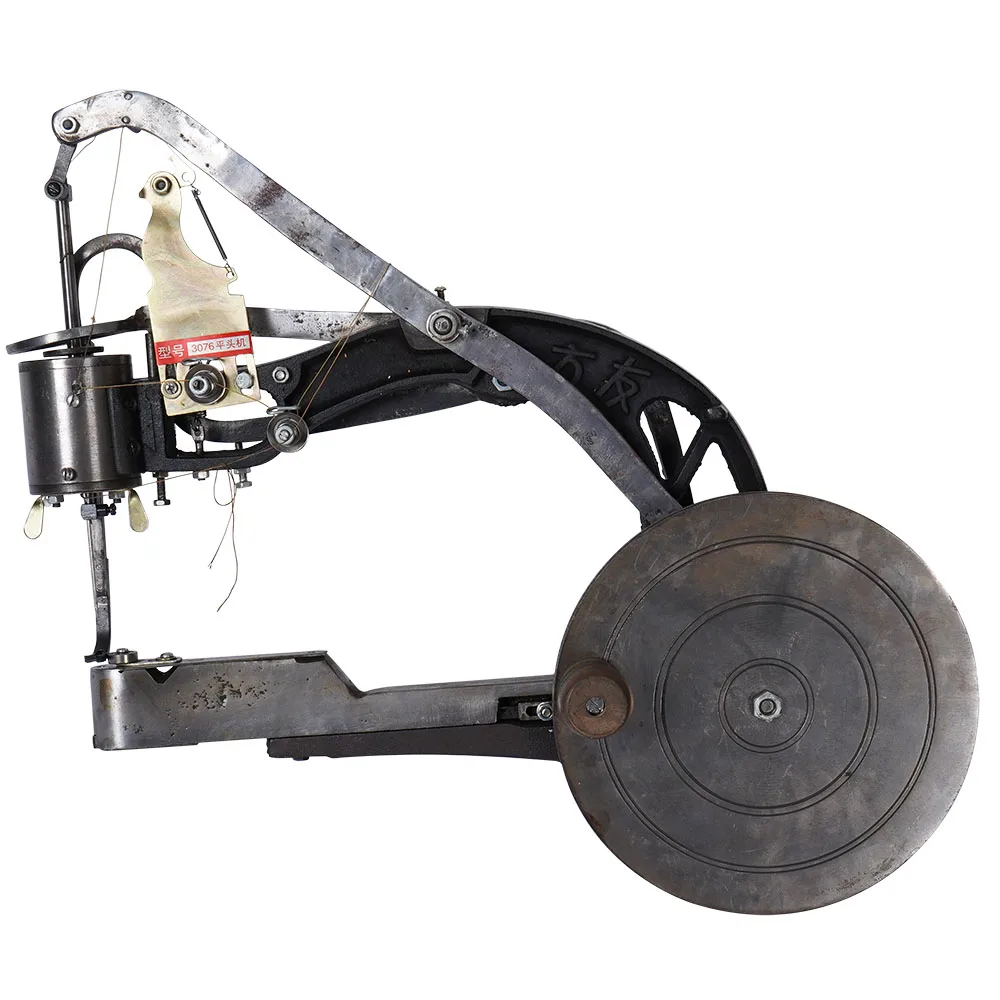

Shoemaking thick material sewing machine foam sole shoe machine cotton mop oblique head shoe mending machine
- Category: >>>
- Supplier: Taizhou Huangyan Hongxin Electromechanical Equipment Co. Ltd.
Share on (1600817051982):
Product Overview
Description
Product Description
Authentic Mu Xi Pai
Shoe making cotton slipper thick material sewing machine shoe attaching machine foam sole shoe attaching machine cotton slipper shoe attaching machine diagonal head machine
Can sew various types of men and women's cloth shoes, rubber shoes, leather shoes, travel shoes, high heels, as well as raincoats, leather bags, cloth bags. And other leather products. Of course, you can also sew some other products
Specification
Name | Hand operated shoe loader |
Rough weight | 20Kg |
Measurement | Machine length 62cm, height 37cm |
Packaging size | 59*17*42cm |
The purpose of the inclined head machine: to put the entire shoe into the head of the machine to thread the edge of the shoe
Machine length 62cm, height 37cm
Needle sizes 180 to 230

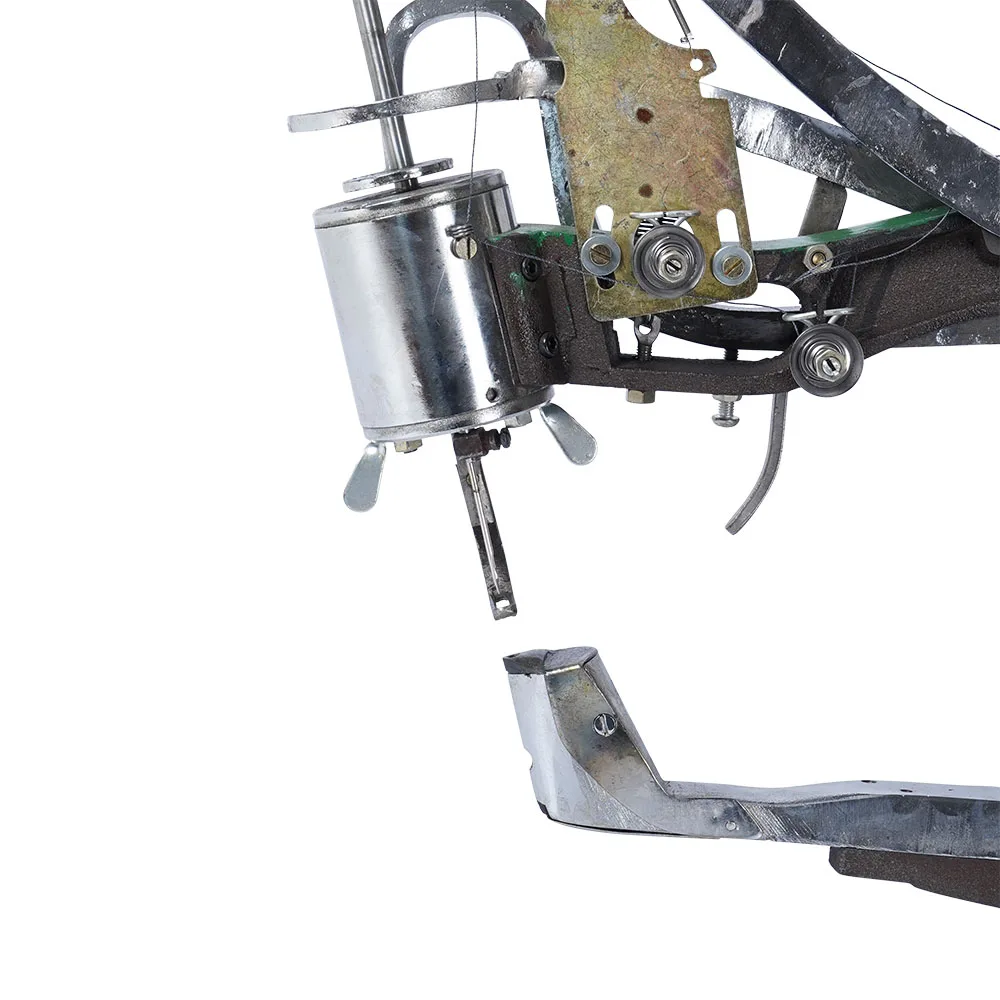

Machine head height 7CM, shuttle diameter 2.6CM, shuttle center diameter 1.9CM
This machine comes in two types: slanted head and flat head. The slanted head is mainly used for making shoes, while the flat head is used for sewing bags. Please note the desired machine when taking a photo. The following picture shows the shoe sample sewn by the slanted head machine: the slanted head machine can easily pass through the toe of the shoe,
The characteristics of this machine are large nose, large shuttle core, and a lot of bobbin thread. It is suitable for tourist shoes, warm shoes, or shoes with a high toe and wide shoe edges
Attention: The moving parts of the shoe machine need to be frequently oiled to ensure that the machine operates light and does not produce noise. Especially for the shuttle groove, it is necessary to replace the shuttle core and add engine oil once to avoid jamming and easy wear, improve work efficiency, and extend service life.
Usage characteristics:
1. Each shoe machine undergoes strict debugging before leaving the factory, and each shoe machine is equipped with sample wires that can be threaded according to the sample wires during use. Generally, 3X3 silk threads are used for online production. If you choose extra thin or thick (such as 3X5 thread), you need to change the needle or customize it separately.
2. The adjustment of needle pitch can adjust the needle pitch nut, and the needle pitch can be freely selected. The maximum width of the needle pitch is 1.6 cm, and the minimum is 0.3 cm.
3. The placement position of the shuttle holder: Pull out the presser foot wrench, open the needle plate, shake the large plate, and make the rocker stop at the same position as the shuttle bed. At this time, the machine needle falls into the needle slot and is about to be lifted. Lower the shuttle holder and the shuttle, and align the tail of the shuttle with the position of the machine needle as correct. Pull out the bottom thread by 2-3cm, close the needle lever, and shake the large plate to bring the bottom thread onto the needle plate. If the position of the shuttle is incorrect, and the bottom thread cannot be brought on, the thread will be broken.
4. There are two thread clamps on the shoe machine for adjusting the upper and lower threads. The first one only serves as a thread guide and should not be tightened. The second one serves as an adjustment, such as when the surface thread is loose or tight. The upper thread can be adjusted to tighten the thread clamp, and when the lower thread is loose, the shuttle screw can be loosened slightly. On the contrary, when the upper thread is tight and the lower thread is pulled onto the surface thread, the thread clamp can be relaxed. Due to different sewing materials, such as the thicker product you are sewing, If the wire clamp is fully relaxed or tight, or if the wire is about to break, you can loosen the wire jumper screw, move the wire jumper position upwards, lean towards the machine head, and increase the excess wire amount. On the contrary, if the product to be sewn is thinner, tighten the thread clamp or float the thread, and move the thread holder back down.
Machine length 62cm, height 37cm
Needle sizes 180 to 230
Machine head height 7CM, shuttle diameter 2.6CM, shuttle center diameter 1.9CM
This machine comes in two types: slanted head and flat head. The slanted head is mainly used for making shoes, while the flat head is used for sewing bags. Please note the desired machine when taking a photo. The following picture shows the shoe sample sewn by the slanted head machine: the slanted head machine can easily pass through the toe of the shoe,
The characteristics of this machine are large nose, large shuttle core, and a lot of bobbin thread. It is suitable for tourist shoes, warm shoes, or shoes with a high toe and wide shoe edges
Attention: The moving parts of the shoe machine need to be frequently oiled to ensure that the machine operates light and does not produce noise. Especially for the shuttle groove, it is necessary to replace the shuttle core and add engine oil once to avoid jamming and easy wear, improve work efficiency, and extend service life.
Usage characteristics:
1. Each shoe machine undergoes strict debugging before leaving the factory, and each shoe machine is equipped with sample wires that can be threaded according to the sample wires during use. Generally, 3X3 silk threads are used for online production. If you choose extra thin or thick (such as 3X5 thread), you need to change the needle or customize it separately.
2. The adjustment of needle pitch can adjust the needle pitch nut, and the needle pitch can be freely selected. The maximum width of the needle pitch is 1.6 cm, and the minimum is 0.3 cm.
3. The placement position of the shuttle holder: Pull out the presser foot wrench, open the needle plate, shake the large plate, and make the rocker stop at the same position as the shuttle bed. At this time, the machine needle falls into the needle slot and is about to be lifted. Lower the shuttle holder and the shuttle, and align the tail of the shuttle with the position of the machine needle as correct. Pull out the bottom thread by 2-3cm, close the needle lever, and shake the large plate to bring the bottom thread onto the needle plate. If the position of the shuttle is incorrect, and the bottom thread cannot be brought on, the thread will be broken.
4. There are two thread clamps on the shoe machine for adjusting the upper and lower threads. The first one only serves as a thread guide and should not be tightened. The second one serves as an adjustment, such as when the surface thread is loose or tight. The upper thread can be adjusted to tighten the thread clamp, and when the lower thread is loose, the shuttle screw can be loosened slightly. On the contrary, when the upper thread is tight and the lower thread is pulled onto the surface thread, the thread clamp can be relaxed. Due to different sewing materials, such as the thicker product you are sewing, If the wire clamp is fully relaxed or tight, or if the wire is about to break, you can loosen the wire jumper screw, move the wire jumper position upwards, lean towards the machine head, and increase the excess wire amount. On the contrary, if the product to be sewn is thinner, tighten the thread clamp or float the thread, and move the thread holder back down.
