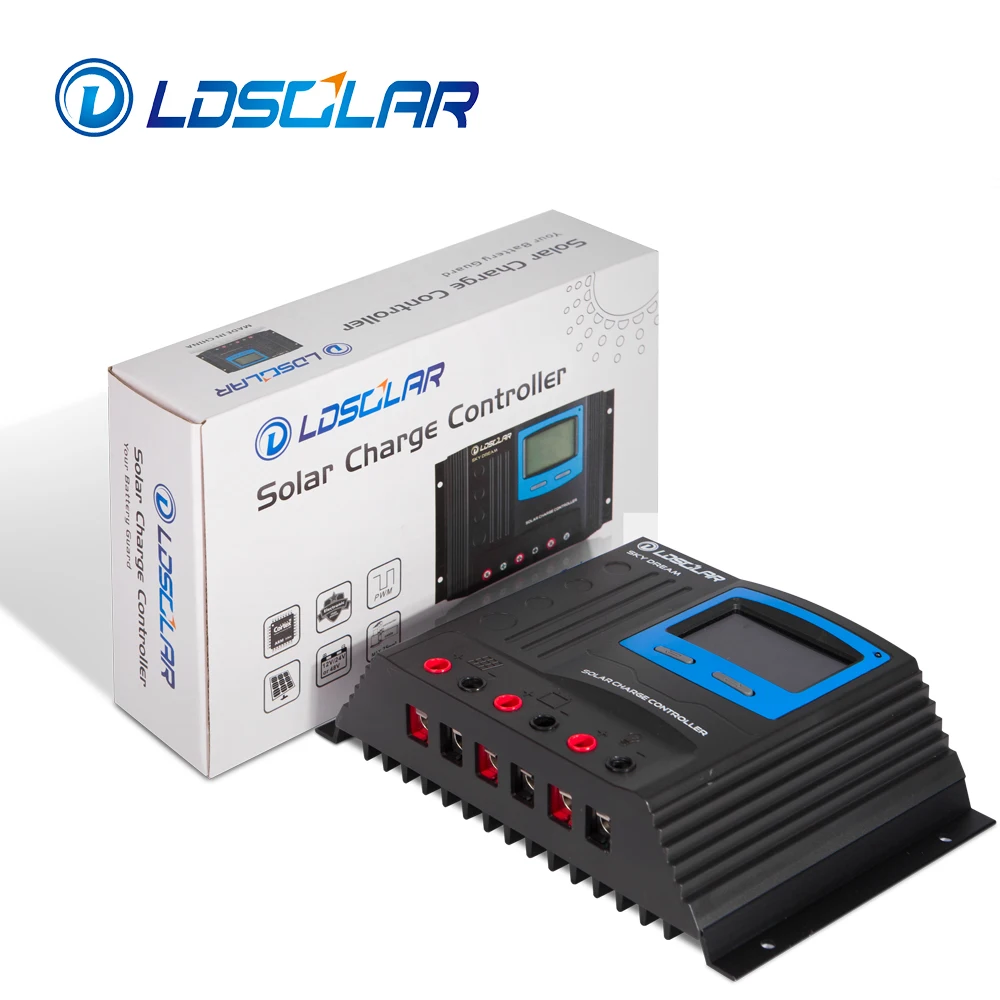

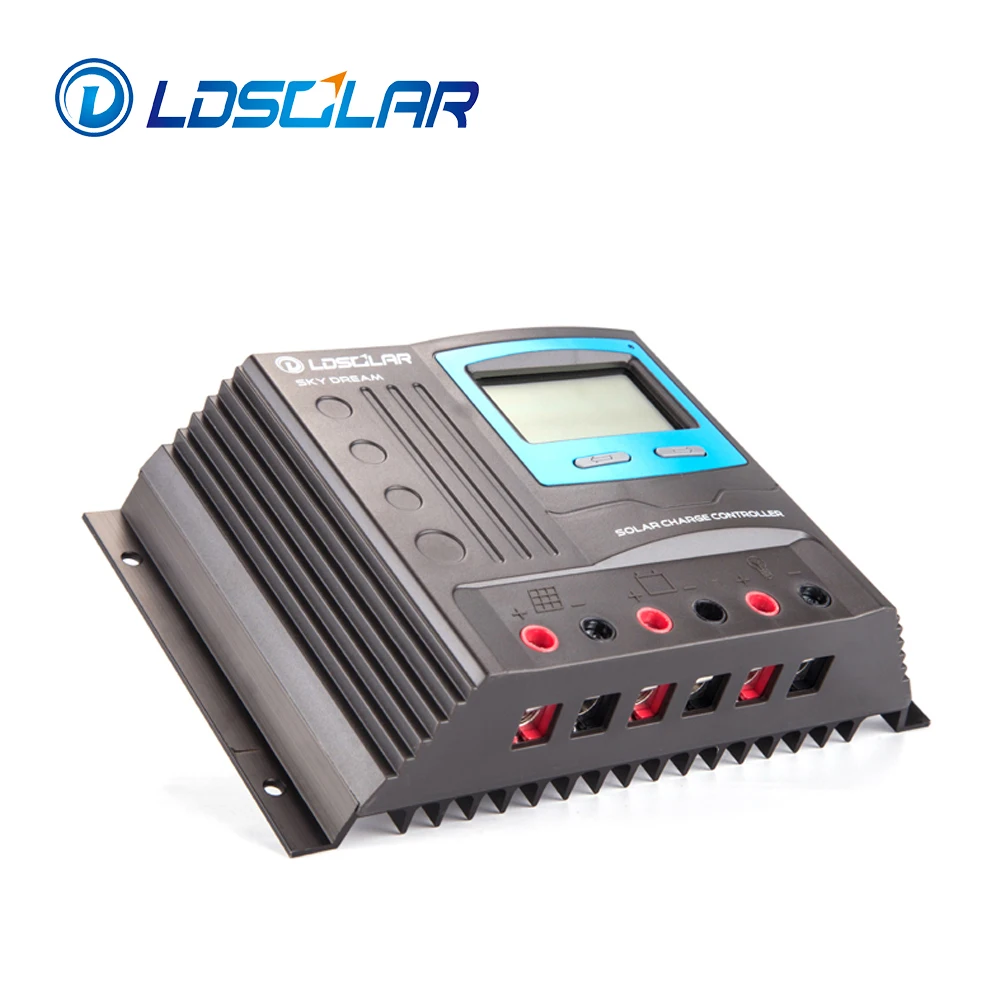

New 10 20 30 40 50 60a Lithium Iron Lifepo4 Battery 12v 24v 48VAuto Dual Usb Pwm Solar Charge Controller
- Category: >>>
- Supplier: Wuhan Welead New Energy Co. Ltd.
Share on (1600817071902):
Product Overview
Description
Products Description

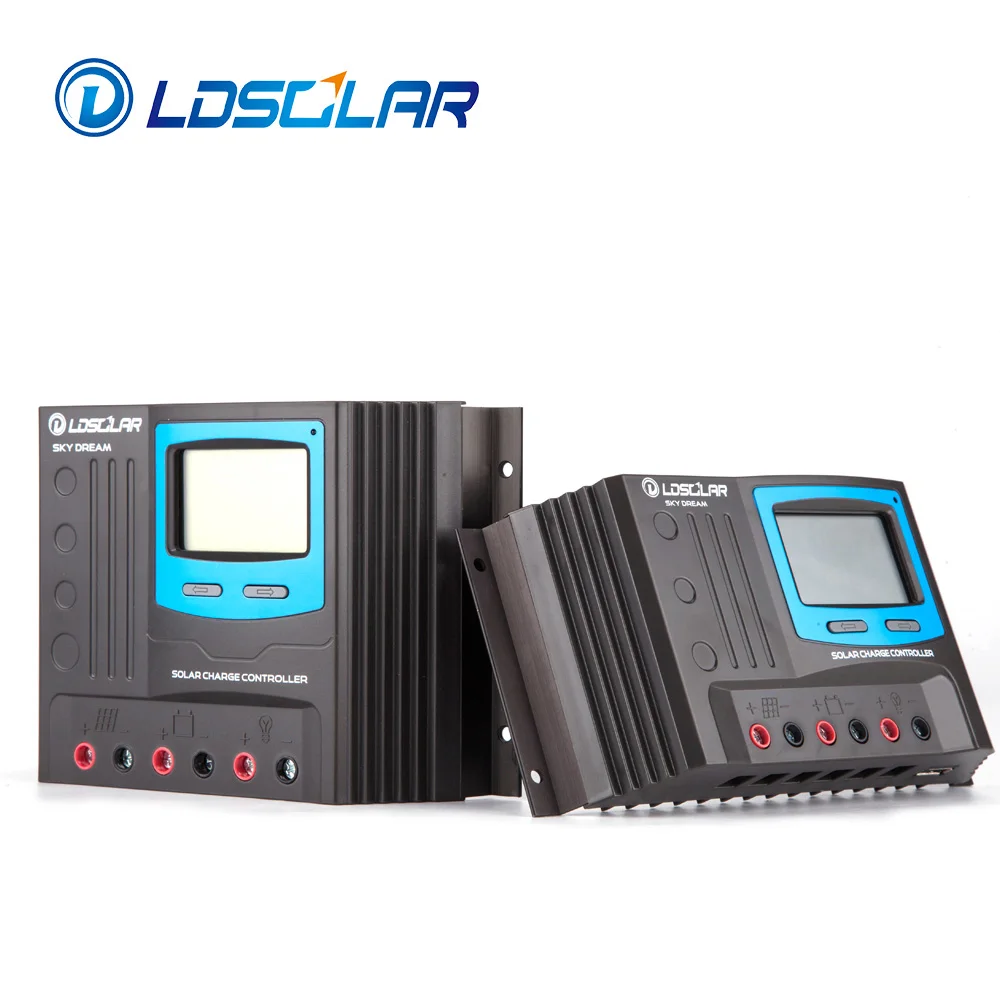

Sky Dream Series
1.32 bits CPU, sampling precision is higher, operation speed is faster
2.12V/24VDC 24V/48V Automatic Identification System Voltage
3.3 stages PWM charging: Bulk, Boost, Float

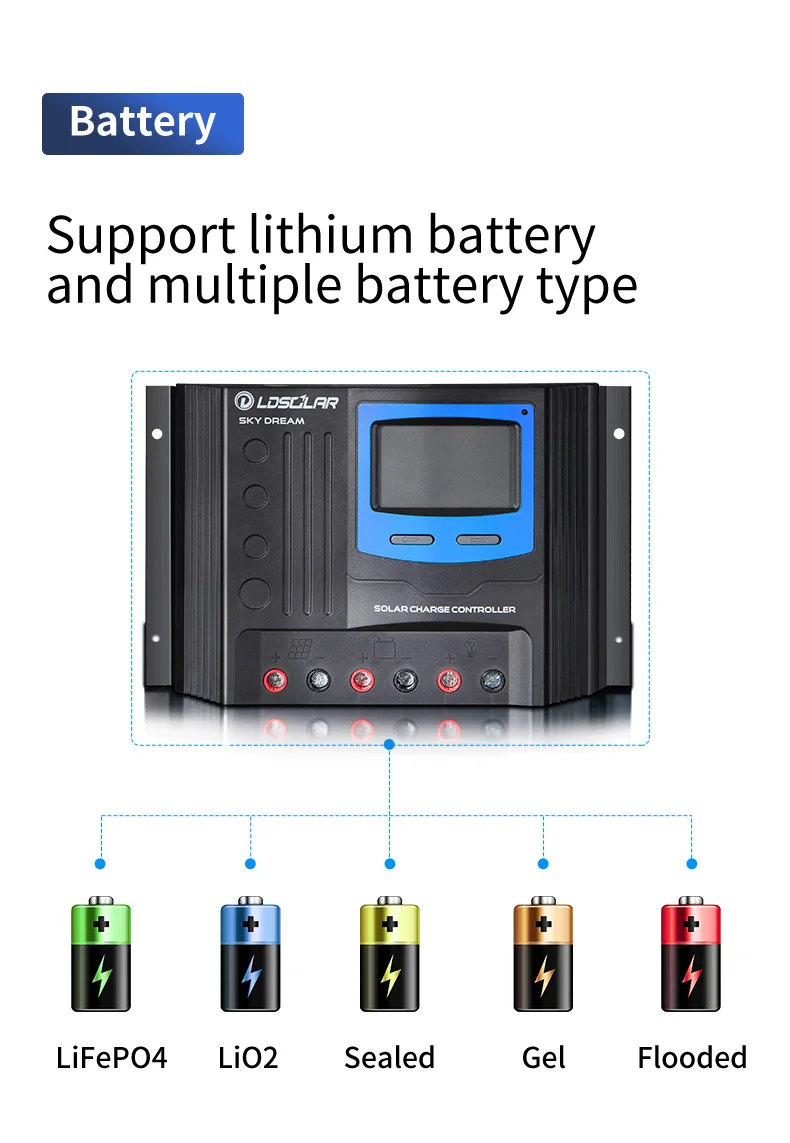

4.Sealed, Gel, Flooded and lithium battery selection procedure
5.Humanized LCD display, dynamic display operation data and working state.
6.Built-in operation log, account system working state
7.Multi load control mode: Normal mode, Sensor mode, Timer mode

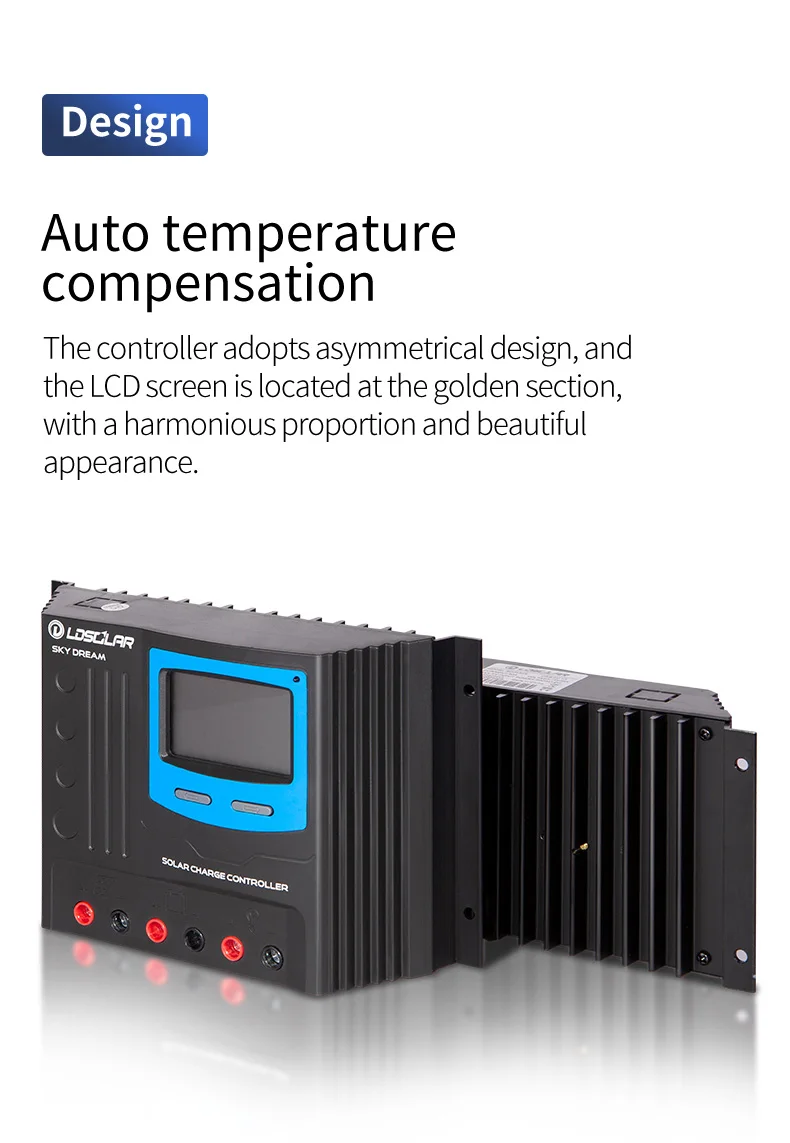

8.Temperature Compensation Function and Controller Over Temperature Protection Function
9.Fullest digital protection functions: Overcharging, Over-discharging, Overload, Short Circuit,
Reverse Connection, Controller Over-Temperature and so on.

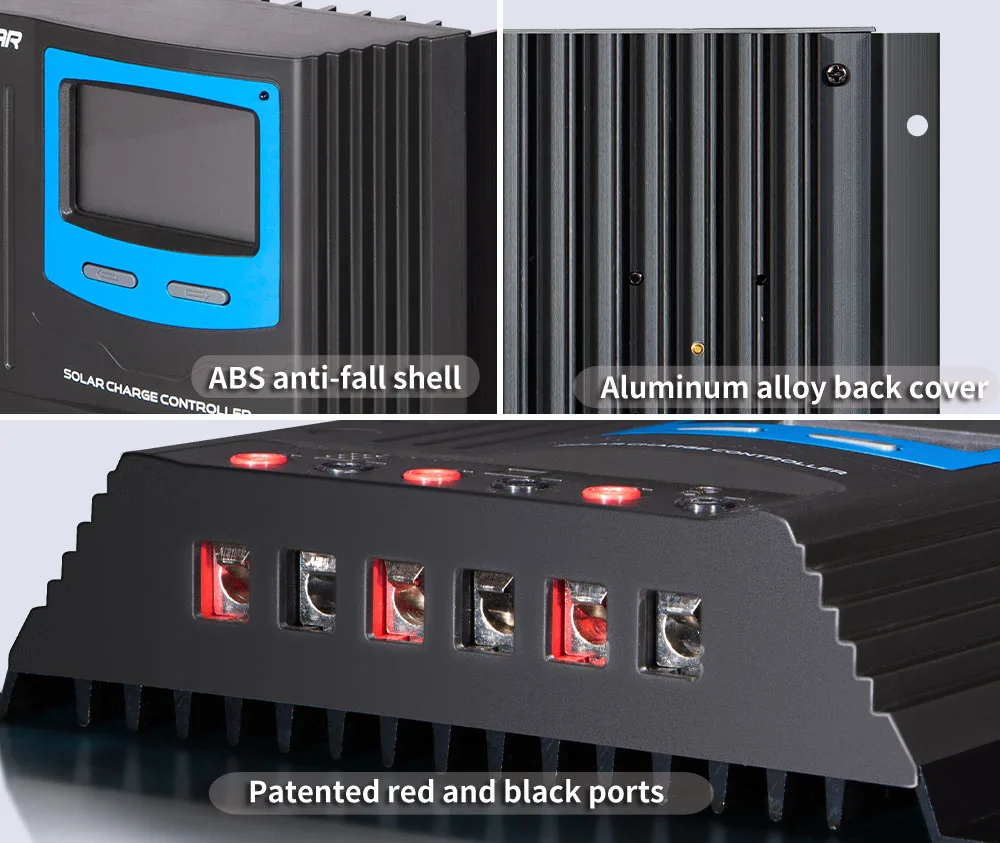

10.Max 16mm² connectors, colorful connector distinguish plus and minus poles.
11.5V 1A USB output
2.12V/24VDC 24V/48V Automatic Identification System Voltage
3.3 stages PWM charging: Bulk, Boost, Float
4.Sealed, Gel, Flooded and lithium battery selection procedure
5.Humanized LCD display, dynamic display operation data and working state.
6.Built-in operation log, account system working state
7.Multi load control mode: Normal mode, Sensor mode, Timer mode
8.Temperature Compensation Function and Controller Over Temperature Protection Function
9.Fullest digital protection functions: Overcharging, Over-discharging, Overload, Short Circuit,
Reverse Connection, Controller Over-Temperature and so on.
10.Max 16mm² connectors, colorful connector distinguish plus and minus poles.
11.5V 1A USB output
Product Details
Product Paramenters
Model | SD2410C | SD2420C | SD2430C | SD2430S | SD2440S | ||||
System Voltage | 12V/24V DC auto | ||||||||
PV Max Input Voltage | 55V | ||||||||
Self-consumption | <10mA | ||||||||
Max Charging current | 10A | 20A | 30A | 30A | 40A | ||||
Max Discharging current | 10A | 20A | 20A | 30A | 40A | ||||
Battery type | Sealed(Default)/Gel/Flood/Lithium | ||||||||
LVD※* | 11.0V ADJ 9V...12V ; x2/24V ; x4/48V | ||||||||
LVR※* | 12.6V ADJ 11V...13.5V ；x2/24V ; x4/48V | ||||||||
Float Voltage※* | 13.8V ADJ 13V... 15V ; x2/24V ; M/48V | ||||||||
Boost Voltage※* | 14.4V ADJ 13V...17V ；x2/24 ; x4/48V | ||||||||
battery voltage less than 12.6v auto boost 2hours | |||||||||
Battery Over Voltage ※* | 16.5V ; x2/24V ; x4/48V | ||||||||
Reverse Connection Protection | yes | ||||||||
Load Over Current Protection | Yes, each 30s auto restart again | ||||||||
Controller Over Temperature | Yes | ||||||||
USB Output | 5VDC/1A 2PCS | 5VDC/1A 1PC | |||||||
Charging Type | PWM | ||||||||
Charge circuit voltage drop | <=0.25V | ||||||||
Discharge circuit voltage drop | <=0.1V | ||||||||
Temperature Consumption# | For 12Vsystem:-24mV /°C ; x2/24V ; x4/48V | ||||||||
Relative humidity | ≤95%, N.C. | ||||||||
WorkingTemperature | -20°C~+55°C℃(Product can work continuously at full load) | ||||||||
LCD temperature range | -20°C~+70°C | ||||||||
Waterproof grade | IP32 | ||||||||
Mounting hole size | Φ5mm | ||||||||
Terminals | 10mm²/8AWG | 16mm² /6AWG | |||||||
Weight | 245g | 320g | 330g | 440g | 480g | ||||
Overall dimension(mm) | 190×108×41.5 | 200×98 ×47.5 | 200×106 ×41.5 | ||||||
Model | SD2450S | SD2460S | SD4830S | SD4840S | SD4850S | SD4860S | |||||
System Voltage | 12V/24V DC auto | 24V/48V DC auto | |||||||||
PV Max Input Voltage | 55V | 100V | |||||||||
Self-consumption | <10mA | ||||||||||
Max Charging current | 50A | 60A | 30A | 40A | 50A | 60A | |||||
Max Discharging current | 50A | 60A | 30A | 40A | 50A | 60A | |||||
Battery type | Sealed(Default)/Gel/Flood/Lithium | ||||||||||
LVD※* | 11.0V ADJ 9V...12V ; x2/24V ; x4/48V | ||||||||||
LVR※* | 12.6V ADJ 11V...13.5V ；x2/24V ; x4/48V | ||||||||||
Float Voltage※* | 13.8V ADJ 13V... 15V ; x2/24V ; M/48V | ||||||||||
Boost Voltage※* | 14.4V ADJ 13V...17V ；x2/24 ; x4/48V | ||||||||||
battery voltage less than 12.6v auto boost 2hours | |||||||||||
Battery Over Voltage ※* | 16.5V ; x2/24V ; x4/48V | ||||||||||
Reverse Connection Protection | yes | ||||||||||
Load Over Current Protection | Yes, each 30s auto restart again | ||||||||||
Controller Over Temperature | Yes | ||||||||||
USB Output | / | ||||||||||
Charging Type | PWM | ||||||||||
Charge circuit voltage drop | <=0.25V | ||||||||||
Discharge circuit voltage drop | <=0.1V | ||||||||||
Temperature Consumption# | For 12Vsystem:-24mV /°C ; x2/24V ; x4/48V | ||||||||||
Relative humidity | ≤95%, N.C. | ||||||||||
WorkingTemperature | -20°C~+55°C℃(Product can work continuously at full load) | ||||||||||
LCD temperature range | -20°C~+70°C | ||||||||||
Waterproof grade | IP32 | ||||||||||
Mounting hole size | Φ5mm | ||||||||||
Terminals | 25mm²/4AWG | 16mm² /6AWG | 25mm²/4AWG | ||||||||
Weight | 620g | 740g | 450g | 490g | 730g | 750g | |||||
Overall dimension(mm) | 200×127×53 | 200×98 ×47.5 | 200×106 ×41.5 | 200×127×53 | |||||||
