Cre zwick мини пряжа рыболовная леска электрический терминал для испытания на растяжение
- Category: Testing Equipment >>>
- Supplier: Dongguan,Donling,Electronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification

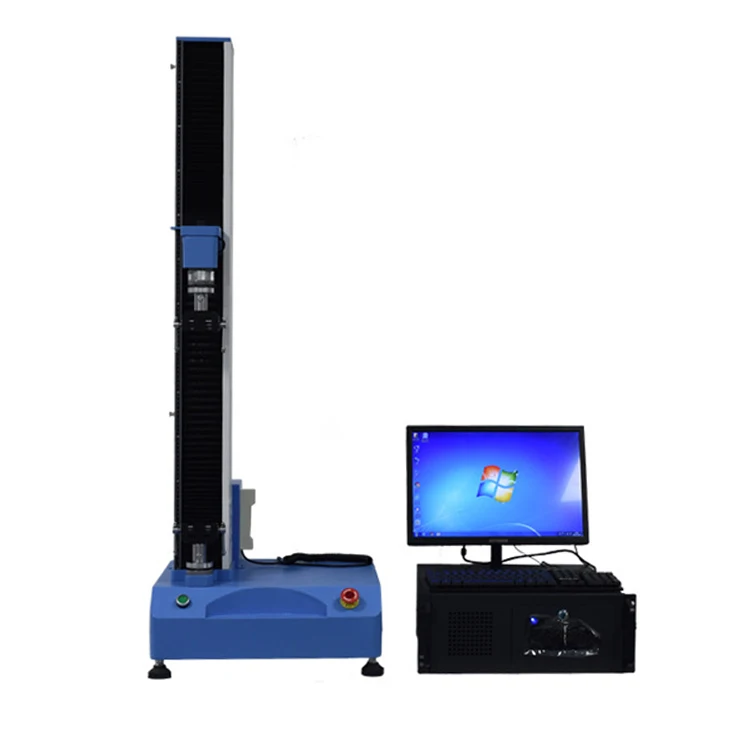

Product name | Computerized single column tensile testing machine |
Model number | DL8302S |
Maximum load | 10N,20N,50N,100N,200N,500N,1000N,2000N,5000N |
Precision class | Level 1 /0.5 |
Effective force measuring range | 0.2% ~ 100% / 0.4% ~ 100% |
Force measurement accuracy | Within ±1% of indicated value/within ±0.5% of indicated value |
Resolution of testing machine | Maximum load 1/± 250,000 yards, internal and external classification, and the whole resolution is unchanged |
Load sensor | Basic configuration, tension, pressure sensor (maximum load) one |
Effective test width | 150mm |
Effective stretching space | 800mm |
Test velocity range | 0.01-500 - mm/min |
Displacement measurement accuracy | Within ±0.5% of the indicated value/within ±0.2% of the indicated value |
Deformation measurement accuracy | Within ±0.5% of the indicated value (large deformation or small deformation can be selected according to customer requirements) |
Test bench safety device | Electronic limit protection |
Test bench lifting device | Fast/slow two speed automatic control, can be clicked |
Test table return function | Manual or automatic options, automatic or manual after the end of the test at the highest speed to return to the initial position of the test |
Overload protection | Over 10% of the maximum load, the machine automatically protects |

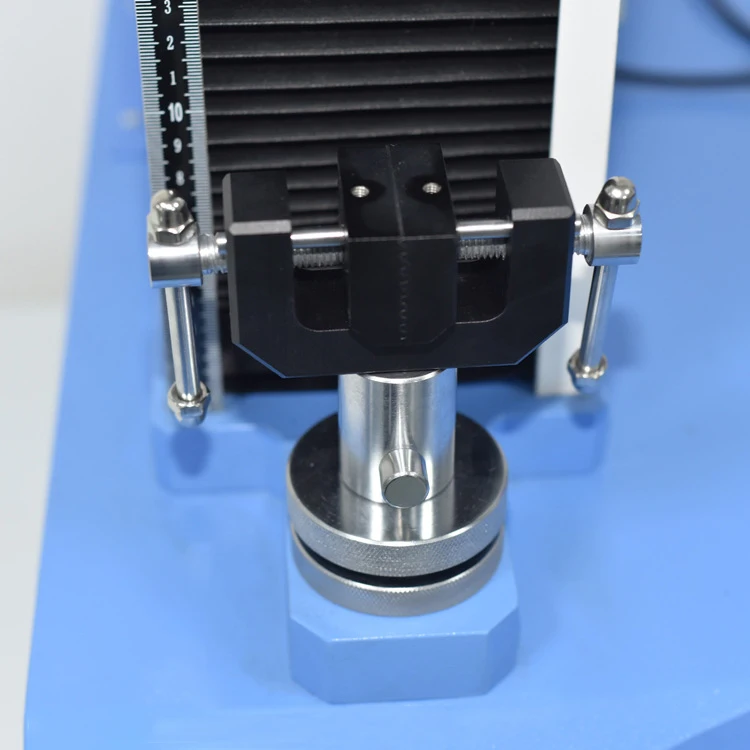

Fixture configuration | Stretching fixture set |
Main engine size | 500 mm*500mm*1380mm |
motor | 220V±10% 0.4KW |
Main engine weight | (about) 90 Kg |
Company Profile
Certifications
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
More Options
FAQ
1、who are we?
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(11.00%),Eastern Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Northern Europe(9.00%),South Asia(9.00%),North America(7.00%),South America(7.00%),Western Europe(7.00%),Eastern Europe(6.00%),Mid East(6.00%),Oceania(5.00%),Central America(3.00%),Africa(0.00%). There are total about 11-50 people in our office.
2、how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
Always a pre-production sample before mass production;
Always final Inspection before shipment
3、what can you buy from us?
Testing Equipment,Tensile Testing Machine,Environmental Test Chamber,Fire Testing Equipment,Induction Heating Machine
4、why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
5、what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
