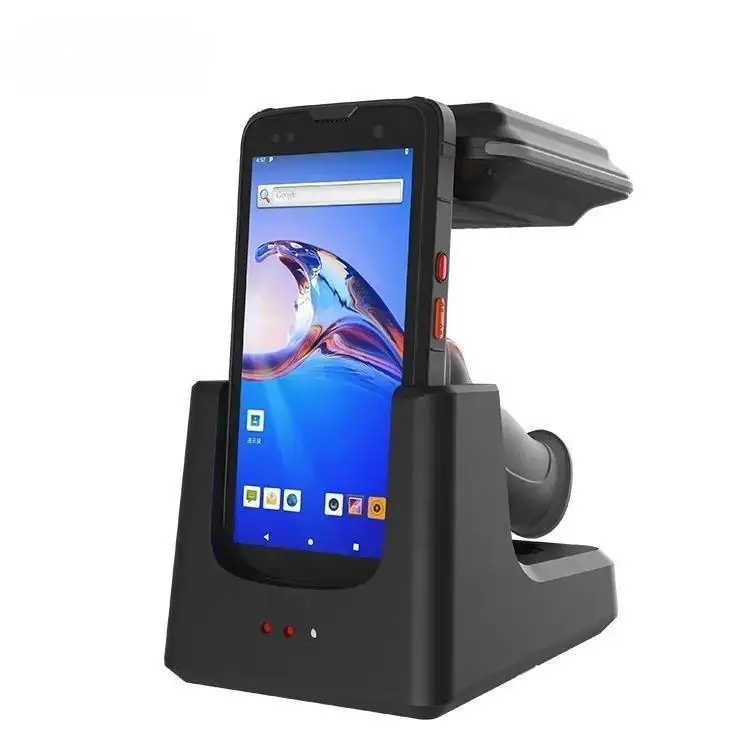

low price delivery long range nfc tag rfid uhf reader rugged barcode scanner android pda with pistol grip
low price delivery long range nfc tag rfid uhf reader rugged barcode scanner android pda with pistol grip
low price delivery long range nfc tag rfid uhf reader rugged barcode scanner android pda with pistol grip
low price delivery long range nfc tag rfid uhf reader rugged barcode scanner android pda with pistol grip
low price delivery long range nfc tag rfid uhf reader rugged barcode scanner android pda with pistol grip
low price delivery long range nfc tag rfid uhf reader rugged barcode scanner android pda with pistol grip
low price delivery long range nfc tag rfid uhf reader rugged barcode scanner android pda with pistol grip
low price delivery long range nfc tag rfid uhf reader rugged barcode scanner android pda with pistol grip

low price delivery long range nfc tag rfid uhf reader rugged barcode scanner android pda with pistol grip

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


low price delivery long range nfc tag rfid uhf reader rugged barcode scanner android pda with pistol grip

Note: Dear all, price show on page is for A version,if need B version and C version , plz inquiry us then we can quote price and
draft order link for you accordingly, thanks!
A version: with R2000 UHF RFID Reader
B version: with 2D barcode scanner
C version: with 2D barcode scanner + R2000 UHF RFID Reader




Specification


PHYSICAL CHARACTERISTICS
Dimension
166mm(H)x79mm(W)x31mm(D)±2 mm
Weight
Net Weight :600g (including battery&wrist strap)
Display
Gorilla Glass 3 9H 5.5 in. TFT-LCD(720x1440)touch screen with backlight
Backlight
LED backlight
Expansions
1 PSAM, 1 SIM, 1 TF
Battery
Rechargeable li-ion polymer, 3.8V, 9000mAh
PERFORMANCE CHARACTERSTICS
CPU
Cortex A73 2.0GHz octa-core
Operating System
Android 10.0
Storage
2GB RAM/16GB ROM or 4GB RAM/64GB ROM, MicroSD(max 256GB expansion)
USER ENVIRONMENT
Operating Temp.
-20℃ to 50℃
Storage Temp.
-20℃ to 70℃
Humidity
5%RH to 95%RH(non-condensing)
Drop Specifications
5ft./1.5 m drop to concrete across the operating temperature range
Sealing
IP65, IEC compliance
ESD
±15kv air discharge, ±8kv direct discharge
DEVELOPMENT ENVIRONMENT
SDK
Handheld-Wireless Software Development Kit
Language
Java
Environment
Android Studio or Eclipse
DATA COMMUNICATION
WWAN
TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20;
WCDMA(850/1900/2100MHz);
GSM/GPRS/Edge (850/900/1800/1900MHz);
WLAN
2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
WPAN
BT Class v2.1+EDR, BT v3.0+HS, BT v4.2
GPS
GPS(embedded A-GPS), accuracy of 5 m
BARCODE READER(OPTIONAL)
2D barcode
2D CMOS Imager
Zebra SE4710/Mindeo ME5600
Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US
Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
COLOR CAMERA
Resolution
Rear 13 megapixel, front 5.0 megapixel
Lens
Auto-focus with LED flash
RFID READER(OPTIONAL)
RFID NFC
Frequency
13.56MHz
Protocol
ISO 14443A&15693, NFC-IP1, NFC-IP2
R/W Range
2cm to 5cm
RFID UHF
Frequency
865~868MHz or 920~925MHz
Protocol
EPC C1 GEN2/ISO 18000-6C
Antenna Gain
Circular antenna(4dBi)
R/W Range
20 m(tags and environment dependent)
PSAM SECURITY(OPTIONAL)
Protocol
ISO 7816
Baudrate
9600, 19200, 38400,43000, 56000, 57600, 115200
Slot
2 slots(maximum)
ACCESSORIES
Standard
1xPower Supply; 1xLithium Polymer Battery; 1xType-C cable
Optional
Cradle
