Product Overview
Description
Product Description
Technical specifications | ||||||||

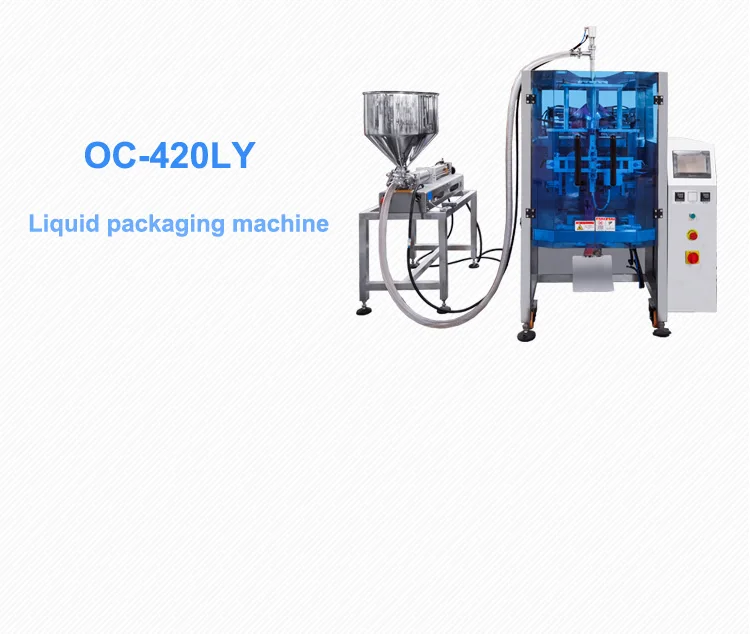

Type | OC-420LY | OC-520LY | OC-720LY | |||||
Film width | Max.420mm | Max.520mm | Max.720mm | |||||
Bag length | 80~300mm | 80~350mm | 100~450mm | |||||
Bag width | 60~200mm | 80~250mm | 100~350mm | |||||
Product height | Max.40mm | Max.45mm | Max.80mm | |||||
Measuring range | 150~1500ml | 150~2000ml | 150~4000ml | |||||
Packing rate | 5~60bags/min | 10~50bags/min | 10~40bags/min | |||||
Machine weight | 650KG | 750KG | 900KG | |||||
Application
>What do you want to pack?
Widely applied for food,Medicine,chemical liquid products such as Ketchup, flavoring, Sauce ,Pasty, Shampoo, cream, body wash liquid and so on.
Optional Devices

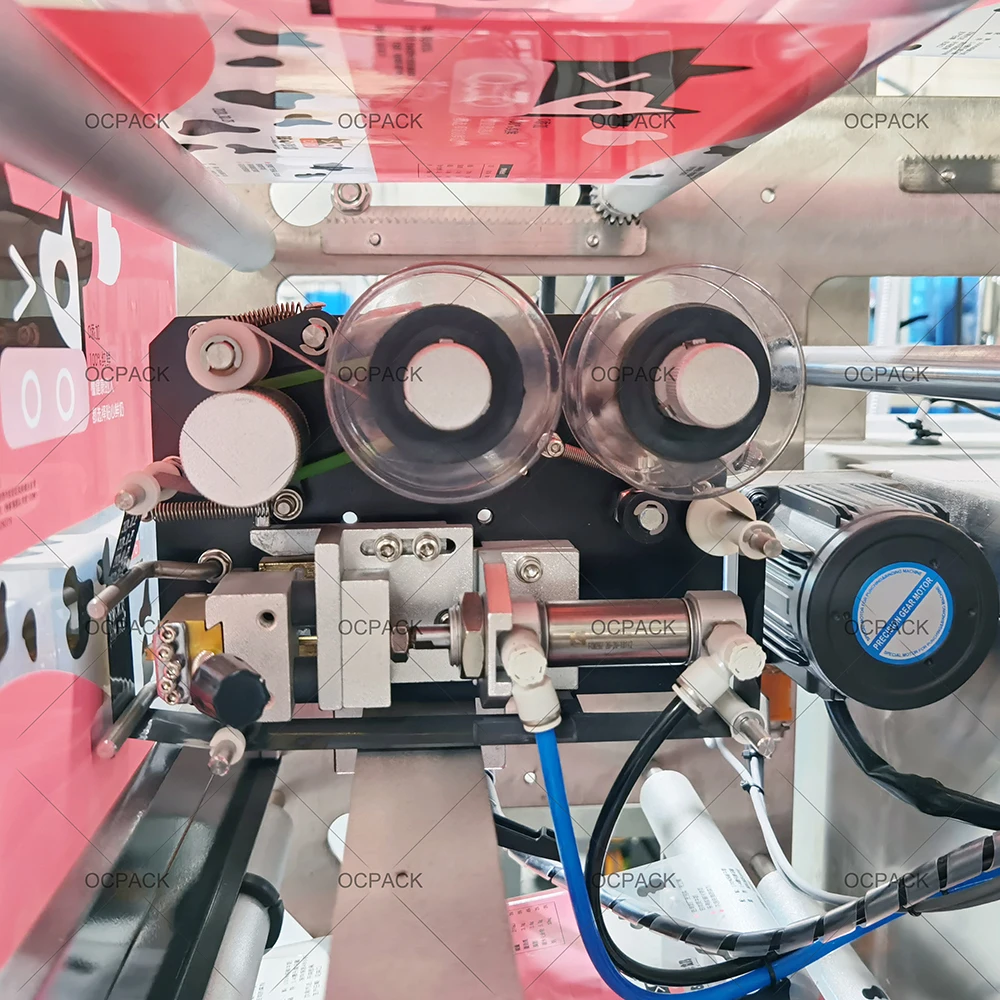

It can be equipped with date coding device, nitrogen gas filling device, easy tear device, punching device, gusset device, etc.

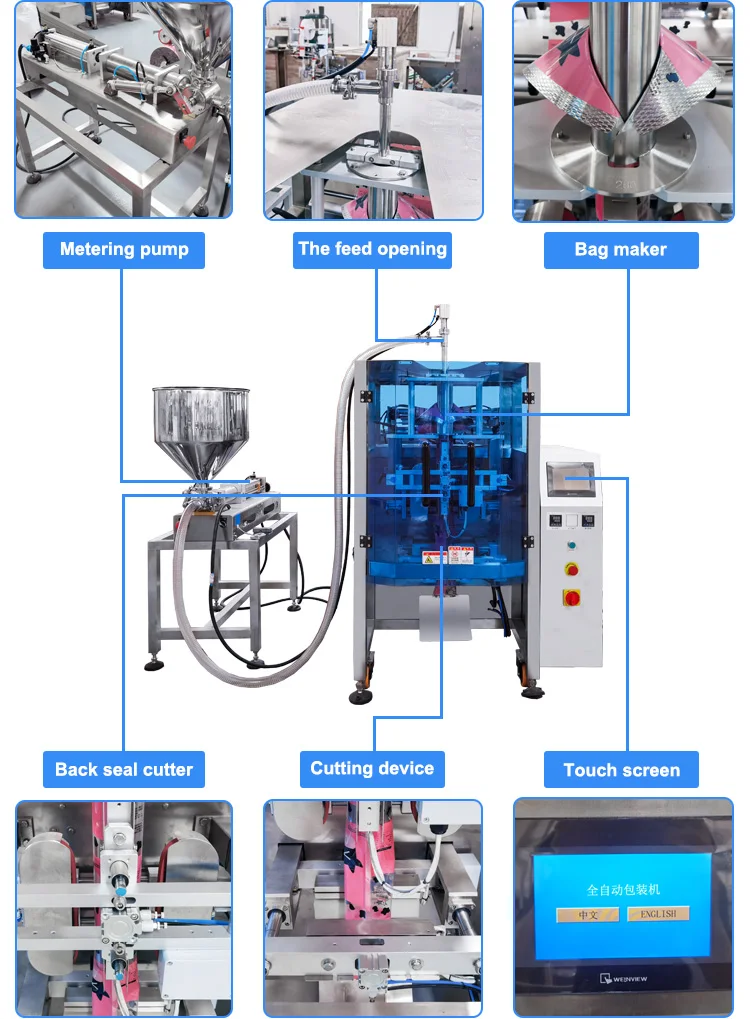

Machine display
Smart screen
Brand: Weinview or customized according to your needs
Language: You can choose seven languages, For example: English, Russian,Spanish, French,etc. You can also customize the language
as needed.
Function: You can set and change the weight of the packaging material and the length of the bag.
as needed.
Function: You can set and change the weight of the packaging material and the length of the bag.

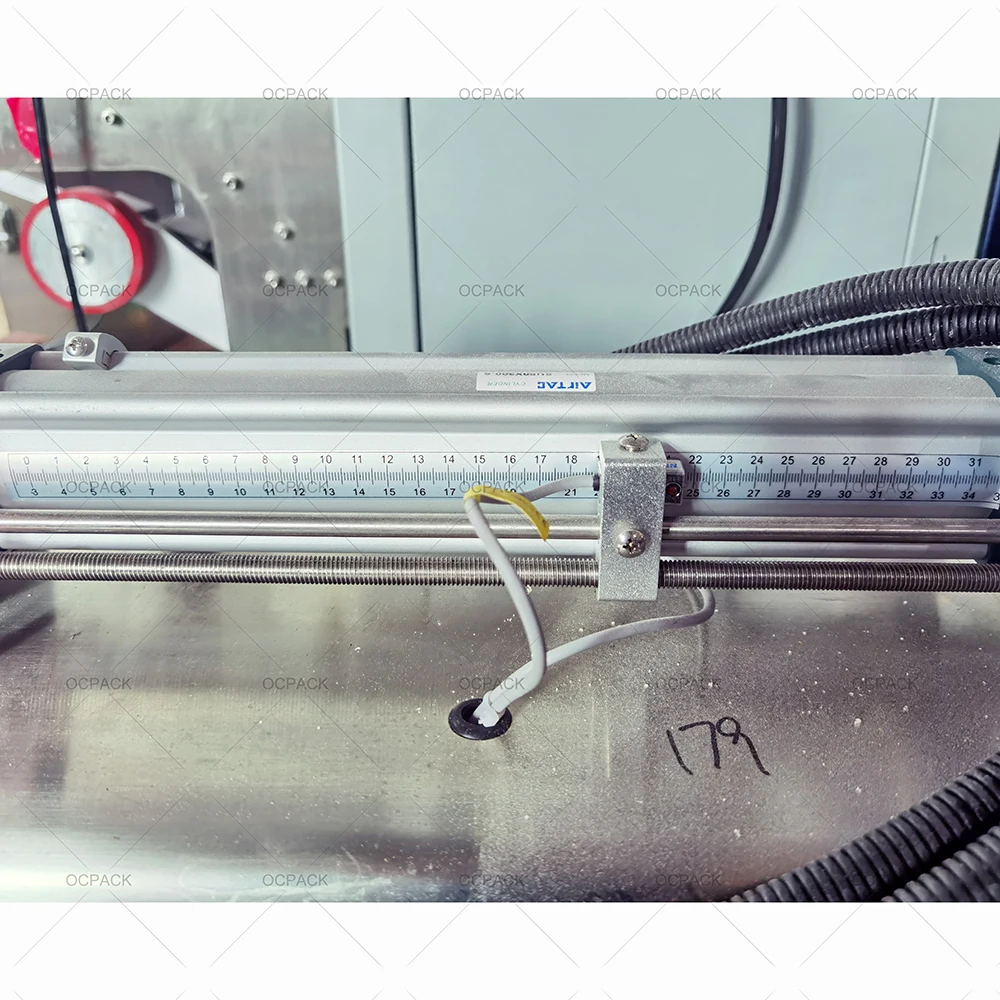

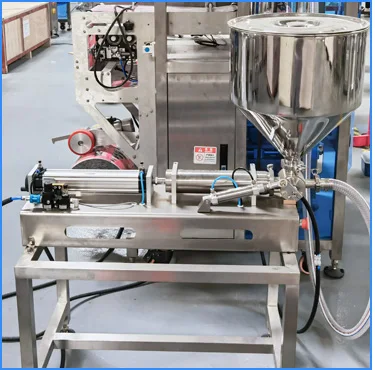

Measuring Type
Name: Metering Pump Device
Material: Food Grade 304 Stainless Steel.
Feature: 1.the machine uses compressed air to control the drive, it is particularly suitable for use in explosion-proof requirements and humid environment, a high degree of safety. 2.The use of screw, counter, filling volume adjustment so precise, in
digital form and can be directly reflected;
3.filling fast,filling back and forth 30 times per minute, with 500ml of water, for example, filling accuracy is ± 1%
Feature: 1.the machine uses compressed air to control the drive, it is particularly suitable for use in explosion-proof requirements and humid environment, a high degree of safety. 2.The use of screw, counter, filling volume adjustment so precise, in
digital form and can be directly reflected;
3.filling fast,filling back and forth 30 times per minute, with 500ml of water, for example, filling accuracy is ± 1%

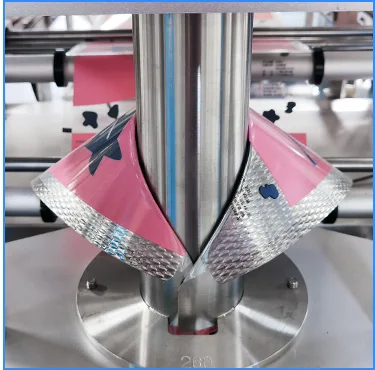

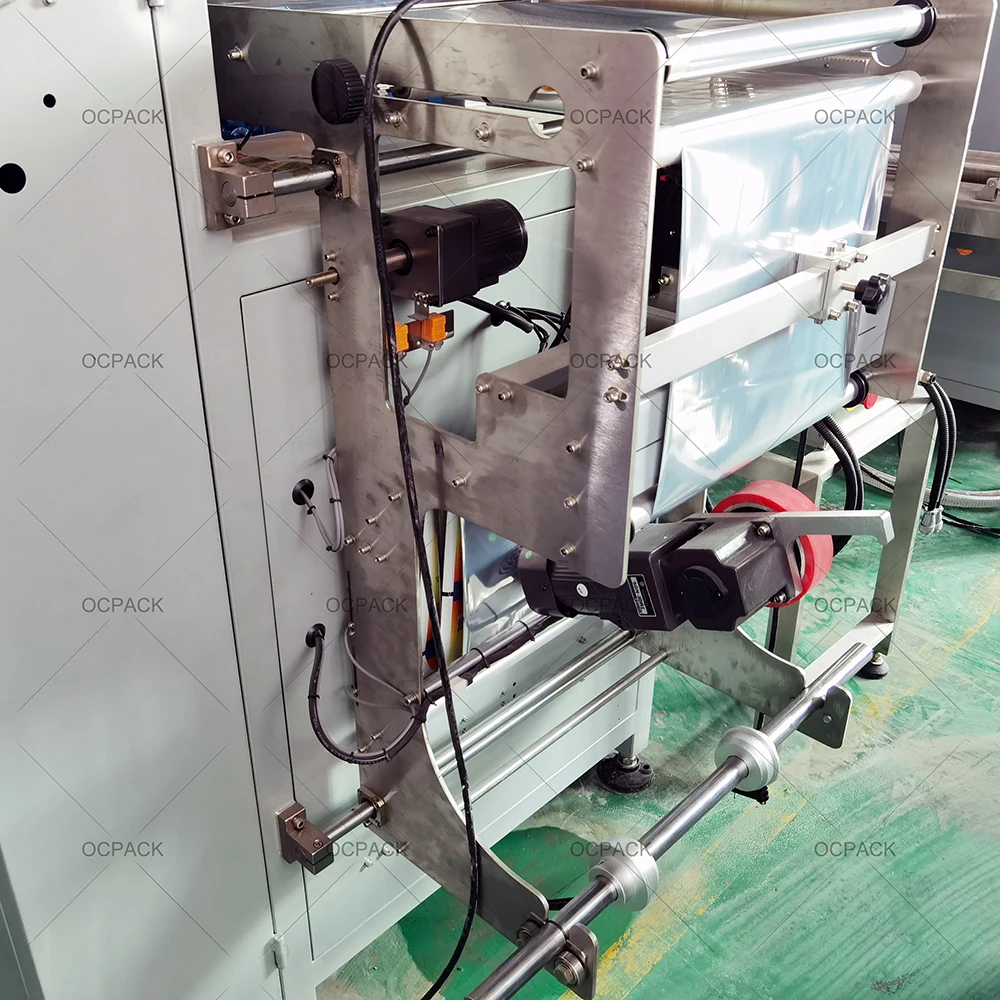

Bag maker
*The bag making machine is made of 304 stainless steel and driven by a servo.
*The packaging film ispulled into the bag making machine by friction.
*The packaging is simple and beautiful, with a humanized design. Different bag making equipment can be replaced according to different bag widths. One machine can pack bags of various
*The packaging is simple and beautiful, with a humanized design. Different bag making equipment can be replaced according to different bag widths. One machine can pack bags of various

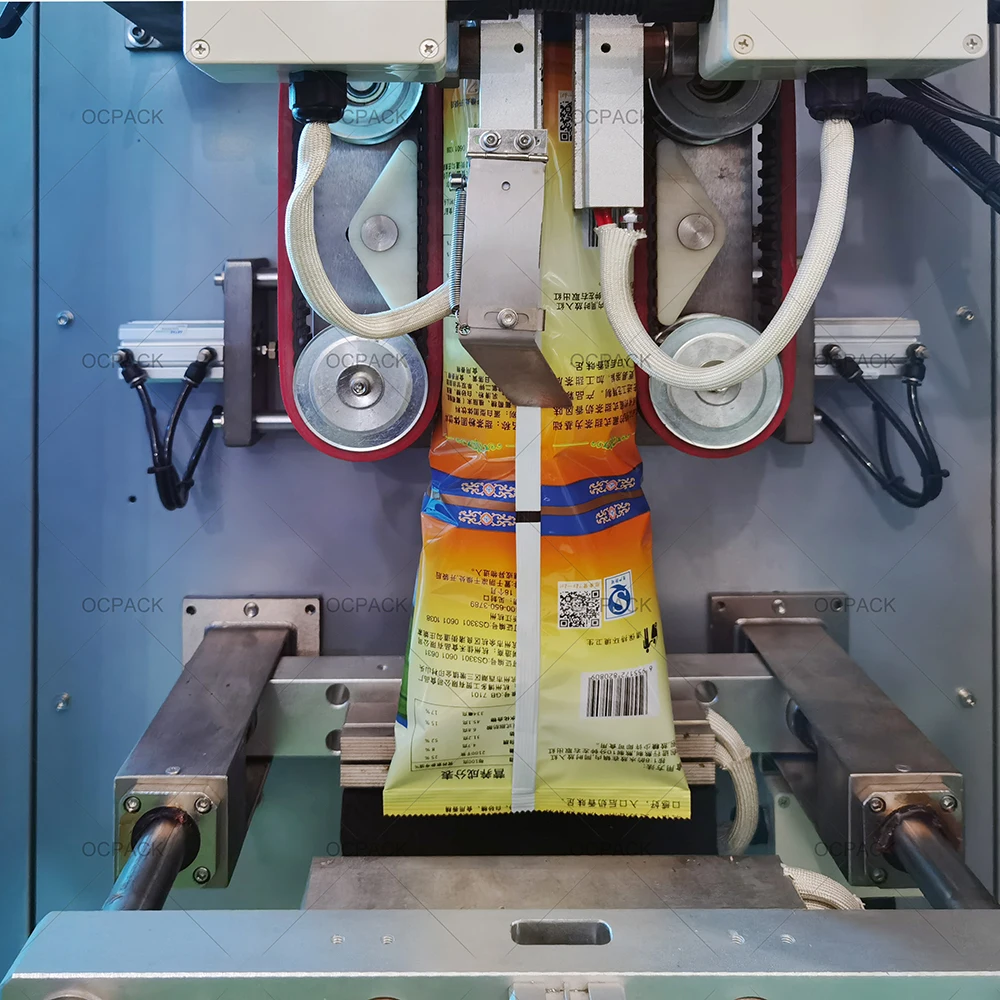

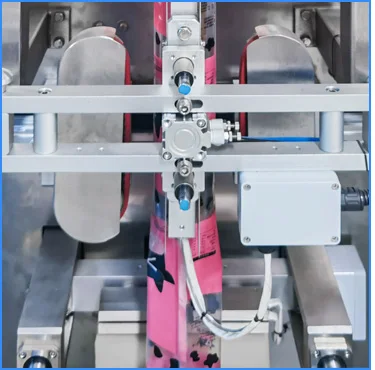

Cutting & sealing parts
*It is Stainless steel of material to making it will than the iron will be strong more, he life can using more then 2 years.
*Customized sealing patterns and notch or automatic punching device. Back seal: adopt servo motor double belt to pull film Port sealing: The end face sealing cutting machine adopts servo-controlled opening and closing movement and independent temperature
control.
*Customized sealing patterns and notch or automatic punching device. Back seal: adopt servo motor double belt to pull film Port sealing: The end face sealing cutting machine adopts servo-controlled opening and closing movement and independent temperature
control.
Tell us your requirements, tell us your product information,
we will have a professional staff to provide you with a most suitable packaging solution!
You can also send us samples, we can provide free trial packaging service!
Related Products

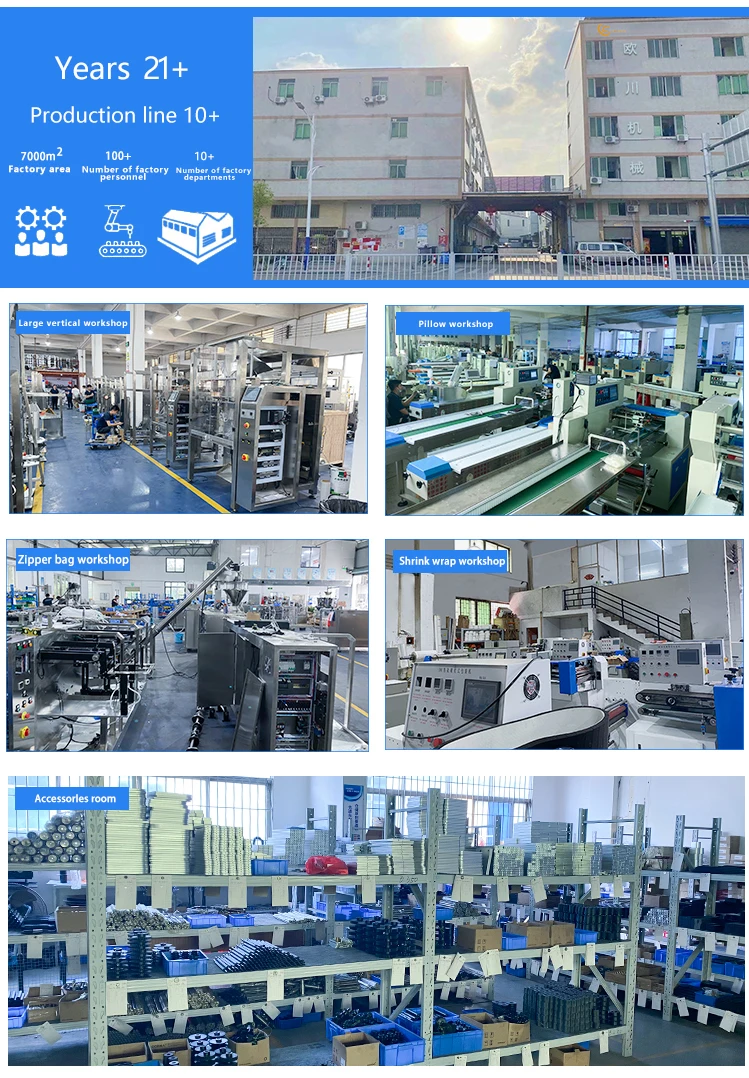

Company Profile
