Product Overview
Description
Product Description
GLT Rotary Braider operates on a Rotary principle. Inner turn table rotate counterclockwise and Outer turn table rotates clockwise with high speed. The speed of this machine can produce more than double of Maypole type braiders.
GLT horizontal hose automatic braiding machine has a series of (GLT-90, 114, 140, 200, 240,300), The machine is widely used in the production of wires, cables, pressure resistant braided rubber pipes, water heating braided hoses, rope belt braided, auto rubber hoses, spray rubber pipes, Teflon pipes, high-pressure pipes and other enterprises.
Advantage:
* High degree of automation: automatic shutdown when broken wire, Wireless spool, without rubber hose
* The braiding traction adopts stepless speed regulation,the braiding angle (pitch) adjustment is convenient and correct.
* High production efficiency: the output per hour is more than three times of the current commonly used models. The maximum output is 98 meters/hour.
* Low noise: the transmission system uses suction, shock absorption and embedded devices to reduce noise.
* Convenient maintenance, flexible transmission, easy assembly and disassembly of structure.
* The spindle adopts elastic adjustable device, which ensures reliable positioning and convenient and flexible loading and
unloading of spool.
* The whole machine has small abrasion and long service life. The key parts are heat treated with high-quality materials and equipped with automatic lubrication device.
* The braiding traction adopts stepless speed regulation,the braiding angle (pitch) adjustment is convenient and correct.
* High production efficiency: the output per hour is more than three times of the current commonly used models. The maximum output is 98 meters/hour.
* Low noise: the transmission system uses suction, shock absorption and embedded devices to reduce noise.
* Convenient maintenance, flexible transmission, easy assembly and disassembly of structure.
* The spindle adopts elastic adjustable device, which ensures reliable positioning and convenient and flexible loading and
unloading of spool.
* The whole machine has small abrasion and long service life. The key parts are heat treated with high-quality materials and equipped with automatic lubrication device.
Main Feature

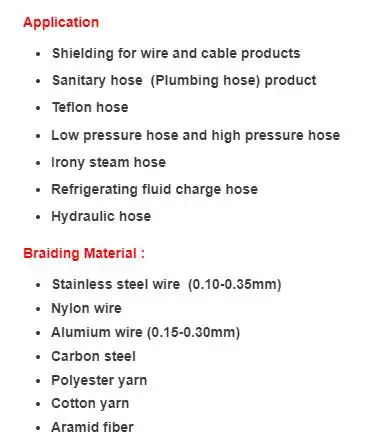

Application：
* Shielding for wire and cable products

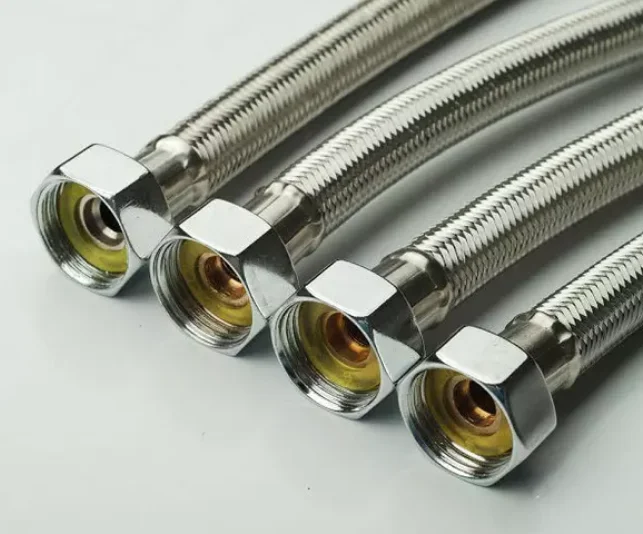

* Sanitary hose (Plumbing hose) product
* Teflon hose
* Low pressure hose and high pressure hose
* Irony steam hose
* Refrigerating fluid charge hose
* Hydraulic hose
* Sanitary hose (Plumbing hose) product
* Teflon hose
* Low pressure hose and high pressure hose
* Irony steam hose
* Refrigerating fluid charge hose
* Hydraulic hose
Braiding Material :
* Stainless steel wire (0.10-0.35mm)
* Nylon wire
* Alumium wire (0.15-0.30mm)
* Carbon steel
* Polyester yarn
* Cotton yarn
* Aramid fiber
* Nylon wire
* Alumium wire (0.15-0.30mm)
* Carbon steel
* Polyester yarn
* Cotton yarn
* Aramid fiber
Technical Features：

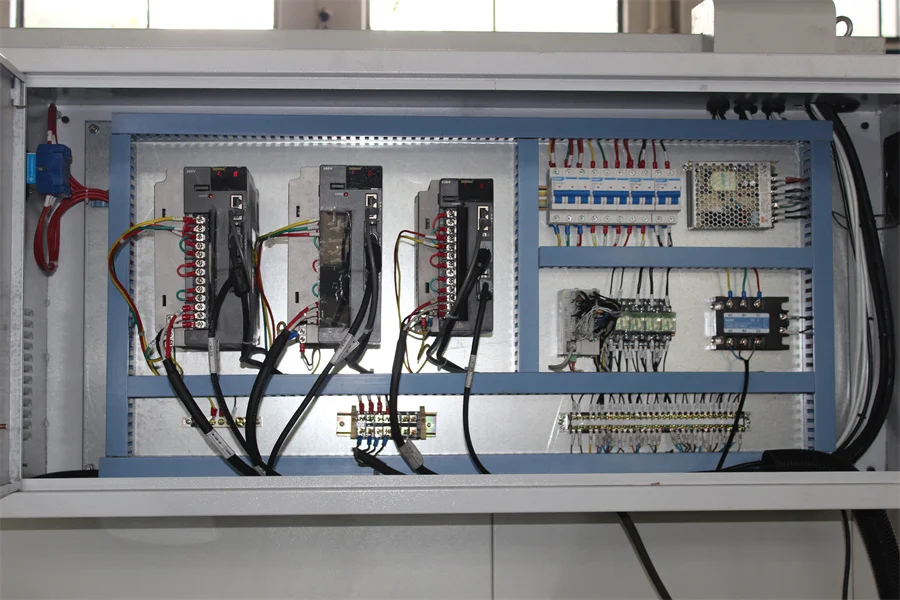

* Computerized control by PLC and Inverter Motor.

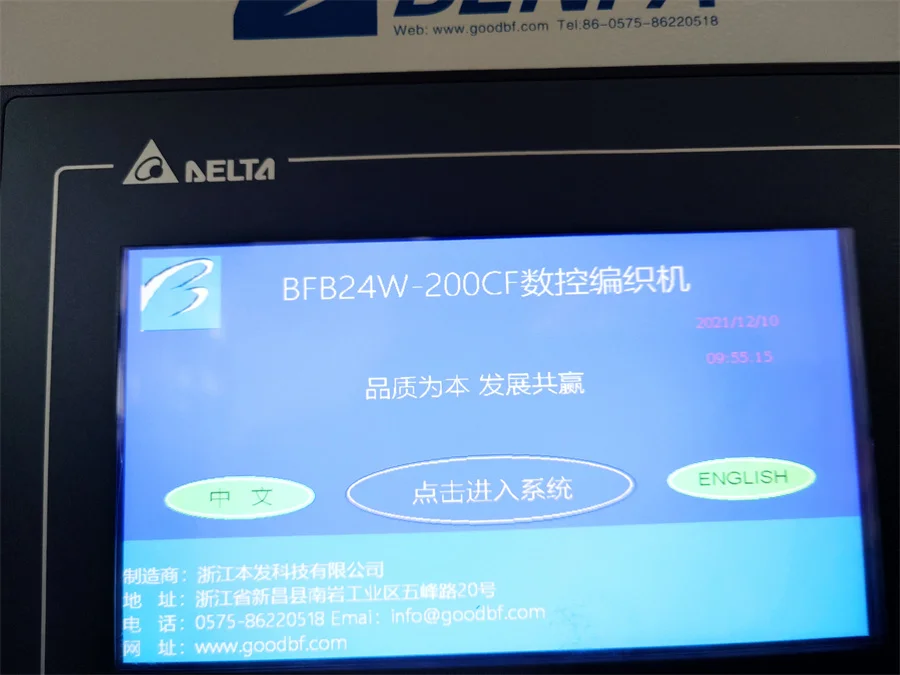

* Simplified touch screen operation.
* Minimum set up time by memory of 30 kinds product.
* Indication of data and productivity by PLC.
* Save up to 30 different products without change gears
* Automatic stop when pre-set length of product is produced.
* Display the status of the machine.
* Enhanced the safety factor of the machine.
* Available on both metric and inch unit.
* Indication of Line-speed on the Screen.
* Indication of total produced length.
* Simplified touch screen operation.
* Minimum set up time by memory of 30 kinds product.
* Indication of data and productivity by PLC.
* Save up to 30 different products without change gears
* Automatic stop when pre-set length of product is produced.
* Display the status of the machine.
* Enhanced the safety factor of the machine.
* Available on both metric and inch unit.
* Indication of Line-speed on the Screen.
* Indication of total produced length.
Options：
* Empty bobbin detector
* Central lubrication system (recommended)

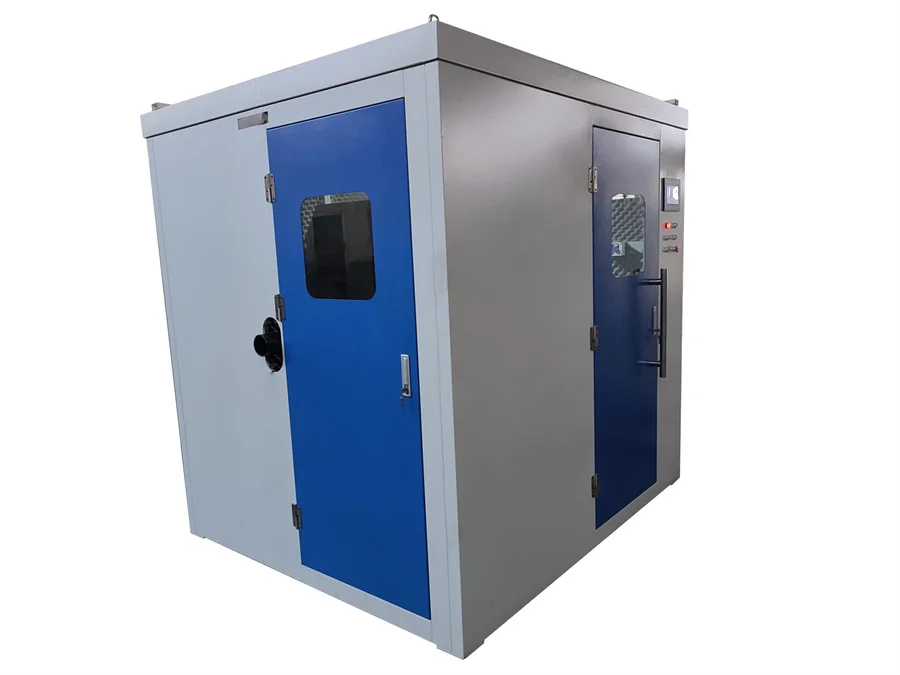

* Enhanced Sound Enclosure
* Keel lubricator (recommended)
* Advance display, variable speed
* Longitudinal tape applicator
* Motor driven capstan(speed reducer capstan )
* Single deck( Double Deck) Braiding System
* Central lubrication system (recommended)
* Enhanced Sound Enclosure
* Keel lubricator (recommended)
* Advance display, variable speed
* Longitudinal tape applicator
* Motor driven capstan(speed reducer capstan )
* Single deck( Double Deck) Braiding System
Specification
GLT16W-200CFS | GLT20W-200CF | GLT24W-200CF | GLT36W-200C | GLT48W-200C | |
haul off Motor power | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
Voltage | 3 Phase 380V Customized | 3 Phase 380V Customized | 3 Phase 380V Customized | 3 Phase 380V Customized | 3 Phase 380V Customized |
Spindle RPM | 56RPM | 45RPM | 37RPM | 26RPM | 18RPM |
Hose Diameter | ≤16mm | ≤20mm | ≤24mm | ≤36mm | ≤48mm |
Spindle NO | 16Spindle | 20Spindle | 24Spindle | 36Spindle | 48Spindle |
Carrier Tension | 3.0kg-10kg | 3.0kg-10kg | 3.0kg-10kg | 3.0kg-10kg | 3.0kg-10kg |
production line
Hot sale products
Click for more information：
Company Profile
Greenland Technology provide one stop braiding solutions to our customer from Development, production, inspection and sales service.Our main products including combination double decks braiding machine, horizontal high speed double decks CNC braiding machine, flexible hose braiding machine, rope braiding machine, winding machine, crimp machine and flexible hose assemble machine.
