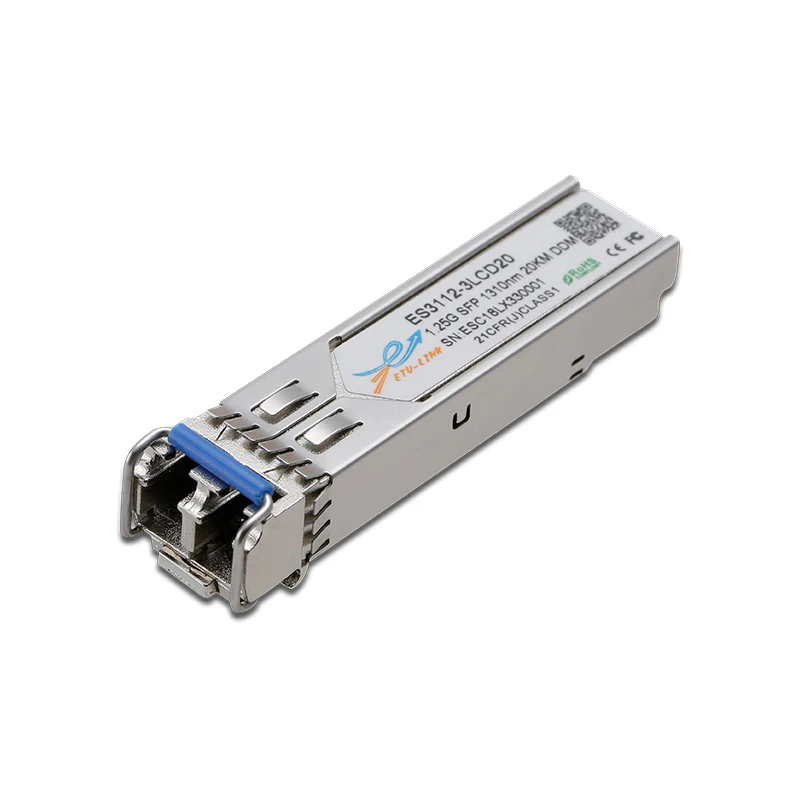

ETU Link 1.25G SFP LX 1310nm DDM 20KM LC Fiber Optical Transceiver SFP Modules
- Category: >>>
- Supplier: ETU-Link Technology Co. Ltd.
Share on (1600817349019):
Product Overview
Description
Product Parameters
Product series | Optical transceiver | ETU-Link Number | ES3112-3LCD20 | |||
Type | SFP | Data Rate | Up to 1.25 Gb/s | |||
Wavelength | 1310nm | Fiber Type | SMF | |||
Max Distance | 20KM | Optical Components | FP+PIN | |||
Transmit Power | -9~-3dBm | Receiver Sensitivity | < -22dBm | |||
Connector | LC | Operating Voltage | 3.3V | |||
DDM | Yes | Hot-pluggable | Yes | |||
Operating Temp | 0℃ - 70℃ （Commercial） | Package | Paper box/Plastic tray/Static bag | |||
Application | Optical fiber switches Optical fiber routers Optical network cards Optical fiber server | Compliance | SFP MSA and SFF-8472 SONET OC-24-LR-1 RoHS | |||
Products Description
