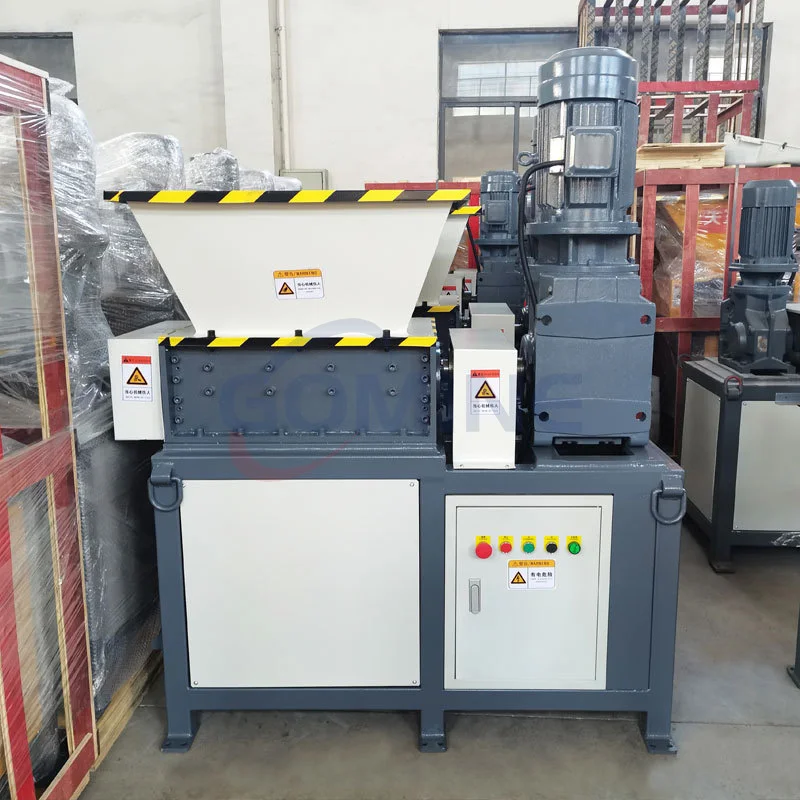

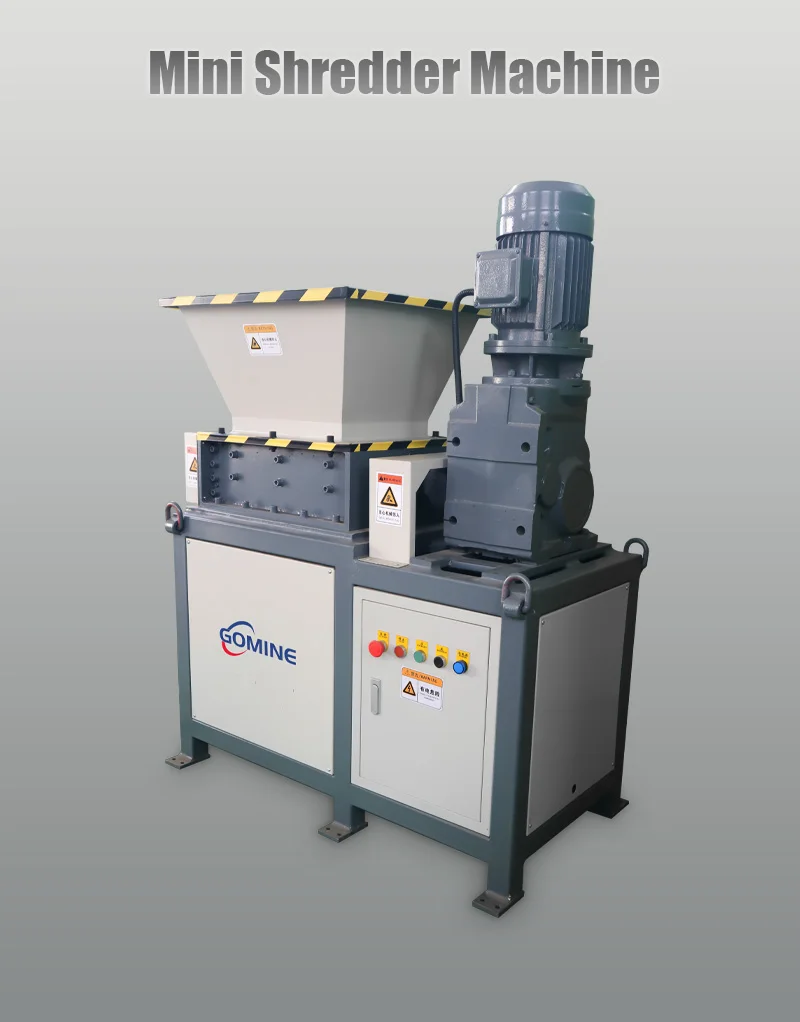

Small Plastic Bottle Shredder Machine PVC Pipe Plastic Shredder Double Shaft Shredder for Sale
Double shaft shredder is designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc. This small plastic shredder machine is control by PLC automatic control system, which has start, stop, reverse and automatic reverse in overload condition.

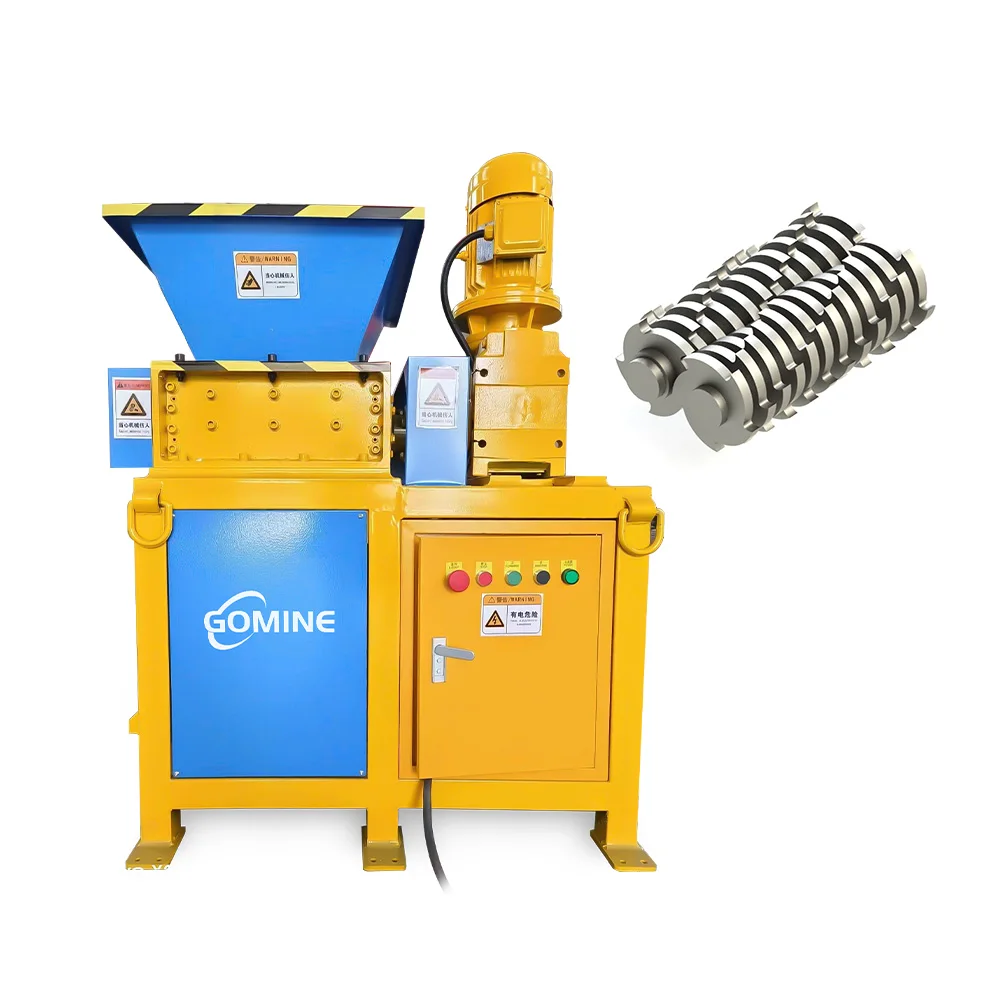

Shredder Blade
Imported NiCrMo high alloy steel is wear-resistant and repairable. The inner hole and main shaft surface of the tool are designed with hexagon socket, which can ensure good torque transmission and fast loading and unloading.
Motor
Brand motor, IP55 protection level, high work efficiency, low energy consumption, stable operation and convenient maintenance
Reducer
The reducer has the characteristics of small size, light weight, high carrying capacity, long service life, stable operation, low noise, large output torque, large speed ratio, high efficiency, and safe performance.
Control System
It can realize automatic control of single cabinet, has overload, short circuit, phase loss protection and other functions, and is safer to use.
Features
1. Low noise, less dust with high capacity.
2. Special thick plate precision machining combination frame, large angle hexagonal column of the strong rotation axis, large diameter solid into the hopper, so you can safely put into large raw materials.
3. In the thickness, shape, arrangement and other aspects of the design and processing of a unique rotary knife, shear strong,sharp blade, can be highly efficient broken.
4. Unique multiple combination sealing structure effectively blocks the contact of broken material and grease.
5. The moving blade material is made of special alloy tool steel forging blanks, precision machining, multiple heat treatments and low temperature freezing heat treatment technology.
4. Unique multiple combination sealing structure effectively blocks the contact of broken material and grease.
5. The moving blade material is made of special alloy tool steel forging blanks, precision machining, multiple heat treatments and low temperature freezing heat treatment technology.
Applications
Technical Parameter
Model | GM-B300 | GM-B400 |
Motor | 3KW-4, 1 set | 4KW-4, 1 set |
Reducer | JL2#-16, 1 set | JL3#-12, 1set |
Input speed | 16 r/min | 12 r/min |
Input torque | 1628Nm | 2919Nm |
Input shaft diameter | Φ50 | Φ60 |
Blade size & material | Φ180*12, 9CrSi | Φ180*15,9CrSi |
Number of blades | 24pcs | 26pcs |
Feeding port size (mm) | 500*500*300 | 600*500*300 |
Weight | 400kg | 500kg |

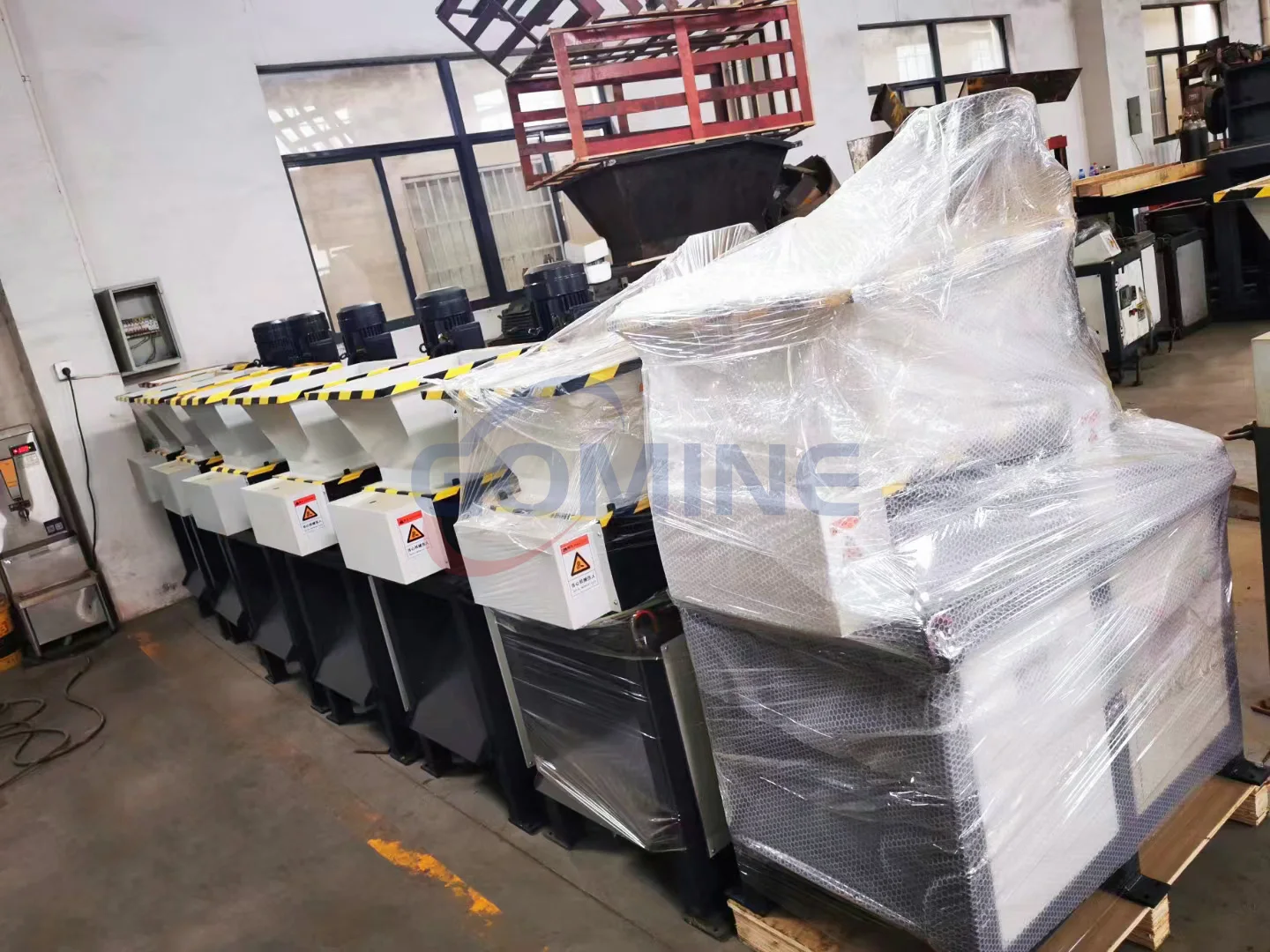

Packaging & Shipping
Company Profile
Gomine Environmental Protection Technology Co., Ltd. is a comprehensive environmental protection equipment manufacturing enterprise integrating process design, technology research and development, manufacturing, sales and after-sales service.
Our company's main business: solid waste recycling and processing equipment, electronic waste crushing and sorting equipment and related environmental protection equipment, products include waste cable and wire crushing and sorting equipment, waste circuit board CCL crushing and sorting equipment, aluminum-plastic separation equipment, copper-aluminum radiator separation equipment, mini copper granulator and so on.

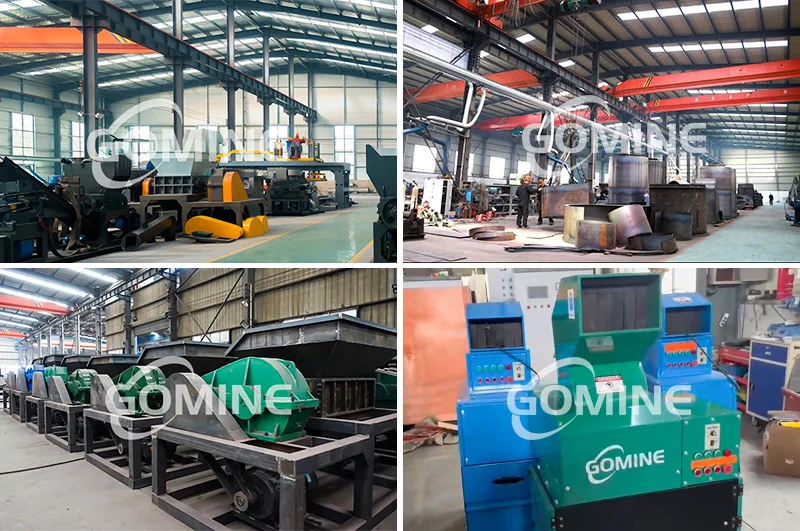

Our factory covers an area of 100,000 m2 with more than 50 sets of big and medium machine lathes. With 12 years experiences in machine manufacturing and technical development, we always take the quality and utility as priority. Now we have customers from more than 60 countries, including USA, Germany, Mexico, Japan, Thailand.
Why Choose Us
We have rich experience in e waste recycling machines manufacturing. Our machines have high reputation both at home and abroad. Over years, our machines have been exported to more than 60 countries, including USA, Germany, Mexico, Japan, Thailand, Egypt, etc.
FAQ
1.Why Choose Us?
(1) Several Year's Experience: We have rich experience in e waste recycling machines manufacturing. Our machines have high reputation both at home and abroad.
(2) Reliable quality: Use the best raw materials to ensure the machine works stably and efficiently for a long time.
(3) Professional team: From pre-sales to after-sales, we always provide you with the best service.
(4) Competitive price: Self-design and manufacturing, cost efficient.
(2) Reliable quality: Use the best raw materials to ensure the machine works stably and efficiently for a long time.
(3) Professional team: From pre-sales to after-sales, we always provide you with the best service.
(4) Competitive price: Self-design and manufacturing, cost efficient.
2.What Is Our Service?
(1)According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
(2)You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
(3)We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
(2)You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
(3)We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
3.How Do You Ensure The Small Plastic Shredder Machine Quality?
You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the small plastic shredder machine test video to you. According to your time, you can pay a visit to our factory to test our machine.
4.How About The Motor?
We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
