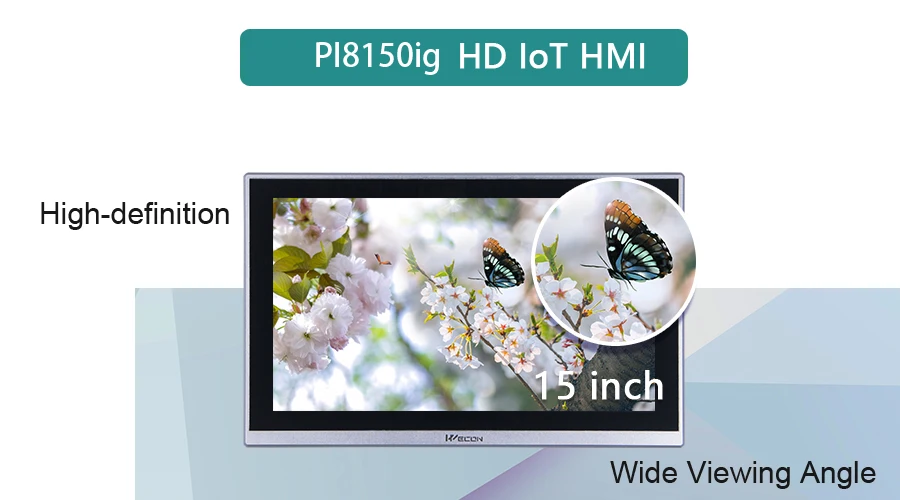

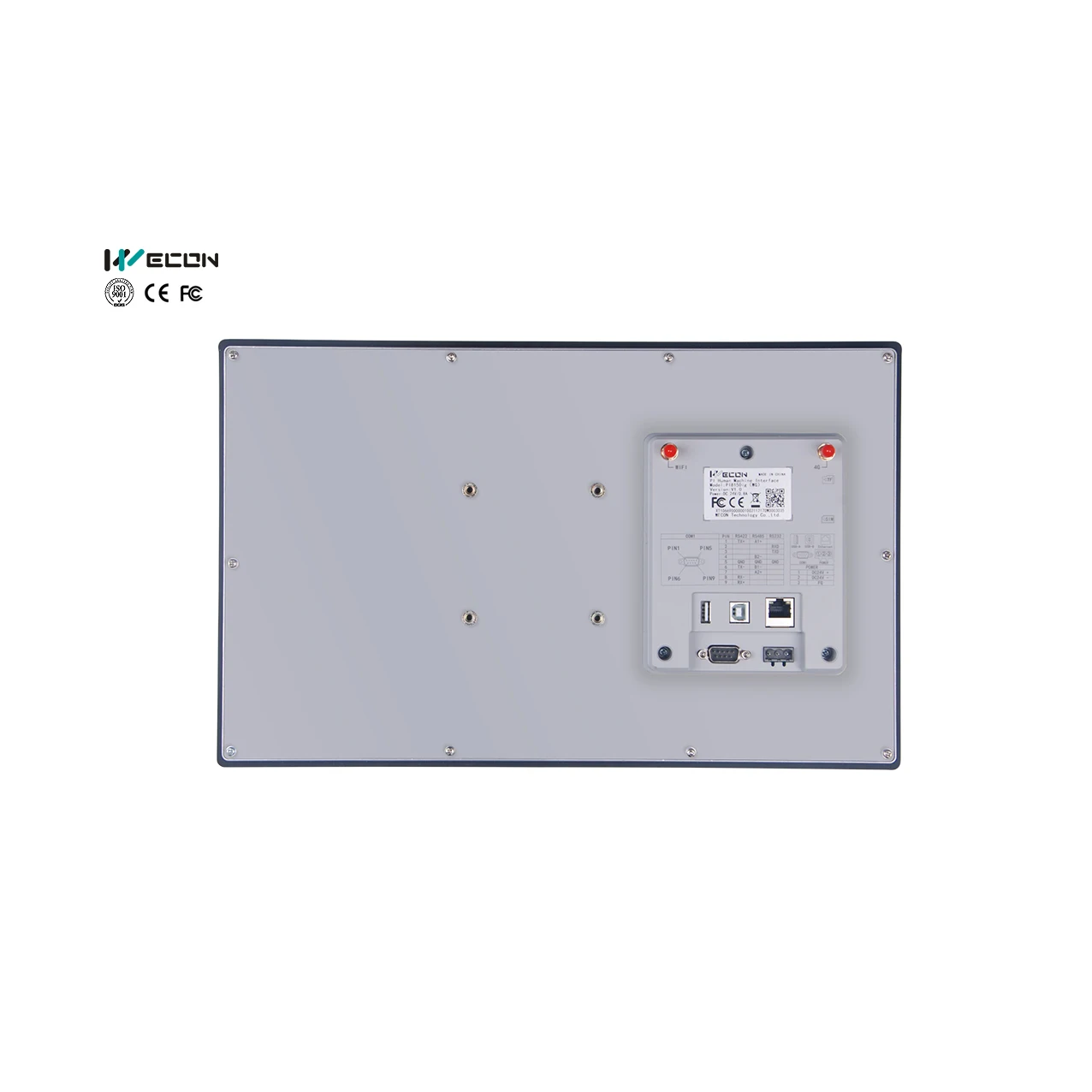

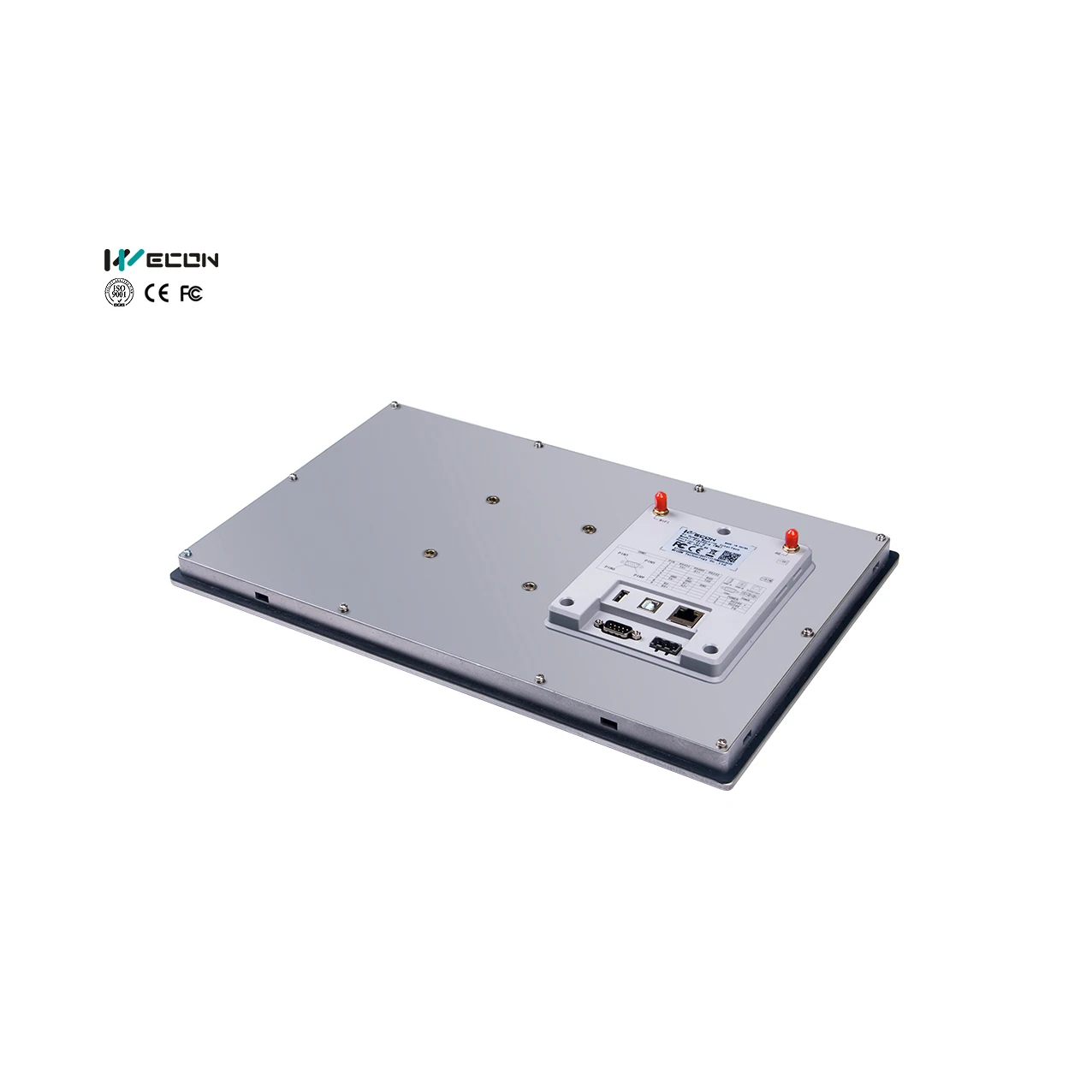

Wecon 15 Inch Touch Screen Panel Aluminum Alloy Panel HMI with Ethernet Port and Free Software
- Category: >>>
- Supplier: Fuzhou Fuchang WECON Technology Co. Ltd.
Share on (1600817529615):
Product Overview
Description
Product Description
| Model | PI8150ig | ||
| General | Size | 15 Inch | |

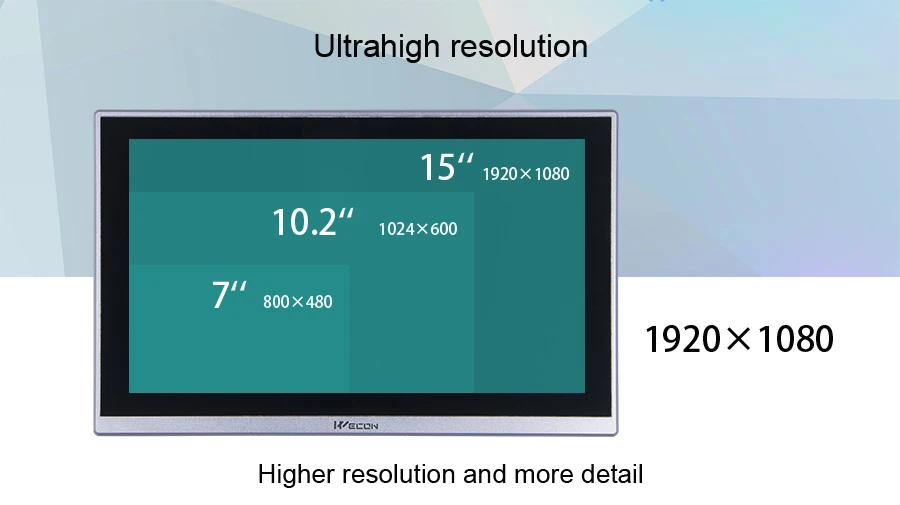

| Resolution | 1920*1080 | ||
| Color | 26,000K colors | ||
| Brightness | 250cd/m2 | ||
| Backlight Type | LED | ||
| Touch Panel | High procision four-wire resistive | ||
Backlight Life Time | 50,000 hours | ||
| CPU | Cortex A35 1.2GHz | ||
| Storage | 4GB FLASH + 512M DDRAM | ||
| USB Port | USB host + USB Client | ||
| COM | COM1 | RS422/RS485 | |
| COM2 | RS232 | ||
| Power | Power | <15W | |
| Power Supply | DC 24V ( 12~28V DC ) | ||

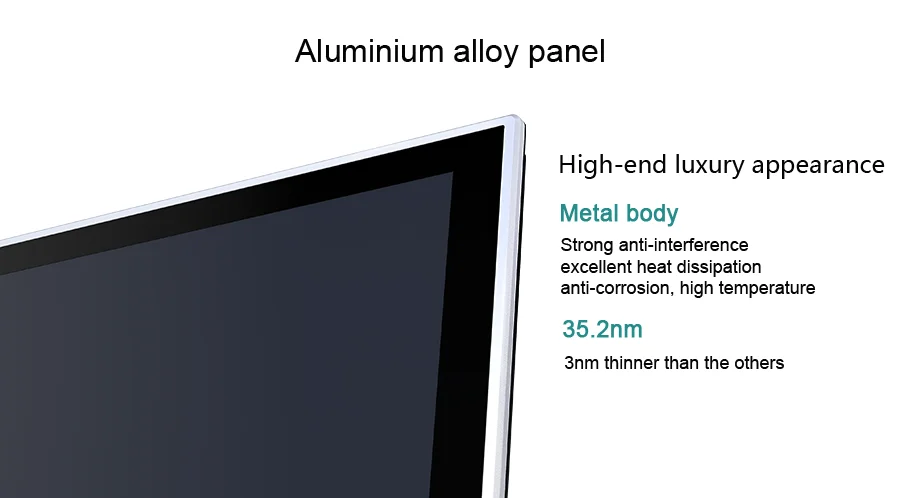

| Dimension | Shell | Aluminum Alloy+PC+ABS | |
| Dimension (mm) | 403W*253H*35.2D | ||
| Mounting size (mm) | 394W*244H | ||
| Net/Gross (KG) | 2.46/2.8 | ||
| Operate Environment | Temperature | Working Temperature : 0~50℃ ; Storage Temperature : -20~60℃ | |
| Humidity | 10-9%RH (Non-condensing) | ||
| Seismic Resistance | IEC61131-2 standard Continuous vibration occasion: 10Hz~57Hz 0.075mm, 57Hz~150Hz 9.8m/s2 Discontinuous vibration: 10Hz~57Hz 0.035mm, 57Hz~150Hz 4.9m/s2 X, Y, Z in 10 directions each (80 minutes) | ||
| Cooling | Air cooling | ||
| IP Code | IP65 ( Front panel ) | ||
| CE | CE Marked | ||
| FCC | FCC Class A | ||
PROGRAMMING SOFTWARE
PIStudioU- Programming Software,it is totally free for its user.
Download link://www.we-con.com.cn/en/download/softwares/pi-series-hmi/
Multi-protocols
Multi-protocols
Wecon PIStudioU- Human Machine Interface (HMI) Programming Software
It has been designed as a programming tool for the Wecon HMI. PIStudioU allows displaying or editing multi language for HMI screen. And it is totally free for all its user.
PLC SUPPORT
Brand | Supported Model / Protocol |
Wecon | LX Series PLC / User-Defined Protocol |
Allen-Bradley | MicroLogix 1000/1200/1400/1500 SLC 5/03 5/04 5/05 PLC-5 DF1 CompactLogix 1769 series |
ABB | PM 571/581/591 |
Yudian | BoTa AIBus Protocol |
CANBus | Open CAN / CAN J1939 |
Crouzet | M3 FBD |
Danfoss | FC Series / GLP-NV |
Delta | DVP EH/ES/SS/EX/EH2/SV/SA/SC/SX Series |
Emerson | DKG2 / EC20 series 984 RTU Slave Modbus |
Fuji | SPB NB |
FB | FB RS484 Protocol |
Fatek | FBs-xx-MA / MC / MN FBe-xx-MC / MA FBn-xx-MCT |
Facon | FB Series RS232 (RS232-RTS) / RS485 Modbus |
IDEC | FC4A-C10R2 |
ICPDCS | I-7000 Series |
Koyo | K / Direct Series |
Keyence | KV Series |
LG | K120S / K300S / KCNet / XGB / LG-Bus ASCII |
Omron | HostLink / CPM1A / CQM1H / C / CP1E / CP1H / CS1 / CV / CJ1M / CS1H / E5 Z |
Panasonic | FP NEWTOCOL |
Mitsubishi | FX1N / FX2N / FX3U / Q02H / QJ71 / MELSEC Q / L02 / |
Shinko | CxT series / DCL / PC-900 |
Schneider | Electric Twido Modbus / Modicon Modbus RTU |
IMD H00 | IMD H00 ModBus RTU Slave |
TECO | TP01 / TP02 / TP03 Series |
Hollysys | LK / LM Modbus Tcp |
Yaskawa | NS600 Modbus / Sepvopack Sgdm Modbus / Memobus / MP Series |
Yokogawa | FA-M3 Series Modbus |
Regin | Regin PLC |
LG | K120S / K300S |
Inovance | Whole Series |
Modbus RTU | Slave / Master |
Modbus ASCII | Slave / Master |
Modbus TCP / IP | Slave / Master |
Vigor | Vigor PLC |
