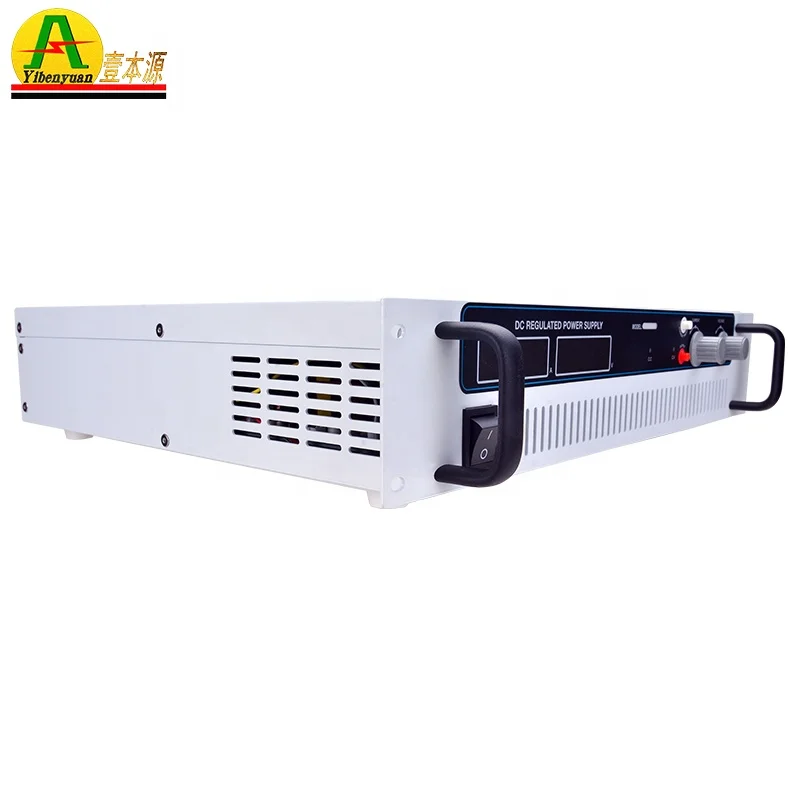

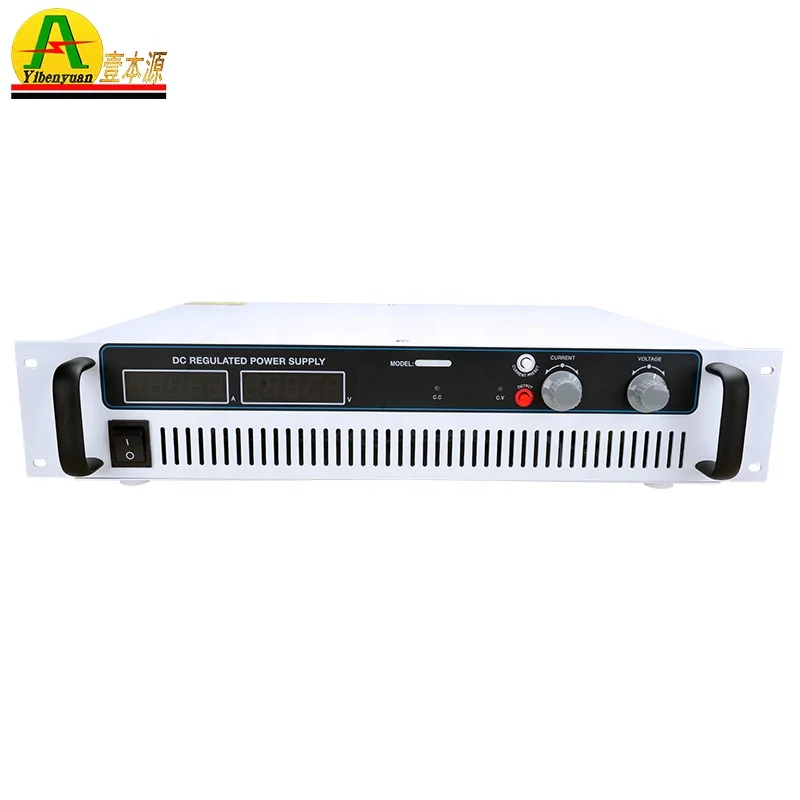

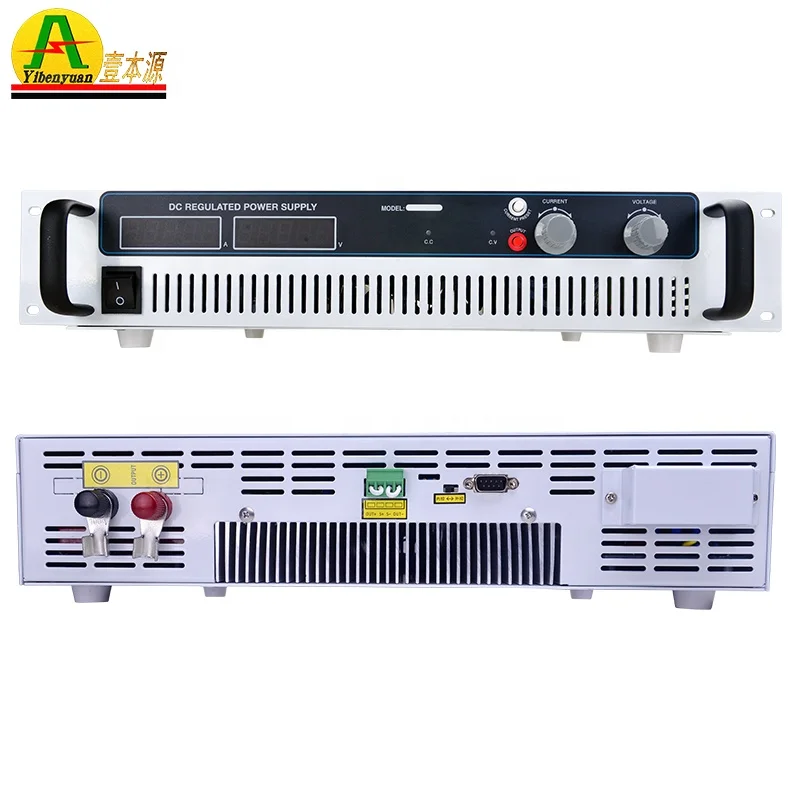

IDEALPLUSING high efficiency 220V ac to dc 48v power supply 100A 4800W adjustable voltage regulation for electrolysis

1

Motor: electric car motor, electric car controller, DC motor testing and aging debugging, etc.

2

Electric appliances: LED/LCD testing and aging, energy-saving bulb testing and aging, lamp testing, tungsten gasification, etc.

3

Automotive: starter motor, auto air conditioner, auto motor controller, auto light, cigarette lighter, auto AV testing and aging, etc.

4

Electronic devices: capacitors, resistors, relays, transistors, sensors, etc.

5

Display: a display screen, liquid screen, touch screen, car DVD, cell phone display, etc.

6

Electrochemistry: electrolysis, electroplating, anodic oxidation, non-ferrous metals, sewage treatment, etc.

7

Aircraft start-up maintenance, etc.

8

Physical exploration: power supply of mineral and petroleum equipment, etc.

9

Power supply: inverter products aging, inverter maintenance testing, etc.

10

Power tools: contact aging, wire pack testing, circuit breaker release test, etc.

11

Others

1

Small size and light weight suitable for workbench use and rack mounting.

2

Adopting PWM modulation, low power consumption of crystal module, high efficiency, more power saving.

3

Well-designed electronic technology circuit, forced air-cooled heat dissipation treatment, with a very low-temperature coefficient.

4

Low noise, low ripple.

5

Adopt high gain amplifier circuit design, with good fast response characteristics.

6

Adopt a 4-digit high sampling rate, high-resolution voltage, and current digital display meter.

7

Built-in O.V.P. over-voltage protection circuit and O.T.P. over-temperature protection circuit, the protection function is perfect and reliable.

8

The product is designed with a load terminal voltage detection terminal, with the ability to accurately read the load terminal voltage and accurate control function.

1

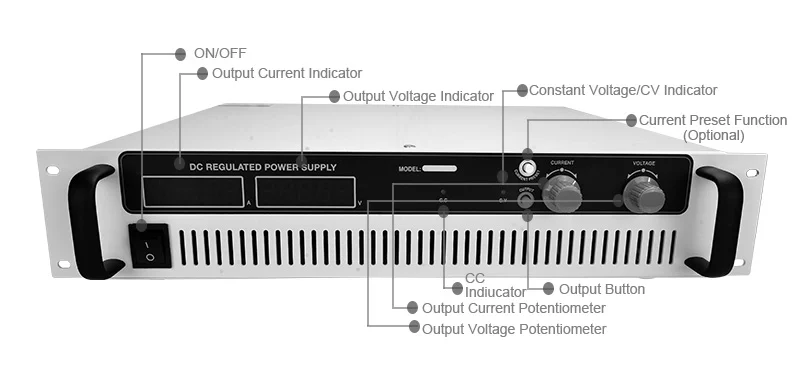

Display: Output Voltage And Current Led Display.

2

Appearance: Using a Desktop, Cabinet, Or 19-Inch Standardized Size, Can Be Combined And Placed In a Variety Of Workbenches And Racks.

3

Advantages: High-Frequency Pwm Hardware-Adjusted Soft-Switching Control Technology Makes The Power Supply High Efficiency, Low Ripple, Low Noise, And High Reliability, Small Size, And Light Weight.

4

Constant Voltage And Constant Current: Output Cc, Cv Constant Voltage And Constant Current Automatic Switching, Voltage, And Power Flow Value From Zero To The Rated Value Of Continuous Adjustment

4

Protection Functions: Over-Voltage Protection (Ovp, Over-Current Protection (Ocp, Over-Temperature Protection (Otp.))

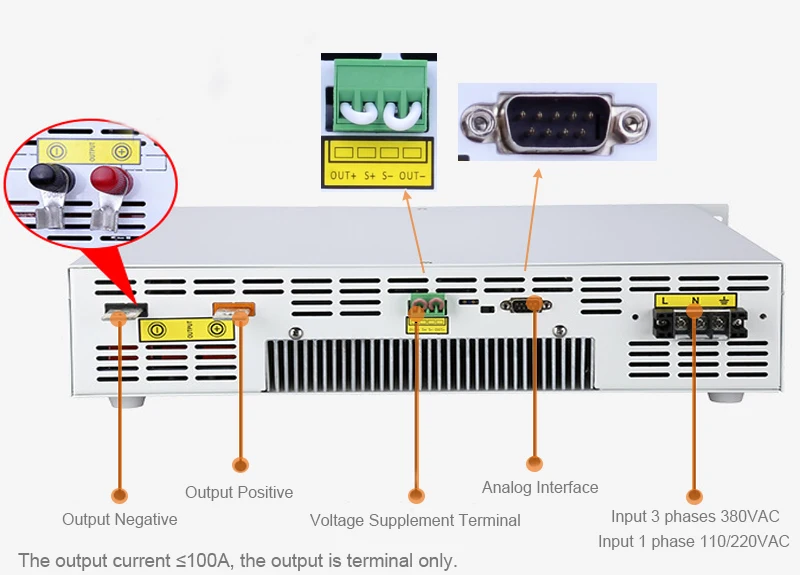

External Compensation: Optional External Compensation (Remote Sensing, Reducing The Circuit Cable Voltage Drop.

5

Current Presetting Function: The User Can Preset Any Voltage Actually Needed By The Load Without Connecting The Load, And When The Product Actually Has Current Output, The Actual Maximum Output Current Can Reach The Pre-Set Value (Optional).

6

Voltage Presetting Function: The User Can Preset Any Voltage Actually Needed By The Load Without Connecting The Load, And When The Product Actually Has a Voltage Output, The Actual Maximum Output Current Can Reach The Pre-Set Value (Optional).

7

Computer Program Control Function: Optional Rs485/Rs232 And Other Data Interfaces, Standard Modbus Communication Protocol, Can Be Configured With Computer/Upper Computer Software Control Monitoring. Can Be Multiple Network Control, Or Master-Slave Parallel Control. (Optional)

8

Positive And Negative Commutation Function: Can Provide Output Positive And Negative Commutation Function (Bipolar), Commutation Mode: Manual, Timing, Calculator Program Control, Etc. (Optional)

Brand

IDEALPLUSING

Model

YBY-ATDK48100

AC Input

Single phase 110VAC±15% 50/60hz (Customized-Contact sales for quote)

Single phase 220VAC±15% 50/60hz  (Less than 7000W)

Three phase 380VAC±15% 50/60hz  (More than 7000W)

Input frequency

50Hz/60Hz

Output voltage

0~48VDC

Output current

0-100A

Output Power

4800W

Voltage Stabilization

≤0.3%+10mV

Load Stabilization

≤0.5%+30mV

Ripples and Noises

≤0.5%+10mVrms

Voltage Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Display Format

0.000V-9.999V;  0.00V-99.99V;  0.0V-999.9V

Current Display Accuracy

4-digit Accuracy: ±1%+1 word (10%-100% rating)

Remote Adjustment

(Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC

Remote Display

(Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC

Output Over Voltage Protection

Built-in O.V.P. protection, protection limited value is rated +5%

Output Over Load Protection

Overload, current limit, constant current output

Over Temperature Protection

Built-in O.T.P. protection, Protection value 85℃±5%  heat sink temperature

Voltage Setting

10-turn precision potentiometer

Current Setting

10-turn precision potentiometer

Output Polarity

Output Positive(+) negative(- ) Can be grounded at will

Heat Dissipation Way

Forced fan cooling

Work Conditions

Indoor use design,Temperature:0℃~40℃;Humidity:10%~85%RH

Storage Conditions

Temperature:-20℃~70℃;Humidity:10%~90%RH

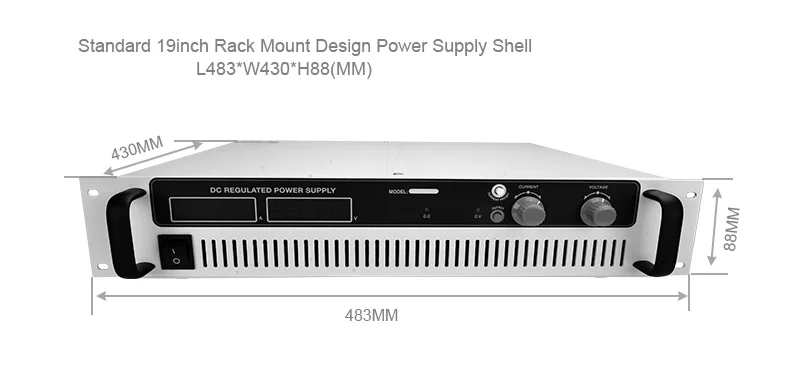

Machine Dimension

483*430*88(MM)

Package Dimension

570*570*190(MM)

Net/Gross Weight

14KG/20KG
