Popular net sponge food waste plastic lumps shredder machine
- Category: Plastic Crushing Machines >>>
- Supplier: Henan Kaichuang Machinery Equipment Co. Ltd.
Share on (1600817792176):
Product Overview
Description

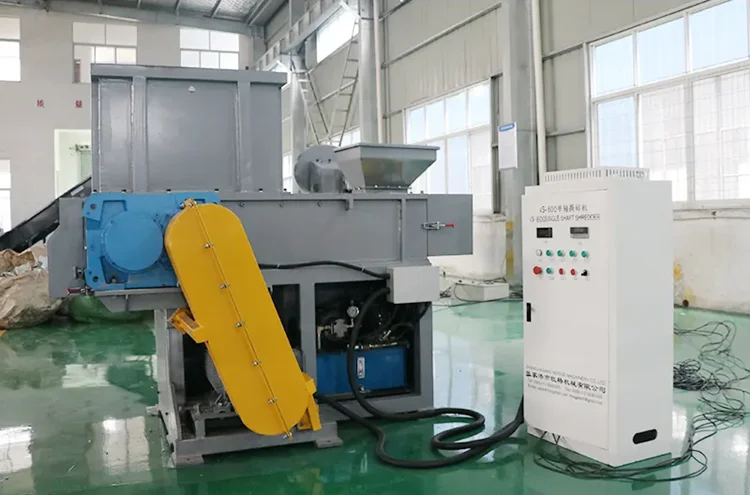

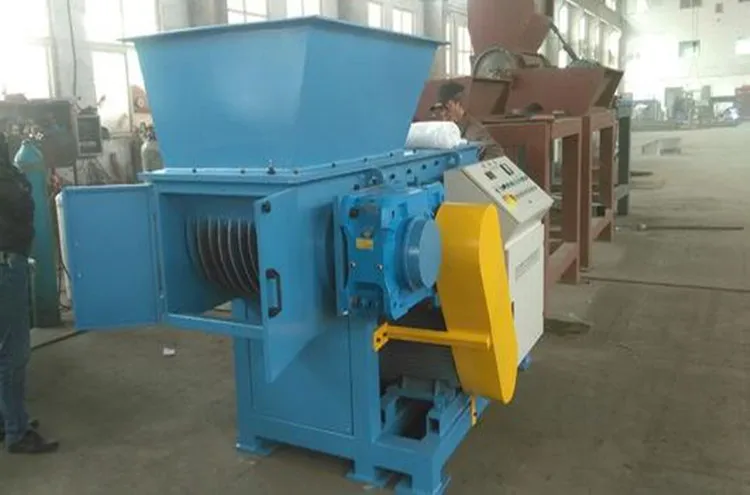

Popular net sponge food waste plastic lumps shredder machine
Product Description

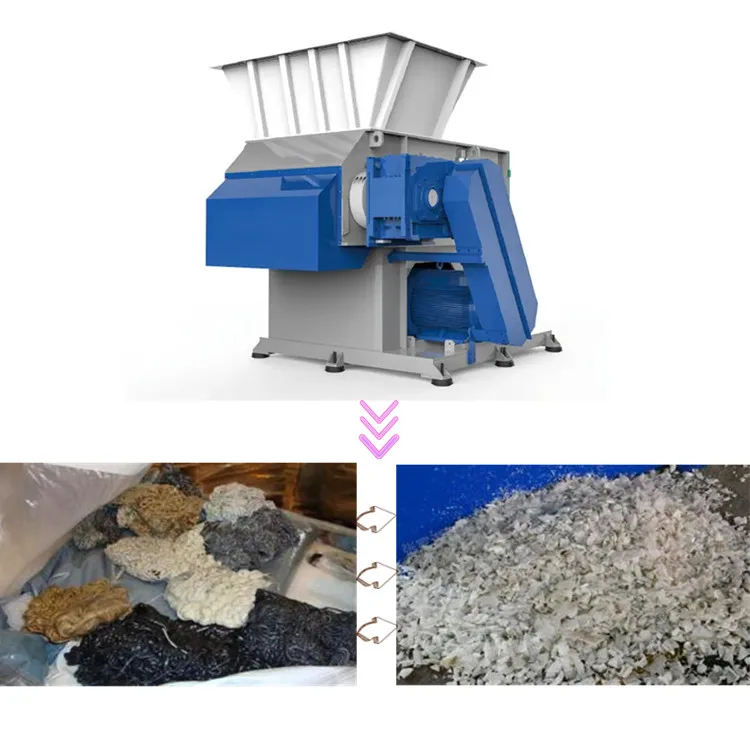

Plastic shredder is mainly used in shredding materials that are quite thick and tough such as large plastic pipes and lumps, shredder used close packed structures with hydraulic feeding system.it’s featured as advanced equipment ,strong crushing capacity and high output.
Specification
Advantages

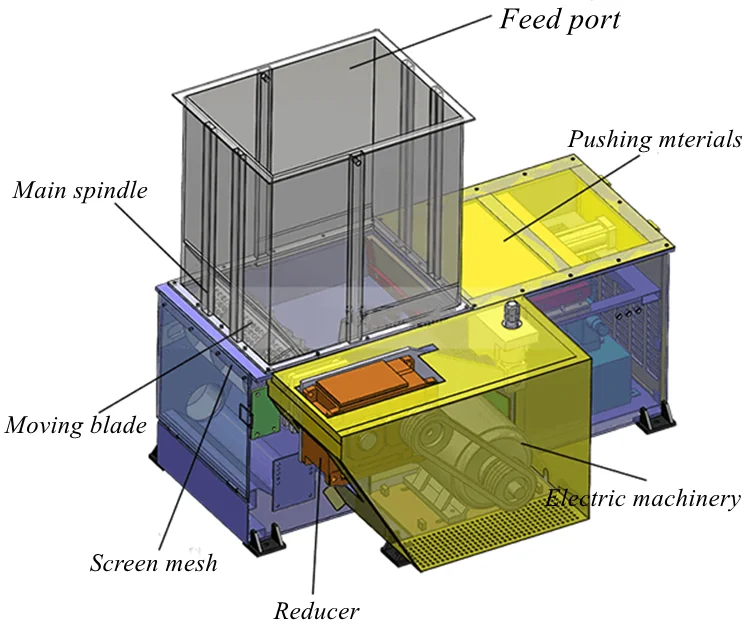

1. This machine is mainly used to crush big size plastic products, such as headpiece material, thick-walled large diameter plastic pipe, film roller, paper, fibre and others.
2. The rotary blade seat and blade can be disassembled.which makes it easier to clean and maintain.
3. The rotating blade adopts V shape installation so that the blades can cut material evenly, it can decrease the noise and energy consumption.
4. Each rotary blade has 4 same cutting knife edge, when one side becomes dull, you can change another side into using, which prolongs the service time of rotating blades.

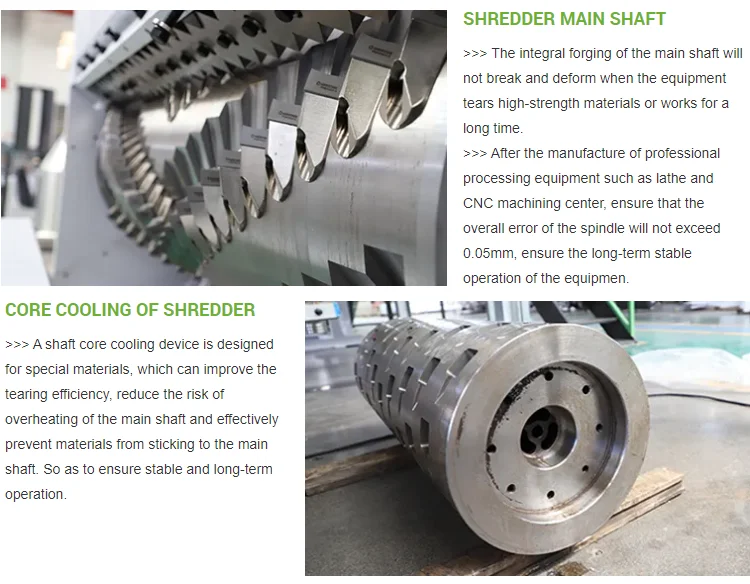

5. The main shaft is driven by gearbox, which supplies steady running and powerful speed.
6. The material keeps being pushed forward by the hydraulic system, which ensures the raw material can be crushed thoroughly and efficiently.
7. PLC program control system, automatically rotating, shut down, safe and reliable running of the machine. The blade can rotate in opposite direction.
Product Details

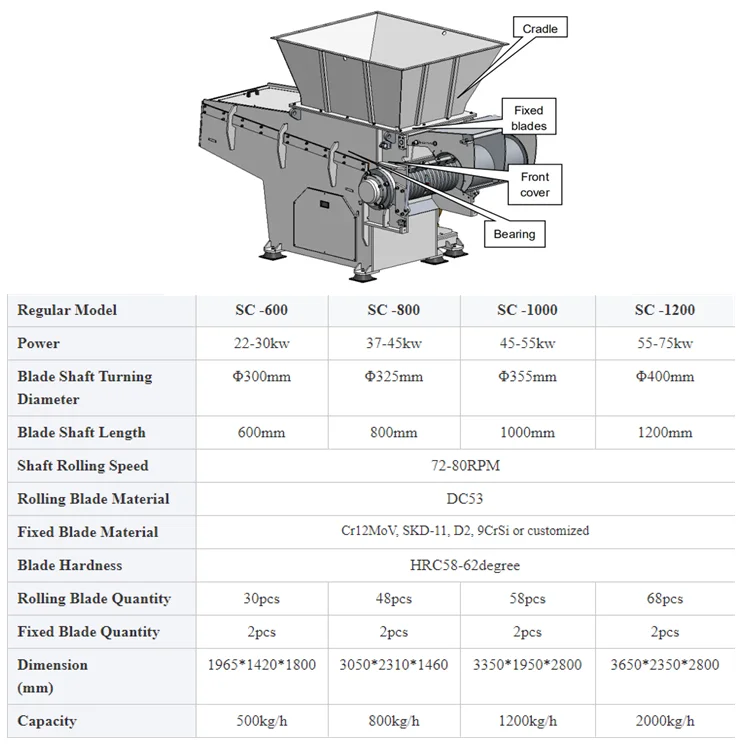

Regular Model | SC -600 | SC -800 | SC -1000 | SC -1200 | |||
Power | 22-30kw | 37-45kw | 45-55kw | 55-75kw | |||
Blade Shaft Turning Diameter | Φ300mm | Φ325mm | Φ355mm | Φ400mm | |||
Blade Shaft Length | 600mm | 800mm | 1000mm | 1200mm | |||
Shaft Rolling Speed | 72-80RPM | ||||||
Rolling Blade Material | DC53 | ||||||
Fixed Blade Material | Cr12MoV, SKD-11, D2, 9CrSi or customized | ||||||
Blade Hardness | HRC58-62degree | ||||||
Rolling Blade Quantity | 30pcs | 48pcs | 58pcs | 68pcs | |||
Fixed Blade Quantity | 2pcs | 2pcs | 2pcs | 2pcs | |||
Dimension (mm) | 1965*1420*1800 | 3050*2310*1460 | 3350*1950*2800 | 3650*2350*2800 | |||
Capacity | 500kg/h | 800kg/h | 1200kg/h | 2000kg/h | |||
Pusher Length | 600mm | 800mm | 1000mm | 1200mm | |||
Hydraulic Station Power | 2.2kw | 3kw | 4kw | 5.5kw | |||
Reducer | H2HH6 | ||||||
Control Cabinet | Button Control | ||||||
Application
The Single shredder is mainly used for the shredding and recycling of various thick-walled waste materials and leftover materials in the plastics industry. Large -diameter thick-walled PE pipes, PE head materials, plastic packaging barrels, large bundles of plastic films, large bundles of woven bags, roll films, paper, fibers, plastic boxes and baskets, plastic trash cans, TV casings, Computer shells, printer shells, forklift pallets, plastic pallets, plastic turnover boxes, etc.) can be effectively shredded and crushed, and are suitable for crushing and recycling of various materials such as plastic, rubber and wood.
Packing & Delivery

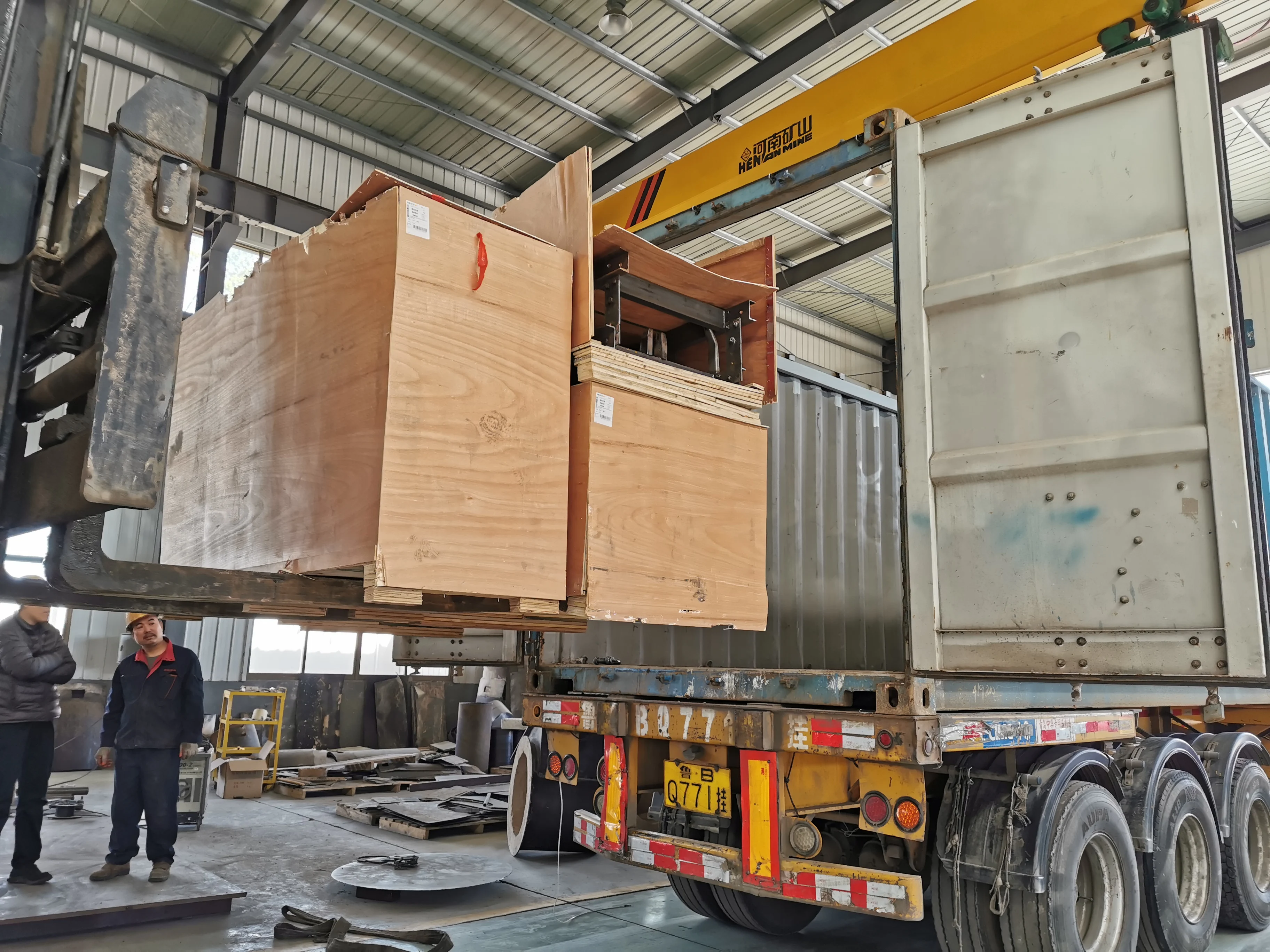

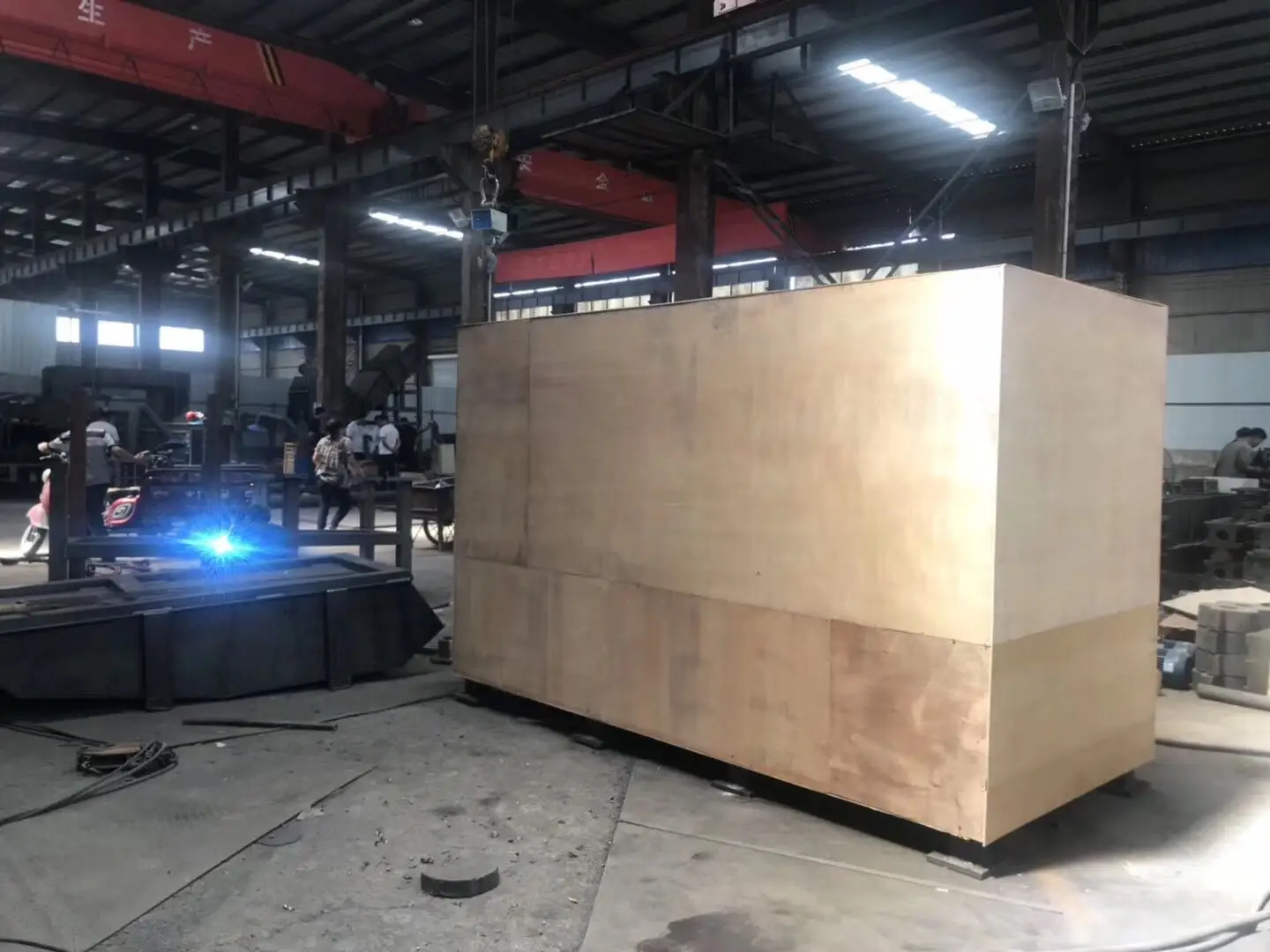

Packing: The normal package is wooden box. We will use PE film for packing or pack it according to customers special request.
Delivery: Delivery within 15 days after receipt of deposit.
Our Service
Pre-sale service:
Act as a good adviser and assistant of clients, enable them to get rich and competitive from the returns of their investment.
1. Select suitable equipment model.
2. Design and manufacture products according to clients’ special requirements.
3. Train technical personnel for clients.
4. Professional suggestion for customer.
After-sale service:
Provide considerate service to minimize clients worries.
1. Provide civil engineering drawings of the equipment.
2. Free training(including installation, maintenance) to every customer.
3. Install and debug the equipment, ensure the dryer running smoothly.
4. Examine the equipment regularly.
Provide considerate service to minimize clients worries.
1. Provide civil engineering drawings of the equipment.
2. Free training(including installation, maintenance) to every customer.
3. Install and debug the equipment, ensure the dryer running smoothly.
4. Examine the equipment regularly.

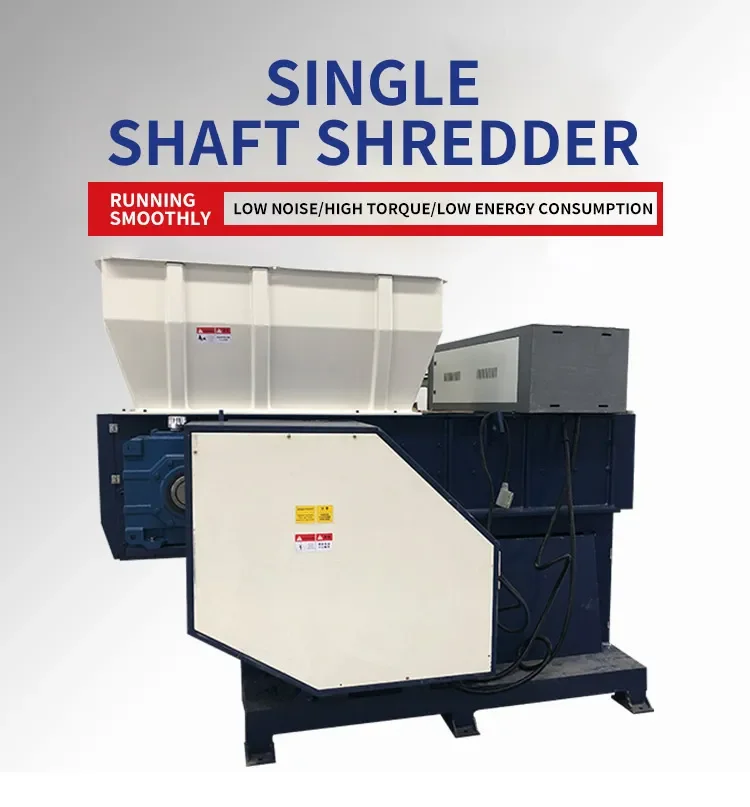

Note: The single shaft shredder can be customized according to the customer's needs, and the size of the shredder can be produced according to the granularity of the customer. A good product will definitely satisfy customers.
Customer visit

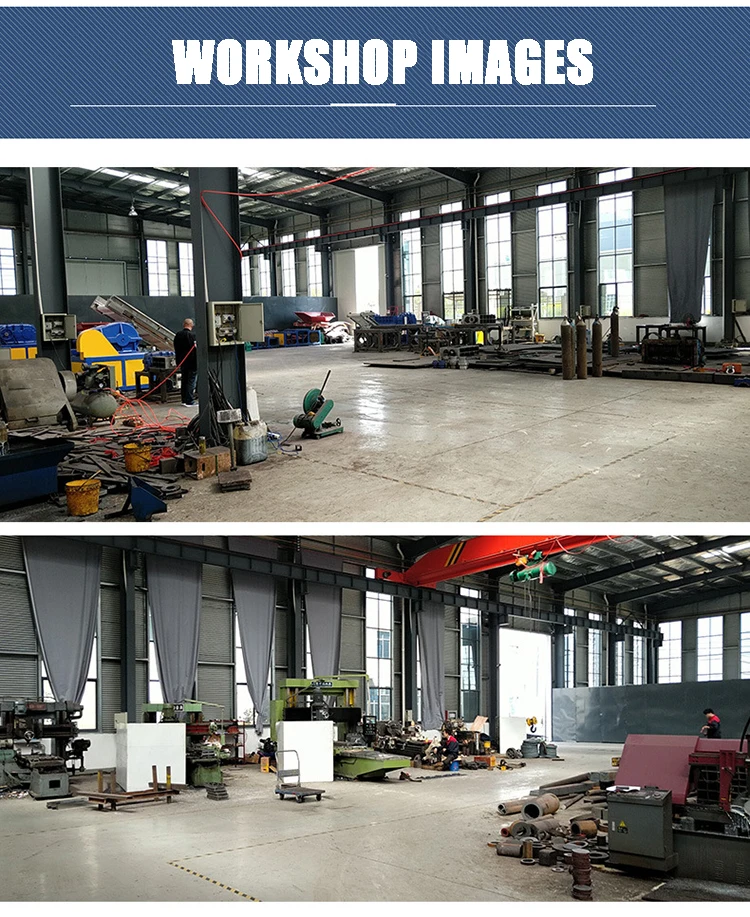

Company Profile
Henan Kaichuang Machinery Equipment Co., Ltd. is a modern enterprise that integrates design, research and development, production, sales, and export, specializing in the production of clean energy equipment, energy-saving equipment, and waste recycling equipment. All products adopt international quality standards. Our company adheres to the corporate spirit of people-oriented, honest and trustworthy, technological innovation, and pioneering spirit. We always take technology as the driving force and market orientation to make our products first-class. In order to ensure customer satisfaction, our company uses service skills as a carrier to provide customized solutions for customers, continuously optimizing equipment and facilities, and relying on the most professional knowledge and comprehensive technical support, we strive to implement comprehensive quality testing measures in all aspects of production.
FAQ
What does need from me to quote a price?
1.Raw material
2.Production capacity per batch.
Can I do extraction test with my own raw material?
Yes,of course.We can do extraction test and send you videos and test report for your Reference.
How long does it take to produce the machine once I place my order?
Usually the delivery time is 5 working days after prepayment received.
