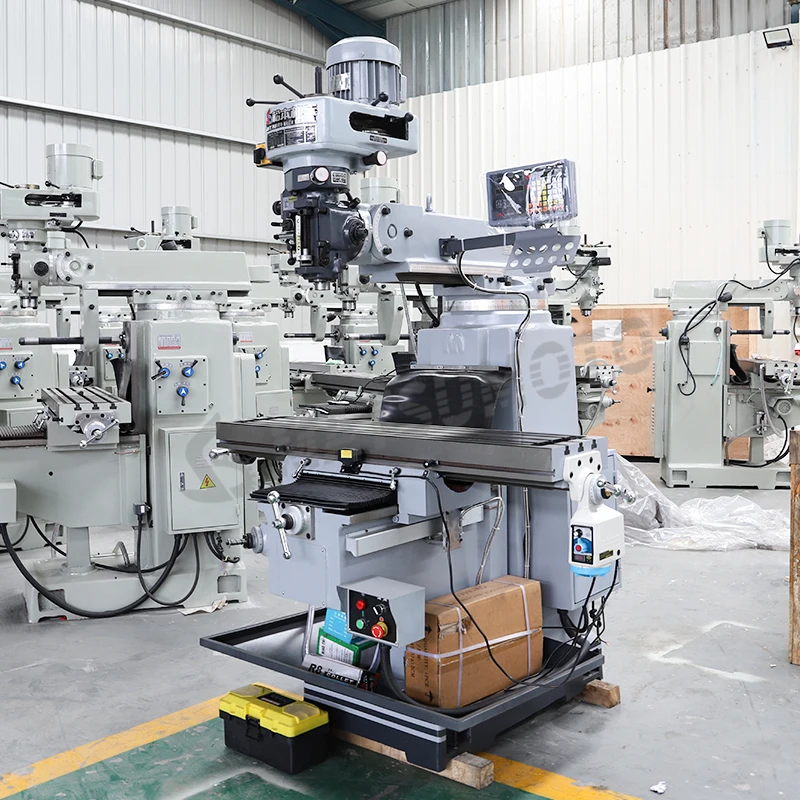

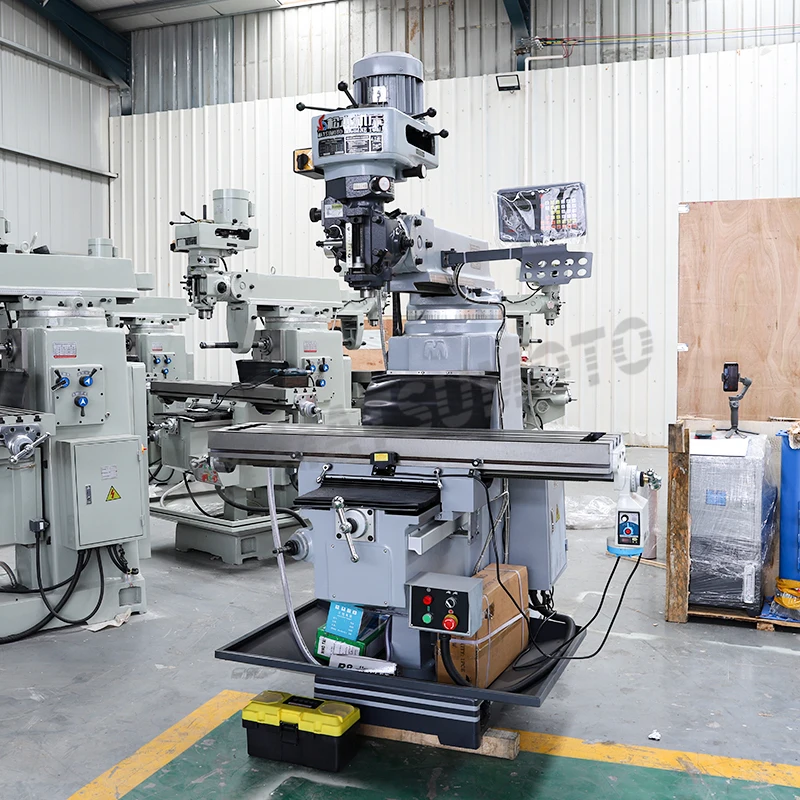

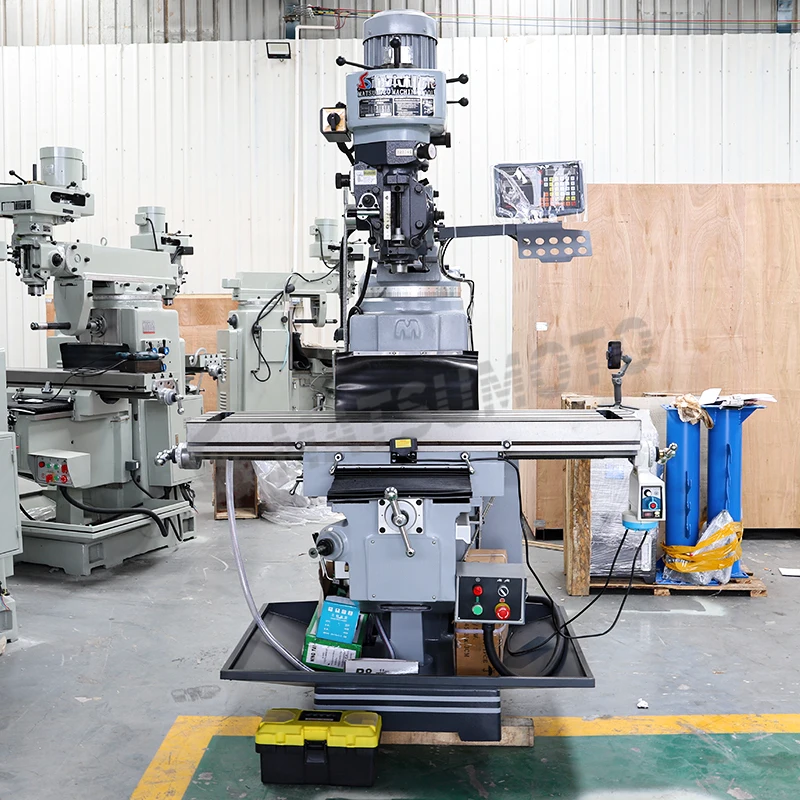

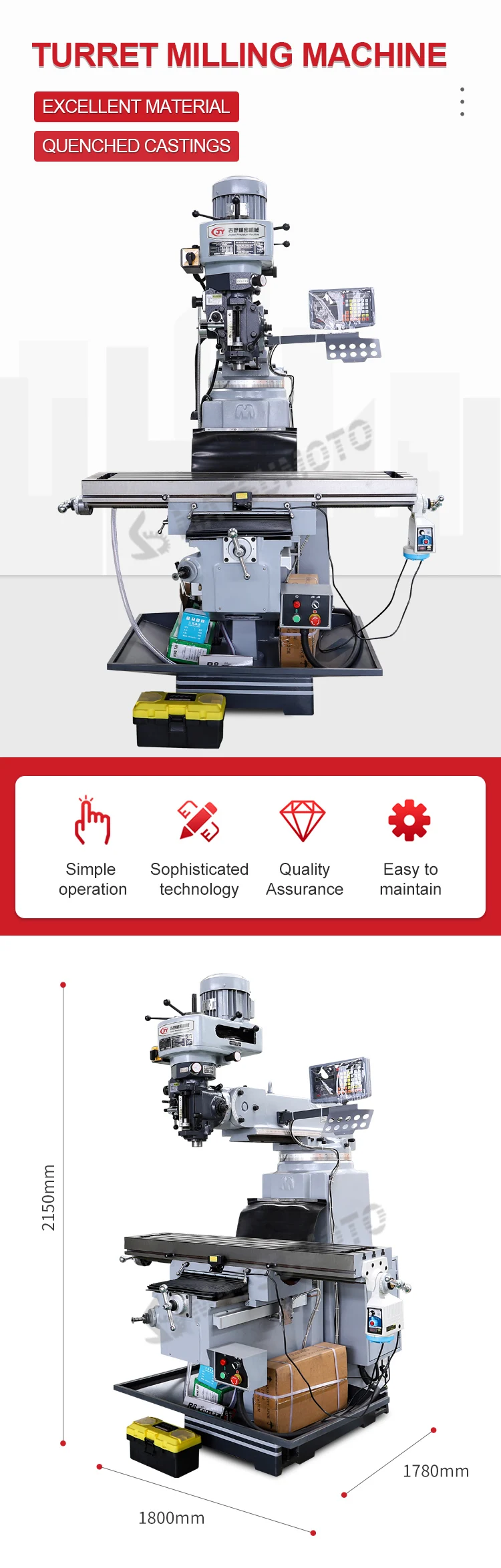

High Quality Digital Display 3 axis Conventional Swivel head Vertical Horizontal Turret Milling Machine
- Category: >>>
- Supplier: Shandong Matsumoto Machine Tool Co. Ltd.
Share on (1600817807115):
Product Overview
Description
Recommend Products
Products Description
Product Paramenters

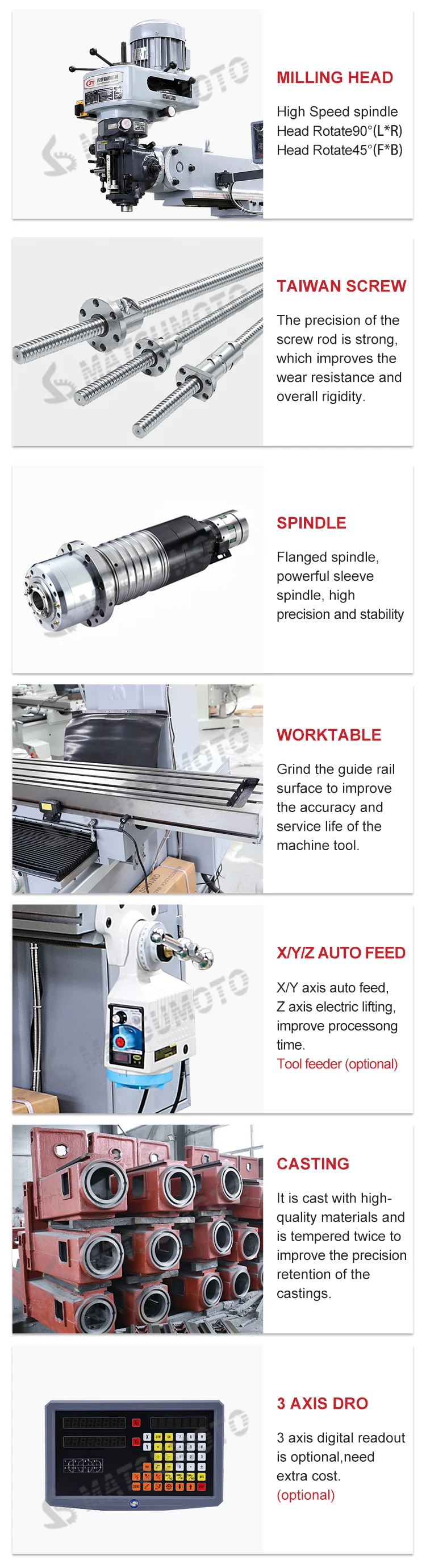

Features:

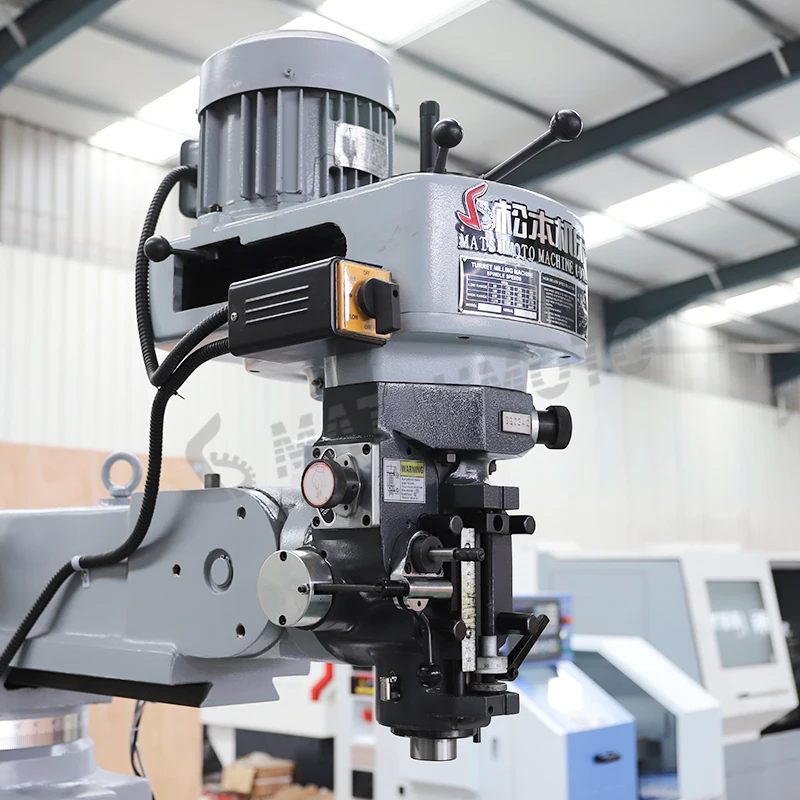

1.Taiwan Turret milling head;
2.The guide rail is super-audio quenched, precision ground and scraped;
3.Automatic lubrication system can reduces creep at low speed, reduces machine wear, improves accuracy and extends machine life;
4.Head rotation rotation 90°(left and right),head rotation 45°(back and forth)；
5.Pneumatic draw bar is optional.
Application:
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling,Milling medium, small parts of the plane, inclined plane, groove and spline etc.Widely used in mechanical processing, mold,equipment, instrumentation and other industries.
Main Specifications:
Specifications | Units | M4 | M5 | |
Table size | mm | 1270*254 | 1370*305 | |
Table travel | mm | 800/420/450 | 900/400/450 | |
Spindle taper | - | (V) R8/NT30/NT40 | ||
Spindle travel | mm | 127 | ||
Spindle speed range | rpm | 50HZ:65-4540 60HZ:60-5440 16 steps | 50HZ:65-4540 60HZ:60-5440 16 steps | |
T slot(number-width-pitch) | mm | 3-16-58 | 3-16-76 | |
Spindle feed range | mm | 0.76/0.003 | ||
Distance between spindle axis and table surface | mm | 0-400 | ||
Main motor power | kw | 380v 2.2/4 | ||
Lifting power | kw | 1.1 | ||
Weight | kg | 1200 | 1380 | |
Overall dimension | mm | 1700*1680*2150 | 1800*1780*2150 | |
Details Images
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
