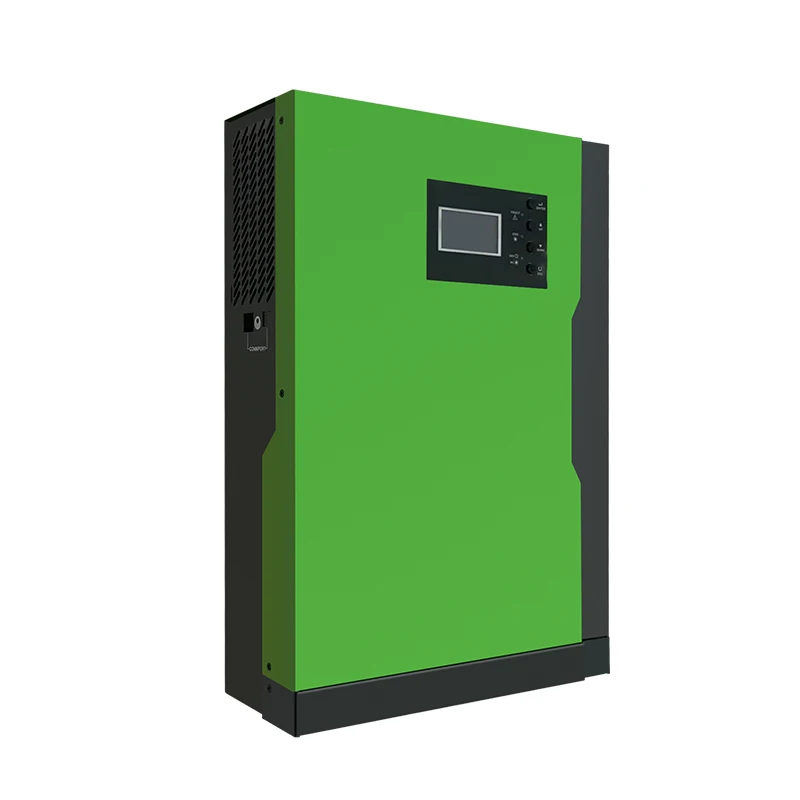

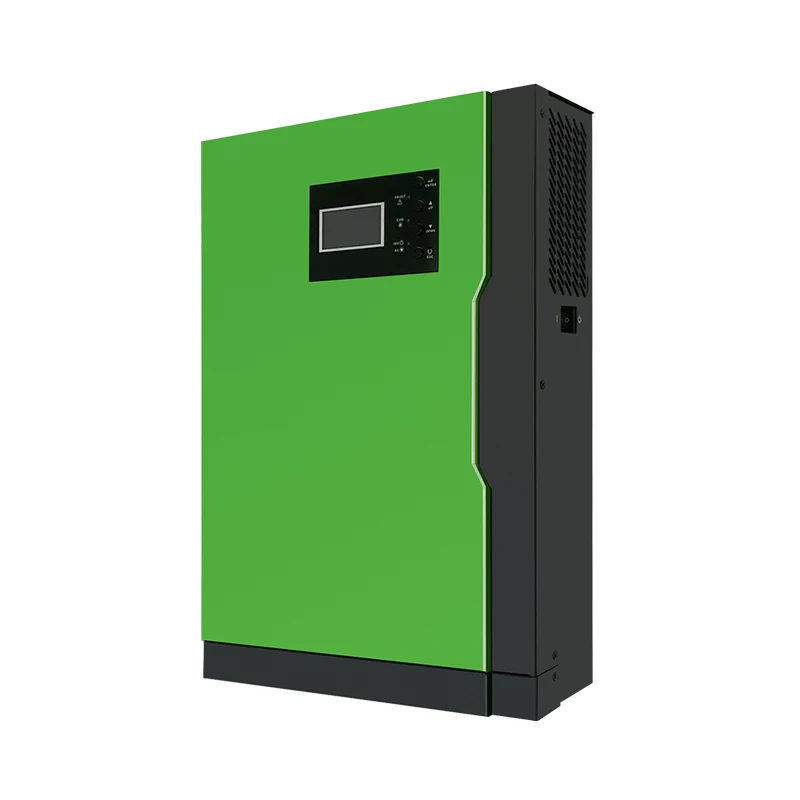

YIT 5.5kw 5kw 10kva Hybrid Inverter Pv 500vdc Invt Off Grid 5500w Inverter 48v Wall Mounted solar energy products inverter
- Category: >>>
- Supplier: Shenzhen YIT New Energy Technology Co. Ltd.
Share on (1600817864313):
Product Overview
Description
Model | VMI Plus 3.5KW | VMIl Plus 5.5KW | |

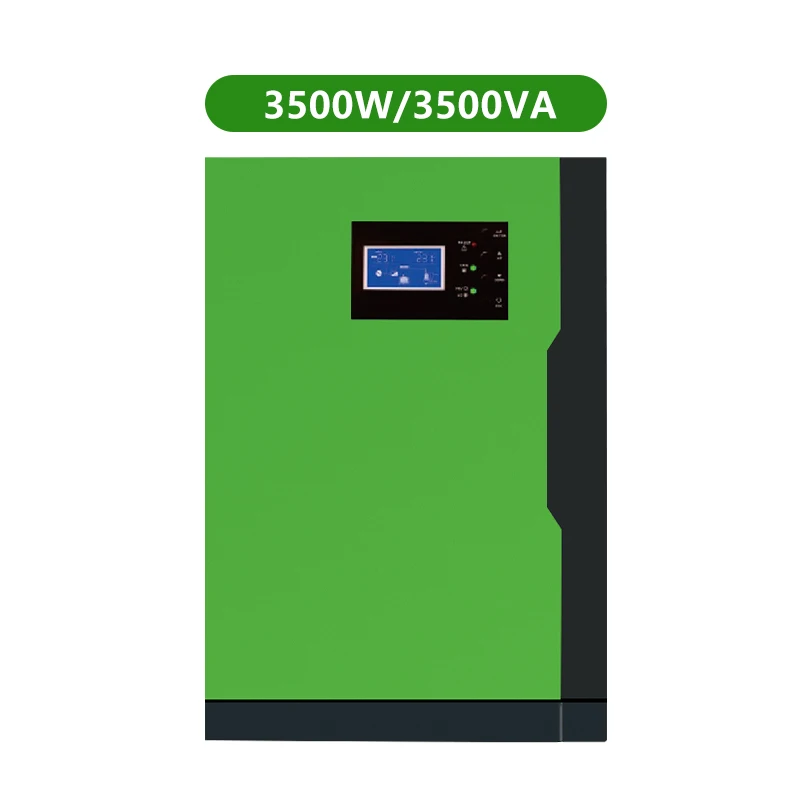

Rated Power | 3500VA/3500W | 5500VA/5500W | |
Input | |||
Voltage | 230VAC | ||
Voltage Range | 170-280 VAC(for PC)or 90-280 VAC (for Home Appliances) | ||
Frequency Range | 60/50Hz (Auto sensing) | ||
OUTPUT | |||
AC Voltage Ragulation (Bat Mode) | 230Vac土5% | ||
Surge Power | 6000VA | 10000VA | |
Efficiency(Peak) | 90%-93% | ||
Transfer Time | 10 ms (for Personal Computers); 20ms(for Home Appliances) | ||
Waveform | Pure sine wave | ||
Battery | |||
Battery Voltage | 24 VDC | 48 VDC | |
Floating Charging Voltage | 27 VDC | 54 VDC | |
Overcharge Protection | 33 VDC | 63 VDC | |
Solar Charger & AC Charger | |||
Solar Charge Type | MPPT | ||
Max PV Array Open Circuit Volgtage | 500 VDC | 500 VDC | |
Max PV Array Open Circuit Power | 5000 W | 5500W | |
MPP Range@Operating Voltage | 120-450VDC | 120-450 VDC | |
Maximum Solar Charge Current | 100A | 100A | |
Maximum AC charge Current | 100A | 100A | |
Maximum Charge Curren | 100A | 100A | |
PHYSICAL | |||
Dimension(LxWxH) mm | 100x300x440 | ||
Net Weight(kgs) | 10 kg | 10.5 kg | |

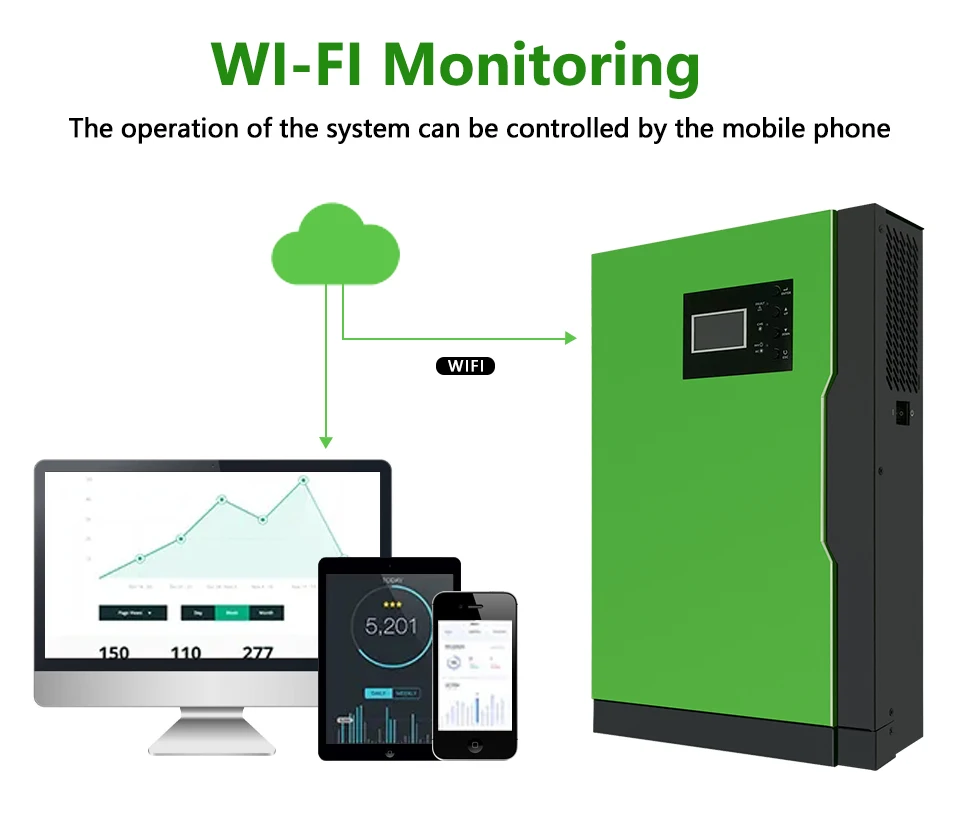

Communication Interface | USB/RS232 | ||
ENVIROMENT | |||
Humidity | 5-95% Relative Humidity (Non-condending) | ||
Operating Temperature | -10°C to 50°C | ||
Storage Temperature | -15°C to 60°C | ||
