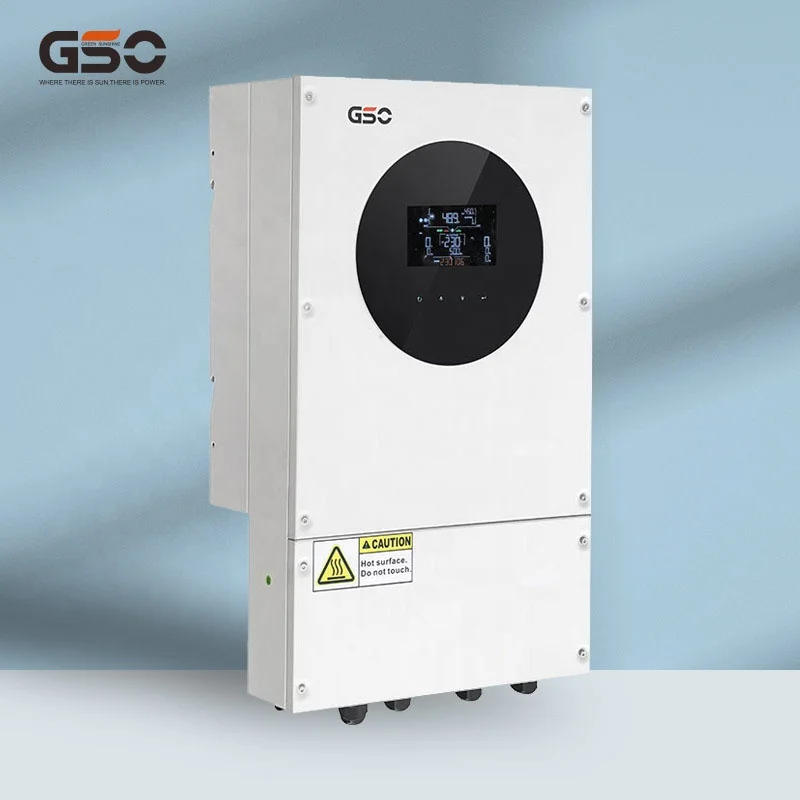

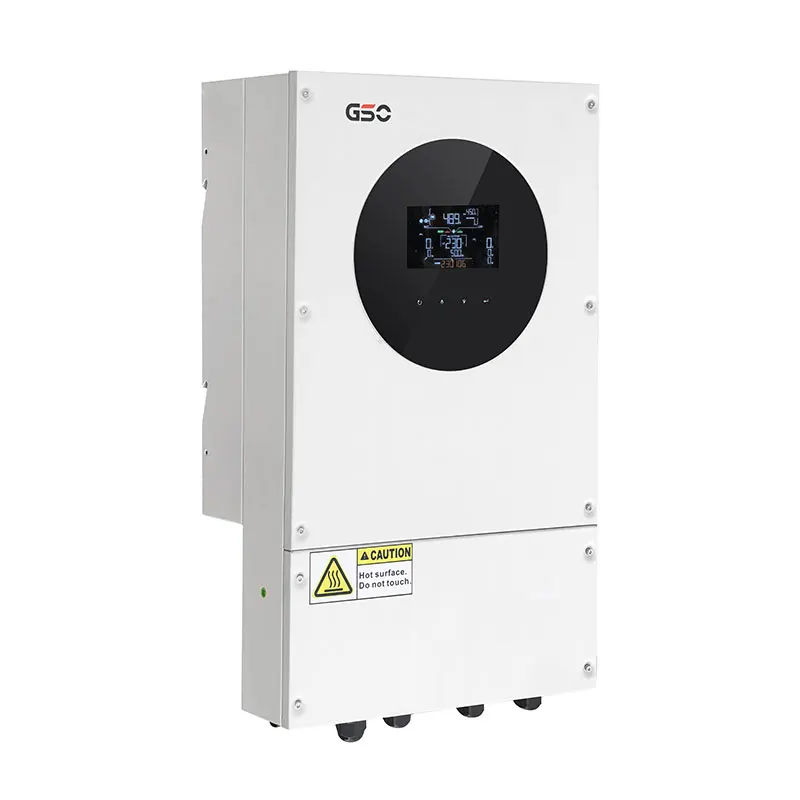

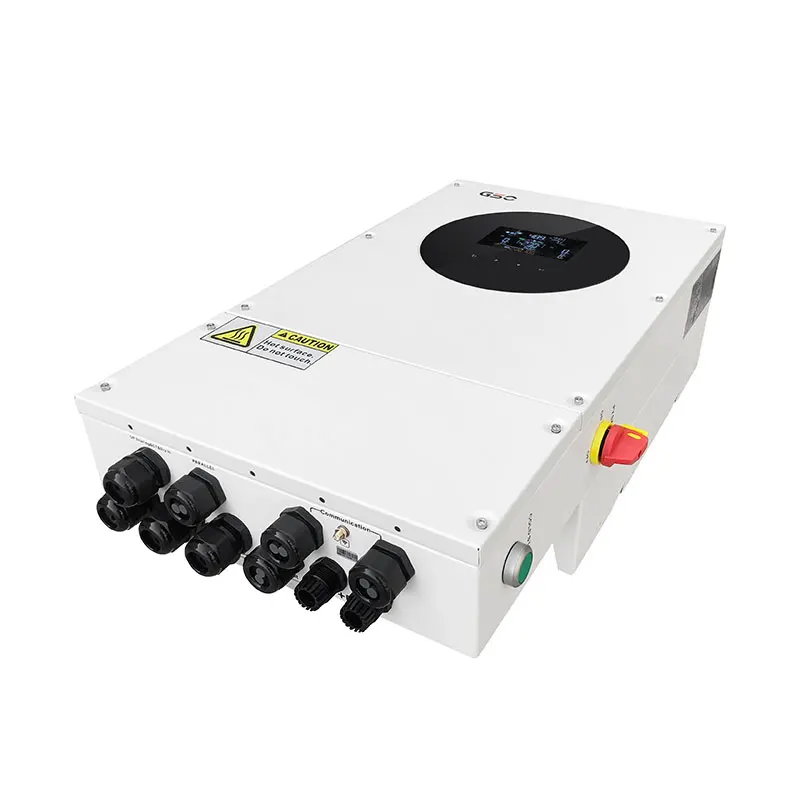

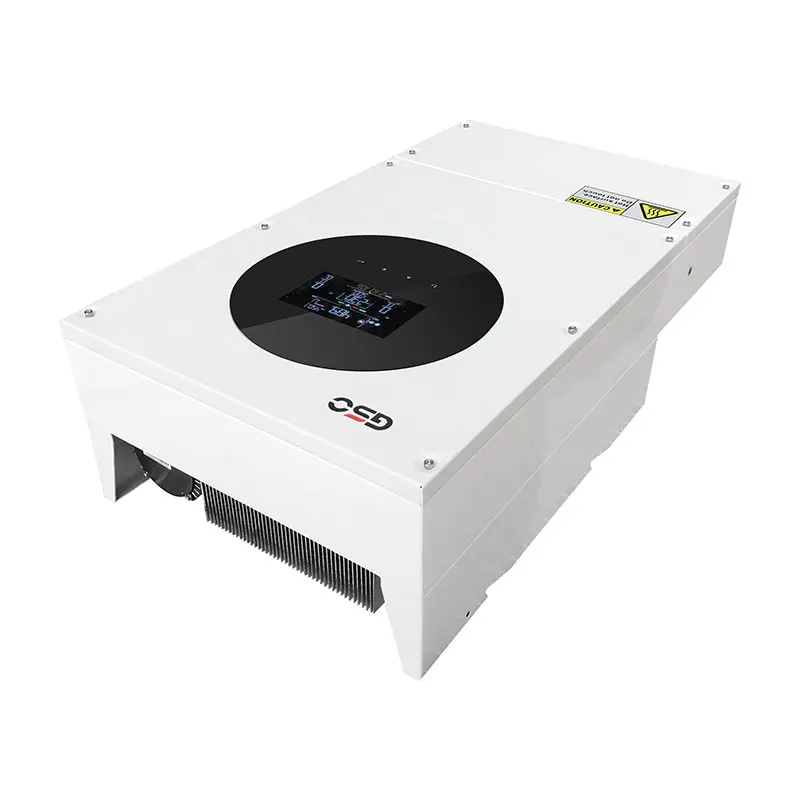

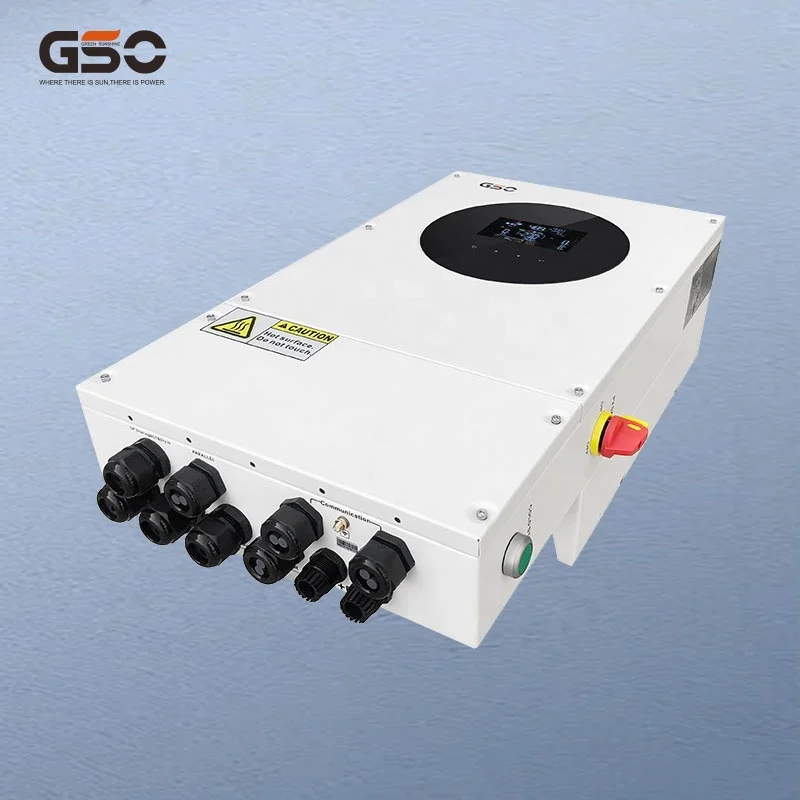

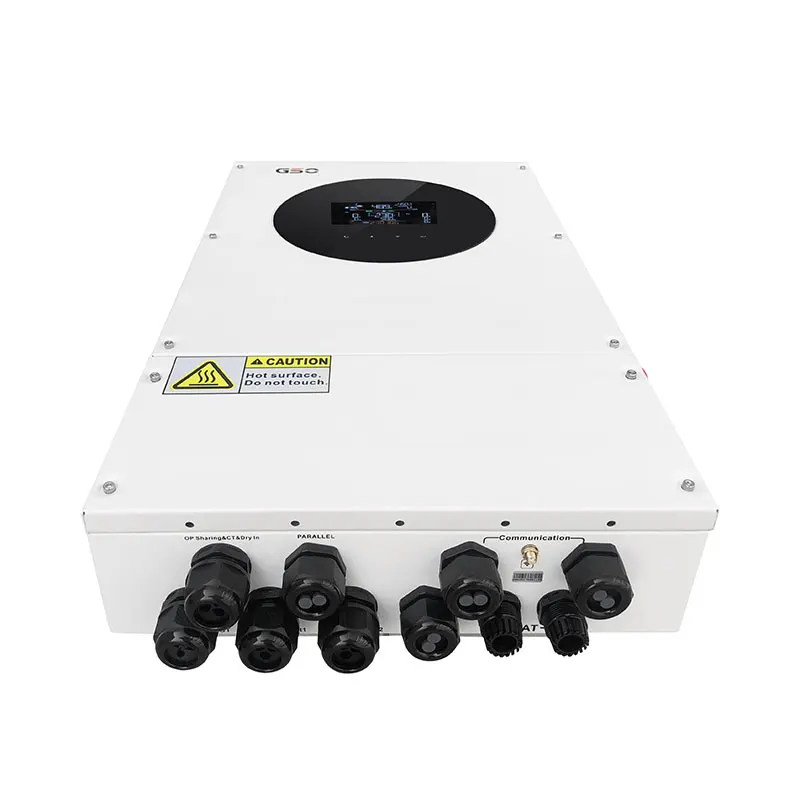

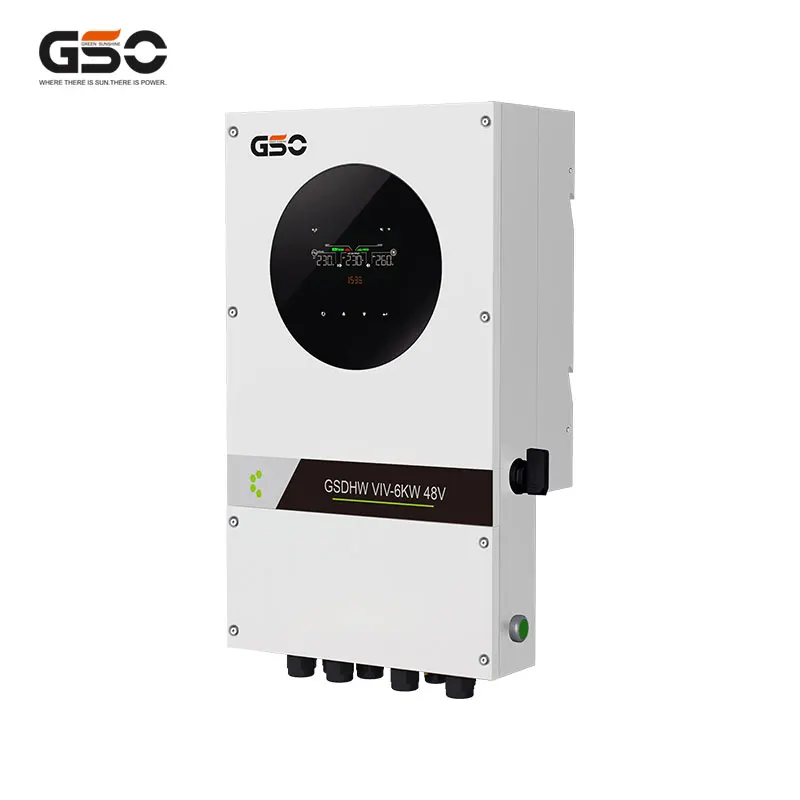

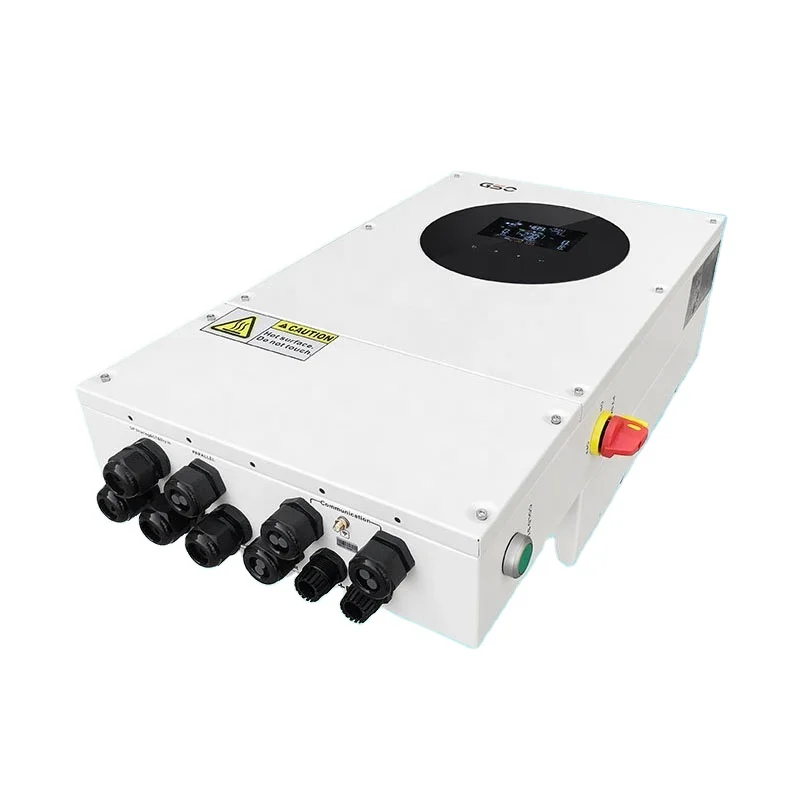

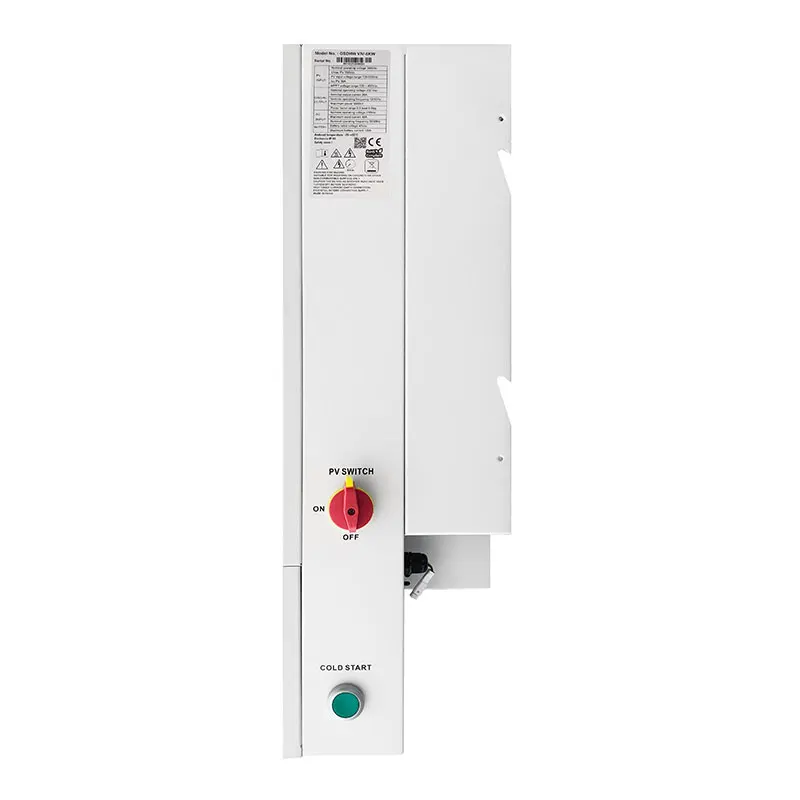

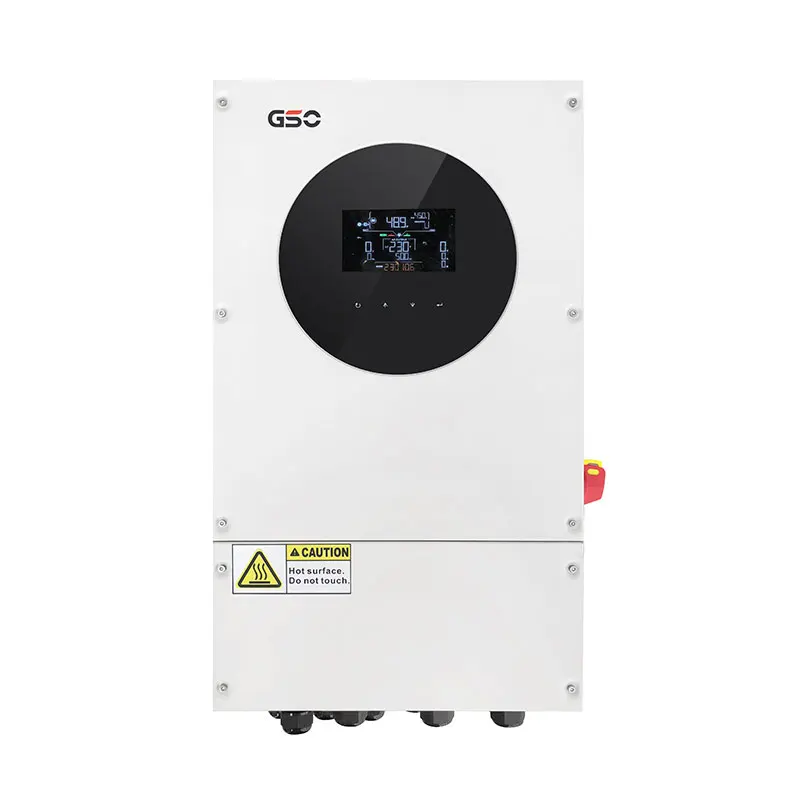

Off Grid Hybrid Solar Inverter With Mppt Charge Controller Combined Inverter Solar System Part
- Category: >>>
- Supplier: Jiangsu Gso New Energy Technology Co. Ltd.
Share on (1600818150094):
Product Overview
Description
Products Description
MODEL | GSDHW VIV-5KW 48V | GSDHW VIV-6KW 48V | ||
PHASE | 1-phase in / 1-phase out | |||
MAXIMUM PV INPUT POWER | 6000 W | 6500 W | ||
RATED OUTPUT POWER | 5000VA/5000W | 6000VA/6000W | ||
MAXIMUM CHARGING POWER | 5000 W | 6000 W | ||
GRID-TIE OPERATION | ||||
PV INPUT (DC) | ||||
Maximum DC Voltage | 500 VDC | 550 VDC | ||
Start-up Voltage / Initial Feeding Voltage | 120VDC / 150 VDC | |||
MPP Voltage Range | 120 VDC ~ 450 VDC | |||
Number of MPP Trackers / Maximum Input Current | 1 / 27A | 1 / 30A | ||
GRID OUTPUT (AC) | ||||
Nominal Output Voltage | 220/230/240 VAC | |||
Output Voltage Range | 184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable) | |||
Nominal Output Current | 21.7A | 26A | ||
Power Factor | > 0.99 | |||
EFFICIENCY | ||||
Maximum Conversion Efficiency (DC/AC) | 95% | |||
OFF-GRID OPERATION | ||||
AC INPUT | ||||
AC Start-up Voltage / Auto Restart Voltage | 120 - 140 VAC / 180 VAC | |||
Acceptable Input Voltage Range | 90 - 280 VAC or 170 - 280 VAC | |||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
Maximum AC Input Current | 40 A | |||
PV INPUT (DC) | ||||
Maximum DC Voltage | 500 VDC | 550 VDC | ||
MPP Voltage Range | 120VDC ~ 450 VDC | |||
Number of MPP Trackers / Maximum Input Current | 1 / 27A | 1 / 30A | ||
BATTERY MODE OUTPUT (AC) | ||||
Nominal Output Voltage | 220/230/240 VAC | |||
Output Waveform | Pure sine wave | |||
Efficiency (DC to AC) | 93% | |||
HYBRID OPERATION | ||||
PV INPUT (DC) | ||||
Maximum DC Voltage | 500 VDC | 550 VDC | ||
Start-up Voltage / Initial Feeding Voltage | 120 VDC / 150 VDC | |||
MPP Voltage Range | 120 VDC ~ 450 VDC | |||
Number of MPP Trackers / Maximum Input Current | 1 / 27A | 1 / 30A | ||
GRID OUTPUT (AC) | ||||
Nominal Output Voltage | 220/230/240 VAC | |||
Output Voltage Range | 184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable) | |||
Nominal Output Current | 21.7A | 26A | ||
AC INPUT | ||||
AC Start-up Voltage / Auto Restart Voltage | 120 - 140 VAC / 180 VAC | |||
Acceptable Input Voltage Range | 90 - 280 VAC or 170 - 280 VAC | |||
Maximum AC Input Current | 40 A | |||
BATTERY MODE OUTPUT (AC) | ||||
Nominal Output Voltage | 220/230/240 VAC | |||
Efficiency (DC to AC) | 93% | |||
BATTERY & CHARGER | ||||
Nominal DC Voltage | 48 VDC | |||
Maximum Solar Charging Current | 100 A | 120 A | ||
Maximum AC Charging Current | 100 A | 120 A | ||
Maximum Charging Current | 100 A | 120 A | ||
GENERAL | ||||
PHYSICAL | ||||
Dimension, D x W x H (mm) | 192 x 360 x 665 | |||
Net Weight (kgs) | 22.5 | |||
INTERFACE | ||||
Parallel Function | Yes, 9 units | |||
Communication Port | USB or RS-232/Dry Contact/RS485/Wi-Fi | |||
ENVIRONMENT | ||||
Humidity | 0 ~ 95% RH (No condensing) | |||
IP degree | IP65 | |||
Operating Temperature | -25°C to 50°C | |||
Performance characteristics：
1.Pure sine wave output
2.IP65 waterproof and dustproof makes the inverter available for various working conditions
3.Self-consumption and Feed-in to the grid
4.Programmable supply priority for PV, Battery or Grid
5.Built-in communication port for BMS (RS485), Wi-Fi
6.User-adjustable charging current and voltage

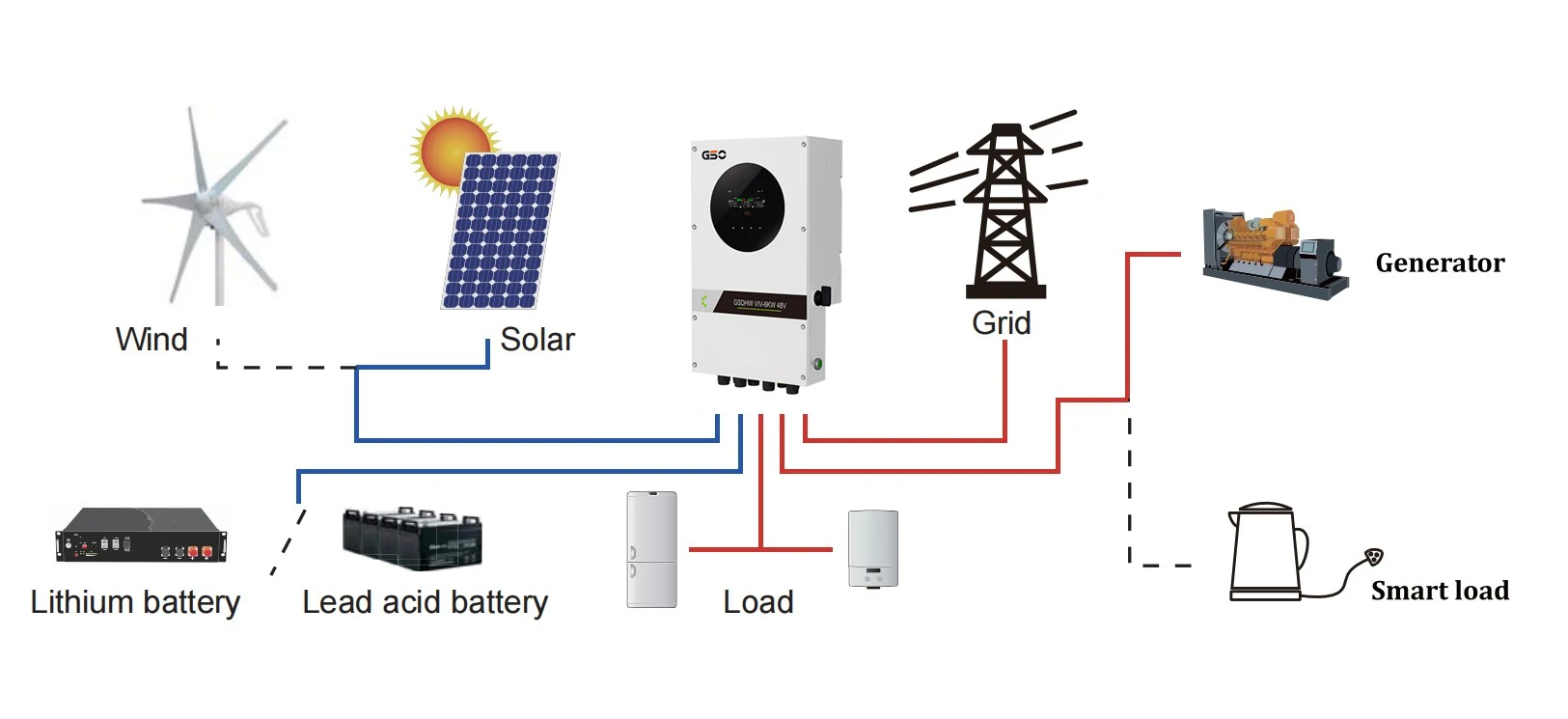

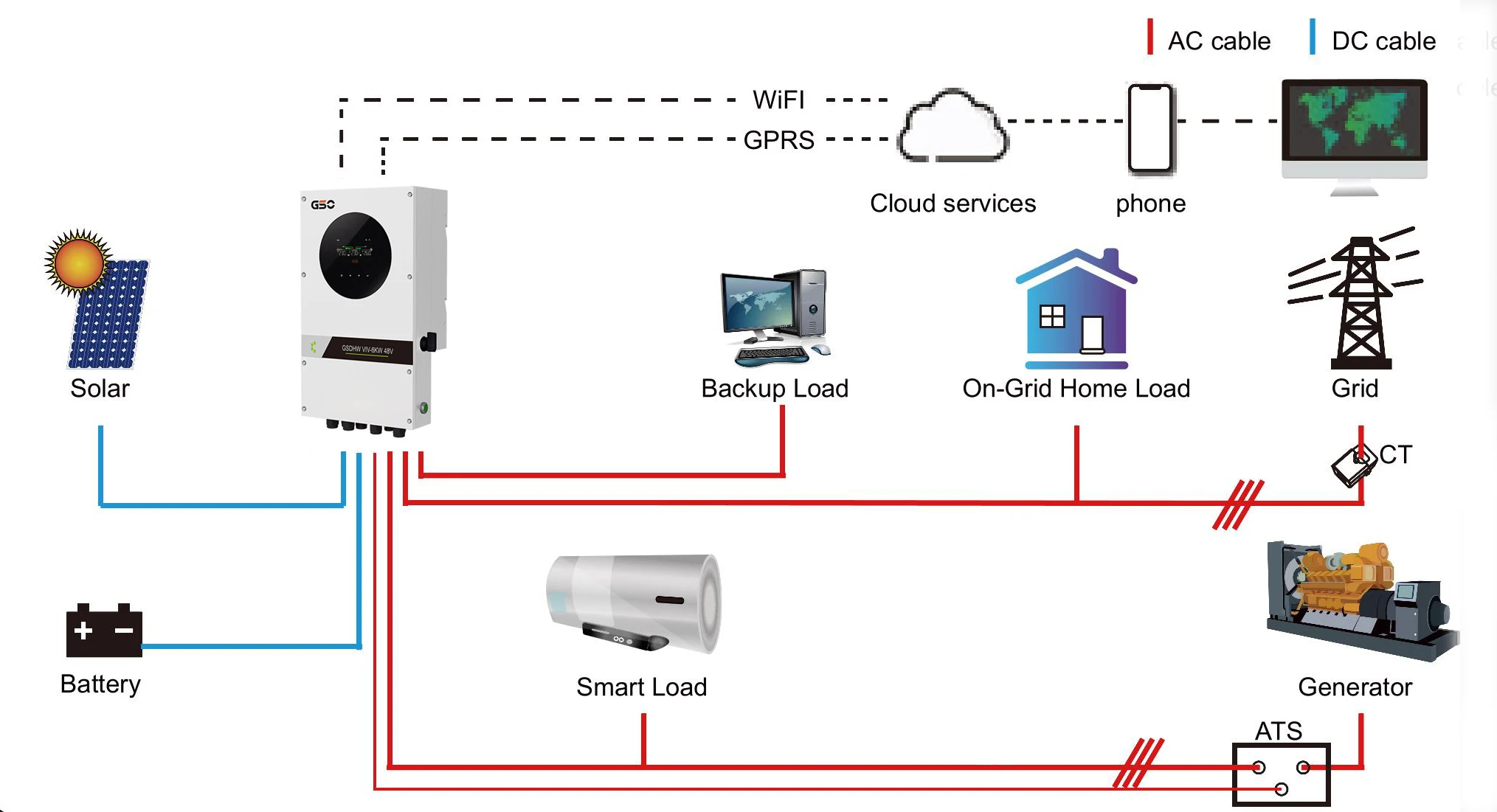

7.Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
8.Dual output for smart load control
9.Parallel operation up to 9 units
1.Pure sine wave output
2.IP65 waterproof and dustproof makes the inverter available for various working conditions
3.Self-consumption and Feed-in to the grid
4.Programmable supply priority for PV, Battery or Grid
5.Built-in communication port for BMS (RS485), Wi-Fi
6.User-adjustable charging current and voltage
7.Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
8.Dual output for smart load control
9.Parallel operation up to 9 units
