specification	NZG-32 Internal combustion rail drilling machine
Processing customization	is
Is it a cross-border export exclusive source of goods	no

The New ArrivalsNZG-32 Train track Hole opener operates a simple track hole punch

Phone :180-537-99894

summary

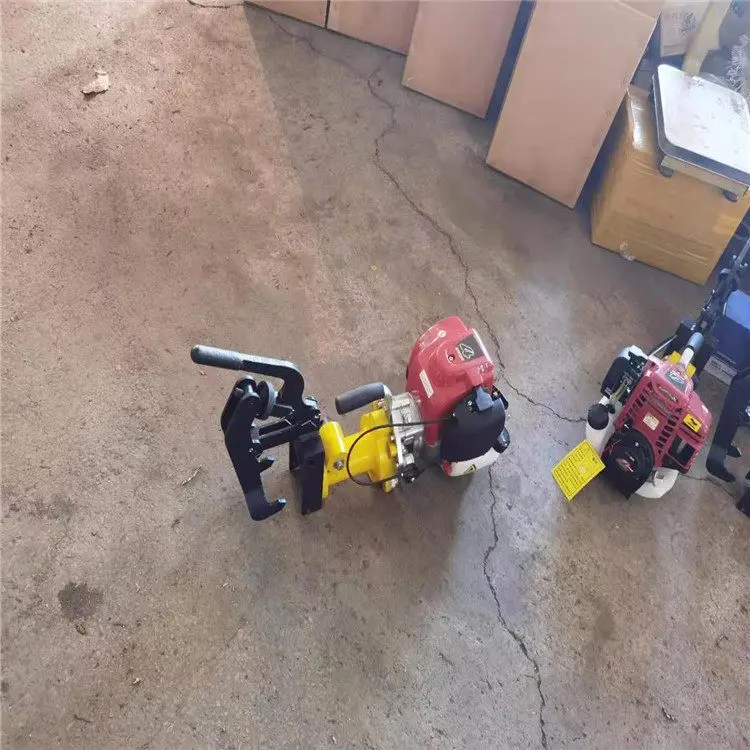

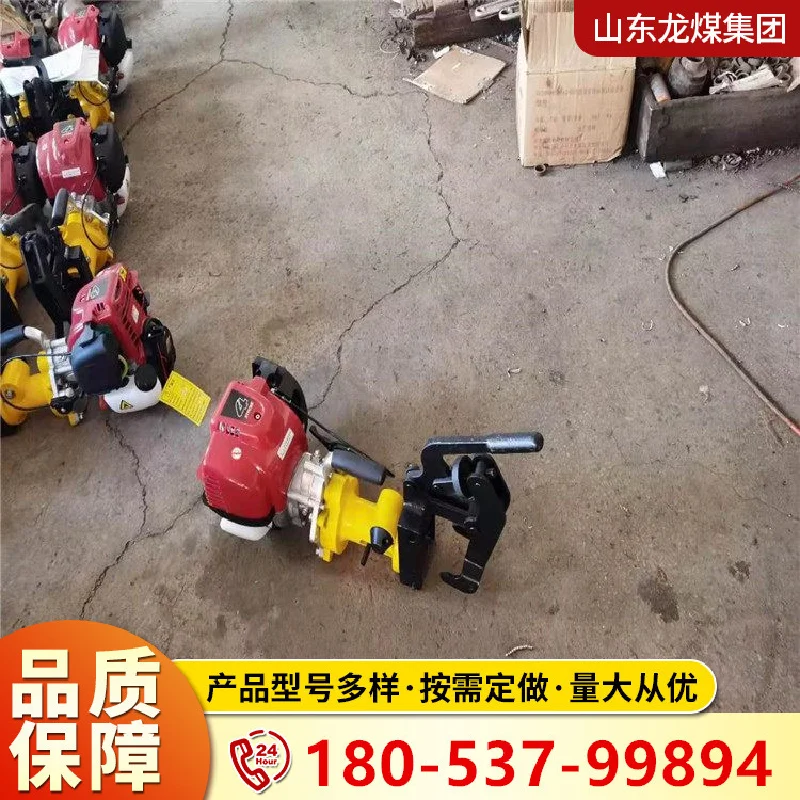

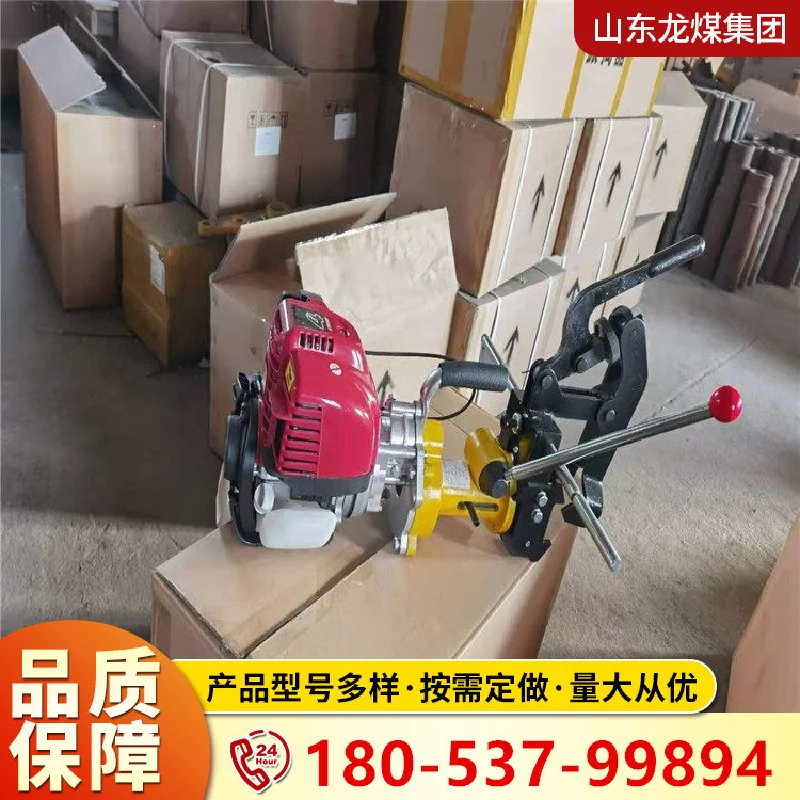

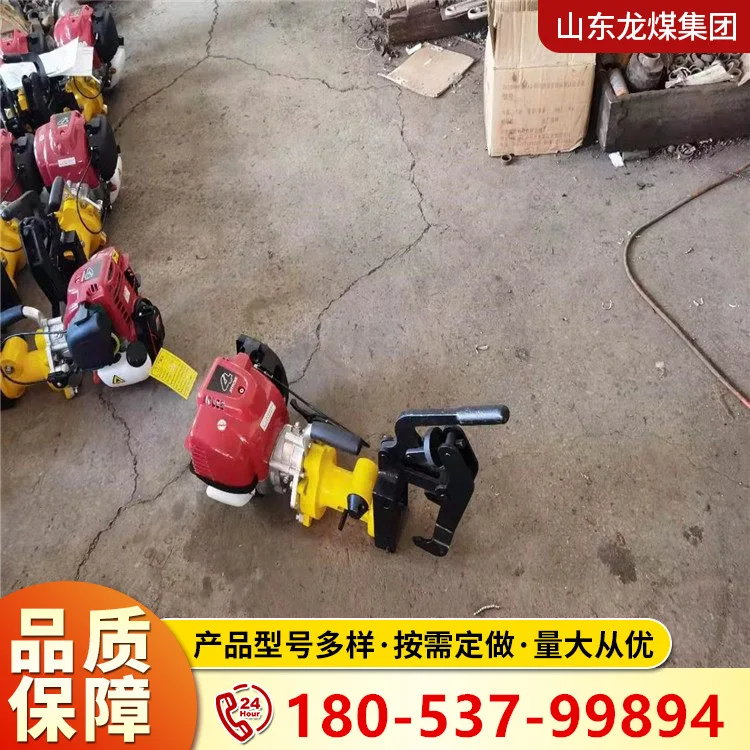

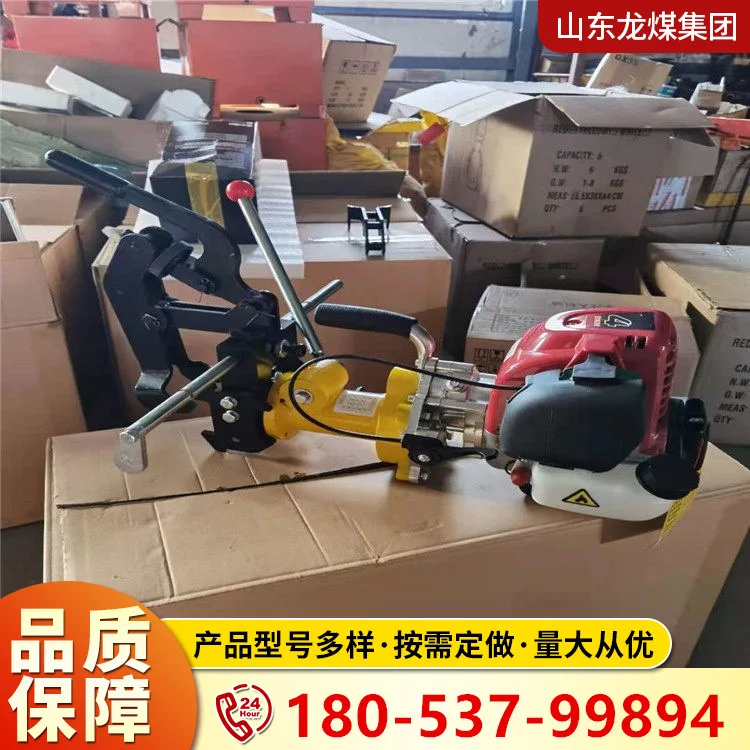

NZG-32 type internal combustion rail drilling machine is suitable for high power maintenance machinery between areas without power supply, this machine uses internal combustion engine as the power, small volume, simple operation, convenient maintenance, is the ideal machine for drilling 50kg 60kg rail. This drilling machine is suitable for public works and engineering departments to drill the joint hole of the rail and the basic rail of the switch, also suitable for electrical and engineering departments to drill the rail into the lead plug hole. The public works department uses hollow bit, and the electric department uses twist bit. The drilling machine has the characteristics of reliable, fast card loading, high drilling accuracy, short time, fast efficiency, light weight, simple operation, flexible and convenient.

Main technical parameters

Drilling diameter: 9.8-31mm

Rated power :1.2kw

Rated speed: 270-350r/min

Degree :0.2mm

Drilling time: 30-45Second

Machine weight :17kg

Structural characteristics

This drilling machine is composed of fixtures, shaft sleeve feeding devices, working devices, reducers, gasoline engines, and other components. The power of the gasoline engine is transmitted to the spindle through the clutch, reducer, working device, and other components to drive the drill bit to rotate

Usage method

Installation of drill bit: Loosen the two perpendicular top screws at the front of the spindle, install the drill bit, align the two planes of the drill bit handle with the top screw, and tighten the top screw

Adjusting the top block: There are four top blocks at the bottom of the fixture, with different types of top block position markings on the specific sides of the card. Loosen the top block bolts (without unscrewing them), adjust the top block position according to the type of steel rail drilled, and tighten the bolts

Add fuel: Unscrew the tank cap on top of the mailbox, add 90#(or 93#) gasoline, and tighten the tank cap.

Before starting the engine/gearbox, it is necessary to add four stroke motorcycle lubricating oil (engine oil)

Clamping drilling machine: The vertical use of the clamping wire can be used as a handle. Lift the drilling machine, make the side of the upper beam of the clamping tool close to the side of the ruler block, tighten the clamping wire, and jam the rail.

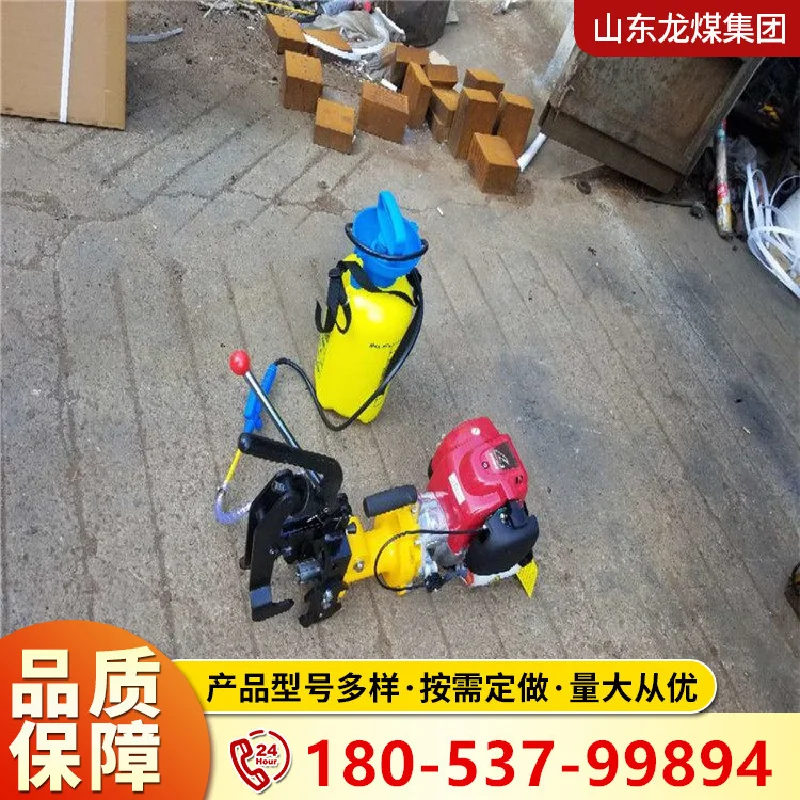

Connect cooling water: This machine is equipped with a pressure kettle. Fill the kettle with cool water and tighten the lid. There is a water pipe joint on the side of the drilling machine. Connect the water pipe with the water pipe joint of the drilling machine and press the pressure pot to check that the system should not leak.

Attention: The water pressure system should have pressure. If there is no pressure, it should not be used, otherwise the drill bit will be burned

Start the gasoline engine: Operate the gasoline engine strictly according to the instructions.

The spindle can only rotate when the gasoline engine's speed reaches 2000rpm. Increase the throttle to make the spindle speed reach 400rpm, open the cooling water, turn the feed handle, and start drilling operation.

Maintenance and maintenance;

This drilling machine is a machine that should be handled with care and should not be dropped

There are two water seals between the main shaft and the body of the drilling machine.

When changing the bit, unscrew the water inlet on the body, and then shake the bit to the front end to facilitate the change of the bit.

The drilling machine should be kept away from moisture. It should be dried when it is kept out of use for a long time.

When in use, the pin-shaft of the gear transmission/fixture and the feed screw should be regularly filled with oil.

When drilling, always keep the bit sharp (the edge Angle is 118°) to ensure the normal operation of the drilling machine.

After use, the drill machine should be wiped clean. The place that needs to be oiled should be oiled to prevent rust, and then dry, clean and put away the stock without corrosive gas.

Check the lubricating grease of the machine once a year. If it is missing or contaminated, add or replace it. The lubricating grease should be No.1 calcium sodium based grease

Operation precautions:

Check before starting, the body is as follows;

1.1 Check the clamping rail condition: according to different rail types, install the positioning block and adjust the top wire of the clamping rail part. If it is too loose, the clamping card is not strong; if it is too tight, it is easy to damage the clamping device.

1.2 Check that the spindle can drill in and out freely, without jamming phenomenon.

2\\ When starting up, idling the drilling machine for half a minute, and then drilling after the running balance and no abnormal phenomenon.

3\\ When drilling, even force should not be too fierce to prevent the bit from getting stuck.

4\\ When the hole is to be drilled through, slow down and reduce the force to prevent damage to the drill bit.

5\\ Stop the drill immediately after the drill is finished. Do not touch the drill with your hand before the drill is finished.

When repairing, maintaining, or replacing parts, the next position should be repaired

8\\ Check the place for oil leakage before starting. If there is oil leakage, it is strictly prohibited to operate. After finishing the work, drain the gasoline to prevent fire.

9\\ Check and repair frequently after use to keep in good condition.

10\\ Stop operation of internal combustion engine if abnormal phenomenon is found.
