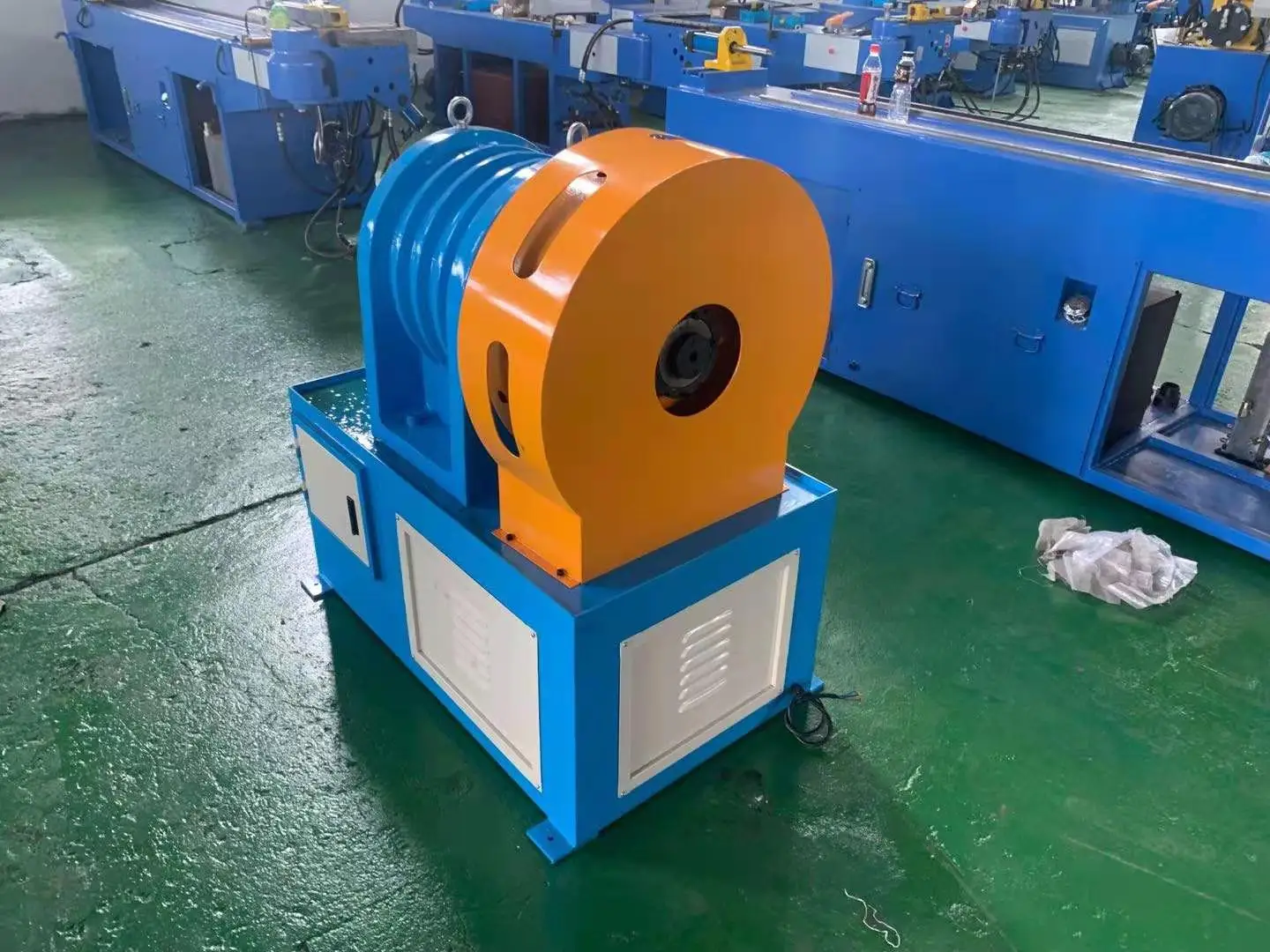

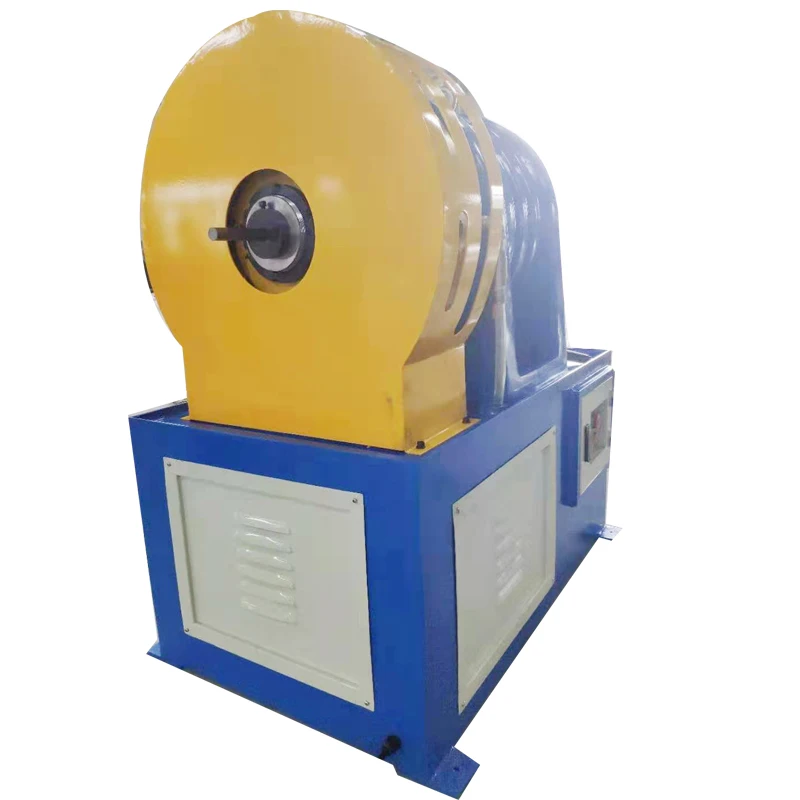

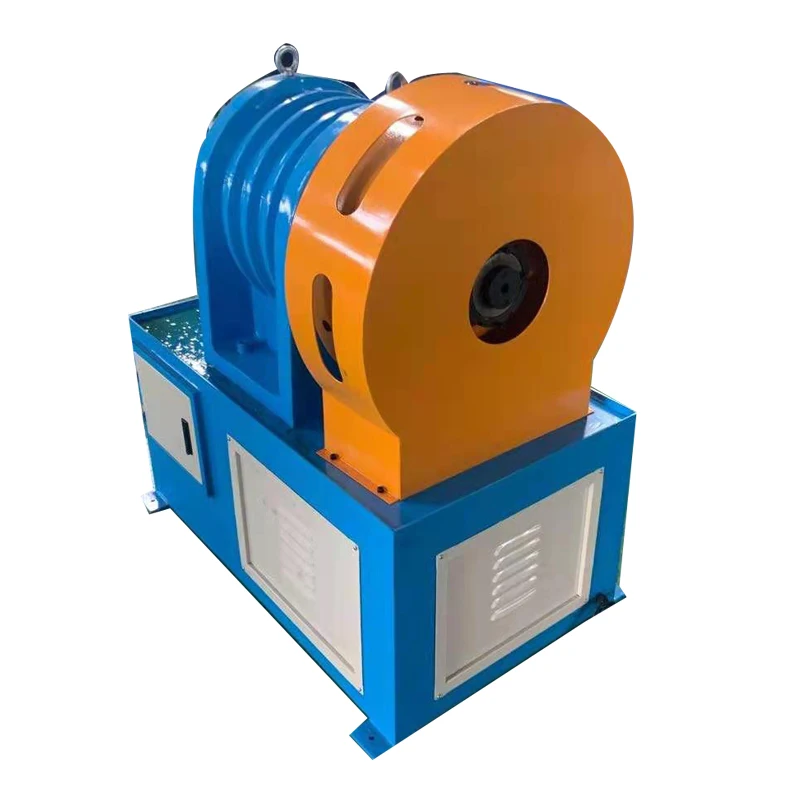

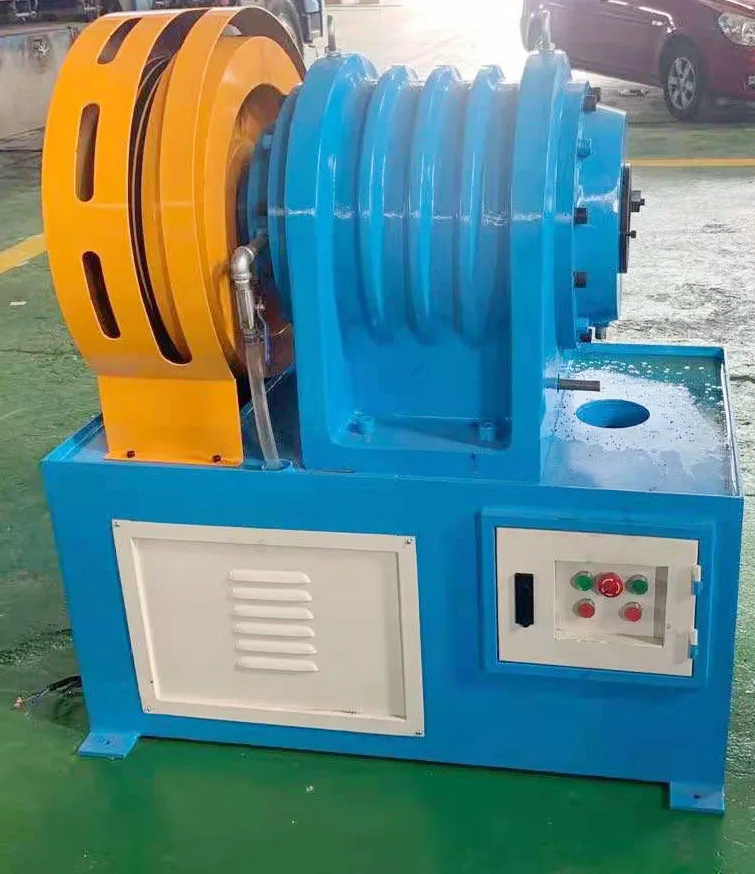

Pipe shrink machine Stainless steel pipe reducer metal taper necking machine pipe end forming machine
- Category: >>>
- Supplier: Shandong Soar Machinery Co. Ltd.
Share on (1600818320856):
Product Overview
Description
Products Description

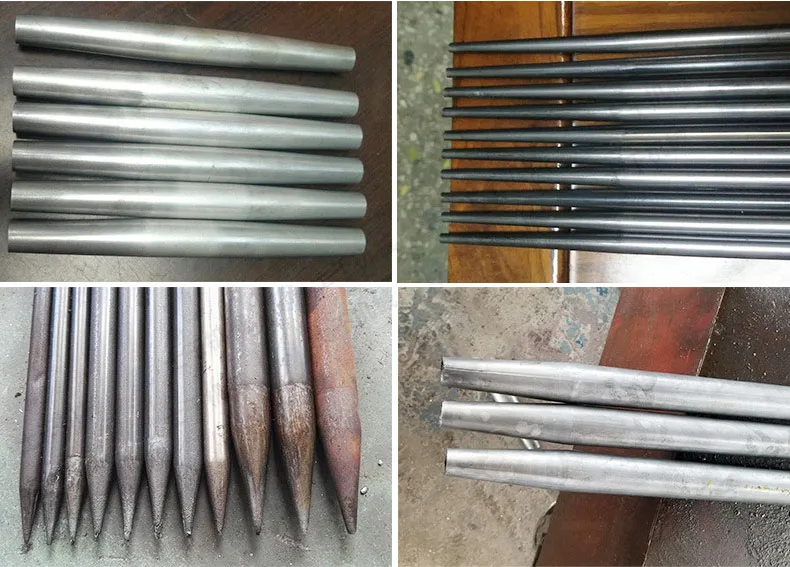

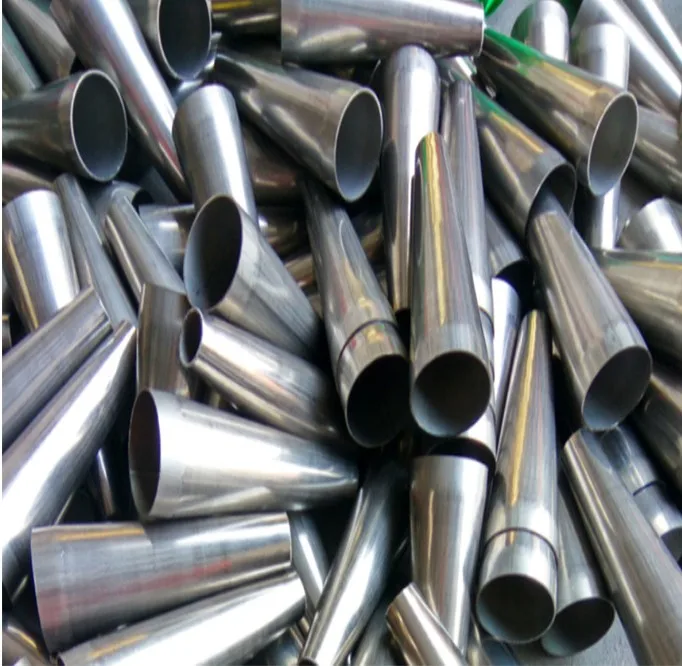

1. It is used for tapering round metal pipe , There are manual and automatic function for our option,
advantages : Low noise,Easy operation,high output and stable performance .
2. Processing time is short ,high work efficiency ,smooth surface ,the work piece is not be scratched.
3. Mould change is simple ,We can equip with the mould for different shapes of metal pipes and meet different requirement .
4. Application: Car,Furniture, lightning ,water pump.
advantages : Low noise,Easy operation,high output and stable performance .
2. Processing time is short ,high work efficiency ,smooth surface ,the work piece is not be scratched.
3. Mould change is simple ,We can equip with the mould for different shapes of metal pipes and meet different requirement .
4. Application: Car,Furniture, lightning ,water pump.
Maximum cone diameter | Φ50mm×2.0 |
Maximum length of cone tube | 400mm |
Mold size | 400×32×44mm |
Spindle speed | 177 rpm |
Parameter shift production | about 3000 pieces |
Motor power | 5.5KW |
Oil pump motor power | 0.75KW |
Molding time | 6-15 seconds/time |
One-time shrinking capacity | 300mm |
Mold opening and closing volume | 2mm |
Working voltage: | 380V 50H3 phase or customized |
Mould material | Cr12moc |
Product packaging
Inner package foamed plastic or stretch film,outpackage:iorn frame or wooden case.
Delivery shipped in 7-25days after payment
Delivery shipped in 7-25days after payment
