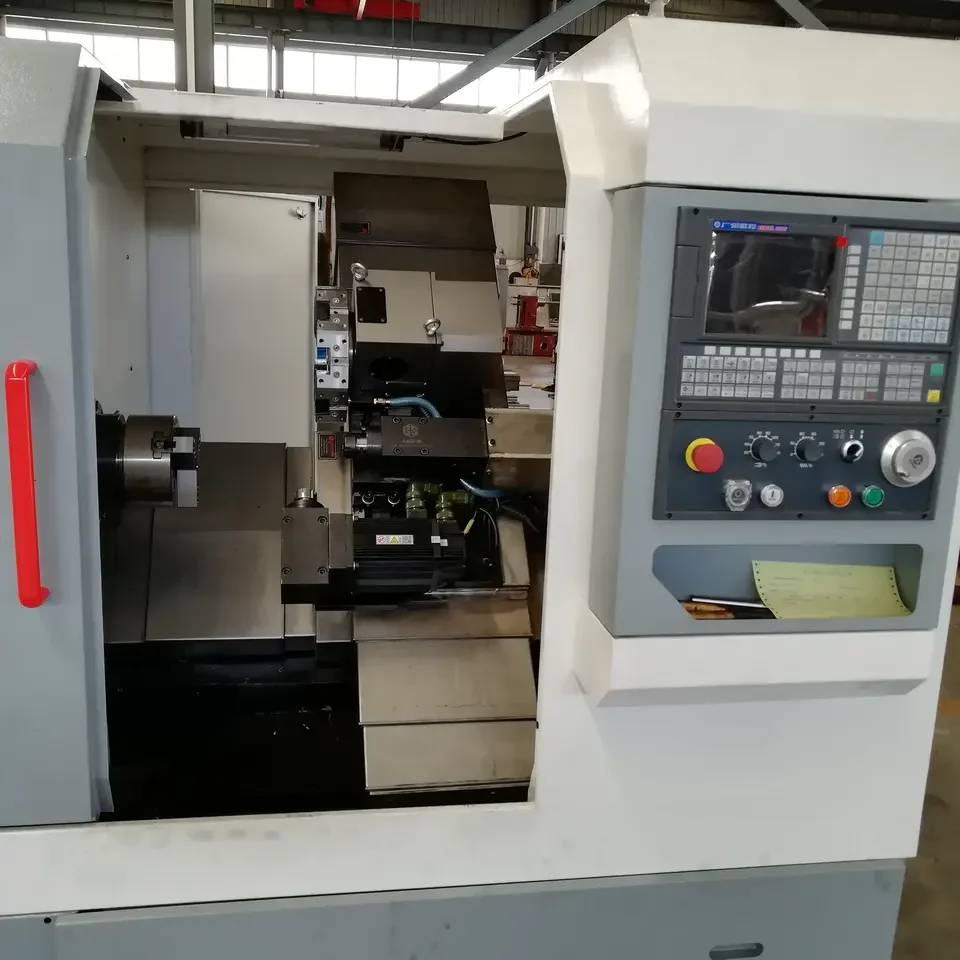

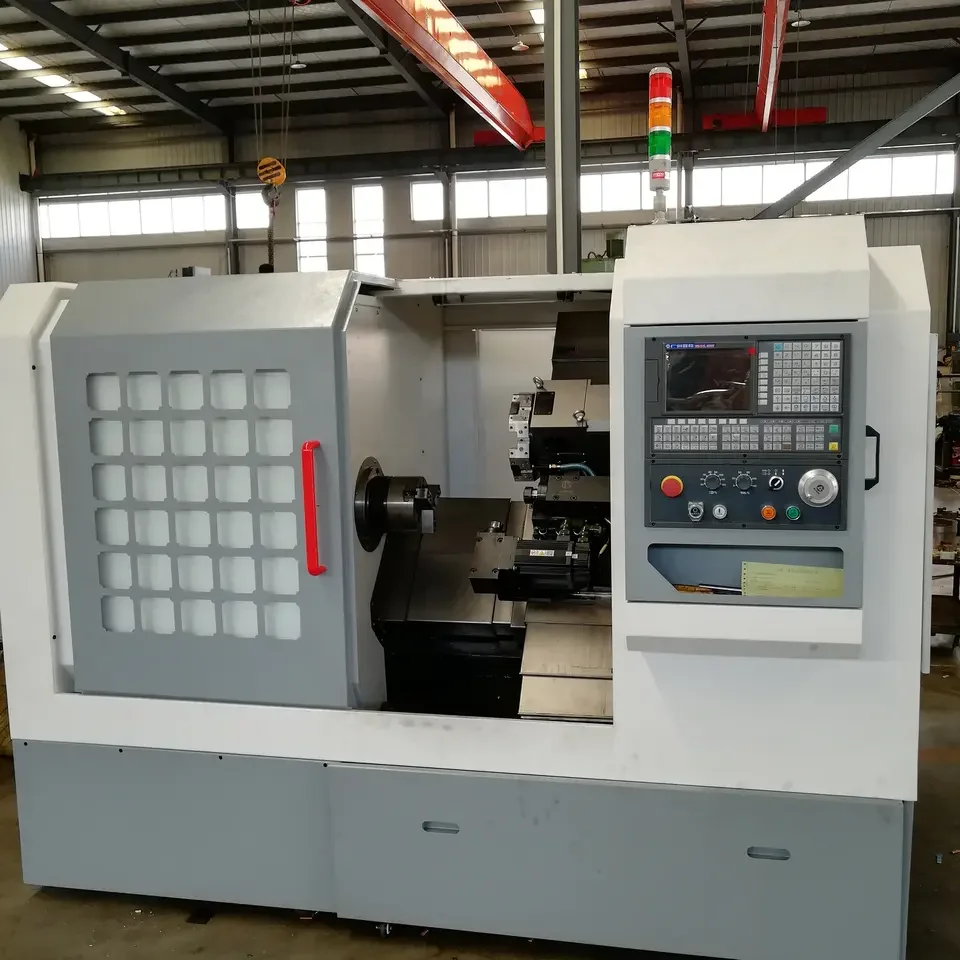

TCK6340 New4 axis CNC Lathe Manufacturer: High Precision, Low Price, Universal Fully Automatic CNC LatheSwiss lathe
- Category: >>>
- Supplier: Tengzhou Believe Machinery Co. Ltd.
Share on (1600818358148):
Product Overview
Description
Product Description
Linear guide way, TRUE slant bed advantages over block guide way, flat bed CNC lathe
Higher speed, higher rigidity, higher position accuracy, higher working efficiency, the best machining effect, bring more profit at the same working time.
Slant bed spindle unit speed 3500 rpm is higher than flat bed spindle speed 2000rpm.
Linear guide way position accuracy 0.02 mm is more precise than block guide 0.01mm.
One-piece of bed and base, 45degrees true slant bed, instead of several pieces machine bed, ensure higher rigidity, stability during long service time.
Spare parts free of cost with machine
Higher speed, higher rigidity, higher position accuracy, higher working efficiency, the best machining effect, bring more profit at the same working time.
Slant bed spindle unit speed 3500 rpm is higher than flat bed spindle speed 2000rpm.
Linear guide way position accuracy 0.02 mm is more precise than block guide 0.01mm.
One-piece of bed and base, 45degrees true slant bed, instead of several pieces machine bed, ensure higher rigidity, stability during long service time.
Spare parts free of cost with machine
Bed type | 45 degree TRUE slant bed | |
Guide way type | Taiwan HIWIN linear guide way | |
Max. swing over bed | mm | Φ400 |
Max. swing over cross slide | mm | Φ140 |
Chuck | inch | Hydraulic 6” |
X axis travel | mm | 400 |
Z axis travel | mm | 350 |
Max. processing length | mm | 300 |
Spindle speed | rpm | 3500 |
Spindle nose | A2-5 | |
Spindle bore | mm | Φ56 |
Max. Diameter of turning bar | mm | Φ45 |
Spindle motor power | KW | 5.5 |
X/Z Rapid feed speed | m/min | 18/18 |
X/Z axis motor torque | N. m | 6/6 |
X/Z axis repeatability | mm | +/-0.003 |
Tool bar section size | mm | 20*20 |
Total power capacity | KVA | 11 |
Machine dimension (L*W*H) | mm | 2500×1340×1710 |
N.W. | KG | 2500 |
Company Profile
model | TCK6340 with GSK 980 TDI |
Warranty | Above price includes 1.5.5 kw servo motor 2.Taiwan high precision HIWIN linear guide 3. 6” thou-hole hydraulic chuck 4. 8 station electric turret 5. automatic integrated lubrication system 6.coolant system including coolant pump, sump piping & fitting etc 7.advanced LED lighten system 8. Three color warning light 9. Full cover--good water-proof, dust-proof, oil-proof 10. mechanical and electrical user manual, control system operating manual, electrical drawing etc 11. spare parts free of cost with machine will be shown in the following table. 12. Electric power 380v, 3 phases, 50hz. Should transformer need, please pay additionally. 13. Come with 2 milling head. |
1 | Foundation parallels | 4 pcs | |
2 | Foundation nuts | 4 pcs | |
3 | Foundation bolts | 4 pcs | |
4 | Screw driver | 1piece | + |
5 | Screw driver | 1piece | - |
6 | Socket head wrench | 1piece | 4 mm |
7 | Socket head wrench | 1piece | 6 mm |
8 | Socket head wrench | 1piece | 8 mm |
9 | Solid wrench | 1piece | 14-17 mm |
FAQ
1. who are we?
We are based in Shandong, China, start from 2015,sell to Southeast Asia(15.00%),Southern Europe(10.00%),North America(10.00%),Mid East(10.00%),South America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Africa(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
milling and drilling machine,CNC lathe machine,bending machine,shearing machine,forming machine
4. why should you buy from us not from other suppliers?
Tengzhou Believe machinery Co. Ltd ,provide one-stop shopping service for you,here there many different machines, machine tools.We have long time exporting machines experience, we will provide stable quality products and excellent service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,CIP,DDP,DDU；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2015,sell to Southeast Asia(15.00%),Southern Europe(10.00%),North America(10.00%),Mid East(10.00%),South America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Africa(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
milling and drilling machine,CNC lathe machine,bending machine,shearing machine,forming machine
4. why should you buy from us not from other suppliers?
Tengzhou Believe machinery Co. Ltd ,provide one-stop shopping service for you,here there many different machines, machine tools.We have long time exporting machines experience, we will provide stable quality products and excellent service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,CIP,DDP,DDU；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
