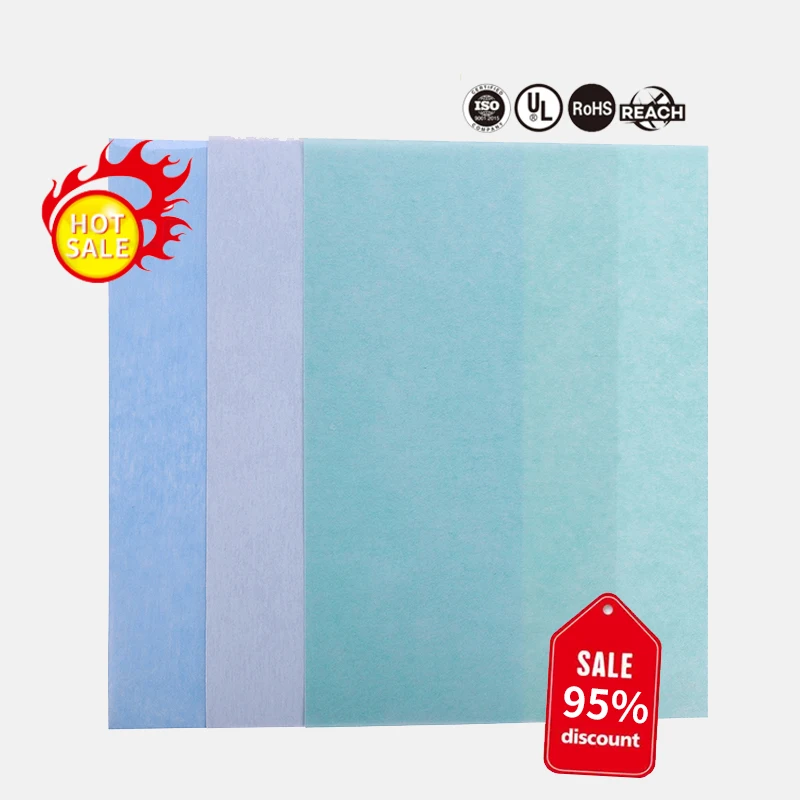

China F Class 6641 Class B 6630 Dacron Fabric Polyester Mylar Flexible Laminate DMD Insulation Paper For Winding Transformer
- Category: >>>
- Supplier: Henan Yaan Electrical Power Technology Co. Ltd.
Share on (1600818407672):
Product Overview
Description
Product Description
Factory price transformer 6630 6641 class F sintoflex 515 daron mylar electric paper dmd material motor insulation paper f dmd
--Factory price transformer 6630 6641 class F sintoflex 515 daron mylar electric paper dmd material motor insulation paper f dmd is a three-layer flexible composite material.
--The thicker Polyester film you choose, the higher electrical strength is.
--Insulation class: F class (155 °C)
--Polyester film/Polyester fiber non-woven fabric flexible Laminate has high mechanical strength and excellent dielectric property.
--As slot, interturn motors, generators and other electric appliances.
--YA6630 is with high rigidity and voltage-resistance. YA6630A is more softness.
Properties | Units | Values | ||||||||||||
Nominal thickness | mm | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.30 | 0.35 | ||||||
Thickness tolerance | mm | ±0.02 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.04 | ||||||
Grammage and tolerance | g/m2 | 140±20 | 190±28 | 220±33 | 260±39 | 300±45 | 350±52 | 425±63 | ||||||
Film Nominal Thickness | mm | 0.050 | 0.075 | 0.10 | 0.125 | 0.15 | 0.19 | 0.25 | ||||||

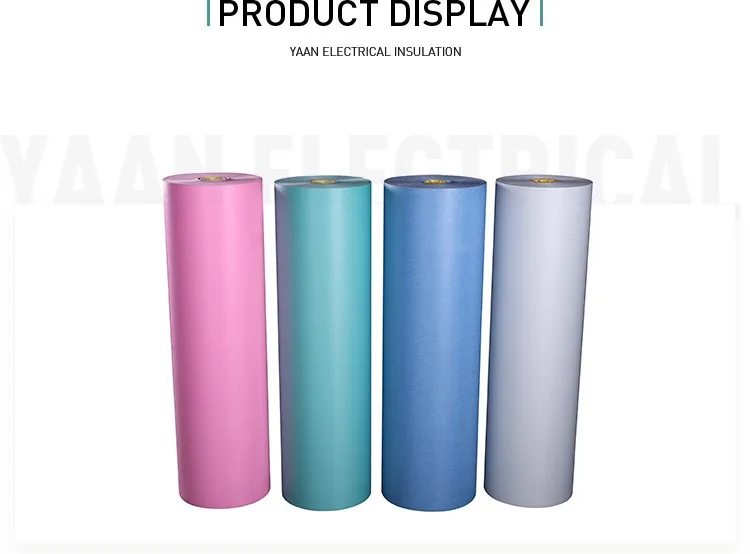

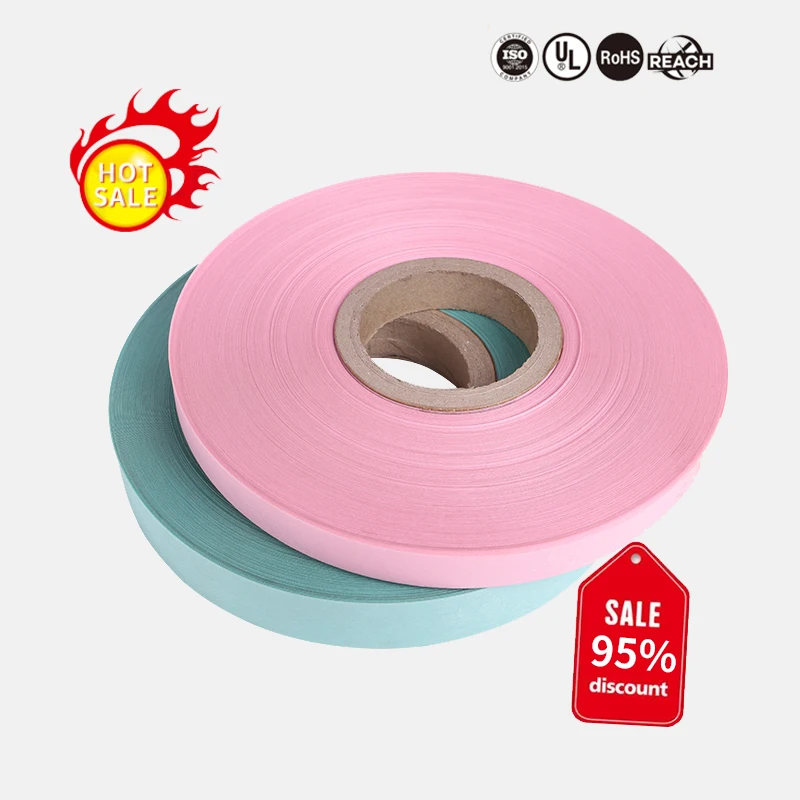

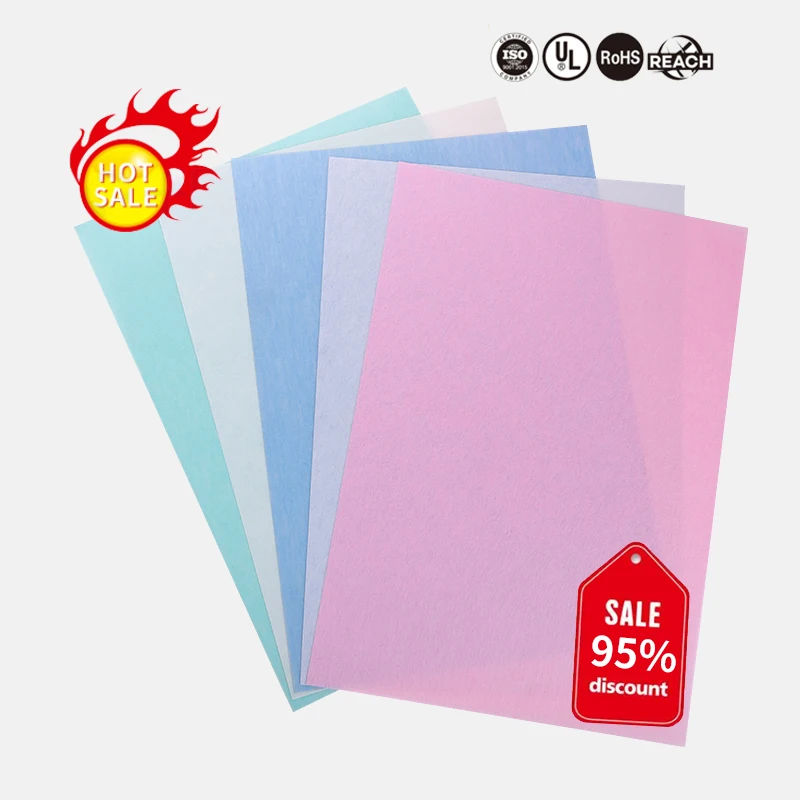

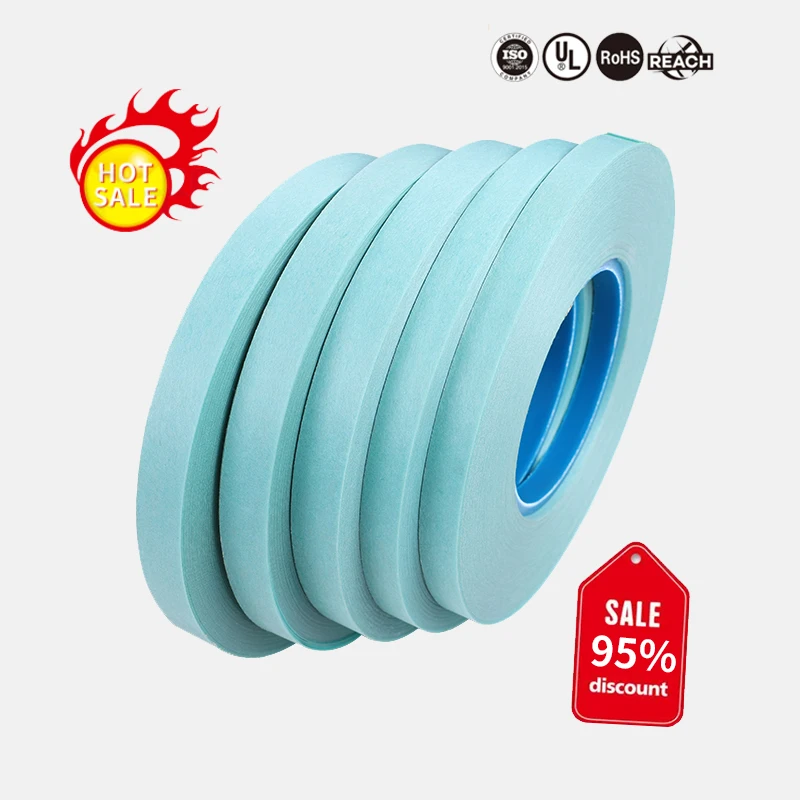

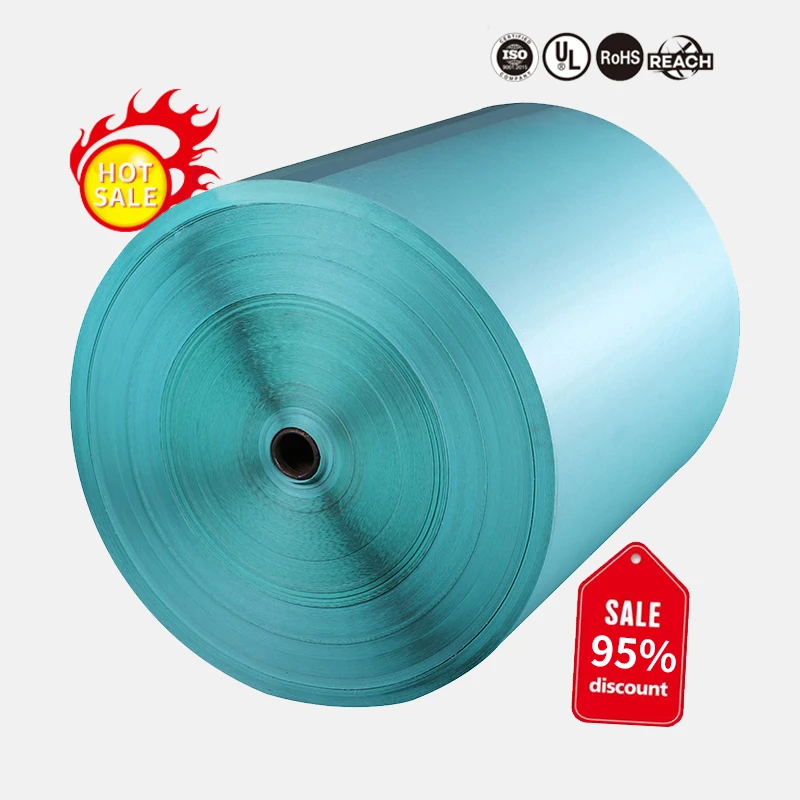

--Form: roll, sheet, strip
--Colur: Regular color is white. Other colours can be provided on request.
--Four layers can be produced on request.

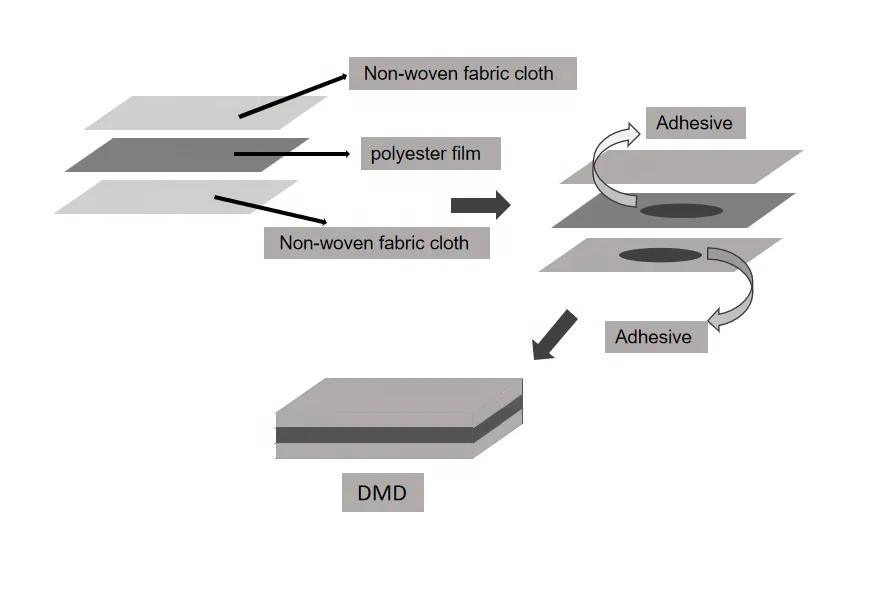

--Three layers: polyester film is bonded with non-woven fabric cloth.
--Middle Layer: Polyester film(PET) for Electrical Purposes
--Outer Layer: Non-woven fabric cloth
The products have passed ROHS and RECH test.

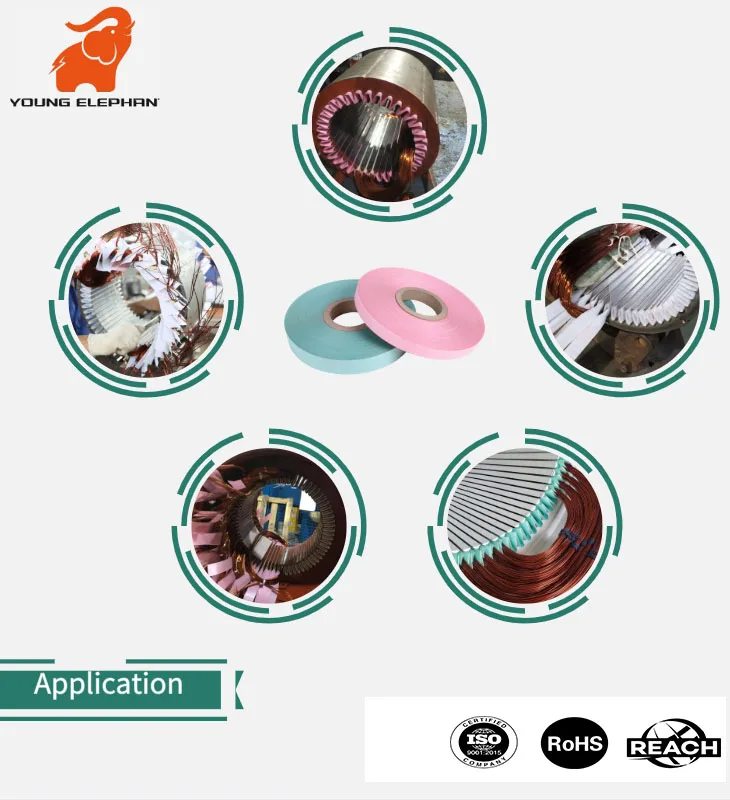

Application:
Factory price transformer 6630 6641 class F sintoflex 515 daron mylar electric paper dmd material motor insulation paper f dmd mainly applicable to motor and transformer.
Why choose us
Certification:
The plant has passed the certificate of ISO 9001 quality system certification
The products have passed ROHS test
Factory Directly Sale:
We are factory direct sales, eliminating the price difference added by the middleman.
Technical Supply:
Introduction of foreign advanced production and testing equipment to ensure reliable quality.
Our Service:
1, Your inquiry will be replied within 24 hours and online service is available all the time.
2, Well-trained & professional sales persons are here ready to answer all your questions and handle the problems at any time you want.
3, Delivery time: within 15 days after your make the order
4, Flexible payment terms: T/T, L/C, , Escrow, etc.
5, Good after-sale service are offered, please tell us if you have any questions.
2, Well-trained & professional sales persons are here ready to answer all your questions and handle the problems at any time you want.
3, Delivery time: within 15 days after your make the order
4, Flexible payment terms: T/T, L/C, , Escrow, etc.
5, Good after-sale service are offered, please tell us if you have any questions.
Recommend Products
About us
There are 300 workers in our factory, and the annual output of our factory is 50 million tons.
In the recent years, when continued in introducing elitists , the factory has also taken in advanced
production equipment and gradually improved its comprehensive developing force.
Customer feedback and strategic partners
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are a manufacturer, We have more than 35 years experience in producing electrical insulation material.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xuchang,Henan provience.
3.Q: Which certification do you have?
A: The plant has passed the certificate of ISO 9001 quality system certification;
The products have passed ROHS test.
4.Q: Can i get a samples for free?
A: Of course we can sent you a sample of factory price transformer 6630 6641 class F sintoflex 515 daron mylar electric paper dmd material motor insulation paper f dmd for free, customers just need to pay a litter shipping change.
5.Q: How long is the delivery time?
A: Generally it is 5-15 days if the goods are in stock, or it is 15-30 days.
If you have determined the model, you can send us inquiry to know more information !
