NELL Pediatric Disposable Spo2 Sensor Non Oxim with Non Adhesive 15 40kg Medical Consumables

Product Overview

Description



disposable pediatric Non-Adhesive Compatible with Nellcer Non-oXi  Spo2 sensor M

edical accessories sensor

1. Product Description:

Compatible Brand	Nellcer Non-Oxi(15-40kg) 0.9m
Sensor Type	Adult Finger, Pediatric Finger, Adult Soft Tip, Pediatric Soft Tip, Infant Soft Tip,  Neonate Wrap,Multi-site, Adult Ear Clip, Adult/Neo. Wrap,Pediatric/Inf. Wrap
Probe House	ABS shell (finger clip);   Silicon rubber boot(soft and multi-site)
Cable Material	TPU Light Gray  jacket, 4.0mm diameter	Sensor Connector	Plastic adapter with  gold plated pins
LED	660nm/905nm/940nm	Photo Detector	4mm² /8mm²(size)
Cable Length	0.9/m/1.1m/1.5m/3m	Package	1pc in one ziplock bag







2. Product Technical Parameters:



LED	Red	660nm normal
	Infrared	880/905/940nm normal
Text Range	Oxygen Saturation(%SpO2)	0% to 100%
	Pulse Rate(bpm)	30 to 245
Accuracy	SpO2	±1%(90~100%)
		±2%(80~90%)
		±3%(below 70%)
	Pulse Rate	±2bpm(30-250bpm)
Storage and Transport Environment	-10℃~+40℃
Operating Temperature	±5℃~+40℃
Operating/Storage/Transportation Humidity	0%-80%
Hyperbaric Pressure	86kPa-106kPa

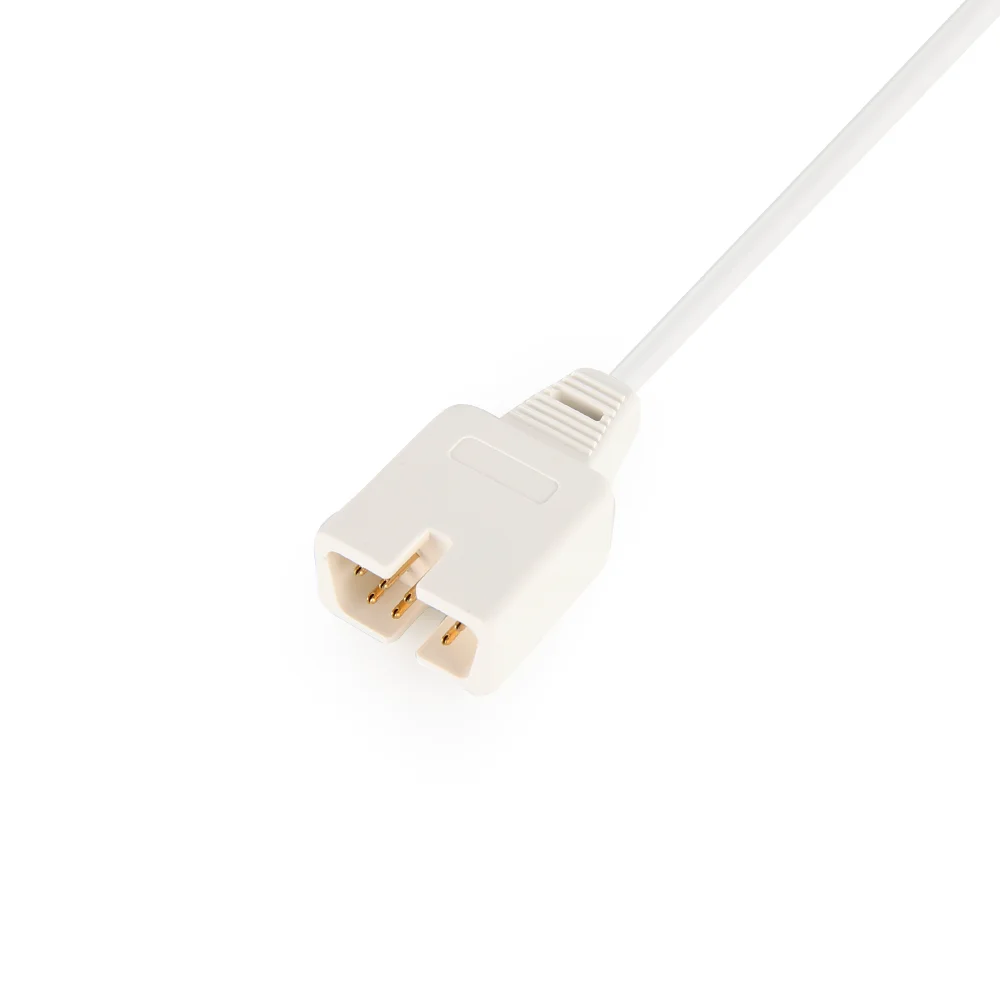

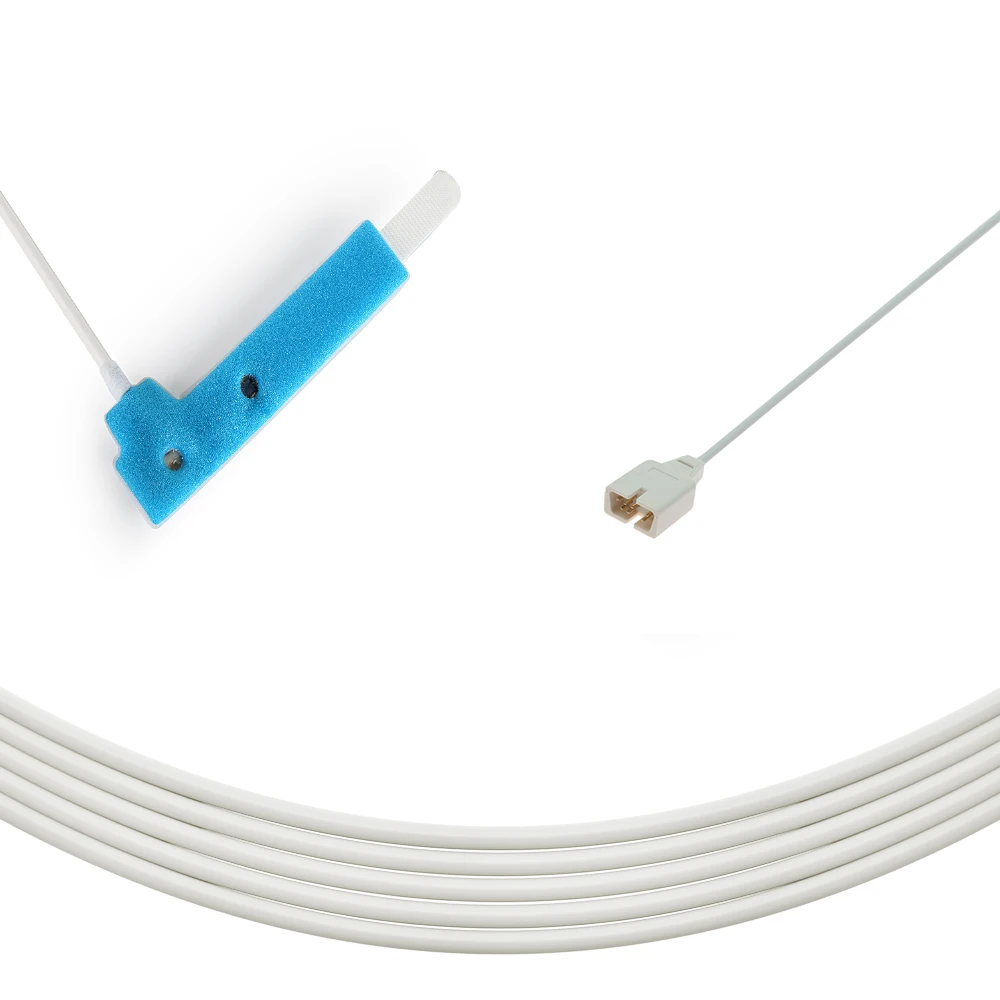

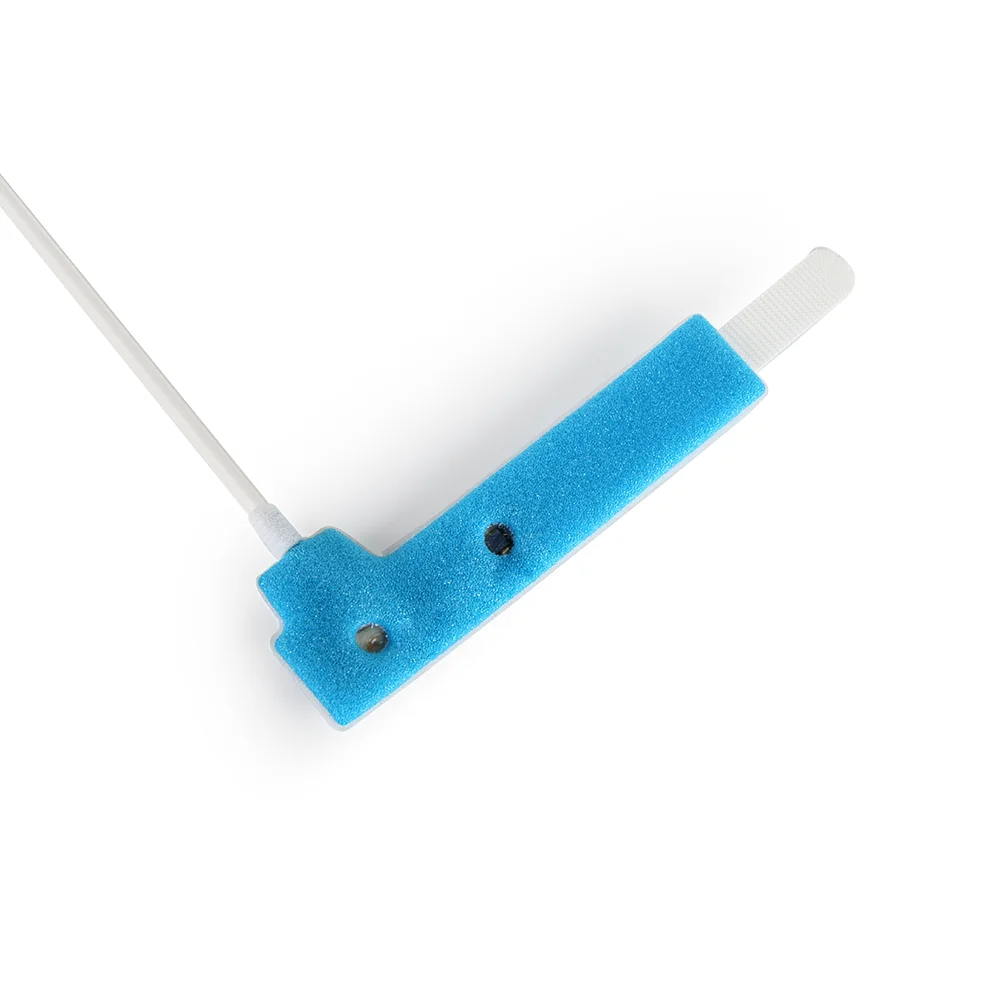

3. Caremed Product Pictures:







4. Caremed Product Test Report:



5. More Main Products from Caremed:



A. SpO2 Sensor, SpO2 Extension;



B. Holter ECG Cable;



C. ECG/EKG Cable, ECG/EKG Leadwire, ECG Electrodes;



D. IBP Transducer, IBP Cable;



E. NIBP Cuff, NIBP Hose;



F. Temperature Probe, Fetal Transducer, CTG Belt;



G. Ultrasound Transducer, Ultrasound Probe Repair.



All Compatible Brands Available for the above. (Contact Now, Save More)
