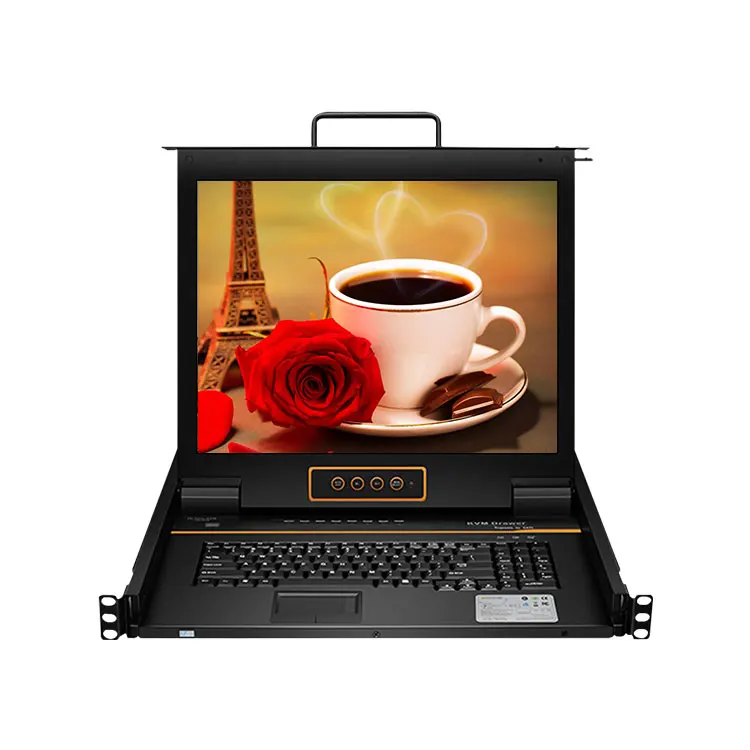

Server Room Control Panels Folding LCD All in One KVM Switches
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1600818583408):
Product Overview
Description
Product Introduction
Product characteristic:
1.High-definition visual effects to enjoy the large screen, resolution up to 1280 * 1024, high-definition screen, shocking
presentation.2. Can switch through the front panel button, OSD switch selected management host, support mouse switch management
mode. 3. Provide a variety of automatic scanning mode, can continuously monitor the host selected by the user. 4. BRC broadcast
function, by setting the BRC broadcast function, you can achieve simultaneous operation of multiple servers. 5. Support
hot-swapping, you can add or remove servers at any time without turning off the power.
presentation.2. Can switch through the front panel button, OSD switch selected management host, support mouse switch management
mode. 3. Provide a variety of automatic scanning mode, can continuously monitor the host selected by the user. 4. BRC broadcast
function, by setting the BRC broadcast function, you can achieve simultaneous operation of multiple servers. 5. Support
hot-swapping, you can add or remove servers at any time without turning off the power.
Product Specifications
Display type | XGA TFT | |
Visual area | 17 " | |
operating temperature | 0-50℃ | |
humidity | 0-80%RH,Non-condensing | |
weight | 13.3kg/13.7kg | |
power consumption | 17W | |
I/R value | 100V~240Vac，50~60Hz | |
electric source | The 13-Prong AC socket and outlet | |
Server connection side | 8 HDB-15 Female (Yellow) | |
Number of direct host connections | 8 | |
Maximum number of host connections | 256 | |
Console mouse/Keyboard | 1×USB,1×PS/2 | |
Console display | 1×HDB-15 Female(蓝) | |
