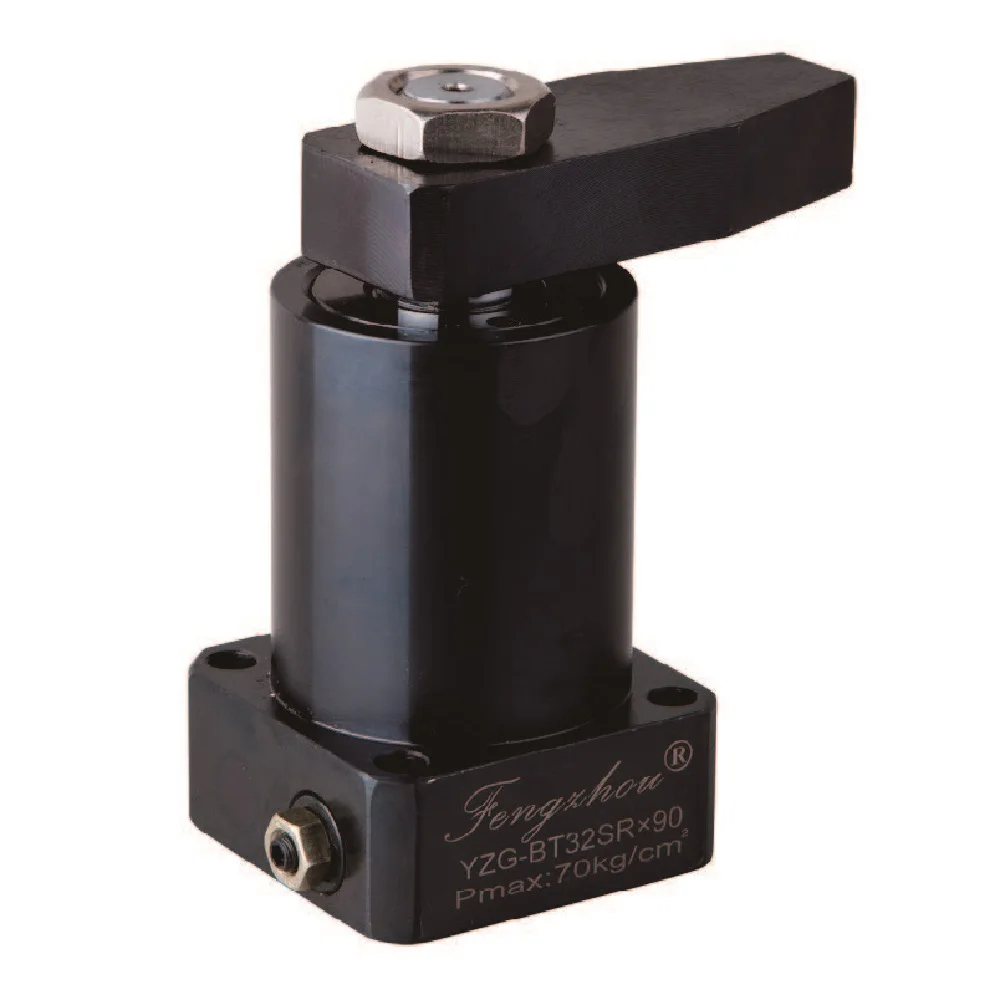

OEM/ODM YZG BT Block Manifold Type 40Cr Quenched and Tempered Steel Small Hydraulic Cylinder
- Category: >>>
- Supplier: Zhejiang Fengzhou Precision Manufacturing Co. Ltd.
Share on (1600818600322):
Product Overview
Description
Products Description

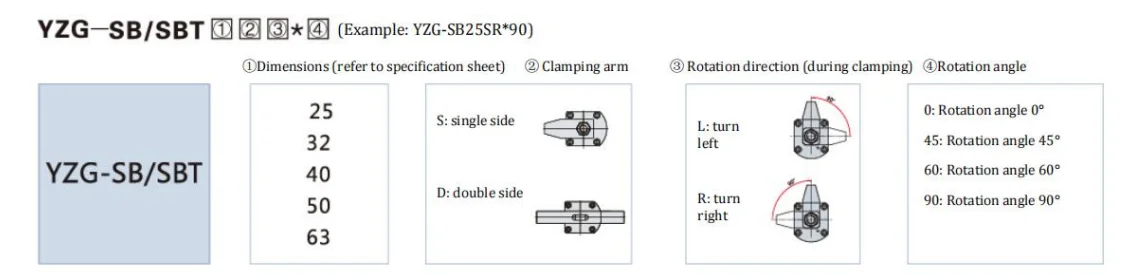

YZG-BT

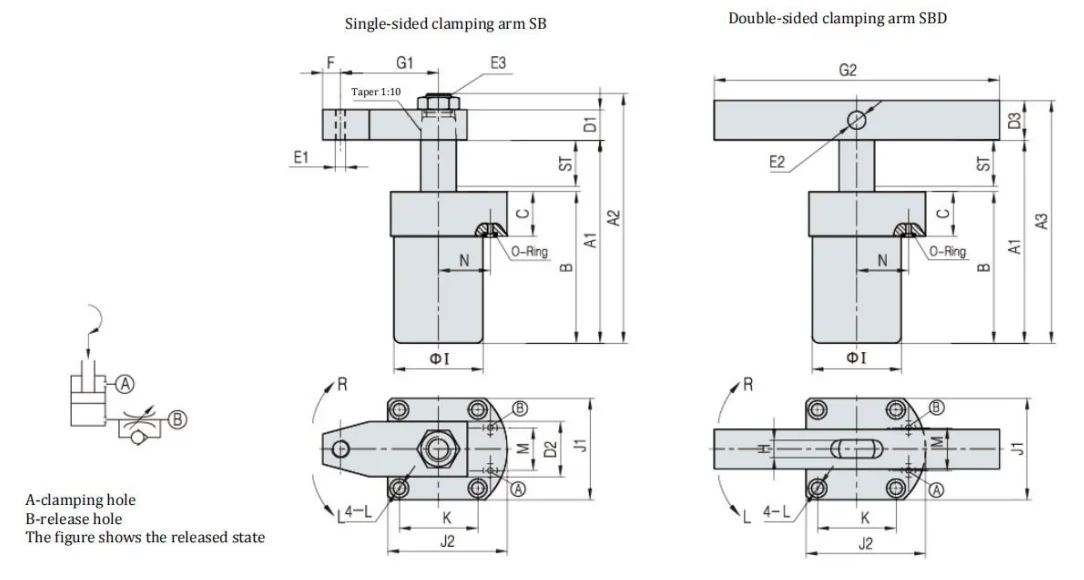

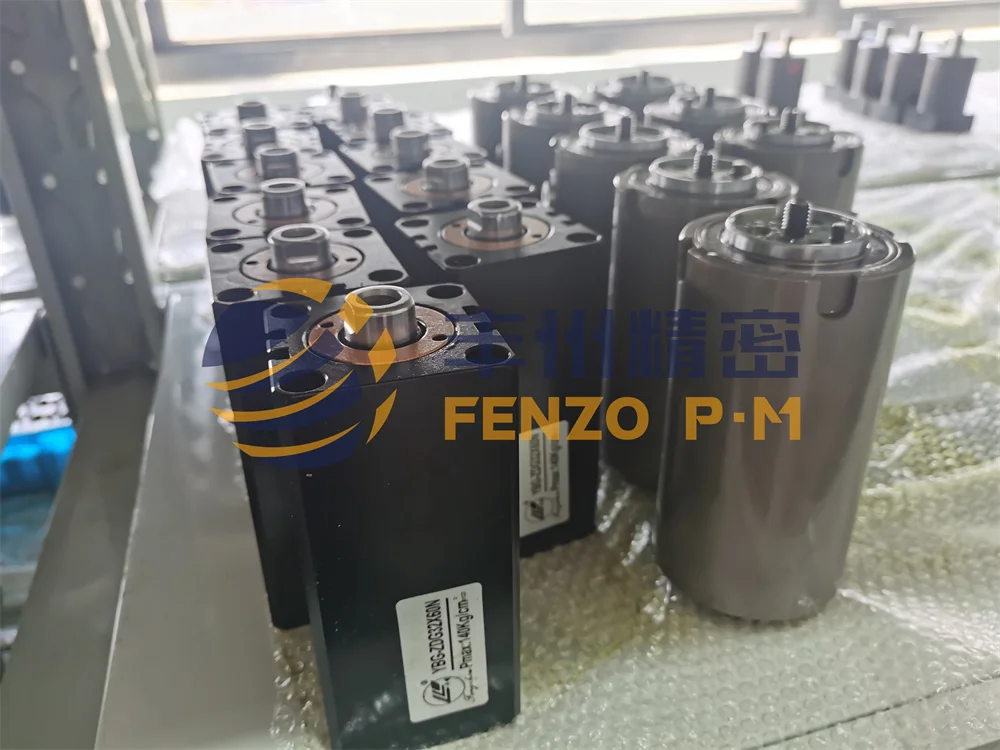

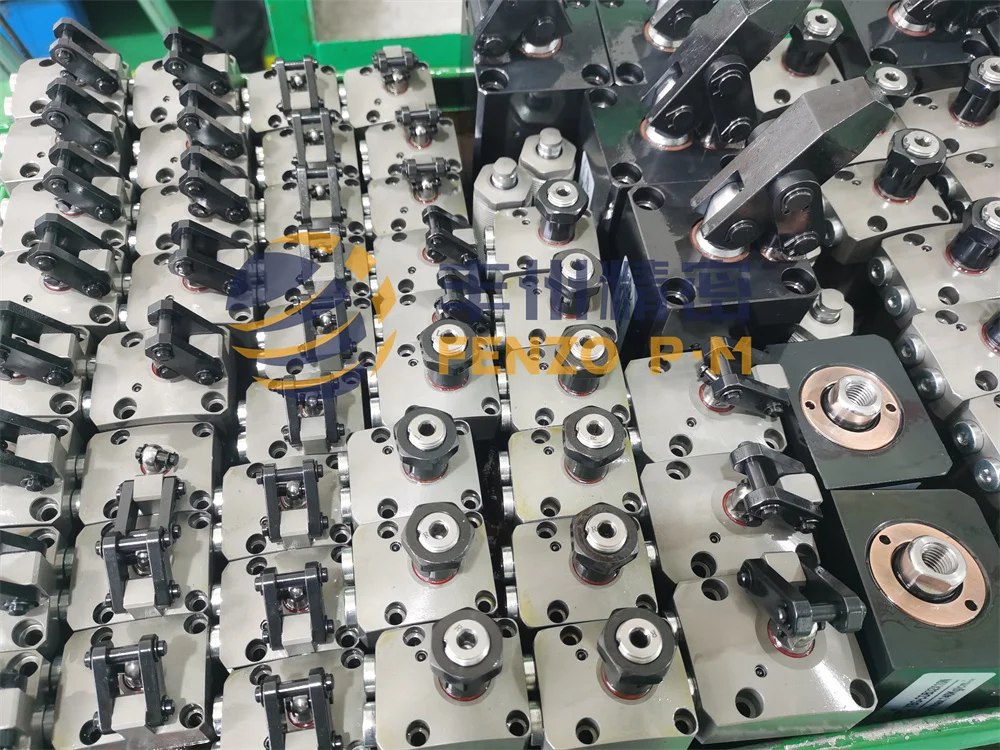

Details Images
Products Features
Series | YZG-XG; YZG-XB/BT; YZG-KB; YZG-SG; KZG-SB/SBT; KZG-LG | ||||||||
Bore of Cylinder (mm) | Φ25 | Φ32 | Φ40 | Φ50 | Φ63 | ||||
Diameter of Piston Rod (mm) | Φ18 | Φ20 | Φ22.4 | Φ28 | Φ35 | ||||
Rotation Angle | 30° /45° /60° /90° ±3 | 30° /45° /60° /90° ±3 | 30° /45° /60° /90° ±3 | ||||||
Whole Trip (mm) | 17/18.2/19.5/22 | 20.2/21.7/23.1/26 | 24/25.5/27/30 | ||||||
Rotating Schedule (mm) | 4/5.2/6.5/9 | 5.2/6.7/8.1/11 | 7/8.5/10/13 | ||||||
The Clamping Stroke (mm) | 13 | 15 | 17 | ||||||
Add Long Full Schedule (mm) | / | 35.2/36.7/38.1/41 | 41/42.5/44/47 | ||||||
Add Long Rotation Stroke (mm) | / | 5.2/6.7/8.1/11 | 7/8.5/10/13 | ||||||
Long Clamping Stroke (mm) | / | 30 | 34 | ||||||
Pressure Area Pull/Push (cm2) | 2.37/4.91 | 4.9/8.04 | 8.63/12.57 | 13.47/19.63 | 21.55/31.17 | ||||
Theoretical Clamping Force (5KN/cm2) | 71 | 147 | 259 | 404 | 647 | ||||
Max Operation Pressure (KN/cm2) | 100 | ||||||||
Operation Pressure Range(KN/cm2) | 15-70 | ||||||||
Product packaging
Transparent Film Winding + Carton Packing
Exhibition
Company Profile
Since its foundation in 2005, FENZO P.M has aimed at designing and manufacturing high precision workholding devices for CNC machining and other processing operations. Today, we have grown into a domestically leading workholding tools manufacturer with abundant resources covering partnered R&D institutes, sales network, media platform and database. We offer complete workpiece clamping solutions that are precisely oriented to the industrial processing needs for quick, secure and precise workpiece workholding.
Marketing Team
Technical Teams
Inspection Teams
The product Teams
Certifications
FAQ
Q1: Can I get some samples?
A: Yes, We are willing to provide you the samples to know our quality. but the shipping fee need to bear from you.
Q2: Do you have the products in stock?
A: We have the standard products in stock.
Q3: How does your factory do the quality control?
A: we can provide a tailored workholding solution to satisfy your specific workpiece clamping application needs.The video of delivery inspection will provide by us.
Q4: How can I make sure the products is fit to my machine?
A: We have the professional technical team to serve you, and 3D drawing make the details.
Q5: How can I trust you?
FENZO P.M has the nearly 20 years of experience in the fixture field, we can provide a tailored workholding solution to satisfy your specific workpiece clamping application needs.
