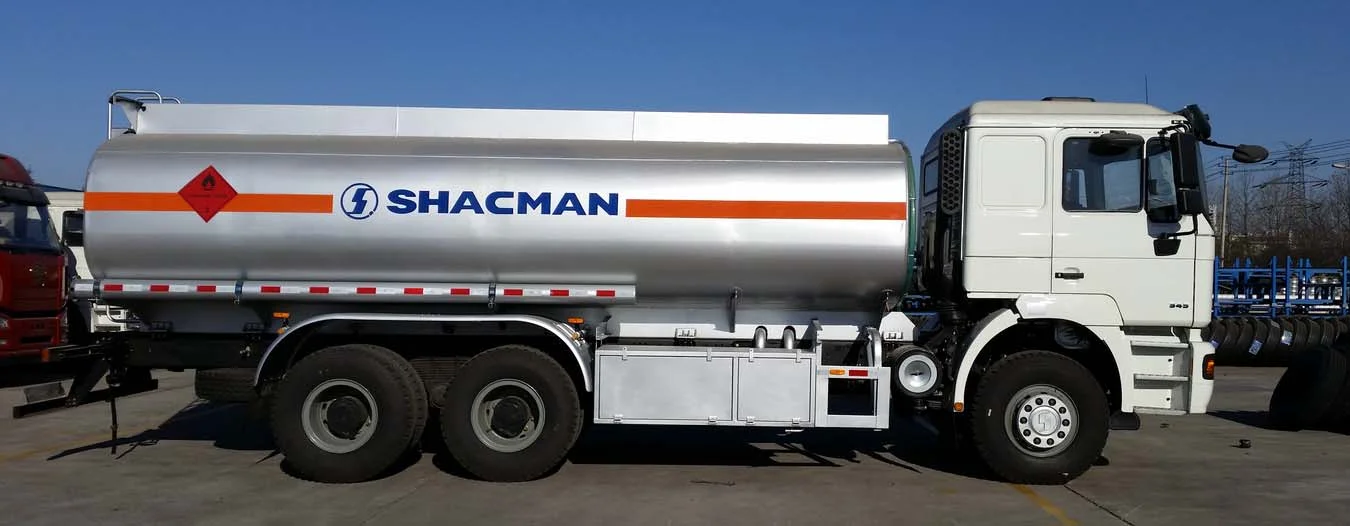

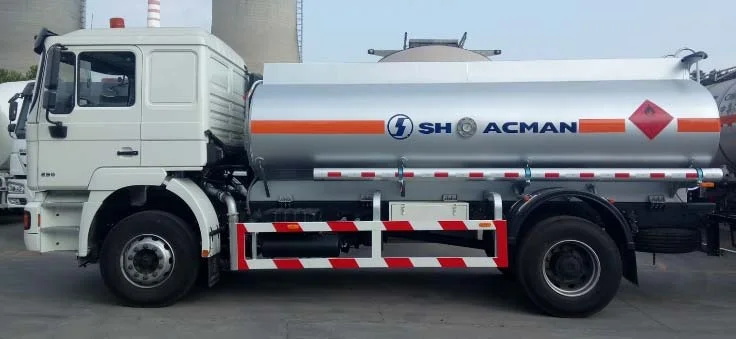

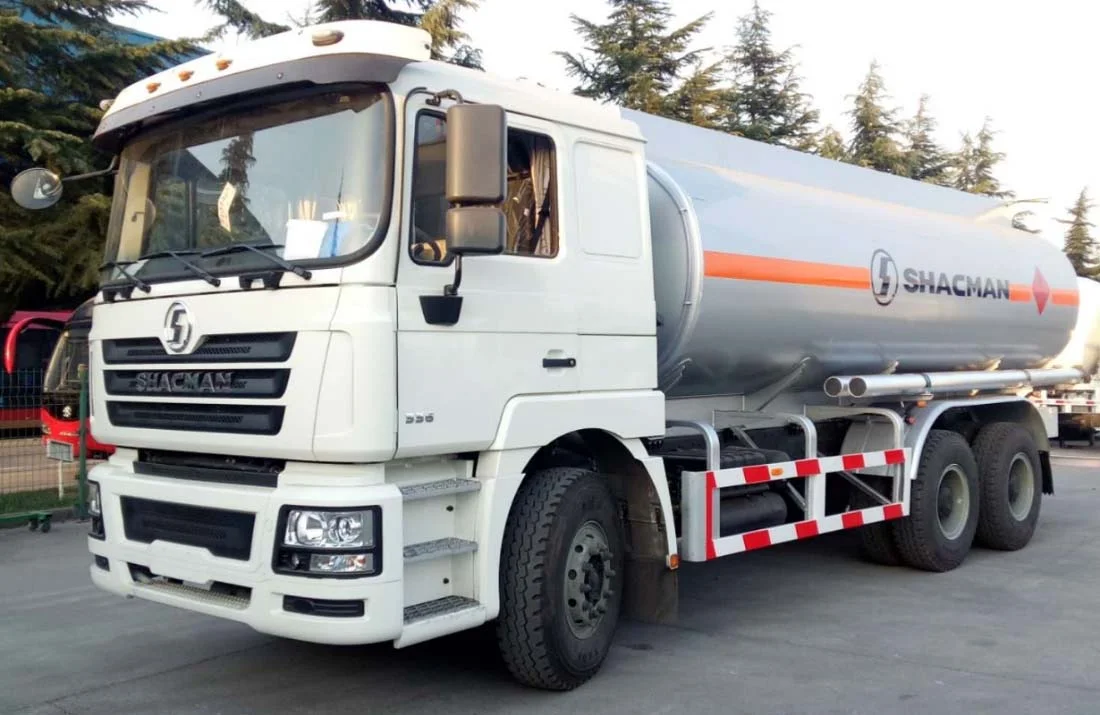

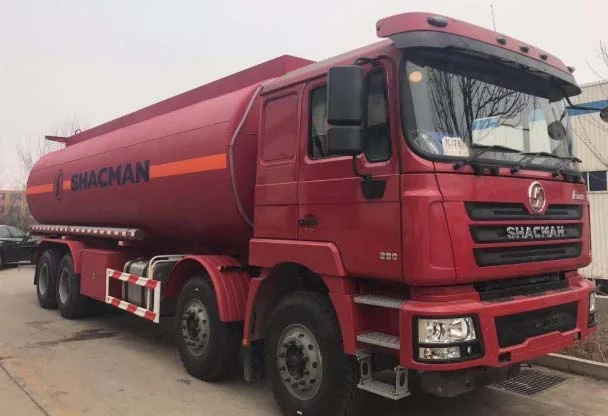

Shacman F3000 Oil Tanker Truck 4*2 10CBM Volume Euro 2 Emission Standard SX5185GYYDN461 for Sale
- Category: >>>
- Supplier: Sinomada Heavy Industry (changsha) Co. Ltd.Sinomada Ltd.
Share on (1600818630177):
Product Overview
Description
Sinomada
Product Overview
F3000
Introduced in 2009, the F3000 series the one of the best selling product. Reliable, rugged and powerful, the F3000 series can tackle any task its owner ask of it. F3000 is the first choice for overseas engineering projects. This series platform also has the largest volume in the international market, winning the hearts of its operators.
Features:
1. VOSS connectors have greatly improved reliability, and the vehicle has better air tightness and better pressure holding capacity.
2. The cooling system is equipped with symmetrical left and right air chambers with advantages of shorter intercooler inlet pipe, reduced pipe drag resistance, tight piping layout and higher ground clearance.
3. Ф430mm large friction clutch provides high transmission torque and efficiency.
4. Weichai WEVB exhaust brake system reduces the wear of tires, brake pads and the cost of vehicle use while ensuring safety.
5. Reinforced multi-leaf spring and four U-bolts with great rigidity and strong bearing capacity.
6. Wheel rim has been reinforced, whose thickness increased from 14mm to 16mm and steel ring from 8.5 to 9.0.
7. Φ120 bore steering gear, the steering assist capacity is increased by 24%
Product parameters
Transport Type | Tanker | ||||||
Logistics Type | Oil | ||||||
Distance | ≤300 | ||||||
Road Type | Paved Roads | ||||||
Drive | 4*2 | 6*4 | 8*4 | ||||
Max Weight (t) | ≤20 | ≤40 | ≤50 | ||||
Max Speed (km/h) | 90 | 90 | 90 | ||||
Loaded Speed (km/h) | 50~65 | 50~65 | 50~65 | ||||
Vehicle Model | SX5185GYYDN461 | SX5255GYYDN434 | SX5315GYYDT456 | ||||
Engine | WP10.300E22 | WP10.300E22 | WP10.380E22 | ||||
Emission Standard | Euro Ⅱ | Euro Ⅱ | Euro Ⅱ | ||||
Displacement | 9.726 L | 9.726 L | 9.726 L | ||||
Rated Output | 220 kW | 220 kW | 220 kW | ||||
Max. Torque | 1240 N·m | 1240 N·m | 1240 N·m | ||||
Transmission | RTD-11509C+QH50 | RTD-11509C+QH50 | 10JSD180+QH50 | ||||
Clutch | 430 | 430 | 430 | ||||
Frame | 850*300（8+5) | 850*300（8+5) | 850*300（8+5) | ||||
Front Axle | MAN 7.5T | MAN 7.5T | MAN 7.5T | ||||
Rear Axle | 13T MAN 5.262 | 13T MAN 5.262 | 13T MAN 5.262 | ||||
Tire | 12.00R20 | 12.00R20 | 12.00R20 | ||||
Front Suspension | Multi leaf springs | Multi leaf springs | Multi leaf springs | ||||
Rear Suspension | Multi leaf springs | Multi leaf springs | Multi leaf springs | ||||
Fuel | Diesel | Diesel | Diesel | ||||
Capacity of the Fuel Tank | 400 L | 400 L | 400 L | ||||
Battery | 165 Ah | 165 Ah | 165 Ah | ||||
Dimensions (L*W*H) | 7450*2490*3270 | 9275*2495*3774 | 10475*2495*3774 | ||||
Volume (m3) | 10 | 20 | 35 | ||||
Wheel Base | 4600 | 4375+1400 | 1800+4575+1400 | ||||
Max. Gradeability (%) | 34 | 34 | 34 | ||||
Cab | Type | F3000, mid-lengthened flat roof | |||||
Equipments | Hydraulic main seat | ||||||
Four point hydraulic suspension cab | |||||||
Automatic air conditioning | |||||||
Electric window lifter | |||||||
Manual flip | |||||||
Optional | Airbag main seat | ||||||
