15 Inch Color Active Matrix a Si LVDS TFT LCD Module with 300 Nits 1024 768 Driver Integrated Touch Monitor Display Mode Screen
- Category: >>>
- Supplier: Dongguan Cjtouch Electronic Co. Ltd.
Share on (1600818639046):
Product Overview
Description

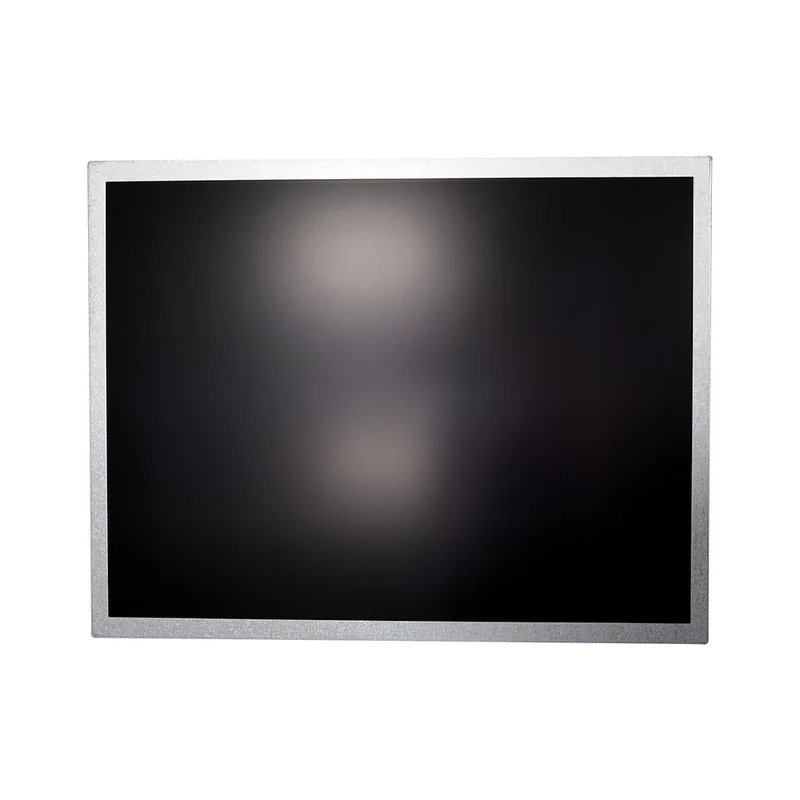

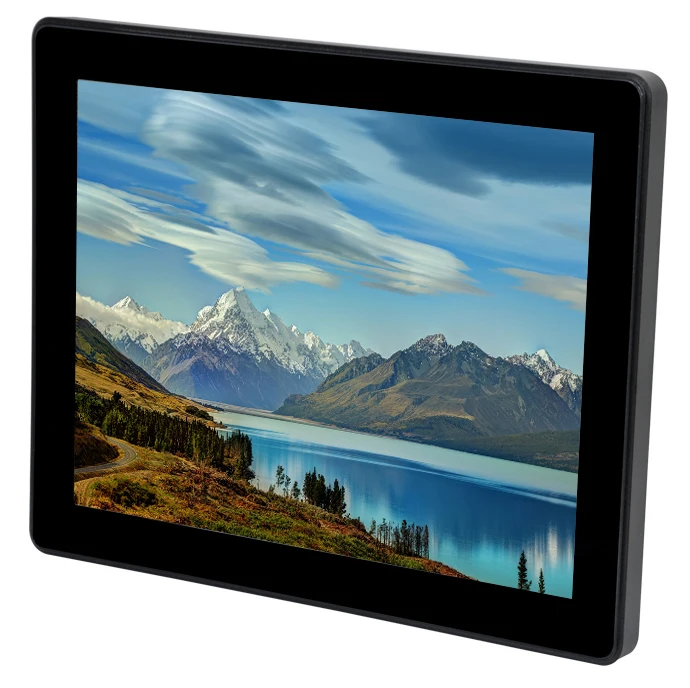

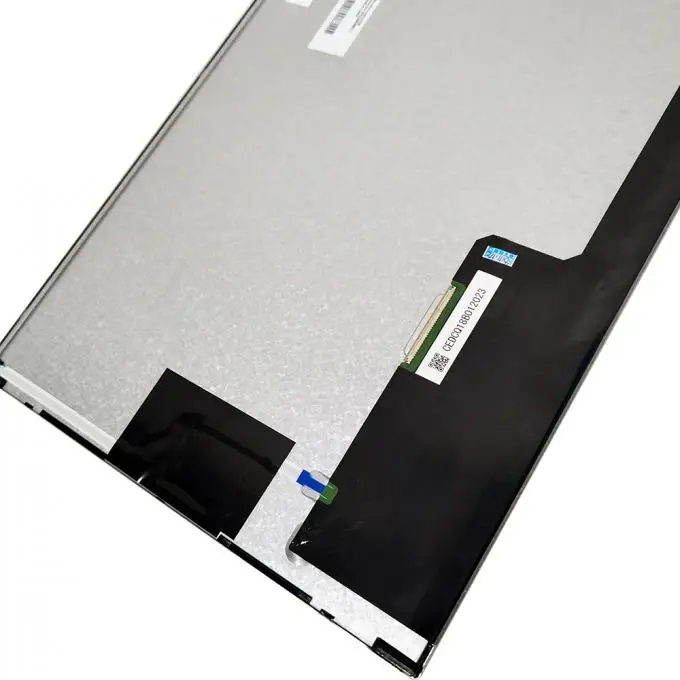

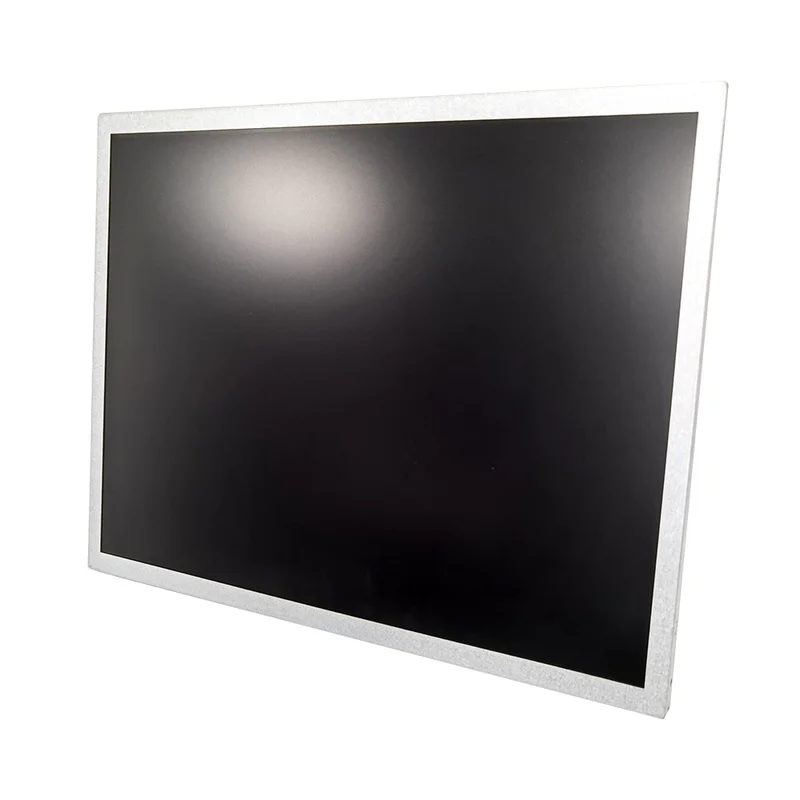

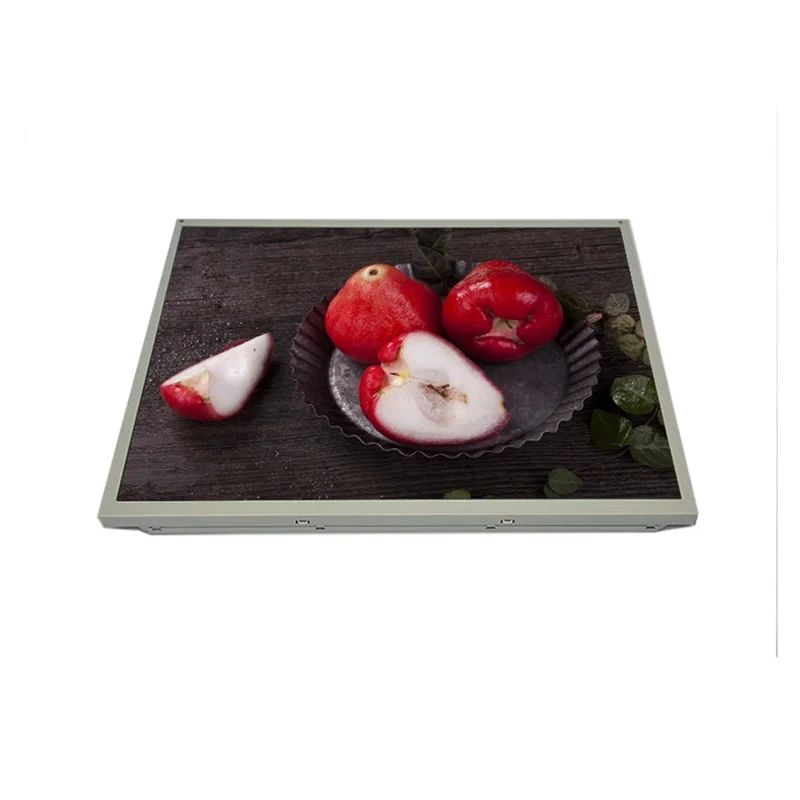

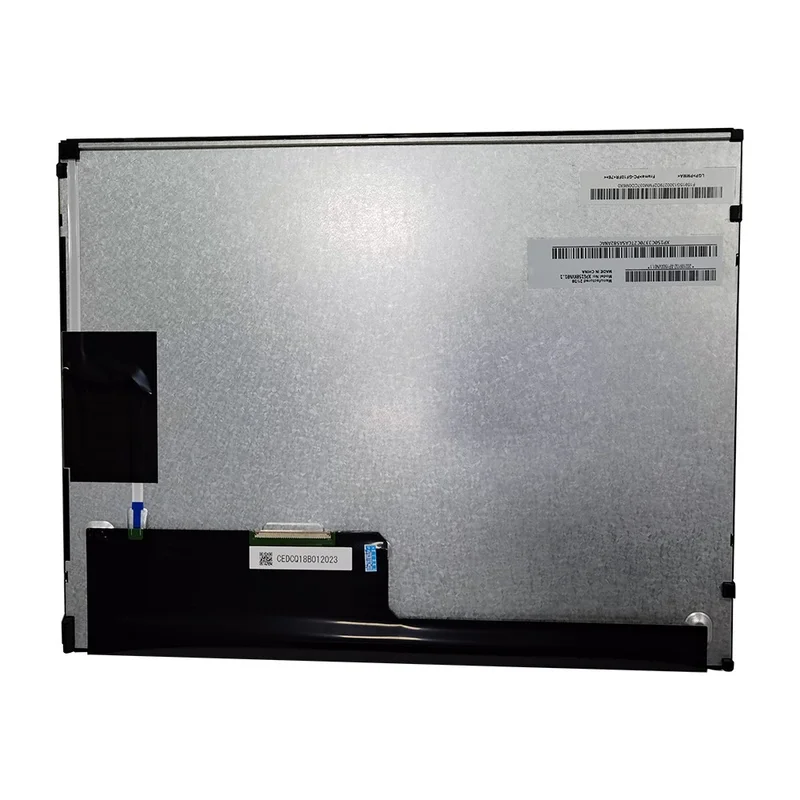

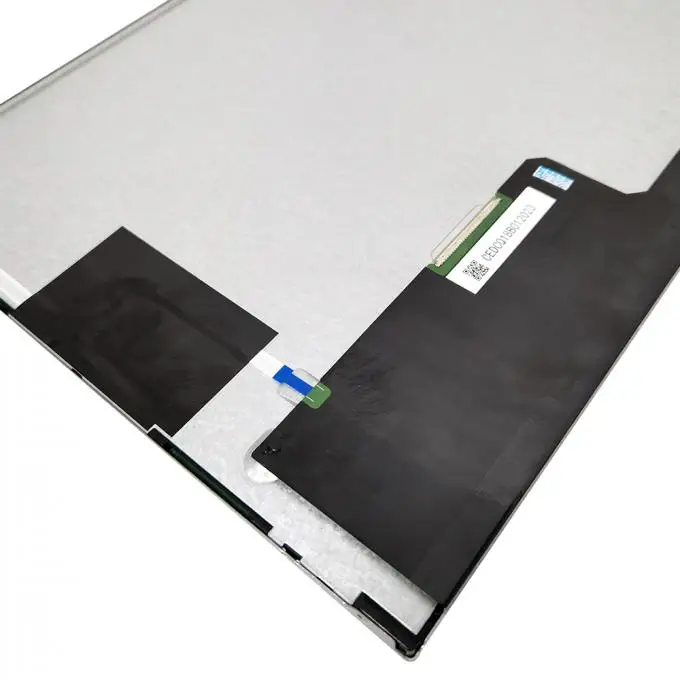

15 Inch Color Active Matrix a-Si LVDS TFT LCD Module with 300 Nits 1024 768 Driver Integrated Touch Monitor Display Mode Screen
Product Description

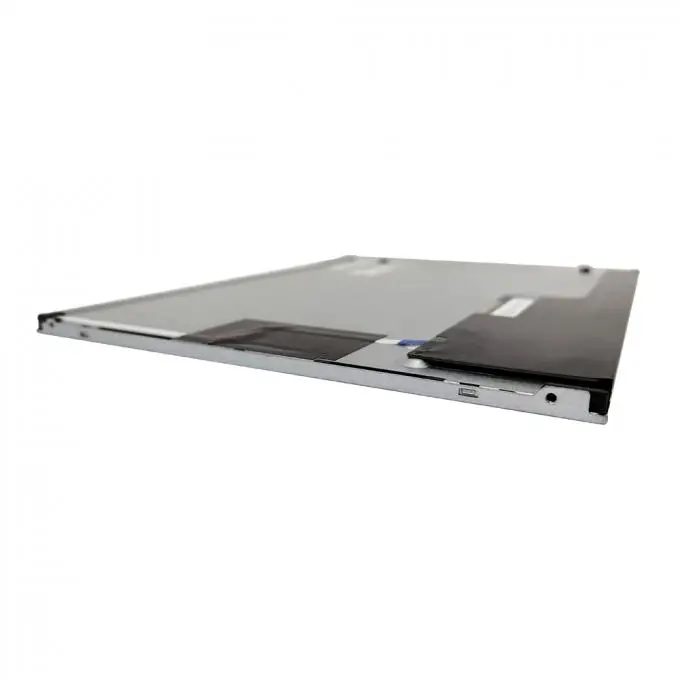

CJG150XVN01.1 is a color active matrix TFT (Thin Film Transistor) liquid crystal display
(LCD) that uses amorphous silicon TFT as switching devices.
This model is composed of a TFT LCD panel, a driver circuit and a backlight unit.
(LCD) that uses amorphous silicon TFT as switching devices.
This model is composed of a TFT LCD panel, a driver circuit and a backlight unit.
CJG150xvn01.1 is a color active matrix liquid crystal display composed of TFT-LCD panel, driving circuit and backlight system.
The screen format is designed to support XGA (1024(H)x768(V)) screens and 16.2m colors. All input signals are a channel LVDS interface.
Specification
Items | Unit | Specifications |
Screen Dagona | [inch] | 15.0" |
Active Aea | [mm] | 304.128(H)x228.096(V) |
Pxels H×V | 1024 x768 | |
PxelHtch | [mm] | 0.297(per one triad)x 0.297 |
Pxel Arangement | R.G.B. Vertical Stripe | |
Dspay Mode | VA, Normally Black | |
wne -uihance | [cd/m] | 300(center,Typ) |
Contast Rato | 1500∶1(Typ) | |
ptcal Kesponse ime | [msec] | 35(Typ, on/off |
Nominal input Voftage VDD | [Vot] | 3.3 |
Power onsumpion | [Wat] | 10.1W(Typ) |
Welgnt | [Grams] | 910(Typ) |
Pnslca sze(HxV×D) | [mm] | 326.5(H)x253.5(V)x9.6(D)(Typ) |
Eiectrca ineace | one channel LVDS | |
burace reatmen | Hard-coating (3H), Anti-Glare treatment | |
buppot Coor | 16.2M/262K colors | |
Temperature RangeperatngStorage (Non-Operating) | -10 to +70(Tgs)-30 to +70(Ta) | |
RoHs Gomplance | RoHS Compliance |
Special features
Symbol | Parameter | Min | Vp | Max | Unit | Conditions |
VDD | Logic/LCD DriveVoltage | 3 | 3.3 | 3.6 | Vol] | -0.1 |
IDD | Input Current | 0.7 | 0.85 | [A] | VDD=3.3V, AlIl White Pattern At 60Hz | |
PDD | VDD Power | 2.3 | 3 | [Wat] | VDD=3.3V, All White Pattern At 60Hz | |
IRush | Inrush Current | 2 | [A] | Note 1 | ||
VDDrp | Allowable Logic LCD Drive Ripple Voltage | 500 | [mV] p-p | VDD=3.3V, All White Pattern At 60Hz |

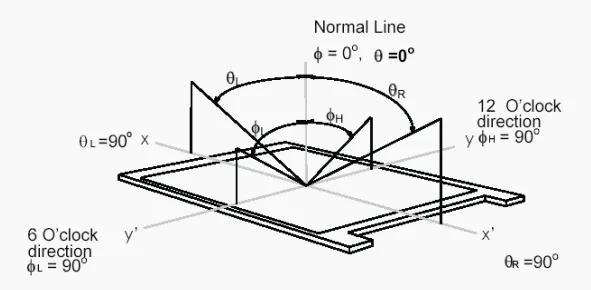

A viewing Angle is a measurement of the contrast ratio of the center of the screen over the 180 vertical range and the 180 vertical range (abnormal viewing Angle) Њ10 or Њ5. The range of 180 Angle of view is broken down as follows: approx.
90 (у)horizontal and 90 (и) vertical, high (upper) and low (lower). The measurement direction is usually perpendicular to the display surface, and the screen rotates around its center to form the desired measurement Angle.
