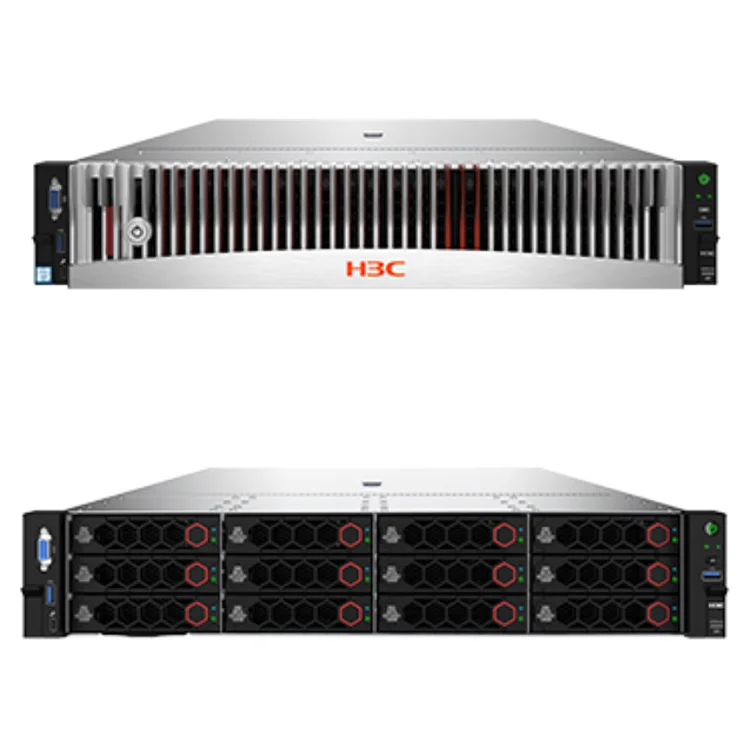

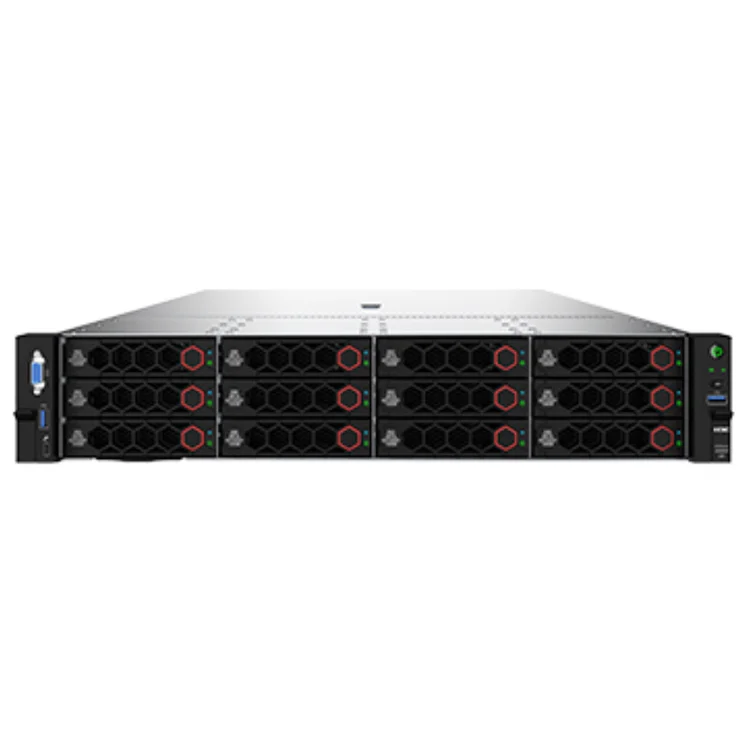

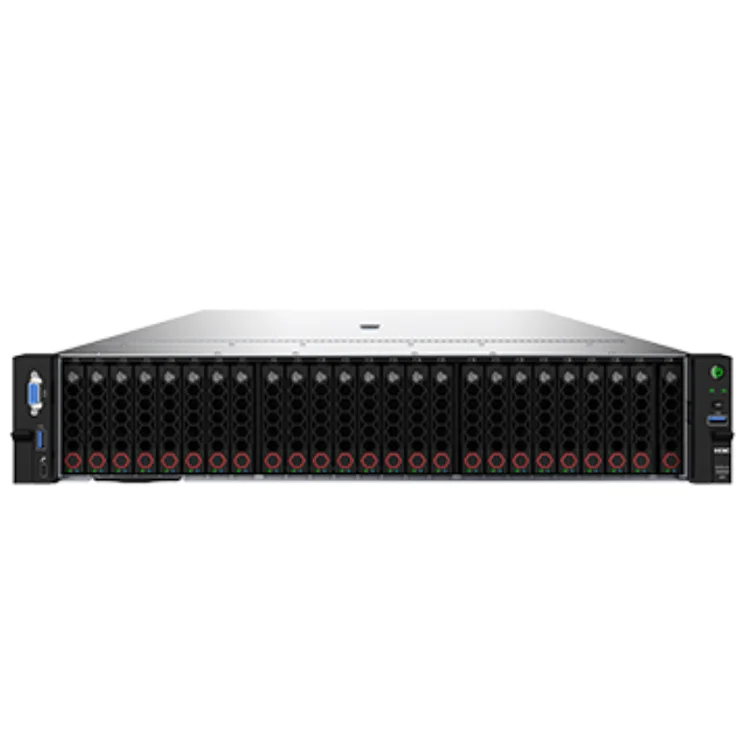

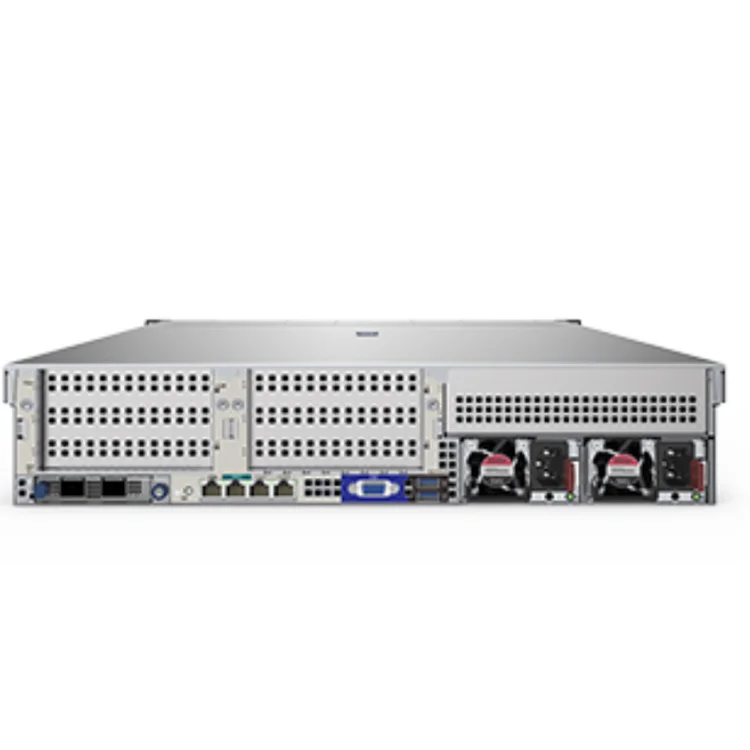

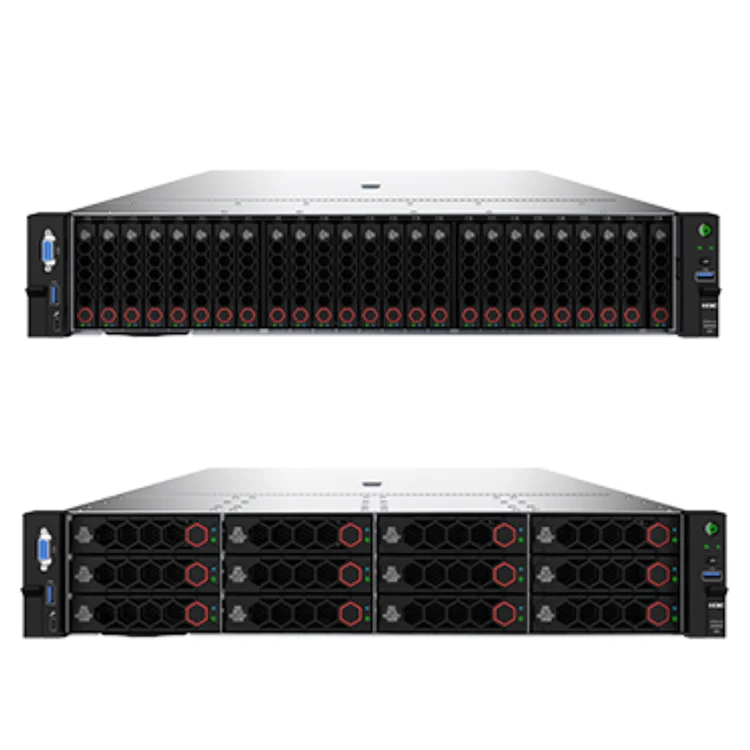

Xinhua San HC3 R4900G5 2U rack server supports third generation processorsfor

Model

H3C UniServer R4900 G5 Server

Form Factor

2U Rack Server

Maxim Processor

2 x 3rd generation Intel® Xeon® Ice Lake SP series
(each processor up to 40 cores and maximum 270W power consumption)

RAM

32 x DDR4 DIMM slots , maximum 12.0 TB
Up to 3200 MT/s data transfer rate，support RDIMM or LRDIMM
Up to 16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series ( Barlow Pass)

Drive bays

Up to front 12LFF bays, internal 4LFF bays , Rear 4LFF+4SFF bays*
Up to front 25SFF bays, internal 8SFF bays , Rear 4LFF+4SFF bays*
Front/Internal SAS/SATA HDD/SSD/NVMe Drives, maximum 28 x U.2 NVMe Drives
SATA or PCIe M.2 SSDs, 2 x SD card kit , depending on model

Storage controllers

Embedded RAID controller (SATA RAID 0, 1, 5, and 10)
Standard PCIe HBA controller or storage controller, depending on model

I/O & Ports

1 x onboard 1 Gbps management network port
2 x OCP 3.0（x16）slots for 4 x 1GE or 2 x 10GE or 2 x 25GE NICs
PCIe Standard slots for 1/10/25/40/100/200GE/IB Ethernet adapter

Power supplies

2 x Platinum 550W/800W/850W/1300W/1600W/2000/2400W (1+1 redundancy) , depending on model
800W –48V DC power supply (1+1 Redundancy)
Hot swappable redundant fans

Height X Width X Depth

2U Height
Without a security bezel: 87.5 x 445.4 x 748 mm (3.44 x 17.54 x 29.45 in)
With a security bezel: 87.5 x 445.4 x 776 mm (3.44 x 17.54 x 30.55 in)

attestation

Support CCC, CECP, SEPA, and other certifications

GPU support

Up to 3 dual width or 6 single width GPU cards
