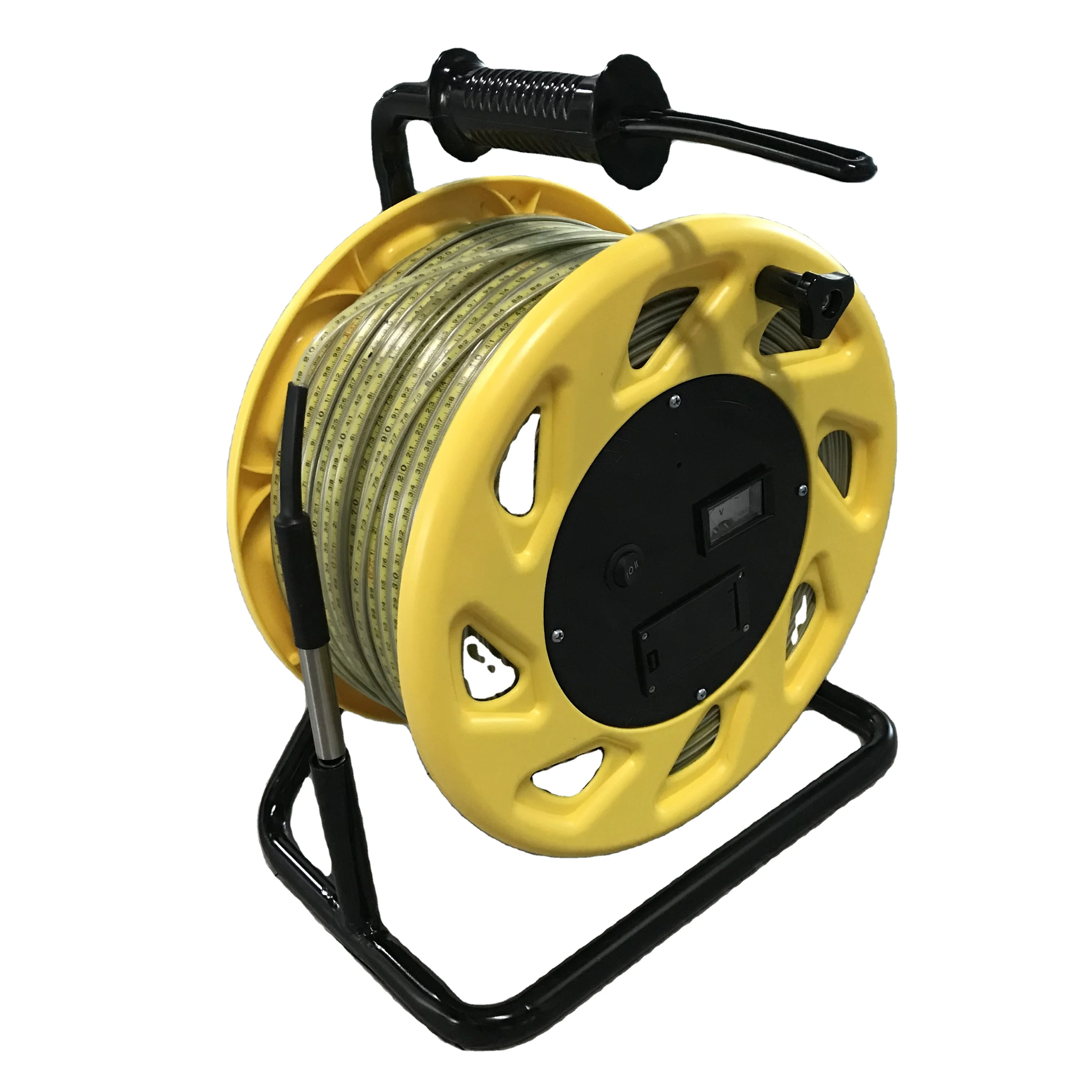

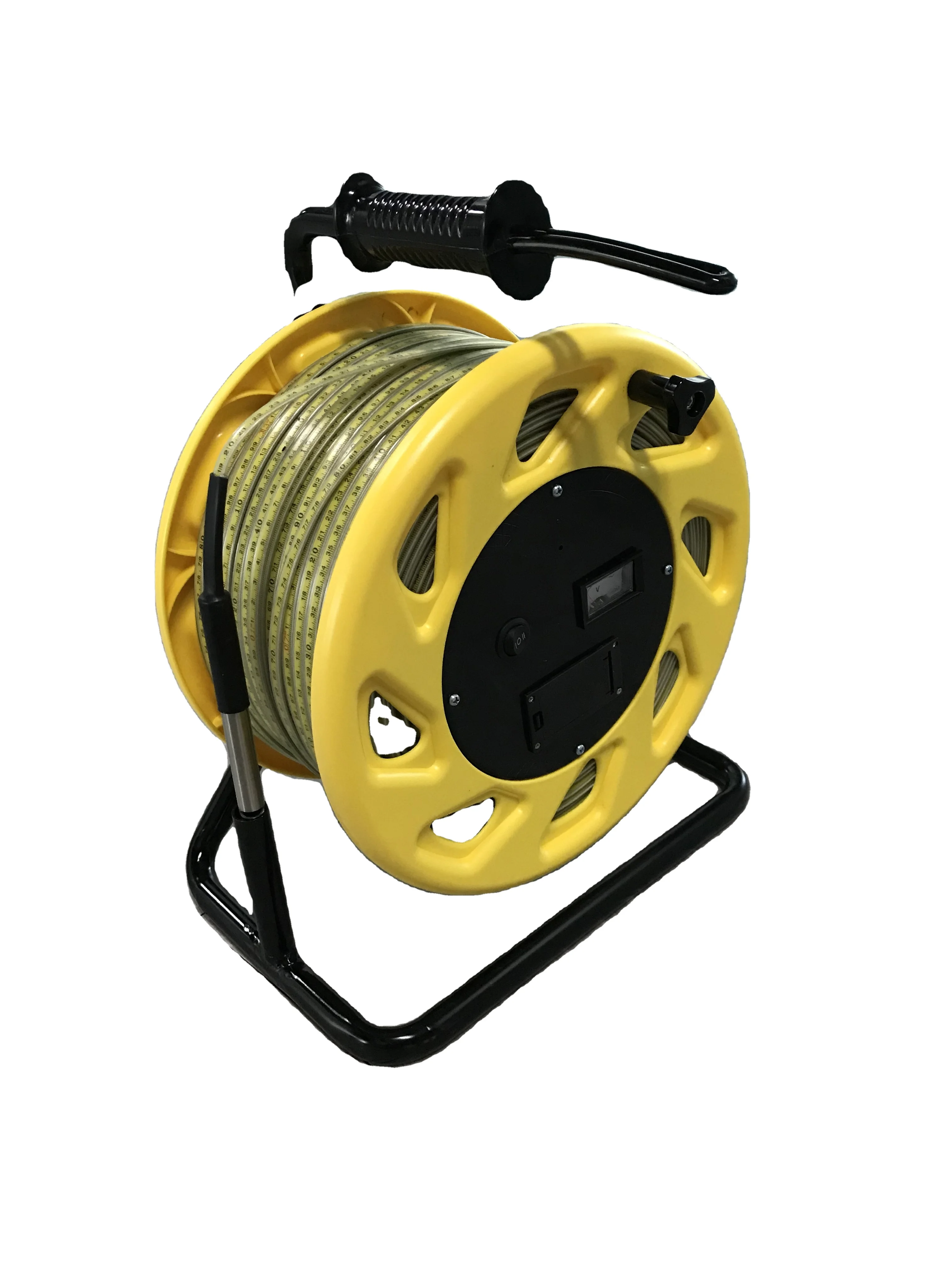

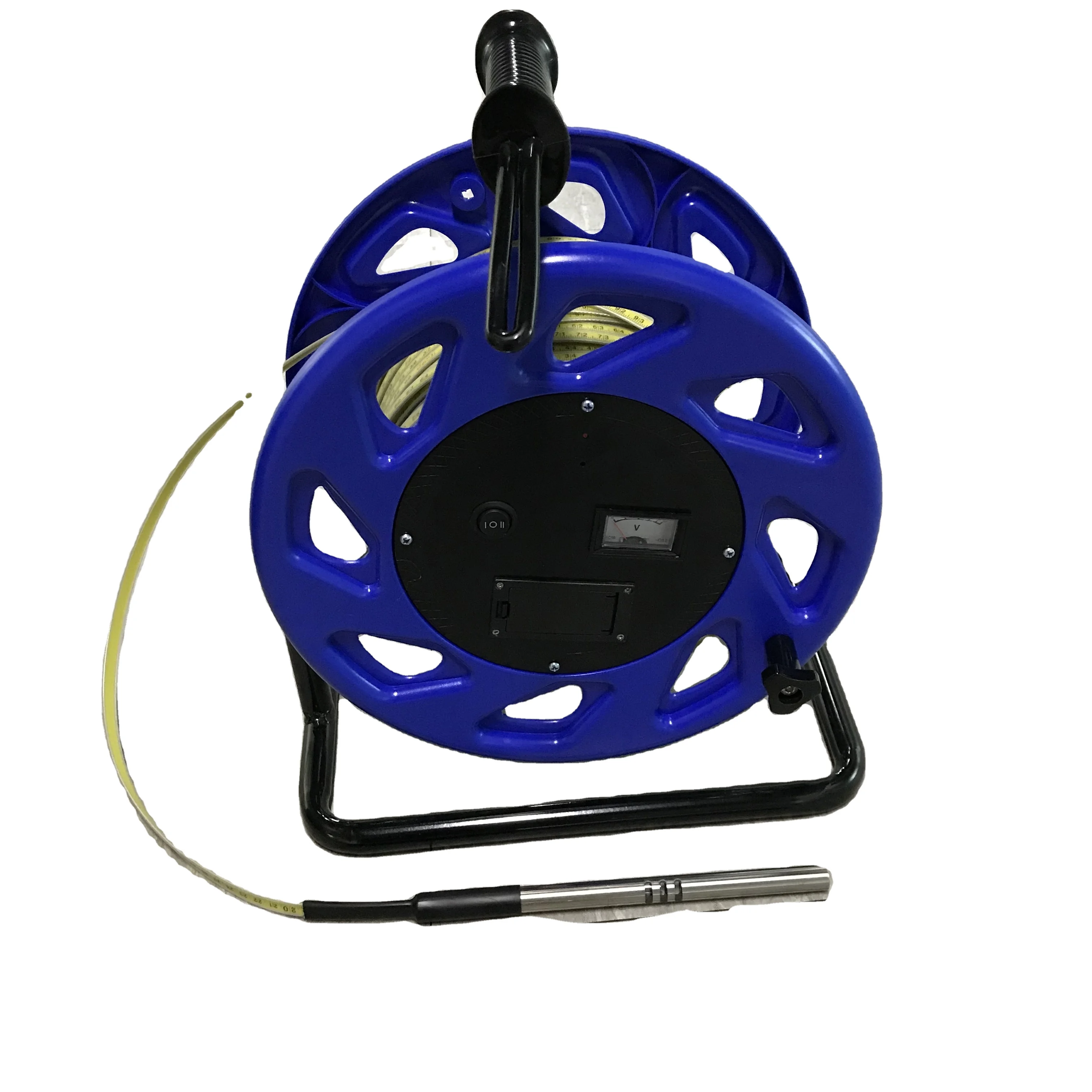

30m 50m 100m 150m 200m 300m Fast delivery Water Level Meter With Water Detection Alarm
- Category: Measuring & Gauging Tools >>>
- Supplier: Lanka Industrial Automation(shanghai) Co. Ltd.
Share on (1600818705382):
Product Overview
Description
Products Description
Probe Diameter | 14mm | Battery | 9V |
Trademark | Lanka | LED Light | YES |

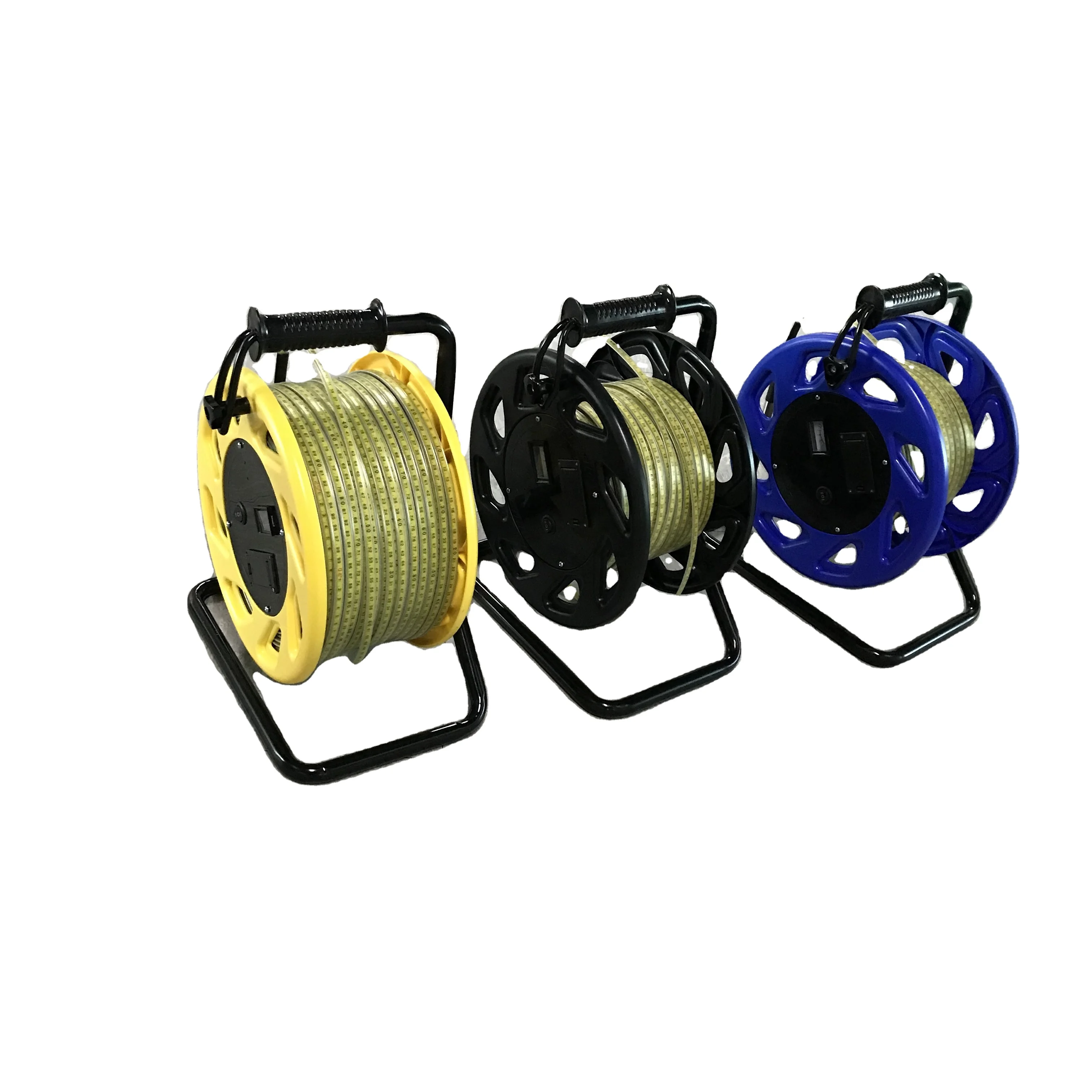

Material for support | Metal | Size Available | 30m, 50m, 100m, 150m,300m,400m,500m |
Use | Measuring water level in wells | Transport package | carton |
water level meter
Water level sounder
Water level indicator
Water level sensor

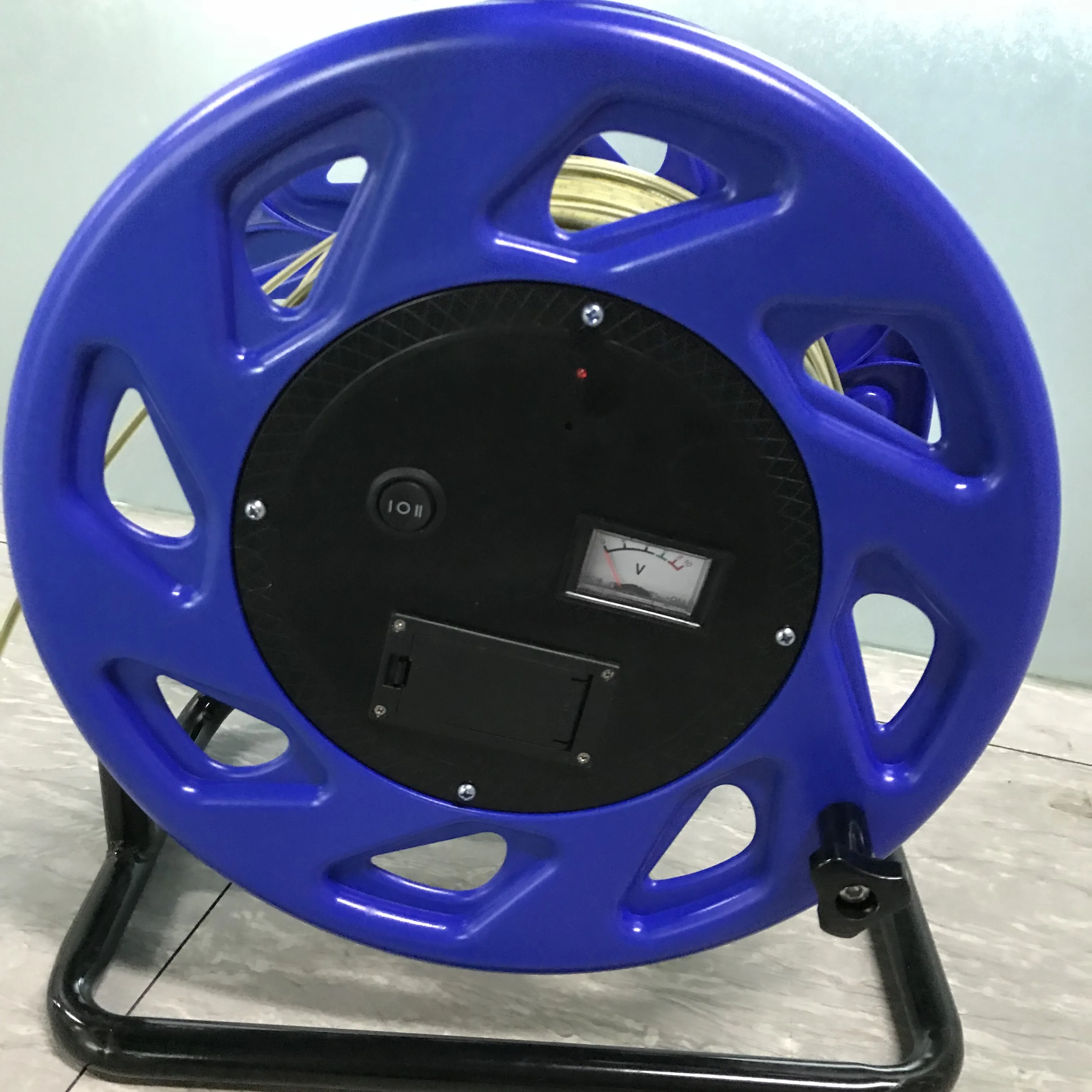

Portable water level meter with sound and light:
Water level meter provide an accurate measurement method of level meter, usually used for the measurement of water level in the drilling holes or water level pipe ,particularly suitable for hydropower engineering underground water level or artificially inspection dam observation.This instrument can be used in construction period, but also can be used as the long-term safety
monitoring project. comply with the dam safety monitoring technology standard(SL60-94).
Water level sounder
Water level indicator
Water level sensor
Portable water level meter with sound and light:
Water level meter provide an accurate measurement method of level meter, usually used for the measurement of water level in the drilling holes or water level pipe ,particularly suitable for hydropower engineering underground water level or artificially inspection dam observation.This instrument can be used in construction period, but also can be used as the long-term safety
monitoring project. comply with the dam safety monitoring technology standard(SL60-94).

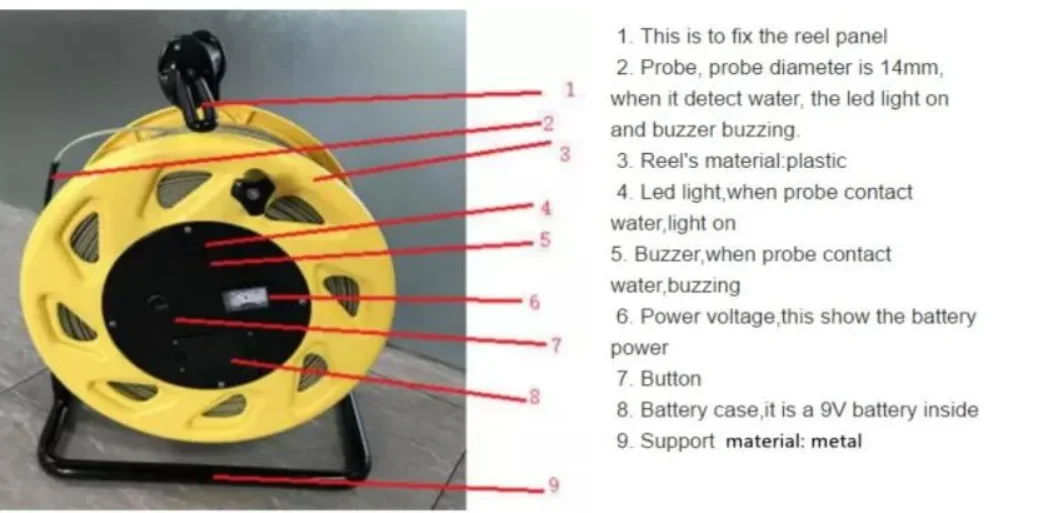

Working principle

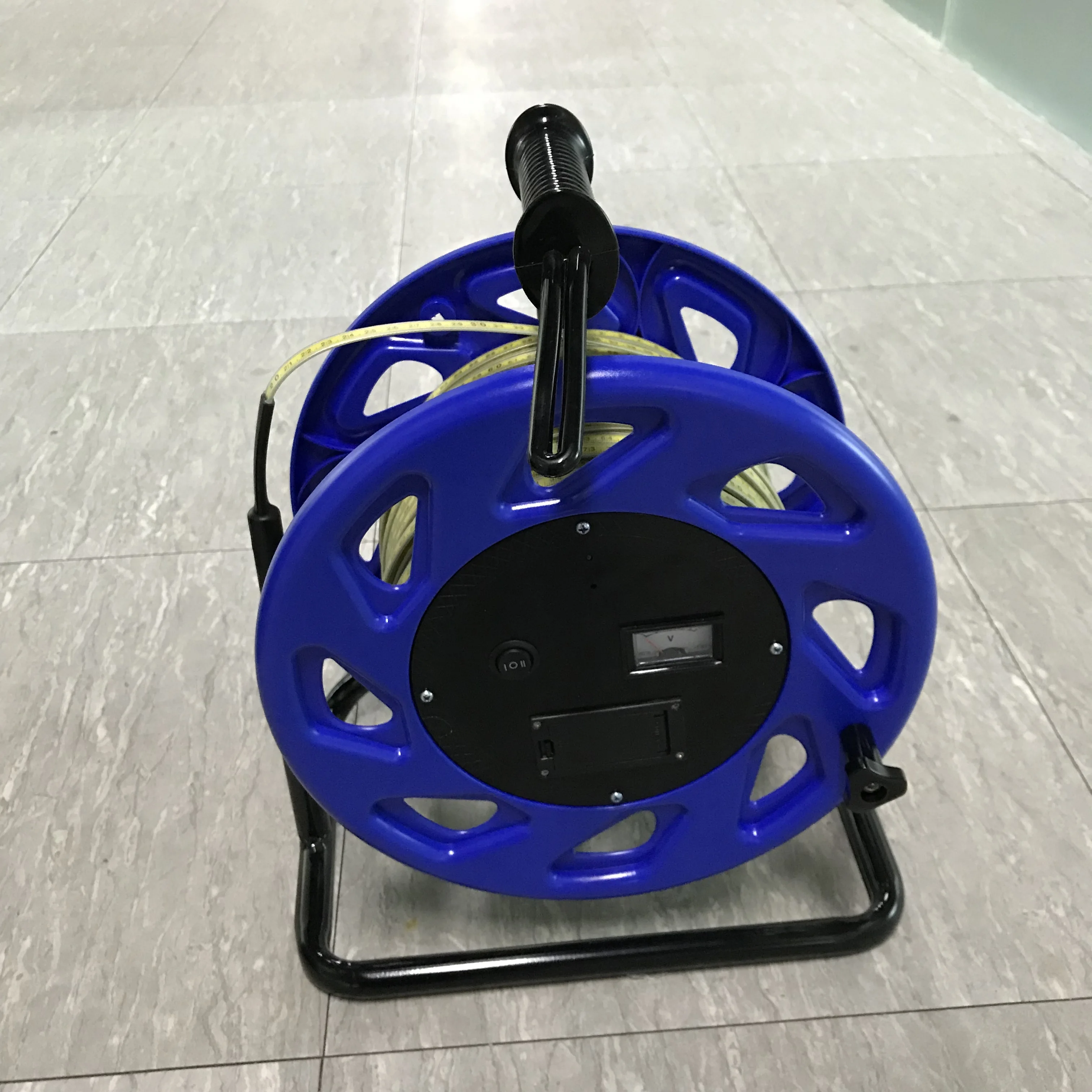

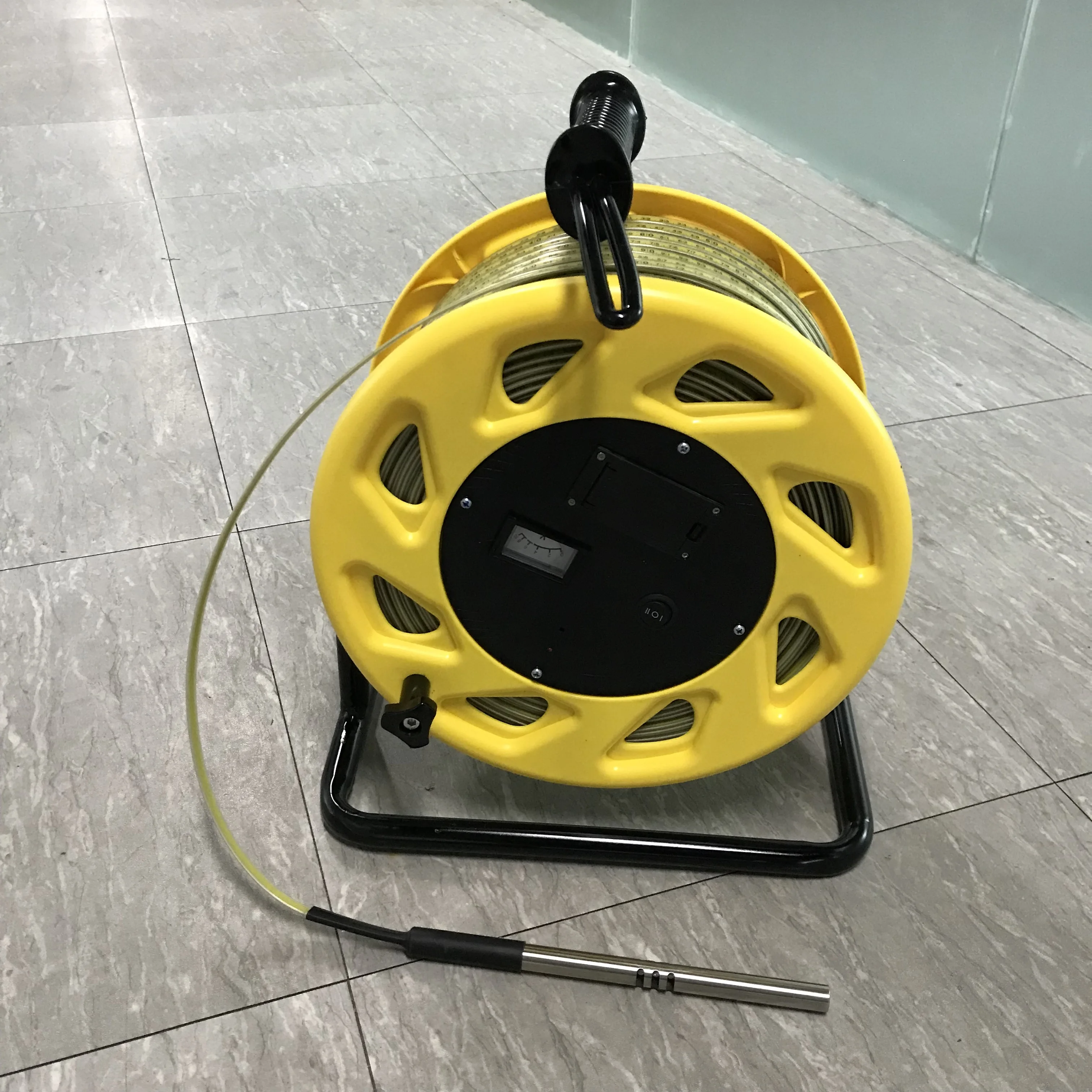

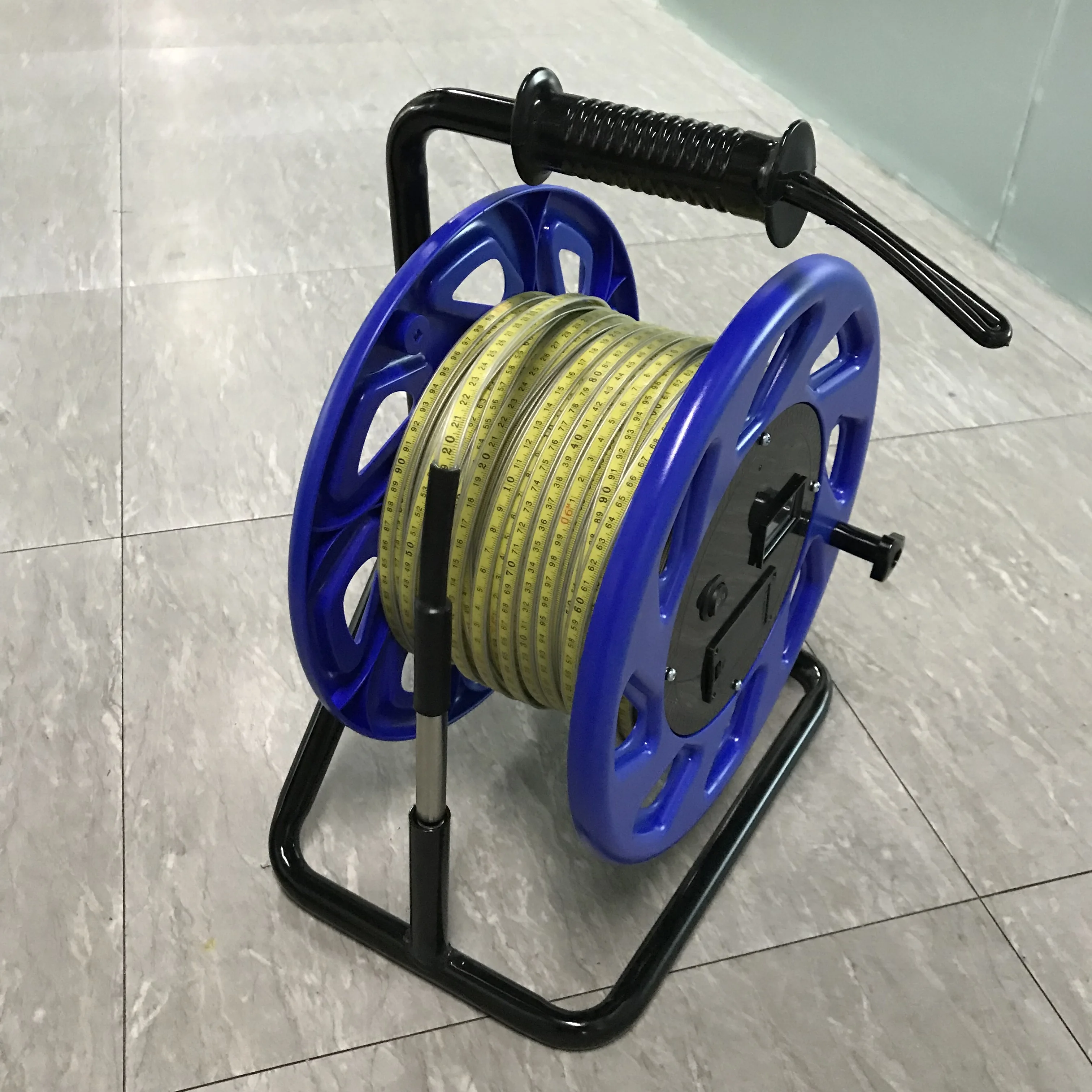

The measurement of the water level by the following two parts: 1. Underground material, it is composed by water level pipe and bottom cover (not include in the system,it is need purchased separately) Ground receiver-ruler water level meter, it is composed by detect head, ruler cable, receiver system and cable reel. Detect head: made by steel, inside is a water resistance contact point. When the contact point contact water, the receiver system will open, and when the contact point leave the water,the

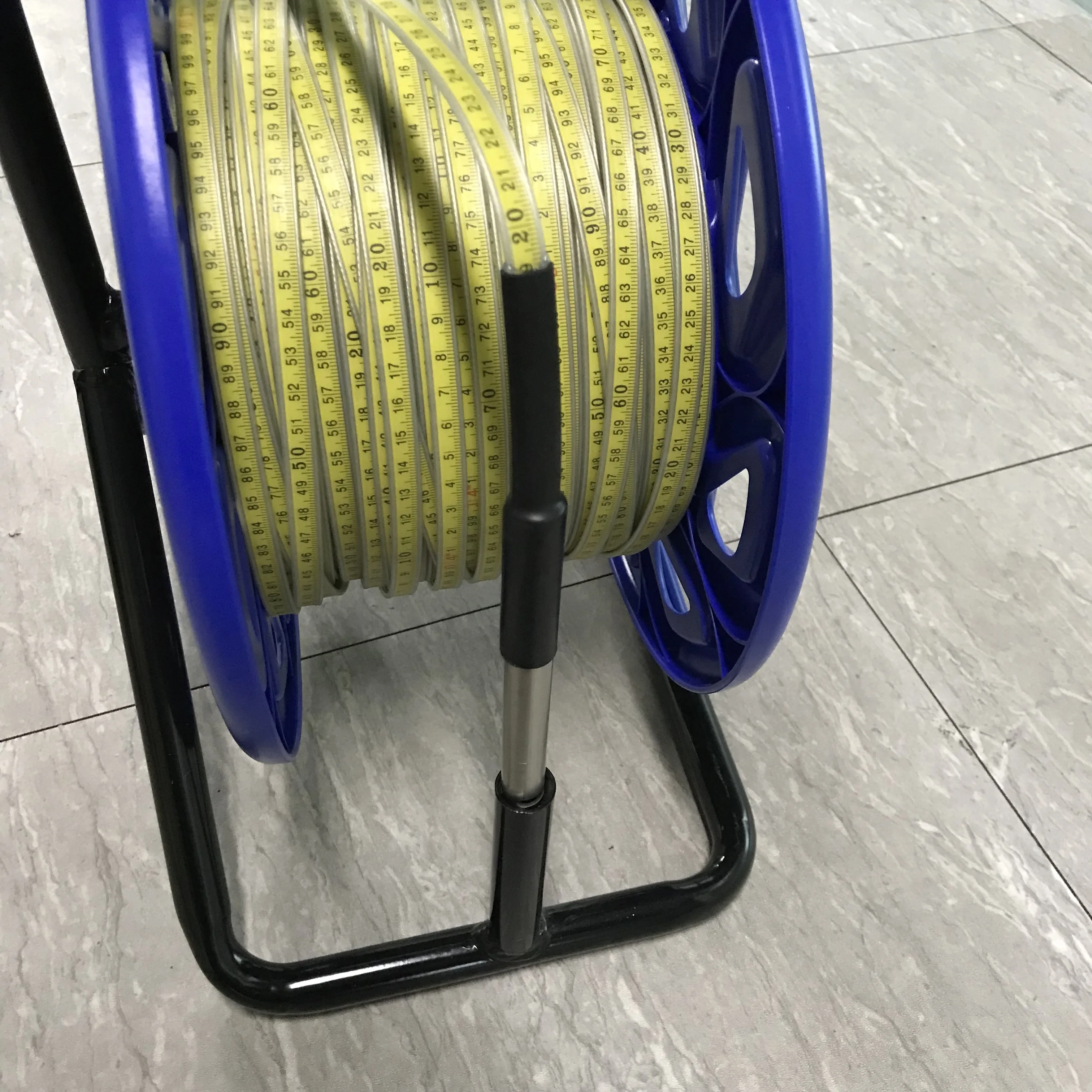

receiver system will close. Ruler cable: it made by ruler and cable, and use plastic technology keep them together, and avoid the
steel corrosion and simple the operation,make the read more convenient and accurate. Receiver system:it is composed by
sounder,indicate light.
The measurement of the water level by the following two parts: 1. Underground material, it is composed by water level pipe and bottom cover (not include in the system,it is need purchased separately) Ground receiver-ruler water level meter, it is composed by detect head, ruler cable, receiver system and cable reel. Detect head: made by steel, inside is a water resistance contact point. When the contact point contact water, the receiver system will open, and when the contact point leave the water,the
receiver system will close. Ruler cable: it made by ruler and cable, and use plastic technology keep them together, and avoid the
steel corrosion and simple the operation,make the read more convenient and accurate. Receiver system:it is composed by
sounder,indicate light.

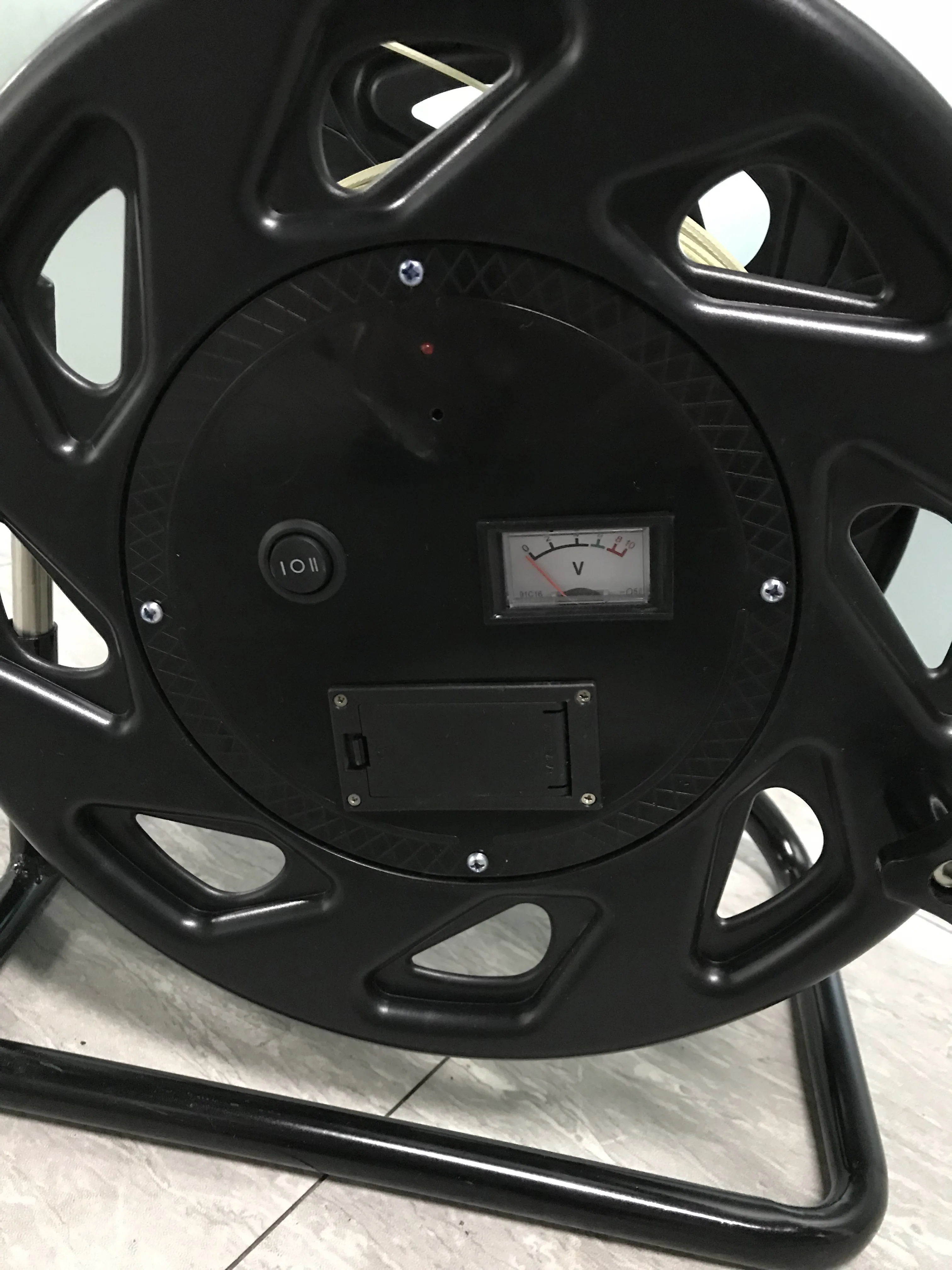

2 the green button in the panel is test button, when push this button, light on and buzzing, that indicatethe circuit is in good
condition. Or else, the circuit have problem or the battery has no power.
Instructions
In measuring, make the cable reel rotate and push the power button,put the detect head in the water pipe, put the ruler cable in
hand and make it drop slowly. When the detect head contact point contact water, the receiver system buzzer will sound. Then you
can read the data of the ruler cable and can know the water level.(if the surrounding voice is loudly, maybe you can hear
buzzer,so you can observe the indicate light and voltage meter).
condition. Or else, the circuit have problem or the battery has no power.
Instructions
In measuring, make the cable reel rotate and push the power button,put the detect head in the water pipe, put the ruler cable in
hand and make it drop slowly. When the detect head contact point contact water, the receiver system buzzer will sound. Then you
can read the data of the ruler cable and can know the water level.(if the surrounding voice is loudly, maybe you can hear
buzzer,so you can observe the indicate light and voltage meter).
Maintenance
Because the system use battery to supply power, so when you finish test,you should keep it power off.Power supply is 9V,when it
has no power,you should open the cover and change it. After measurement, please keep the detect head and cable clean, cable rolled
in cable reel. And put them in a good condition. Unauthorized disassembly of the product, it can not put in water horizontally,the
cable cannot bucking,especially the ends. The detect head should carry and put softly and avoid vibration.
Storage
Customer should open the box and check the product when you receive it.
Storage temperature-10~+40ºC,humidity less than 80%,no aggressive gas.
Product warranty:1 year.
Because the system use battery to supply power, so when you finish test,you should keep it power off.Power supply is 9V,when it
has no power,you should open the cover and change it. After measurement, please keep the detect head and cable clean, cable rolled
in cable reel. And put them in a good condition. Unauthorized disassembly of the product, it can not put in water horizontally,the
cable cannot bucking,especially the ends. The detect head should carry and put softly and avoid vibration.
Storage
Customer should open the box and check the product when you receive it.
Storage temperature-10~+40ºC,humidity less than 80%,no aggressive gas.
Product warranty:1 year.

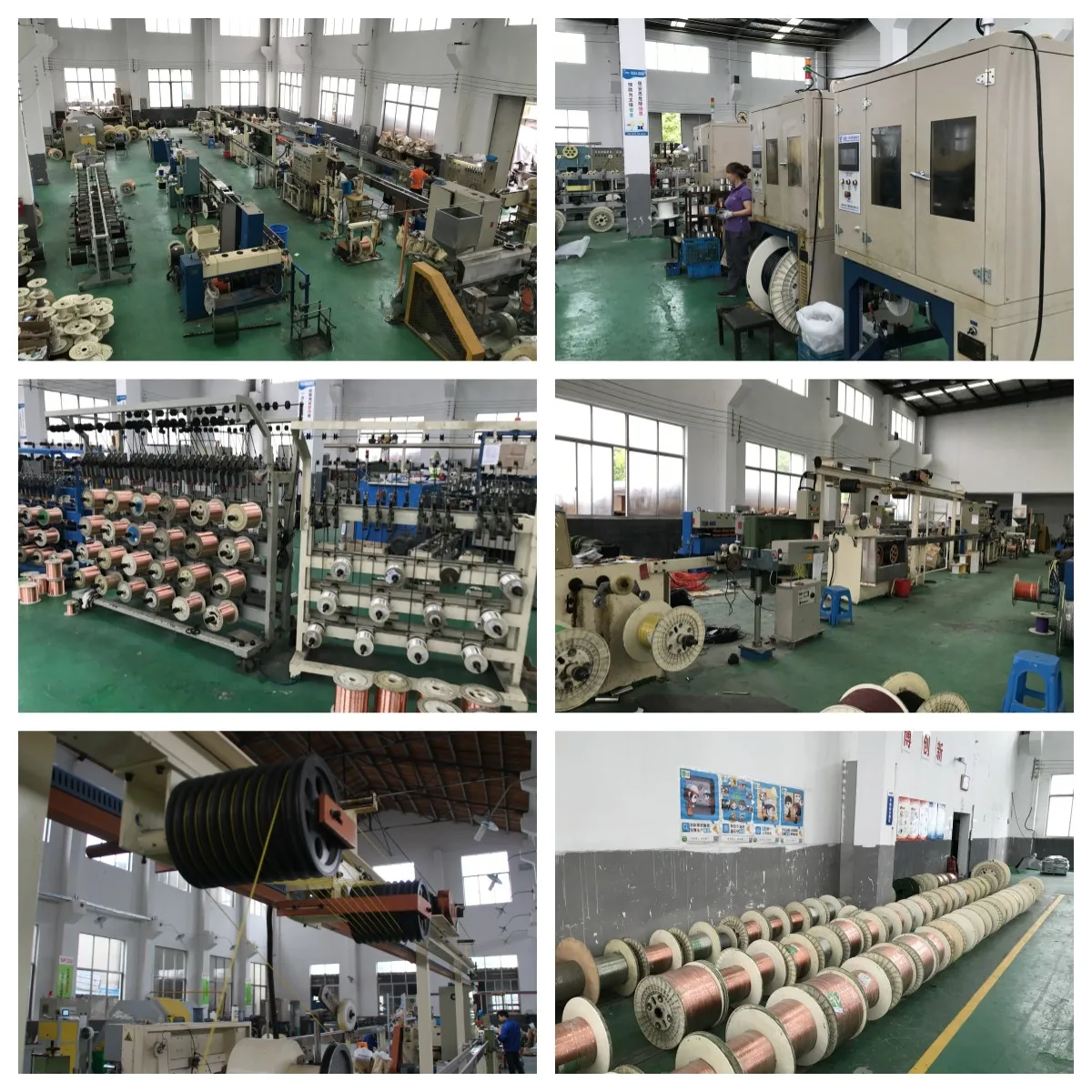

Working Shop
Certifications
Packing and Delivery
Our Company
Lanka Industrial Automation (Shanghai) Co., Ltd is a manufacturer specializing in the production, research, development, and manufacturing of various high flexible cables, drag chains, drag chain cables, spiral cables, flat cables, servo cables, cold resistant cables, waterproof cables, elevator cables, CE related cables, hoist cables, robot cables, and reel cable, which integrates sales and service.
All personnel in the company have considerable experience in the cable industry, The engineers engaged in technical research and development have more than ten years of professional experience in special cables, and the management team also has many years of industry management and promotion experience, providing customers with the most suitable cable selection scheme and troubleshooting in a timely manner. At the same time, let customers enjoy high-quality service and the most cost-effective products is our unremitting pursuit!

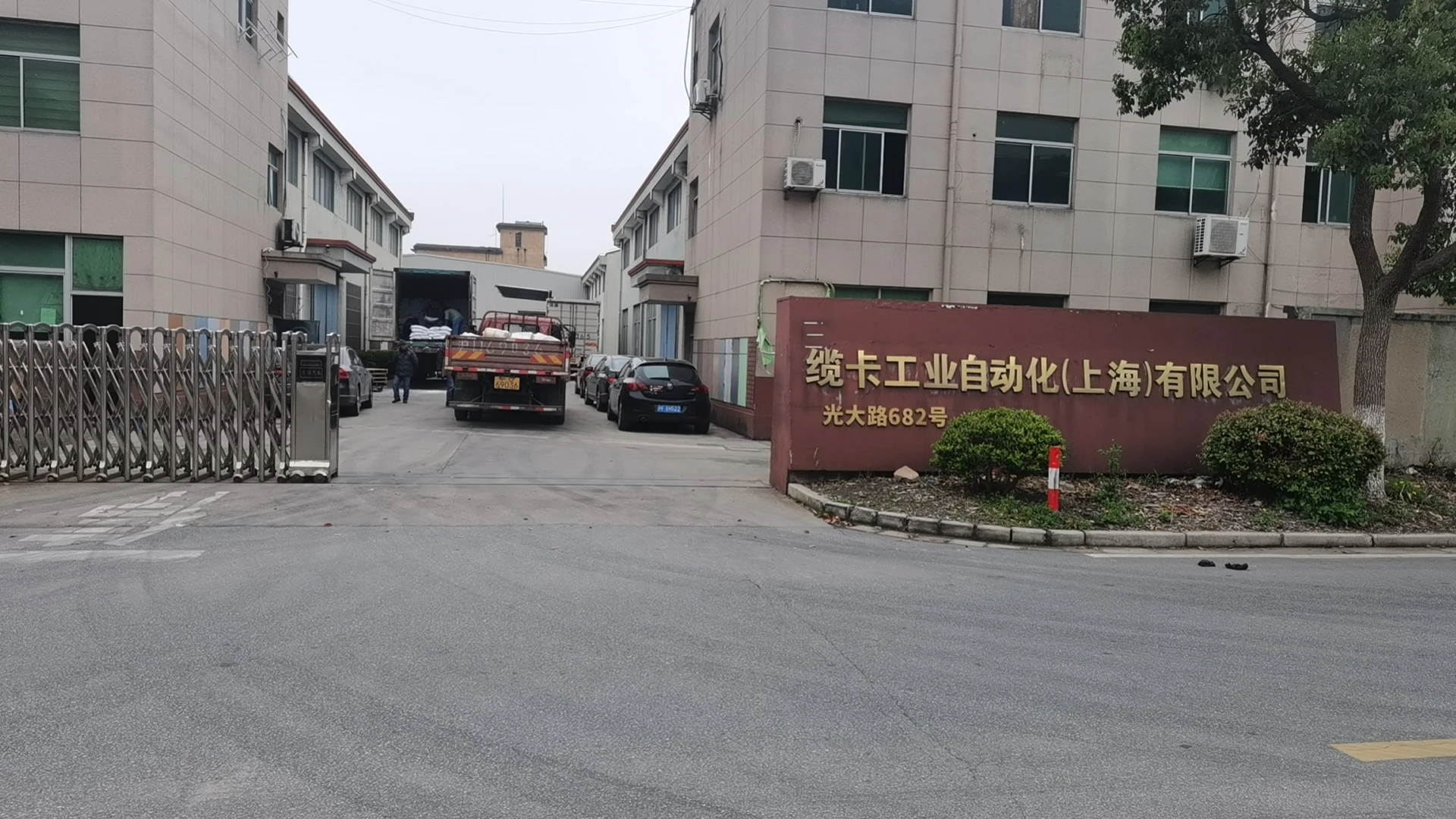

The Lanka industry is located in the center of Nanqiao, Fengxian District, Shanghai, with convenient transportation. The factory area has a clean environment and standardized greening. It has more than ten sets of advanced production and testing equipment, adopts modern internal management, and is establishes in the industry based on the principle of quality , and has received the reliance and support of customers! The products are widely used in mobile drag chain equipment, robot manufacturing, pavers, electronic handwheels, aluminum window equipment, automation systems, machine processing equipment, corrugated machinery, intelligent production lines, logistics and storage equipment, laser cutting machine equipment, automobile manufacturing, winding lifting equipment, lifting systems, printing machinery, petrochemical, metallurgy, construction, railways, communications, transportation, and urban infrastructure construction.

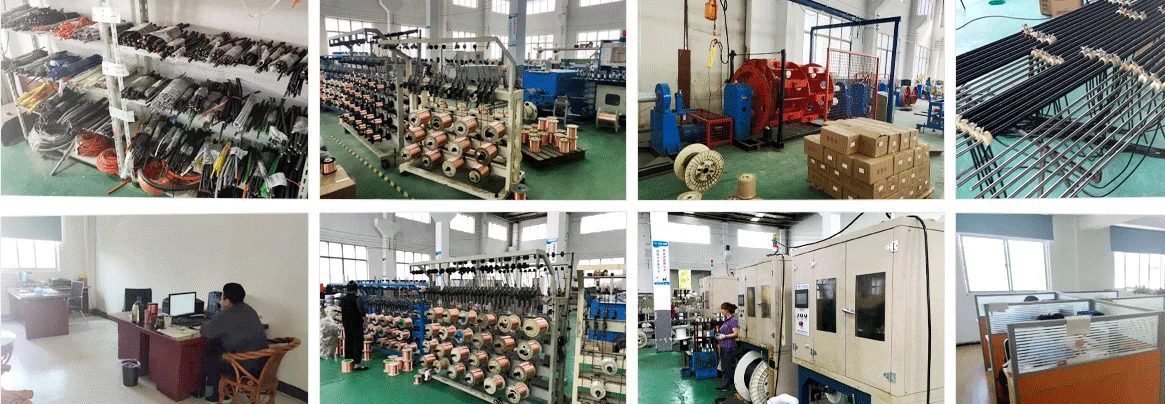

Working Shop

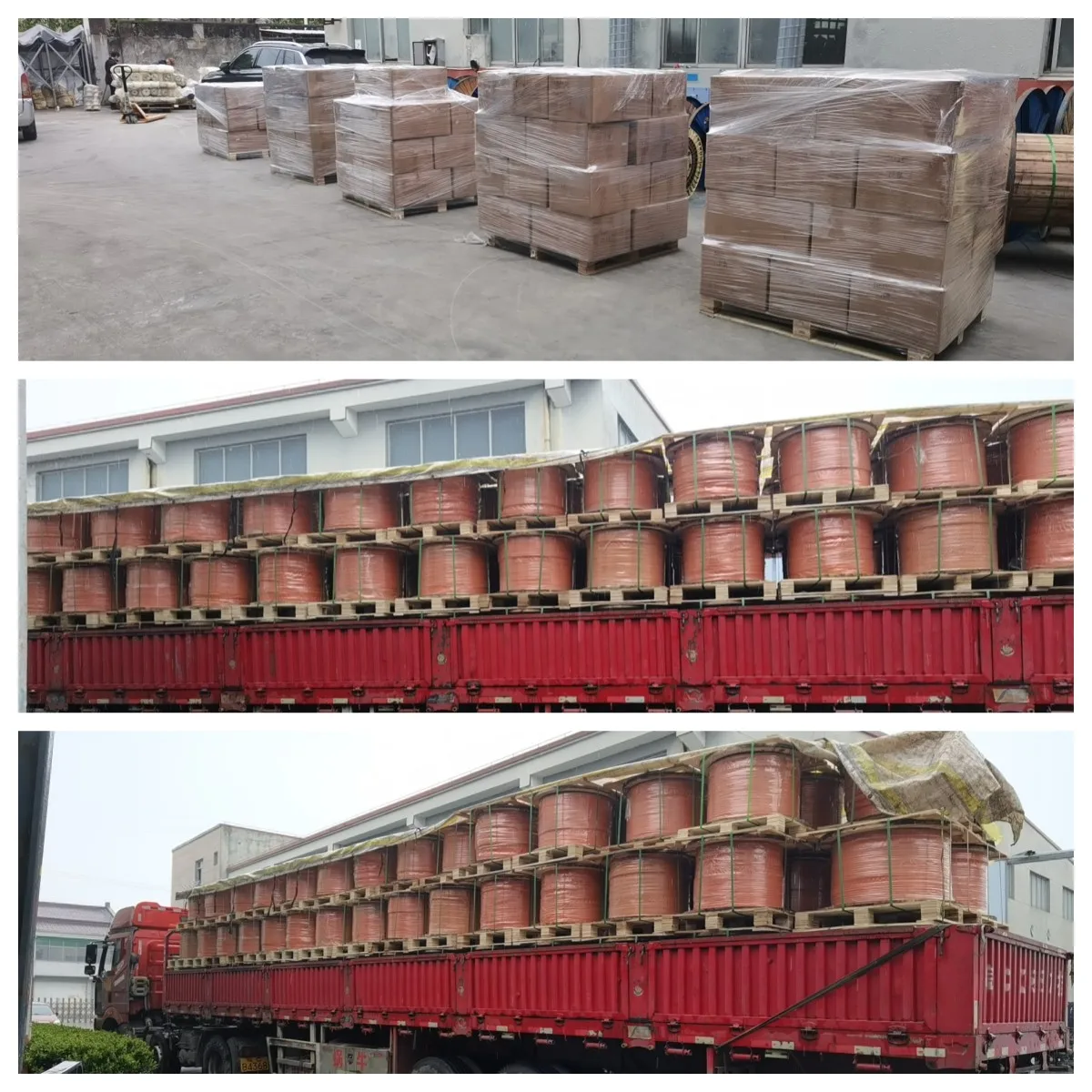

Packing
