Оптический диаметр 12,7 мм JGS1 УФ плавленое кремнеземное Стекло Плоско выпуклые линзы

Product Overview

Description

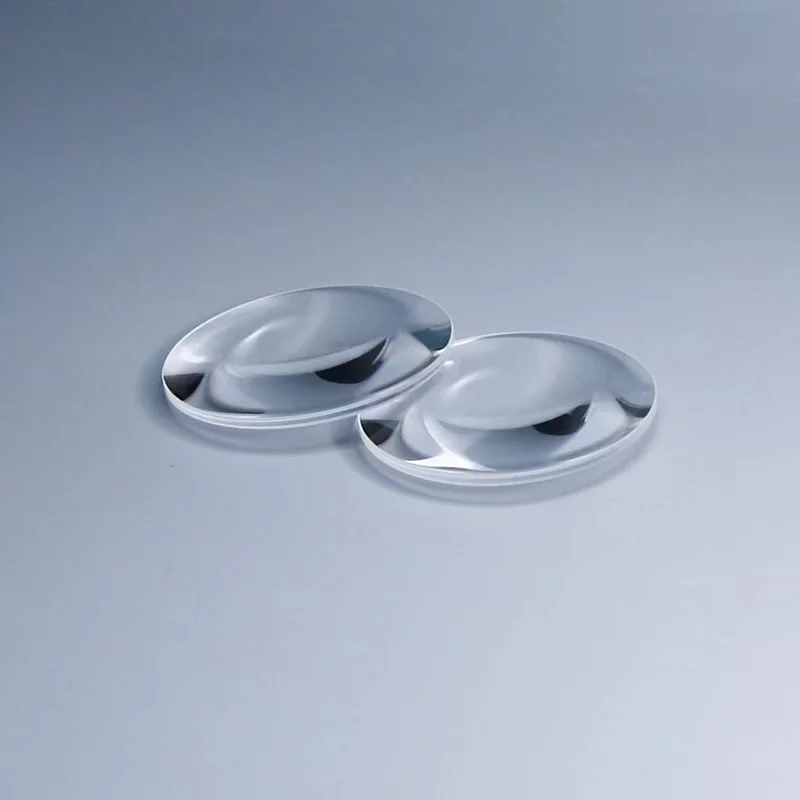

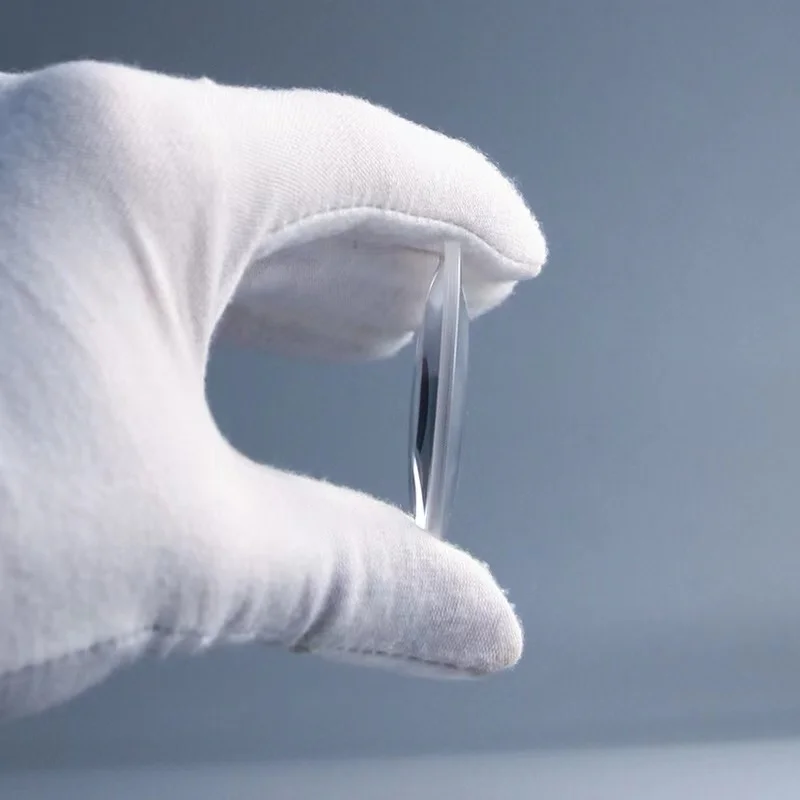

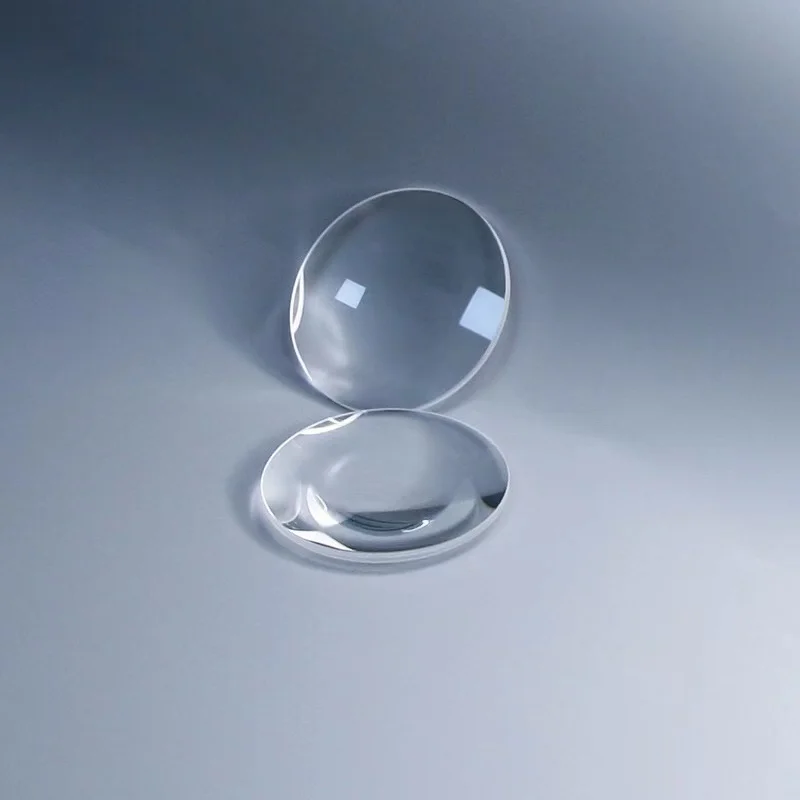

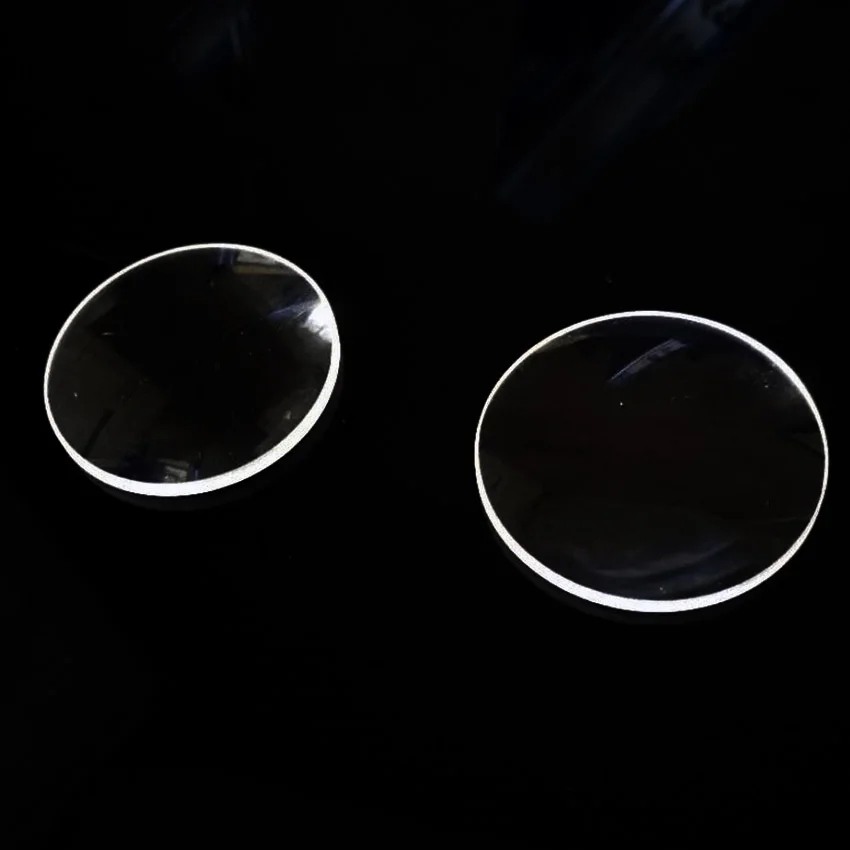

Optical Diameter 12.7mm JGS1 UV fused silica glass plano convex lens

we are manufacturer of optical glass lens and prims,glass filter ,optical reflective mirror and optical window plate

we can make all kinds of optical glass lens and prisms according to your drawing ,

sample or detail request

welcome to inquiry

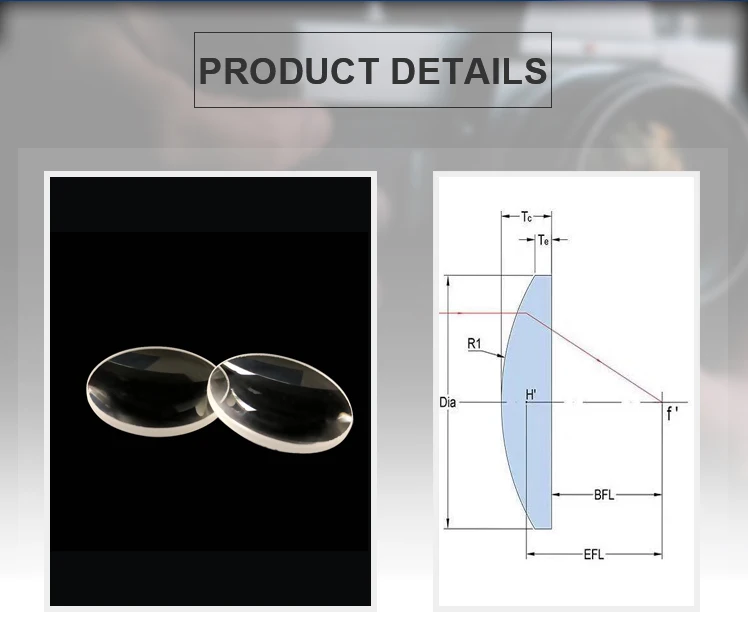

production name	plano convex lens
material	UV JGS1
surface quality	60/40
diameter tolerance	+/-0.0-0.1mm
diameter	12.7mm
focal length	40mm
center thickness	3.1mm
Radius	18.578mm
application	optical equipment





Spherical lens are used to focus, form images, and to collimate or expand light.

They are used in almost every optical system, from high power, deep-UV lasers to low-cost condensers delivering light to a detector.

Spherical lens can converge or diverge the transmission beam and form image of the object, which is widely used in various applications.

Plano-Convex Lens is widely use in optical display systems, projection optics systems, imagining optical systems, and laser measurement systems.

It is best use where conjugate point-- object distance, S or image distance S' is more than five times of the other.

This lens is almost the most super form for both collimating a point source and focusing collimated light.



















Packaging & Delivery.

Packaging Details:
Inner packing-------special protective packing for optical products.
Outer packing------carton, Shock absorption material and bubble wrap

Delivery Time
7-20days
Delivery: Generally, we use the Fedex, DHL, UPS, TNT, Shunfeng, etc. Please note it before delivery.

Transit time deponds on the express and destination. By the way, we would re-check all the details before delivery.
