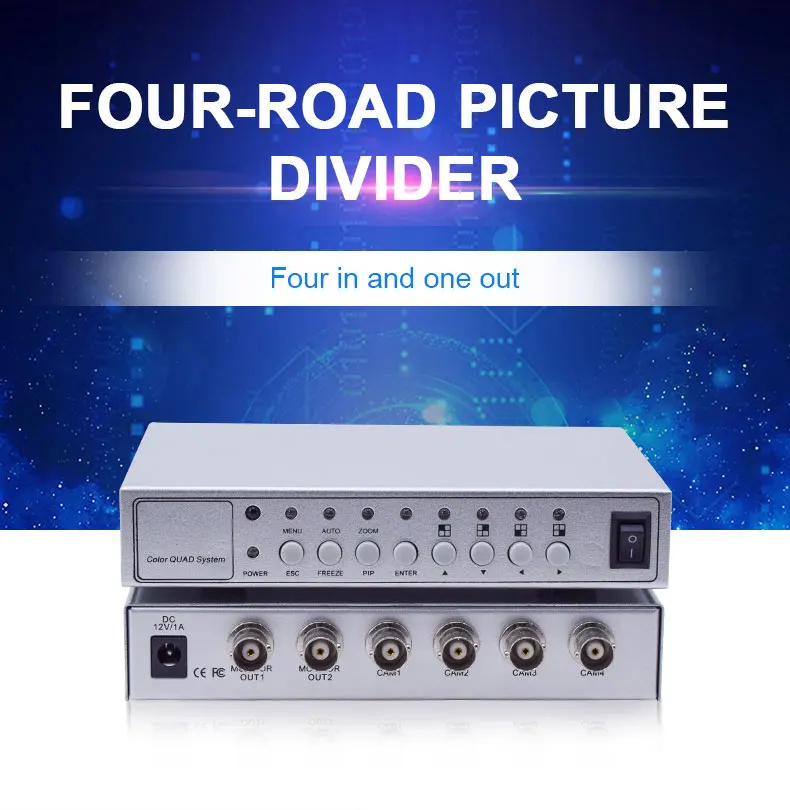

4 channel screen divider picture in picture with remote control screen splitter
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1600818758832):
Product Overview
Description
Product Introduction
Product characteristic:
1. High-resolution picture quality.
2. NTSC/PAL dual video system.
3. The Chinese and English language menu.
4. Independent adjustment of channel image quality.

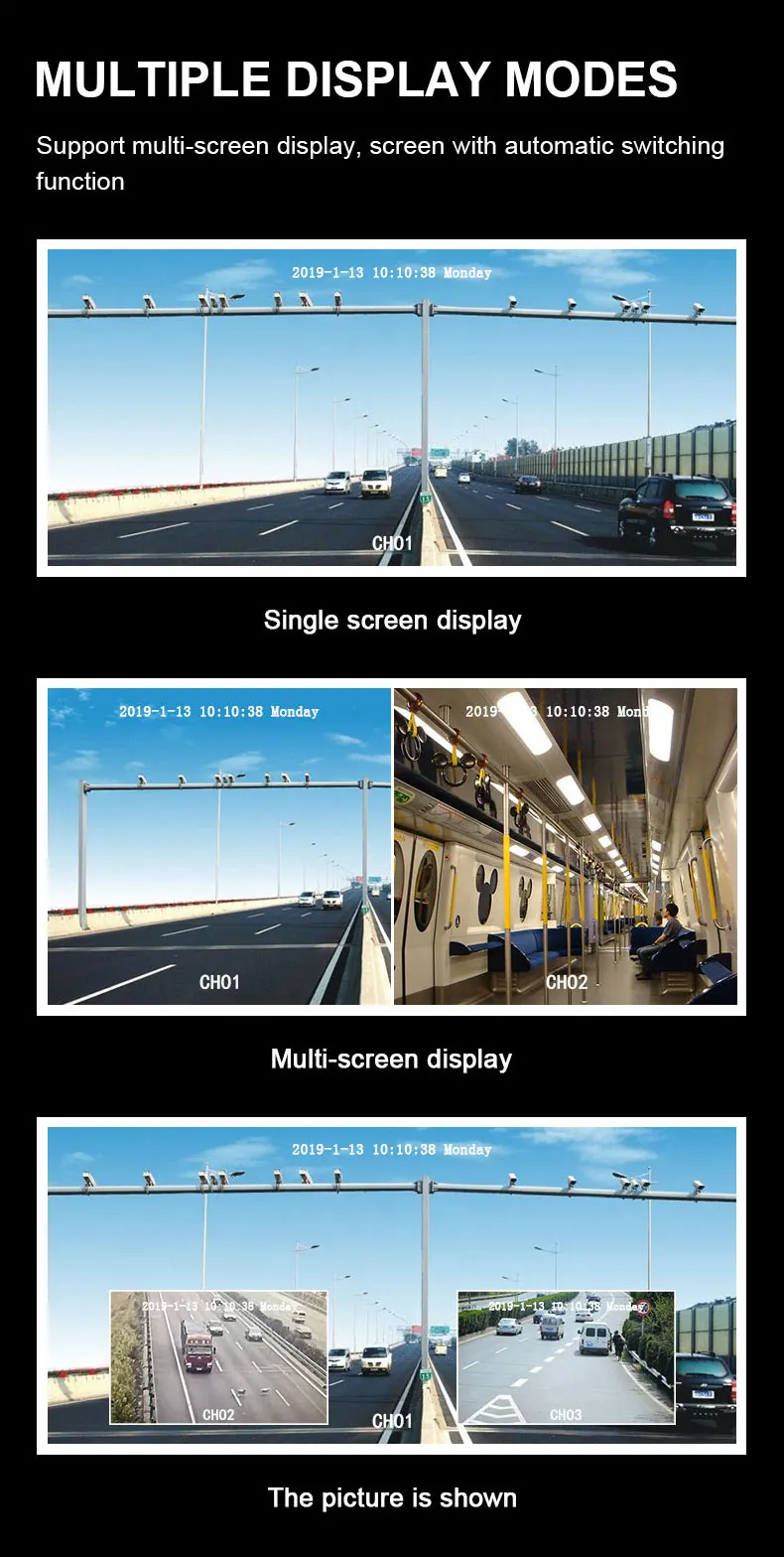

5. Automatic screen switch function.
2. NTSC/PAL dual video system.
3. The Chinese and English language menu.
4. Independent adjustment of channel image quality.
5. Automatic screen switch function.
6. Channel number can be edited arbitrarily.

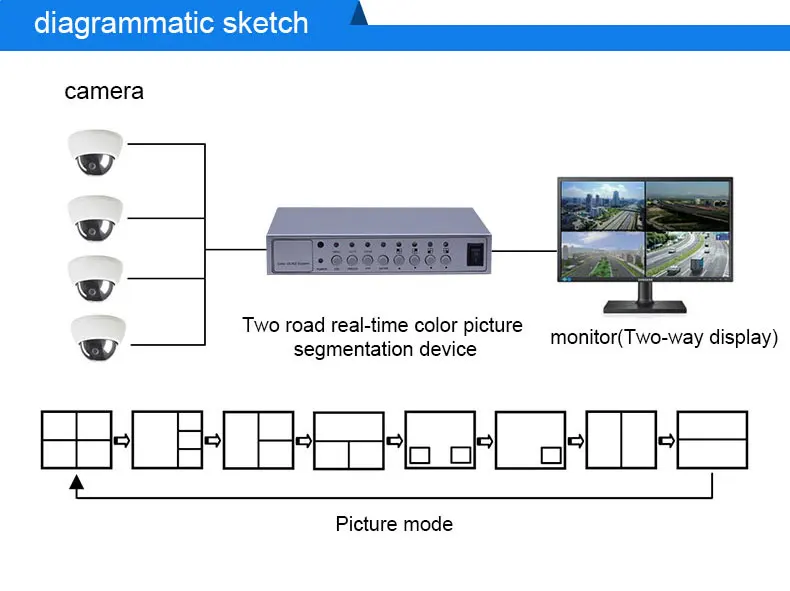

7. Two picture-in-picture functions,one with adjustable display position and channel.
8. Two-screen function.display screen position adjustable,and channel adjustable.
9. ZOOM electronic amplification function,can select any amplification area.
10.Mobile reconnaissance alarm;Screen loss alarm function.
11.60 groups of event records (mobile reconnaissance and picture loss alarm records).
12.The screen position can be adjusted and the alarm time can be set.

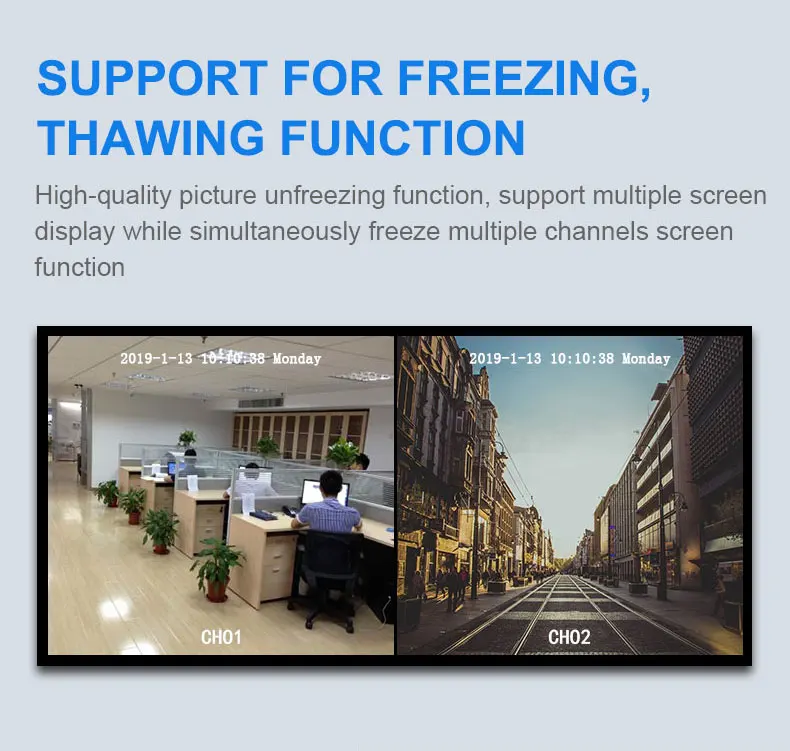

13.High-quality picture freezing function,supporting the function of the freezing multiple channel pictures at the same time under multi-screen display.

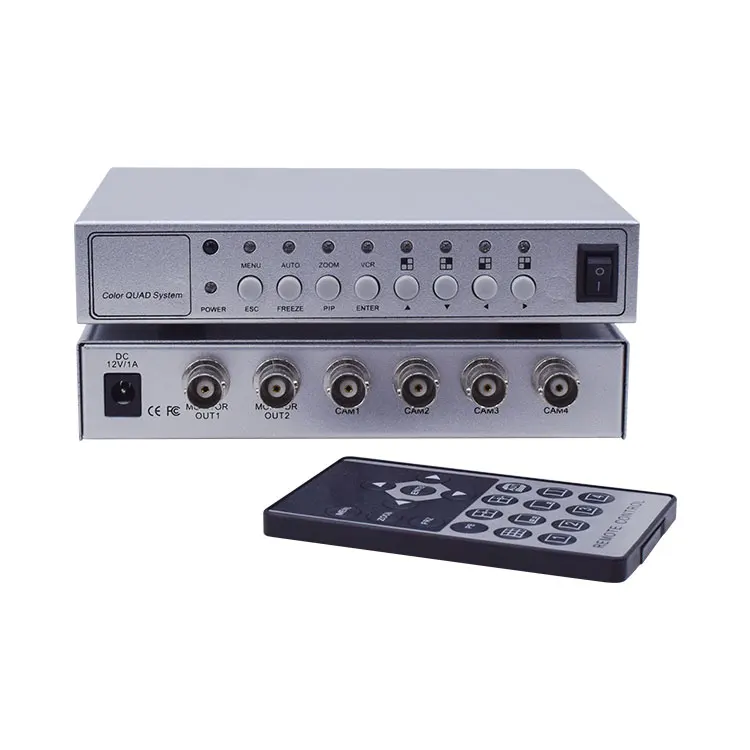

14.Support infrared remote control operation.(Note:This device contains a remote conmtrol,but does not control a power adapter,which is optional.)
Product Specifications
Product Type | Screen Splitter | |
Product Model | YK-TG04S | |
Video system | PAL/NTSC | |

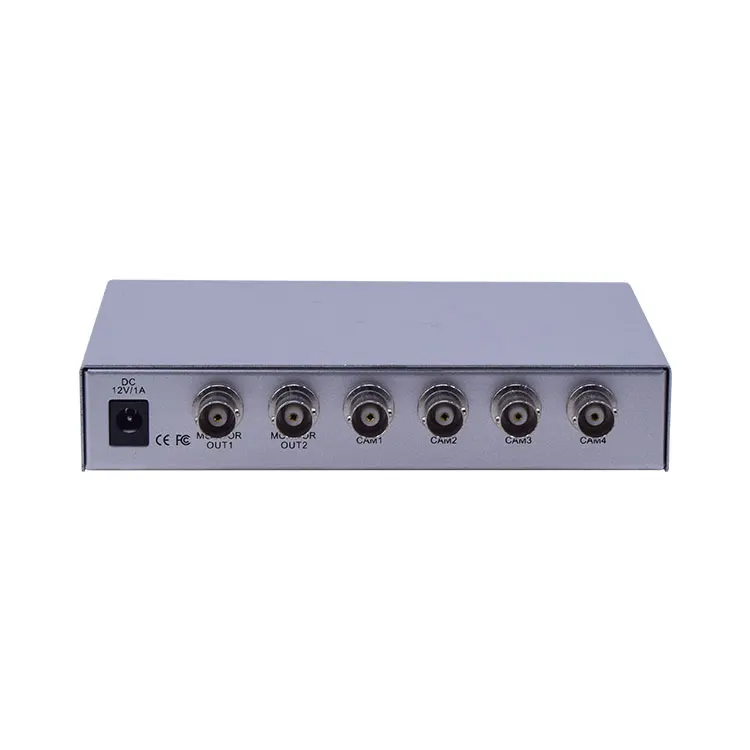

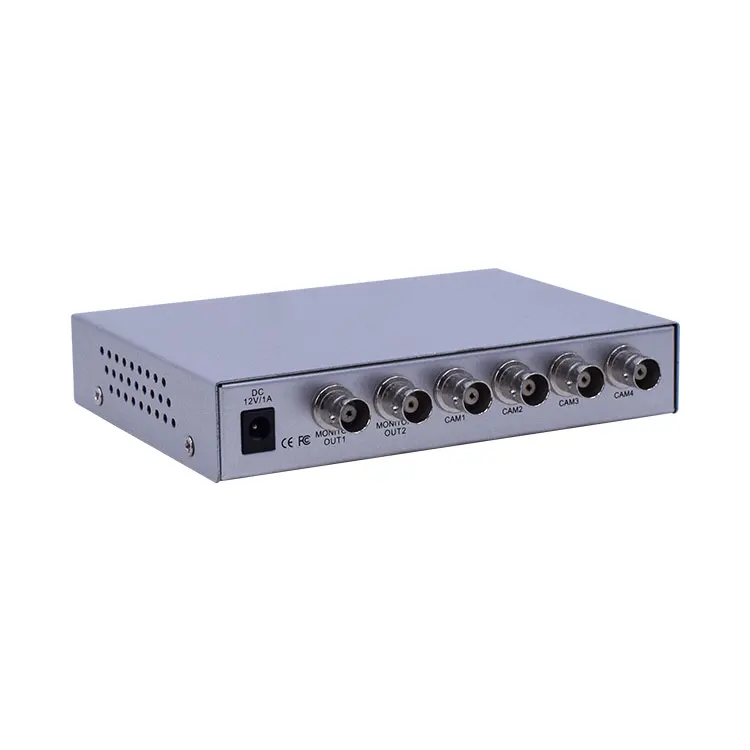

video in | 4 Road BNC,summit:1Vp-p,impedance:75Ω | |
1-channel VCR video signal output,summit:1Vp-p,impedance:75Ω | ||
video out | 1 Road BNC,summit:1Vp-p,impedance:75Ω | |
1-channel VCR video signal output,summit:1Vp-p,impedance:75Ω | ||
Screen refresh rate | Phase Alternation Line system:25Frame / second; National Television System Committee system:30Frame / second | |
resolution ratio | Phase Alternation Line system:720x576; National Television System Committee system:720x480 | |
Video adjustment | luminance,contrast ratio,saturation,chroma control | |
language | The Chinese and English operation menu | |
input voltage | DC 12V | |
temperature range | -10℃~+60℃ | |
weight | 0.5Kg | |

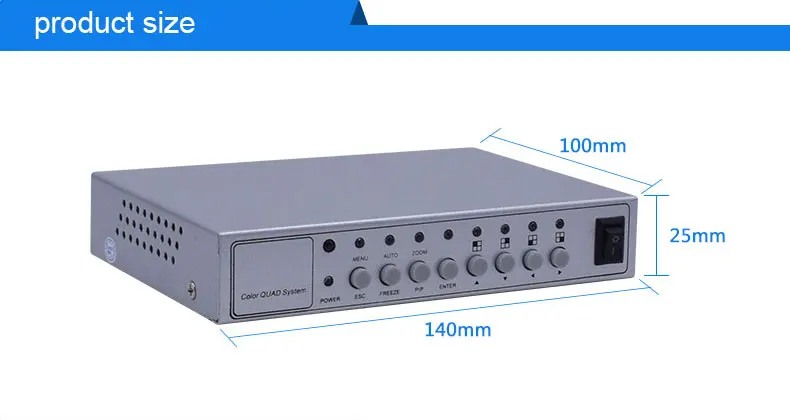

size of product | 145mm(length) x 100mm(width) x 25mm(height) | |

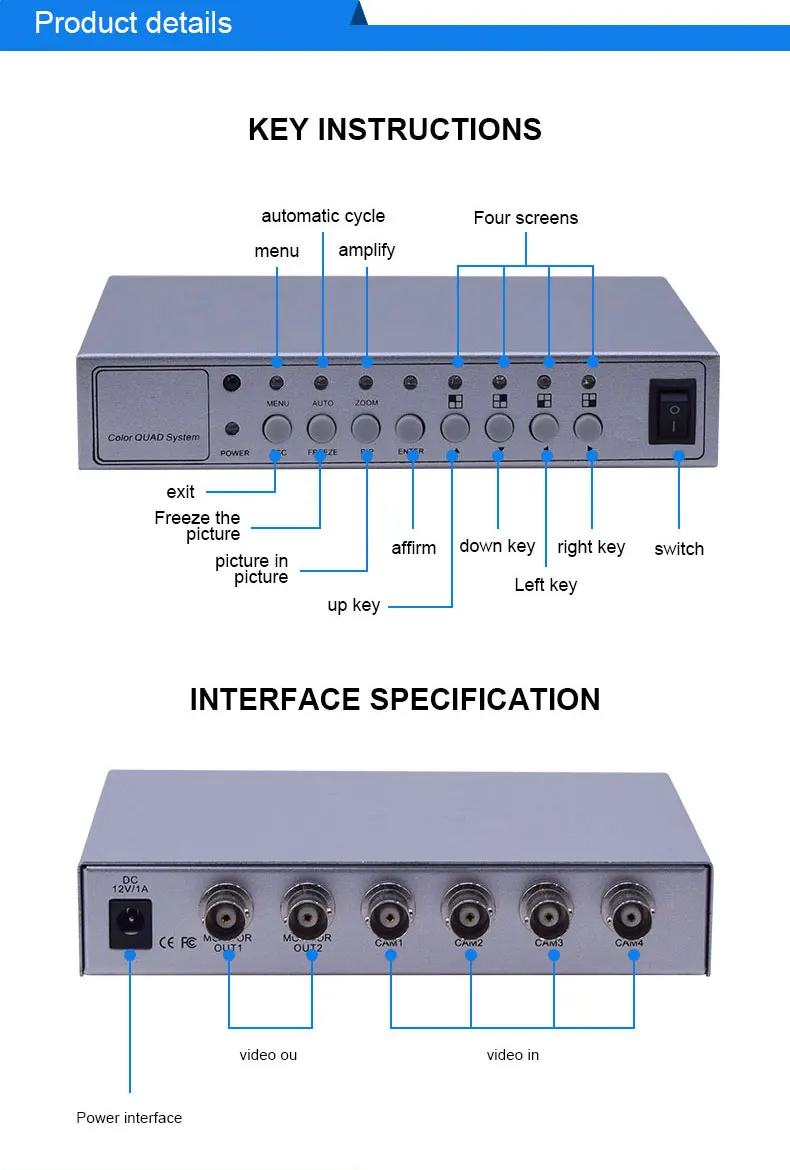

Product Details
