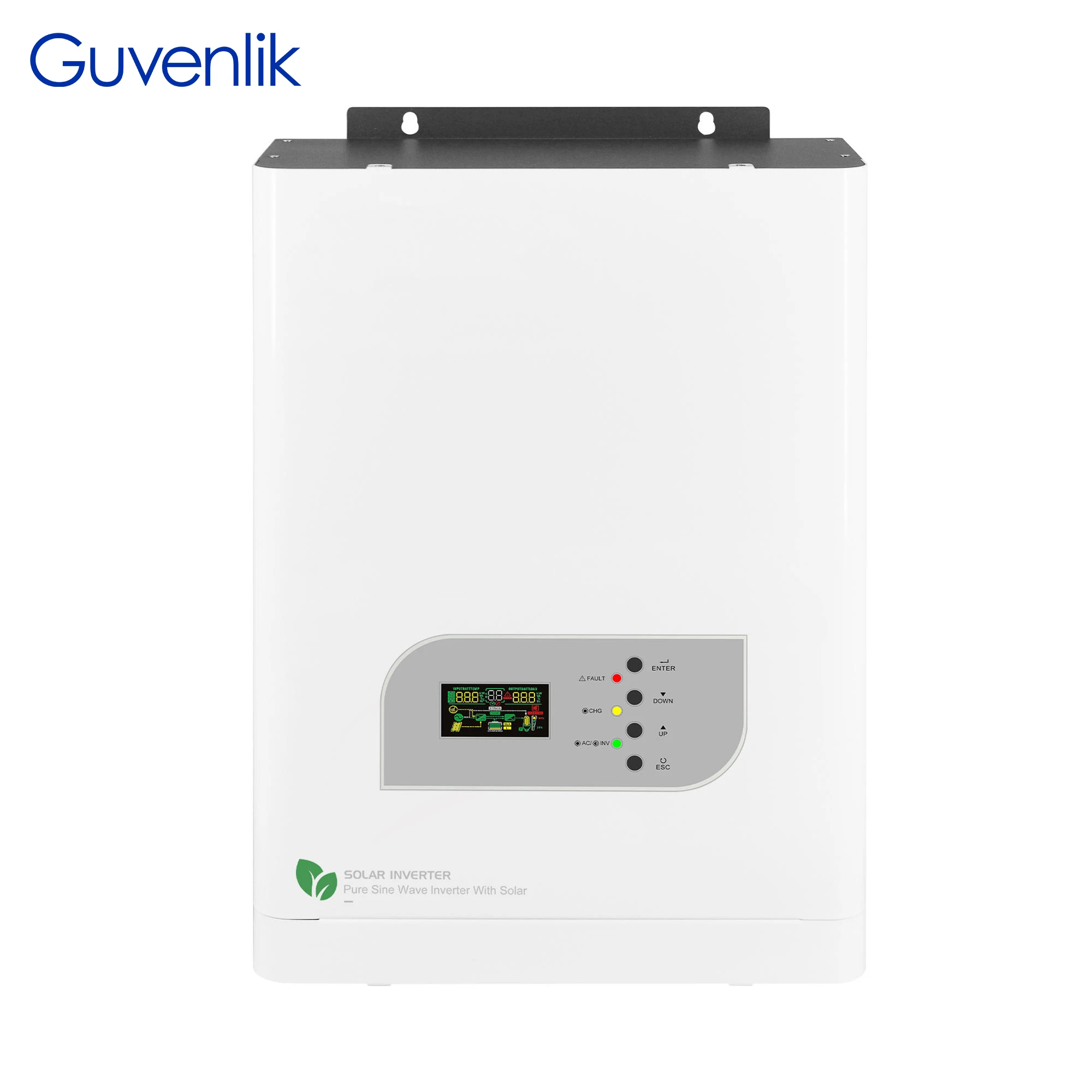

Guvenlik 1200w 2400w Dc Ac Power Pure Sine Wave Low Frequency Off Grid Mppt Charge Controller Hybrid Solar Inverter
- Category: >>>
- Supplier: Dongguan Guvenlik Electric Technology Co. Ltd.
Share on (1600818780960):
Product Overview
Description
Why Choose Us
Product Overview
Products Description
Product Paramenters
Model | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | ||||
Input Voltage(DC) | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V | ||||
Nominal Voltage | 220VAC(Standard) | ||||||||
Rated Power | 800W | 1200W | 1600W | 2400W | 4000W | ||||
Waveform | Pure Sine Wave | ||||||||
Battery Type | VRLA / GEL /GEL DEEP CYCLE/LITHIUM | ||||||||
Maximum pv array power | 12V:800W / 24V:1600W/ 48V:3200W | ||||||||
PV Input Voltage Range (PWM Controller) | 12V:MPPT 15V-150VDC / PWM 15V-30VDC | ||||||||
24V:MPPT 30V-150VDC / PWM 30V-60VDC | |||||||||
48V:MPPT 60V-150VDC / PWM 60V-105VDC | |||||||||
Maximum solar charging current | 60A | ||||||||
Maximum AC charging current | 15A/8A | 30A/15A | 40A/20A | 30A/15A | 42A/21A | ||||
Transfer Time | <10ms(UPS mode)/<20ms (INV mode) | ||||||||
Load peak ratio | (MAX)3:1 | ||||||||
Static power(W) | 5W | 11.5W | 13W | 15W | 20W | ||||
Protections | Power supply: Input overcurrent protector | ||||||||
Company Profile
Certifications
FAQ
Note 1: Some customers report Solar Grid Tie Inverter connecting solar panels, No light.
This is because the customer has extended the solar panel connection cable. (Positive and negative poles are opposite)
Note 2: Some customers reported using the grid tie solar Inverter for less than 1 month, and the product showed a red light. stop working.
This is because customers use solar panels of different specifications. For 600W, please use 2PCS solar panels with the same specifications. (Voltage, current, power, all need to be the same)
Recommended solar panel: 2X300W Voc36-50V. Voc(of a solar panel) must be in the 36-50V range to ensure the good output efficiency Please do not install outdoors, avoid rain. You can install Solar Microinverters in a ventilated, dry, cool place.
Due to the special properties of solar panels, a wider range of voltage designs can achieve more energy. DC18-50V input, many customers will think that Solar micro-inverters can be used with DC18V/50V. This is a wrong understanding!
This is because the customer has extended the solar panel connection cable. (Positive and negative poles are opposite)
Note 2: Some customers reported using the grid tie solar Inverter for less than 1 month, and the product showed a red light. stop working.
This is because customers use solar panels of different specifications. For 600W, please use 2PCS solar panels with the same specifications. (Voltage, current, power, all need to be the same)
Recommended solar panel: 2X300W Voc36-50V. Voc(of a solar panel) must be in the 36-50V range to ensure the good output efficiency Please do not install outdoors, avoid rain. You can install Solar Microinverters in a ventilated, dry, cool place.
Due to the special properties of solar panels, a wider range of voltage designs can achieve more energy. DC18-50V input, many customers will think that Solar micro-inverters can be used with DC18V/50V. This is a wrong understanding!
